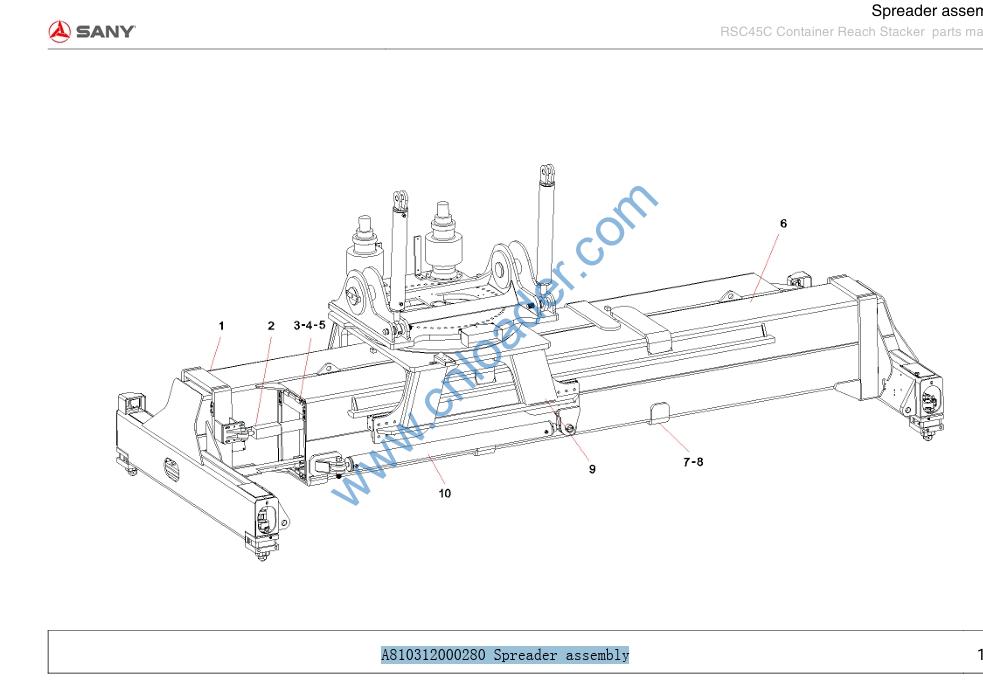

A810312000280 Spreader assembly

A810312000280 Spreader assembly

1 A810201050344 Electrical system of spreader 1
2 A810201060288 Hydraulic system 1
3 A210111000011 Bolt 4
4 A210405000011 Plain washer 4
5 A820101331392 Hydraulic tube support 1
6 A810421000786 Cross beam assembly 1
7 A810508000146 Nameplate 1
8 A210506000016 Rivet 4
9 A810421000785 Turntable assembly 1
10 10201421 “Cylinder,Side-Shifting,ZXSDJ450.5” 2

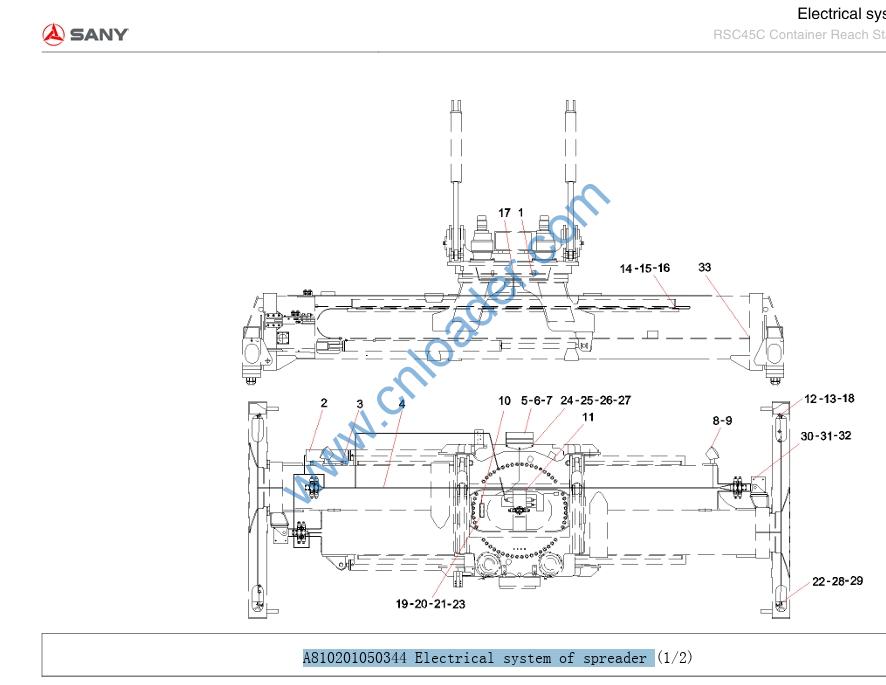

A810201050344 Electrical system of spreader

1 B210840000016 Single pipe clamp 6
2 A810201052736 Control box assembly of spreader 1
3 A810201058505 Spreader mounting harness 1
4 60024057 LED Indicator Lamp 1
5 60024055 LED Indicator Lamp 1
6 60024056 LED Indicator Lamp 1
7 B241100000421 Working Lamp 2
8 B241100000047 Bulb 2
9 A240600000055 Proximity Switch 12
10 A241200001060 24-wire plug adaptor cover plate 1
11 A810421000802 Buffer threaded stud 4
12 A210405000007 Plain washer 4
13 A210307000012 Nut 4
14 A230200000175 Wire clip 3
15 A230200000176 wire clamp3700940 11
16 A230200000178 Wire clip 2
17 A249900000528 Long threaded type Wearing torque Fixed 1
18 A210401000017 Spring washer 4
19 A210307000016 Nut 10
20 A210405000006 Plain washer 26
21 A210401000016 Spring washer 30
22 A210210000015 Screw 4

23 A210204000137 Screw 8
24 A210241000001 Screw 9
25 A210405000004 Plain washer 9
26 A210401000013 Spring washer 9
27 A210307000014 Nut 9
28 A210204000139 Screw 8
29 A210204000129 Screw 16
30 A210210000006 Screw 4
31 A210405000005 Plain washer 4
32 A210401000015 Spring washer 4
33 A249900000970 Nylon cable joint 14

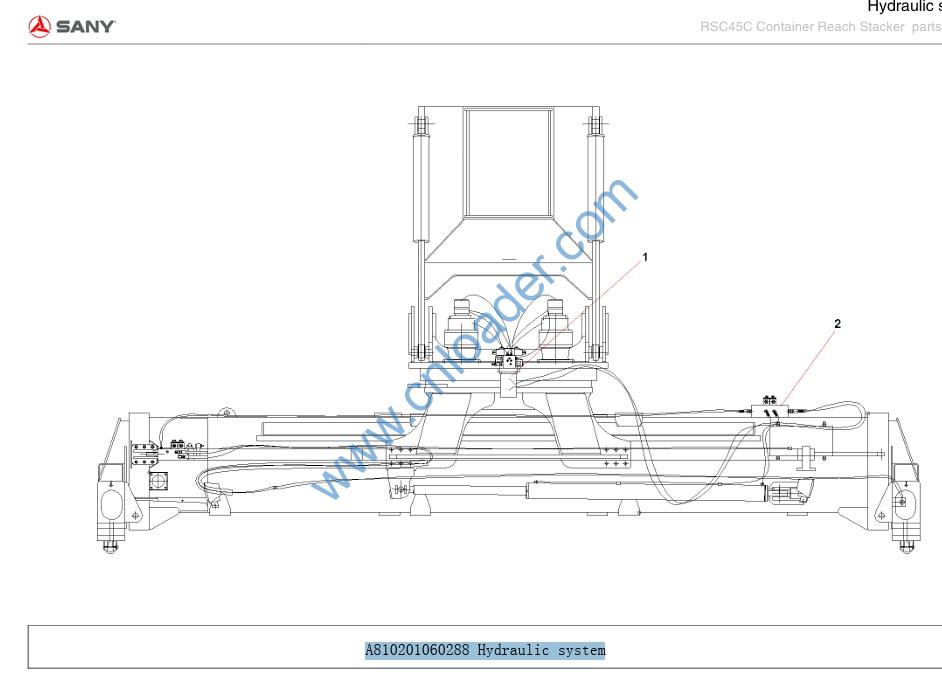

A810201060288 Hydraulic system

1 A810201060302 Hydraulic system of cross beam 1
2 A810201060301 Turntable hydraulic system 1

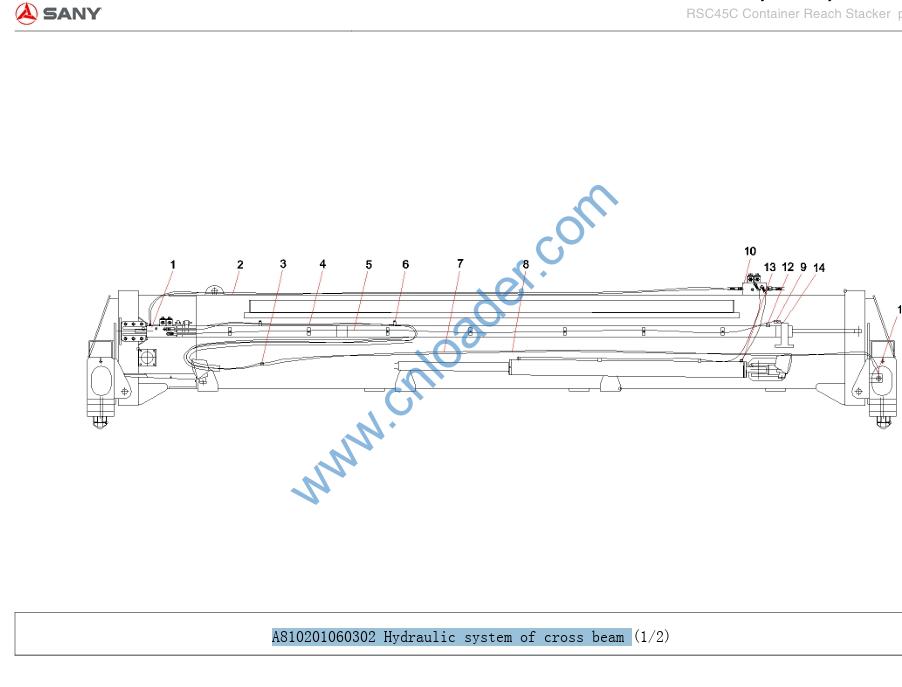

A810201060302 Hydraulic system of cross beam

1 A810201062341 Telescopic valve block 2
2 B230103004301 Rubber Hose 2
3 B210780001445 Pipe connector 4
4 B230103005312 Rubber Hose 4
5 B230103003495 Rubber Hose 2SN8-DKOL-4500 2
6 B210852000002 Double pipe clamp 24
7 B230103005313 Rubber Hose 2
8 B230103005314 Hose Assembly 2SN6-DKOL-5500Q/SY1102 2
9 21018928 Check valve 2
10 A810201062342 Side-shift valve group 1
11 B210780000176 Pipe joint 4
12 B210780000636 Pipe joint 2
13 B210780000025 Pipe joint 4
14 60034078 Rubber Hose 2

15 B210780000631 Pipe joint 2
16 B210780001028 Pipe Joint GE10LM22×1.5EDA3C 4
17 B210780001404 Pipe joint 2
18 A210204000341 Screw M8×25GB70.1-00 Class 10.9 24
19 B210851000004 Single pipe clamp 4
20 B230103000348 Rubber Hose 1
21 B230103000336 Rubber Hose 2SN12-DKOL-1300 1
22 B230103003503 Rubber Hose 1
23 B230103005619 Rubber Hose 1
24 B230103000356 Rubber Hose 1
25 B210780000042 Pipe joint 4
26 B230103000345 Rubber Hose 1
27 B210852000004 Double pipe clamp 12
28 A210204000170 Screw 5
29 A210204000184 Screw 5
30 B210780000177 Pipe joint 4
