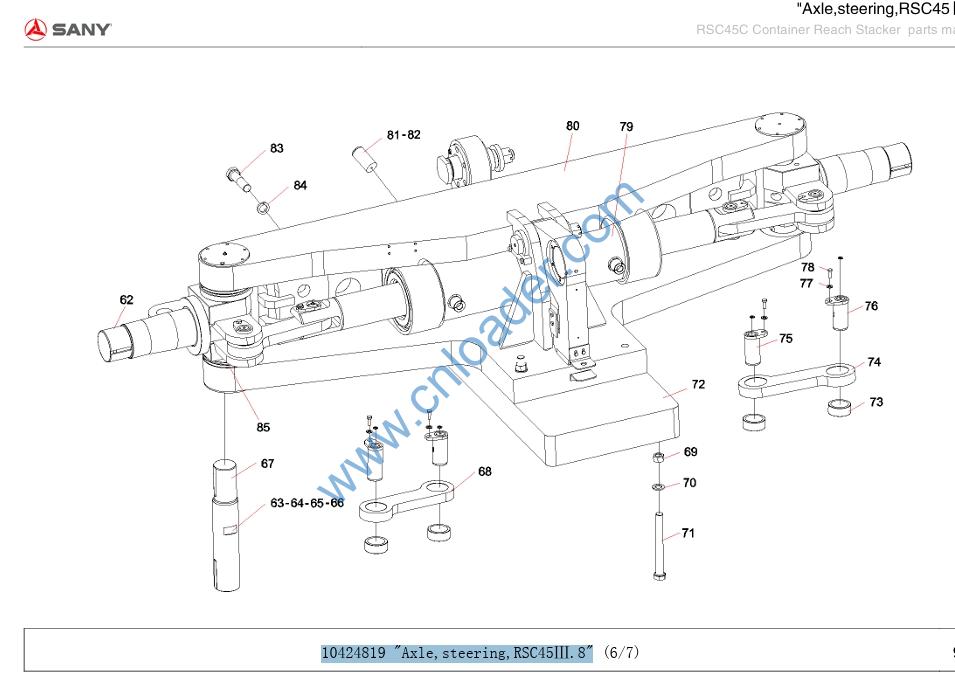

10424819 “Axle,steering,RSC45Ⅲ.8”

10424819 “Axle,steering,RSC45Ⅲ.8”

62 10614439 “Knuckle,Steering,RSC45Ⅲ.8.9” 2
63 10506526斜销RSC45Ⅲ.8-18 2
64 A820102010535 Inclined pin washer 2
65 A210307000028 Nut 2
66 A210401000004 Washer16GB93 2
67 10892015 “Lock pin,steering,RSC45Ⅲ.8-8A” 2
68 10612860 “Connecting rod,left,RSC45Ⅲ.8-5” 1
69 A210307000030 Nut 8
70 A210405000009 Plain washer 4
71 A210110000109 Bolt 4
72 10268154 Block, counterweight, rear axle 1
73 A210612000011 Joint bearing 4
74 10611642 “Connecting rod,right,RSC45Ⅲ.8-4” 1
75 10423036 Assembly,lock pin,connecting rod 2
76 10507656 Assembly,lock pin,connecting rod 2
77 A210405000001 Plain washer 10
78 A210111000202 Bolt 8
79 10421960 Steering Cylinder 1
80 10421350 “Beam,axle,steering,RSC45Ⅲ.8.4” 1
81 10431415 Assembly, locating pin, oil cylinder 1
82 A210111000203 Bolt 2
83 A210113000274 Bolt 8

84 A210401000011 Spring washer 8
85 A210503000024 shaft 8

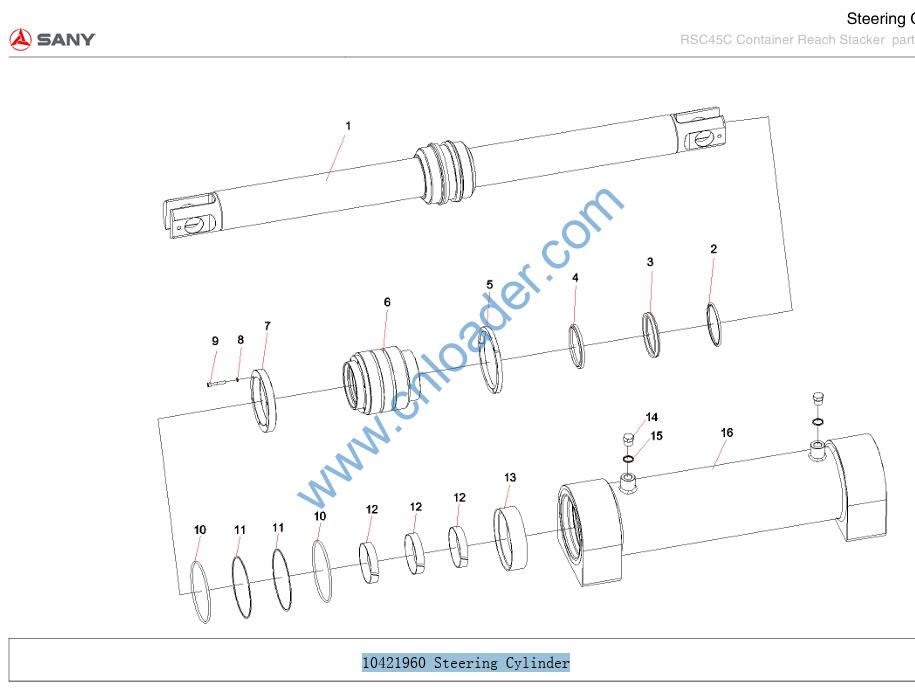

10421960 Steering Cylinder

1 10421967 Piston Rod Component 1
2 A880806030017 CRGS-type seal ring 2
3 B230101001856 seal ring 2
4 60000474 seal ring 2
5 10421958 “Key,clipping,RSC45Ⅲ.8.3-3” 2
6 10421956 “Sleeve, guide,RSC45Ⅲ.8.3-1” 2
7 10421959 “Ring, retainer,RSC45Ⅲ.8.3-4” 2
8 A210401000017 Spring washer 12
9 24002398 Screw M8×50GB70.1 Grade 12.9 12
10 A210609000260 O-ring 4
11 10250757 “Ring, retainer,ZX_DQ200×5.3” 4
12 A880803040012 Guide Ring 6
13 A880806030154 CRMD-type seal ring 1
14 A210341000005 Screw Plug 2
15 A210434000013 Washer 2
16 10421964 Components, cylinder drum,RSC45Ⅲ.8.3.1 1
