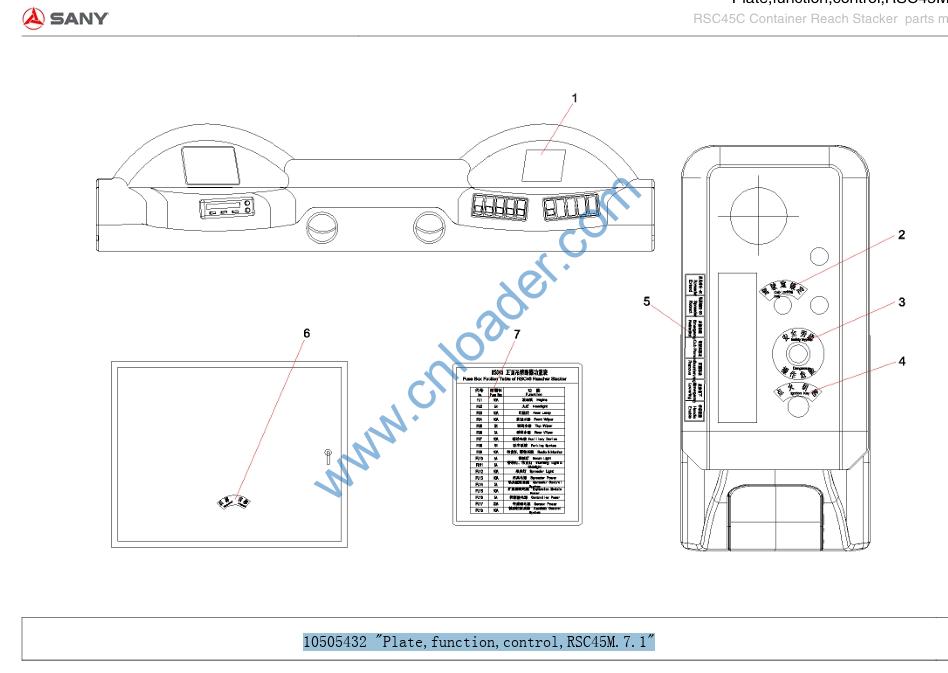

10505432 “Plate,function,control,RSC45M.7.1”

10505432 “Plate,function,control,RSC45M.7.1”

1 10505366 “Board,function,handle,RSC45M.7.1-1” 1
2 10027014 Locked indicative board of cab 1
3 10505367 1
4 10027010 Ignition ke indicating plate 1
5 10505368 “Brand II,switch,RSC45M.7.1-3” 1
6 10653927 Board,indicative,movement 1
7 10653928 “Brand,function,fuse,RSC45M.7.1-5” 1

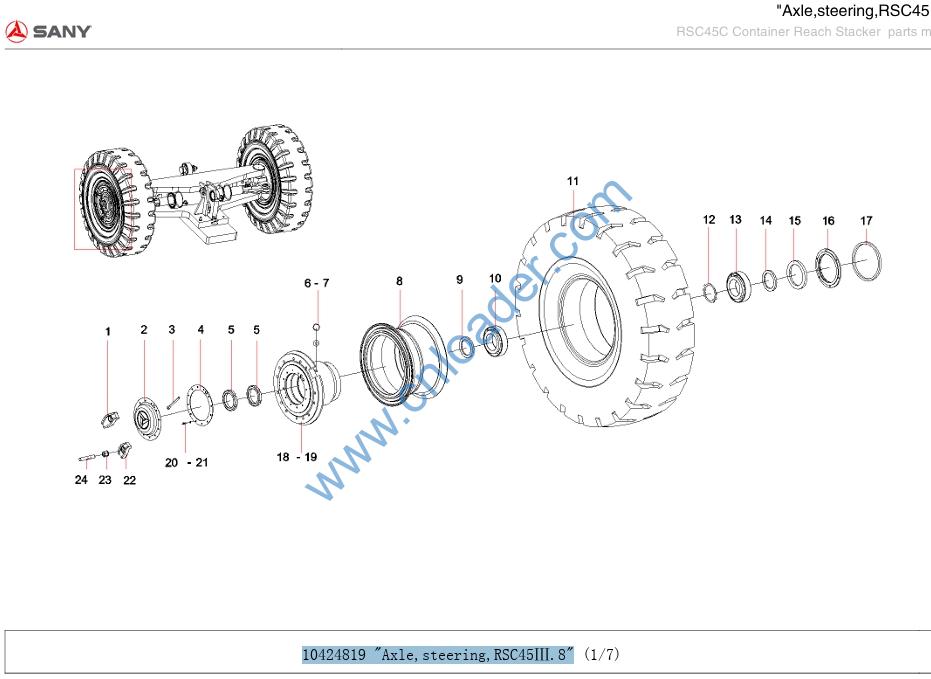

10424819 “Axle,steering,RSC45Ⅲ.8”

1 10478964 “Plate,cover,RSC45.8A-75” 10
2 10038314 Cover 2
3 21012612 Pin 2
4 A820606020254 Gasket ring 2
5 A820102010523 Round nut 4
6 A210332000004 Screw Plug 2
7 A210405000011 Plain washer 2
8 A229900002057 Wheel rim 2
9 A820102010513 Bearing washer 2
10 A210604002226 Rolling bearing 2
11 A210881000093 Tire 2
12 A210412000137 Locking washer 2
13 A210604002227 Rolling bearing 2
14 A230101000029 Framework Oil Seal 2
15 A820102010514 Baffle Ring 2
16 A820101314668 Oil seal pressure cover 2
17 A820199003228 Felt collar 2
18 10195270 Wheel hub 2
19 A229900010158 Grease cup 10
20 A210111000088 Bolt 44
21 A210401000017 Spring washer 92
22 10023808 Pressure plate 20

23 10075008 Hub nut 30
24 10075009 Stud 30

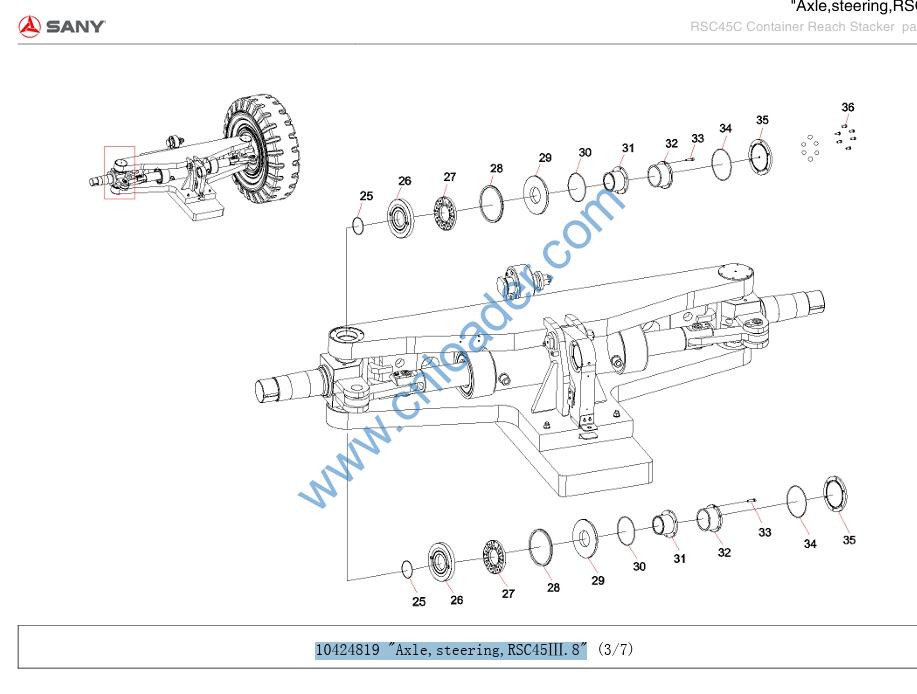

10424819 “Axle,steering,RSC45Ⅲ.8”

25 A210609000007 O-ring 4
26 10423038 “Cushion,RSC45Ⅲ.8-14” 4
27 10351520 “Spacer,bearing,slide,RSC45.8A-70” 4
28 A230101000674 seal ring 4
29 10863275 “Cushion,lower,RSC45Ⅲ.8-13A” 4
30 A210609000174 O-ring 4
31 10785257 “Bush,steel II,RSC45Ⅲ.8-23” 4
32 10764188 Shaft Sleeve 4
33 A210204000320 Screw 24
34 A210609000014 O-ring 4
35 10825203 “Plate,pin,RSC45Ⅲ.8-25” 4
36 A210111000089 Bolt 24

37 A820301020690 Pin shaft 1
38 A210111000119 Bolt 2
39 10575078 “Stop, limit” 1
40 A820102010538 Washer 1
41 A221500000196 Rubber bearing 2
42 A820202003381 Axile bush 2
43 A820101314705 Baffle of slide block 2
44 A820699000475 Upper Slide Block 1
45 A820101314675 Adjusting shim 3
46 A820699000474 Lower Slide Block 1
47 A210401000001 Spring washer 4
48 A210204000161 Screw 4
49 A820101313648 Switch installation bent plate 1
50 10423742 “Catena,RSC45Ⅲ.8-38” 1
51 A820202003382 Axile bush 1
52 A221500000197 Rubber bearing 1
53 A820102010533 Washer 3
54 A210356000006 Nut 3
55 A210491000023 Pin 3
56 A820202003384 Axile bush 4
57 A820201000724 Bearing End Cover 4
58 A221500000195 Joint bearing 2

59 A210401000002 Washer12GB93 36
60 A210204000021 Screw 24
61 A820301020689 Rotating Shaft 2
