Body,container reach stacker, SRSC45H1 H





Item No.

Part No.

Description

1

60116987

Light, alarm, LED

2

A240900000016

Sleeve, plastic (Black)

3

B241200000582

Receptacle, 2-position

4

B249900000288

Pin

5

A249900001139

Lock, 2-position Receptacle

6

60120497

Tail, socket, 2-wire


















Item No.

Part No.

Description

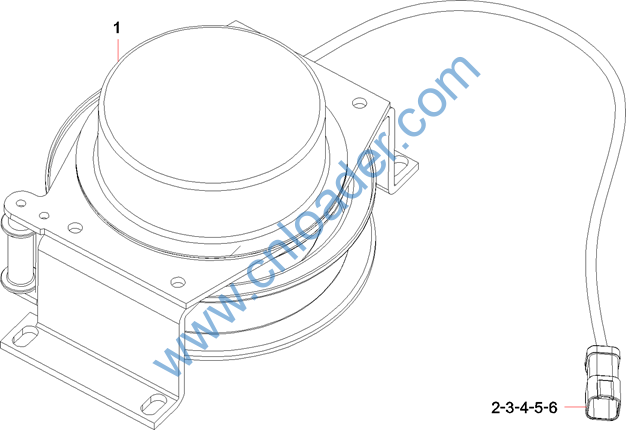

1

B240600000272

Sensor, length and angle

2

B241200000606

Receptacle, 6-position

3

60120499

Tail, socket, 6-wire

4

A249900001140

Lock, 6-position Receptacle

5

B249900000288

Pin

6

B241200000461

Plug, Water-proof




















Item No.

Part No.

Description

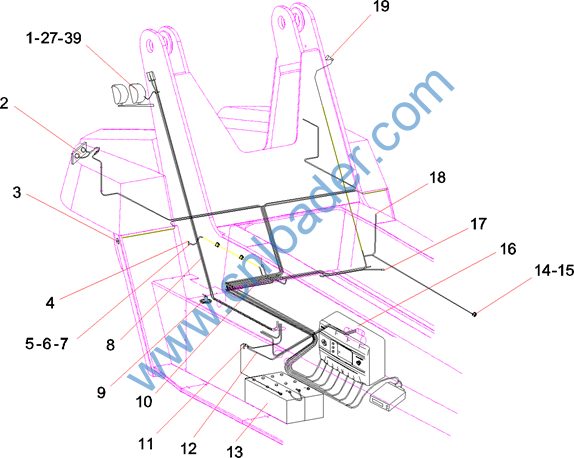

1

12895513

Lamp, working, LED

2

12901982

Lamp, tail, LED

3

12901990

Lamp, mark, side, LED

4

12916541

Switch, proximity

5

60165334

Clamp, tube, single

6

60111064

Nut M6

7

A210204000139

Screw M6×60GB70.1

8

12893891

Harness, diagonal boom

9

12912669

Sensor, liquid level

10

12904502

Handle, rear, frame

11

12934766

Switch, power supply

12

12905324

Harness, power

13

12934743

Battery

14

13275833

Clamp, fastening

15

13275826

Clamp, fastening

16

13120905

Assembly, electric control cabinet, frame

17

12912711

Sensor, temperature

18

12912717

Sensor, temperature

19

12912580

Horn, polyphonic

27

13811912

Bracket, rear light

39

13479570

Socket, 2-core


























Item No.

Part No.

Description

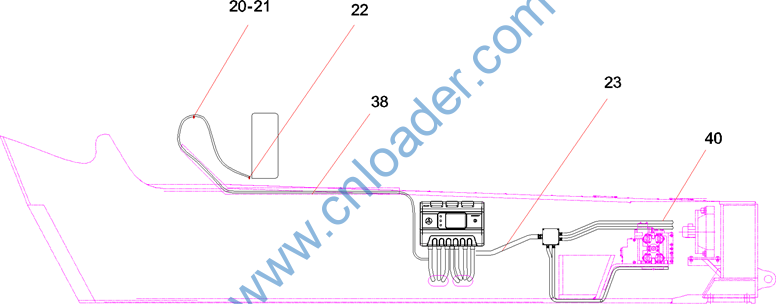

20

12893282

Harness, drag-chain, 1

21

12893508

Harness, drag-chain, 2

22

12893625

Harness, drag-chain, 3

23

12904869

Handle, middle front, frame

38

A241000000025

Joint, intermediate

40

13127423

Sensor, pressure


















Item No.

Part No.

Description

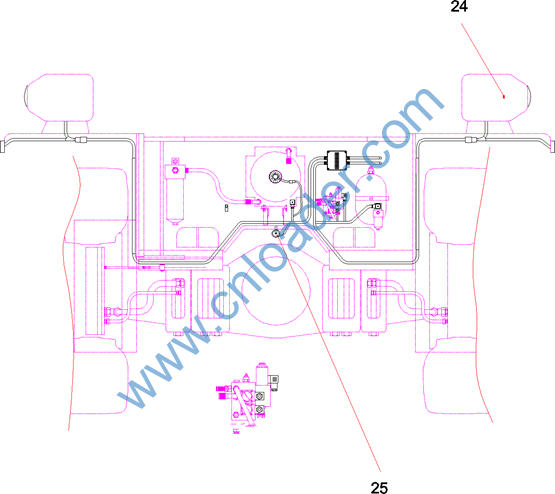

24

13047784

Assembly, front headlight, LED

25

12912575

Horn
































Item No.

Part No.

Description

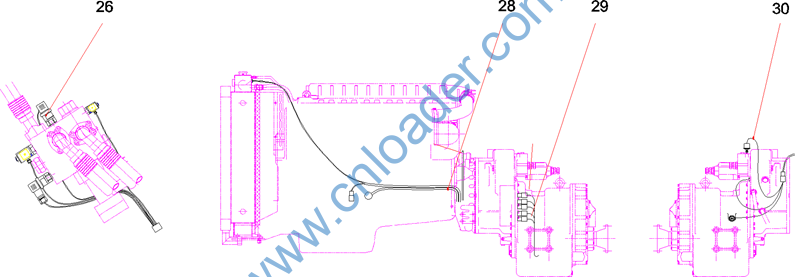

26

14190503

Pressure sensor

28

12906383

Harness, engine

29

12893735

Harness, torque converter, gear shifter

30

13127421

Sensor, pressure
















Item No.

Part No.

Description

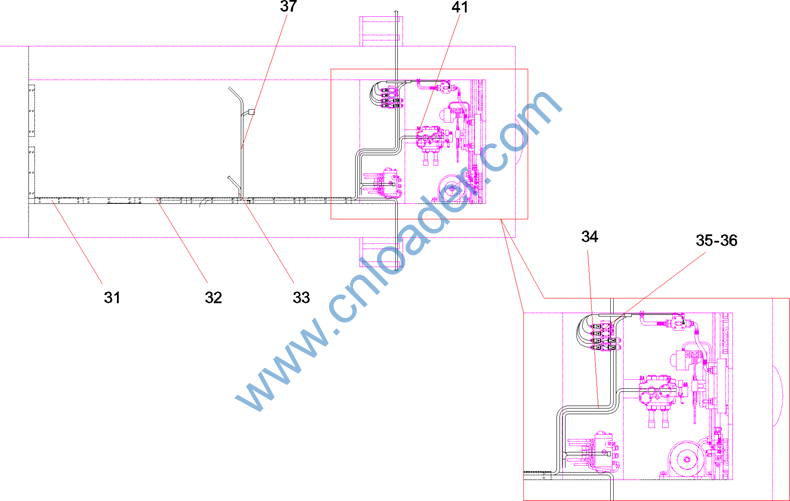

31

A810201055737

Diagram, assembling, cable support, frame body

32

60119462

Band, dual loop, black

33

13275836

Clamp, fastening

34

13426722

Welding, clamp, frame body

35

B229900002528

Plug

36

B229900001096

Seal, plug

37

13577240

Fuse

41

14216658

Harness support




















Item No.

Part No.

Description

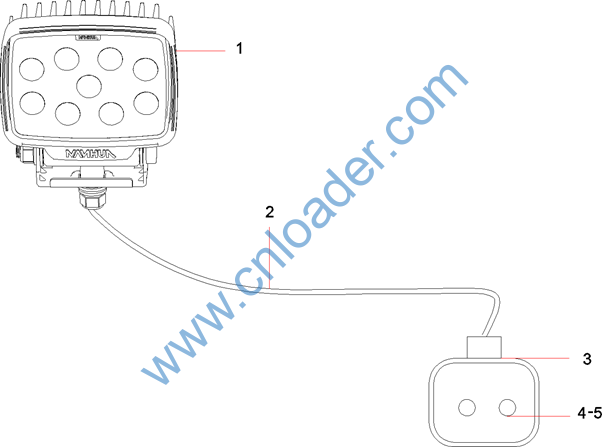

1

60232826

Working light

2

A240900000016

Sleeve, plastic (Black)

3

B241200000582

Receptacle, 2-position

4

B249900000288

Pin

5

A249900001139

Lock, 2-position Receptacle
