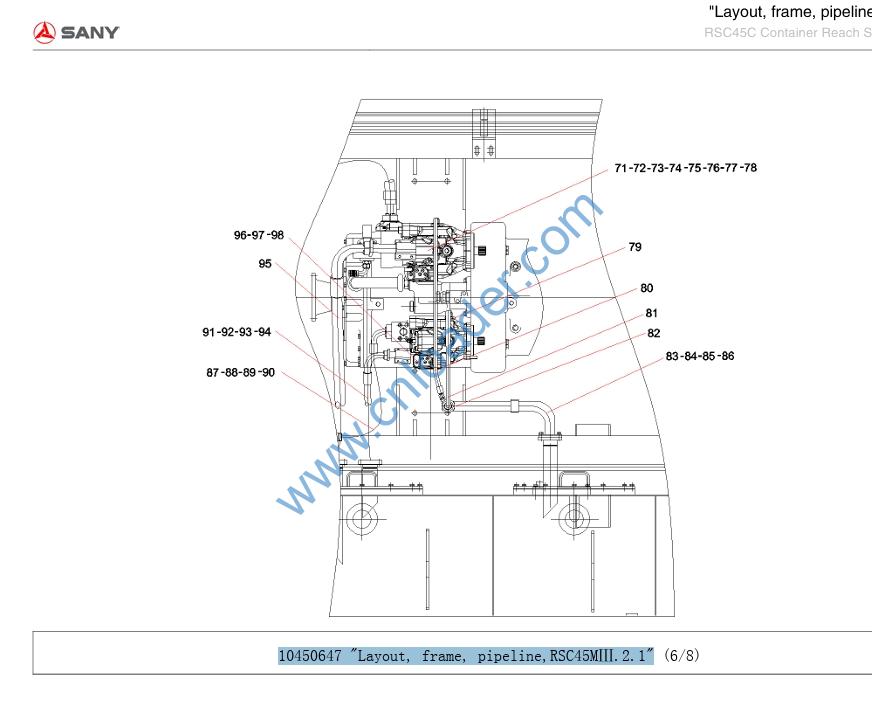

10450647 “Layout, frame, pipeline,RSC45MⅢ.2.1”

10450647 “Layout, frame, pipeline,RSC45MⅢ.2.1”

71 B220301000240 Pump package 1
72 B210780001749 Pressure measuring joint 2
73 A229900005971 Bolt 8
74 A810299000234 Oil-in flange 1
75 A210204000226 Screw 8
76 A210609000165 O-ring 2
77 A820205001677 Joint-body 1
78 A210434000013 Washer 1
79 B210780000107 Pipe connector 1
80 B230103000124 Rubber hose 1
81 B230103000305 Rubber hose 1
82 B210780000028 Pipe joint 1
83 A810399000566 Steel tube 1
84 B230101000244 O-ring 2
85 A210204000354 Screw 16
86 B210780000018 Pipe joint 2
87 B230103008474 Rubber tube 1
88 B230101000091 O-ring 1
89 B210780000006 Split flange 2
90 A210204000227 Screw 4
91 60008113 Hose,1SN50-SFL45-SFL90-700-V270Q/SY1102 1
92 B230101000270 O-ring 4

93 B210780000741 Split flange 8
94 A210204000343 Screw M14×40GB70.1 Grade 10.9 16
95 B230103008471 Rubber tube 1
96 B220301000262 Plunger Pump 1
97 A810312990155 Oil-in flange 1
98 A819700001385 One-way valve seat body 1

99 A810399000720 Steel tube 1
100 A810399000557 Steel tube Ⅲ 1
101 A810399000721 Steel tube 1
102 10410182 “Steel bracket,spreader,RSC45MⅢ.2.1.2” 2
103 A210208000002 Screw 8
104 A210401000004 Washer16GB93 8
105 A810399000558 Steel tube Ⅳ 1
106 A810399000559 Steel tube Ⅴ 1
107 A810399000560 Steel tube Ⅵ 1
108 B230103001215 Rubber hose 1
109 A810399000719 Oil return steel tube 1
110 A222100000367 Oil Return Filter 1
111 A210609000082 O-ring 1
112 A210204000148 Screw 2
113 A210401000017 Spring washer 2
114 B210780000698 Pipe joint 1
