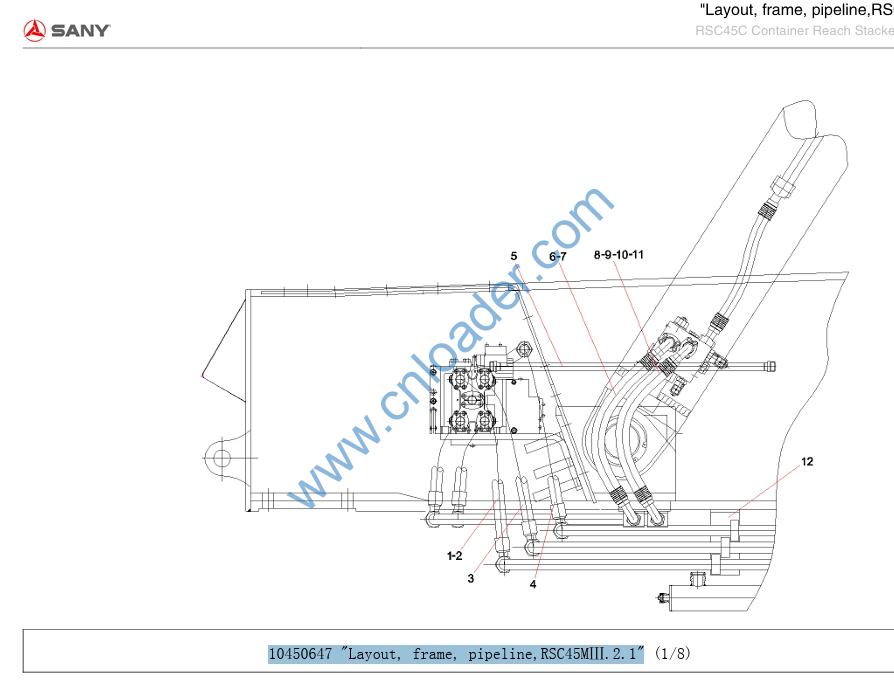

10450647 “Layout, frame, pipeline,RSC45MⅢ.2.1”

10450647 “Layout, frame, pipeline,RSC45MⅢ.2.1”

1 B230103008475 Rubber tube 1
2 B230101000215 O-ring 6
3 B230103004954 Rubber Hose 1
4 60044442 Rubber Hose 1
5 A810201068167 “Tube,steel,RSC45.2.1.40” 1
6 B230103004971 Rubber Hose 2
7 B210780001241 Pipe joint 1
8 B230103007449 Rubber Hose 2
9 B230101000215 O-ring 2
10 B210780000244 Split flange 8
11 A210204000354 Screw 4
12 10422781 Bracket,tube,steel,expansion 2

13 A810399000565 Oil return steel tube 1
14 10032933 Clamp seat,oil return pipeline,master 2
15 A810299000203 Back pressure valve group 1
16 A210609000088 O-ring 2
17 A210204000337 Screw 4
18 A210204000206 Screw 8
19 A810399000561 Steel tube Ⅶ 1
20 A810399000562 Steel tube Ⅷ 1
21 A810399000563 Steel tube Ⅸ 1
22 A810399000564 Steel tube Ⅹ 1
23 A810312019049 Steel tube 1
24 A810312019048 Steel tube 1
25 A810312019050 Steel tube 1

26 B230103004963 Rubber Hose 1
27 B210780001241 Pipe joint 4
28 B230103007393 Rubber Hose 1
29 A819700001390 Multi-channel body of spreader 1
30 B230103004949 Rubber Hose 1
31 B230103001615 Rubber hose 1
32 B230103000166 Rubber Hose 1SN25-DKOL-DKOL90-650 1
33 21051021 Pipe joint 1
34 B230103006804 Rubber Hose 1
35 B230101000091 O-ring 2
36 B210780000006 Split flange 4
37 A210204000227 Screw 8
38 B230103004055 Rubber Hose 1
39 A810312990138 Steel tube Ⅱ 2
40 A810312019037 Steel tube Ⅰ

41 B210780000636 Pipe joint 4
42 10409053 “Layout,main Valve,RSC45MⅢ.2.1.1” 1
43 B230103008473 Rubber tube 2
44 B230101000215 O-ring 4
45 21023572 Rubber tube 1
46 B230101000091 O-ring 2
47 B230103008200 Rubber tube 1
48 B230103000654 Rubber hose 1
49 B230103000602 Rubber hose 1
50 B230103001216 Rubber hose 1
51 A810399000718 Main valve return tube 1
52 A210204000337 Screw 4
53 B230103000076 Rubber Hose 1
54 A810399000723 Oil draining multi-ported body 1
55 A210204000148 Screw 6
56 A210401000017 Spring washer 6
57 B210780000016 Pipe joint 1
58 B210780000024 Pipe joint 1
59 B230103002175 Rubber Hose 1
60 21017518 Rubber Hose 1
61 B230103000301 Rubber hose 1
62 B230103005410 Rubber Hose 1

63 B230103000583 hose 1
64 B230103005259 Rubber Hose 1
65 B210780000018 Pipe joint 1
66 B210780001246 Pipe connector 1
67 B210780000017 Pipe joint 1
68 B230103003558 Rubber Hose 1
69 B230101000091 O-ring 1
70 B230103008421 Rubber tube 2
