10441205 Carriage assembly

10441205 Carriage assembly

1 11088330 “Frame,body,RSC45C.3.15” 1
2 10468244 1
3 A210401000012 Spring washer 4
4 A820102010827 Washer 4
5 A210111000451 Bolt 4
6 A820101338054 Backing board 2
7 10042916 Counterweight (2) 1
8 10437830 “Dashboard,front(R),RSC45MⅢ.3.3” 1
9 A210111000038 Bolt 24
10 A210404000004 Washer 24
11 A210111000023 Bolt 2
12 10201907 Shaft assembly of pitching cylinder 2
13 A210111000292 Bolt 4
14 A210401000008 Spring washer 4
15 A210404000007 Plain washer 4
16 10627616 “Assembly, plate, cover,RSC45C.3.4” 1
17 10941541 “Assembly, platform, ladder,RSC45C.3.6” 1
18 A210307000017 Nut 2
19 10431521 “Dashboard, Rear(R),RSC45MⅢ.3.5” 1
20 A210404000008 Washer 24
21 A210401000004 Washer16GB93 24
22 A210111000090 Bolt 6

23 10437831 “Dashboard, front(L),RSC45MⅢ.3.2” 1
24 10431522 “Dashboard, Rear(L),RSC45MⅢ.3.4” 1
25 10136225 Oil-water separator bracket 1
26 10055835 Rear light support 1
27 A210251000000 Screw 1
28 A210405000007 Plain washer 6
29 A210401000017 Spring washer 10
30 A210401000002 Washer12GB93 30
31 A210405000001 Plain washer 4
32 A210111000039 Bolt 4
33 10106057 Stopper 2
34 10246102 Hydraulic oil radiation support 2
35 10201511 Rearview mirror assembly (L 1
36 10182064 Rearview mirror assembly (R 1
37 11196780 “Seat II,clamp,tube,exhaust,RSC45C.3.21” 2
38 10165028 Clamp seat of exhaust tube 2
39 A210111000112 Bolt 24
40 A210307000029 Nut 2
41 A210405000008 Plain washer 2
42 A210401000006 Spring washer 2
43 A222000000066 damper 2
44 10425041 “Assembly, parts, covering,RSC45Ⅲ.3.24” 1

45 10480997 “Sleeve, mounting,RSC45MⅡ.3-6” 5
46 10545244 “Plate,connecting,RSC45Ⅲ.3-1” 4
47 10761321 “Cushion,RSC45.3-15” 2
48 A210404000003 Plain washer 4
49 A210401000001 Spring washer 4
50 A210111000018 Bolt 2
51 A210307000012 Nut 6
52 A210111000093 Bolt 4
53 A210404000005 Plain washer 4

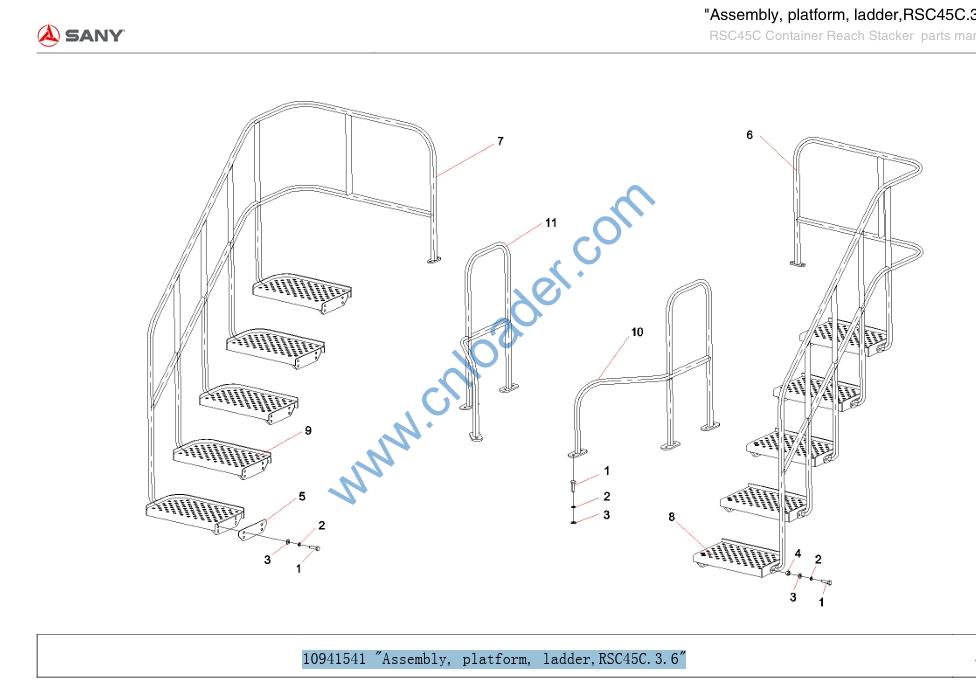

10941541 “Assembly, platform, ladder,RSC45C.3.6”

1 A210111000025 Bolt 76
2 A210401000001 Spring washer 76
3 A210405000011 Plain washer 112
4 A210307000017 Nut 36
5 10941204 “Spacer, adjusting,RSC45C.3.6-1” 10
6 10939949 “Armrest,back(L),RSC45C.3.6.1” 1
7 10939948 “Armrest,back(R),RSC45C.3.6.2” 1
8 10940334 “Pedal,left,RSC45C.3.6.3” 5
9 10940336 “Pedal,right,RSC45C.3.6.5” 5
10 10047961 Front armrest (left side )RSC45MⅡ.3.6.7 1
11 10047963 Front armrest (right side )RSC45MⅡ.3.6. 1
