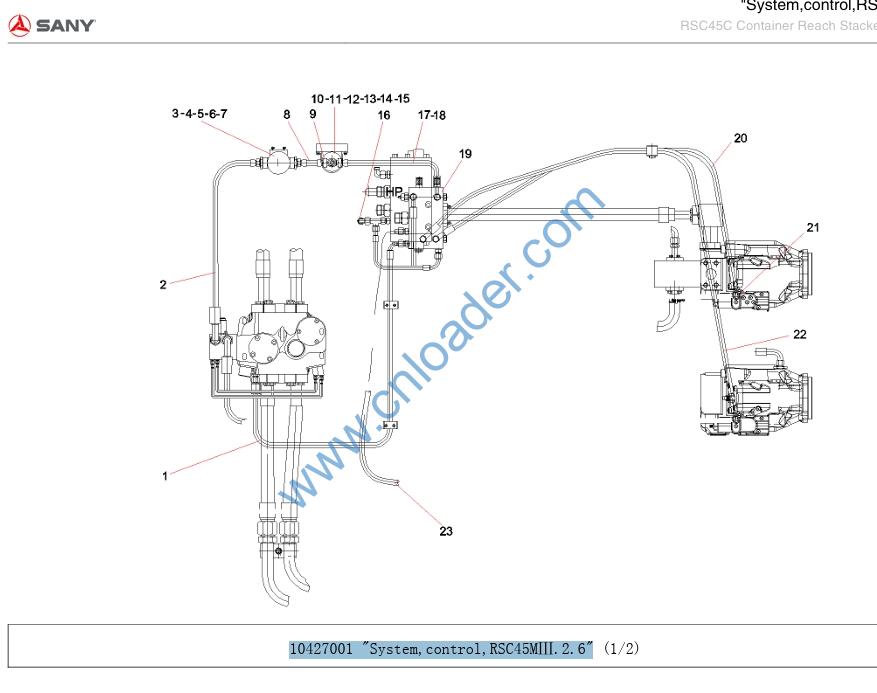

10427001 “System,control,RSC45MⅢ.2.6”

10427001 “System,control,RSC45MⅢ.2.6”

1 B230103000465 Rubber hose 1
2 B230103004988 Rubber Hose 1
3 B230103000477 Rubber hose 1
4 A222100000128 Oil filter 1
5 A820205001857 Joint-body 2
6 A210434000015 Washer 2
7 A210111000089 Bolt 2
8 A210401000017 Spring washer 2
9 A831313035000 Rubber hose 1
10 B210780000631 Pipe joint 1
11 B229900000045 Accumulator 1
12 A820101320714 Mounting plate 1
13 A210204000313 Screw 2
14 A210401000001 Spring washer 4
15 A820205001856 Joint-body 1
16 A210434000013 Washer 1
17 B230103001215 Rubber hose 1
18 B210780000636 Pipe joint 1
19 A810299000204 Pilot valve group 1
20 B230103000465 Rubber hose 1
21 B210780001286 Pipe joint 2
22 B230103005270 Rubber Hose 1

B230103001702

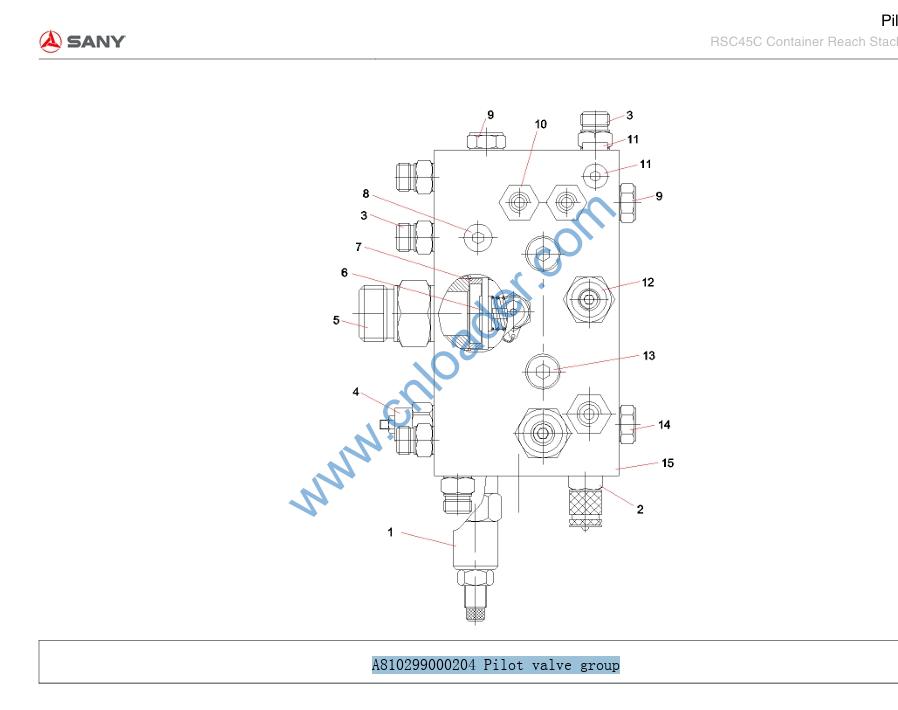

A810299000204 Pilot valve group

1 B220402000035 One-way overflow valve 2
2 B210770000084 Pressure measuring joint 2
3 B210780000036 Pipe joint 4
4 B220401000536 Relief valve PBDB-LNN 1
5 B210780000053 Pipe joint 1
6 B220400000421 Check valve core 1
7 10056401 Cutting sleeve 1
8 B210780000201 Screw plug 1
9 B220401000046 Shuttle Valve 2
10 B210780001286 Pipe joint 2
11 B210399000003 Screw plug 2
12 B220401000546 One-Way Throttle 1
13 A210204000031 Screw 2
14 B220401000539 One-Way Valve 1
15 A820199003189 Pilot valve block 1
