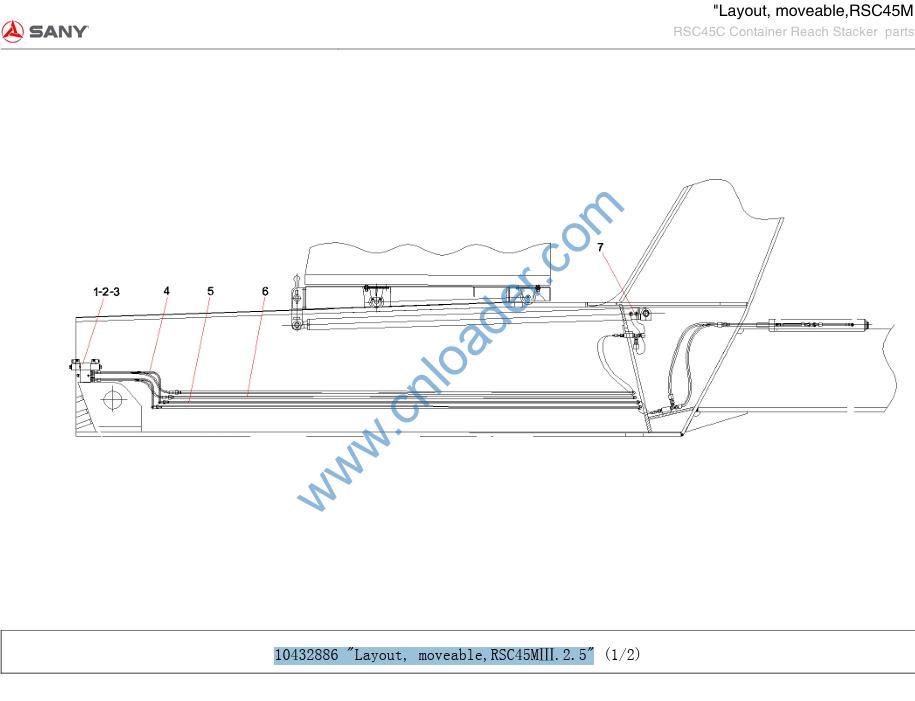

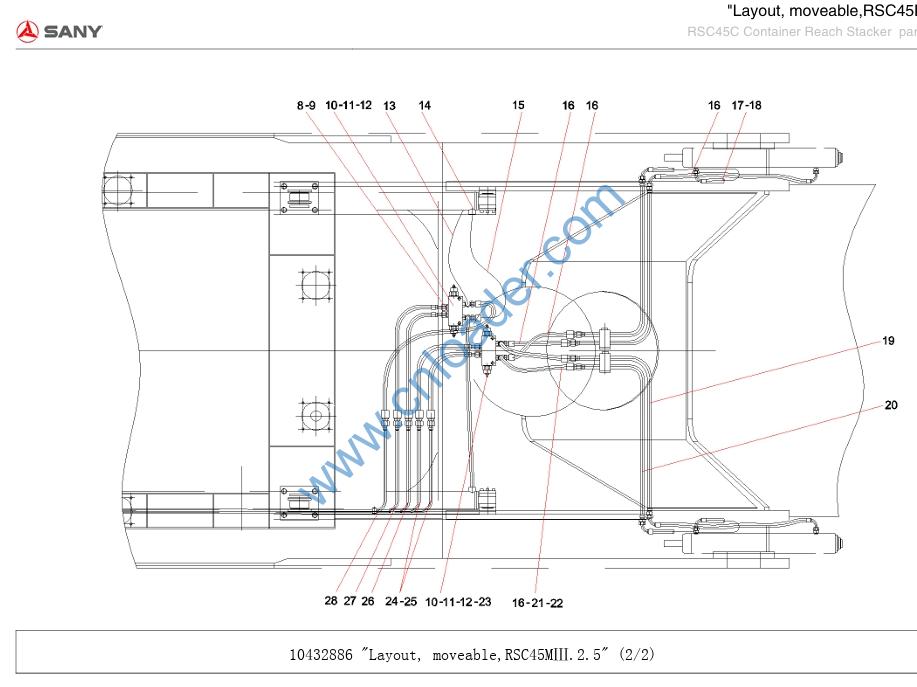

10432886 “Layout, moveable,RSC45MⅢ.2.5”

10432886 “Layout, moveable,RSC45MⅢ.2.5”

1 A819700001387 Moveable valve group 1
2 A210204000019 Screw 4
3 A210401000002 Washer12GB93 4
4 B230103005277 Rubber Hose 2
5 A810399000729 Connecting steel tube, weight shifting 2
6 10213222 Steel tube 2
7 B210780000847 Pipe joint 4

8 B210780000016 Pipe joint 2
9 B210780000180 Pipe joint 4
10 B220401000028 Tubular bidirection balanced valve 2
11 A210204000136 Screw 4
12 A210401000017 Spring washer 4
13 60004179 Rubber Hose 2
14 B210780000024 Pipe joint 2
15 B230103002390 Rubber Hose 2
16 B230103000118 Rubber hose 2
17 B230103002376 Rubber Hose 2
18 B210780000698 Pipe joint 4
19 A831313050000 Rubber hose 2
20 10432863 Tube,steel,counterweight,shift 2
21 10432883 Tube,steel,counterweight,shift 2
22 B230103000477 Rubber hose 2
23 B210780000177 Pipe joint 4
24 B210780000015 Pipe joint 2
25 B230103000446 Rubber hose 2
26 B230103000089 Rubber hose 1
27 B230103005168 Rubber Hose 1
28 B230103006930 Rubber Hose 2

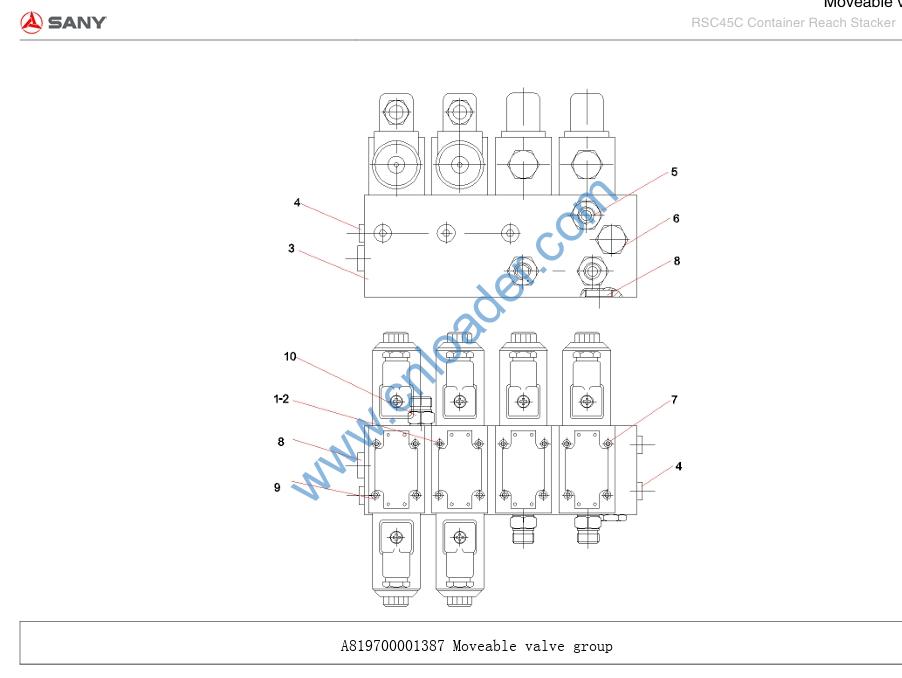

A819700001387 Moveable valve group

1 A210204000119 Screw 16
2 B220402000362 Electromagnetic Steering Valve 2
3 A820199003193 Moveable valve block 1
4 B210399000003 Screw plug 7
5 B210780000036 Pipe joint 6
6 B220401000046 Shuttle Valve 1
7 B220400000026 Electromagnetic Steering Valve 2
8 B210780000201 Screw plug 2
9 A820601020466 Waterproof cover 16
10 B210780000232 guarantee tie-in 2
