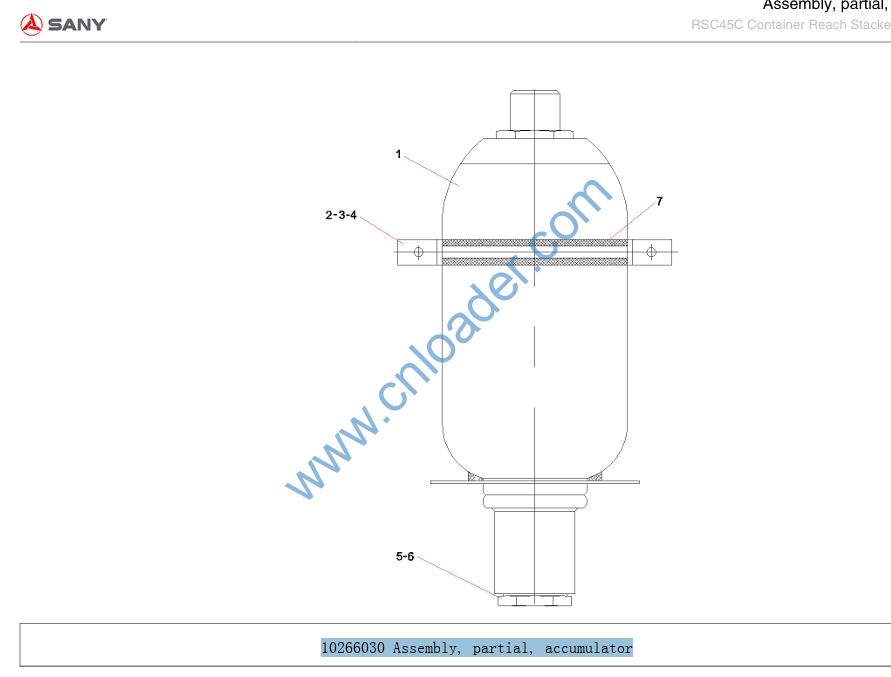

10266030 Assembly, partial, accumulator

10266030 Assembly, partial, accumulator

1 B229900003708 Accumulator 1
2 A820101353529 Energy storage thimble 1
3 A210204000196 Screw 2
4 A210401000001 Spring washer 2
5 A820205001646 Pipe joint 1
6 A210609000168 O-ring 1
7 A820601020473 Rubber protective sleeve 1

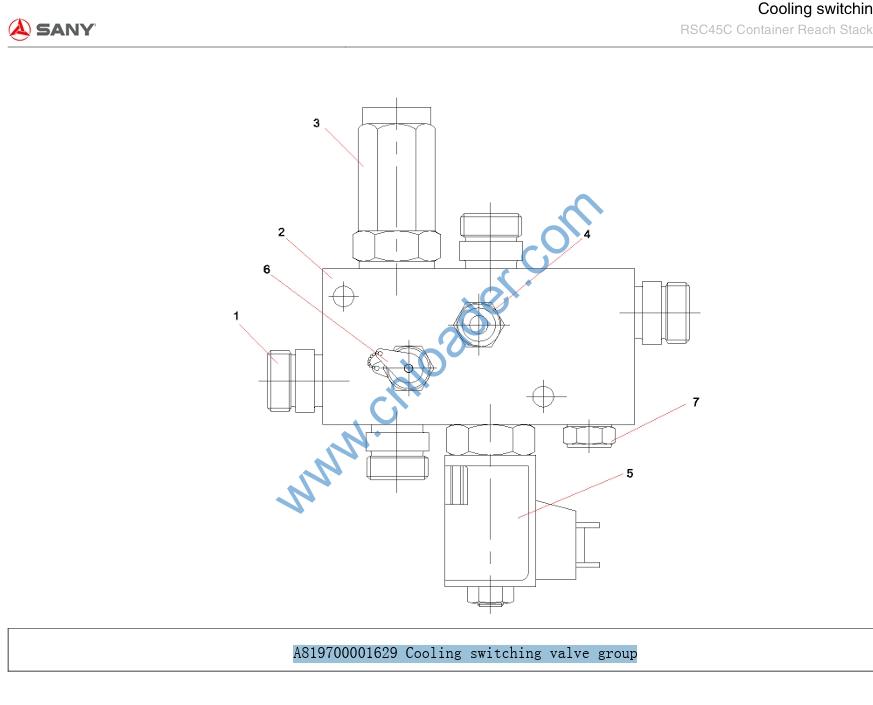

A819700001629 Cooling switching valve group

1 B210780000131 Pipe joint 4
2 A829900002452 Cooling switching valve block 1
3 B220400000083 Pressure relief valve 1
4 B210780000201 Screw plug 1
5 B220400000182 Electromagnetic Steering Valve 1
6 B210770000084 Pressure measuring joint 1
7 B220401000539 One-Way Valve 1

1 B230103004735 Rubber Hose 1
2 B210780000036 Pipe joint 3
3 B210780000232 guarantee tie-in 2
4 B210399000003 Screw plug 2
5 B220401000351 balanced valve 1
6 A820199003258 Brake control valve block 1
7 A210204000119 Screw 4
8 B220400000026 Electromagnetic Steering Valve 1
9 A820601020466 Waterproof cover 4
10 A210204000127 Screw 8
11 B240700000131 Pressure relay 2
12 B210770000084 Pressure measuring joint 1
13 B210780000636 Pipe joint 2
14 B210780000167 FALSE 1
15 B220401000263 Ball Valve 1
16 B210780000733 Pipe joint 1

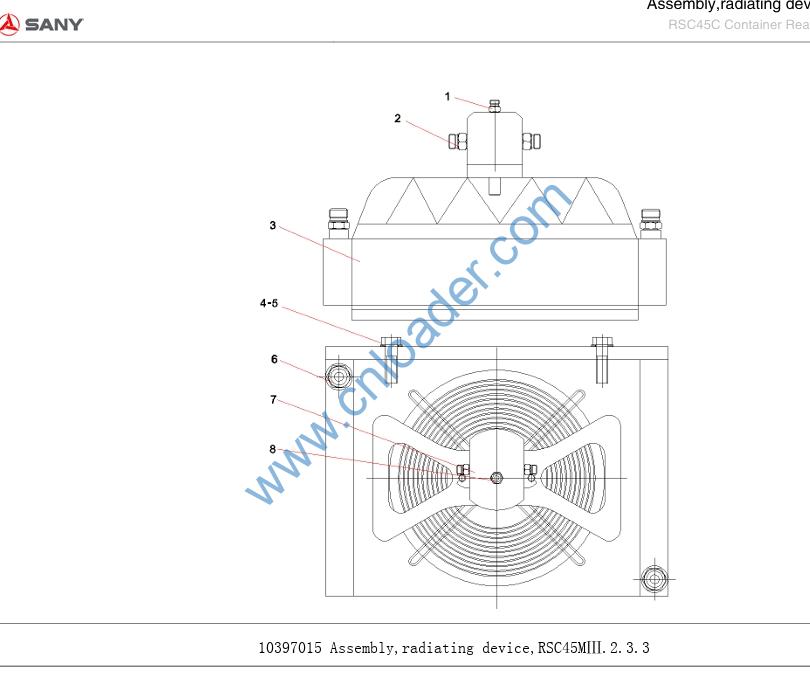

10397015 Assembly,radiating device,RSC45MⅢ.2.3.3


B210780000036
B210780000131
B229900001004
A210111000012
A210401000001
B210780001181
B220501000269
Assembly,radiating device,RSC45MⅢ.2.3.3
RSC45C Container Reach Stacker parts manual
PartsName
Pipe joint
Pipe joint
Air cooler
Bolt
Spring washer
Pipe joint
Gear motor
Bolt
10397015 Assembly,radiating device,RSC45MⅢ.2.3.3
