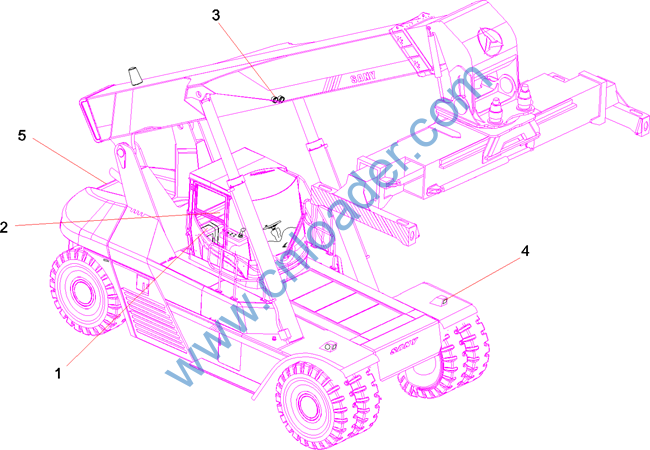

Body,container reach stacker, SRSC45H1 WLO

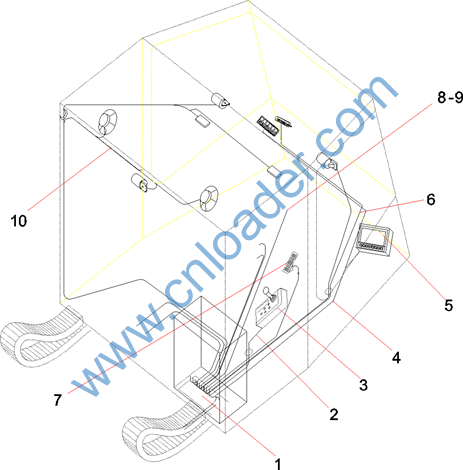

Item No.

Part No.

Description

Qty.

1

13116953

Diagram, schematic, electrical

1

2

13487579

Layout, electric, cab

1

3

13445409

Layout, boom

1

4

13487569

Layout, electric, frame

1

5

11446721

Radar, reversing, visible

1






















Item No.

Part No.

Description

Qty.

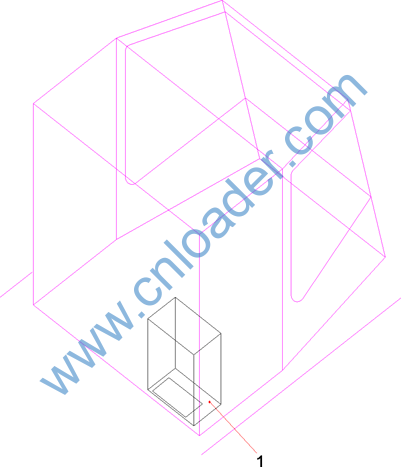

1

13120438

Assembly, electric control cabinet, cab

1

2

12895249

Harness, panel, right

1

3

13484326

Assembly, operation panel, right

1

4

13487578

Harness, front panel

1

5

13487572

Assembly, front operation panel

1

6

12894959

Harness, air conditioning

1

7

13014972

Pedal, accelerator

1

8

12894939

Harness, steering gear

1

9

12907176

Assembly, operation, steering gear

1

10

13016751

Harness, rear top, cab

1


















Item No.

Part No.

Description

Qty.

1

13120382

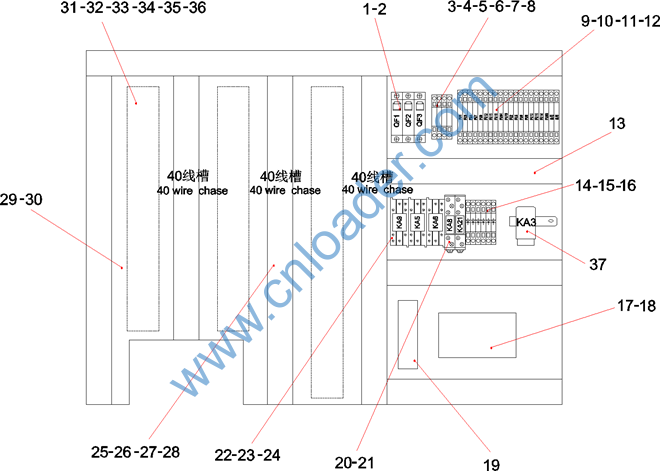

Layout, electric control cabinet, cab

1






















Item No.

Part No.

Description

Qty.

1

A241200000220

Breaker, plastic housing

2

2

A241200000221

Breaker, monopole

1

3

A242000000307

Plate, end and spacer

2

4

A242000000303

Terminal

4

5

60208346

Jumper, high-low

4

6

60208347

Plate, spacer

2

7

21001517

Terminal, connection

2

8

A241900000042

Wire

1

9

A242000000381

Teminal, wiring

20

10

B241300000020

Fuse

9

11

B241300000021

Fuse

9

12

23003013

Jumper, adjacent

18

13

60035696

Duct, cabling

3

14

A241600000022

Rail, clamp

1

15

A242000000382

Terminal, diode

6

16

60116738

Plug, terminal

2

17

A810201206151

Assembly, I/O module, SANY

1

18

A810299000589

Harness, wire, terminal

1

19

12561952

Busbar, copper, grounding, empty container handler

1

20

B240700000399

Relay, intermediate

2

21

B240700000395

Seat, relay

2

22

B241600000002

Clip

6






















Item No.

Part No.

Description

Qty.

23

B240700000114

Relay, intermediate

3

24

B240700000125

Relay seat

3

25

A241900000152

Wire

3

26

A241900000038

Wire

100

27

A239900000052

Strap, nylon

80

28

A242000000390

Terminal

250

29

60183141

Joint, hose with lock

3

30

60183802

Nut, nylon

3

31

60208151

Fixer, terminal

10

32

60208152

Terminal, connection

225

33

60208153

Baffle, combinable socket

25

34

60208154

Terminal, connection

6

35

B241800000030

Mark, WSB

6

36

B242000000013

Jumper, adjacent

10

37

B240700000265

Relay, Intermittent, Wiper

1




































Item No.

Part No.

Description

Qty.

1

B241900000020

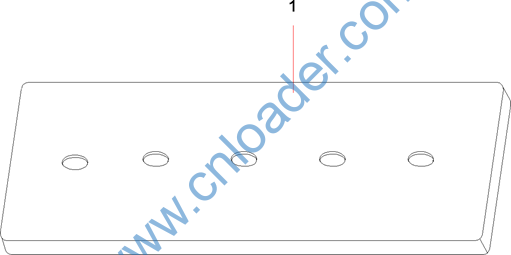

Busbar, copper

1


















Item No.

Part No.

Description

Qty.

1

12907177

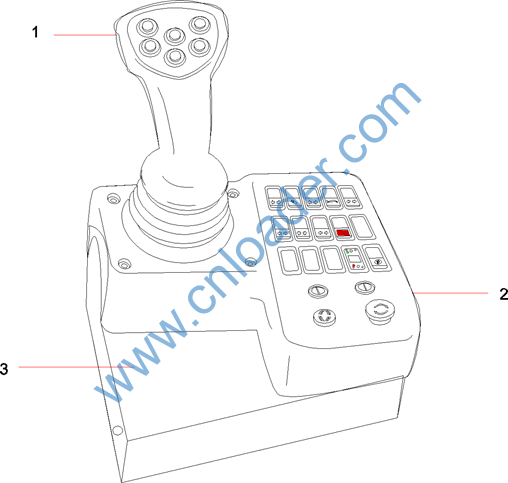

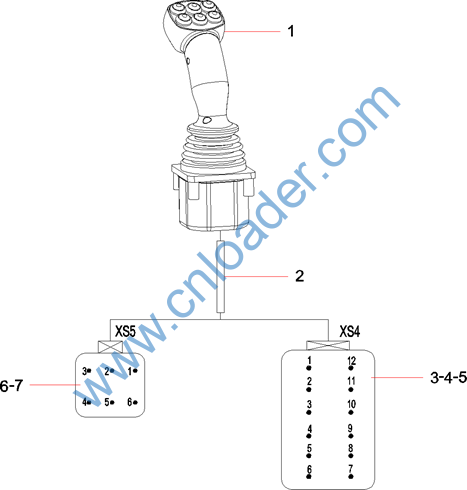

Assembly, Joystick

1

2

12907741

Layout, panel, right

1

3

12907942

Diagram, wiring, operation panel, right

1
