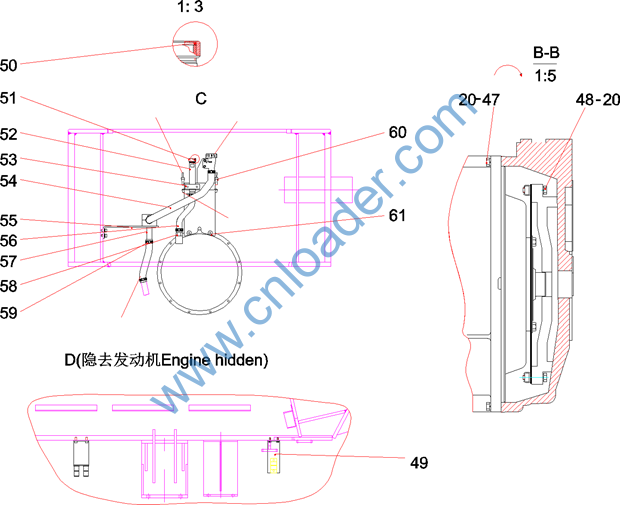

Body,container reach stacker, SRSC45H1 DSV





Item No.

Part No.

Description

Qty.

35

11055423

Seat, clamp, oil pipe, torque converter

1

36

A210204000020

Screw M12×25GB70.1

8

37

A210401000002

Washer

16

38

A210405000001

Washer

16

42

A820606030987

Absorber, shock

4

66

13889399

Support

1


















Item No.

Part No.

Description

Qty.

20

A210405000011

Washer

4

47

A210111000120

Bolt M10×45GB5783 10.9

12

48

A229900005830

Bolt

8

49

10808146

Fixing, engine oil pipe, gearbox

1

50

A210608000067

O-ring

1

51

10514233

Cap, filling

1

52

11325602

Filler, oil

1

53

12576419

Support

1

54

11337544

Hose, rubber

1

55

12575131

Support

2

56

11337574

Hose, rubber

1

57

12575183

Pipe, steel, engine oil port

1

58

10514234

Joint

1

59

A229900002838

Hoop

6

60

11597856

Kit, engine oil dipstick

1

61

A210404000003

Washer

2

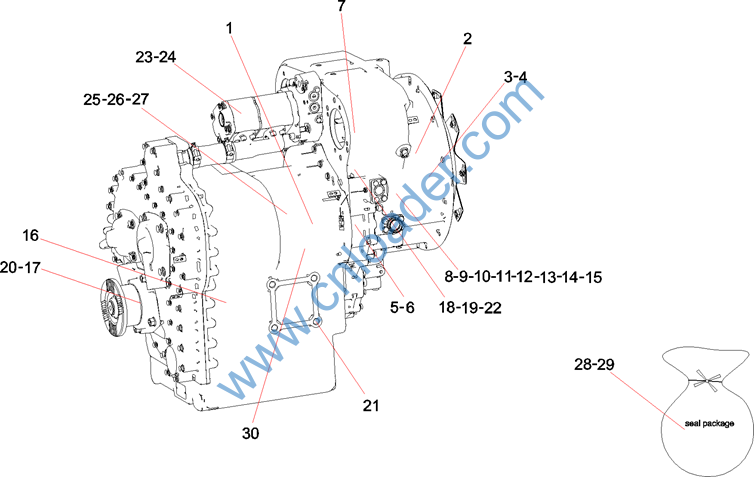

Item No.

Part No.

Description

Qty.

1

60138966

Components, housing, gearbox

1

2

60138967

Components, rear cover, gearbox

1

3

60140031

Shaft, turbine

1

4

60138822

Group, gear, power input end

1

5

60139513

Components, hub

1

6

60138447

Components, transmission plate

1

7

60139867

Components, drive pump support

1

8

60139839

Shaft, transmission, grade 2 3 4, front wheel driving

1

9

60138844

Group, gear, speed-change, grade 1

1

10

60139838

Shaft, clutch, forward gear

1

11

60139893

Shaft, clutch, speed-change, grade 3

1

12

60138840

Group, gear, speed-change, grade 3

1

13

60139319

Components, shaft, backward gear

1

14

60138916

Components, clutch, speed-change, grade 1

1

15

60138934

Components, clutch shaft, grade 3 4

1

16

60139145

Components, idler shaft

1

17

60139925

Components, output shaft

1

18

60138682

Components, pressure adjusting valve and feeding pump

1

19

60138721

Components, electric adjusting valve

1

20

60139923

Components, flange, output end

1

21

60138442

Components, transporting cover

1

22

60138738

Valve, pressure adjusting

1




















Item No.

Part No.

Description

Qty.

23

60138654

Pump, prefill

1

24

60138719

Valve, adjusting, prefill pump

1

25

60138733

Components, cover, control valve box

1

26

60138722

Components, electric control valve

1

27

60138891

Filter, dual

1

28

60036527

Kit, repair, transmission case

1

29

60140286

Package, sealing parts, converter

1

30

60034280

Sensor, Speed

1

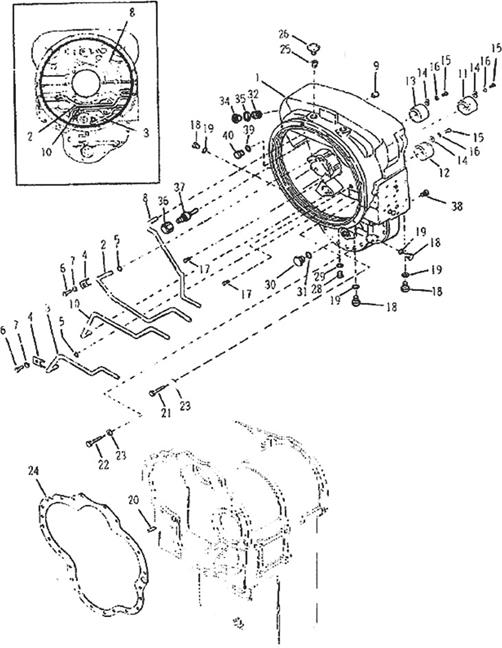

Item No.

Part No.

Description

Qty.

1

60099583

Body, shell, torque converter

1

2

60099675

Pipe, oil, forward gear

1

3

60099692

Pipe, oil, 4th gear

1

4

60099728

Clamp, fixing, oil pipe

3

5

60099742

O-ring

3

6

60099632

Screw

3

7

60099698

Washer, Lock

3

8

60099645

Pipe, oil supply, control valve

1

9

60099727

Bushing, oil pipe

1

10

60099683

Pipe, oil, 3rd gear

1

11

60099584

Sleeve, Converter Housing

1

12

60099586

Tube, sleeve, shell body, torque converter, 4th gear shaft

1

13

60099585

Tube, sleeve, shell body, torque converter, forward gear

3

14

60099607

Washer

3

15

60099632

Screw

3

16

60099698

Washer, Lock

3

17

60099508

Plug

5

18

60099780

Plug, hole, checking

5

19

60099750

O-ring

5

20

60099617

Pin, Dowel

2

21

60099587

Screw

14

22

60099635

Screw, fixing, rear cover

9


















Item No.

Part No.

Description

Qty.

23

60099700

Washer, Lock

23

24

60099588

Pad, sealing, torque converter shell body to gearbox shell body

1

25

60121044

Sleeve, shaft

1

26

60099702

Breather

1

28

60099680

Plug, oil return, lubrication oil

1

29

60099752

O-ring

1

30

60099492

Plug

1

31

60099630

Gasket

1

32

60099695

Bushing, speed sensor

1

33

60099589

Gasket, thin

1

34

60099666

Plug, Screw

1

35

60099743

O-ring

1

40

60099571

Pin, mounting

1

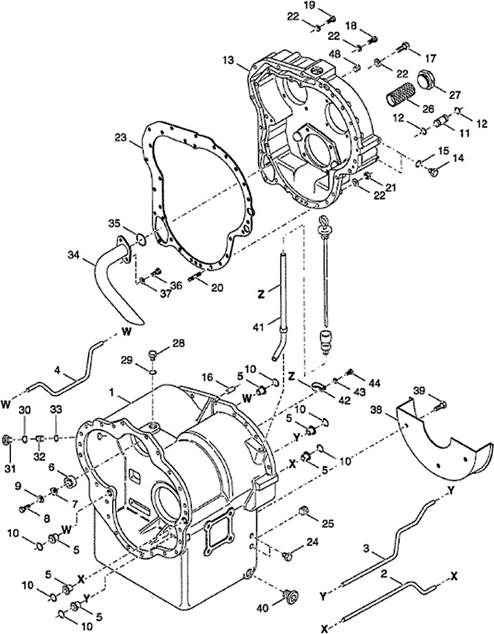

Item No.

Part No.

Description

Qty.

1

B229900002896

Body, shell

1

2

60099717

Pipe, oil, 1st gear clutch

1

3

60099722

Pipe, lubrication oil pipe, rear bearing, 1st gear shaft

1

4

60099682

Pipe, oil, 3rd gear

1

5

60099727

Bushing, oil pipe

6

6

60099697

Bushing, lock

1

7

60099607

Washer

1

8

60099632

Screw

1

9

60099698

Washer, Lock

1

10

60099744

O-ring

6

11

60099779

Pipe, transmission, 1st gear clutch oil pipe and lubrication oil

2

12

60099747

O-ring

4

13

60099634

Cover, rear

1

14

60099571

Pin, mounting

2

15

60099751

O-ring

2

16

60099617

Pin, Dowel

2

17

60099637

Screw, fixing, rear cover

16

18

60099636

Screw, fixing, rear cover

5

19

60099635

Screw, fixing, rear cover

3

20

60121041

Stud

4

21

60099640

Nut

4

22

60099700

Washer, Lock

28


















Item No.

Part No.

Description

Qty.

23

60099638

Pad, sealing, rear cover to shell body

1

24

60099781

Plug, Oil Level

2

25

60099669

Plug, oil exhaust

1

26

60099660

Assembly, filter screen

1

27

60099661

Plug, assembly, filter screen

1

28

60099571

Pin, mounting

2

29

60099751

O-ring

2

30

60099743

O-ring

1

31

60099666

Plug, Screw

1

32

60099695

Bushing, speed sensor

1

33

60099589

Gasket, thin

1

34

60099777

Assembly, air intake pipe

1

35

60099745

O-ring

1

36

60099662

Screw

2

37

60099699

Washer, Lock

2

38

60099597

Baffle

1

39

60099598

Screw, retainer plate

3

40

60099726

Plug, dipstick hole

1

41

60099501

Pipe, dipstick

1

42

60099659

Clamp, dipstick pipe

1

43

60099699

Washer, Lock

2

44

60099662

Screw

2
