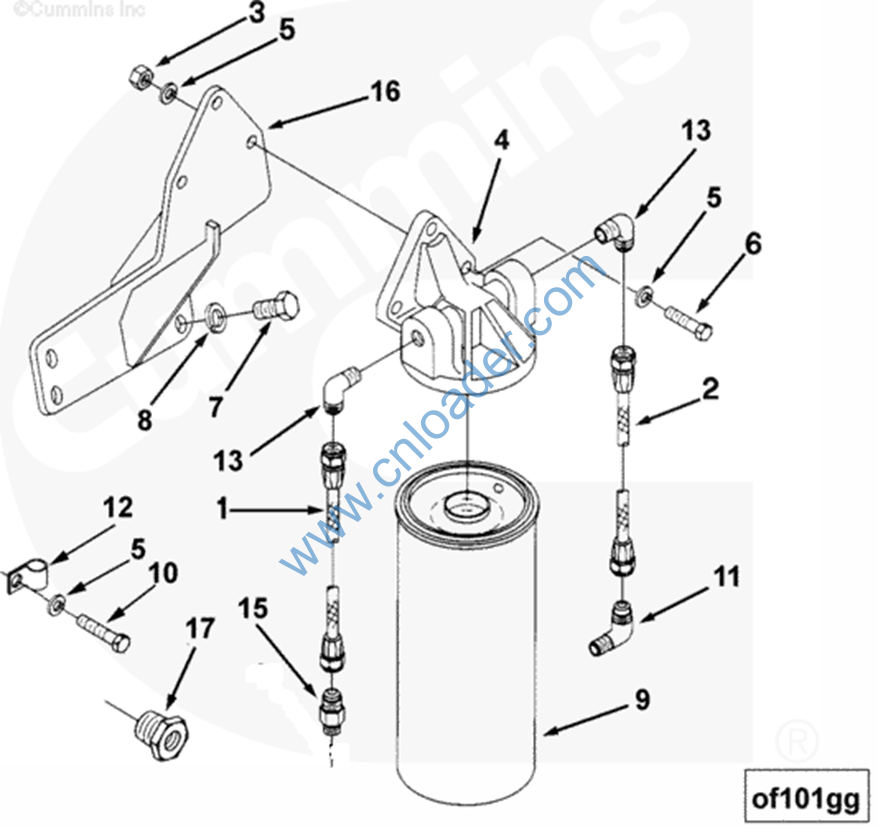

OF 1020 机油旁通滤清器
LUB OIL FILTER ELEMENT
3260665-40 旁通滤清器安装
MTG BYRASS FILTER
68425-20 夹子20
CLIP
68645-20 阳性连接弯管20
ELBOW MALE ADAPTER
108707-20 六角螺栓20
SCREW,HEXAGON HEAD CAP
121229-20 接头20
ELBOW MALE ADAPTER
144378-20 阳性弯接头20
ELBOW MALE ADAPTER
3250942-20 滤清器支架20
BRACKET FILTER
S 151 C-20 六角螺栓20
SCREW,HEX HEAD CAP
S 190 C-20 六角螺栓20
SCREW,HEX HEAD CAP
S 223-20 六角厚螺母20
NUT HEAVY HEXAGON
S 604-20 弹簧垫圈20
WASHER LOCK
S 609-20 弹簧垫圈20
WASHER LOCK
S 985 C-20 缩径管套20
BUSHING REDUCING PIPE
3304173-20 旁滤器座20
HEAD LUB OIL FILTER
3889311-29 机油滤清器
FILTER,LUB OIL
AS 6025 SS-20 软管20
HOSE FLEXIBLE
AS 6042 SS-20 软管20
HOSE FLEXIBLE

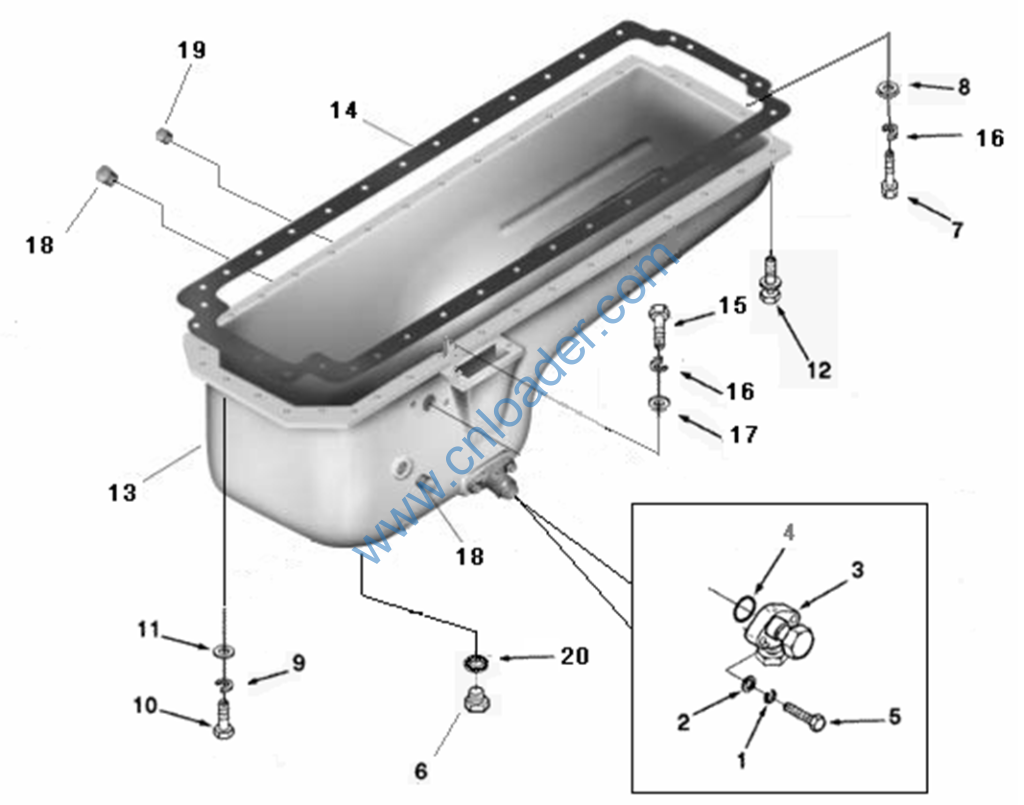

OP 102 机油盘及安装
OIL PAN
3655199-40 机油盘
OIL PAN
3165957-20 平垫圈20
WASHER PLAIN
3165976-20 弹簧垫圈20
WASHER LOCK
3325064-20 截流阀20
VALVE SHUTOFF
3655315-20 O型密封圈20
SEAL O RING
3335003-20 六角螺栓20
SCREW,HEX HEAD CAP
3046942-20 放油塞
PLUG PIPE
3046943 O型密封圈20
SEAL O RING
3655194-20 机油盘20
IOL PAN
3008470-20 管塞20
PLUG PIPE
4931643-20 管塞
PIPE PLUG
4915093-10 机油盘安装
OIL PAN
S 142-20 六角螺栓20
SCREW,HEX HEAD CAP
104856-20 垫圈20
SPACER
103009-20 六角螺栓20
SCREW,HEX HEAD CAP
S 610-20 弹簧垫圈20
WASHER LOCK
S 622-20 平垫圈20
WASHER PLAIN
3008069-20 带垫螺栓20
SCREW CAPTIVE WAS
3099083-20 机油盘衬垫20
GASKET OIL PAN
3335001-20 六角螺栓20
SCREW,HEX HEAD CAP
S 605-20 弹簧垫圈20
WASHER LOCK
3600283-20 平垫圈
WASHER,PLAIN
OP 1385 机油盘
OIL PAN

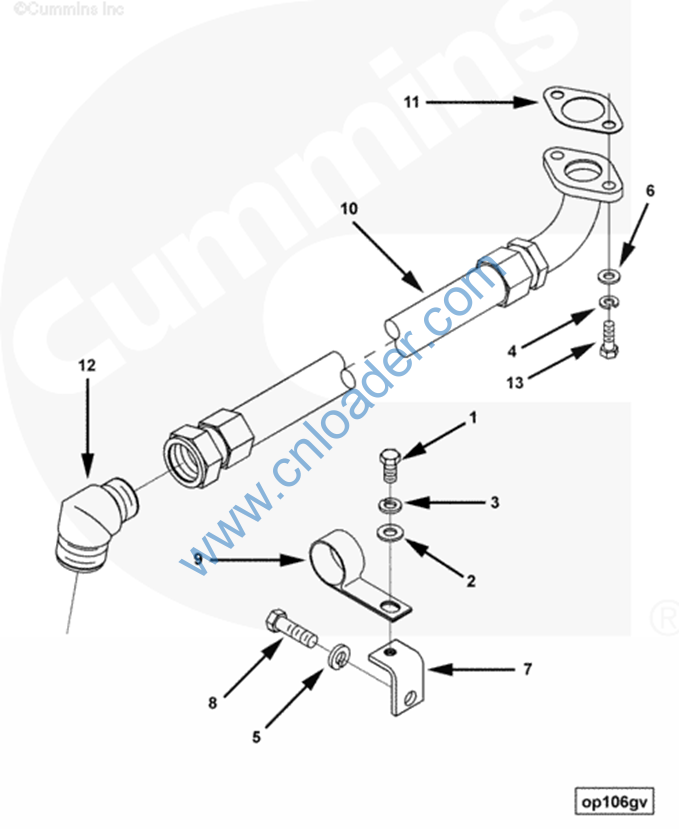

3260630-40 吸油接头及安装
LUB OIL SUCTION T
68038-20 管子支撑20
SUPPORT TUBE
157551-20 法兰衬垫20
GASKET OIL SUC
3010595-20 带垫螺栓20
SCREW,CAPTIVE WASHER CAP
3016478-20 夹子20
CLIP
3034526-20 带垫螺栓20
SCREW CAPTIVE WASHER
3250943-20 柔性软管20
HOSE FLEX
3251022-20 阳性弯接头20
ELBOW MALE ADAPTER
3600283-20 平垫圈
WASHER,PLAIN
S 117-20 六角螺栓20
SCREW,HEX HEAD CAP
S 602-20 平垫圈20
WASHER PLAIN
S 604-20 弹簧垫圈20
WASHER LOCK
PP 517 CE 性能件
PARTS,PERFORMANCE

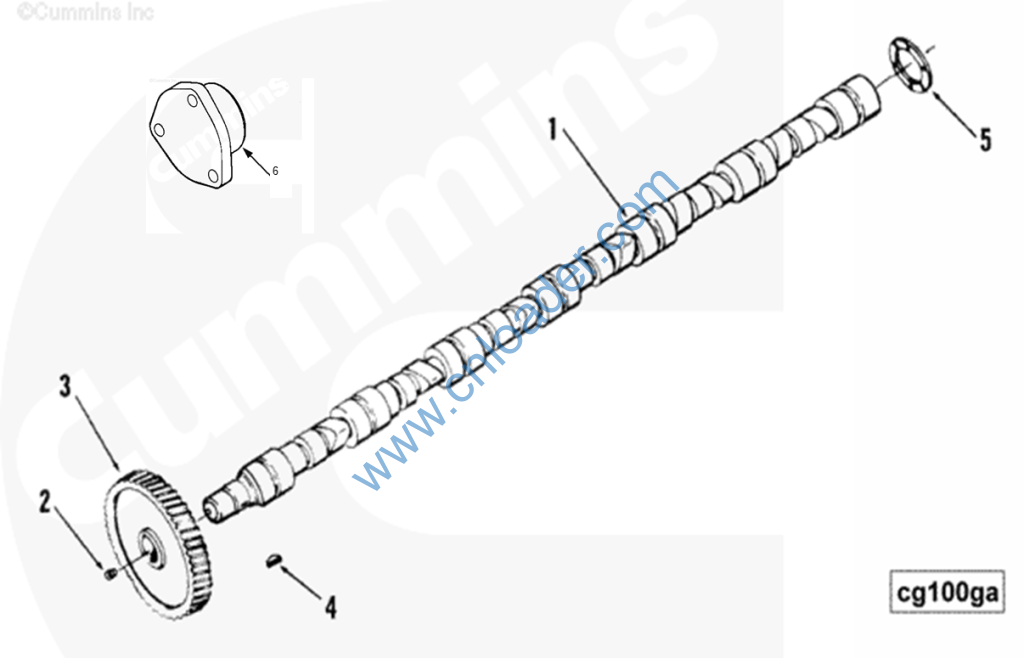

3049026-40 凸轮轴总成
CAMSHAFT2 68193-20 管塞20
PLUG PIPE
4 3021592-20 偏移半圆键
KEY OFFSET
3 3035195-20 凸轮轴齿轮20
GEAR CAMSHAFT
1 3042568-20 凸轮轴20
CAMSHAFT
5 215233-20 止推轴承20
BUING
6 3008530-20 凸轮轴止推支承座20
SUPPORT CAMSHAFT THRUST

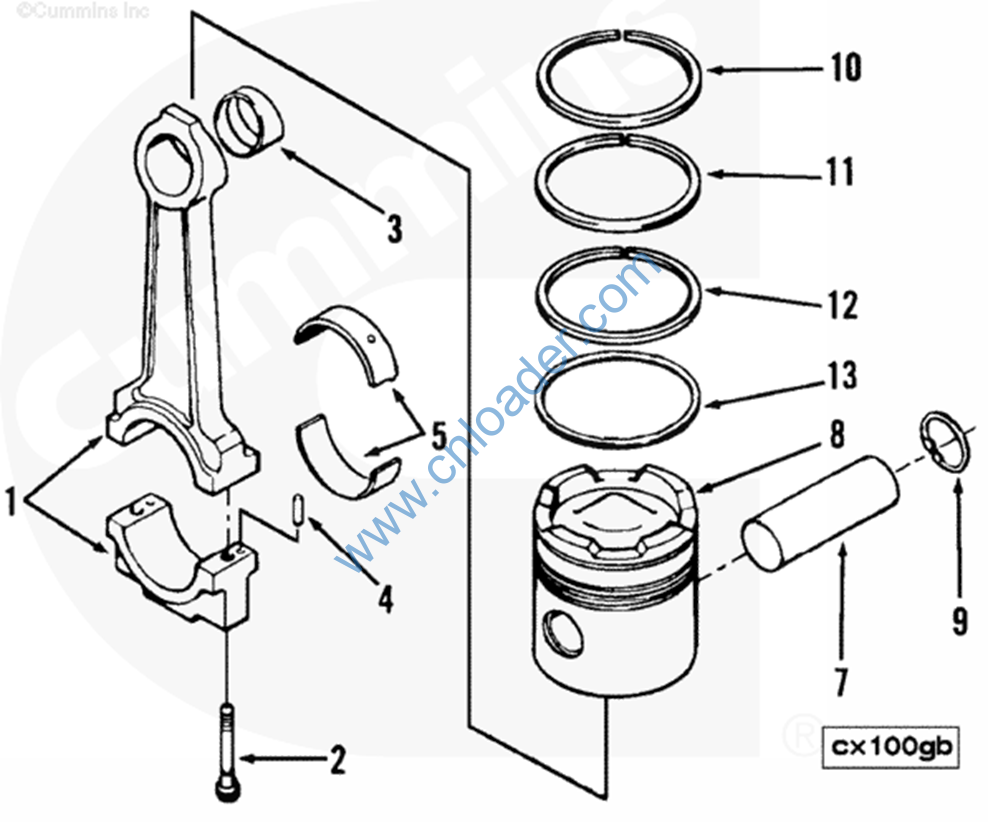

3022156 CE-40 活塞及连杆总成
PISTON & CONNROD
175755-20 挡圈20
RING RETAINING
191970-10 活塞销10
PIN PISTON
214950-20 连杆瓦20
BEARING,ROD
3013930-10 连杆总成10
ROD ENGINE CONNECTING
70550-20 定位销20
PIN
187420-20 连杆衬套20
BUSHING,ROD
218808-10 NH连杆10
ROD ENGINE CONNECTION
219153-20 连杆螺栓
BOLT,CONNECTING ROD
3017349-20 活塞20
PISTON ENGINE
3103157 压缩环
RING,COMPRESSOR
3103158 压缩环90
RING,COMPRESSION
3103159 压缩环
RING,COMPRESSOR
4058969 油环90
RING OIL PISTON

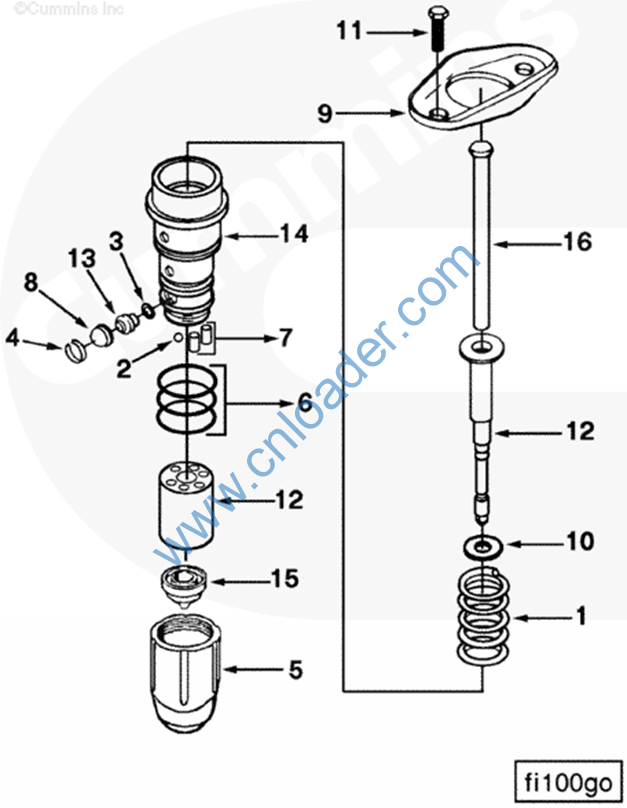

3054218-20 喷油器总成20
INJECTOR
166009 Spring, Compression
167157 Ball, Check
173086 Gasket, Injector
174299 Retainer, Screen
185138 Retainer, Injector Cup
193736 O 形密封圈
203426 Pin, Roll
3008706 Screen, Filter
3047964 Barrel & Plunger
3045047 Plug, Injector Orifice
185139 Adapter, Injector
3012536 Cup, Injector
3032392-40 喷油器安装
MTG INJECTOR
180626-20 垫圈20
WASHER INJECTOR CLAMPING
191916-20 顶杆20
LINK INJECTOR PLUNGER
3028279-20 六角螺栓20
SCREW，HEX HEAD CAP
3031137-20 压板20
CLAMP INJECTOR

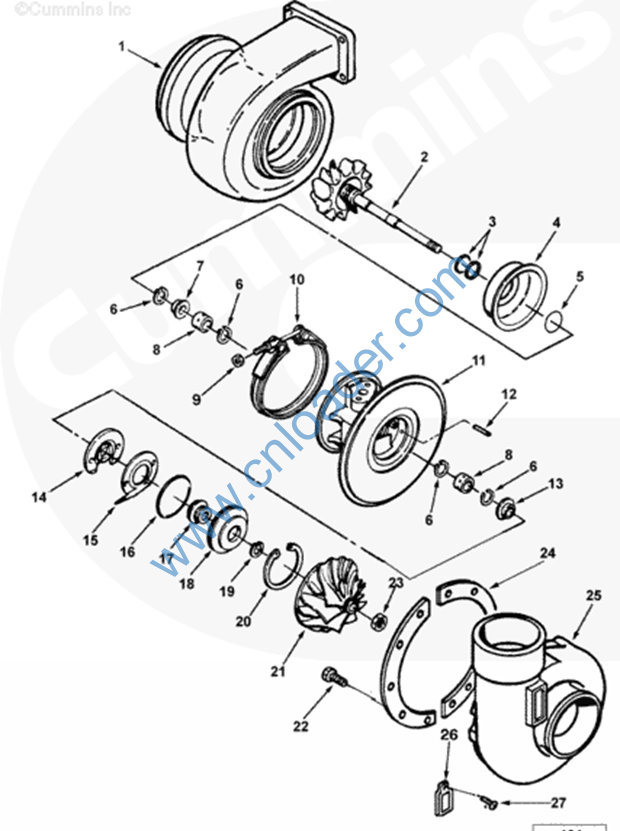

3529040-20 增压器20
TURBOCHARGER
3521837 HOUSING,TURBINE
3594952 SHAFT & WHEEL
3521441 SEAL,SPLIT RING
3519155 SHIELD,TURBOCHARGER HEA
3521442 SEAL,SPLIT RING
3709510 RING,RETAINING
3757753 SLEEVE,OIL CONTROL
3722366 BEARING,TURBOCHARGER
3529372 NUT,REGULAR HEXAGON
3504959 CLAMP,V BAND
3522740 HOUSING,TUR BEARING
3522416 HOUSING,TUR BEARING
3756135 PIN, ROLL
3521440 COLLAR,THRUST
3536075 BEARING,TUR THRUST
3529658 BAFFLE,OIL
3751948 SEAL,O RING
3521439 SLINGER,OIL
3759618 PLATE,OIL SEAL
3718373 RING,RETAINING
3723863 RING,RETAINING
3527047 IMPELLER,TUR COMPRESSOR
3526653 SCREW,CAPTIVE WASHER CA
3519471 NUT,LOCK
3520981 PLATE,CLAMPING
3529016 HOUSING,COMPRESSOR
3527619 DATAPLATE
3519163 SCREW,DRIVE
