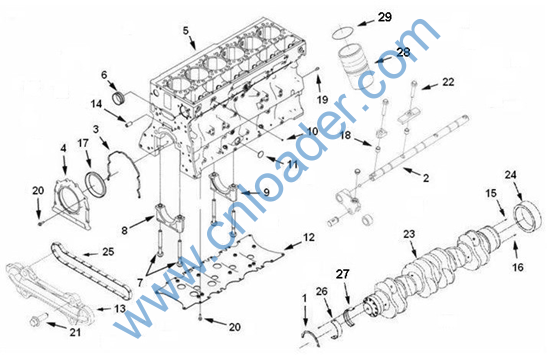

2869805 Y 曲轴止推瓦 BEARING,CRANKSHAFT THRUS
C2869983 Y 凸轮从动杆
LEVER,CAM FOLLOWER
C2870121 Y 前端齿轮室盖密封垫 SEAL,FRONT COVER
C2874044 Y 油封座
CARRIER,SEAL
C2874066 Y 缸体 BLOCK,CYLINDER
C2869839 Y 衬套
BUSHING
C2873989 Y 抗碎螺栓 SCREW,FRACTURE RESISTANT
C2884751 Y 主轴承盖
CAP,MAIN BEARING
C2884752 Y 主轴承盖 CAP,MAIN BEARING
C3007632 Y 碗形塞
PLUG,EXPANSION
C3015865 Y 碗形塞 PLUG,EXPANSION
C2883240 Y 缸体加强板
STIFFENER,CYLINDER BLOCK
C2884766 Y 前齿轮室盖 COVER,FRONT
C3100706 Y 定位环
DOWEL,RING
C3681054 Y 定位销 DOWEL,PIN
C3681054 Y 定位销
DOWEL,PIN
C3685173 Y 油封 SEAL,OIL
C3900720 Y 定位环
DOWEL,RING
C3901846 Y 定位销 DOWEL,PIN
C3903112 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3903112 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3903112 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C4316828 Y 曲轴 CRANKSHAFT,ENGINE
C4327640 Y 曲轴齿轮
GEAR,CRANKSHAFT
C4960053 Y 前端齿轮室盖密封垫 SEAL,FRONT COVER
C4999939 Y 曲轴瓦
BEARING,MAIN
C4999940 Y 曲轴瓦 BEARING,MAIN
C4999962 Y 缸套
LINER,CYLINDER
D2873961 Y O形密封圈 SEAL,O RING
C3903112 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3903112 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3681054 Y 定位销
DOWEL,PIN

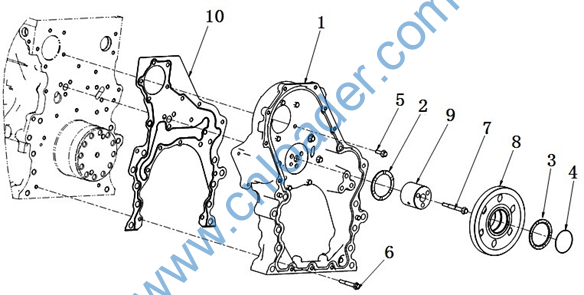

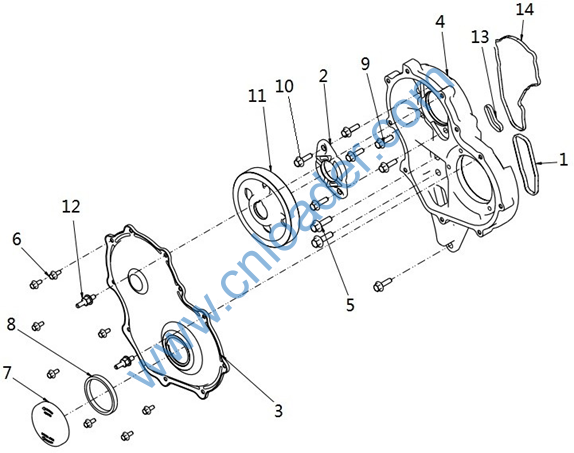

C2864829 Y 齿轮室密封垫 SEAL,GEAR HOUSING
C2874083 Y 惰齿轮止推片
BEARING,THRUST
C2874183 Y 齿轮室盖 COVER,GEAR
C2874184 Y 齿轮室
HOUSING,GEAR
C3093939 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3900629 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3903463 Y 燃油泵齿轮驱动孔盖 COVER,ACCESS HOLE
C3903475 Y 矩形密封圈
SEAL,RECTANGULAR RING
C3925344 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3925344 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C4365726 Y 凸轮轴齿轮 GEAR,CAMSHAFT
C4929065 Y 六角法兰面螺栓
SCREW,STUDDED FLANGE CAP
C4975284 Y 齿轮室密封垫 SEAL,GEAR HOUSING
C4975285 Y 齿轮室密封垫
SEAL,GEAR HOUSING
C2864888 Y 齿轮室 HOUSING,GEAR
C2874328 Y 针形轴承
BEARING,THRUST
C2874328 Y 针形轴承 BEARING,THRUST
C3100109 Y 齿轮固定器
RETAINER,GEAR
C3903112 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3904446 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3916069 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C4327647 Y 惰齿轮
GEAR,IDLER
C4975005 Y 惰轮轴 SHAFT,IDLER
C4999877 Y 齿轮室密封垫
GASKET,GEAR HOUSING
C3678921 Y 螺塞 PLUG,THREADED
C4365897 Y 管夹 CLIP
C209773 Y 管夹
CLAMP,HOSE
C2874047 Y 直软管接头 COUPLING,PLAIN HOSE
C3900589 Y 六角法兰面螺母
NUT,HEXAGON FLANGE
C3900632 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3902460 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3903990 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C4006930 Y 管夹
CLIP

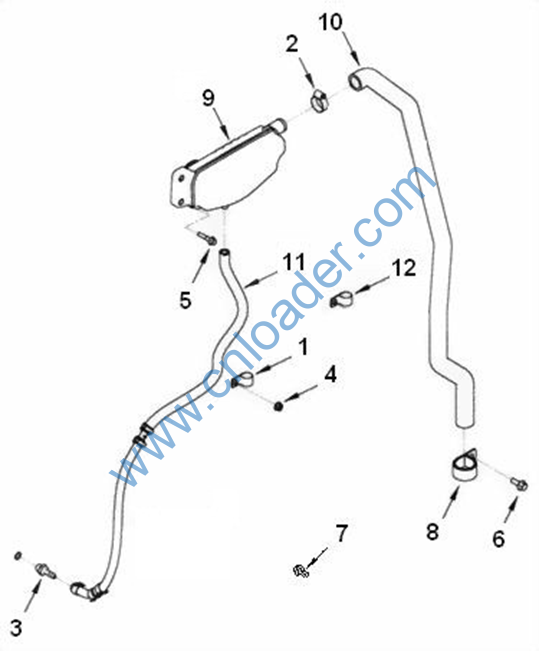

C4974922 Y 曲轴箱通风件 BREATHER,CRANKCASE
C4974923 Y 曲轴箱通风管
TUBE,BREATHER
C4975203 Y 组合软管 HOSE,FLEXIBLE
C69911 A Y 管夹
CLIP

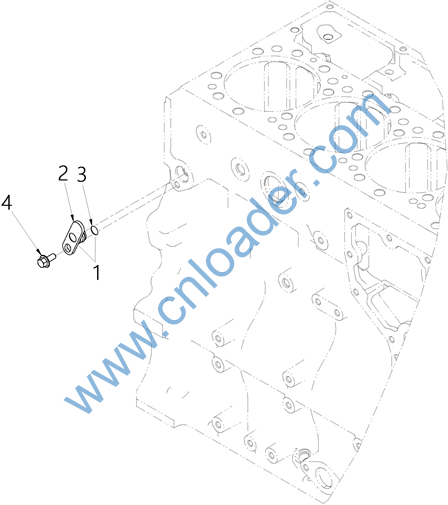

C2865083 Y 加热器螺塞 PLUG,FLANGED O RING
C2865080 Y 加热器螺塞
PLUG,FLANGED O RING
C4965731 Y O形密封圈 SEAL,O RING

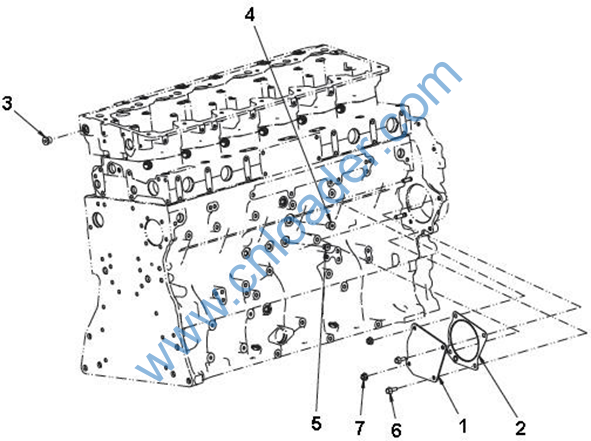

C3903990 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C2874230 Y 盖板 PLATE,COVER
C2874242 Y 盖板密封垫
GASKET,COVER PLATE
C3678873 Y 螺塞 PLUG,THREADED
C3678873 Y 螺塞
PLUG,THREADED
C3678921 Y 螺塞 PLUG,THREADED
C3902460 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3902662 Y 六角法兰面螺母 NUT,HEXAGON FLANGE

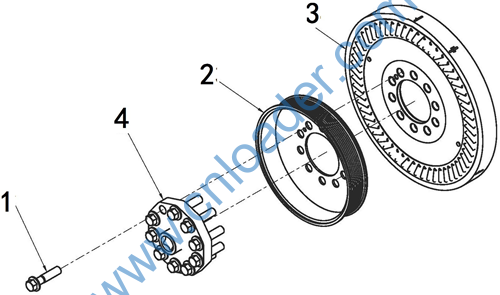

C3100362 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C4316791 Y 曲轴皮带轮
PULLEY,CRANKSHAFT
C4316792 Y 扭振减振器 DAMPER,VISCOUS VIBRATION
C4388897 Y 盘车适配器
ADAPTER,BARRING

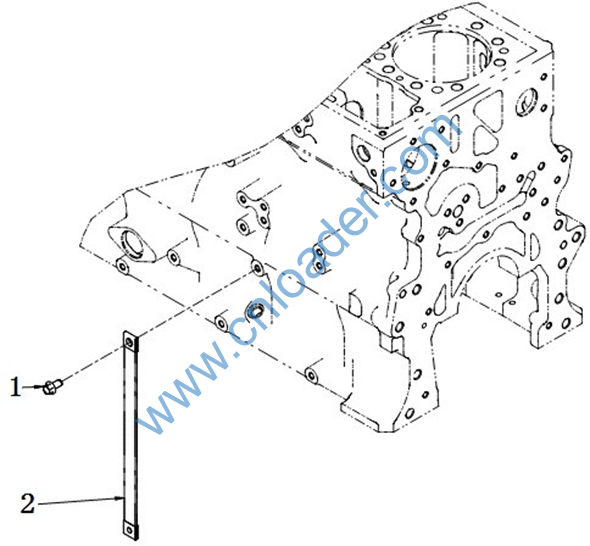

C3903990 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C4932506 Y 搭铁线
WIRE,GROUND

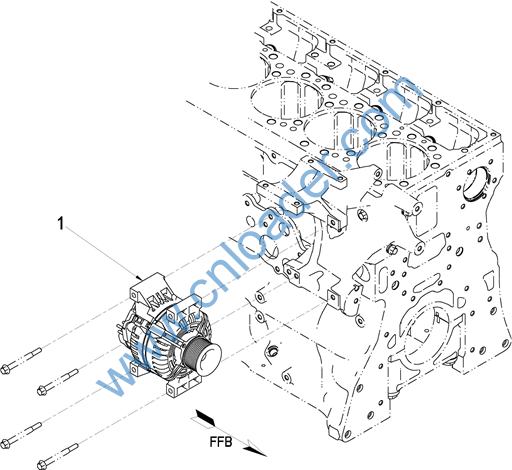

C2874279 Y 发电机 ALTERNATOR

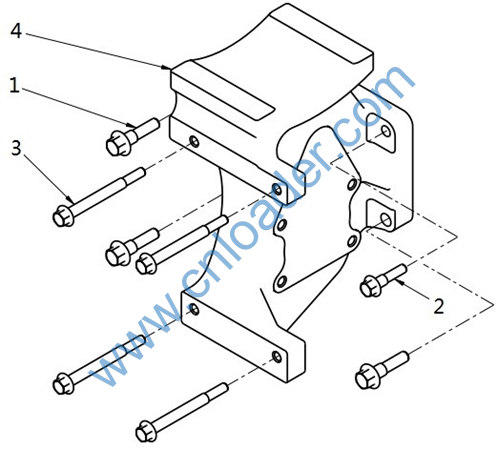

C3093940 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3903464 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3914407 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C4388948 Y 发电机支架
SUPPORT,ALTERNATOR

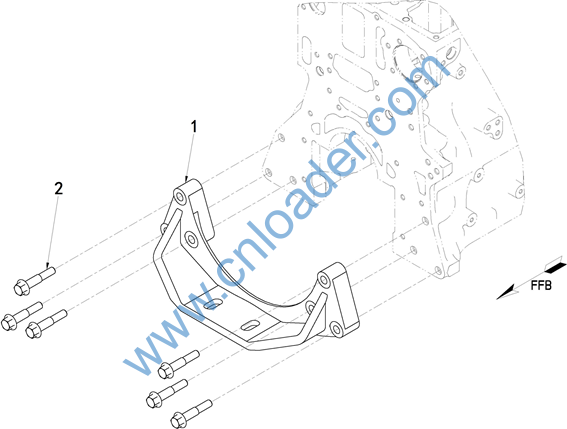

C4974981 Y 发动机前悬置支架 SUPPORT,FRONT ENGINE
C4975022 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA

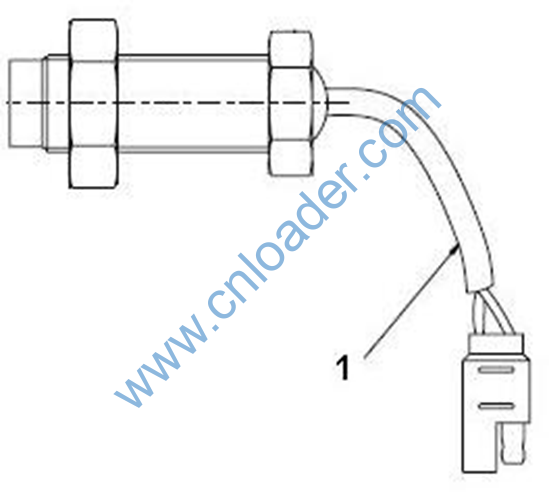

C3971994 Y 转速传感器 SENSOR,SPEED

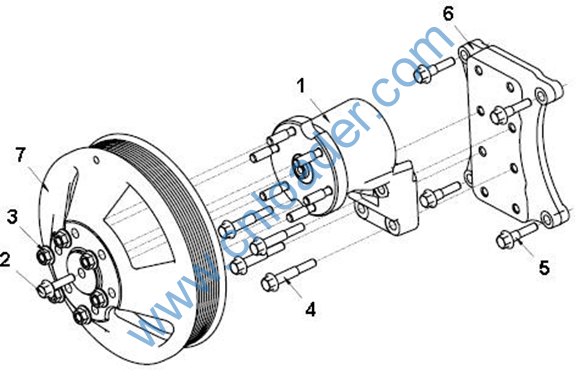

C2873971 Y 风扇轮毂 HUB,FAN
C2874091 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3089016 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3903464 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C3925344 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C4316727 Y 风扇支架
BRACKET,FAN
C4316739 Y 风扇皮带轮 PULLEY,FAN

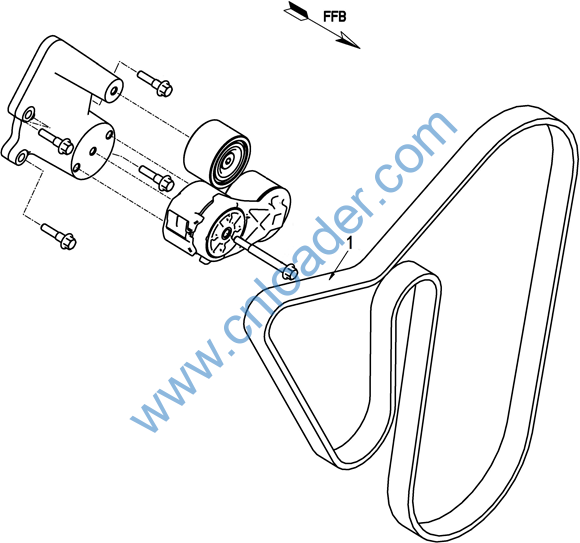

C2873974 Y 多楔带 BELT,V RIBBED

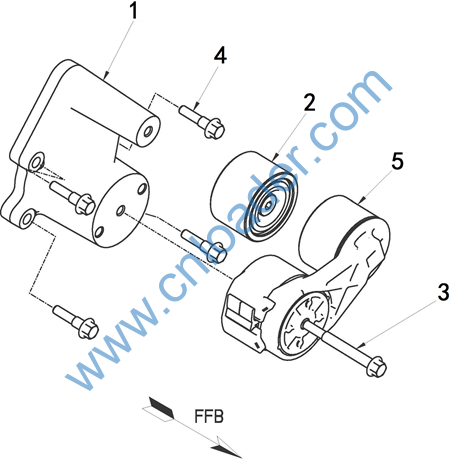

C2873972 Y 涨紧轮支架 SUPPORT,BELT TENSIONER
C2874071 Y 惰轮
PULLEY,IDLER
C3093936 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C3903464 Y 六角法兰面螺栓
SCREW,HEX FLANGE HEAD CA
C4316726 Y 皮带涨紧轮 TENSIONER,BELT

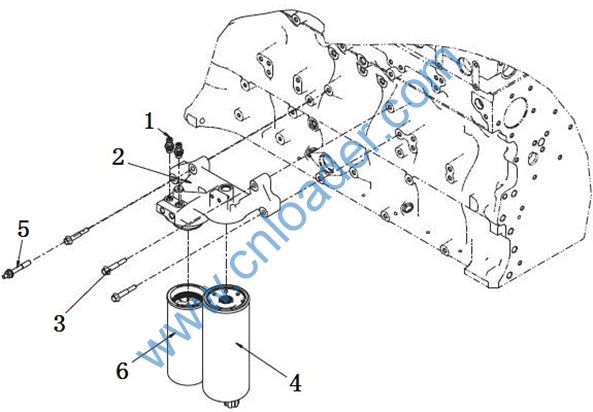

3100221 Y 排气接头 NIPPLE,COUPLING
C2874016 Y 燃油滤清器座
HEAD,FUEL FILTER
C3900635 Y 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA
C4327369 Y 燃油滤清器
FILTER,FUEL
C4953096 Y 双头螺柱 SCREW,SDD CAPTIVE WASHER
C4960198 Y 燃油滤清器
FILTER,FUEL
C3678912 Y O形密封圈 SEAL,O RING
C3678922 Y 螺塞
PLUG,THREADED
