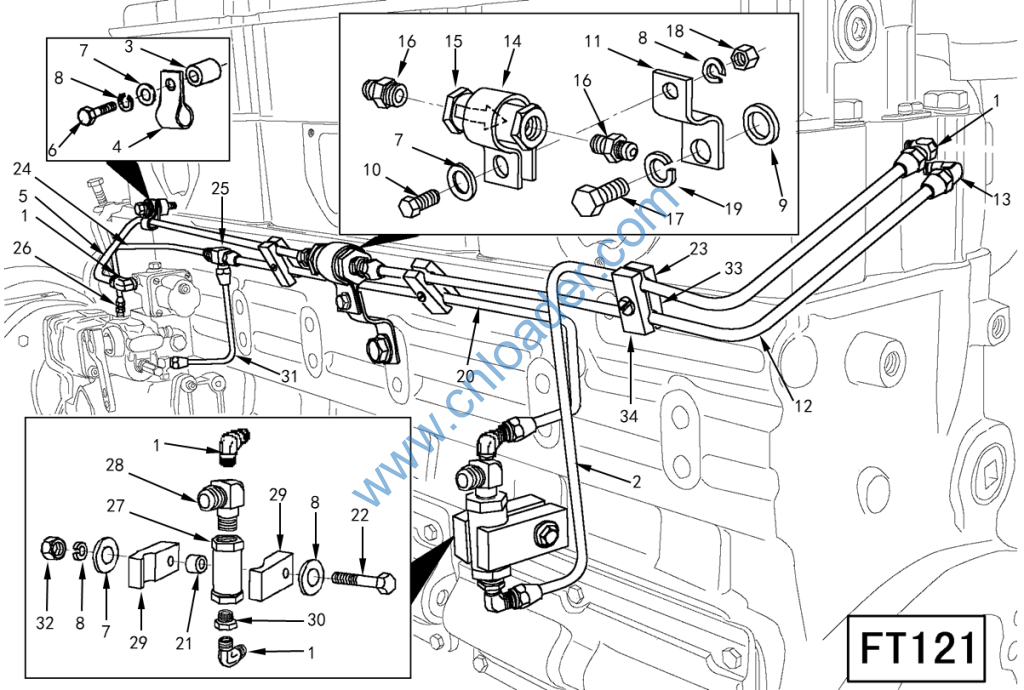

FT 121 燃油管路
FUEL TUBING
116936-20 阳性弯管接头20
ELBOW MALE ADAPTER
3165641-20 回油管20
TUBE FUEL DRUIN
3166082-40 燃油供油管安装
MTG.TUBE FUEL
63385-20 隔套20
SPACER
180372-20 夹子20
CLIP
3165639-20 供油管20
TUBE FUEL SUPPLY
S 137-20 六角螺栓20
SCREW,HEX HEAD CAP
S 602-20 平垫圈20
WASHER PLAIN
S 604-20 弹簧垫圈20
WASHER LOCK
4061471-40 供油管路安装
NTG.FUEL SUPLY
65434-20 减压支架隔套20
SPACER MOUTING
69793-20 六角螺栓20
SCREW,HEX HEAD CAP
113710-20 油管支架20
BRACKET OIL GAUGE
3165640-20 供油管20
TUBE FUEL SUPPLY
3165835-20 弯接头
ELBOW,ADAPTER
4915073-10 单向阀总成
VALVE,CHECK
107460-20 夹子20
CLIP
185505-20 单向阀20
VALVE CHECK
3165864-20 接头
ADAPTER
S 151 C-20 六角螺栓20
SCREW,HEX HEAD CAP
S 205-20 六角螺母20
NUT REGULAR HEXAGON
S 602-20 平垫圈20
WASHER PLAIN
S 604-20 弹簧垫圈20
WASHER LOCK
S 609-20 弹簧垫圈20
WASHER LOCK
4914112-20 燃油回油管20
TUBE,FUEL DRAIN
4915274-10 旁通油管安装
MTG.BYPASS TUBE FUEL
68368 B-20 隔套20
SPACER
116936-20 阳性弯管接头20
ELBOW MALE ADAPTER
177020-20 带垫螺栓20
SCREW HEXAGON HEAD CAP
3007025-20 夹子20
CLIP
3165646-20 燃油回油管20
TUBE FUEL DRAIN
3165833-20 三通接头20
TEE
3165837-20 回油接头
CONPNECT,DRINN
4061202-20 回油软管
HOSE,FUEL
4915273-10 单向阀总成
VALVE,CHECK
116936-20 阳性弯管接头20
ELBOW MALE ADAPTER
178079-20 单向阀20
VALVE CHECK
3165643-20 夹板20
CLAMP
4914125-20 90度弯接头
ELBOW
S 929 B-20 缩紧管衬套20
BUSHING REDUCING PIPE
S 223-20 六角厚螺母20
NUT HEAVY HEXAGON
S 251-20 六角锁紧螺母20
NUT REGULAR HEXAGON JAM
S 602-20 平垫圈20
WASHER PLAIN
S 604-20 弹簧垫圈20
WASHER LOCK
S 1315-20 螺栓20
SCREW PAN HEAD

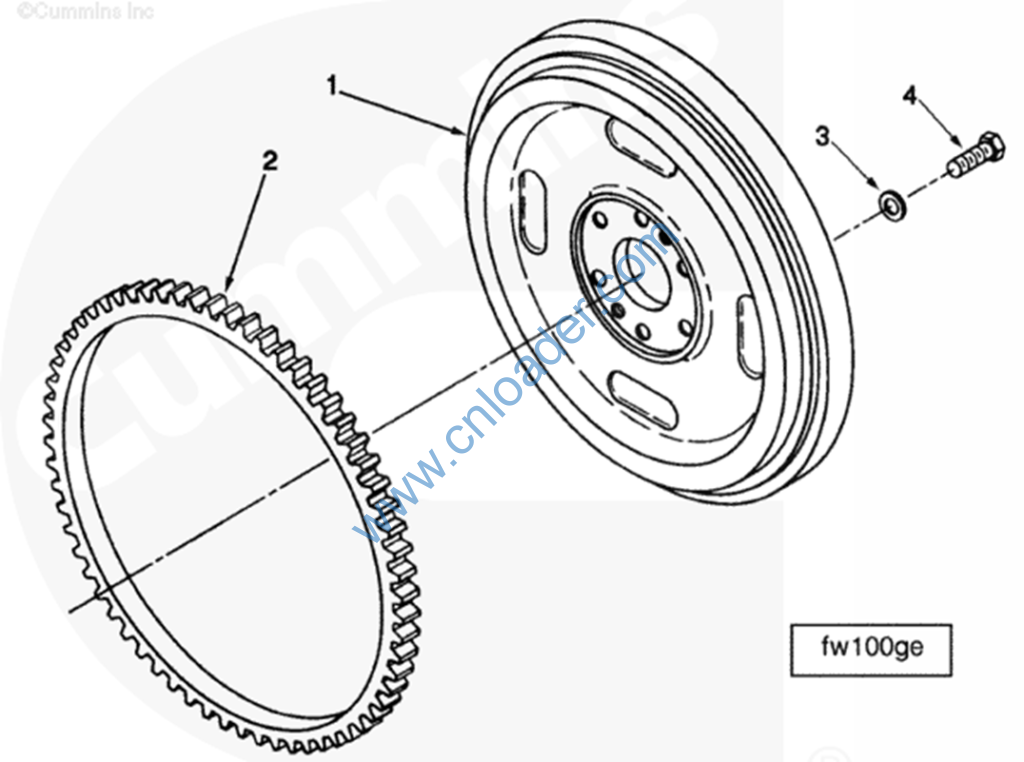

FW 1007 飞轮
FLYWHEEL
3251188-20 飞轮
FLYWHEEL
425710-20 飞轮
FLYWHEEL
422350-20 飞轮齿圈
Gear, Flywheel Ring
FW1400 飞轮安装
FLYWHEEL MTG
200861 平垫圈
WASHER PLAIN
213883 飞轮螺栓
SCREW,HEX HEAD CAP
FW 1007 飞轮
FLYWHEEL
3251188-20 飞轮
FLYWHEEL
425710-20 飞轮
FLYWHEEL
422350-20 飞轮齿圈
Gear, Flywheel Ring
FW1400 飞轮安装
FLYWHEEL MTG
200861 平垫圈
WASHER PLAIN
213883 飞轮螺栓
SCREW,HEX HEAD CAP

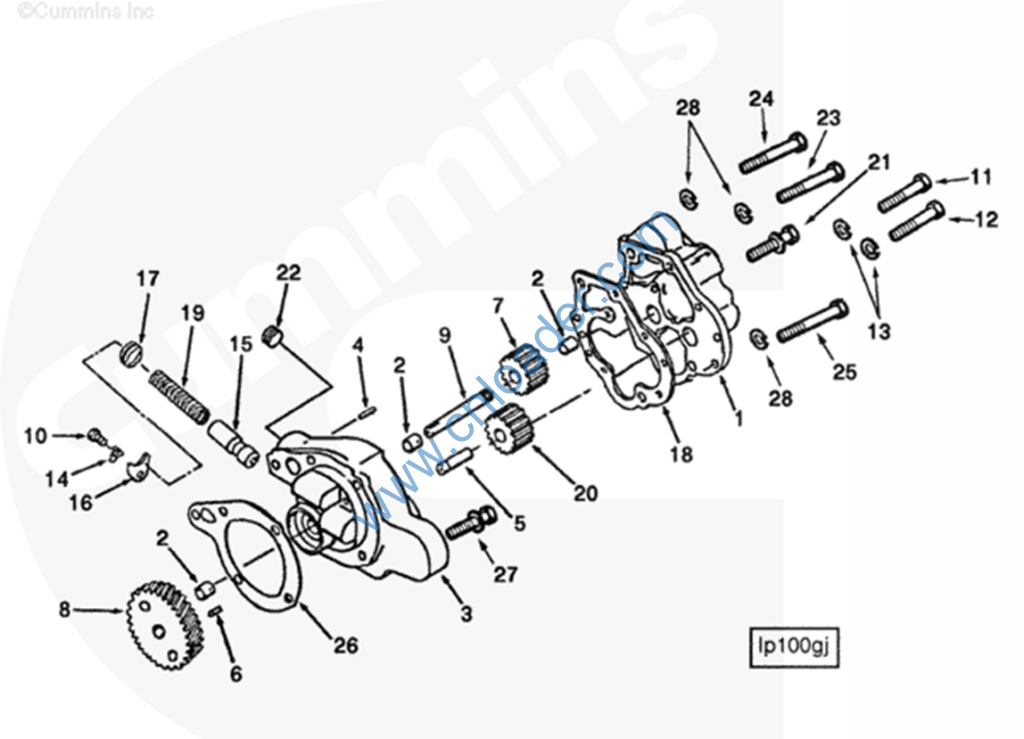

HD 1025 机油泵
LUB OIL PUMP
AR 9835-40 机油泵
PUMP LUB OIL
3042378-10 机油泵10
PUMP LUB OIL
109319-20 锁片20
LOCKPLATE
109333-20 调整柱塞20
PLUNGER
126304-20 固定夹20
CLAMP RETINING
134596-20 旁通阀塞子20
PLUG BY-PASS VALVE LUB
177432-10 盖子总成10
COVER
69521-20 衬套20
BUSHING
177414-10 盖10
COVER LUB PUMP
203145-20 衬垫20
GASKET LUB OIL PUMP COVE
211939 压缩弹簧90
SPRING COMPRESSION
211942-10 壳体10
BODY
69519-20 定位销
DOWEL PIN
177417-20 机油泵驱动轴20
SHAFT LUB PUMP DRIVE
177419-20 机油泵轴20
SHAFT LUB OIL PUMP
211938-10 壳体和衬套10
BODY & BUSHING LUB PUMP
69521-20 衬套20
BUSHING
211929-10 壳体10
BODY LUBRICATING OIL PUM
3014783-20 齿轮20
GEAR LUB PUMPING
3025281-20 齿轮20
GEAR
3008469-20 管塞20
PLUG PIPE
3014965-10 齿轮10
GEAR LUB OIL PUMPING
68365-20 机油泵衬套20
BUSHING
3014784-20 齿轮20
GEAR LUB OIL PUMPING
3022590-20 带垫螺栓20
SCREW CAPTIVE WASHER
S 103-20 螺栓20
SCREW HEXAGON HEAD CAP
S 109-20 六角螺栓20
SCREW,HEX HEAD CAP
S 111-20 六角螺栓20
SCREW,HEX HEAD CAP
S 605-20 弹簧垫圈20
WASHER LOCK
3012479-20 带垫螺栓20
SCREW CAPTIVE WAS
3067613 机油泵衬垫90
GASKET LUB OIL PUMP
S 119 C-20 六角螺栓20
SCREW,HEX HEAD CAP
S 136 B-20 六角螺栓20
SCREW,HEX HEAD CAP
S 140 C-20 六角螺栓20
SCREW,HEX HEAD CAP
S 610-20 弹簧垫圈20
WASHER LOCK
IM 1082 进气管
AIR INTAKE MANIFOLD
3008790-40 进气管安装
MANIFOLD AIP MTG
3008470-20 管塞20
PLUG PIPE
3008591-20 进气管衬垫20
GASKEK
3011716-20 带垫螺栓20
SCREW CAPTIVE WAS
3028967-20 带垫螺栓20
SCREW
S 911 B-20 管塞20
PLUG PIPE
3419233-20 中冷器总成20
ASSY AFTERCOOLER
195925 O型圈
SEAL O RING
216486 中冷器室衬垫
GASKET AFTERCOOLER HOUSING
3028997-20 中冷器芯
CORE,AFTERCOOLER
3032348-20 衬垫
GASKET WTR TRS CONNECTION
215044-20 衬垫
GASKET WTR TRS CONNECTION

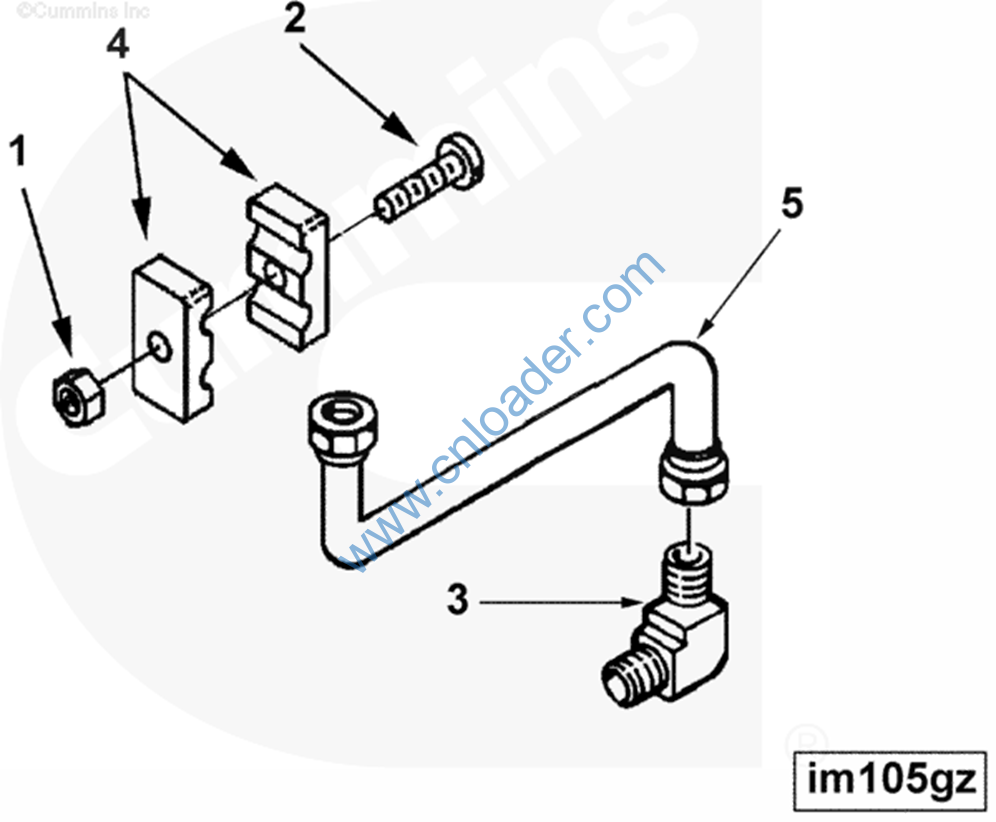

IM 1781 CE 进气管安装
AIR INTAKE MANIFOLD MTG.
68138-20 阳性管接头20
UNION,MALE
3260683-40 进气压力歧管安装
TUBE MANIFOLD PRE
68138-20 阳性管接头20
UNION,MALE
68139-20 阳性弯管接头20
BLBOW MALE ADAPTE
3007025-20 夹子20
CLIP
3655002-20 AFC管子20
TUBE MANIFLD PRE
S 251-20 六角锁紧螺母20
NUT REGULAR HEXAGON JAM
S 1315-20 螺栓20
SCREW PAN HEAD

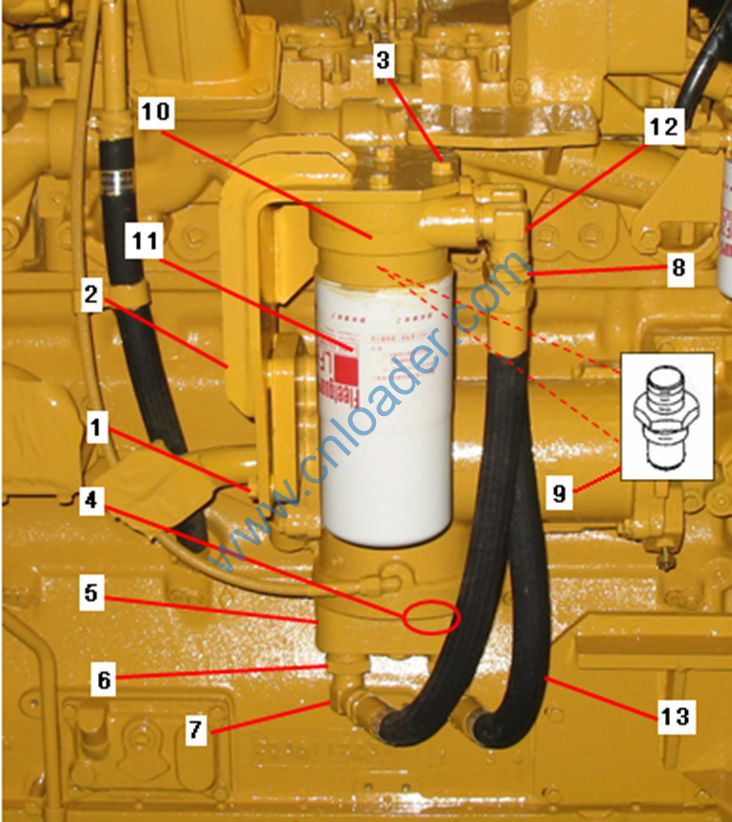

LF 1085 机油滤清器
LUB OIL FILTER ELEMENT
3260653-40 机油滤清器支架
BRACKET LUB FILTE
103023-20 六角螺栓20
SCREW,HEX HEAD CAP
S 610-20 弹簧垫圈20
WASHER LOCK
3250958-20 支架20
BRACKET FILTER
S 145-20 六角螺栓20
SCREW,HEX HEAD CAP
S 608-20 弹簧垫圈20
WASHER LOCK
S 670-20 平垫圈20
WASHER PLAIN
3260687-40 机油滤清器接头
ADAPTER LUBE OIL
8265-20 平垫圈20
WASHER PLAIN
3016362 矩型密封圈90
SEAL RECTANGULAR
3027733-20 滤清器座连接器10
ADAPTER FILTER HE
S 915 B-20 异径管衬套20
BUSHING REDUCINS PIPE
S 988-20 接头(90′)20
ELBOW PLAIN STREET PIPE
3419177-40 机油滤清器
FILTER,LUB OIL
119984-20 接头20
CONNECTOR MALE
3034578-20 接头20
ADAPTER FILTER HE
3419151-20 滤清器座总成10
ASSEM FILTER HEA
3889310-29 机油滤清器
FILTER,LUB OIL
S 988-20 接头(90′)20
ELBOW PLAIN STREET PIPE
S 995-20 管塞20
PLUG PIPE
AS16024 6MS-20 软管20
HOSE FLEXIBLE

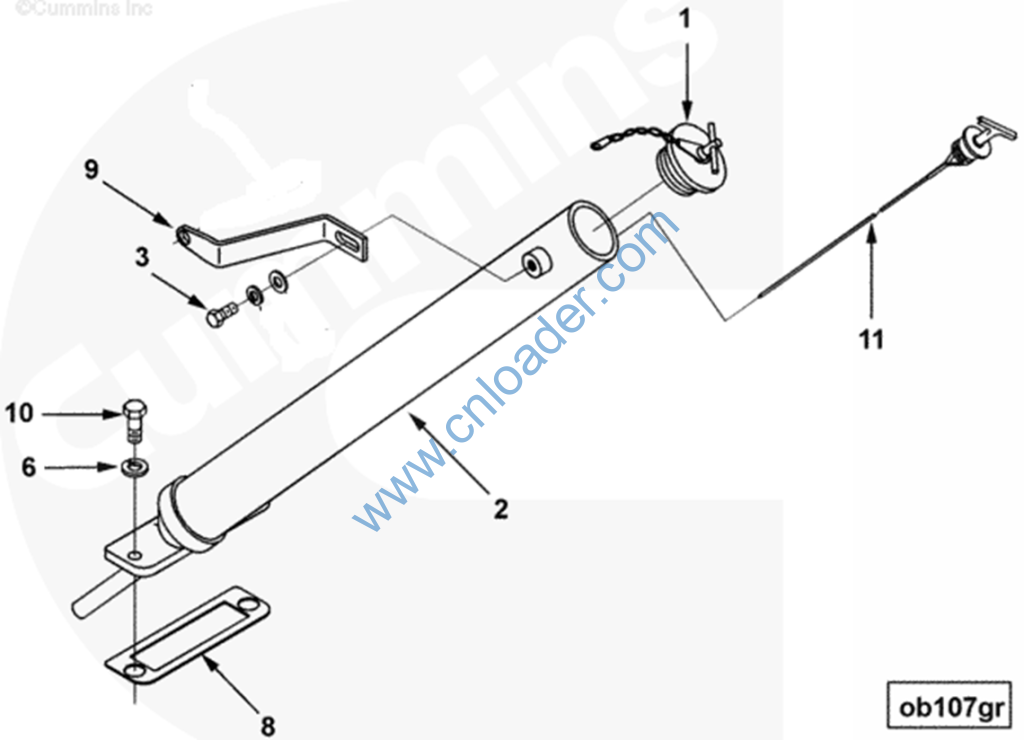

OB 1142 机油尺及位置
OIL DIPSTICK & GAUGE
3418519-20 加机油口盖总成20
CAP,FILLER
3250939-20 油标尺及支架总成20
BRACKET OIL TUBE
3260633-40 油标尺安装
MTG DIPSTICK & FI
421541-20 机油尺衬垫20
GASKET OIL GAUGE
3038076-20 带垫螺栓20
SCREW
3251004-20 导管支撑20
BRACE TUBE
3335005-20 六角螺栓20
SCREW,HEX HEAD CAP
S 608-20 弹簧垫圈20
WASHER LOCK
3326078-20 机油尺20
LIPSTICK
