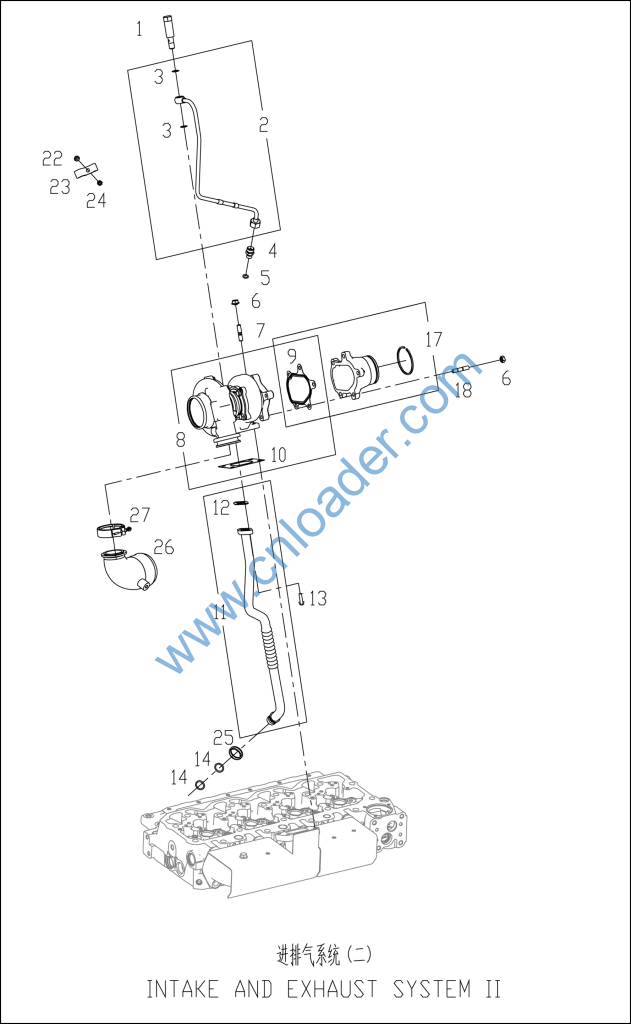

B00002178 增压器进油铰接螺栓 BOLT
F/1401 增压器进油管维修组件 TURBOCHARGER OIL INLET PIPE SERVICE GROUP
S00011472 增压器进油管 TURBOCHARGER OIL INLET PIPE
B00001818 铜垫圈 COPPER WASHER
S00003939 接头 CONNECTOR
S00005682 O型橡胶密封圈 O-RING
D13-108-50 增压器自锁螺母 TURBOCHARGER SELF-LOCKING NUT
S00003525 双头螺柱 STUD
F/1401 增压器维修组件 TURBOCHARGER SERVICE GROUP
S00017222 增压器 TURBOCHARGER
D13-103-52 涡轮出口垫片 GASKET, OUTLET-TURBINE
S00003835 涡轮进口垫片 GASKET, INLET-TURBINE
F/1401 增压器回油管维修组件 TURBOCHARGER OIL RETURN PIPE SERVICE GROUP
S00017979 增压器回油管 TURBOCHARGER OIL RETURN PIPE
S00003929 增压器回油管垫片 TURBOCHARGER OIL RETURN TUBE GASKET
B00004893 六角法兰面螺栓 BOLT
D02A-171-80 O形圈 O-RING
761Z-13-008 密封圈 SEAL RING
F/1401 涡轮出口连接壳体维修组件 CONNECTING HOUSING, OUTLET PIPE-TURBINE SERVICE GROUP
S00017875 涡轮出口连接壳体 CONNECTING HOUSING, OUTLET PIPE-TURBINE
D13-303-01 双头螺栓 STUD
S00011235 夹箍 CLAMP
B00002110 六角法兰面螺栓 BOLT
B00000790 I型六角螺母 HEXAGON NUT (TYPE 1)
D02A-127-01 闷头 PLUG
S00012204 压气机出气接管 AIR OUTLET PIPE ADAPTER, COMPRESSOR
S00006095 夹箍 CLAMP

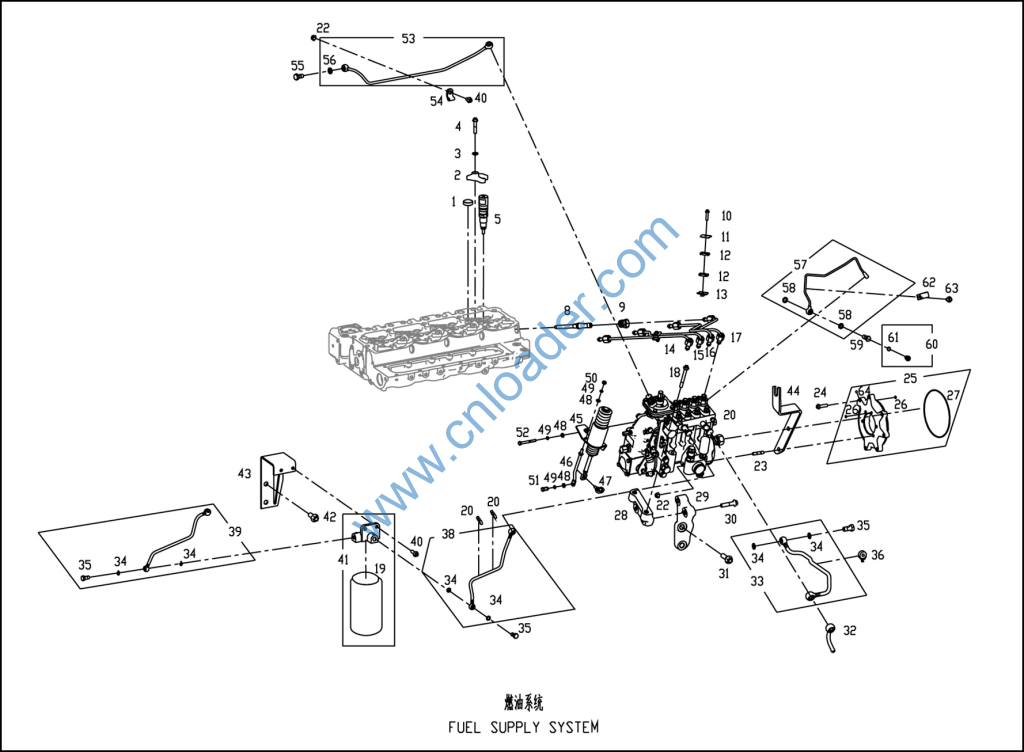

S00003958 喷油器压板垫块 SPACER, INJECTOR CLAMP
S00009518 喷油器压板 CLAMP, INJECTOR
B00000973 球面垫圈 WASHER WITH BALL FACE
D03-112-01 螺栓 BOLT
S00010458 喷油器部件 INJECTOR ASSY
S00010449 喷油器进油接管 INJECTOR CONNECTOR
S00004602 喷油器进油接管螺母 NUT
B00002122 六角法兰面螺栓 BOLT
D26-105-02 夹片 CLAMP
D26-104-02 夹片衬垫 CLAMP LINER
D26C-130-903 高压油管焊接部件夹片 CLAMP
S00015111 第一缸高压油管 HIGH PRESSURE FUEL TUBE ASSY (NO.1 CYLINDER)
S00015112 第二缸高压油管 HIGH PRESSURE FUEL TUBE ASSY (NO.2 CYLINDER)
S00015113 第三缸高压油管 HIGH PRESSURE FUEL TUBE ASSY (NO.3 CYLINDER)
S00015114 第四缸高压油管 HIGH PRESSURE FUEL TUBE ASSY (NO.4 CYLINDER)
B00002165 六角法兰面螺栓 BOLT
D638-002-02 燃油滤清器 OIL FILTER
S00000301 喷油泵部件 FUEL INJECTION PUMP
S00013050 夹箍 CLAMP
B00000833 螺母 NUT
B00001104 双头螺柱 STUD
B00004902 六角法兰面螺栓 BOLT
F/1401 喷油泵过渡法兰维修组件 FUEL INJECTION PUMP FLANGE ADAPTER SERVICE GROUP
S00011480 喷油泵过渡法兰部件 FUEL INJECTION PUMP FLANGE ADAPTER ASSY
B00001386 O型橡胶密封圈 O-RING
S00010030 O型橡胶密封圈 O-RING
S00016466 喷油泵支架 FUEL INJECTION PUMP BRACKET
S00010189 喷油泵支架 FUEL INJECTION PUMP BRACKET
B00002011 六角法兰面螺栓 BOLT
B00002058 六角法兰面螺栓 BOLT
S00018043 回油接头 OIL RETURN CONNECTOR
F/1401 燃油回油管维修组件 FUEL RETURN PIPE SERVICE GROUP
S00018031 燃油回油管 FUEL RETURN PIPE
B00001546 橡胶复合垫圏 WASHER
B00002178 铰接螺栓 BANJO BOLT
S00006746 燃油管路夹箍 CLAMP
F/1401 滤清器到高压油泵进油管维修组件 FUEL FILTER OUTLET LINE SERVICE GROUP
S00018025 滤清器到高压油泵进油管 FUEL FILTER OUTLET LINE
F/1401 输油泵到滤清器进油管维修组件 FUEL SUPPLY PUMP OUTLET TUBE SERVICE GROUP
S00018021 输油泵到滤清器进油管 FUEL SUPPLY PUMP OUTLET TUBE
B00002137 六角法兰面螺栓 BOLT
D638-000-02 燃油精滤器及座部件 FINE FUEL FILTER & BASE ASSY
B00004362 螺栓 BOLT
S00012890 燃滤支架 FINE FUEL FILTER BRACKET
S00014948 油门拉索支架 BRACE, FUEL THROTTLE DRAGLINE
S00014416 电磁铁 ELECTROMAGNET
G59-102-01 撑杆 DEFAULT
S00014078 停机手柄 LEVER, FUEL SHUTOFF
B00001298 平垫圈 PLAIN WASHER
B00005018 弹簧垫圈 SPRING WASHER
B00000791 I型六角螺母 HEXAGON NUT
B00005017 六角头螺栓 HEXAGON HEAD BOLTS
B00005032 六角头螺栓 HEXAGON HEAD BOLTS
F/1401 限烟器软管维修组件 HOSE ASSY, AIR/FUEL RATIO CONTROL SERVICE GROUP
S00018053 限烟器软管部件 HOSE ASSY, AIR/FUEL RATIO CONTROL
S00008728 夹箍 CLAMP
B00002177 铰接螺栓 HINGE BOLT
B00001815 铜垫圈 COPPER WASHER
F/1401 起动加浓管维修组件 START-ENHANCING DEVICE PIPE SERVICE GROUP
S00016395 起动加浓管 START-ENHANCING DEVICE PIPE
B00001825 铜垫圈 COPPER WASHER
D26-121-31 铰接螺栓 BANJO BOLT
S00004815 螺塞装配部件 PIPE PLUG ASSY (ASSEMBLED)
S00004817 O形橡胶密封圈 O-RING
D26-117-31 夹箍 CLAMP
B00002131 六角法兰面螺栓 HEXAGON BOLTS
B00004384 钢球 STEEL BALL
D00-240-07 输油泵进油管 INLET PIPE, FUEL SUPPLY PUMP
B00001547 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET
B00002225 铰接螺栓 BANJO BOLT
761G-26-054A 低压油管 FUEL PIPE, LOW PRESSURE
S00011001 燃油回油管 FUEL RETURN PIPE

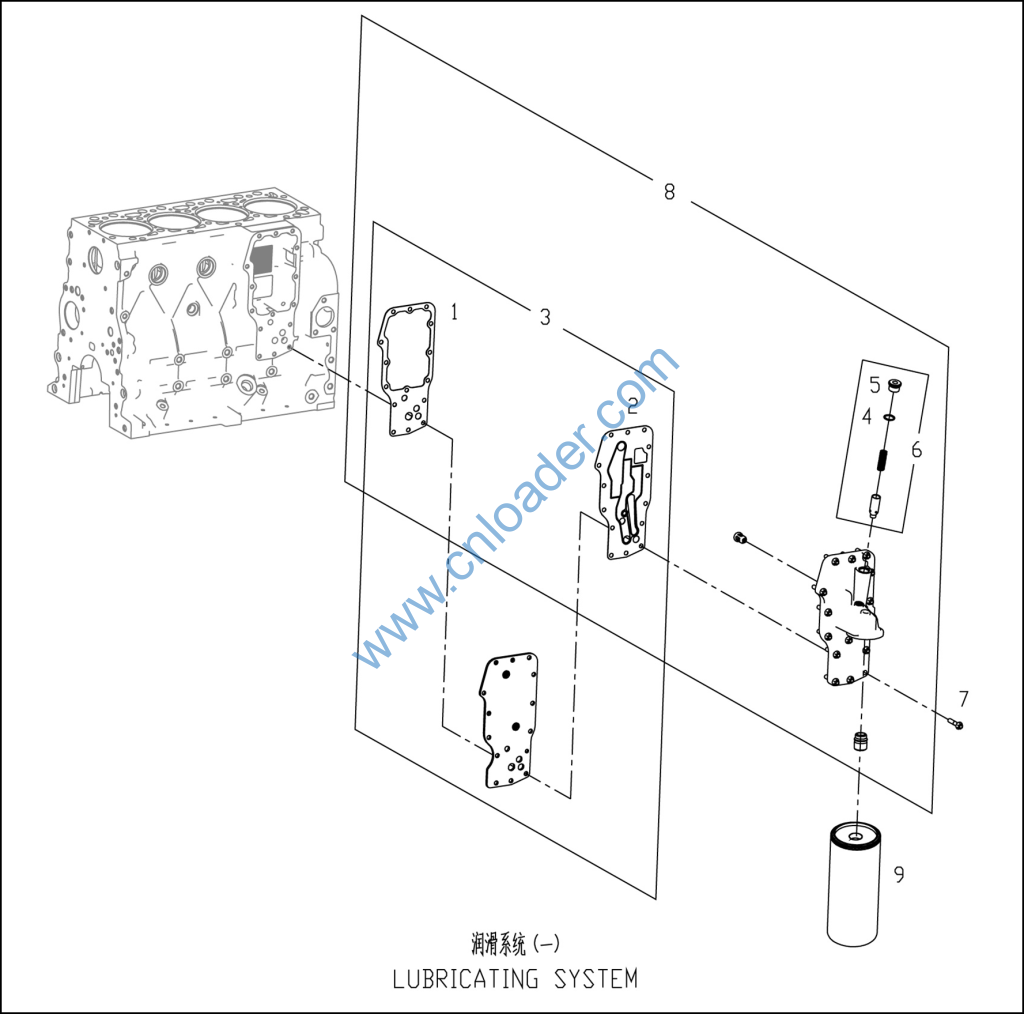

S00004864 机油冷却器垫片 GASKET, OIL COOLER
S00004865 机油冷却器盖垫片 OIL COOLER COVER GASKET
F/1401 机油冷却器维修组件 OIL COOLER SERVICE GROUP
S00003083 机油冷却器芯子焊接部件 CORE ASSY (WELDED), OIL COOLER
S00004986 O型橡胶密封圈 O-RING
S00004918 螺塞 PLUG
F/1401 压力调节阀维修组件 PRESSURE REGULATING VALVE SERVICE GROUP
B00004449 螺栓 BOLT
F/1401 机油冷却器盖维修组件 OIL COOLER COVER SERVICE GROUP
S00010500 机油冷却器盖装配部件 COVER ASSY, OIL COOLER
S00005435 机油滤清器部件 OIL FILTER ASSY
B00004885 螺栓 BOLT

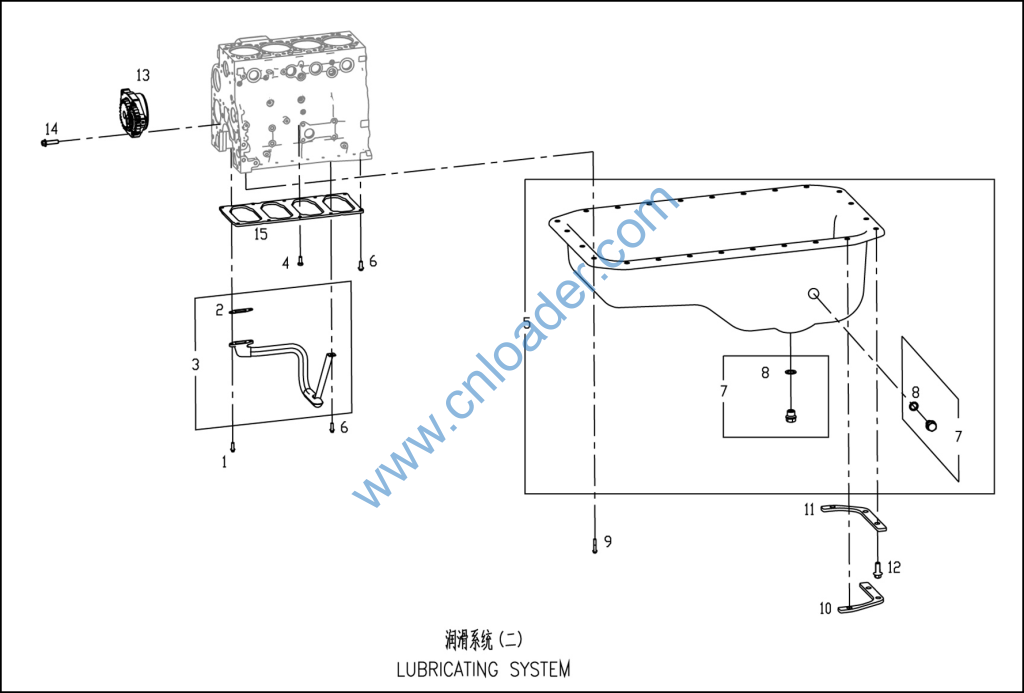

S00005011 吸油管法兰垫片 GASKET, PIPE FLANGE-OIL SUCTION PUMP
F/1401 吸油管维修组件 OIL SUCTION PIPE SERVICE GROUP
S00013437 吸油管焊接部件 OIL SUCTION PIPE ASSY (WELDED), OIL SUCTION PUMP
B00000506 六角头螺栓 HEXAGON HEAD BOLTS
S00012861 油底壳装配部件 OIL PAN ASSY
B00004880 六角法兰面螺栓 HEXAGON BOLTS
F/1401 油底壳放油螺塞维修组件 OIL SUMP DRAIN PLUG ADAPTER SERVICE GROUP
B00001707 内六角螺塞 PLUG
B00001551 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET
B00002132 六角法兰面螺栓 HEXAGON BOLTS
S00011730 油底壳压条 CLAMPING BAR – OIL SUMP
S00011731 油底壳压条 CLAMPING BAR – OIL SUMP
B00002134 六角法兰面螺栓 HEXAGON BOLTS
S00003090 机油泵部件 OIL PUMP ASSY
B00004991 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
S00004852 机体底板(4H小盖板) BEDPLATE, CYLINDER BLOCK
B00000833 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD
B00004665 双头螺柱 STUD
F/1401 张紧轮支架维修组件 BRACKET, TENSIONER SERVICE GROUP
S00004102 张紧轮支架 BRACKET, TENSIONER
B00000121 定位销 DOWEL PIN

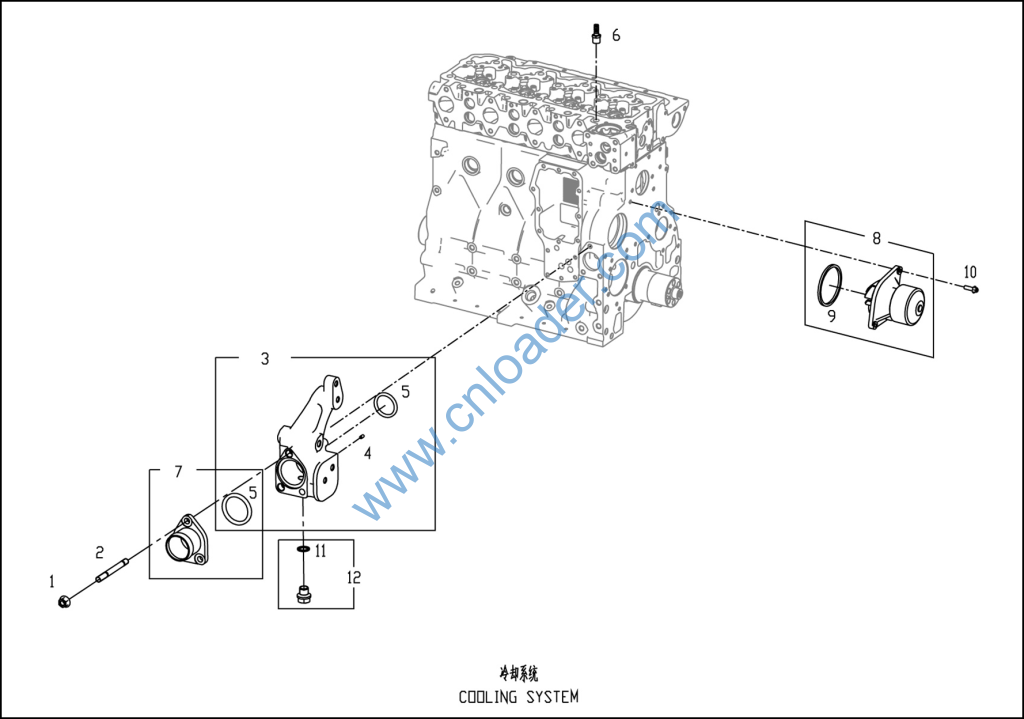

S00004106 水泵进水管垫片 WATER PUMP INLET TUBE GASKET
T04-151-01 放气接头 JIONT
F/1401 水泵进水管维修组件 WATER PUMP INLET PIPE SERVICE GROUP
S00009861 水泵进水管 WATER PUMP INLET PIPE
F/1401 淡水泵维修组件 WATER PUMP SERVICE GROUP
S00003086 淡水泵部件 WATER PUMP ASSY
S00003597 垫片 GASKET
B00004885 六角法兰面螺栓 HEXAGON BOLTS
B00001548 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET
F/1401 六角头螺塞维修组件 PLUG SERVICE GROUP
B00001727 六角头螺塞 PLUG
B00000834 螺母 NUT

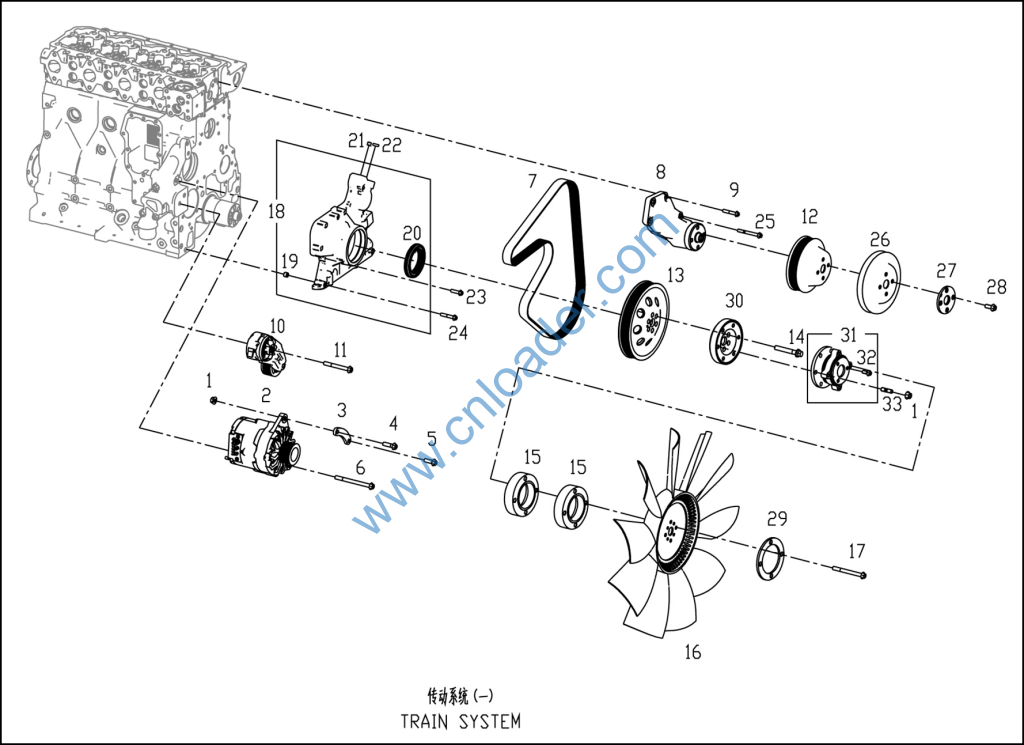

S00002881 发电机 ALTERNATOR
S00005684 发电机撑条 ROD-ALTERNATOR
B00005013 螺栓 BOLT
B00005036 螺栓 BOLT
B00005037 六角法兰面螺栓 BOLT
D16A-106-900 风扇胶带 BELT, FAN
S00003909 风扇轴承座部件 FAN BEARING HOUSING
B00004886 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
S00007858 张紧轮部件 TENSIONER ASSY
B00004630 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
S00004141 风扇胶带轮 PULLEY, FAN
S00004288 曲轴前端皮带轮 PULLEY, CRANKSHAFT
S00003467 减振器螺栓 CRANKSHAFT DAMPER BOLT
S00007891 风扇垫块 SPACER, FAN
S00010523 风扇部件 FAN ASSY
B00002034 六角法兰面螺栓 HEXAGON BOLTS
F/1401 前齿轮室罩盖维修组件 FRONT GEAR HOUSING COVER SERVICE GROUP
S00012866 前齿壳 FRONT GEAR HOUSING
S00000949 定位套 DOWEL SLEEVE
S00004645 曲轴前油封 CRANKSHAFT FRONT SEAL
B00004646 内六角锥形螺塞 PIPE PLUG
B00004583 闷头 PLUG
B00002139 螺栓 BOLT
B00002147 螺栓 BOLT
B00004672 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
S00011688 空调皮带盘 PULLEY, AIR CONDITIONER
S00008262 压板 CLAMP
B00004880 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
S00006087 压板 CLAMP
S00004955 风扇过渡盘 ADAPTER, FAN
S00004956 风扇连接盘橡胶硫化部件 RUBBER VULCANIZED COUPLING PLATE, FAN
B00004368 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
B00005029 双头螺柱 STUD
