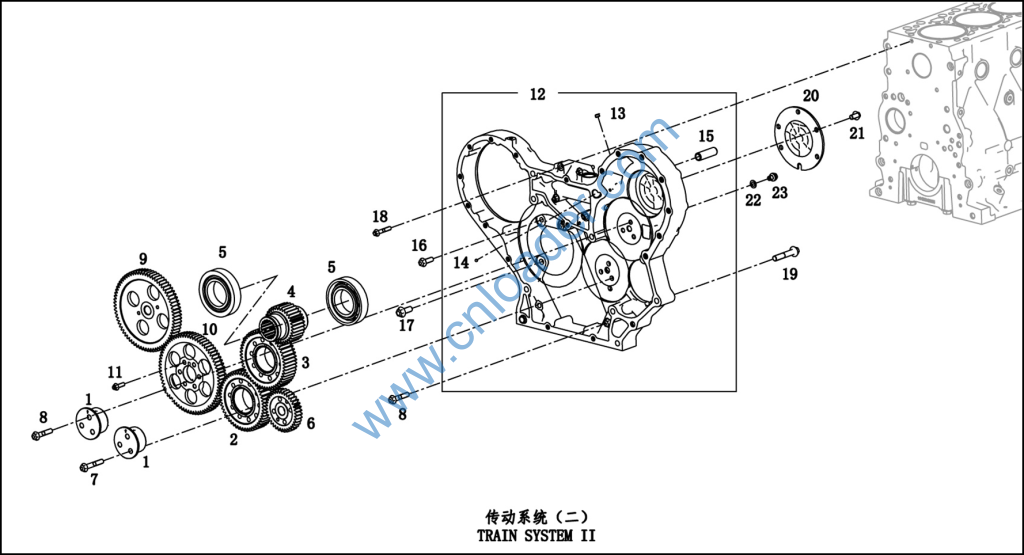

S00012581 空压泵惰齿轮轴 AIR COMPRESSOR IDLER GEAR SHAFT
S00012584 空压泵惰齿轮部件 AIR COMPRESSOR IDLER GEAR ASSY
S00012578 分动箱惰齿轮部件 PTO DEVICE IDLER GEAR ASSY
S00012579 分动箱工作泵传动齿轮 GEAR, WORKING PUMP-PTO DEVICE
B00000261 滚动轴承 ROLLINGS BEARING
S00010910 空压机齿轮 GEAR, AIR COMPRESSOR
B00002020 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
B00004452 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
S00011842 高压油泵齿轮 GEAR, FUEL INJECTION PUMP
S00011841 凸轮轴齿轮 GEAR, CAMSHAFT
B00004885 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
F/1401 齿轮室维修组件 GEAR HOUSING SERVICE GROUP
S00013777 齿轮室螺塞装配部件 SCREW PLUG ASSEMBLY, GEAR HOUSING
B00001698 内六角锥形螺塞 PLUG
B00004384 钢球 STEEL BALL
S00000948 定位销 DOWEL PIN
B00004580 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
B00002051 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
B00004372 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
B00002073 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
S00013717 齿轮室盖板 PLATE, GEAR HOUSING COVER
B00001994 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
B00001815 铜垫圈 COPPER WASHER
B00001724 六角头螺塞 PLUG
S00003468 飞轮螺栓 BOLT
S00004914 垫圈 WASHER

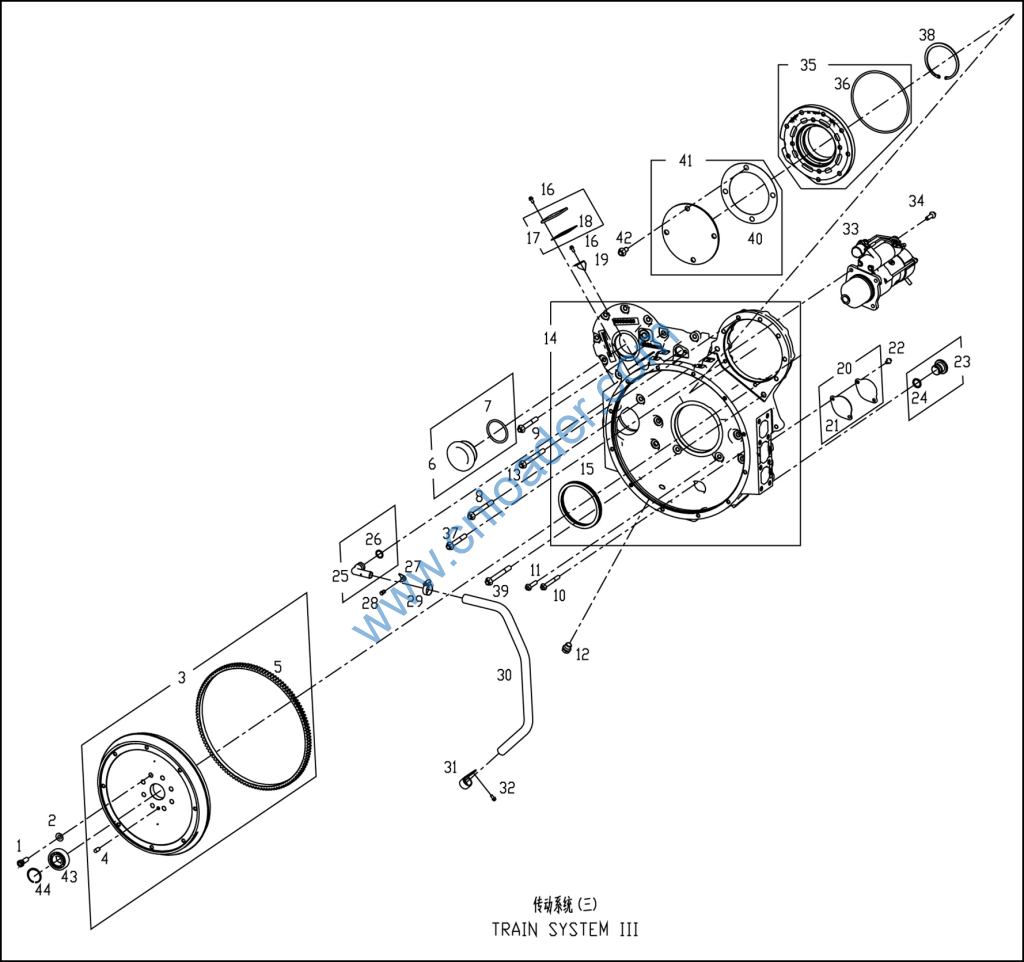

F/1401 飞轮维修组件 FLYWHEEL SERVICE GROUP
S00020476 飞轮齿圈装配部件 FLYWHEEL AND RING GEAR ASSY
B00000098 圆柱销 PIN
S00004084 飞轮齿圈 FLYWHEEL AND RING GEAR
F/1401 飞轮壳开口盖板维修组件 COVER SERVICE GROUP
S00009644 飞轮壳开口盖板 PLATE WITH OPENING, FLYWHEEL HOUSING
B00004827 O型橡胶密封圈 O-RING
B00002037 螺栓 BOLT
B00004631 螺栓 BOLT
B00002055 螺栓 BOLT
B00004902 螺栓 BOLT
B00001728 六角头螺塞 PIPE PLUG
B00002031 螺栓 BOLT
F/1401 飞轮壳维修组件 FLYWHEEL HOUSING SERVICE GROUP
S00010108 飞轮壳 FLYWHEEL HOUSING
D02A-118-02b 曲轴后油封 CRANKSHAFT SEAL, BACK
B00002111 螺栓 BOLT
F/1401 飞轮壳观察孔盖板维修组件 OBSERVING HOLE ADAPTOR, FLYWHELL HOUSING SERVICE GROUP
S00000665 飞轮壳观察孔盖板 OBSERVING HOLE ADAPTOR, FLYWHELL HOUSING
S00000668 飞轮壳观察口盖板垫片 COVER GASKET
S00020770 指针 FINGER
F/1401 盖板维修组件 COVER SERVICE GROUP
D02C-104-01 盖板 COVER
D02C-105-01 盖板垫片 COVER GASKET
B00002130 六角法兰面螺栓 HEXAGON BOLTS
F/1401 盘车孔塞维修组件 BARRING BORE PLUG SERVICE GROUP
D02C-106-01 盘车孔塞 BARRING BORE PLUG
B00000300 O型橡胶密封圈 O-RING
S00005202 通气管接头部件 JOINT ASSY, FUMES DISPOSAL
S00005204 O型圈 O-RING
S00005205 通气管夹片 VENT PIPE CLAMP (HALF)
B00005085 螺栓 BOLT
B00001565 喉箍 CLAMP
S00010031 通气管 VENT PIPE
S00010423 夹箍 CLAMP
B00004896 六角法兰面螺栓 HEXAGON BOLTS
S00005888 起动电机 STARTING MOTOR
B00005013 螺栓 BOLT
F/1401 分动箱输出口端盖维修组件 PTO DEVICE COVER SERVICE GROUP
S00010159 分动箱输出口端盖 PTO DEVICE COVER
B00005084 O形橡胶密封圈 O-RING SEAL
B00002005 六角法兰面螺栓 HEXAGON BOLTS
B00001032 孔用弹性挡圈-A型 CIRCLIPS FOR BORES
B00002021 六角法兰面螺栓 HEXAGON BOLTS
D02C-142-31 盖板垫片 GASKET, PLATE
D02C-125-32 后端盖盖板 REAR PLATE
B00002048 六角法兰面螺栓 HEXAGON BOLTS
B00000234 滚动轴承 ROLLING BEARING
B00001045 孔用弹性挡圈-A型 CIRCLIPS FOR BORES
S00014977 空压泵端盖垫片 GASKET, END COVER-AIR COMPRESSOR
S00015861 转向泵垫片 GASKET, STEERING PUMP
F/1401 空压泵端盖维修组件 END COVER, AIR COMPRESSOR SERVICE GROUP
S00013042 空压泵端盖 END COVER, AIR COMPRESSOR
B00001124 双头螺柱 STUD
B00000836 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD
S00014808 空压泵支架 BRACKET, AIR COMPRESSOR
B00002000 六角法兰面螺栓 HEXAGON BOLTS
B00002049 六角法兰面螺栓 HEXAGON BOLTS
B00002003 六角法兰面螺栓 HEXAGON BOLTS

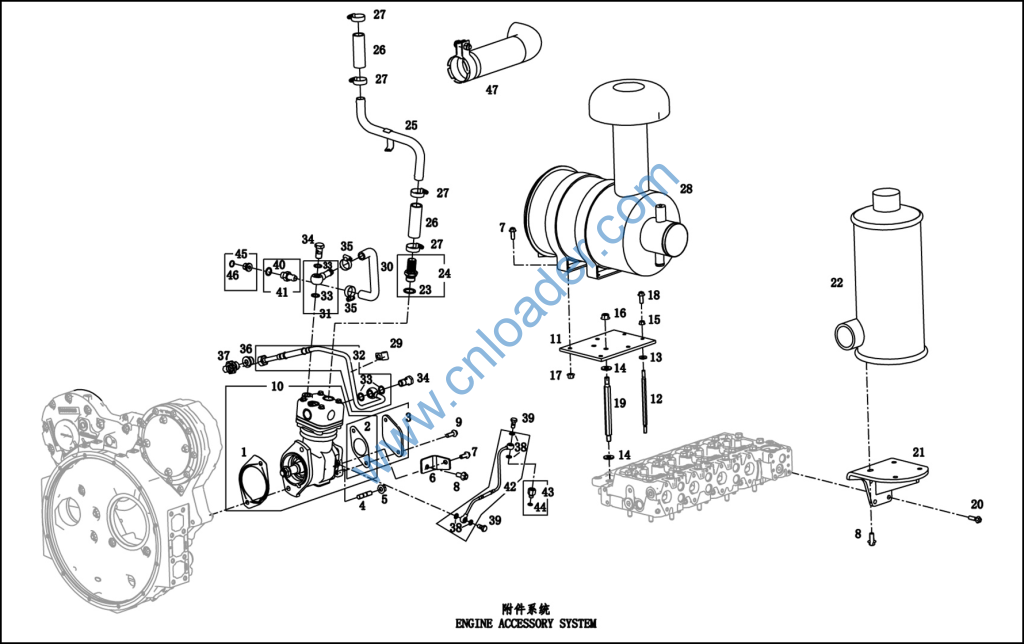

F/1401 空压泵维修组件 AIR COMPRESSOR SERVICE GROUP
S00016391 空压泵部件 AIR COMPRESSOR ASSY
S00017857 空滤器支撑底板 SPHERICAL WASHER
S00017527 空滤器支架撑条 AIR FILTER BRACKET SUPPORT
B00005096 加大毛垫圈 ENLARGED PLAIN WASHER
B00005095 加大毛垫圈 ENLARGED PLAIN WASHER
B00000847 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD
B00000837 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD
B00000834 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD
S00005856 六角法兰面螺栓 HEXAGON BOLTS
S00017858 空滤器支架撑条 AIR FILTER BRACKET SUPPORT
B00004881 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE
S00017892 消声器支架焊接部件 BRACKET ASSY (WELDED), MUFFLER
S00017867 消声器部件 MUFFLER ASSY
B00001847 铜垫圈 COPPER WASHER
F/1401 空压机进气口接头维修组件 JOINT, AIR INLET-AIR COMPRESSOR SERVICE GROUP
S00003935 空压机进气口接头 JOINT, AIR INLET-AIR COMPRESSOR
S00018047 空压泵进气管 AIR INLET PIPE, AIR COMPRESSOR
B00002337 橡胶水管 RUBBER HOSE, WATER
B00001567 喉箍 CLAMP
S00017873 空滤器部件 AIR FILTER ASSY
KL2036-0100 滤芯 FILTER ELEMENT
C14AL-KBZ-2A 指示器 SERVICE INDICATOR, AIR FILTER
S00003932 夹箍 CLAMP
S00017469 空压泵进水管 AIR COMPRESSOR WATER INLET TUBE
F/1401 空压泵进水管管接头维修组件 AIR COMPRESSOR WATER INLET CONNECTOR SERVICE GROUP
S00017470 空压泵进水管管接头 AIR COMPRESSOR WATER INLET CONNECTOR
F/1401 空压泵出水管维修组件 AIR COMPRESSOR WATER OUTLET TUBE SERVICE GROUP
S00017471 空压泵出水管 AIR COMPRESSOR WATER OUTLET TUBE
B00002196 垫圈 WASHER
B00002181 铰接螺栓 HINGE BOLT
B00001565 喉箍 CLAMP
B00001708 内六角螺塞 PLUG
S00005281 空压机出水管弯管接头 AIR COMPRESSOR WATER OUTLET ELBOW CONNECTOR
B00001814 铜垫圈 COPPER WASHER
B00002177 铰接螺栓 HINGE BOLT
B00001831 铜垫圈 COPPER WASHER
F/1401 空压机进水管管接头维修组件 AIR COMPRESSOR WATER INLET CONNECTOR SERVICE GROUP
S00011671 空压机进水管管接头 AIR COMPRESSOR WATER INLET CONNECTOR
F/1401 空压泵进油管维修组件 OIL INLET PIPE ASSY (WELDED), AIR COMPRESSOR SERVICE GROUP
S00014978 空压泵进油管焊接部件 OIL INLET PIPE ASSY (WELDED), AIR COMPRESSOR
F/1401 接头维修组件 CONNECTOR SERVICE GROUP
S00015014 接头 CONNECTOR
S00005682 O型橡胶密封圈 O-RING
S00004822 螺塞装配部件 PIPE PLUG ASSY (ASSEMBLED)
S00004824 O形橡胶密封圈 O-RING
WG-08A-000 尾管 EXHAUST TAILPIPE
