730101000160 1 CONNECTOR 端直通GE10LR3/8EDOMDA3C 2 101-

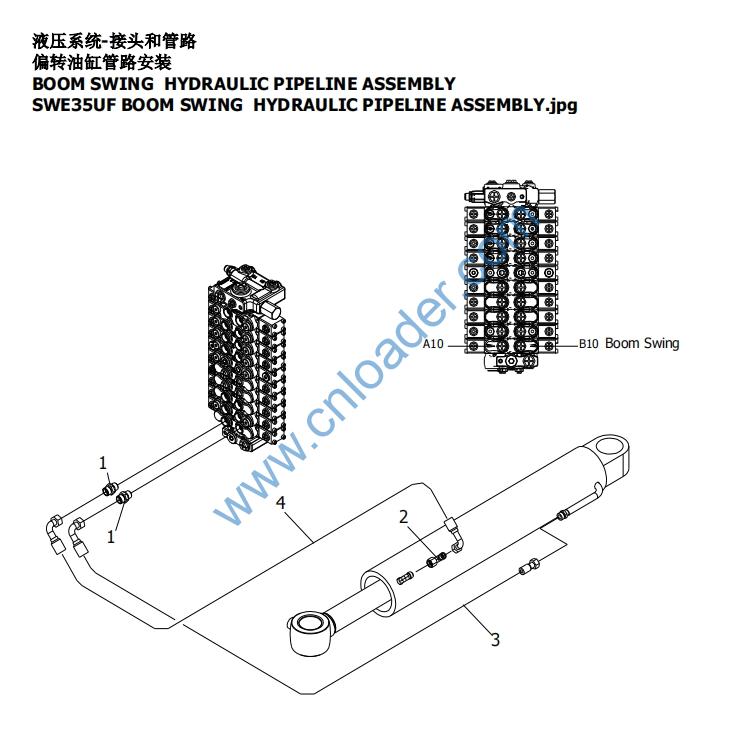

SWE35UF BOOM SWING HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730102000015 1 CONNECTOR 接头EW10LOMDA3C 1 101-
3 730502001643 1 HOSE ASSEMBLY 胶管总成F431CACF101005-405 1 101-
4 730504003856 1 HOSE ASSEMBLY 胶管总成F431CFCF101005-330-90° 1 101-
730101000108 1 CONNECTOR 端直通GE15LREDOMDA3C/30 1 101-

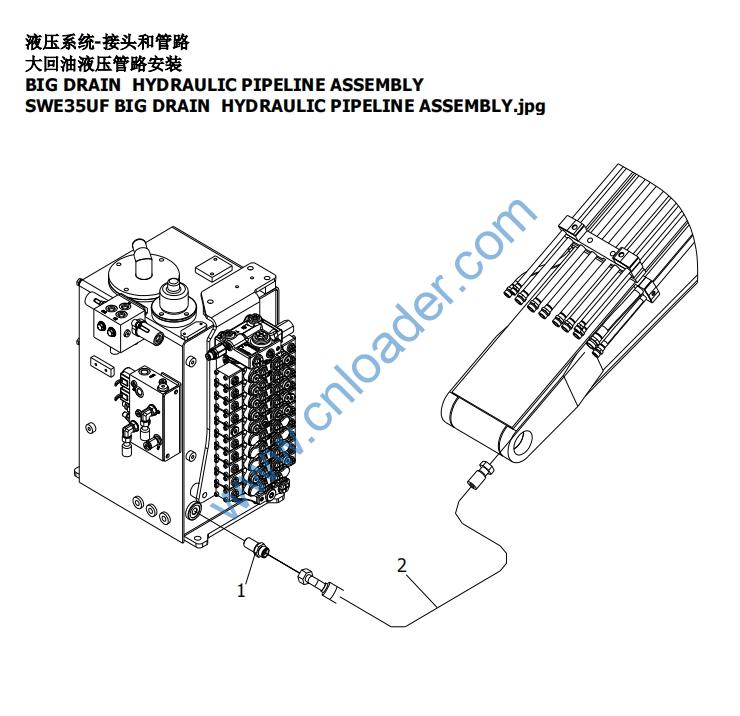

SWE35UF BIG DRAIN HYDRAULIC PIPELINE ASSEMBLY.jpg 2 73050200A776 1 HOSE ASSEMBLY 胶管总成F481CACE151508-1800 1 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 12 101-

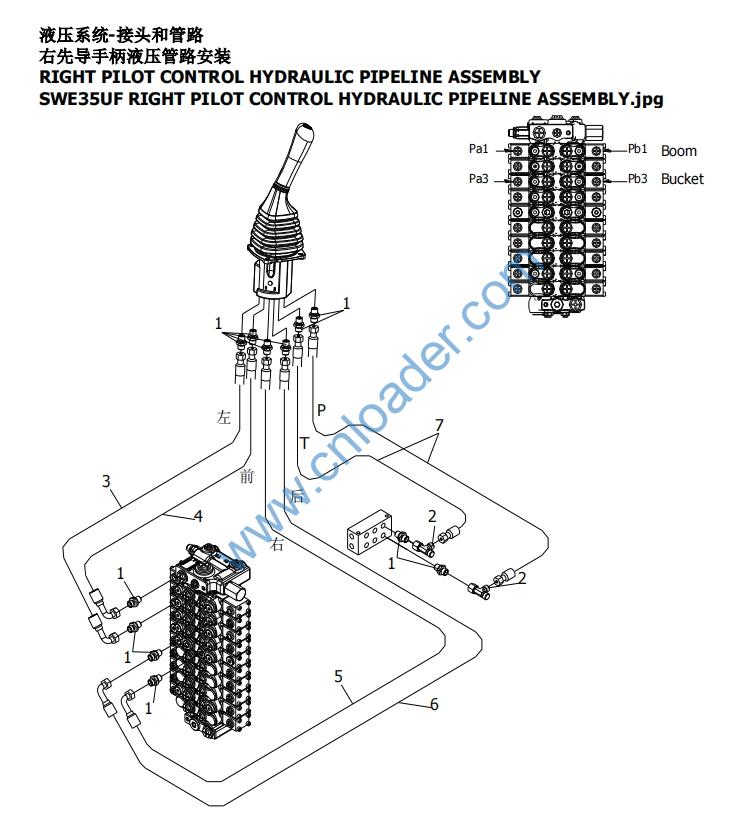

SWE35UF RIGHT PILOT CONTROL HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730104000020 1 CONNECTOR 三通接头EL08LOMDA3C 2 101-
3 73050200A485 1 HOSE ASSEMBLY 胶管总成F481CACF080803-2300 1 101-
4 73050200A780 1 HOSE ASSEMBLY 胶管总成F481CACF080803-2200 1 101-
5 73050200A621 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1700 1 101-
6 73050200A382 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1800 1 101-
7 730501005586 1 HOSE ASSEMBLY 胶管总成F481CACA080803-1950 2 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 12 101-

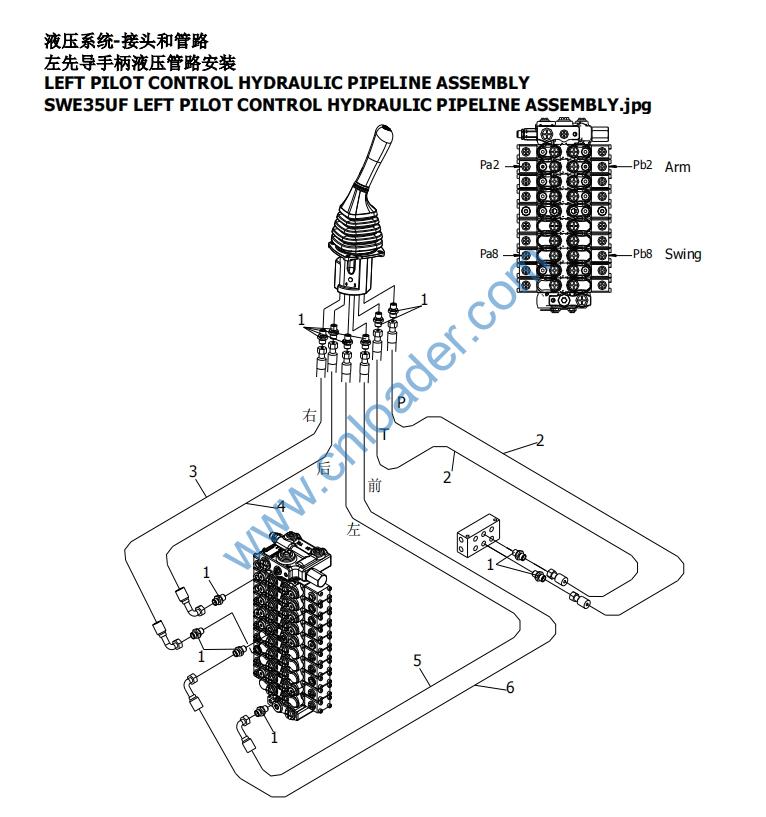

SWE35UF LEFT PILOT CONTROL HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730501005801 1 HOSE ASSEMBLY 胶管总成F481CACA080803-2400 2 101-
3 73050200A783 1 HOSE ASSEMBLY 胶管总成F481CACF080803-3000 1 101-
4 73050200A781 1 HOSE ASSEMBLY 胶管总成F481CACF080803-2750 1 101-
5 73050200A780 1 HOSE ASSEMBLY 胶管总成F481CACF080803-2200 1 101-
6 73050200A485 1 HOSE ASSEMBLY 胶管总成F481CACF080803-2300 1 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 6 101-

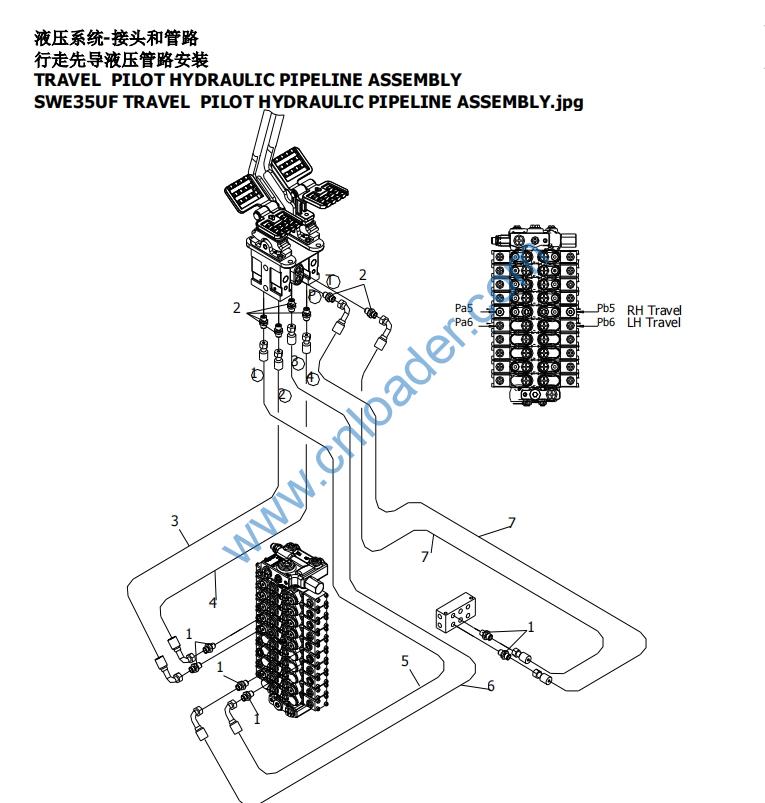

SWE35UF TRAVEL PILOT HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 6 101-
3 73050200A948 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1750 1 101-
4 73050200A220 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1600 1 101-
5 73050200A444 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1050 1 101-
6 73050200A215 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1000 1 101-
7 73050200A782 1 HOSE ASSEMBLY 胶管总成F481CACF080803-270 2 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 4 101-

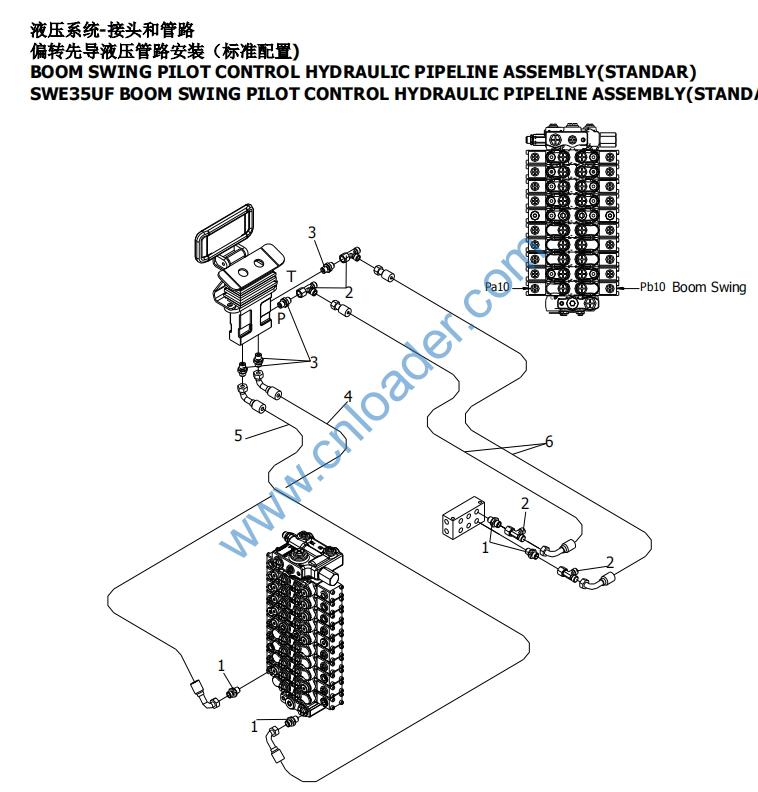

SWE35UF BOOM SWING PILOT CONTROL HYDRAULIC PIPELINE ASSEMBLY(STANDAR).jpg 2 730104000020 1 CONNECTOR 三通接头EL08LOMDA3C 2 101-
3 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 4 101-
4 73050200A384 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1550 1 101-
5 73050200A383 1 HOSE ASSEMBLY 胶管总成F481CACF080803-600 1 101-
6 73050200A707 1 HOSE ASSEMBLY 胶管总成F481CACF080803-450 2 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 12 101-

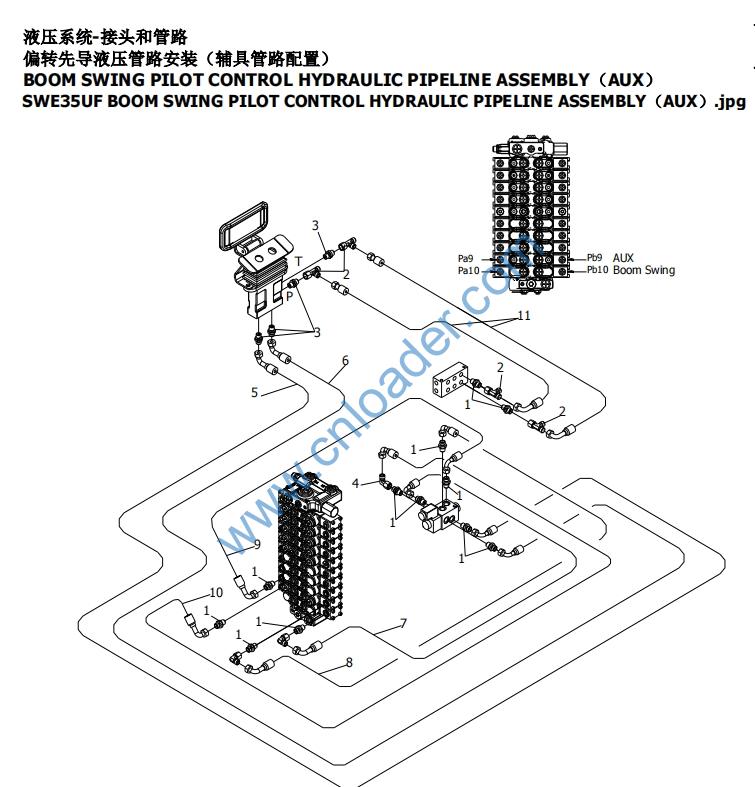

SWE35UF BOOM SWING PILOT CONTROL HYDRAULIC PIPELINE ASSEMBLY（AUX）.jpg 2 730104000020 1 CONNECTOR 三通接头EL08LOMDA3C 2 101-
3 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 4 101-
4 730102000010 1 CONNECTOR 接头EW08LOMDA3C 1 101-
5 730504004788 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-1300-270° 1 101-
6 730504004366 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-1260-180° 1 101-
7 730504004787 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-600-315° 1 101-
8 730504004392 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-550-270° 1 101-
9 730503001556 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-530-0° 1 101-
10 730503001558 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-620-0° 1 101-
11 73050200A707 1 HOSE ASSEMBLY 胶管总成F481CACF080803-450 2 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 4 101-

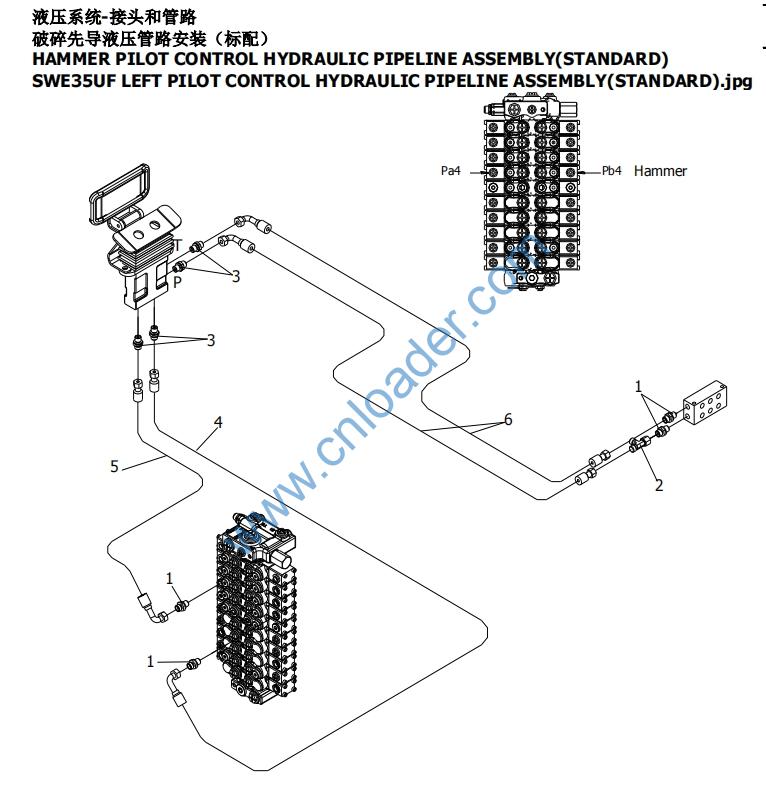

SWE35UF LEFT PILOT CONTROL HYDRAULIC PIPELINE ASSEMBLY(STANDARD).jpg 2 730104000020 1 CONNECTOR 三通接头EL08LOMDA3C 1 101-
3 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 4 101-
4 73050200A385 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1250 1 101-
5 73050200A223 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1850 1 101-
6 73050200A221 1 HOSE ASSEMBLY 胶管总成F481CACF080803-300 2 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 4 101-

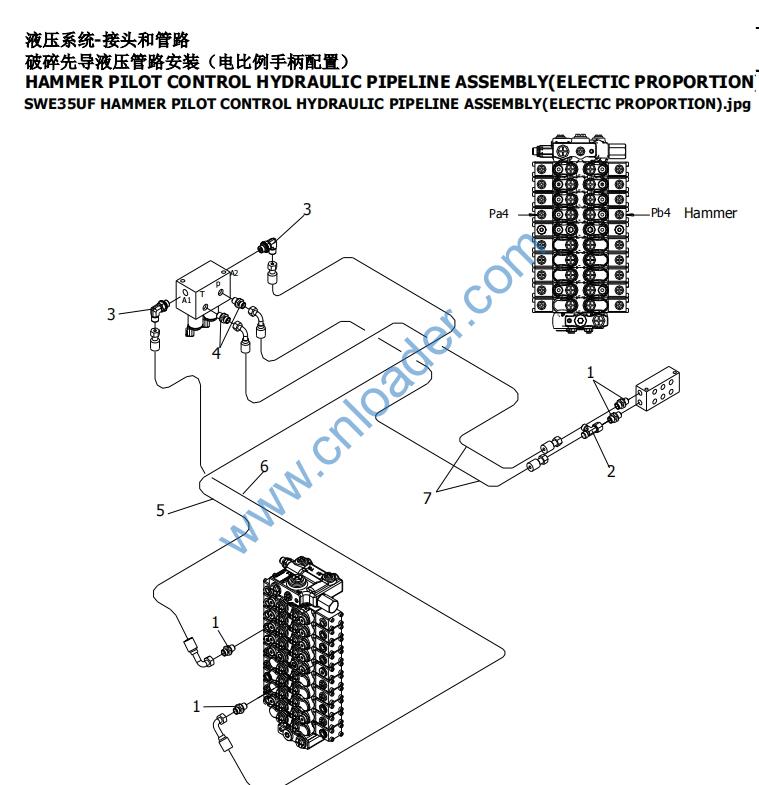

SWE35UF HAMMER PILOT CONTROL HYDRAULIC PIPELINE ASSEMBLY(ELECTIC PROPORTION).jpg 2 730104000020 1 CONNECTOR 三通接头EL08LOMDA3C 1 101-
3 730101000346 1 CONNECTOR 可调向直角接头WEE08LR3/8DA3C 2 101-
4 730101000081 1 CONNECTOR 端直通GE08LR3/8EDOMDA3C 2 101-
5 73050200A218 1 HOSE ASSEMBLY 胶管总成F481CACF080803-2100 1 101-
6 73050200A217 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1350 1 101-
7 73050200A159 1 HOSE ASSEMBLY 胶管总成F481CACF080803-350 2 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 5 101-
SWE35UF BLADE PILOT CONTROL HYDRAULIC PIPELINE ASSEMBLY（STANDARD).jpg 2 730104000020 1 CONNECTOR 三通接头EL08LOMDA3C 2 101-
3 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 2 101-
4 730102000014 1 CONNECTOR 可调向直角接头WEE08LROMDA3C 1 101-
5 730503001593 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-2650-0° 1 101-
6 73050200A382 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1800 1 101-
7 730503001592 2 HOSE ASSEMBLY 胶管总成F481CECF080803-1600-O° 2 101-
730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 11 101-

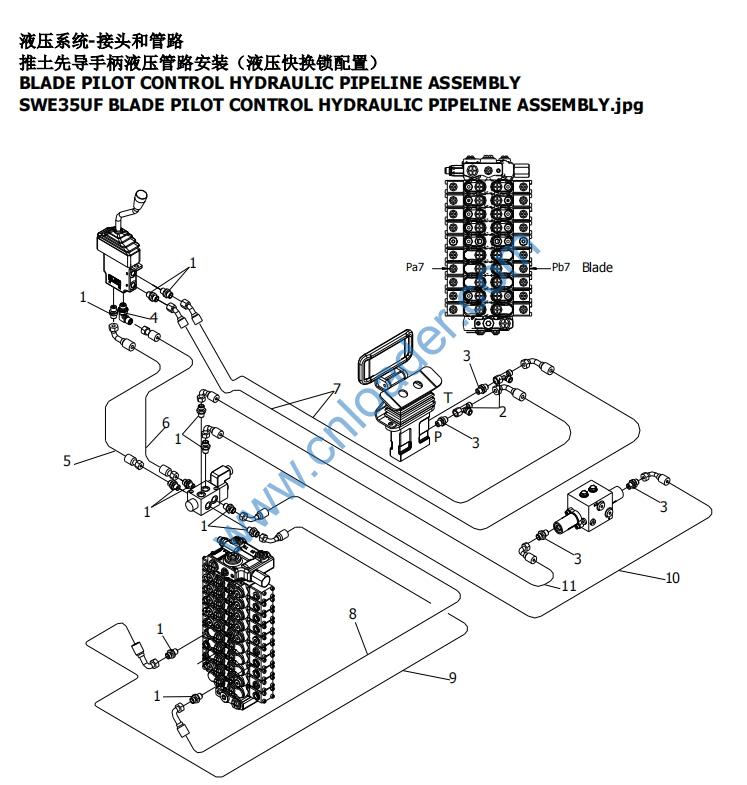

SWE35UF BLADE PILOT CONTROL HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730104000020 1 CONNECTOR 三通接头EL08LOMDA3C 2 101-
3 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 4 101-
4 730102000014 1 CONNECTOR 可调向直角接头WEE08LROMDA3C 1 101-
5 73050200A784 1 HOSE ASSEMBLY 胶管总成F481CACF080803-2400 1 101-
6 730501005801 1 HOSE ASSEMBLY 胶管总成F481CACA080803-2400 1 101-
7 730503001592 1 HOSE ASSEMBLY 胶管总成F481CECF080803-1600-O° 2 101-
8 730504004397 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-1200-270° 1 101-
9 730503001597 1 HOSE ASSEMBLY 胶管总成F481CFCF080803-1900-0° 1 101-
10 73050200A382 1 HOSE ASSEMBLY 胶管总成F481CACF080803-1800 1 101-
11 73050200A482 1 HOSE ASSEMBLY 胶管总成F481CACF080803-2000 1 101-
730101000372 1 CONNECTOR 隔板接头SV12LOMDA3C 2 101-
SWE35UF WORK DEVICE BOOM HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730501005449 1 HOSE ASSEMBLY 胶管总成F431CACA121206-850-SG-850 2 101-
878596301011 S1 AUX LEFT STEEL PIPE 辅具左侧钢管总成 1 101-

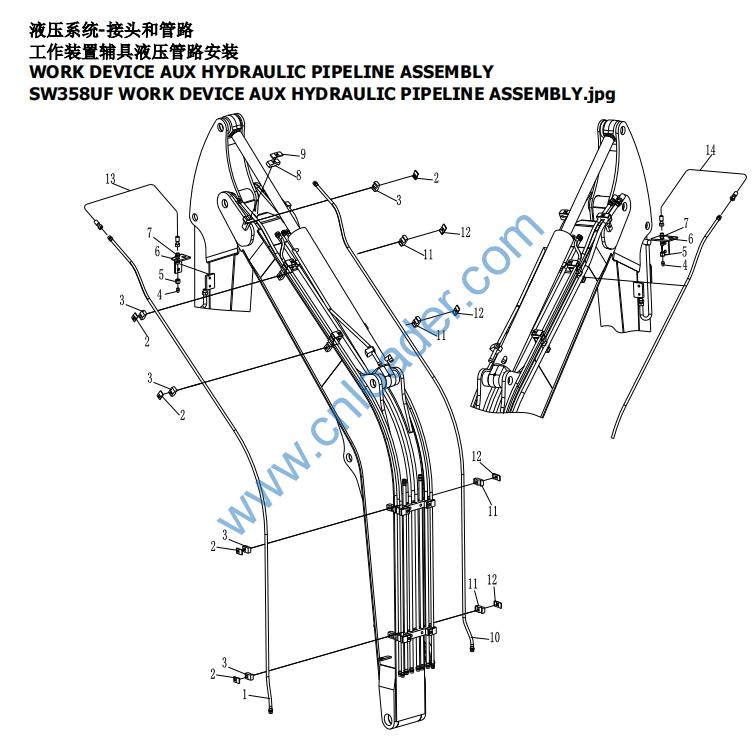

SW358UF WORK DEVICE AUX HYDRAULIC PIPELINE ASSEMBLY.jpg 2 751008000112 1 TUBE COVER PLATE 管夹07盖板 5 101-
3 751008000304 1 CLAMP 管夹13 5 101-
4 739806000030 1 END CAP 堵头VKA10A3C 2 101-
5 730199000055 1 NUT 螺母M10LA3CX 2 101-
6 730101000224 1 CONNECTOR 接头SV10LOMDA3C 2 101-
7 302040003270 S1 BRACKET LEFT 隔板接头安装左支架 1 101-
8 751008000313 1 CLAMP 管夹17 1 101-
9 751008000311 1 TUBE COVER PLATE 管夹14盖板 1 101-
10 878596301020 S2 AUX RIGHT STEEL PIPE 辅具右侧钢管总成 1 101-
11 751008000308 1 CLAMP 管夹16 4 101-
12 751008000085 1 TUBE COVER PLATE 动臂管夹01盖板 4 101-
13 730501005779 1 HOSE ASSEMBLY 胶管总成F431CACA101005-600-SG-600 1 101-
14 730501005539 1 HOSE ASSEMBLY 胶管总成F431CACA101005-570-SG-570 1 101
878596301061 S1 QUICK COUPLER LEFT STEEL PIPE 液压快换锁左侧钢管总成 1 101-

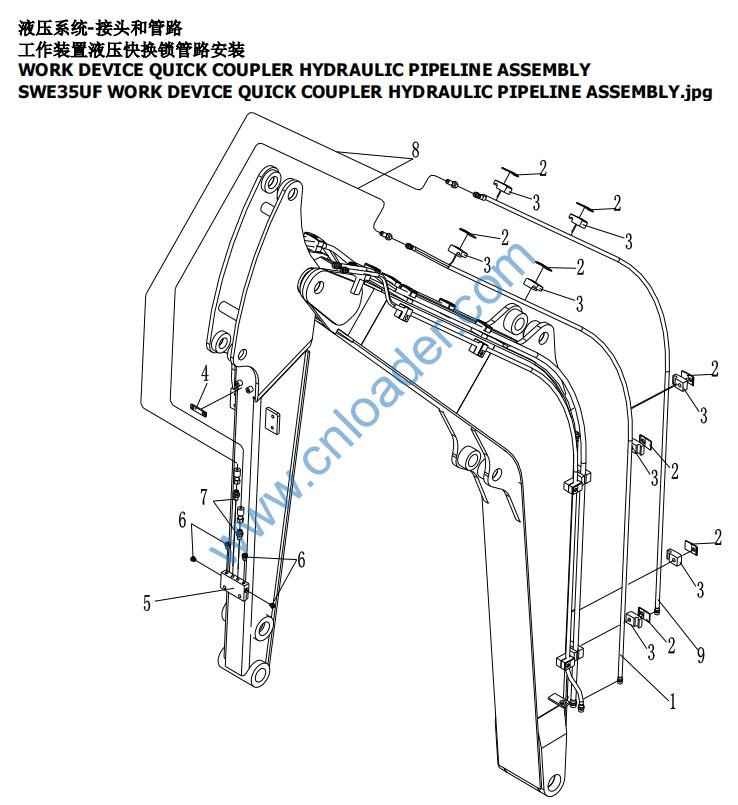

SWE35UF WORK DEVICE QUICK COUPLER HYDRAULIC PIPELINE ASSEMBLY.jpg 2 751008000087 1 TUBE COVER PLATE 管夹04盖板 8 101-
3 751008000293 1 CLAMP 管夹11 8 101-
4 302030040130 S2 CLAMP 胶管压板 1 101-
5 307090000886 S4 FLOW THROUGH VALVE 两通组合块 1 101-
6 730199000321 1 END CAP 堵头VSTI1/8EDA3C 4 101-
7 730101000119 1 CONNECTOR 端直通GE08LR1/8EDA3C 2 101-
8 730501005796 1 HOSE ASSEMBLY 胶管总成F431CACA080804-1450-PG-1450 2 101-
9 878596301071 S1 QUICK COUPLER RIGHT STEEL PIPE 液压快换锁右侧钢管总成 1 101-
878596301030 S1 BREAK STEEL PIPE 破碎钢管总成 2 101-

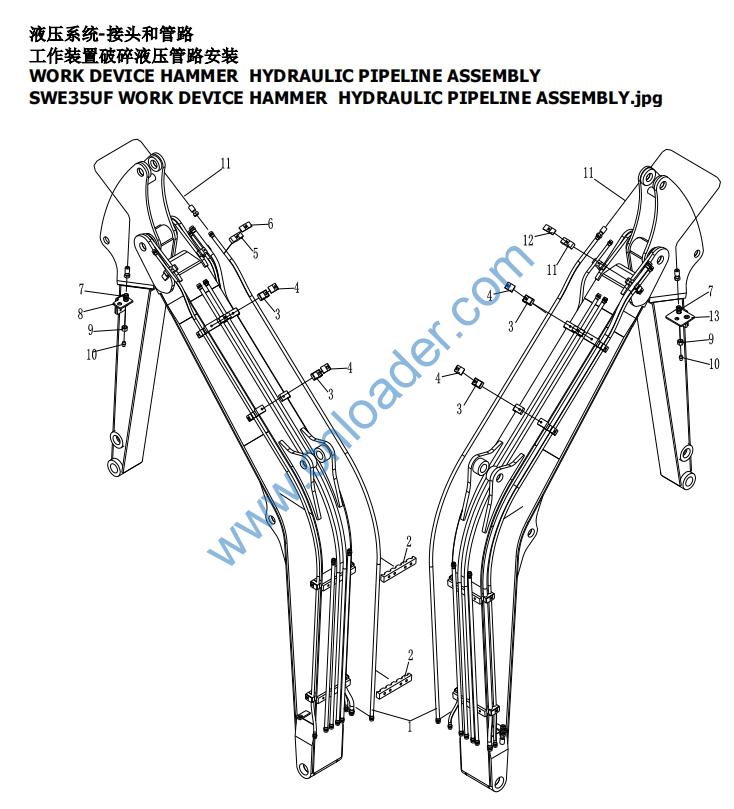

SWE35UF WORK DEVICE HAMMER HYDRAULIC PIPELINE ASSEMBLY.jpg 2 302030040743 S1 STEEL CLAMP 动臂钢管夹 2 101-
3 751008000113 1 CLAMP 管夹08 4 101-
4 751008000114 1 TUBE COVER PLATE 管夹08盖板 4 101-
5 751008000313 1 CLAMP 管夹17 1 101-
6 751008000311 1 TUBE COVER PLATE 管夹14盖板 1 101-
7 730101000372 1 CONNECTOR 隔板接头SV12LOMDA3C 2 101-
8 302040003270 S1 BRACKET LEFT 隔板接头安装左支架 1 101-
9 730199000056 1 NUT 螺母M12LA3CX 2 101-
10 739806000032 1 END CAP 堵头VKA12A3C 2 101-
11 730501005210 1 HOSE ASSEMBLY 胶管总成F431CACA121206-600-SG-600 2 101-
12 302040002814 S3 BRACKET RIGHT 隔板接头安装右支架 1 101-
878596301051 S1 ARM STEEL PIPE RIGHT 斗杆钢管总成 1 101-

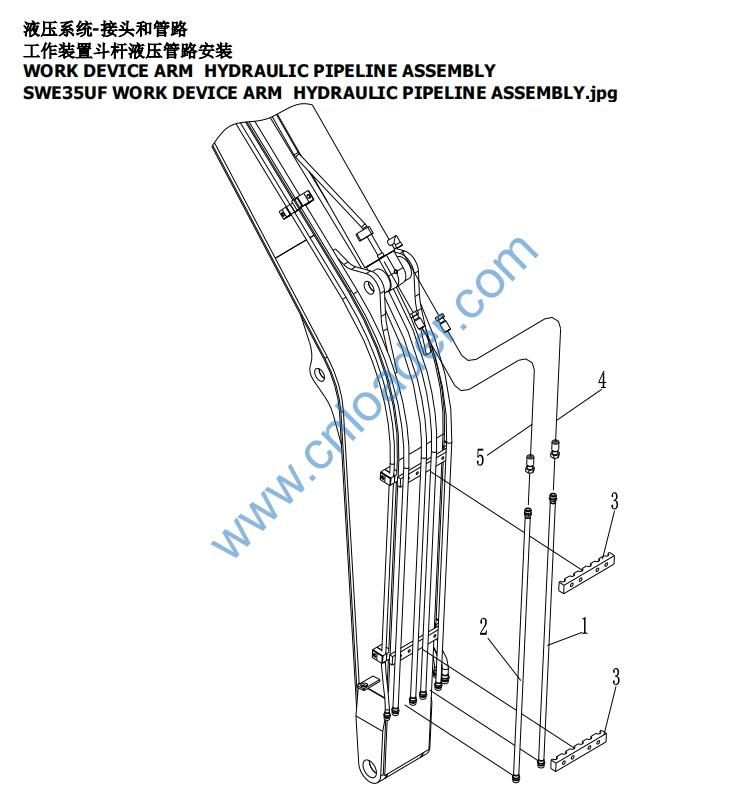

SWE35UF WORK DEVICE ARM HYDRAULIC PIPELINE ASSEMBLY.jpg 2 878596301050 S1 ARM STEEL PIPE LEFT 斗杆钢管总成 1 101-
3 302030040743 S1 STEEL CLAMP 动臂钢管夹 2 101-
4 730501005800 1 HOSE ASSEMBLY 胶管总成F431CACA151508-650-PG-650 1 101-
5 730501005799 1 HOSE ASSEMBLY 胶管总成F431CACA121206-650-PG-650 1 101
878596301040 S1 BUCKET STEEL PIPE 铲斗钢管总成 2 101-

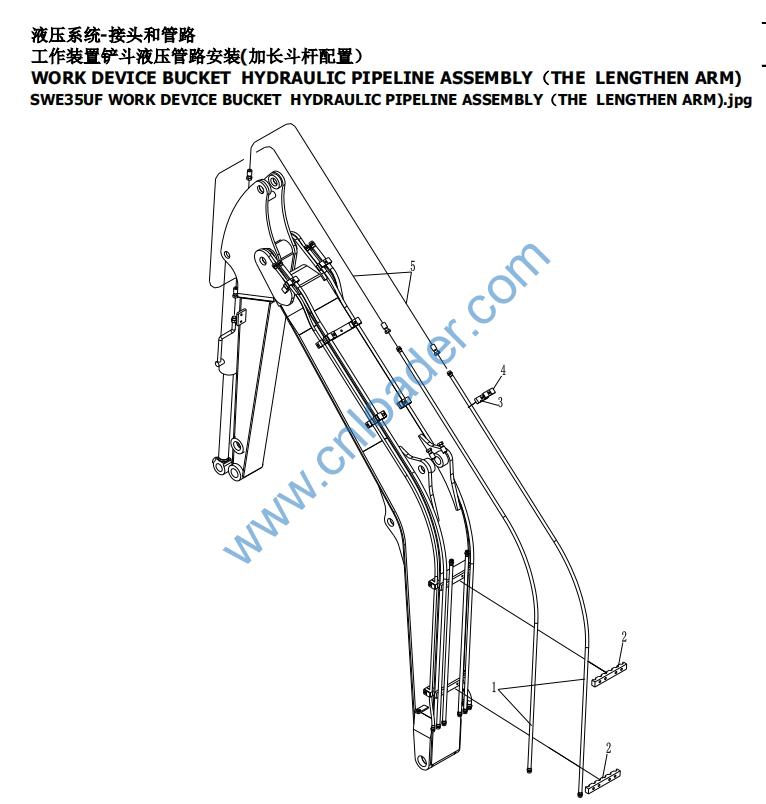

SWE35UF WORK DEVICE BUCKET HYDRAULIC PIPELINE ASSEMBLY（THE LENGTHEN ARM).jpg 2 302030040743 S1 STEEL CLAMP 动臂钢管夹 2 101-
3 751008000305 1 CLAMP 管夹14 1 101-
4 751008000311 1 TUBE COVER PLATE 管夹14盖板 1 101-
5 730501004197 1 HOSE ASSEMBLY 胶管总成F431CACA121206-1200-SG-1200 2 101-
878596301040 S1 BUCKET STEEL PIPE 铲斗钢管总成 2 101-
SWE35UF WORK DEVICE BUCKET HYDRAULIC PIPELINE ASSEMBLY（THE SHORTEN ARM).jpg 2 302030040743 S1 STEEL CLAMP 动臂钢管夹 2 101-
3 751008000305 1 CLAMP 管夹14 1 101-
4 751008000311 1 TUBE COVER PLATE 管夹14盖板 1 101-
5 730501004198 1 HOSE ASSEMBLY 胶管总成F431CACA121206-1000-SG-1000 2 101-
878596301080 S1 BIG DRAIN STEEL PIPE 大回油钢管总成 1 101-
SWE35UF WORK DEVICE BIG DRAIN HYDRAULIC PIPELINE ASSEMBLY.jpg 2 751008000085 1 TUBE COVER PLATE 动臂管夹01盖板 4 101-
3 751008000308 1 CLAMP 管夹16 4 101-
4 751008000313 1 CLAMP 管夹17 1 101-
5 751008000311 1 TUBE COVER PLATE 管夹14盖板 1 101-
6 739806000031 1 END CAP 堵头VKA15A3C 1 101-
7 螺母M15LA3CX 1 NUT 螺母M15LA3CX 1 101-
8 302040002814 S3 BRACKET RIGHT 隔板接头安装右支架 1 101-
9 730199000489 1 CONNECTOR 隔板接头SV15LOMDA3C 1 101-
10 730501005210 1 HOSE ASSEMBLY 胶管总成F431CACA121206-600-SG-600 2 101-
703101006001 1 OIL CUP 油杯M6 JB/T 7940.1 2 1 740505000120 1 TOOL BOX 随机工具箱410X200X210 1
2 703101008002 1 OIL CUP 油杯M8X1 JB/T 7940.1 8 2 829999010001 A1 TOOL PACKAGE SWE25挖掘机工具包 1
3 703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口 10 3 740104000019 1 HEX WRENCH 内六角扳手S3 GB/T 5356-85 1
4 703102010002 1 OIL CUP 油杯M10X1 45°JB/T 7940.2 5 4 740104000003 1 HEX WRENCH 内六角扳手S4 GB/T 5356-85 1
5 703102010001 1 OIL CUP 油杯90°M10X1 JB/T 7940.2 2 5 740104000004 1 HEX WRENCH 内六角扳手S5 GB/T 5356-85 1
6 720211000031 1 FUSE PLATE 保险片BK/ATM-10-Ⅰ 5 6 740104000005 1 HEX WRENCH 内六角扳手S6 GB/T 5356-85 1
7 720211000032 1 FUSE PLATE 保险片BK/ATM-15-Ⅰ 5 7 740104000006 1 HEX WRENCH 内六角扳手S8 GB/T 5356-85 1
8 720211000033 1 FUSE PLATE 保险片BK/ATM-20-Ⅰ 5 8 740104000007 1 HEX WRENCH 内六角扳手S10 GB/T 5356-85 1
9 750401000009 1 GREASE GUN 黄油枪JC-LG14K 1 9 740104000008 1 HEX WRENCH 内六角扳手S12 GB/T 5356-85 1
10 750401000039 1 GREASE GUN 黄油枪LG14KE 1 10 740115000001 1 DOUBLE OPEN END WRENCH 全抛光双开口扳手8X10MM 1
11 790010000001 1 WORKING UNIFORM 随机工作服 2 11 740115000022 1 DOUBLE HEAD WRENCH 双头呆扳手12-14 1
12 720245010004 1 LGNITION KEY 点火开关钥匙14-0492-0301 2 12 740115000002 1 DOUBLE OPEN END WRENCH 全抛光双开口扳手13X16MM 1
13 750629000009 1 FIRE EXTINGUISHER 司机室灭火器罐 1
