750601000010 1 BUCKET TOOTH SHEATH0-3L 斗齿套0-3L
750601000012 1 PIN0-3L 销子0-3L

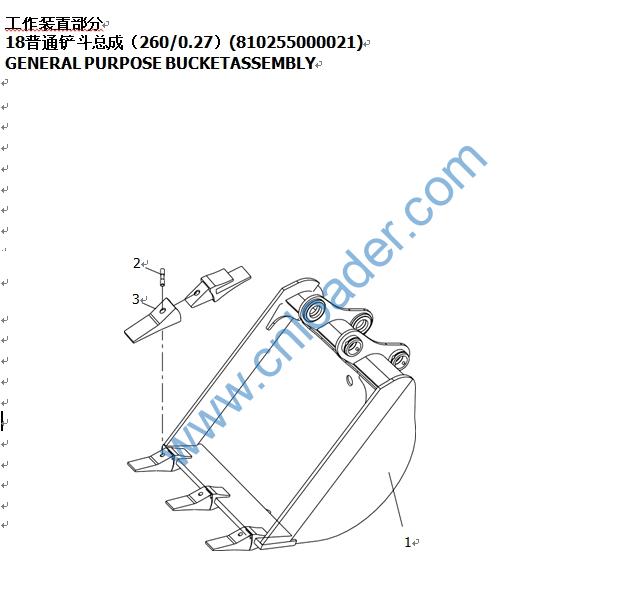

810255100021 A2 BUCKET 铲斗(260mm 0.027m3)
810255200017 A1 BUCKET 铲斗(600mm 0.06m3)
750601000010 1 BUCKET TOOTH SHEATH0-3L 斗齿套0-3L
750601000012 1 PIN0-3L 销子0-3L

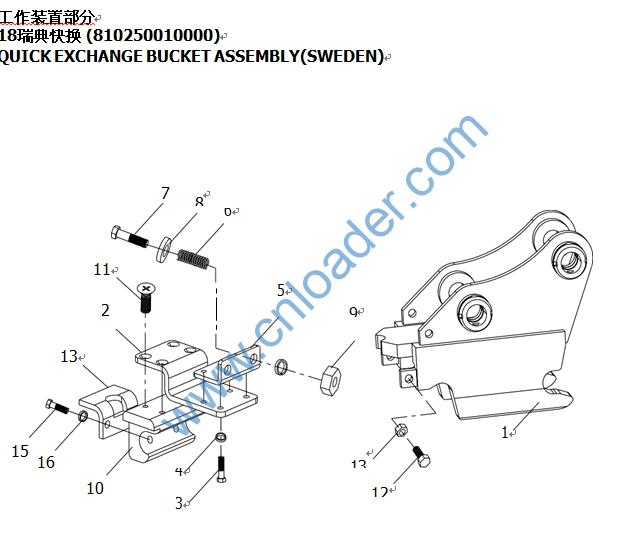

810255200004 A7 DIP SEAT(SWEDEN) 卡座（瑞典）
302530000115 A2 Z BOARD(SWEDEN) Z型弯板
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783
701510008003 1 WASHER 垫圈8-DKL GB/T 93
302520202027 A2 BEND BOARD 弯板
301030301005 A1 SPRING 弹簧
701103012031 1 BOLT 螺栓M12X130-8.8 GB/T 5782
701504012005 1 WASHER 垫圈12-DKL GB/T 97.1
701406012002 1 NUT 螺母M12-10-DKL GB/T 6170
307990000109 A2 HOOK 卡钩
701320008001 1 SCREW 螺钉M8X20-10.9-DKL GB/T 2673
301020000011 A3 PIN 插销
304050203007 A2 BOLT 螺栓M10X200
302520201003 A1 BOARD 撬板
701302010051 1 SCREW 螺钉M10X35-8.8-DKL GB/T 70.1
701510010004 1 WASHER 垫圈10-DKL GB/T 93
750601000010 1 BUCKET TOOTH SHEATH0-3L 斗齿套0-3L
750601000012 1 PIN0-3L 销子0-3L
810255100106 A1 BUCKET 斗(300mm 0.03m3瑞典)
750601000010 1 BUCKET TOOTH SHEATH0-3L 斗齿套0-3L
750601000012 1 PIN0-3L 销子0-3L
810255100012 A2 BUCKET 快换铲斗384mm 0.04m3（瑞典）
750601000010 1 BUCKET TOOTH SHEATH0-3L 斗齿套0-3L
750601000012 1 PIN0-3L 销子0-3L
810255100015 A1 BUCKET 快换铲斗600（瑞典）

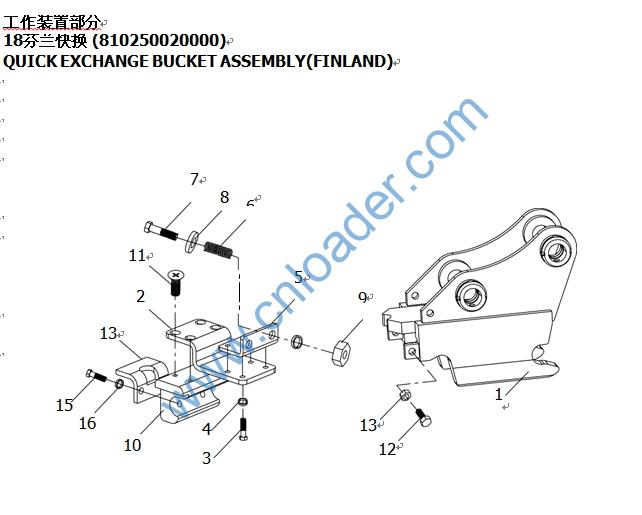

810255200002 A3 DIP SEAT(SWEDEN) 芬兰快换卡座
302530000131 A2 Z BOARD(SWEDEN) Z形板
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783
701510008003 1 WASHER 垫圈8-DKL GB/T 93
302520202027 A2 BEND BOARD 弯板
301030301005 A1 SPRING 弹簧
701103012031 1 BOLT 螺栓M12X130-8.8 GB/T 5782
701504012005 1 WASHER 垫圈12-DKL GB/T 97.1
701406012002 1 NUT 螺母M12-10-DKL GB/T 6170
307990000119 A2 HOOK 卡钩
701320008001 1 SCREW 螺钉M8X20-10.9-DKL GB/T 2673
304050203007 A2 BOLT 螺栓M10X200
701401010001 1 NUT 螺母M10 GB/T 41
302520201003 A1 BOARD 撬板
701302010051 1 SCREW 螺钉M10X35-8.8-DKL GB/T 70.1
701510010004 1 WASHER 垫圈10-DKL GB/T 93
304020000480 A3 SHAFT 安装轴（芬兰快换选用）
750601000010 1 BUCKET TOOTH SHEATH0-3L 斗齿套0-3L
750601000012 1 PIN0-3L 销子0-3L
810255100013 A1 BUCKET 芬兰快换铲斗（300mm 0.03m3）
750601000010 1 BUCKET TOOTH SHEATH0-3L 斗齿套0-3L
750601000012 1 PIN0-3L 销子0-3L
810255100027 A1 BUCKET 快换铲斗384mm 0.04m3（芬兰）
750601000010 1 BUCKET TOOTH SHEATH0-3L 斗齿套0-3L
750601000012 1 PIN0-3L 销子0-3L
810255100016 A1 BUCKET 芬兰快换铲斗（600mm）

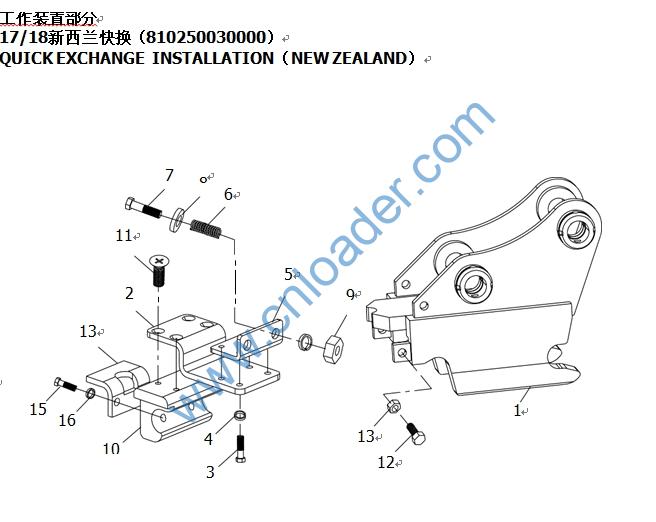

810255200001 A1 DIP SEAT 卡座
302530202003 A2 Z BOARD Z形板
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783
701510008003 1 WASHER 垫圈8-DKL GB/T 93
302520202027 A2 BEND BOARD 弯板
301030301005 A1 SPRING 弹簧
701103121301 1 BOLT 螺栓M12X130-10.9-DKL GB/T 5782
701504012005 1 WASHER 垫圈12-DKL GB/T 97.1
701406012002 1 NUT 螺母M12-10-DKL GB/T 6170
307990502001 A3 HOOK 卡钩
790099000142 1 SCREW 螺钉M8X20-8.8-DKL GB/T 2672
304050203007 A2 BOLT 螺栓M10X200
701401010002 1 NUT 螺母M10-DKL GB/T 41
302520201003 A1 BOARD 撬板
701302010051 1 SCREW 螺钉M10X35-8.8-DKL GB/T 70.1
701510010004 1 WASHER 垫圈10-DKL GB/T 93

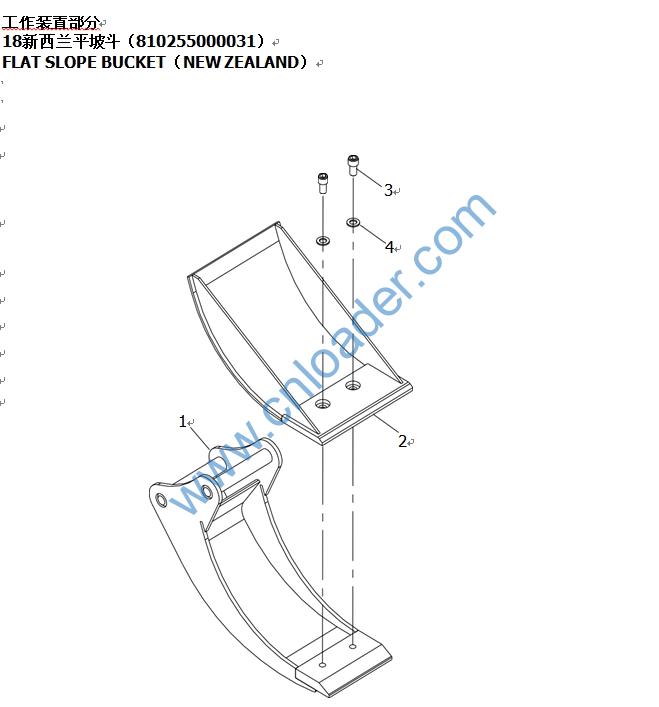

810255100031 S1 BUCKET 铲斗
810255100025 S1 BUCKET ASSEMBLY 装配斗
701323163001 1 SCREW 螺钉M16X30-10.9-DKL GB/T 70.2
701504016003 1 WASHER 垫圈16-DKL GB/T 97.1

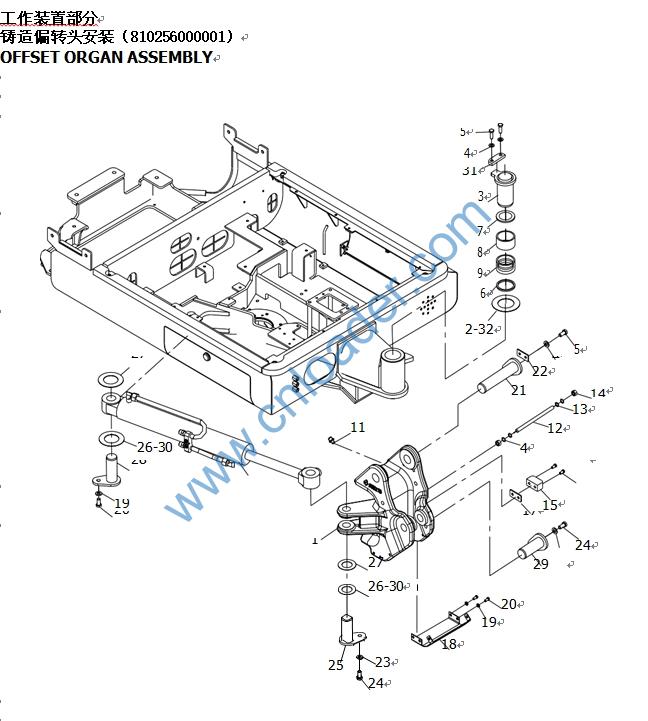

330040000161 A5 CASTING DEFLECTION HEAD 17铸造偏转头
302010002018 1 CUSHION 垫子
302010002018 1 CUSHION 垫子
750911000048 1 RESIN ADJUSTING PAD 树脂调整垫Ф90XФ52X1.5
810256110000 A5 SHAFT 轴
872056050000 S1 DEFLECTION HEAD PIN SHAFT 偏转头销轴
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
701302010039 1 NUT 螺钉M10X25-8.8-DKL GB/T 70.1
730652000031 1 DUSTBAND 防尘圈DLW05003 60X50X5
302010102002 A2 BASE PLATE 垫板
305040501002 A6 AXLE SLEEVE 轴套
305040501027 A2 BUSH 衬套
810296850000 A11 DEFLECTION OIL CYLINDER 偏转油缸
703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口
304050000652 S2 SCREW 螺杆
701523010002 1 WASHER 垫圈10 GB/T 7244
701415010003 1 LOCK NUT 锁紧螺母M10-10-ZnD GB/T 6184
302030401010 A3 STOP BLOCK 挡块
701302008021 1 SCREW 螺钉M8X30-8.8-DKL GB/T 70.1
829956030000 A1 GASKET UNIT 3 垫片组3
302540015127 S1 GUARD PLATE 护板
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783
819130020000 S2 SHAFT ASSEMBLY 1 轴组件1
302490032752 S1 PRESSING PLATE 压板
701523012001 1 WASHER 垫圈12-DKL GB7244
7013020120A8 1 BOLT 螺栓M12X25-8.8-ZnD GB/T 70.1
819156020000 S1 DEFLECTION SHAFT 偏转轴
302010001021 1 CUSHION 垫子
302010001021 1 CUSHION 垫子
750911000020 1 RESIN ADJUSTING PAD 树脂调整垫Ф55XФ32X1.5
302010101001 A2 BASE PLATE 垫板
810256030000 A2 DEFLECTION SHAFT 偏转轴
810256080000 A1 DEFLECTION CYLINDER PIN SHAFT 1 偏转油缸销轴1
819130100000 S1 SHAFT ASSEMBLY 2 轴组件2
302010001021 1 CUSHION 垫子
302010001021 1 CUSHION 垫子
750911000019 1 RESIN ADJUSTING PAD 树脂调整垫Ф55XФ32X1
302030044815 S1 PRESSING PLATE 压板
750911000047 1 RESIN ADJUSTING PAD 树脂调整垫Ф90XФ52X1

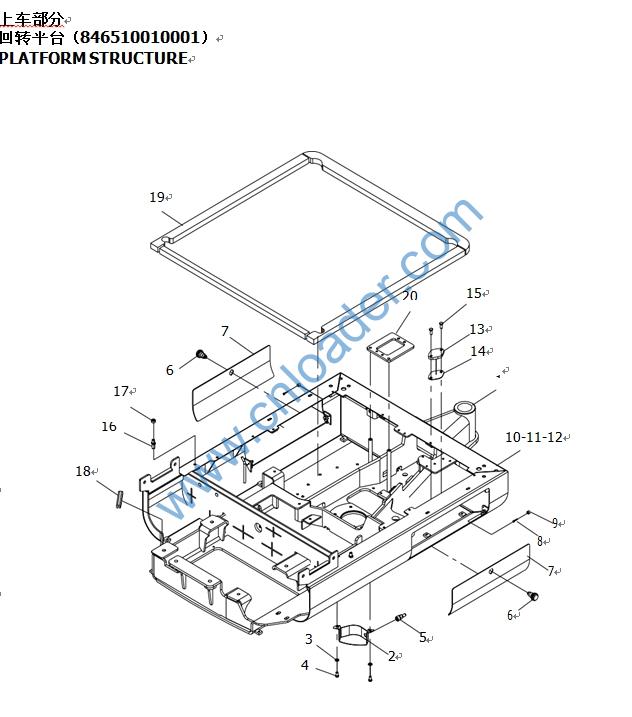

846510010001 S3 PLATFORM STRUCTURE 回转平台
302030201084 A2 CHECK PLATE 止动板
701104010033 1 BOLT 螺栓M10X25-10.9-DKL GB/T 5783
701508010001 1 WASHER 垫圈10-DKL GB/T 1230
730306000098 1 SELECTOR VALVE 选择阀KL7102106AR13EG
701302005025 1 SCREW 螺钉M5X55-8.8-DKL GB/T 70.1
730250000283 1 ROTARY MOTOR 回转马达PCR-1B-05A-P-9189A
701104012022 1 BOLT 螺栓M12X25-10.9-DKL GB/T 5783
701508012002 1 WASHER 垫圈12-DKL GB/T 1230
307090502004 A2 PILOT BLOCK 集流块
701103006015 1 BOLT 螺栓M6X35-8.8-ZnD GB/T 5782

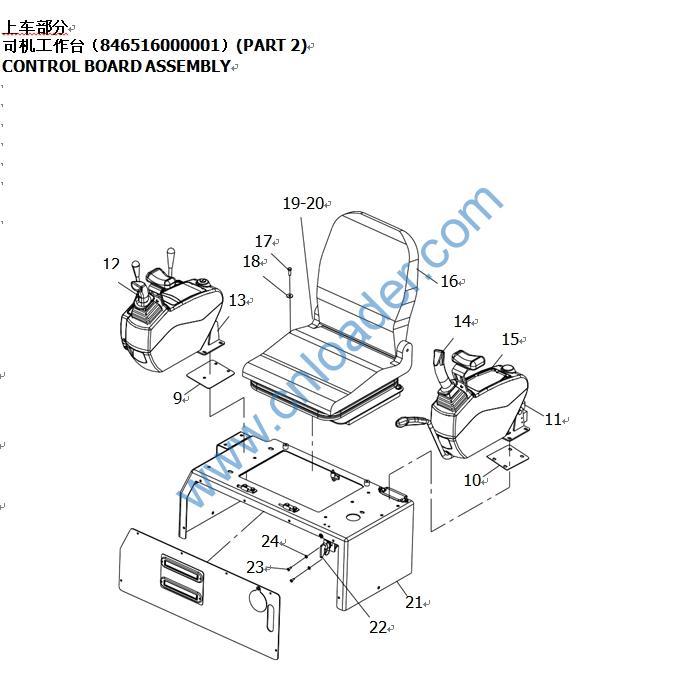

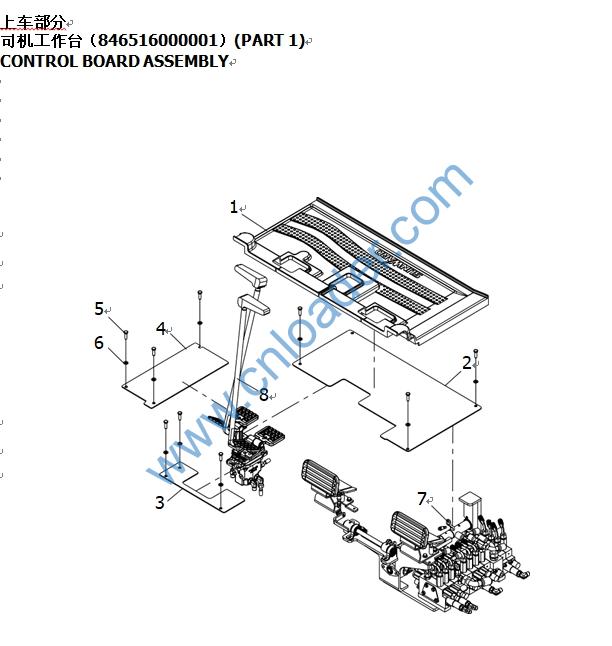

846516000001 S2 CONTROL BOARD ASSEMBLY 司机工作台
846518000000 A5 HEATER INSTALLATION 暖风机安装
846514000001 S4 OIL TANK ASSEMBLY 燃油箱安装
846517000001 S2 STORAGE BATTERY ASSEMBLY 电瓶安装
305060000309 A1 GUIDE CONE 导向锥
302030022300 A1 SEALING SPONGE 中罩底部密封海棉 860X25
872212000001 S1 POWER PLANT ASSEMBLY 动力装置总成
846510020001 S1 BOTTOM PANEL MOUNTING 封板安装
701103008014 1 BOLT 螺栓M8X70-8.8-DKL GB/T 5782
730399000654 1 PILOT BLOCK 先导油源块811300150
846510130000 S2 OIL SOURCE BLOCK HOLDING 油源块支架焊接
701104008046 1 BOLT 螺栓M8X15-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
846515000001 S2 HYDRAULIC OIL TANK ASSEMBLY 液压油箱安装
730302000385 1 MULTITANDEM VALVE INSTALLATION 多路阀EV310160
750202000026 1 PUSH-PULL SOFT SHAFT 推拉软轴080BB1800H040
302540007694 A3 SOFT SHAFT BRACKET 软轴支架
302030013162 1 THE HORSESHOE MAT 马蹄垫1
302030013163 1 THE HORSESHOE MAT 马蹄垫2
750602000249 1 SHOCK ABSORBER 25U司机室减震器
302010005411 S1 MOUNTING PAD 司机室安装垫
302010006445 S1 MOUNTING PAD 2 司机室安装垫2
730401000358 1 PILOT FILTER INSTALLATION 先导过滤器KGLB0010010L
701302016019 1 SCREW 螺钉M16X100-8.8-ZnD GB/T 70.1
701406016001 1 NUT 螺母M16-10-DKL GB/T 6170
701502016002 1 WASHER 垫圈16-DKL GB96.2
701302016056 1 SCREW 螺钉M16X80-8.8-DKL GB/T 70.1
846510010101 S6 PLATFORM OF WELDING 平台焊接
846510010300 A2 BUTTER BOX 黄油盒
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783
308010102003 A1 THE CONNECTOR BODY 接头体
750906000055 1 COVER SIDE DOOR LOCK LETTER 机罩侧门锁信 WY
810210102000 A3 DOOR 小门
701302004009 1 SCREW 螺钉M4X20-8.8-DKL GB/T 70.1
305040200008 A2 BUSH 衬套

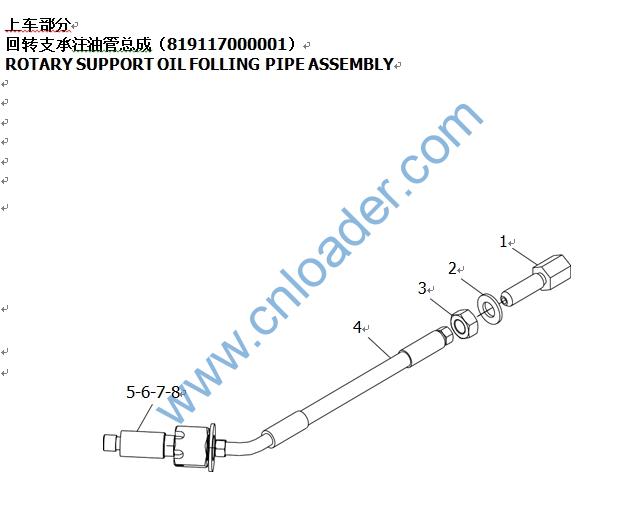

819117000001 A3
ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY 回转支承注油管总成

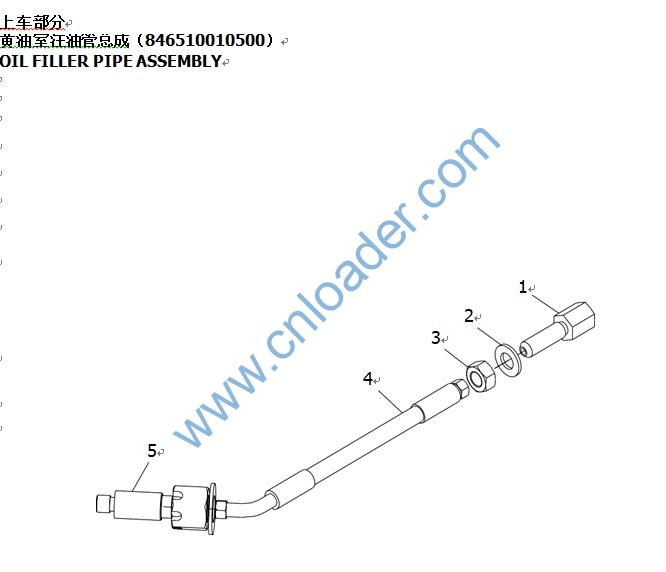

846510010500 A2
BUTTER CHAMBER SUPPORT OIL FOLLING PIPE ASSEMBLY 黄油室注油管总成
846510010400 A5
DEFLECTION OIL CYLINDER SUPPORT OIL FOLLING PIPE ASSEMBLY 偏转油缸注油管总成
302490002247 A2 COVER PLATE 盖板
302490002248 A1 THE SEAL PLATE 密封垫
701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783
304050000154 A1 SCREW 定位螺杆
701406012002 1 NUT 螺母M12-10-DKL GB/T 6170
301010301001 A1 PROTECTING BUSH 护套

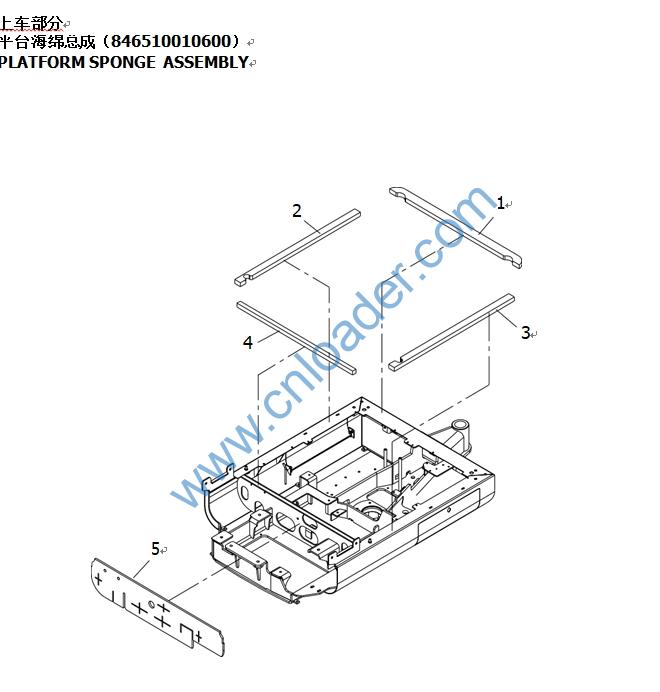

846510010600 S1 PLATFORM SPONGE ASSEMBLY 平台海绵总成
302030038209 S3 VALVE MOUNTING PLATE 行走脚踏阀安装板
308010102004 A1 FITTINGS BODY 接头体
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701416010001 1 NUT 螺母M10X1-8-DKL GB/T 6171
730501002548 1 GREASE HOSE 胶管C/C2-4I-700
308010000774 A1 JOINT 接头
302010003332 A2 RUBBER MAT 橡胶垫
701410160001 1 NUT 螺母M16X1.5-8-ZnD GB/T 6173
701504016003 1 WASHER 垫圈16-DKL GB/T 97.1
308010102004 A1 FITTINGS BODY 接头体
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701410010001 1 NUT 螺母M10X1-04 GB/T 6173
730502005301 1 GREASE HOSE 黄油室注油胶管
308010102003 A1 FITTINGS BODY 接头体
308010102004 A1 FITTINGS BODY 接头体
701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1
701410010001 1 NUT 螺母M10X1-04 GB/T 6173
730504003614 1 GREASE HOSE 胶管C/C2-4I-600
308010102003 A1 FITTINGS BODY 接头体
302030041332 S2 PLATFORM FRONT SPONGE 平台前海绵
302030041333 S2 LEFT SPONGE 平台左侧海绵
302030041334 S2 RIGHT SPONGE 平台右侧海绵
302030041335 S1 TOP SPONGE 中间横梁上海绵
334020002204 S3 SOUND INSULATION SPONGE 20B平台隔音海绵
332040000196 S2 RUBBER PLATE 橡胶底板SWE20B
302030038020 S3 PLATE 1 平板1
302030038021 S3 PLATE 2 平板2
302030038022 S3 PLATE 3 平板3
701104008028 1 BOLT 螺栓M8X25-8.8-DKL GB/T 5783
701508008001 1 WASHER 垫圈8-DKL GB/T 1230
846516200001 S2 LINKAGE ASSEMBLY 连杆机构总成
846516010000 S2 DRIVING CONTROL ASSEMBLY 行走操纵总成
302030027482 A1 SHOCK PAD 1 操纵箱减震垫1
302030027483 A2 SHOCK PAD 2 操纵箱减震垫2
720235000024 1 MICROSWITCH 微动开关17.0277.0000.18
730309000323 1 RIGHT PILOT VALVE 右先导阀HC-RCY 60110330DD
750708010002 1 RIGHT CONTROL BOX 右操纵箱总成-1
730309000322 1 LEFT PILOT VALVE 左先导阀HC-RCY 60130874LR
750708010001 1 LEFT CONTROL BOX 左操纵箱总成-1
846516500001 S2 SEAT INSTALLATION 座椅安装
701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783
701504008005 1 WASHER 垫圈8-DKL GB/T 97.1
751106000172 1 BUTTERFLY BOLT 蝶形螺栓 M8X12
701506008002 1 WASHER 垫圈8-DKL GB/T 96.1
846516600001 S3 SEALING PLATE INSTALLATION 封板安装
720297000003 1 THE BATTERY SWITCH 电池总开关13.006.0000.02
701302006038 1 SCREW 螺钉M6X16-8.8-DKL GB/T 70.1
701504006002 1 WASHER 垫圈6-DKL GB/T 97.1
