305040501010 A7 BUSH 衬套 2 101-

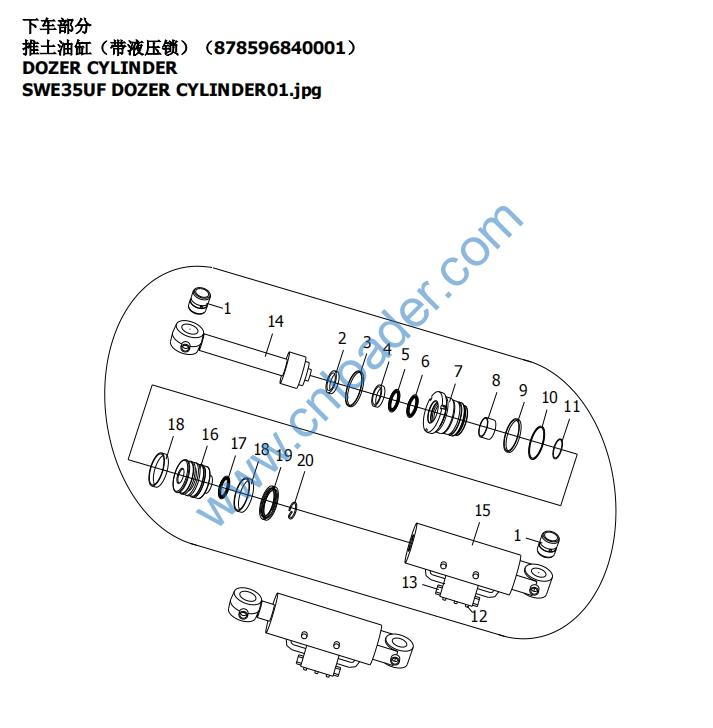

SWE35UF DOZER CYLINDER01.jpg 2 730652000240 1 DUSTBAND 防尘圈DKBI FD2831E0 1 101-
3 730603000010 1 O-RING O形圈G95 (A70) 1 101-
4 730604000053 1 U-RING U形圈USH 50X60X6 1 101-
5 730654000225 1 STOP COLLAR 挡圈50X60X3 1 101-
6 730601000318 1 PISTON ROD SEAL PART 活塞杆密封OMS-MR-0500 1 101-
7 305090002332 A1 CYLINDER HEAD 缸头 1 101-
8 750502000005 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB5025 1 101-
9 730603000033 1 O-RING O形圈88.49X3.53 (A70) 2-238 N552-90 1 101-
10 730654000389 1 SUPPORT RING 支撑环90X95X2 1 101-
11 301020003011 A1 SPRING COLLAR 弹簧挡圈φ55X3 1 101-
12 701302006011 1 SCREW 螺钉M6X45-8.8 GB/T 70.1 6 101-
13 730312000033 1 BIDIRECTIONAL HYDRAULIC LOCK 双向液压锁05.53.44.10.02.01 1 101-
14 813696840100 A5 PISTON ROD ASSEMBLY 活塞杆组件 1 101-
15 878596840201 S1 CYLINDER BARREL UNIT 缸筒组件 1 101-
16 305090002333 A1 PISTON 活塞 1 101-
17 730603000048 1 O-RING O形圈G50 (A90) 9-5506 N552-90 1 101-
18 730651000012 1 GUIDE RING 导向环KFR 9094 Q5029 2 101-
19 730602000366 1 PISTON SEAL 活塞密封OMK-MR 95X79.5X6.3 1 101-
20 301020003004 A1 LOCK RING 锁圈 1 101-

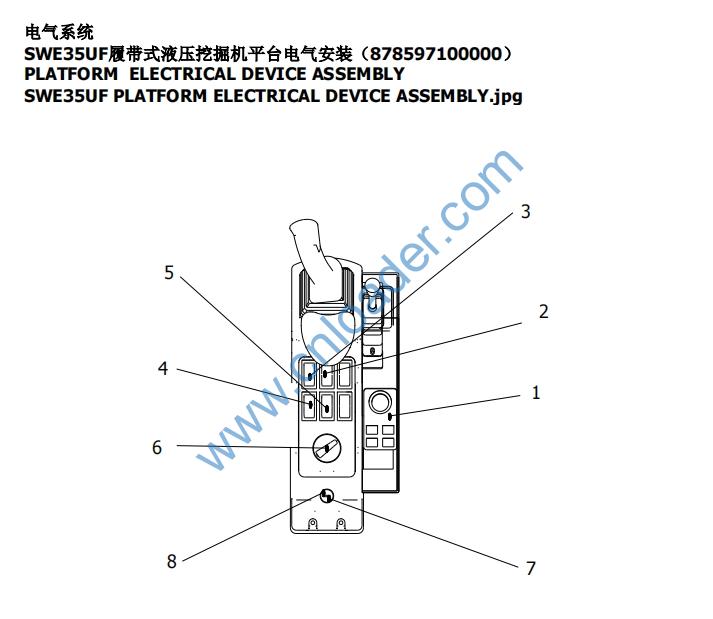

720241000021 1 CAN handle panel CAN总线操作面板总成VA-KB-C004-1 1 101-
SWE35UF PLATFORM ELECTRICAL DEVICE ASSEMBLY.jpg 2 720236000863 1 FAST SWTITCHING LOCK SWITCH 快换锁止开关JK962-182-002 1 101-
3 720236000862 1 COUPLER SWITCHH 快速开关JK962-106 2.61a 1 101-
4 720236000858 1 HEADLIGHT SWITCH 工作灯开关JK962-157-4.85 1 101-
5 720236000861 1 CAUTION LIGHT SWITCH 警示灯开关JK962-107 4.93 1 101-
6 720223000018 1 accelerograph 油门旋钮SD011910 1 101-
7 720245000043 1 IGNITION CABLE 点火开关14-0492-0100（不带钥匙） 1 101-
8 720245010002 1 THE COVER OF KEY SWITCH 点火锁盖14.0322.0500.01 1 101-

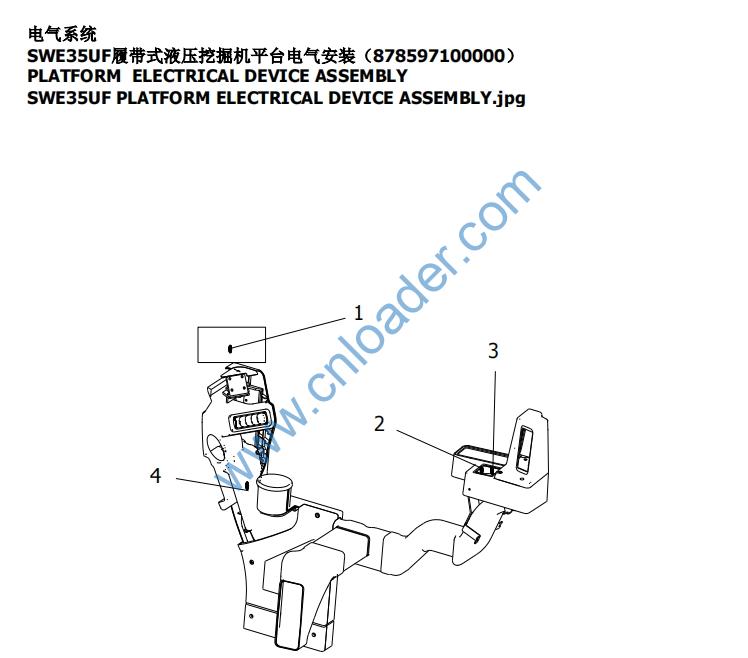

850280000000 1 METER ASSEMBLE SWCM070A 7寸高端显示屏 1 101-
SWE35UF PLATFORM ELECTRICAL DEVICE ASSEMBLY.jpg 2 720236000859 1 WIPER SWITCH 雨刮器开关JK962-093-2.5 1 101-
3 720236000860 1 WASHING SWITCH 洗涤开关JK962 2.6 1 101-
4 301010000564 1 short wiring harness SWE35UF前控箱线束 1 101-

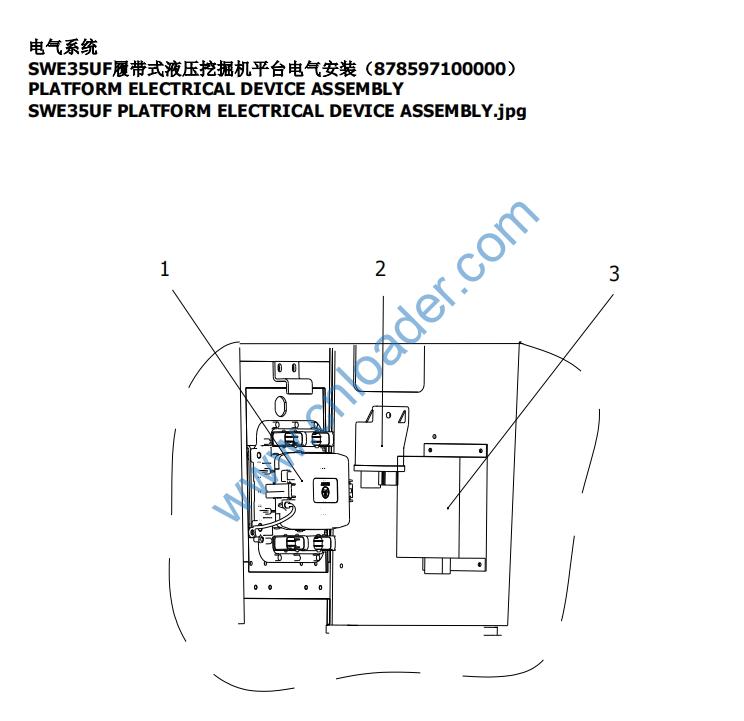

720403000367 1 CENTER CONTROL BOX ASSEMBLY 中央电控盒总成SWDK-35U 1 101-
SWE35UF PLATFORM ELECTRICAL DEVICE ASSEMBLY.jpg 2 720298000003 1 SECURITY RELAY 安全继电器119802-77200 1 101-
3 881900100000 1 IO control SWIO1107控制模块 1 101-
720406000109 1 ACCUMULATOR L2-400（H5） 蓄电池L2-400（H5） 1 101-
SWE35UF PLATFORM ELECTRICAL DEVICE ASSEMBLY.jpg 2 720297000003 1 battery SW 电池总开关13.006.0000.02 1 101-
878597100100 S3 WIRING HARNESS OF SWE35U SWE35UF履带式液压挖掘机平台线束 1 101-
SWE35UF PLATFORM ELECTRICAL DEVICE ASSEMBLY.jpg 2 720212000126 1 WATER TEMPERATURE SENSOR 水温传感器323-801-001-029N 1 101-
3 701104010030 1 BOLT 螺栓M10X16-8.8-DKL GB/T 5783 2 101-
4 701510010003 1 SPRING WASHER 弹簧垫圈10 GB/T 93 2 101-
5 729901000019 1 CABLE TIE 插孔式扎带9818128 6 101-
6 701302006032 1 BOLT 螺钉M6X20-8.8-DKL GB/T 70.1 2 101-
7 701504006002 1 WASHER 垫圈6-DKL GB/T 97.1 2 101-
8 701510006003 1 WASHER 垫圈6-DKL GB/T 93 2 101-
9 701302006032 1 BOLT 螺钉M5X16 GB/T 818 4 101-
10 701504005002 1 WASHER 垫圈5-DKL GB/T 97.1 4 101-
11 701510005002 1 WASHER 垫圈5-DKL GB/T 93 4 101-
12 302040003092 S1 METAL STENTS OF ALTERNATOR SWE90UF发电机插件金属支架 1 101-
13 720212000866 1 hydraulic press SW 压力开关P11-09SPF14HO 1 101-
14 720002000015 1 accelerator MOTER 油门电机KMCM0812-63C DC12V 1 101-
15 720235000024 1 MICROSWITCH 微动开关17.0277.0000.18 1 101-
16 878597100012 1 HOLDING DEVICE 搭铁电缆YHF25-400 1 101-
17 720211000001 1 CABLE 易熔线BX901C-3S 1 101-
18 846597100013 1 HOLDING DEVICE 搭铁电缆QVR25B-450 1 101-
729803000004 1 ACCUMULATOR CATHOODE DRAW-IN GEAR 电瓶负极卡头DJH93088-（带护套） 1 101-

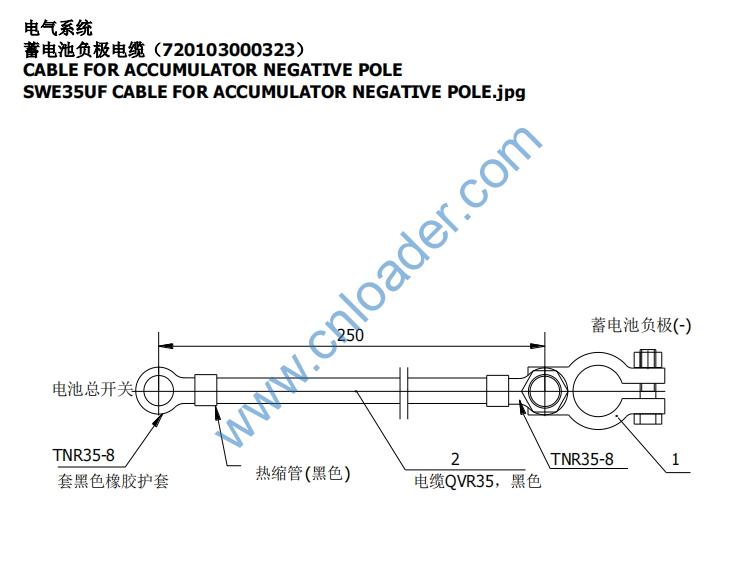

SWE35UF CABLE FOR ACCUMULATOR NEGATIVE POLE.jpg 2 720103000323 1 CABLE 负极电缆QVR25R-250 1 101-
729803000003 1 HOLDING DEVICE 电瓶正极卡头DJH93088+（带护套） 1 101-
SWE35UF CABLE FOR ACCUMULATOR POSITIVE POLE.jpg 2 878597100111 1 CABLE 连接电缆QVR50R-1100 1 101-

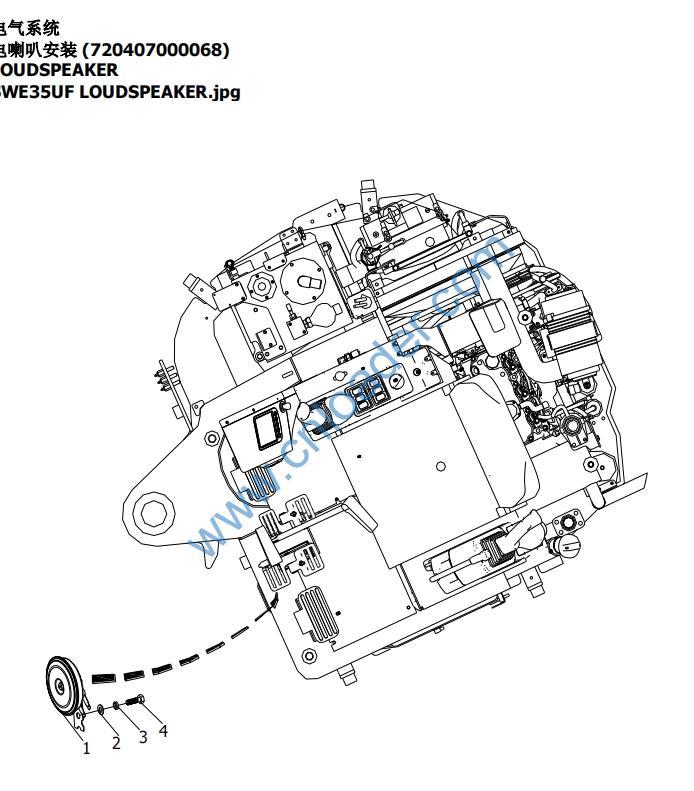

720407000068 1 LOUDSPEAKER 电喇叭KDL129 10-15V 3A(MC微电流型) 1 101-
SWE35UF LOUDSPEAKER.jpg 2 701504008005 1 WASHER 垫圈8 GB97.1 1 101-
3 701510008003 1 WASHER 垫圈8 GB93 1 101-
4 701102008004 1 BOLT 螺栓M8X16-4.8 GB5780 1 101-

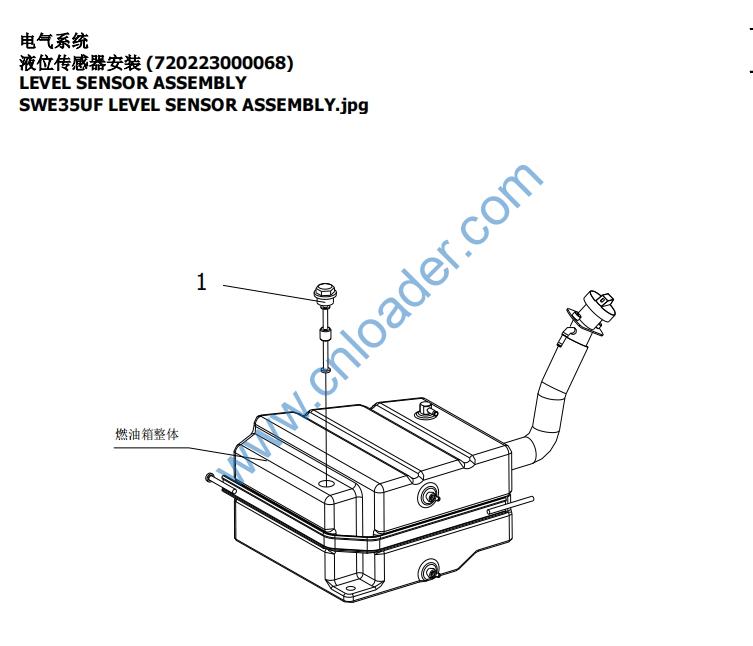

720223000068 1 LEVEL SENSOR 液位传感器SHZN-170 1 101-
878597200100 4 CABIN WIRING HARNESS SWE35UF履带式液压挖掘机司机室线束 1 101-

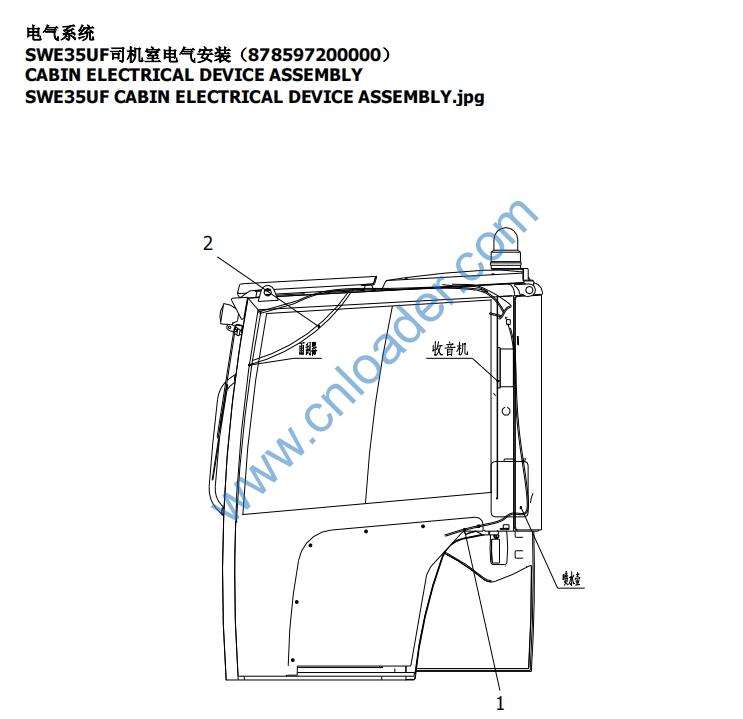

SWE35UF CABIN ELECTRICAL DEVICE ASSEMBLY.jpg 2 720404000026 1 RADIO 工程机械收音机XG9819 1 101-
720412000223 1 LIGHT LED动臂灯 1 101-

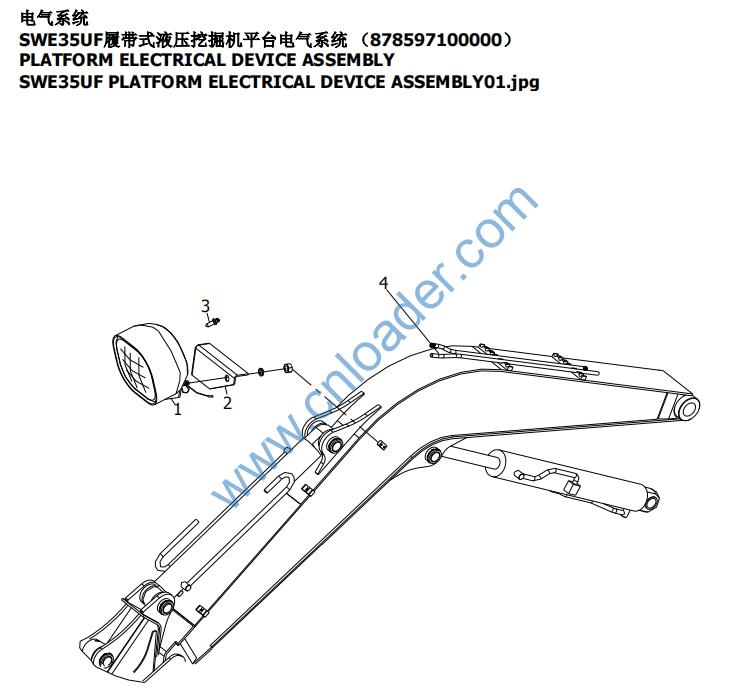

SWE35UF PLATFORM ELECTRICAL DEVICE ASSEMBLY01.jpg 2 701406008001 1 NUT 螺母M8-ZnD GB6170 1 101-
3 701510008001 1 WASHER 垫圈8-ZnD GB93 1 101-
4 301020000786 1 light CABIN SWE17动臂灯线束 1 101-

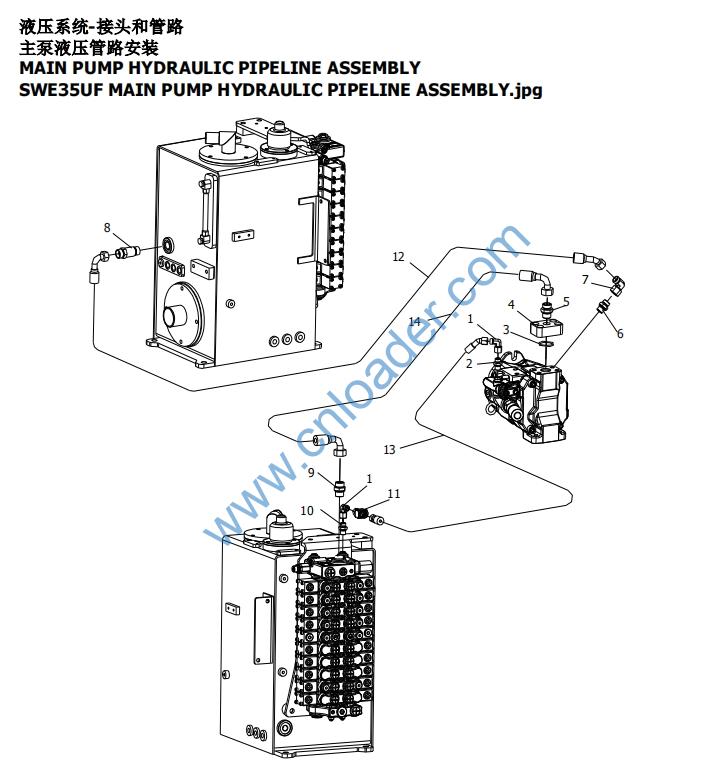

730101000010 1 CONNECTOR 接头EW08LOMDA3C 2 101-
SWE35UF MAIN PUMP HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 1 101-
3 730603000073 1 O-RING O形圈32.92X3.53 2-219 N552-90 1 101-
4 307090000975 S1 TRANSITION BLOCK 主泵出油过渡块 1 101-
5 730101000083 1 CONNECTOR 端直通GE15LREDOMDA3C 1 101-
6 730101000090 1 CONNECTOR 端直通GEO12LR1/2OMDA3C 1 101-
7 730102000008 1 CONNECTOR 接头EW12LOMDA3C 1 101-
8 730101000118 1 CONNECTOR 端直通GE12LR1/2EDOMDA3C/30 1 101-
9 730101000083 1 CONNECTOR 端直通GE15LREDOMDA3C 1 101-
10 730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 1 101-
11 730104000039 1 CONNECTOR 测压接头JT-ELCY 08L 1 101-
12 730503001460 1 HOSE ASSEMBLY 胶管总成F481CECF121206-2350-0°-PG-2350 1 101-
13 73050200A778 1 HOSE ASSEMBLY 胶管总成F431CACE080804-3100-PG-1500CE 1 101-
14 73050200A777 1 HOSE ASSEMBLY 胶管总成F431CACF151508-3000-PG-1800CA 1 101-
730101000013 1 CONNECTOR 端直通GE18LREDOMDA3C 4 101-

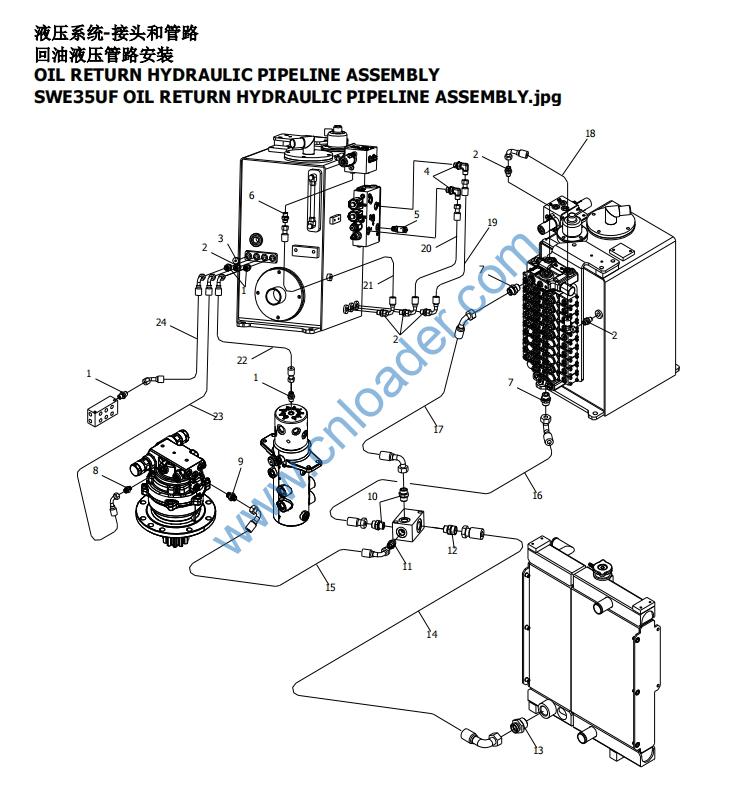

SWE35UF OIL RETURN HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 6 101-
3 739806000001 1 CONNECTOR 堵头VSTI1/4EDA3C 1 101-
4 730102000014 1 CONNECTOR 可调向直角接头WEE08LROMDA3C 2 101-
5 730101000206 1 CONNECTOR 测压接头EMA3/1/4ED 1 101-
6 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 1 101-
7 730101000083 1 CONNECTOR 端直通GE15LREDOMDA3C 1 101-
8 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 1 101-
9 730101000349 1 CONNECTOR 端直通GEO12LROMDA3C/35 1 101-
10 730101000083 1 CONNECTOR 端直通GE15LREDOMDA3C 2 101-
11 730101000105 1 CONNECTOR 端直通GE12LR1/2EDOMDA3C 1 101-
12 730101000100 1 CONNECTOR 端直通GE22LREDOMDA3C 1 101-
13 730101000223 1 CONNECTOR 端直通GE22LR1EDOMDA3C 1 101-
14 730502001544 1 HOSE ASSEMBLY 胶管总成F481CACF222212-310 1 101-
15 730504003246 1 HOSE ASSEMBLY 胶管总成F481CFCF121206-500-180° 1 101-
16 730502000975 1 HOSE ASSEMBLY 胶管总成F481CACF151508-550 1 101-
17 730504004785 1 HOSE ASSEMBLY 胶管总成F481CFCF151508-1120-90° 1 101-
18 730504004954 1 HOSE ASSEMBLY 胶管总成F481CFCF080804-340-270° 1 101-
19 730502002988 1 HOSE ASSEMBLY 胶管总成F481CACF080804-330 1 101-
20 730502000398 1 HOSE ASSEMBLY 胶管总成F481CACF080804-250 1 101-
21 730502000108 1 HOSE ASSEMBLY 胶管总成F481CACF080804-450 1 101-
22 730502001697 1 HOSE ASSEMBLY 胶管总成F481CACF101005-1400 1 101-
23 730503000664 1 HOSE ASSEMBLY 胶管总成F481CFCF080804-1050-0° 1 101-
24 730504001137 1 HOSE ASSEMBLY 胶管总成F481CECF101005-1350-0° 1 101-
730101000620 1 CONNECTOR 端直通GE12LREDOMDA3C/60 3 101-

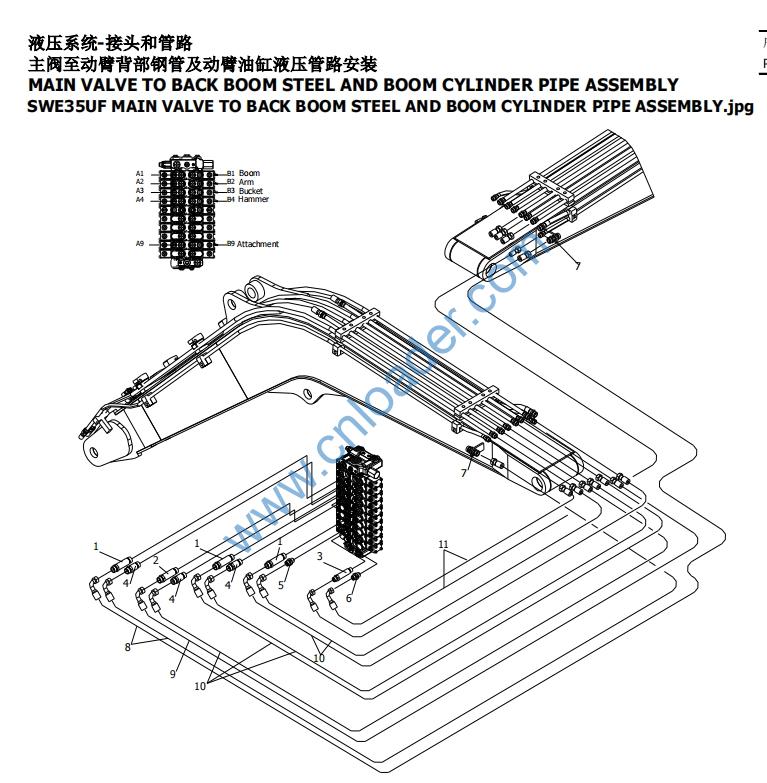

SWE35UF MAIN VALVE TO BACK BOOM STEEL AND BOOM CYLINDER PIPE ASSEMBLY.jpg 2 730101001813 1 CONNECTOR 端直通GE15LR3/8EDOMDA3C/60 1 101-
3 730101001812 1 CONNECTOR 端直通GE10LR3/8EDOMDA3C/60 1 101-
4 730101001811 1 CONNECTOR 端直通GE12LREDOMDA3C/35 3 101-
5 730101000087 1 CONNECTOR 端直通GE12LREDOMDA3C 1 101-
6 730101000160 1 CONNECTOR 端直通GE10LR3/8EDOMDA3C 1 101-
7 730101000372 1 CONNECTOR 隔板接头SV12LOMDA3C 2 101-
8 730502007588 1 HOSE ASSEMBLY 胶管总成F431CACF121206-2000 2 101-
9 73050200A779 1 HOSE ASSEMBLY 胶管总成F431CACF151508-1850 1 101-
10 730502000768 1 HOSE ASSEMBLY 胶管总成F431CACF121206-1850 5 101-
11 730502001088 1 HOSE ASSEMBLY 胶管总成F431CACF101005-1750 2 101-

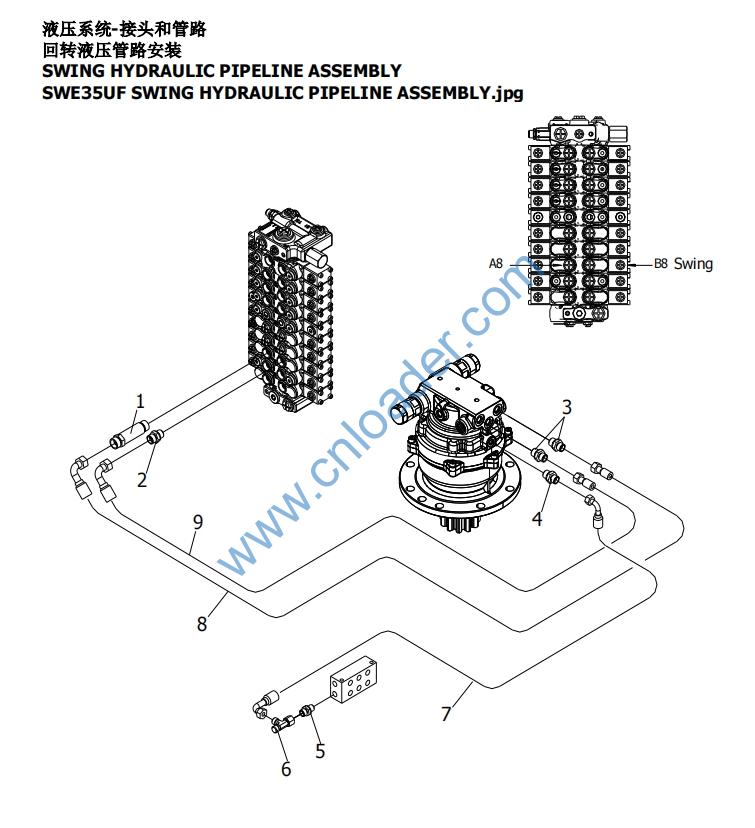

730101000620 1 CONNECTOR 端直通GE12LREDOMDA3C/60 1 101-
SWE35UF SWING HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730101000087 1 CONNECTOR 端直通GE12LREDOMDA3C 1 101-
3 730101000113 1 CONNECTOR 端直通GEO12LROMDA3C 2 101-
4 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 1 101-
5 730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 1 101-
6 730104000020 1 CONNECTOR 三通接头EL08LOMDA3C 1 101-
7 730502000092 1 HOSE ASSEMBLY 胶管总成F481CACF080804-350 1 101-
8 730502006264 1 HOSE ASSEMBLY 胶管总成F431CACF121206-850 1 101-
9 730502000371 1 HOSE ASSEMBLY 胶管总成F431CACF121206-750 1 101-

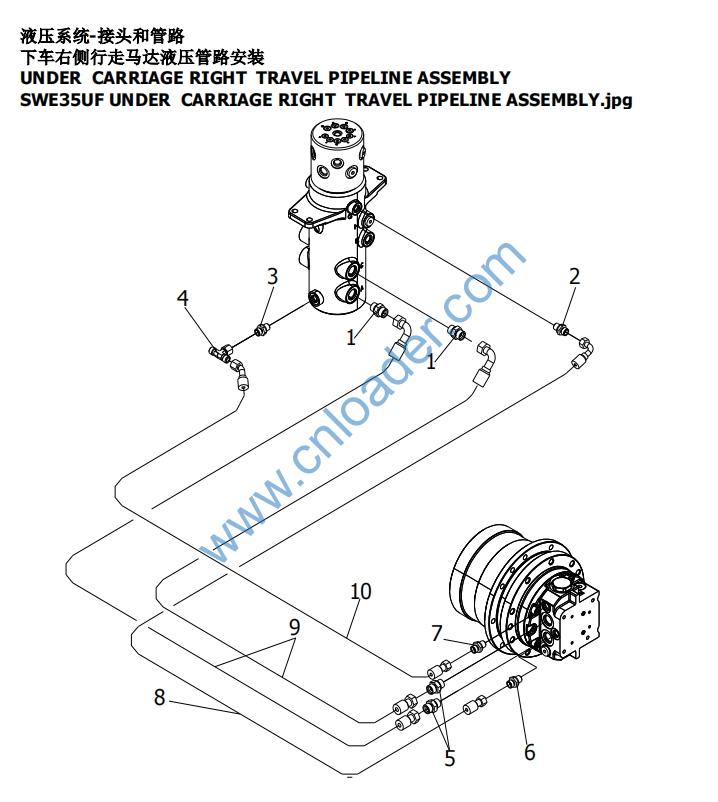

730101000105 1 CONNECTOR 端直通GE12LR1/2EDOMDA3C 2 101-
SWE35UF UNDER CARRIAGE RIGHT TRAVEL PIPELINE ASSEMBLY.jpg 2 730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 2 101-
3 730101000010 1 CONNECTOR 端直通GE10LREDOMDA3C 1 101-
4 730104000018 1 CONNECTOR 三通接头ET10LOMDA3C 1 101-
5 730101000090 1 CONNECTOR 端直通GEO12LR1/2OMDA3C 2 101-
6 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 1 101-
7 730101000085 1 HOSE ASSEMBLY 端直通GEO10LROMDA3C 1 101-
8 730502001609 1 HOSE ASSEMBLY 胶管总成F481CACF080804-1100 1 101-
9 730502000452 1 HOSE ASSEMBLY 胶管总成F431CACF121206-950 2 101-
10 730501000840 1 HOSE ASSEMBLY 胶管总成F481CACA101005-1000 1 101-
730101000105 1 CONNECTOR 端直通GE12LR1/2EDOMDA3C 2 101-

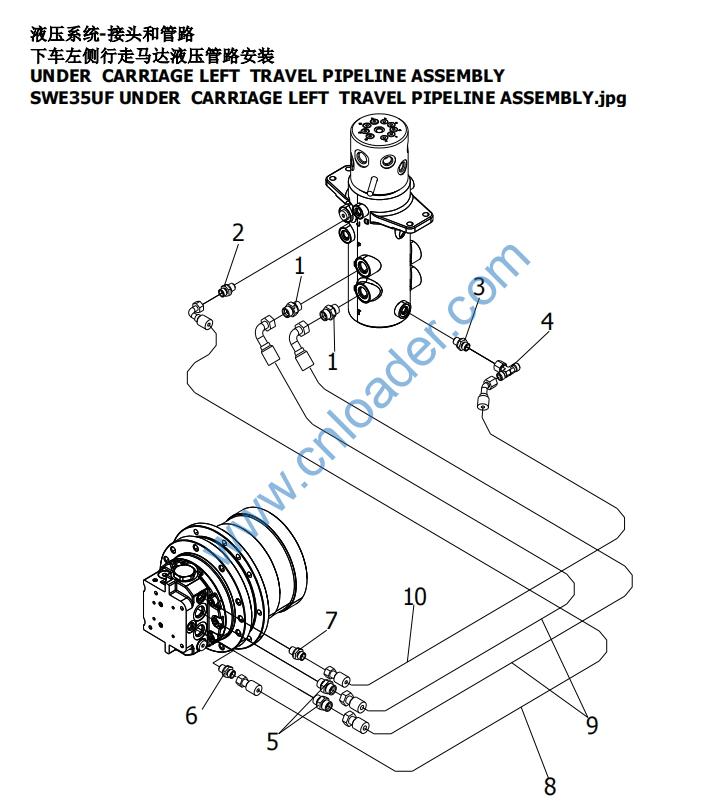

SWE35UF UNDER CARRIAGE LEFT TRAVEL PIPELINE ASSEMBLY.jpg 2 730101000079 1 CONNECTOR 端直通GE08LREDOMDA3C 2 101-
3 730101000010 1 CONNECTOR 端直通GE10LREDOMDA3C 1 101-
4 730104000018 1 CONNECTOR 三通接头ET10LOMDA3C 1 101-
5 730101000090 1 CONNECTOR 端直通GEO12LR1/2OMDA3C 2 101-
6 730101000080 1 CONNECTOR 端直通GEO08LROMDA3C 1 101-
7 730101000085 1 HOSE ASSEMBLY 端直通GEO10LROMDA3C 1 101-
8 730502001609 1 HOSE ASSEMBLY 胶管总成F481CACF080804-1100 1 101-
9 730502000452 1 HOSE ASSEMBLY 胶管总成F431CACF121206-950 2 101-
10 730501000840 1 HOSE ASSEMBLY 胶管总成F481CACA101005-1000 1 101-

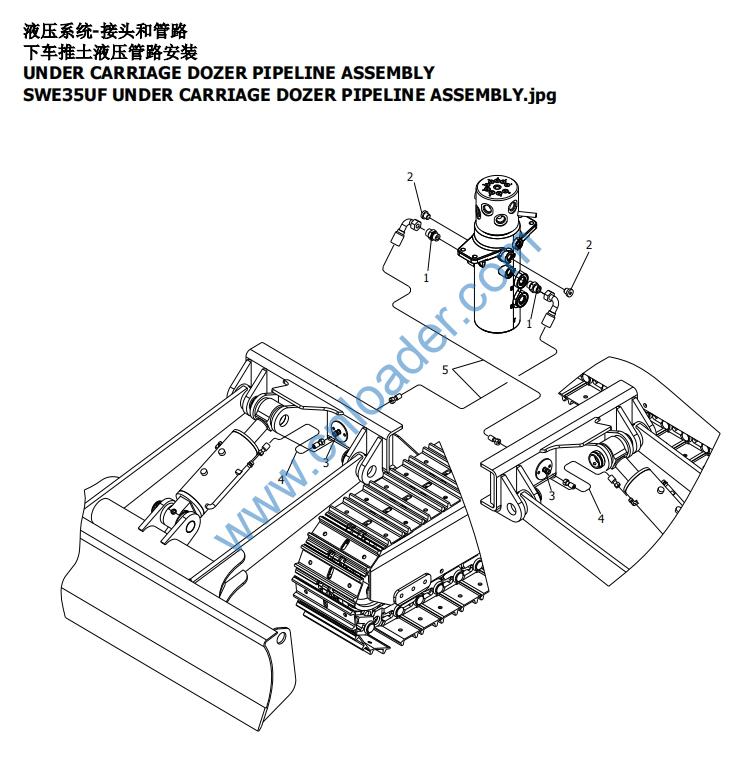

730101000160 1 CONNECTOR 端直通GE10LR3/8EDOMDA3C 2 101-
SWE35UF UNDER CARRIAGE DOZER PIPELINE ASSEMBLY.jpg 2 739806000014 1 PLUG 堵头VSTI3/8EDA3C 2 101-
3 730101000224 1 CONNECTOR 接头SV10LOMDA3C 2 101-
4 73050200A352 1 HOSE ASSEMBLY 胶管总成F431CACA101005-460-SG-460 2 101-
5 730502005298 1 HOSE ASSEMBLY 胶管总成F431CACF101005-450 2 101-

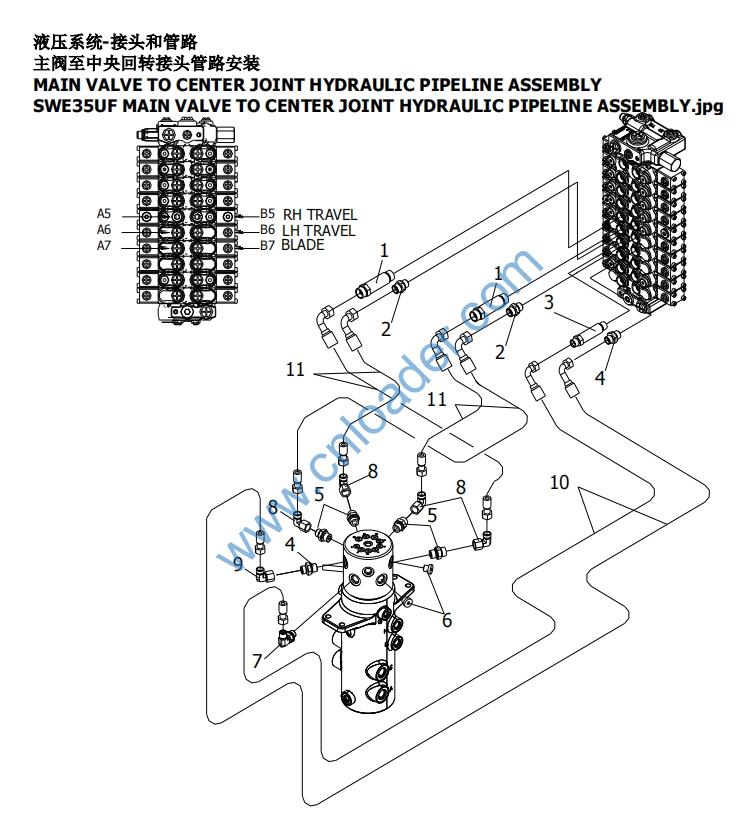

730101000620 1 CONNECTOR 端直通GE12LREDOMDA3C/60 2 101-
SWE35UF MAIN VALVE TO CENTER JOINT HYDRAULIC PIPELINE ASSEMBLY.jpg 2 730101000087 1 CONNECTOR 端直通GE12LREDOMDA3C 2 101-
3 730101001812 1 CONNECTOR 端直通GE10LR3/8EDOMDA3C/60 1 101-
4 730101000160 1 CONNECTOR 端直通GE10LR3/8EDOMDA3C 2 101-
5 730101000105 1 CONNECTOR 端直通GE12LR1/2EDOMDA3C 4 101-
6 739806000014 1 PLUG 堵头VSTI3/8EDA3C 2 101-
7 730101000345 1 CONNECTOR 可调向直角接头WEE10LR3/8DA3C 1 101-
8 730102000008 1 CONNECTOR 接头EW12LOMDA3C 4 101-
9 730102000015 1 CONNECTOR 接头EW10LOMDA3C 1 101-
10 730502001853 1 HOSE ASSEMBLY 胶管总成F431CACF101005-1200 2 101-
11 730502001612 1 HOSE ASSEMBLY 胶管总成F431CACF121206-1100 4 101-
