750099000008 1 HAND SHANK(L) 手柄 2132-1134B(L) 1 101-

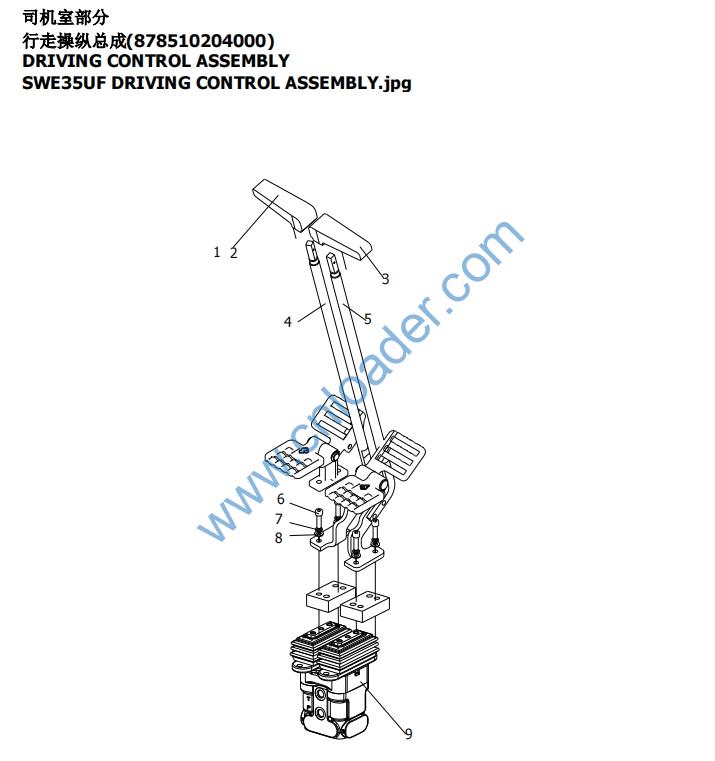

SWE35UF DRIVING CONTROL ASSEMBLY.jpg 2 701309004004 1 SCREW 螺钉M4X20 GB/T 818 2 101-
3 750099000007 1 HAND SHANK(R) 手柄 2132-1133(R) 1 101-
4 878510204030 S2 LEFT TRAVEL LEVER 左行走杆焊接 1 101-
878510204030 S3 LEFT TRAVEL LEVER 左行走杆焊接 1 128-
5 878510204040 S2 RIGHT TRAVEL LEVER 右行走杆焊接 1 101-
878510204040 S3 RIGHT TRAVEL LEVER 右行走杆焊接 1 128-
6 701302010042 1 SCREW 螺钉M10X30-8.8-DKL GB/T 70.1 4 101-
7 701504010004 1 WASHER 垫圈10-DKL GB/T 97.1 4 101-
8 701510010004 1 WASHER 垫圈10-DKL GB/T 93 4 101-

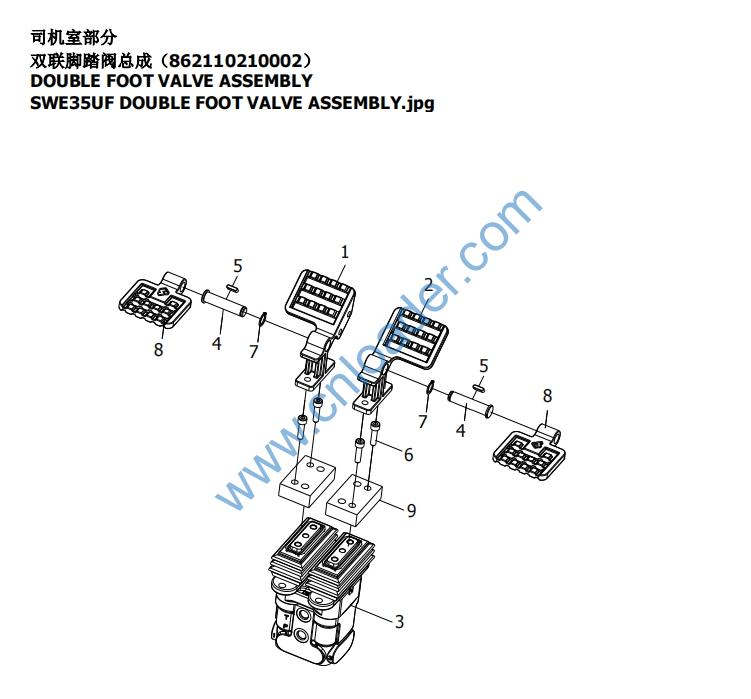

9 862110210002 S2 DOUBLE FOOT VALVE ASSEMBLY 双联脚踏阀总成(811000050) 1 101-
862110210002 S3 DOUBLE FOOT VALVE ASSEMBLY 双联脚踏阀总成(811000050) 1 112-
750625010063 1 LEFT FOOT PEDAL 左脚踏板（300700179） 1 101-
SWE35UF DOUBLE FOOT VALVE ASSEMBLY.jpg 2 750625010064 1 RIGHT FOOT PEDAL 右脚踏板（300700178） 1 101-
3 730309000294 1 FOOT VALVE 双联脚踏阀811000027 1 101-
730309000390 1 FOOT VALVE 行走脚踏阀811000069 1 112-
4 750314000096 1 SHAFT 轴（300300053） 2 101-
5 750550000161 1 OILLESS BEARING 无油轴承（600700028） 2 101-
6 701302010054 1 SCREW 螺钉M10X16-8.8-DKL GB/T 70.1 2 101-
7 701501010002 1 WASHER 垫圈10-DKL GB/T 95 2 101-
8 750625010065 1 FRONT FOOT PEDAL 前脚踏板（300700180） 2 101-
9 750625010068 1 FOOT PLATE 脚踏辅助板300700219 2 112-

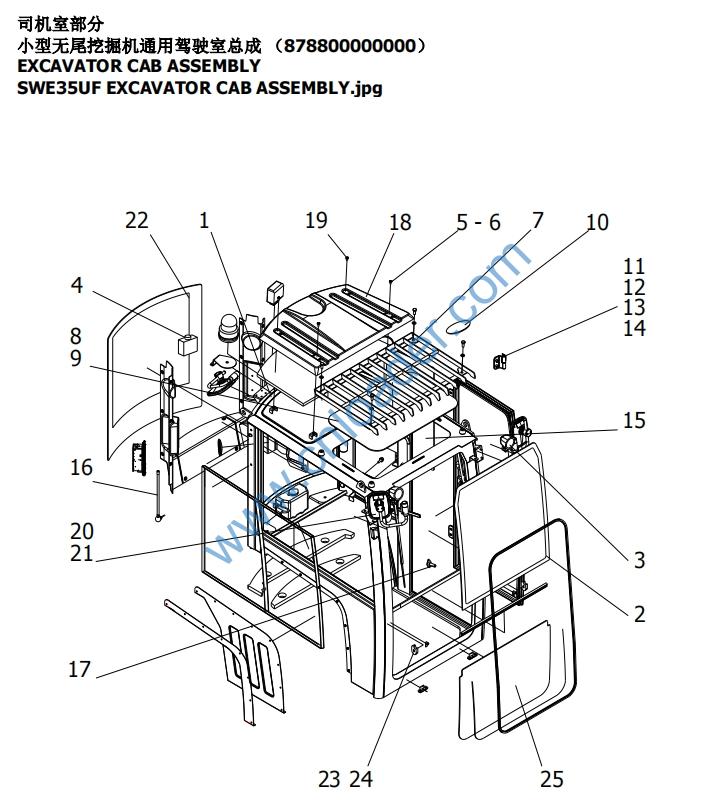

878801000000 S2 CAB WELDING ASSEMBLY 驾驶室焊接总成 1 101-
SWE35UF EXCAVATOR CAB ASSEMBLY.jpg 2 878804000000 S2 FLIP WINDOW ASSEMBLY 翻转窗总成 1 101-
3 720412000286 1 LED WORK LIGHT LED工作灯WE-0403R 12W 泛光 2 101-
4 751501000309 1 ELBOW CLIP 弯头夹（720405000094） 3 101-
5 701101006003 1 SNAP-HEAD BOLT 半圆头螺栓M6X16 GB/T 12-88 16 101-
6 701502006002 1 WASHER 垫圈6-DKL GB/T 96.2 19 101-

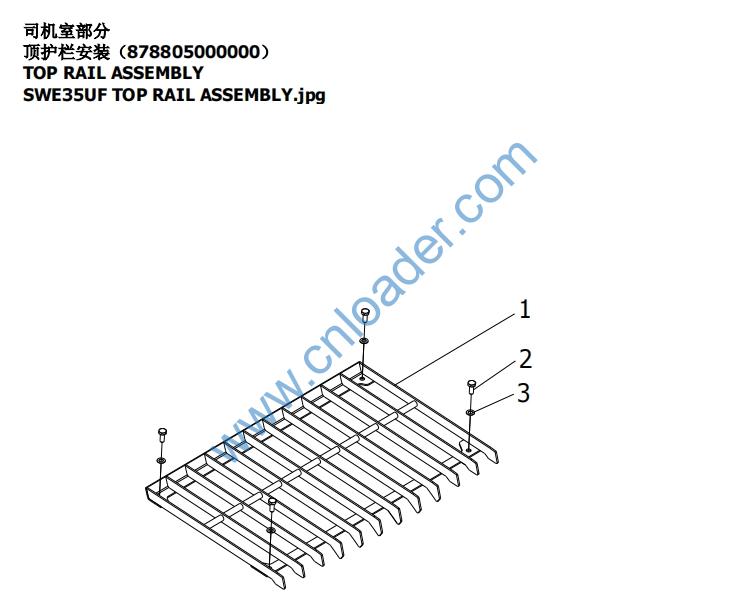

7 878805000000 S1 TOP RAIL ASSEMBLY 顶护栏安装 1 101-
8 302490043026 S1 TOP GLASS 顶玻璃（小型无尾挖机） 1 101-
9 760505000003 1 GLASS ADHESIVE 玻璃粘接剂Sikaflex-255 101-
10 750719000252 1 INTERIOR LIGHTS 12V LED 内饰灯 1 101-
11 867803000000 S5 DOOR HINGE ASSEMBLY 门铰链总成 2 101-
12 701104008067 1 BOLT 螺栓M8X20-8.8-ZnD（白） GB/T 5783 4 101-
13 701509008004 1 WASHER 垫圈8-ZND GB/T 95 8 101-
14 305060002944 S4 DOOR HINGE NUT COVER 门铰链螺帽盖SW-Ⅱ 4 101-
15 302490043027 S2 LEFT BACK GLASS 左后玻璃（小型无尾挖机） 1 101-
16 720226000006 1 RUBBE ANTENNA 橡胶天线QT1290 1 101-
17 720405000034 1 WIPER NOZZLE 雨刮喷头PD600/530DB/4000 1 101-
18 302560002159 S1 HEAD COVER 顶盖 1 101-
19 701323008009 1 HEXAGON SOCKET FLAT ROUND HEAD 内六角平圆头M8X20-10.9-ZnD GB/T 70.2 4 101-
20 750603000019 1 MIRROR HOLDER ASSEMBLY 反光镜支架总成（小型无尾挖掘机） 3 101-
21 750603000020 1 MIRROR 反光镜（小型无尾挖掘机） 3 101-
22 302990005207 S1 BACK GLASS 后玻璃（小型无尾挖掘机） 1 101-
23 302490043038 S2 BOTTOM STOP BLOCK OF THE FLIP WINDOW 翻转窗下止动块 2 101-
24 701329020002 1 COUNTERSUNK HEAD SCREW 304沉头螺钉M6X20 GB/T 819.1 8 101-
25 302990005206 S1 FRONT UNDER GLASS 前下玻璃（小型无尾挖掘机） 1 101-
750001000031 1 FRONT UNDER GLASS STRIP 前下玻璃胶条SW-Ⅲ 1 101-

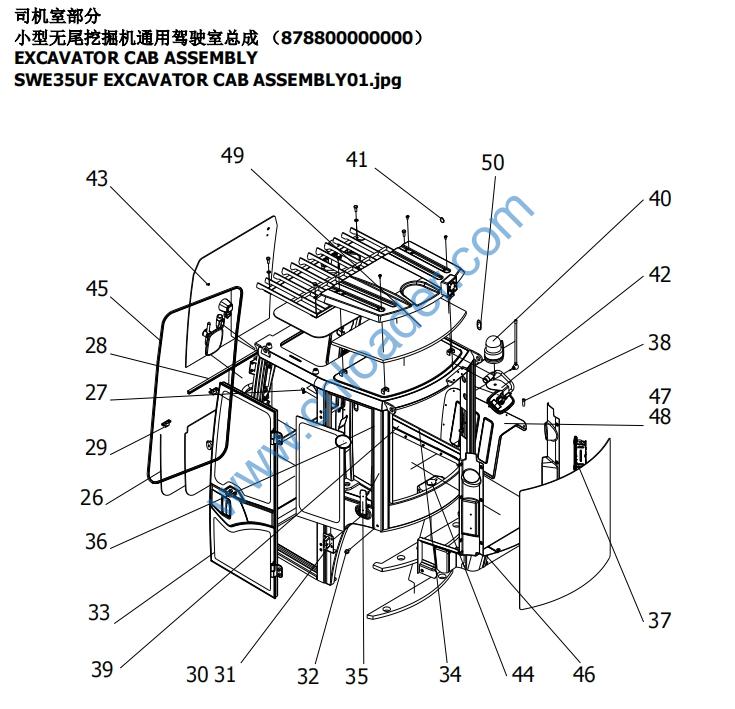

SWE35UF EXCAVATOR CAB ASSEMBLY01.jpg 27 307990001100 S4 FRONT WINDOW MOUNTING BUCKLE 前下玻璃安装扣SW-Ⅱ 2 101-
28 750001000109 1 FRONT WINDOW SEALING TAPE 前窗密封胶条-35U 1 101-
29 750099000345 1 FRONT WINDOW LOCATOR CARD 前下玻璃定位卡SWE17-22 2 101-
30 750906000334 1 LATCH COMPONENTS 碰锁组件SWE35U 1 101-
31 701101006001 1 BOLT 螺栓M6X25-4.8 GB/T 5780 3 101-
32 750906000082 1 DOOR FLIP LIMIT BOLT 门翻转限位螺栓M10× 40 1 101-
33 878802000000 S3 DOOR ASSEMBLY 门总成 1 101-
34 750711000118 1 RIGHT MOVABLE WINDOW ASSEMBLY 右活动窗总成（小型无尾） 1 101-
35 750629000008 1 CAB FIRE EXTINGUISHER BRACKET 司机室灭火器支架 1 101-
36 720407000041 1 THE HORN 喇叭MW78 2 101-
37 720404000026 1 RADIO 工程机械收音机XG9819 1 101-
38 720411000006 1 CIGAR LIGHTER 白象牌LC951G型点烟器 1 101-
39 750005000032 1 WATER PIPE 水管SG4-A 4.5m 1 101-
40 720412000231 1 WARNING LIGHT LED警示灯JS90 12V/24V 1 101-
41 750006010028 1 MIDDLE DIG BACK COVER 中挖后堵盖 1 101-
42 302540014428 S4 WARNING LAMP BRACKET 警灯支架 1 101-
43 750006010018 1 LAMP POWER CORD THROUGH HOLE JACKET 灯电源线过孔护套φ11 4 101-
44 720405000099 1 SCRUBBER ASSEMBLY 洗涤器总成XD106S1-1.5(12V) 1 101-
45 750001000111 1 FRONT WINDOW STRIP 前窗胶条（小型无尾挖掘机） 1 101-
46 878803000000 S2 INTERIOR ASSEMBLY 内饰总成（小型无尾挖机） 1 101-
47 302540019146 S1 35U RIGHT MOUNTING PLATE 右侧安装板-35U 1 101-
48 302560002186 S1 60U RIGHT MOUNTING PLATE 60U右安装板 1 101-
49 302490045804 S1 TOP SPONGE SWE35UF顶海绵 1 101-
50 750030000028 1 LATCH STOP COVER 碰锁扣堵盖 1 101-

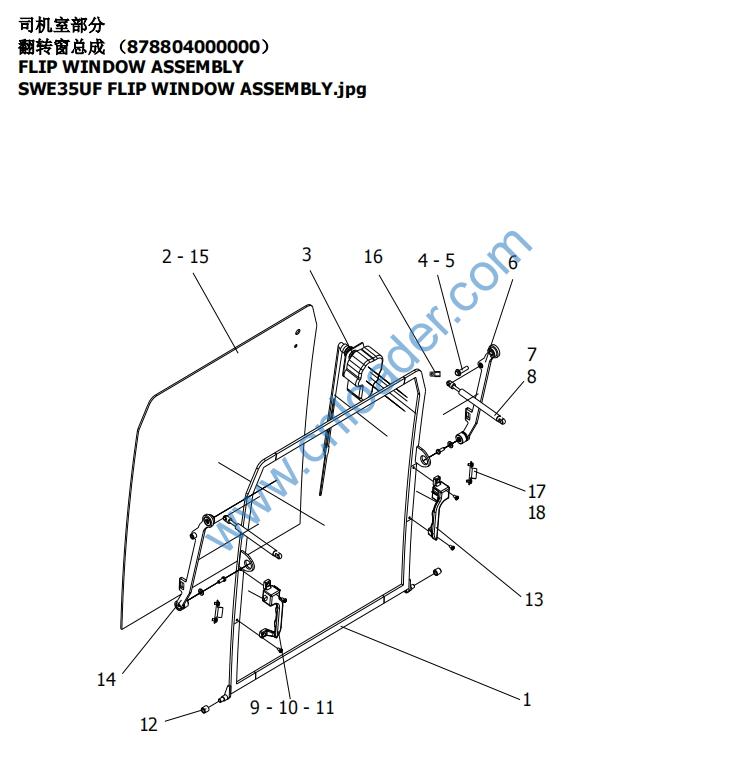

1 878804010000 S2 WINDOW FRAME WELDED 窗框焊合 1 101-
SWE35UF FLIP WINDOW ASSEMBLY.jpg 2 302990005208 S2 FLIP WINDOW GLASS 翻转窗玻璃（小型无尾挖机） 1 101-
3 813697200200 A1 WIPER ASSEMBLY 雨刮器总成 1 101-
4 701104008037 1 BOLT 螺栓M8X30-8.8-DKL GB/T 5783 4 101-
5 701510008001 1 WASHER 垫圈8-ZnD GB/T 93 4 101-
6 867804040000 S5 RIGHT ROCKER ARM WELDING 右摇臂焊合 1 101-
7 750701000137 1 FLIP WINDOW AIR SPRING 翻转窗气弹簧SW-Ⅱ 2 101-
8 304050000098 A3 BOLT 螺栓 4 101-
9 750906000088 1 FRONT WINDSHIELD POSITIONING LOCK 前风窗定位锁ATL-SWE35-040202 1 101-
10 701104006004 1 BOLT 螺栓M6X20-8.8-ZnD GB/T 5783 4 101-
11 701510006001 1 WASHER 垫圈6 GB/T 93 8 101-
12 305060002941 S6 FLIP THE WINDOW ROLLER 翻转窗滚轮SW-Ⅱ 2 101-
13 750906000084 1 FRONT WINDSHIELD POSITIONING LOCK 前风窗定位锁ATL-SWE35-040201 2 101-
14 867804030000 S4 LEFT ROCKER ARM WELDED 左摇臂焊合 1 101-
15 760505000007 1 GLASS GLUE 玻璃胶995＃ 1 101-
16 729808000044 1 LINE CDRD 线卡1104 线孔6.3 安装孔9 1 101-
17 813801020000 A2 FLIP THE WINDOW LATCH 翻转窗锁扣 2 101-
18 701323006012 1 HEXADON SOCKET FLAT ROUND HEAD 内六角平圆头M6X12-10.9-ZnD GB/T 70.2 4 101-
878805010000 S1 TOP GUARD WELDING 顶护栏焊合 1 101-
SWE35UF TOP RAIL ASSEMBLY.jpg 2 701104012025 1 BOLT 螺栓M12X30-10.9-DKL GB/T 5783 4 101-
3 701523012001 1 WASHER 垫圈12-DKL GB/T 7244 4 101-
304020003536 S4 HINGE PIN 铰链销SW-Ⅱ 1 101-

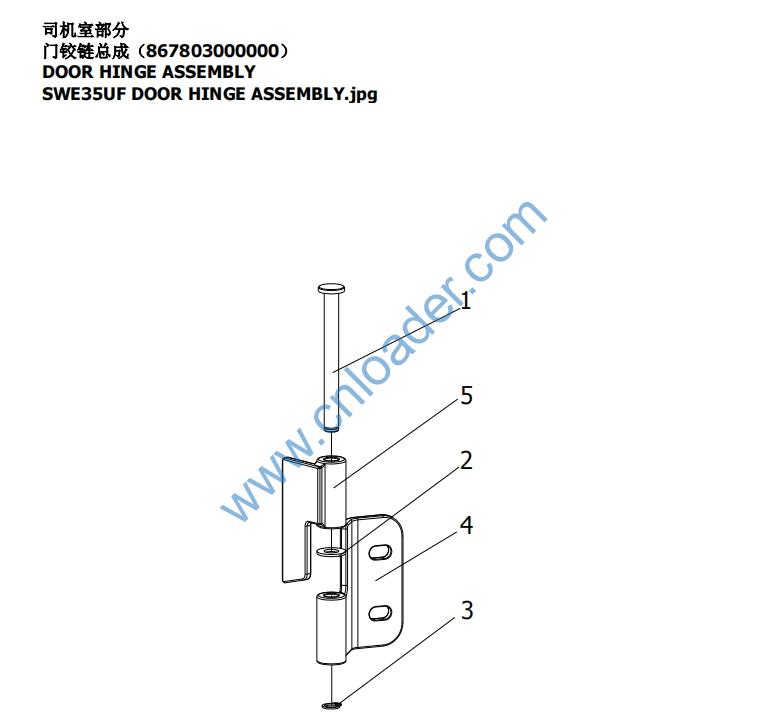

SWE35UF DOOR HINGE ASSEMBLY.jpg 2 302490030076 S4 HINGE COPPER WASHER 铰链铜垫 1 101-
3 701512010001 1 WASHER 挡圈10 GB/T 894.1 1 101-
4 332010000062 S1 DOOR HINGE HALF PIECE 2 门铰链半片2 1 101-
5 332010000061 S1 DOOR HINGE HALF PIECE 1 门铰链半片1 1 101-
878802010000 S2 DOOR WELDING 门焊合 1 101-

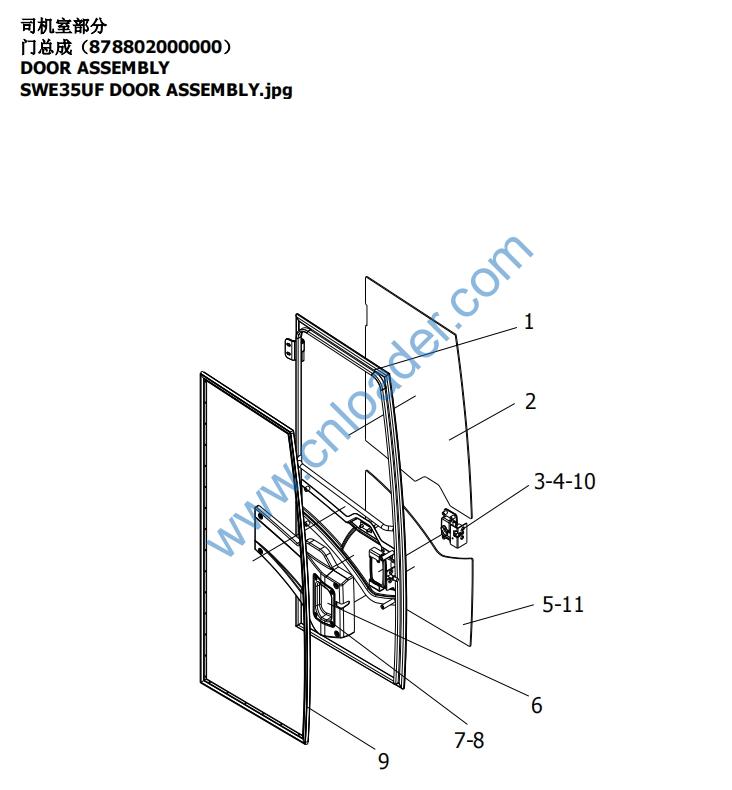

SWE35UF DOOR ASSEMBLY.jpg 2 302490043017 S2 DOOR UPPER GLASS 门上玻璃 1 101-
3 701323006012 1 HEXADON SOCKET FLAT ROUND HEAD 内六角平圆头M6X12-10.9-ZnD GB/T 70.2 6 101-
4 701510006001 1 WASHER 垫圈6 GB/T 93 6 101-
5 760505000003 1 GLASS ADHESIVE 玻璃粘接剂Sikaflex-255 1 101-
6 750719000392 1 GATE GUARD PLATE 门内护板 1 101-
7 701323006005 1 SCREW 螺钉M6X12-8.8-ZnD GB/T 70.2 2 101-
8 750719000393 1 DOOR COVER PLATE 门锁盖板（小型无尾挖机） 1 101-
9 750001000110 1 DOOR SEALING TAPE 门密封胶条（小型无尾挖掘机） 1 101-
10 750906000335 1 ACCESS DOOR LOCK 驾驶室门锁（SW-Ⅱ） 1 101-
11 302490044512 S1 DOOR LOWER GLASS 门下玻璃 1 101-
750719000388 1 RIGHT REAR COLUMN INTERIOR TRIM 右后立柱内饰（小型无尾挖机） 1 101-

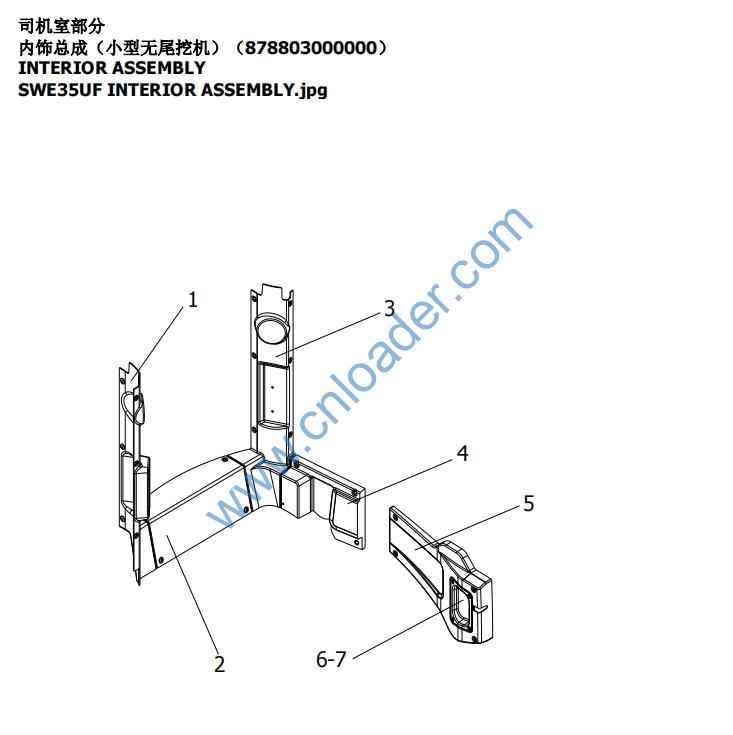

SWE35UF INTERIOR ASSEMBLY.jpg 2 750719000389 1 AFTER THE CIRCUMFERENCE INTERIOR 后围内饰 1 101-
3 750719000390 1 LEFT REAR COLUMN INTERIOR TRIM 左后立柱内饰（小型无尾挖机） 1 101-
4 750719000391 1 LEFT INTERIOR 左侧内饰（小型无尾挖机） 1 101-
5 750719000392 1 GATE GUARD PLATE 门内护板 1 101-
6 750719000393 1 DOOR COVER PLATE 门锁盖板（小型无尾挖机） 1 101-
7 750719000395 1 INTERIOR ACCESSORY ASSEMBLY 内饰附件总成（小型无尾挖机） 1 101
302530000021 A2 LEFT GUIDE PLATE 左导向板 2 101-

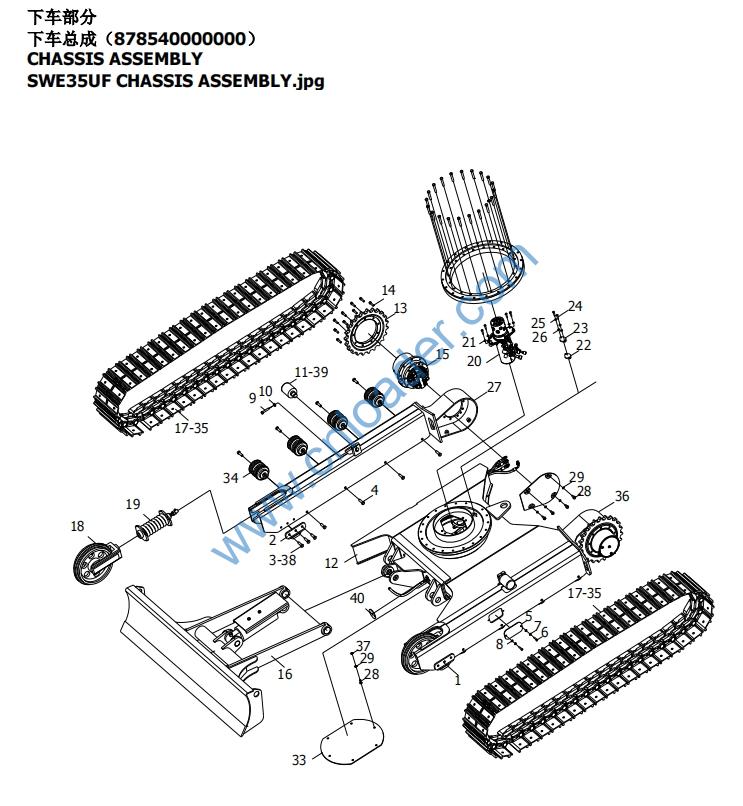

SWE35UF CHASSIS ASSEMBLY.jpg 2 302530000022 A2 RIGHT GUIDE PLATE 右导向板 2 101-
3 701104012023 1 BOLT 螺栓M12X35-10.9-DKL GB/T 5783 12 101-
4 701104014025 1 BOLT 螺栓M14X35-10.9-DKL GB/T 5783 16 101-
5 302030000752 A1 LATERAL COVER PLATE 侧盖板 2 101-
6 701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783 10 101-
7 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 10 101-
8 701508008001 1 WASHER 垫圈8-DKL GB/T 1230 10 101-
9 701103012047 1 BOLT 螺栓M12X60-10.9-DKL GB/T 5782 2 101-
10 701508012002 1 WASHER 垫圈12-DKL GB/T 1230 2 101-
11 750103000011 1 DRAG CHAIN WHEEL 托链轮SH101-T-00 2 101-
12 878540100000 S2 CHASSIS FRAME 下车架 1 101-
13 750104000056 1 DRIVING WHEEL 驱动轮SWE35UF 2 101-
14 701104012025 1 BOLT 螺栓M12X30-10.9-DKL GB/T 5783 44 101-
15 730250000580 1 TREAD MOTOR 行走马达MAG-26VP-400F-8（B0240-26024） 2 101-
16 878540200000 S1 DOZER ASSEMBLY 推土铲总成 1 101-
17 750101000028 1 BELT TRACK ASSEMBLY 履带总成8101-GH-452301 2 101-
18 750105000016 1 IDLE WHEEL 引导轮SH101-Y-00 2 101-
19 750106000017 1 TURGOR DEVICE 涨紧装置SWE35SU 2 101-
20 739802000138 1 CENTER SWIVEL JOINT 中央回转接头8D0500000002 1 101-
21 701508010001 1 WASHER 垫圈10-DKL GB/T 1230 12 101-
22 302490001008 A1 RUBBER MAT 橡胶垫 1 101-
23 302030000753 A2 COVER PLATE 2 盖板2 1 101-
24 701104006017 1 BOLT 螺栓M6X16-8.8-DKL GB/T 5783 2 101-
25 701504006002 1 WASHER 垫圈6-DKL GB/T 97.1 2 101-
26 701510006003 1 WASHER 垫圈6-DKL GB/T 93 2 101-
27 814240020000 A1 RIGHT MOTOR COVER ASSEMBLY 右马达盖板总成 1 101-
28 701104010033 1 BOLT 螺栓M10X25-10.9-DKL GB/T 5783 18 101-
29 701504010004 1 WASHER 垫圈10-DKL GB/T 97.1 14 101-
30 701103012035 1 BOLT 螺栓M12X70-10.9-DKL GB/T 5782 20 101-
31 701103012042 1 BOLT 螺栓M12X75-10.9-DKL GB/T 5782 20 101-
32 750550000029 1 SLEWING BEARING 回转支承QNA567*20Z6-00 1 101-
33 302490042805 S2 BOTTOM GUIDE PLATE 底盖板 1 101-
34 750102000042 1 THRUST WHEEL 支重轮ZZL-28 8 101-
35 750101000036 1 BELT TRACK ASSEMBLY 履带总成300/55/84/T/C 2 101-
36 814240030000 A1 LEFT MOTOR COVER ASSEMBLY 左马达盖总成 1 101-
701502010003 1 WASHER 垫圈10-DKL GB/T 96.2 6 101-
SWE35UF CHASSIS ASSEMBLY01.jpg 38 701104012022 1 BOLT 螺栓M12X25-10.9-DKL GB/T 5783 12 101-
39 701512030001 1 STOP RING 挡圈30 GB/T 894.1 2 101-
40 302010006539 S2 DIAPHRAGM JOINT MOUNTING PLATE 隔板接头安装板 2 101-
878540201000 S2 DOZER 推土铲 1 101-

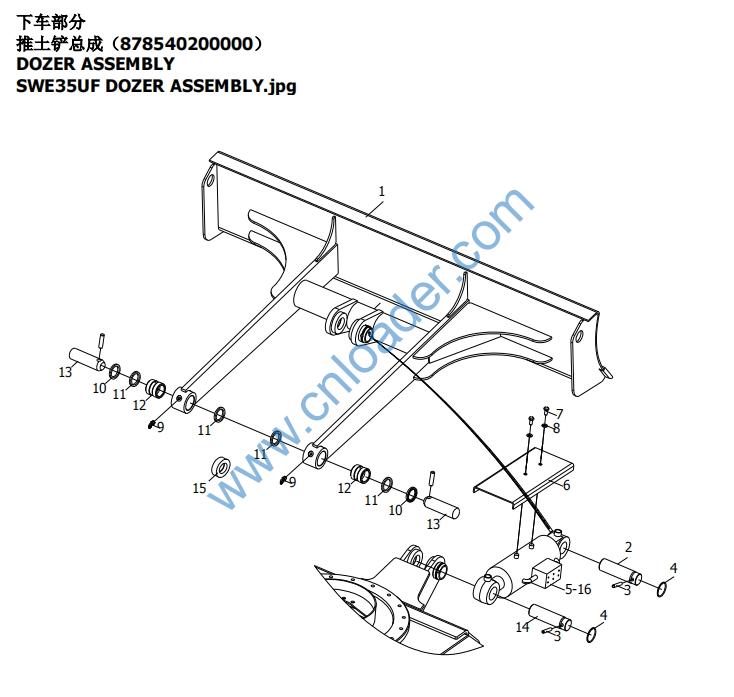

SWE35UF DOZER ASSEMBLY.jpg 2 304020002407 A1 PIN 2 销2 1 101-
3 304020201008 A1 LOCATING PIN 定位销 C10X56 4 101-
4 305070500012 A1 STEEL WIRE RING 钢丝挡圈 4 101-

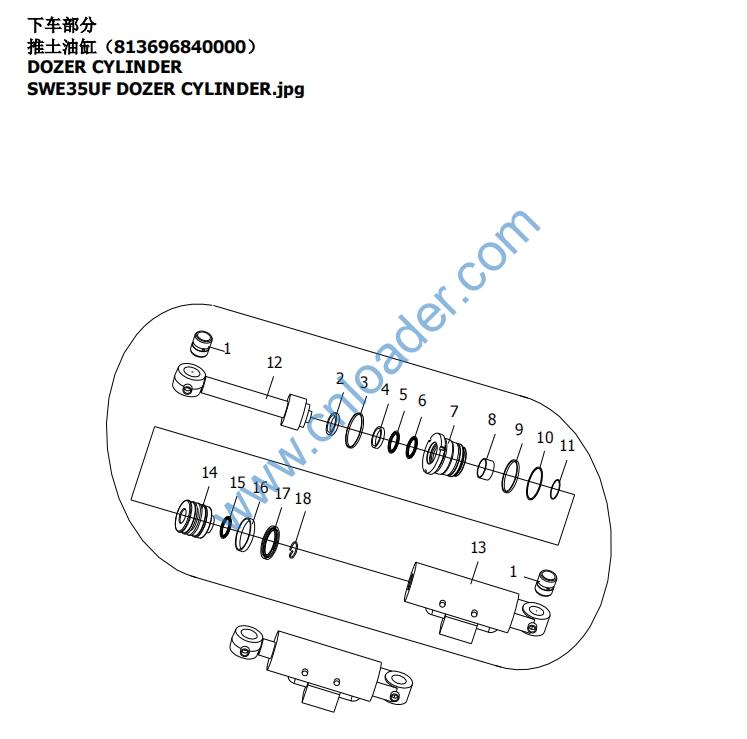

5 813696840000 A8 DOZER CYLINDER 推土油缸 1 101-
6 302510000130 A2 CYLINDER GUARD PLATE 油缸保护板 1 101-
7 701104010030 1 BOLT 螺栓M10X16-8.8-DKL GB/T 5783 2 101-
8 701508010001 1 WASHER 垫圈10-DKL GB/T 1230 2 101-
9 703102010001 1 OIL CUP 油杯90°M10X1 JB/T 7940.2 2 101-
10 813661010000 A2 GASKET UNIT 垫片组 Ⅸ(80X46) 4 101-
11 730652000025 1 DUSTBAND 防尘圈DLW04502 55X45X5 8 101-
12 305040001395 A1 AXLE SLEEVE 轴套45X47 2 101-
13 304020002406 A1 PIN 1 销1 2 101-
14 304020002408 A1 PIN 3 销3 1 101-
15 305070000346 A1 PIPE RETAINER 过管护圈 2 101-
16 878596840001 S2 DOZER CYLINDER 推土油缸（带液压锁） 1 101-
305040501010 A7 BUSH 衬套 2 101-
SWE35UF DOZER CYLINDER.jpg 2 730652000240 1 DUSTBAND 防尘圈DKBI FD2831E0 1 101-
3 730603000010 1 O-RING O形圈G95 (A70) 1 101-
4 730604000053 1 U-RING U形圈USH 50X60X6 1 101-
5 730654000225 1 STOP COLLAR 挡圈50X60X3 1 101-
6 730601000318 1 PISTON ROD SEAL PART 活塞杆密封OMS-MR-0500 1 101-
7 305090002332 A1 CYLINDER HEAD 缸头 1 101-
8 750502000005 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB5025 1 101-
9 730603000033 1 O-RING O形圈88.49X3.53 (A70) 2-238 N552-90 1 101-
10 730654000037 1 STOP COLLAR 挡圈89.4X95X2 1 101-
11 301020003011 S10 SPRING COLLAR 弹簧挡圈φ55X3 1 101-
12 813696840100 A5 PISTON ROD ASSEMBLY 活塞杆组件 1 101-
13 813696840200 A3 CYLINDER BARREL UNIT 缸筒组件 1 101-
14 305090002333 A1 PISTON 活塞 1 101-
15 730603000048 1 O-RING O形圈G50 (A90) 9-5506 N552-90 1 101-
16 730651000012 1 GUIDE RING 导向环KFR 9094 Q5029 2 101-
17 730602000366 1 PISTON SEAL 活塞密封OMK-MR 95X79.5X6.3 1 101-
18 301020003004 S10 LOCK RING 锁圈 1 101-
