1 302490042901 S2 LEFT FRONT SPONGE OF PLATFORM 平台左前海绵 1 101-

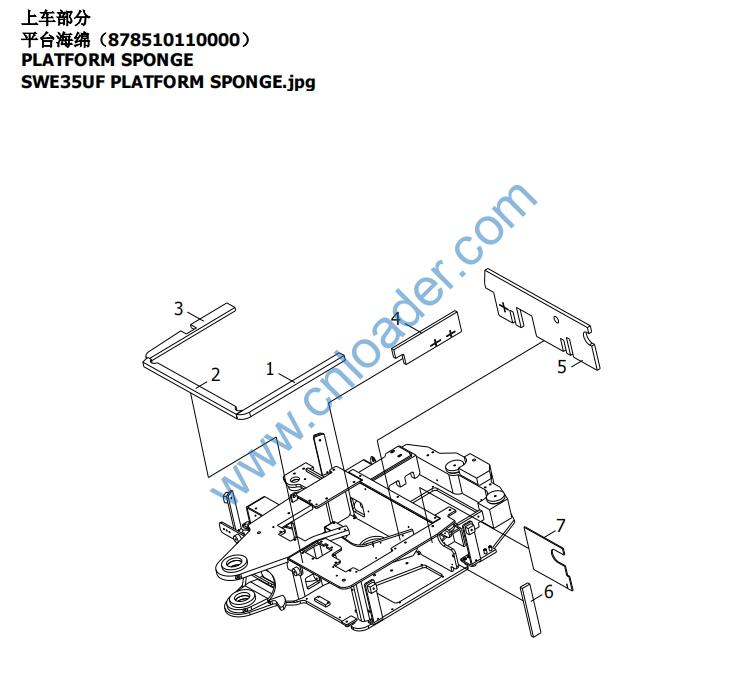

SWE35UF PLATFORM SPONGE.jpg 2 302490042902 S2 FRONT SPONGE OF PLATFORM 平台前海绵 1 101-
3 302490042903 S2 RIGHT FRONT SPONGE OF PLATFORM 平台右前海绵 1 101-
4 302490042904 S1 RIGHT REAR BEAM INSULATION SPONGE 右后梁隔热海绵 1 101-
5 302490042905 S3 MIDDLE BEAM SPONGE 中间横梁隔热海绵 1 101-
302490042905 S4 MIDDLE BEAM SPONGE 中间横梁隔热海绵 1 128-
6 302030040789 S1 MIDDLE BEAM LEFT SEAL SPONGE 中间横梁左侧密封件海绵 1 101-
7 302490045294 S1 FRONT SPONGE OF MIDDLE BEAM 中间横梁前海绵 1 101-
1 302010007014 S1 CAB REAR SEAL SPONGE 司机室后密封海绵 1 101-

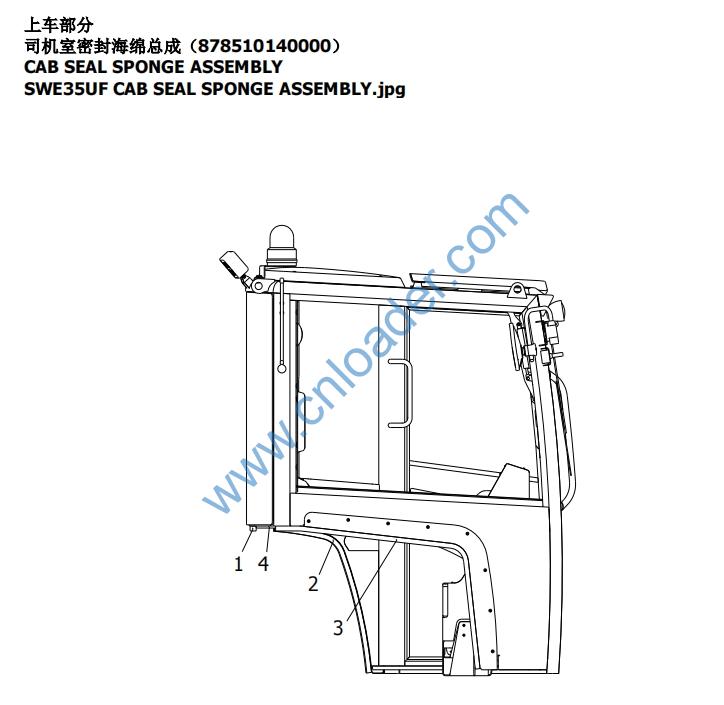

SWE35UF CAB SEAL SPONGE ASSEMBLY.jpg 2 302030042928 S1 CAB LEFT REAR SEAL SPONGE 司机室左后密封海绵 1 101-
3 302030042929 S1 CAB RIGHT REAR SEAL SPONGE 司机室右后密封海绵 1 101-
4 302490043114 S2 REAR WATERPROOF SPONGE 后防水海绵 1 101-
878521070000 S2 RIGHT COVER ACCESSORY ASSEMBLY SWE35UF履带式液压挖掘机右覆盖件附件组件 1 101-

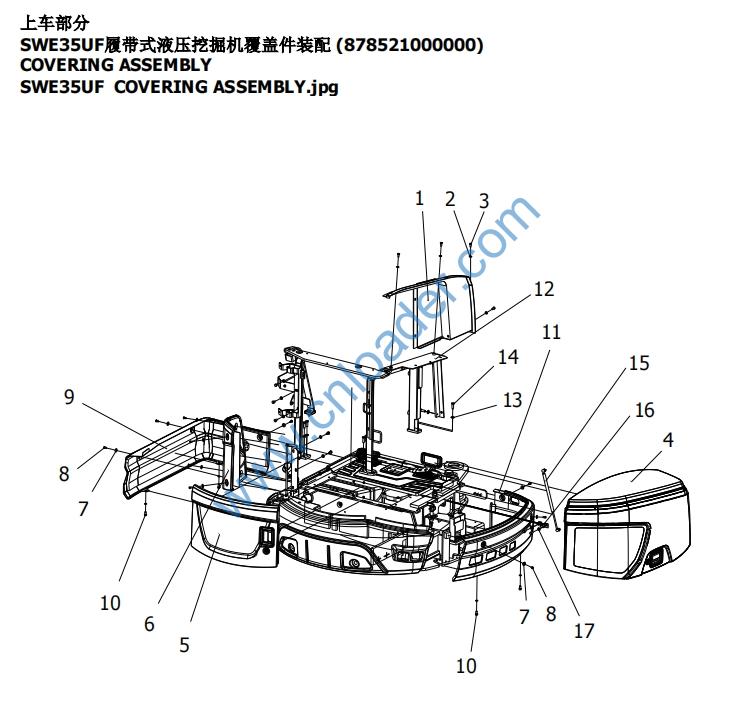

SWE35UF COVERING ASSEMBLY.jpg 2 701506010003 1 WASHER 垫圈10-DKL GB/T 96.1 14 101-
3 701103010020 1 BOLT 螺栓M10X20-8.8-DKL GB/T 5782 16 101-
4 878521010000 S3 RIGHT COVER ASSEMBLY SWE35UF履带式液压挖掘机右覆盖件总成 1 101-
5 878521020000 S2 REAR COVER ASSEMBLY SWE35UF履带式液压挖掘机覆盖件后盖总成 1 101-
6 878521030000 S2 LEFT COVER ASSEMBLY SWE35UF履带式液压挖掘机覆盖件左盖总成 1 101-
7 701506008002 1 WASHER 垫圈8-DKL GB/T 96.1 14 101-
8 790099000142 1 SCREW 螺钉M8X20-8.8-DKL GB/T 2672 10 101-
9 878521040000 S1 LEFT SURROUNDING EDGE ASSEMBLY SWE35UF履带式液压挖掘机覆盖件左围边总成 1 101-
10 701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783 4 101-
11 878521050000 S2 RIGHT SURROUNDING EDGE ASSEMBLY SWE35UF履带式液压挖掘机覆盖件右围边总成 1 101-
12 878521060000 S2 FRAME ASSEMBLY OF COVERING SWE35UF履带式液压挖掘机覆盖件骨架总成 1 101-
13 701502012002 1 WASHER 垫圈12-DKL GB96.2 8 101-
14 701104012028 1 BOLT 螺栓M12X30-8.8-DKL GB/T 5783 8 101-
15 750701000182 1 GAS SPRING 气弹簧YQ585-252-480 1 101-
16 878521090000 S1 GAS SPRING UNDER BEARING ASSEMBLY SWE35UF右覆盖件气弹簧下支座组件 1 101-
17 701508010001 1 WASHER 垫圈10-DKL GB/T 1230 2 101-
302560002151 S1 RIGHT COVER ACCESSORY SWE35UF右覆盖件附件 1 101-
SWE35UF COVER ACCESSORY ASSEMBLY.jpg 2 302030040758 S1 RIGHT COVER ACCESSORY SPONGE SWE35UF右覆盖件附件海绵1 1 101-
878521010100 S1 RIGHT COVER ASSEMBLY SWE35UF右覆盖件组件 1 101-

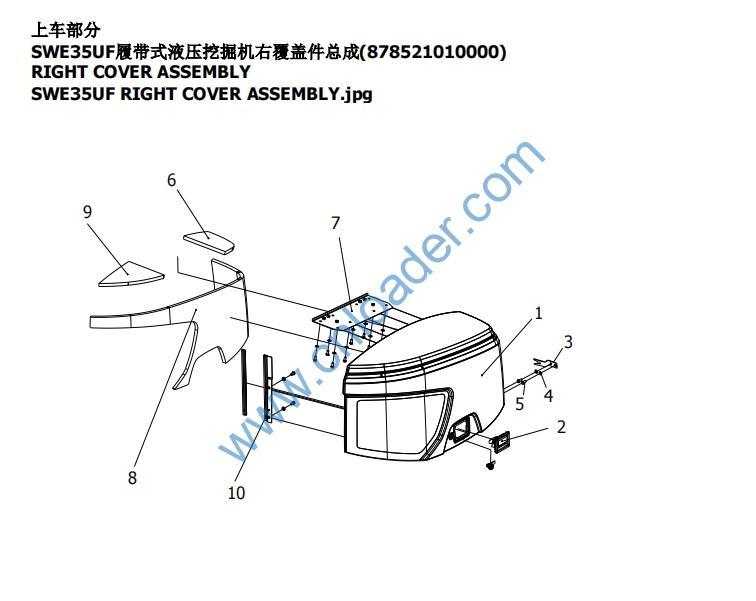

SWE35UF RIGHT COVER ASSEMBLY.jpg 2 876921220000 S2 RIGHT COVER LOCK ASSEMBLY 60u右盖锁总成 1 101-
3 302530000495 S1 RIGHT COVER LIMIT BOARD SWE35UF右覆盖件限位板 1 101-
4 701508010001 1 WASHER 垫圈10-DKL GB/T 1230 12 101-
5 701103010020 1 BOLT 螺栓M10X20-8.8-DKL GB/T 5782 12 101-
6 302020002273 S1 RIGHT COVER UPPER LEFT SPONGE SWE35UF右覆盖件上左海绵 1 101-
7 878521010200 S1 RIGHT COVER HINGE MOUNTING PLATE ASSEMBLY SWE35UF右覆盖件铰链安装板组件 1 101-
8 302490042863 S1 RIGHT COVER LOWER SPONGE SWE35UF右覆盖件下海绵 1 101-
9 302020002274 S1 RIGHT COVER UPPER RIGHT SPONGE SWE35UF右覆盖件上右海绵 1 101-
10 302540019075 S2 RIGHT COVER SEAL STRIP MOUNTING PLATE SWE35UF右盖密封条安装板 1 101-

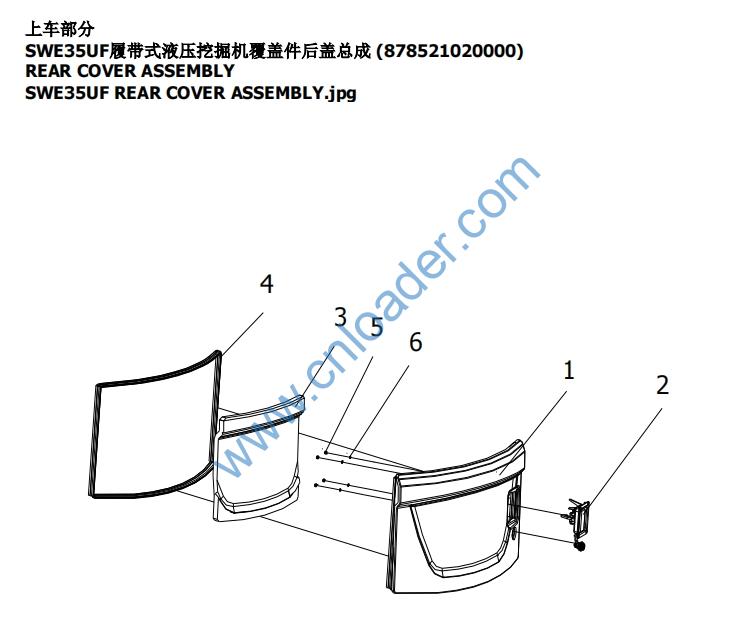

2 878521020200 S2 REAR COVER LOCK ASSEMBLY SWE35UF覆盖件后盖锁总成 1 101-
3 302490042821 S2 REAR COVER SPONGE SWE35UF后盖海绵 1 101-
4 750030000138 1 STEEL CORE COMPOUND SEAL STRIP 钢芯复合密封条 4 101-
5 701406006003 1 NUT 螺母M6 GB6170 4 101-
6 701510006003 1 WASHER 垫圈6-DKL GB/T 93 4 101-
1 878521030100 S3 WELDING ASSEMBLY OF LEFT COVER SWE35UF履带式液压挖掘机覆盖件左盖组焊件 1 101-

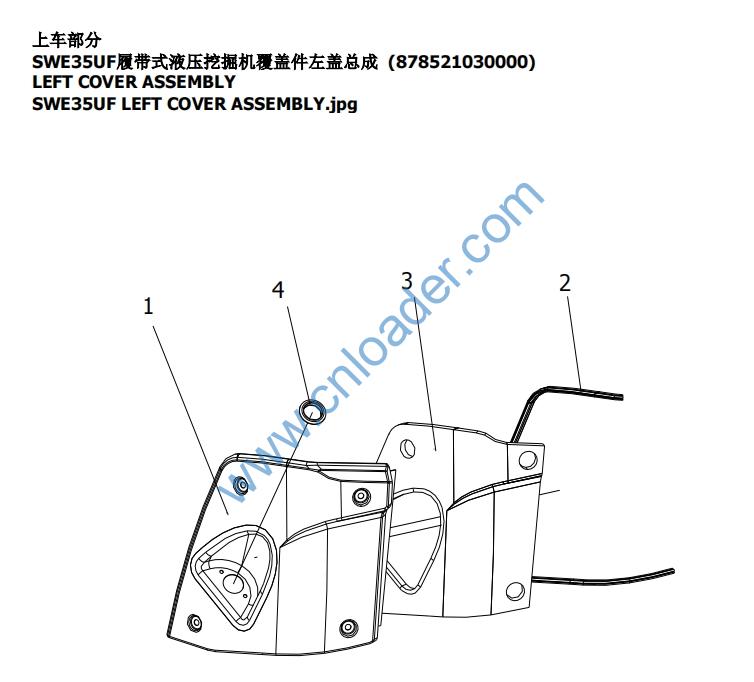

SWE35UF LEFT COVER ASSEMBLY.jpg 2 750030000138 1 STEEL CORE COMPOUND SEAL STRIP 钢芯复合密封条 1 101-
3 302490042856 S2 LEFT COVER SPONGE SWE35UF左盖海绵 1 101-
4 305040002364 S1 FILLER SEAL RING SWE35UF覆盖件左盖加油口密封圈 1 101
878521040100 S3 WELDING ASSEMBLY OF LEFT SURROUNDING EDGE SWE35UF履带式液压挖掘机覆盖件左围边组焊件 1 101-
SWE35UF LEFT SURROUNDING EDGE ASSEMBLY.jpg 2 302490042865 S1 LEFT SURROUNDING EDGE LATERAL SPONGE SWE35UF左围边侧海绵 1 101-
3 302030040759 S1 LEFT SURROUNDING EDGE FRONT SPONGE SWE35UF左围边前海绵 1 101-
302490042870 S2 RIGHT SURROUNDING EDGE SPONGE SWE35UF右围边海绵 1 101-
SWE35UF RIGHT SURROUNDING EDGE ASSEMBLY.jpg 2 750030000140 1 STEEL CORE COMPOUND SEAL STRIP 钢芯复合密封条(侧泡φ10) 1 101-
3 878521050100 S3 WELDING ASSEMBLY OF RIGHT SURROUNDING EDGE SWE35UF履带式液压挖掘机覆盖件右围边组焊件 1 101-
878521060100 S3 LEFT BACK FRAME WELDING SWE35UF履带式液压挖掘机覆盖件左后骨架焊接 1 101-

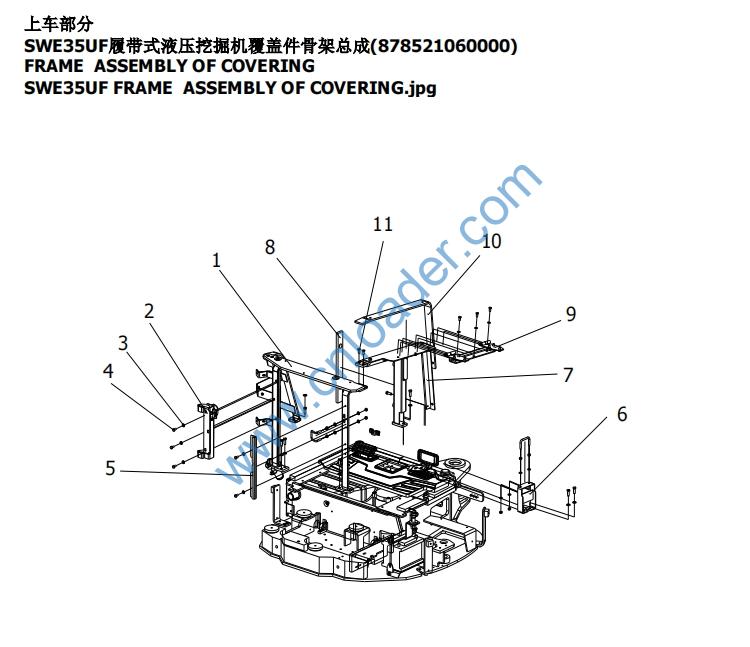

SWE35UF FRAME ASSEMBLY OF COVERING.jpg 2 878521060300 S3 REAR COVER HINGE ASSEMBLY SWE35UF后盖铰链总成 1 101-
3 701506010003 1 WASHER 垫圈10-DKL GB/T 96.1 12 101-
4 701104010031 1 BOLT 螺栓M10X20-8.8-DKL GB/T 5783 12 101-
5 302510005362 S1 REAR COVER RIGHT SEALPLATE SWE35UF覆盖件后盖右密封板 1 101-
6 878521060400 S3 LOCK MOUNTING BRACKET ASSEMBLY SWE35UF右覆盖件锁扣安装支架组焊件 1 101-
7 878521060200 S2 RIGHT FRAME WELDING SWE35UF履带式液压挖掘机覆盖件右骨架焊接 1 101-
8 302490042771 S1 RIGHT SKELETON COLUMN SPONGE SWE35UF覆盖件右骨架立柱海绵 1 101-
9 878521060500 S2 RIGHT COVER HINGE ASSEMBLY SWE35UF右覆盖件铰链总成 1 101-
10 302490042772 S2 RIGHT FRAME CR RUBBER SHEET SWE35UF覆盖件右骨架CR橡胶片 1 101-
11 701324103002 1 SCREW 螺钉M10X30-8.8-ZnD GB/T 70.3 2 101-
878521060310 S3 MAIN WELDING PART OF REAR COVER HINGE SWE35UF后盖铰链主件焊接 1 101-

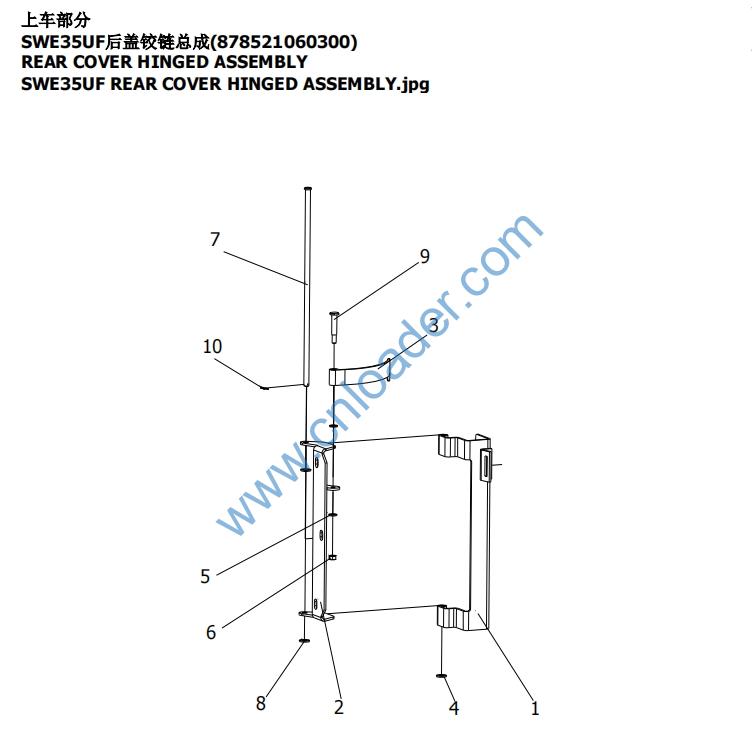

SWE35UF REAR COVER HINGED ASSEMBLY.jpg 2 878521060320 S3 REAR COVER HINGE ACCESSORIES WELDED SWE35UF后盖铰链副件焊接 1 101-
3 302560002300 S2 REAR COVER LIMIT PLATE SWE35UF后盖限位板 1 101-
4 304050000737 S3 REAR COVER LIMIT PLATE SCREW SWE35UF后盖限位板螺钉 1 101-
5 701508008001 1 WASHER 垫圈8-DKL GB/T 1230 2 101-
6 701406008004 1 NUT 螺母M8-DKL GB/T 6170 1 101-
7 304020004318 S2 REAR COVER HINGE AXIS SWE35UF后盖铰链轴 1 101-
8 701506010003 1 WASHER 垫圈10-DKL GB/T 96.1 2 101-
9 701509010001 1 WASHER 垫圈10 GB/T 848 1 101-
10 701703003220 1 COTTER PIN 开口销3.2X22-ZnD GB/T 91 1 101-
878521060510 S2 RIGHT COVER HINGED HINGE WELDING ASSEMBLY SWE35UF右覆盖件铰链合页组焊件 2 101-

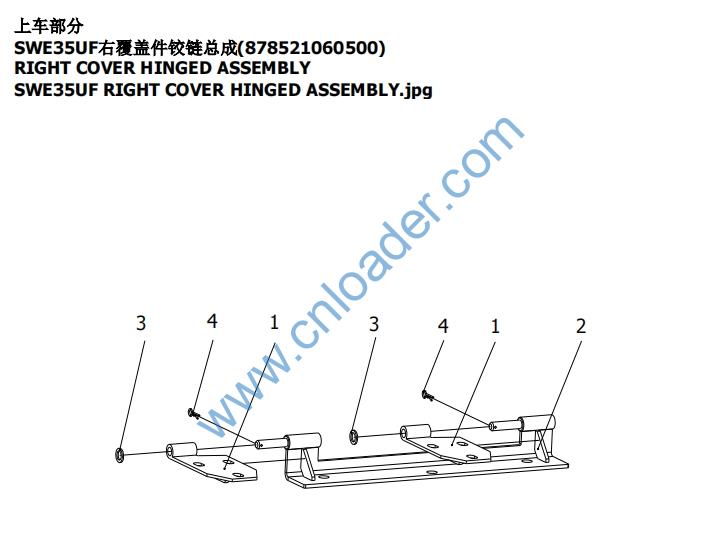

SWE35UF RIGHT COVER HINGED ASSEMBLY.jpg 2 878521060520 S2 RIGHT COVER HINGED HOLDER WELDING ASSEMBLY SWE35UF右覆盖件铰链座组焊件 1 101-
3 701509012001 1 WASHER 垫圈12 GB/T 848 2 101-
4 701703003220 1 COTTER PIN 开口销3.2X22-ZnD GB/T 91 2 101-
332040000202 S2 FRONT SEAL PLATE 前封板 1 101-

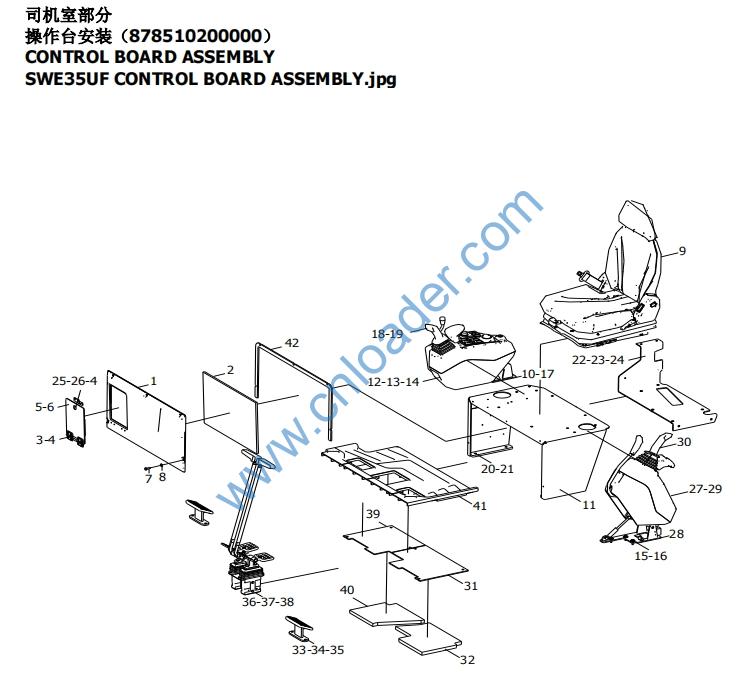

SWE35UF CONTROL BOARD ASSEMBLY.jpg 2 302490042858 S2 FRONT COVER PLATE SPONGE 前盖板海绵 1 101-
3 750902000089 1 ACCESS DOOR HINGE 检修门铰链 2 101-
4 701310006009 1 SCREW 螺钉M6X12-ZnD GB/T 819.1 10 101-
5 302010006550 S1 ACCESS DOOR GASKET 检修门密封垫 1 101-
6 878510201000 S2 ACCESS DOOR WELDING 检修门焊接 1 101-
7 701323061602 1 SCREW 螺钉M6X16-8.8-DKL GB/T 70.2 5 101-
8 701504006002 1 WASHER 垫圈6-DKL GB/T 97.1 26 101-
9 750702010036 1 SEAT 座椅SC29-30 1 101-
750702010037 1 SEAT 座椅SC29-32 1 101-
10 750001000016 1 FIXED STRIP 固定胶条（新F704型） 3 101-
11 878510202000 S3 WELDING OF CONSOLE MOUNTING PLATE 操纵台安装板焊接 1 101-
12 750708010040 1 RIGHT CONTROL BOX ASSEMBLY SWE35UF右操纵箱总成 1 101-
13 701302006033 1 SCREW 螺钉M6X25-8.8-DKL GB/T 70.1 10 101-
14 730309000352 1 PILOT CONTROL VALVE 推土先导操纵阀811200055 1 101-
15 701104008028 1 BOLT 螺栓M8X25-8.8-DKL GB/T 5783 22 101-
16 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 29 101-
17 302030030023 S1 SHOCK GASKET OF RIGHT CONTROL BOX 右操纵箱减震垫 1 101-
18 730309000323 1 RIGHT PILOT VALVE 右先导阀HC-RCY 60110330DD 1 101-
19 730309000313 1 RIGHT PILOT HANDLE 右先导手柄R908354046(4TH5I121-11/SL18PRBH235M01) 1 101-
20 701104010031 1 BOLT 螺栓M10X20-8.8-DKL GB/T 5783 4 101-
21 701504010004 1 WASHER 垫圈10-DKL GB/T 97.1 4 101-
22 878510203000 S2 WELDING OF CONDITIONING INSTALLATION PLATE 空调安装板焊接 1 101-
23 701104008043 1 BOLT 螺栓M8X12-8.8 DKL GB/T 5783 4 101-
24 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 4 101-
25 750906000259 1 PRESSURE LOCK 按压式门锁 1 101-
26 302540019088 S1 LOCK PLATE 锁扣板 1 101-
27 750708010007 1 LEFT CONTROL BOX 左操纵箱总成-2 1 101-
28 302030030022 S2 SHOCK GASKET OF LEFT CONTROL BOX 左操纵箱减震垫 1 101-
29 730309000322 1 LEFT PILOT VALVE 左先导阀HC-RCY 60130874LR 1 101-
30 730309000315 1 LEFT PILOT HANDLE 左先导手柄R908354045(4TH5I121-11/SL18435M01) 1 101-
31 302490042881 S1 LEFT FOOT PEDAL 左脚踏板 1 101-
32 302490042883 S1 LEFT PEDAL SPONGE 左踏板海绵 1 101-
33 730309000290 1 SINGLE FOOT VALVE 单联脚踏阀811000025 2 101-
34 750608010006 1 LEFT PEDAL ASSEMBLY 左踏板总成700900500 2 101-
35 750608010008 1 PEDDAL ASSEMBLY 踏板总成700900560 1 101-
878510204000 S2 DRIVING CONTROL ASSEMBLY 行走操纵总成 1 101-
SWE35UF CONTROL BOARD ASSEMBLY.jpg 37 701104010032 1 BOLT 螺栓M10X25-8.8-DKL GB/T 5783 8 101-
38 701508010001 1 WASHER 垫圈10-DKL GB/T 1230 8 101-
39 302490042884 S1 RIGHT FOOT PEDAL 右脚踏板 1 101-
40 302490042885 S1 RIGHT FOOT PEDAL SPONGE 右脚踏板海绵 1 101-
41 332040000206 1 RUBBER MAT 橡胶垫SWE35UF 1 101-
42 302490045295 S1 FRONT SEALING PLATE OF LARGE CURVED PLATE 大弯板前密封海绵 1 101-
750606010057 1 THE GUIDE PLATE 小挖先导盖板SD0013 1 101-

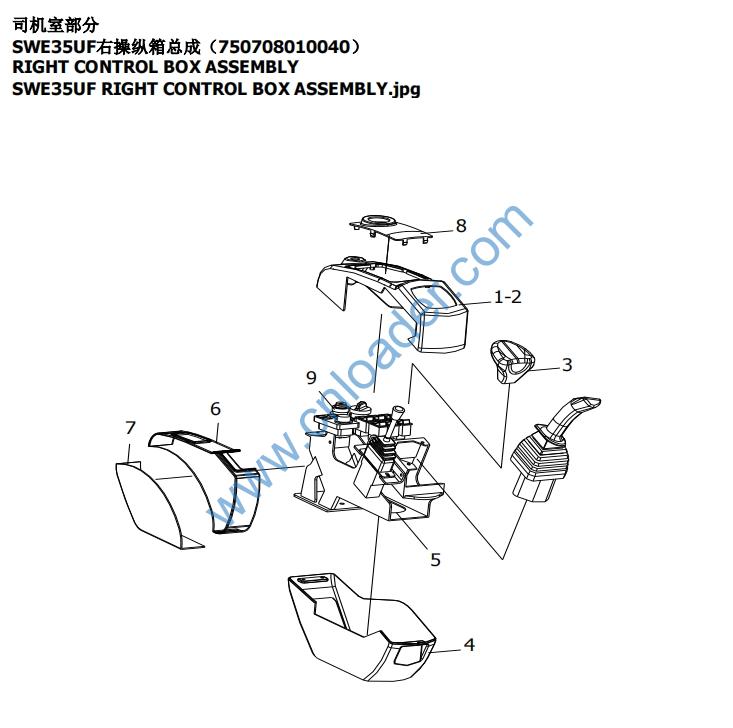

SWE35UF RIGHT CONTROL BOX ASSEMBLY.jpg 2 750606010079 1 THE UPPER COVER OF RIGHT CONTROL BOX 右操纵箱上盖SD008 1 101-
3 750708010027 1 LEFT HANDRAIL 左扶手SD-SW40ZFS 1 101-
4 750606010080 1 THE LOWER COVER OF RIGHT CONTROL BOX 右操纵箱下盖SD007 1 101-
5 750606010081 1 THE FRAMEWORK OF RIGHT CONTROL BOX 右操纵箱骨架ⅡSD-SWE35UY.JA 1 101-
6 750606010082 1 RIGHT UPPER COVER OF RIGHT CONTROL BOX 右操纵箱右侧上盖SD032 1 101-
7 750606010083 1 RIGHT LOWER COVER OF RIGHT CONTROL BOX 右操纵箱右侧下盖SD033 1 101-
8 750606010084 1 THE RIGHT UPPER COVER PLATE 右操纵箱右上盖板SD010R-008 1 101-
9 750606010077 1 STARTING LOCK LABEL 启动锁标牌SD-SW40Y.D.16-1a 1 101-
750708010024 1 THE BOTTOM COVER 小挖底座SD007 1 101-

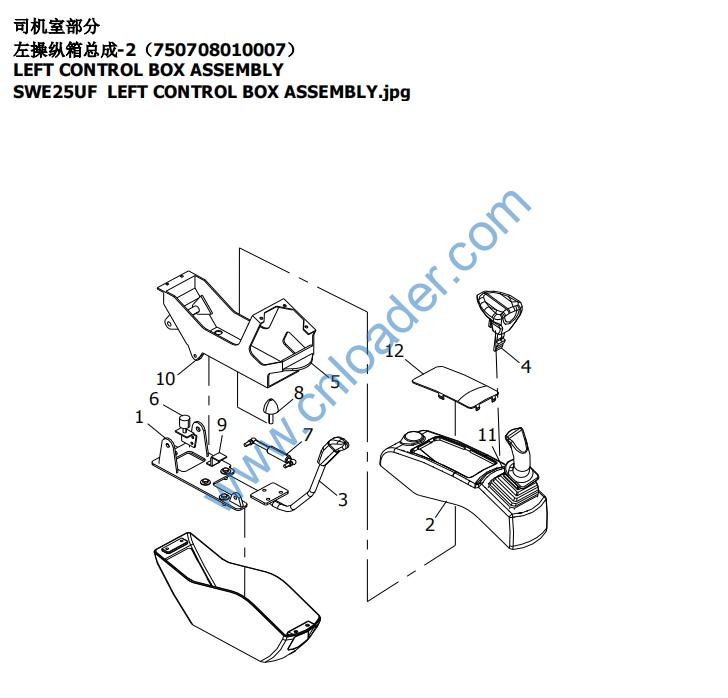

SWE25UF LEFT CONTROL BOX ASSEMBLY.jpg 2 750606010056 1 THE UPPER COVER 小挖上盖SD008 1 101-
3 750708010034 1 LEFT SAFETY HANDLE 左安全操作手柄 1 101-
4 750708010027 1 LEFT HANDRAIL 左扶手SD-SW40ZFS 1 101-
5 750708010033 1 LEFT FRAMEWORK 操纵箱左骨架 1 101-
6 750606010065 1 LIMIT BEARING 限位支座 1 101-
7 750701000145 1 GAS SPRING 气弹簧YQ10/20-40-180/500N 1 101-
8 750708010028 1 BUFFER BLOCK 缓冲挡块YZC7.17.4(M10-50) 1 101-
9 750606010059 1 MICRO ELEMENT OFF CONTACT PLATE 微动开关接触板 1 101-
10 750606010066 1 BUFFER DEVICE 缓冲装置 1 101-
11 750606010057 1 THE GUIDE PLATE 小挖先导盖板SD0013 1 101-
12 750606010058 1 UPPER COVER PLATE 小挖左上盖板SD010R-005-SW40Z 1 101-
