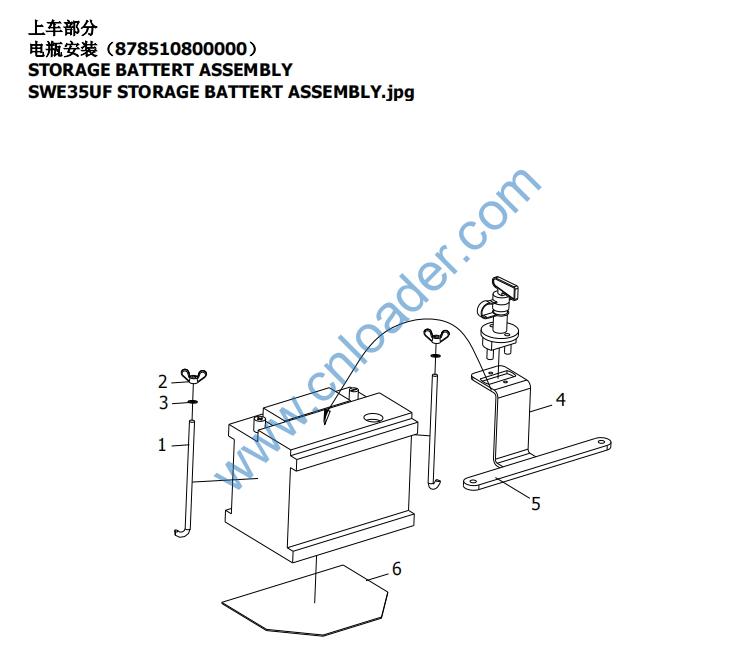

304110000696 S1 BATTERY PULL ROD 电瓶拉杆SWE35UF 2 101-
SWE35UF STORAGE BATTERT ASSEMBLY.jpg 2 701418008005 1 BUTTERFLY NUT 蝶形螺母 M8-ZnD GB/T62.1 2 101-
3 701506008002 1 WASHER 垫圈8-DKL GB/T 96.1 2 101-
4 878510800100 S1 BATTERY PRESSURE PLATE WELDING 电瓶压板焊接 1 101-
5 302030040782 S1 UPPER GASKET OF BATTERY 电瓶上垫片 1 101-
6 302490045304 S1 LOWER GASKET OF BATTERY 电瓶下垫板 1 101-

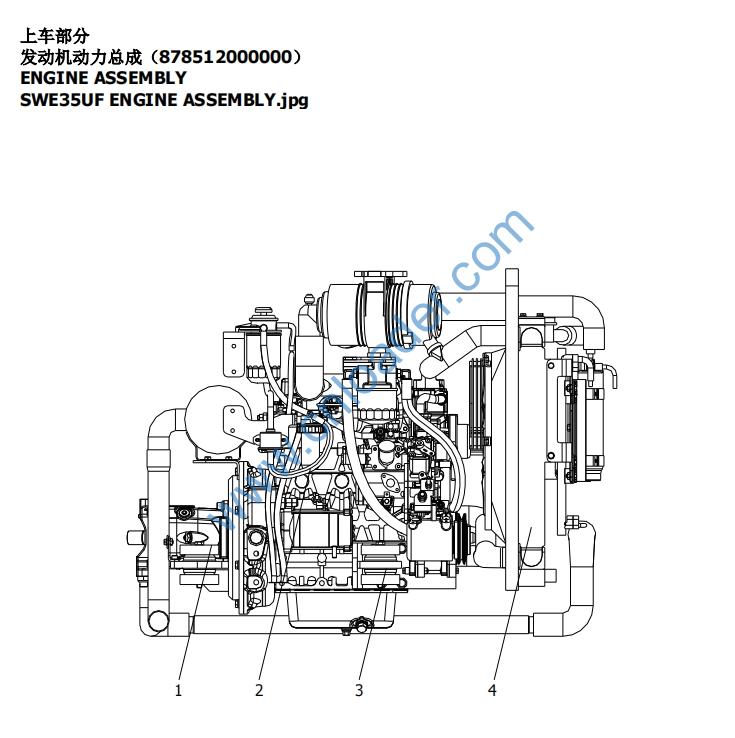

878512010000 S1 MAIN PUMP ASSEMBLY 液压泵安装 1 101-
SWE35UF ENGINE ASSEMBLY.jpg 2 878512030000 S1 FUEL PIPE LINE ASSEMBLY 柴油管路安装 1 101-
3 878512020000 S2 ENGINE ASSEMBLY 发动机安装 1 101-
4 878512040000 S3 COOLING SYSTEM ASSEMBLY 冷却系统总成 1 101-

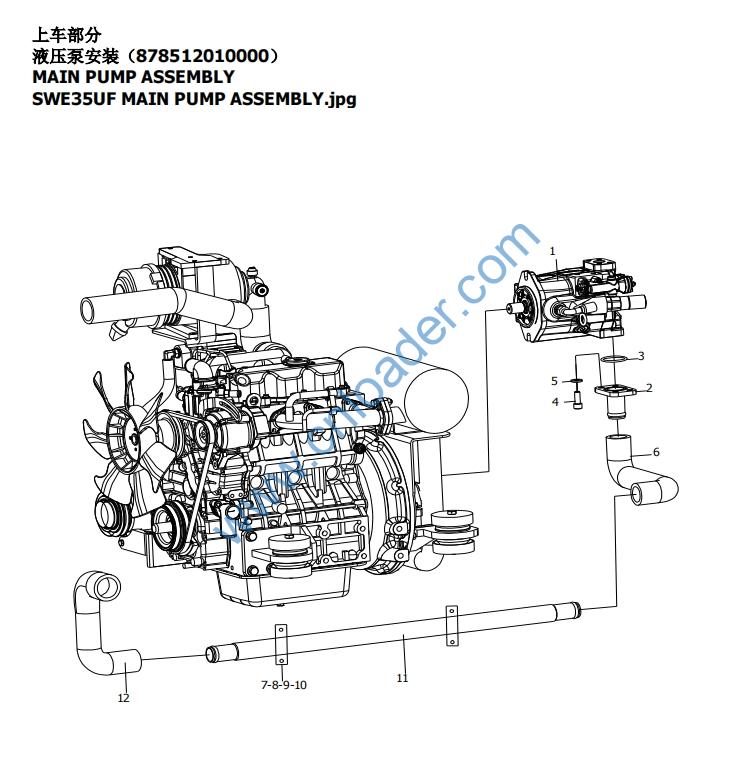

1 730201000392 1 MAIN PUMP 主泵HP5V45/AV1ORB2S2MG-L1/1-TE931 1 101-
SWE35UF MAIN PUMP ASSEMBLY.jpg 2 878512010100 S2 MAIN PUMP SUCTION PIPE 主泵吸油钢管 1 101-
3 703201045001 1 O-SEALING RING O形密封圈45X2.65 GB3452.1 1 101-
4 701302012044 1 SCREW 螺钉M12X30-8.8-DKL GB/T 70.1 6 101-
5 701508012002 1 WASHER 垫圈12-DKL GB/T 1230 6 101-
6 320010005713 S1 OIL SUCTION PIPE 吸油胶管1 1 101-
7 302550002072 S2 PRESS PLATE OF OIL SUCTION STEEL PIPE 吸油钢管压板 2 101-
8 701104006023 1 BOLT 螺栓M6X12-8.8-DKL GB5783 4 101-
9 701510006003 1 WASHER 垫圈6-DKL GB/T 93 4 101-
10 701504006002 1 WASHER 垫圈6-DKL GB/T 97.1 4 101-
11 320010005714 S1 OIL SUCTION STRAIGHT PIPE 吸油直钢管 1 101-
12 320010005715 S1 OIL SUCTION PIPE 吸油胶管2 1 101-
1 701104008040 1 BOLT 螺栓M8X30-10.9-DKL GB5783 2 101-

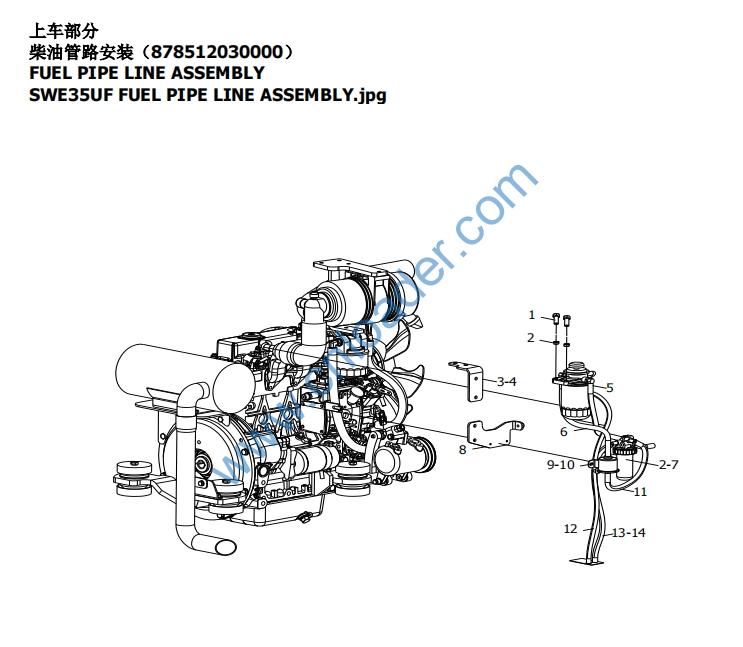

SWE35UF FUEL PIPE LINE ASSEMBLY.jpg 2 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 7 101-
3 878512030100 S2 FILTER BRACKET WELAING 精滤支架焊接 1 101-
4 751106000168 1 BOLT 螺栓M8X16-10.9-DKL GB/T 5783 4 101-
5 730599000138 1 DIESEL OIL PIPE 柴油管D8—450—PG—400mm 1 101-
6 750206000017 1 DIESEL OIL PIPE 柴油管D8X380 1 101-
7 701104008016 1 BOLT 螺栓M8X65-8.8 GB5783 1 101-
8 878512030200 S2 OIL AND WATER SEPARATION BRACKET 油水分离器支架 1 101-
9 701104006018 1 BOLT 螺栓M6X10-8.8-DKL GB/T 5783 2 101-
10 701504006002 1 WASHER 垫圈6-DKL GB/T 97.1 2 101-
11 730599000127 1 DIESEL OIL PIPE 柴油管D8X340 1 101-
12 878512030400 S2 OIL RETURN PIPE 回油管 1 101-
13 878512030300 S1 OIL SUCTION PIPE 吸油管 1 101-
14 751008000257 1 HOSE CLAMP 软管卡箍8-16 W2 10 101-

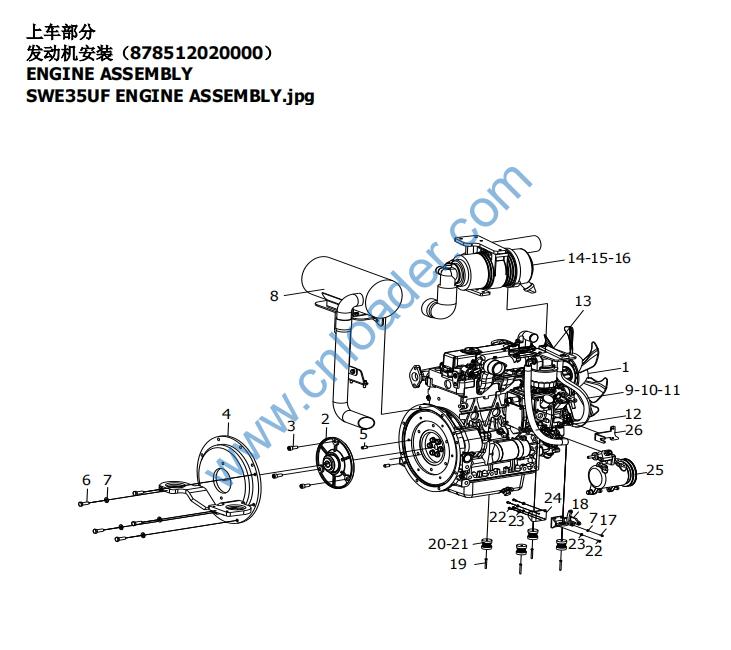

1 750201000348 1 DIESEL ENGINE 柴油发动机D1703-E4B-SWD-1 1 101-
SWE35UF ENGINE ASSEMBLY.jpg 2 750310000272 1 COUPLING 联轴器BoWex 48-208 FLE-PA 709965 1 101-
3 751104000103 1 SCREW 内六角圆柱头螺钉M10X1.25X25-10.9-DKL 3 101-
4 878512021000 S2 PANEL ASSEMBLY 连接盘组件 1 101-
878512021000 S3 PANEL ASSEMBLY 连接盘组件 1 128-
5 701702010009 1 CYLINDRICAL PIN 圆柱销10X20-D GB119.1 2 101-
6 701104010043 1 BOLT 螺栓M10X30-12.9-DKL GB/T 5783 8 101-
7 701508010001 1 WASHER 垫圈10-DKL GB/T 1230 9 101-
8 878512020300 S2 SILENCER MOUNTING 消音器安装 1 101-
9 730101000105 1 CONNECTOR 端直通GE12LR1/2EDOMDA3C 2 101-
10 730102000359 1 ADJUSTABLE JOINT 可调向接头WEE12L3/8NPTA3C 2 101-
11 730501005789 1 HOSE ASSEMBLY 胶管总成F221CACA121206-420-PG-420 1 101-
12 730501005790 1 HOSE ASSEMBLY 胶管总成F221CACA121206-490-PG-490 1 101-
13 308010001049 S1 ENGINE WARM WATER INLET AND OUTLET JOINT 发动机暖水进出接头 2 101-
14 878512020400 S2 AIR FILTER INSTALLATION 空滤器安装 1 101-
15 701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783 4 101-
16 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 4 101-
17 701106010003 1 BOLT 螺栓M10X1.25X30-10.9-DKL GB5786 1 101-
18 878512020800 S1 LEFT REAR MOUNTING BRACKET 右后安装支架（推式） 1 101-
19 701103012053 1 BOLT 螺栓M12X100-10.9-DKL GB5782 4 101-
20 305030001217 S1 PROTECTING HOOD OF SHOCK ABSORBER 减震器护盖 8 101-
21 750602000277 1 SHOCK ABSORBER 减震器EN-1002-B 8 101-
22 701106012007 1 THE ENGINE RIGHT BACKT LEG 螺栓M12X1.25X30-10.9-DKL GB5786 7 101-
23 701508012002 1 WASHER 垫圈12-DKL GB/T 1230 7 101-
24 878512020100 S2 THE ENGINE RIGHT FRONT LEG 右前支架 1 101-
25 878512020900 S1 COMPRESSOR INSTALLATION 压缩机安装 1 101-
26 302540019921 S2 THE GAS HOLDER 油门支架 1 101-

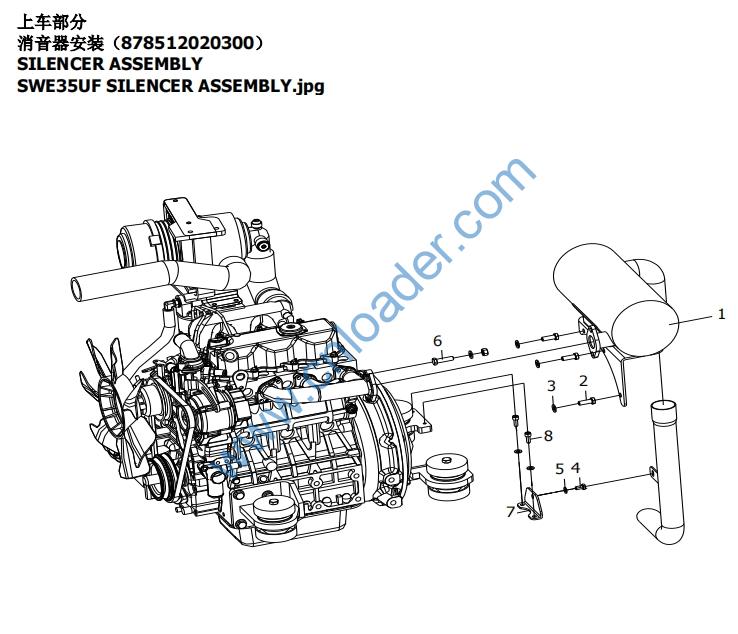

1 750205000184 1 SILENCER ASSEMBLY SWE35UF消音器总成 1 101-
SWE35UF SILENCER ASSEMBLY.jpg 2 701104010007 1 BOLT 螺栓M10X30-10.9 GB/T 5783 3 101-
3 701501010003 1 WASHER 垫圈10 GB/T 97.1 5 101-
4 751106000168 1 BOLT 螺栓M8X16-10.9-DKL GB/T 5783 4 101-
5 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 6 101-
6 701106010006 1 BOLT 螺栓M10X1.25X40-10.9-DKL GB5786 2 101-
7 878512020301 S1 LINER BRACKET WELDING 尾管支架焊接 1 101-
8 701302008025 1 SCREW 螺钉M8X20-8.8-DKL GB/T 70.1 2 101-

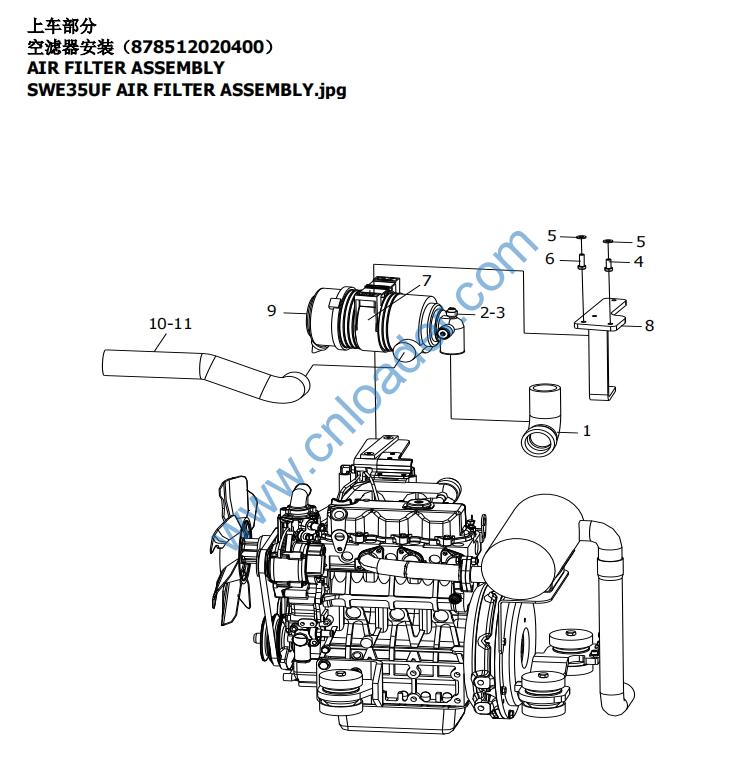

1 320020001039 S1 ENGINE INTAKE PIPE 发动机进气管 1 101-
SWE35UF AIR FILTER ASSEMBLY.jpg 2 750201011247 1 ALARM CONNECTOR 报警器连接接头P100089 1 101-
3 730402010063 1 PRESSURE ALARM 压力报警器X002252 1 101-
4 701104008032 1 BOLT 螺栓M8X25-10.9-DKL GB/T 5783 2 101-
5 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 4 101-
6 701104008040 1 BOLT 螺栓M8X30-10.9-DKL GB5783 2 101-
7 730402000044 1 AIR FILTER MOUNTING HOLDER 空滤器安装座P777730 1 101-
8 878512020402 S2 WELDING OF UPPER MOUNTING BRACKET 上空滤支架焊接 1 101-
9 730402000249 1 AIR FILTER 空滤FPG057512 1 101-
10 320020001038 S1 AIR FILTER INLET PIPE 空滤进气管 1 101-
11 751008000138 1 THE HOSE CLAMP 软管卡箍43828D 4 101-
1 302490045290 S1 ADJUSTABLE BLOCK 调节块 1 101-

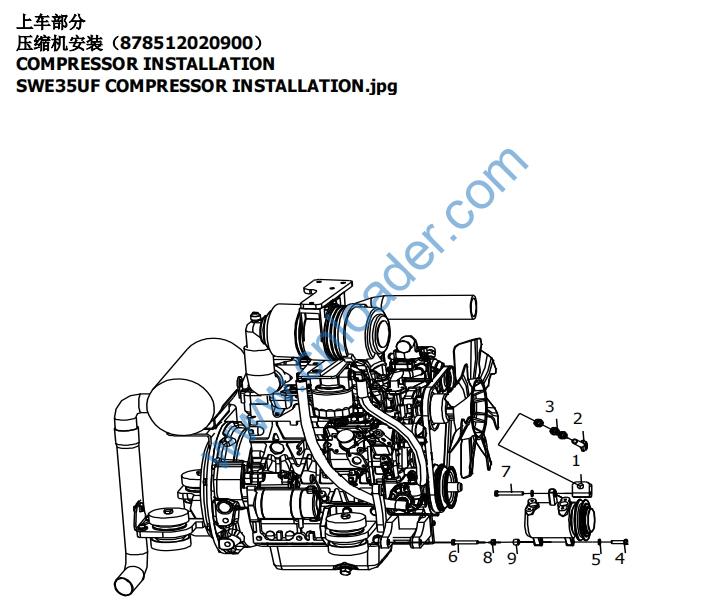

SWE35UF COMPRESSOR INSTALLATION.jpg 2 878512020910 S1 SCREW WELDING 螺杆焊接 1 101-
3 701406012002 1 NUT 螺母M12-10-DKL GB/T 6170 3 101-
4 701104008040 1 BOLT 螺栓M8X30-10.9-DKL GB5783 2 101-
5 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 6 101-
6 701104008012 1 BOLT 螺栓M8X55-8.8 GB/T 5783 1 101-
7 701104010025 1 BOLT 螺栓M10X40-10.9 GB/T 5783 1 101-
8 701406008005 1 NUT 螺母M8-10-DKL GB/T 6170 1 101-
9 320980005685 S1 COVER 套 1 101-

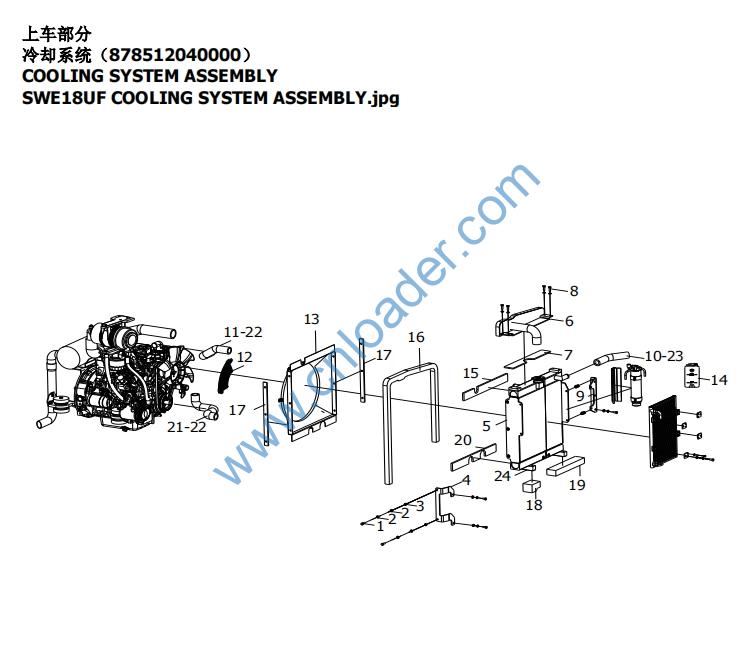

1 701104008050 1 BOLT 螺栓M8X25-DKL GB/T 5783 4 101-
SWE18UF COOLING SYSTEM ASSEMBLY.jpg 2 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 20 101-
3 701406008004 1 NUT 螺母M8-DKL GB/T 6170 4 101-
4 878512040100 S2 CONDENSER LEFT MOUNTING BRACKET WELDING 冷凝器左安装支架焊接 1 101-
5 750203000243 1 COMPOSITE RADIATOR 复合散热器4842.089.0000V1 1 101-
6 878512040200 S2 WATER TANK PARTITION ASSEMBLY 水箱隔板组件 1 101-
7 302490045347 S1 WATER TANK BAFFLE SPONGE 水箱隔板海绵 1 101-
8 751106000168 1 BOLT 螺栓M8X16-10.9-DKL GB/T 5783 12 101-
9 878512040300 S3 CONDENSER RIGHT MOUNTING BRACKET WELDING 冷凝器右安装支架焊接 1 101-
10 320010005742 S1 OIL RETURN HOSE 回油胶管 1 101-
11 320990001359 S1 ENGINE OUTLET PIPE 发动机出水管 1 101-
12 878512040400 S2 PROTECTIVE COVER 防护罩 1 101-
13 878512040500 S2 WIND SHIELD WELDING 导风罩焊接 1 101-
14 750203010022 1 DEPUTY TANK 副水箱F-XD007 1 101-
15 302030040877 S1 WATER TANK SEAL SPONGE 1 水箱密封海绵1 1 101-
16 302030040879 S1 NETHER SPONGE OF WATER TANK BAFFLE 水箱隔板下海绵 1 101-
17 302030040878 S1 LATERAL SPONGE OF WATER TANK BAFFLE 水箱侧海绵 2 101-
18 302030040881 S1 NETHER SPONGE OF WATER TANK 1 水箱下海绵1 1 101-
302030040881 S2 NETHER SPONGE OF WATER TANK 1 水箱下海绵1 1 128-
19 302030040880 S1 NETHER SPONGE OF WATER TANK 2 水箱下海绵2 1 101-
20 302030040876 S1 WATER TANK SEAL SPONGE 2 水箱密封海绵2 1 101-
302030040876 S2 WATER TANK SEAL SPONGE 2 水箱密封海绵2 1 128-
21 320990001502 S1 ENGINE INLET PIPE 发动机进水管 1 101-
22 751008000260 1 THE HOSE CLAMP 软管卡箍40-60 W2 4 101-
23 751008000212 1 HEAVY DUTY HOSE CLAMP 重型软管卡箍43-47 W2 2 101-
24 302030043631 S1 WATER TANK RUBBER GASKET 水箱橡胶垫 2 101-
25 730501005867 1 HOT WATER PIPE 热水管D14× 1600 2 101-

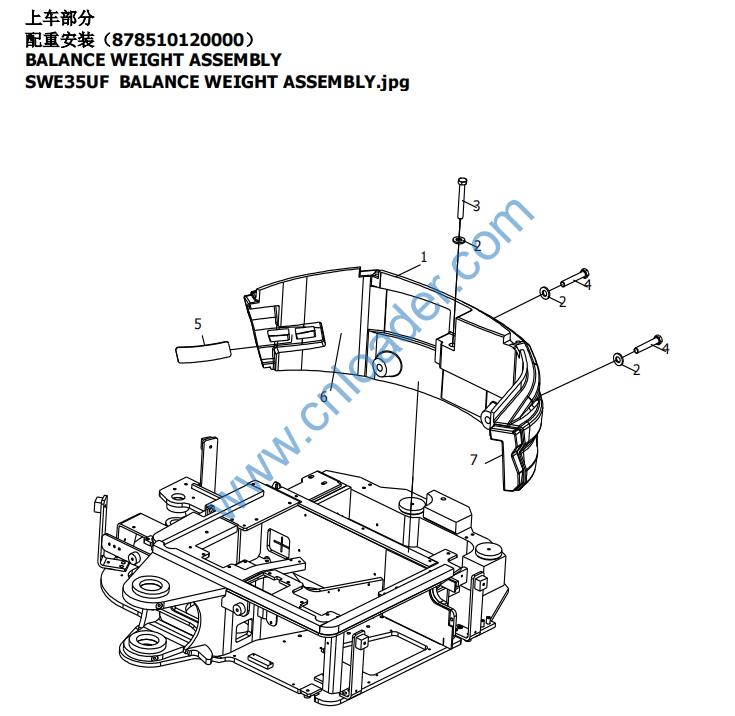

1 333010000151 S3 SWE35UF WEIGHT SWE35UF配重 1 101-
SWE35UF BALANCE WEIGHT ASSEMBLY.jpg 2 302010006578 S1 COUNTERWEIGHT MOUNTING PLATE 配重安装垫板 3 101-
3 701103020069 1 BOLT 螺栓M20X140-10.9-DKL GB/T 5782 1 101-
4 701103020037 1 BOLT 螺栓M20X120-10.9-DKL GB/T 5782 2 101-
5 321010000182 S2 COUNTERWEIGHT PROTECTIVE SCREENING 配重防护网 1 101-
6 302490043029 S1 COUNTERWEIGHT SPONGE 1 配重海绵1 1 101-
7 302490043030 S1 COUNTERWEIGHT SPONGE 2 配重海绵2 1 101-

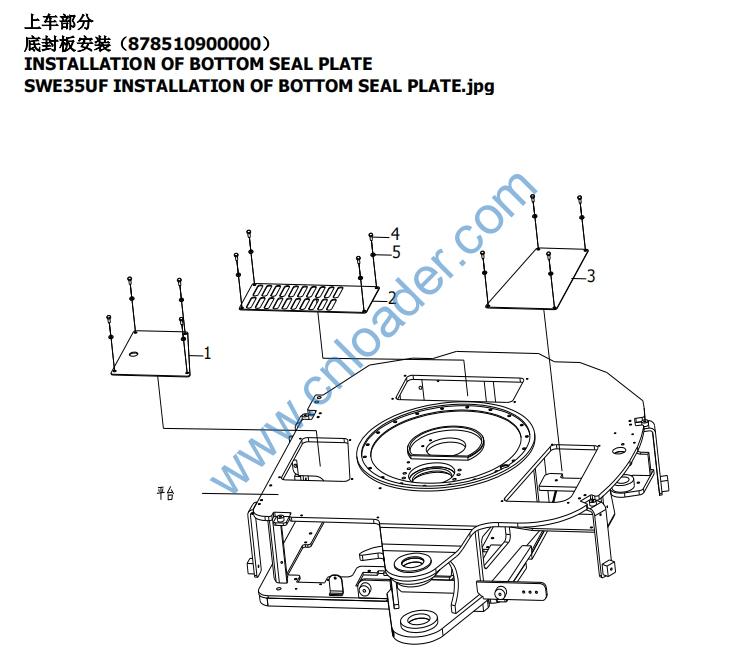

1 302490042896 S2 BOTTOM SEALING PLATE 2 底封板2 1 101-
SWE35UF INSTALLATION OF BOTTOM SEAL PLATE.jpg 2 302030040784 S2 BOTTOM SEALING PLATE 1 底封板1 1 101-
3 302490042897 S2 BOTTOM SEALING PLATE 3 底封板3 1 101-
4 701104008031 1 BOLT 螺栓M8X20-8.8-DKL GB/T 5783 12 101-
5 701506008002 1 WASHER 垫圈8-DKL GB/T 96.1 12 101
