305040002345 S1 BUSH 衬套 1 101-

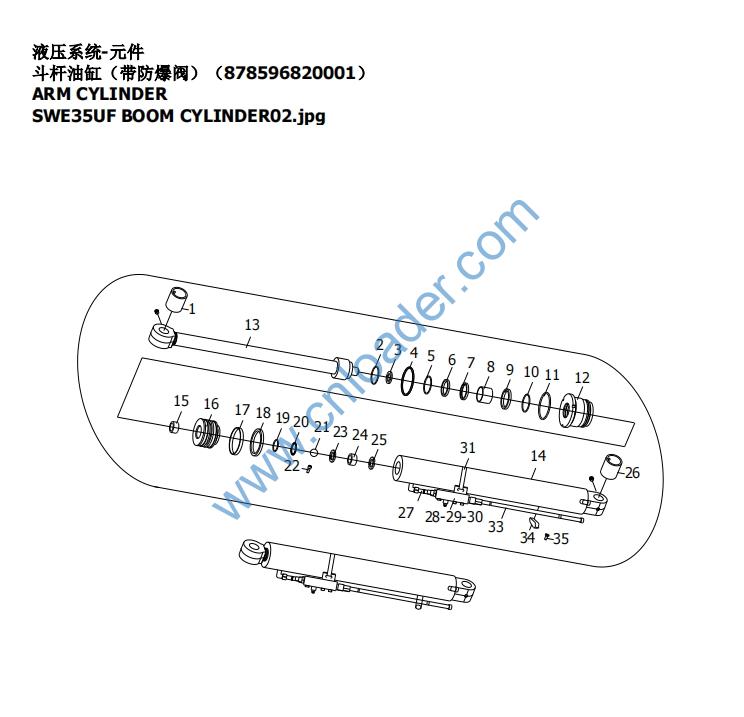

SWE35UF BOOM CYLINDER02.jpg 2 302010003669 A1 STOP COLLAR OF DUSTBAND 防尘圈挡圈D64 1 101-
3 730652000240 1 DUSTBAND 防尘圈DKBI FD2831E0 1 101-
4 730603000013 1 O-RING O形圈G80 (A70) 9-5512 N674-70 1 101-
5 730654000225 1 STOP COLLAR 挡圈50X60X3 1 101-
6 730601000457 1 PISTON ROD SEAL PART 活塞杆密封IUH 50X60X6 G928 1 101-
7 730699000100 1 BUFFER RING 缓冲环HBY-50X65.5X6 1 101-
8 750502000005 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB5025 1 101-
9 730654000386 1 THIMBLE 支撑环75X80X2 3 101-
10 301020003011 S10 SPRING COLLAR 弹簧挡圈φ55X3 3 101-
11 730603000676 1 O-RING O形圈72.62X3.53 C00360 B 1 101-
12 305090002708 S1 CYLINDER HEAD 缸头 1 101-
13 878596820100 S1 PISTON ROD ASSEMBLY 活塞杆组件 1 101-
14 813696820203 S1 CYLINDER BARREL UNIT 缸筒组件 1 101-
15 305060002081 A3 BUFFER SET 缓冲套Ⅰ 1 101-
16 305090002709 S1 PISTON 活塞 1 101-
17 730651000015 1 GUIDE RING 导向环KFR 7506 Q5029 2 101-
18 730602000250 1 PISTON SEAL 活塞密封SPGW GS0608V5 1 101-
19 730603000668 1 O-RING O形圈CO 0202 B 1 101-
20 730654000419 1 STOP COLLAR 挡圈34X39X1.25 2 101-
21 750551000003 1 STEEL BALL 钢球GCr15 D6 1 101-
22 701307008001 1 SCREW 螺钉M8X10 GB77 1 101-
23 305070001578 S1 WASHER 垫圈 1 101-
24 305090000943 A4 CUSHION COLLAR 缓冲套Ⅱ 1 101-
25 305070400001 A2 CARD KEY 卡键 1 101-
26 305040000064 A5 BUSH 衬套Ⅰ 1 101-
27 878596810301 S1 Pipeline moduleⅠ 油管组件Ⅰ 1 101-
28 730101000083 1 CONNECTOR 端直通GE15LREDOMDA3C 2 101-
29 701302008001 1 SCREW 螺钉M8X40-10.9 GB/T 70.1 2 101-
30 730304000014 1 LOAD HOLDING VALVE 负载保持阀08479600950101C 1 101-
31 751011000277 1 ANTISEISMIC CLAMP 抗震卡箍KZ-B95117（95mm-117mm) 1 101-
32 307090000988 S1 EXPLOSION-PROOF VALVE MOUNTING PLATE 防爆阀安装板 1 101-
33 878596820301 S1 Pipeline module Ⅱ 油管组件Ⅱ 1 101-
34 302030037937 S4 SINGLE PIPE CLAMP 单孔管夹（Φ14） 1 101-
35 701104012025 1 BOLT 螺栓M12X30-10.9-DKL GB/T 5783 1 101-
1 703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口 1 101-

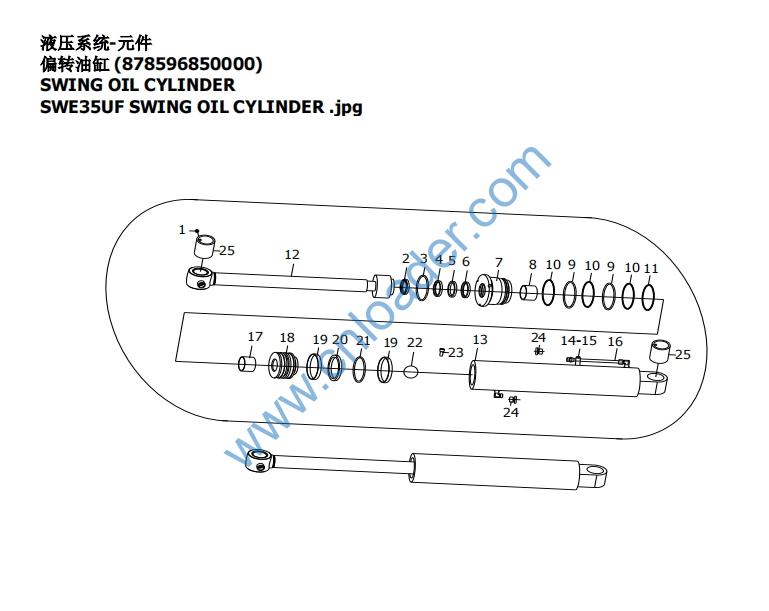

SWE35UF SWING OIL CYLINDER .jpg 2 730652000240 1 DUSTBAND 防尘圈DKBI FD2831E0 1 101-
3 730603000010 1 O-RING O形圈G95 (A70) 1 101-
4 730604000053 1 U-RING U形圈USH 50X60X6 1 101-
5 730654000225 1 STOP COLLAR 挡圈50X60X3 1 101-
6 730699000100 1 BUFFER RING 缓冲环HBY-50X65.5X6 1 101-
7 305090000189 A4 CYLINDER HEAD 缸头 1 101-
8 750502000005 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB5025 1 101-
9 730603000015 1 O-RING O型圈 9-5017 2 101-
10 730654000389 1 THIMBLE 支撑环90X95X2 3 101-
11 301020003011 A1 SPRING COLLAR 弹簧挡圈φ55X3 1 101-
12 878596850100 S1 PISTON ROD ASSEMBLY 活塞杆组件 1 101-
13 878596850200 S2 CYLINDER BARREL UNIT 缸筒组件 1 101-
14 307080000737 S4 SINGLE PIPE CLAMP 单孔管夹Φ10 2 101-
15 701104008005 1 BOLT 螺栓M8X20-10.9 GB5783 2 101-
16 878596850400 S1 Pipeline module Ⅱ 油管组件Ⅱ 1 101-
17 305060002081 A3 CUSHION COLLARⅠ 缓冲套Ⅰ 1 101-
18 305090002334 A1 PISTON 活塞 1 101-
19 730651000012 1 GUIDE RING 导向环KFR 9094 Q5029 2 101-
20 730602000366 1 PISTON SEAL 活塞密封OMK-MR 95X79.5X6.3 1 101-
21 730603000668 1 O-RING O形圈CO 0202 B 1 101-
22 750551000003 1 STEEL BALL 钢球GCr15 D6 1 101-
23 701307008002 1 SCREW 螺钉M8X16 GB/T 77 1 101-
24 739806000070 1 PLUG 堵头VKAM10L 2 101-
25 305040000067 A5 BUSH 衬套 2 101-
878510100000 S4 PLATFORM STRUCTURE 平台结构件焊接 1 101-

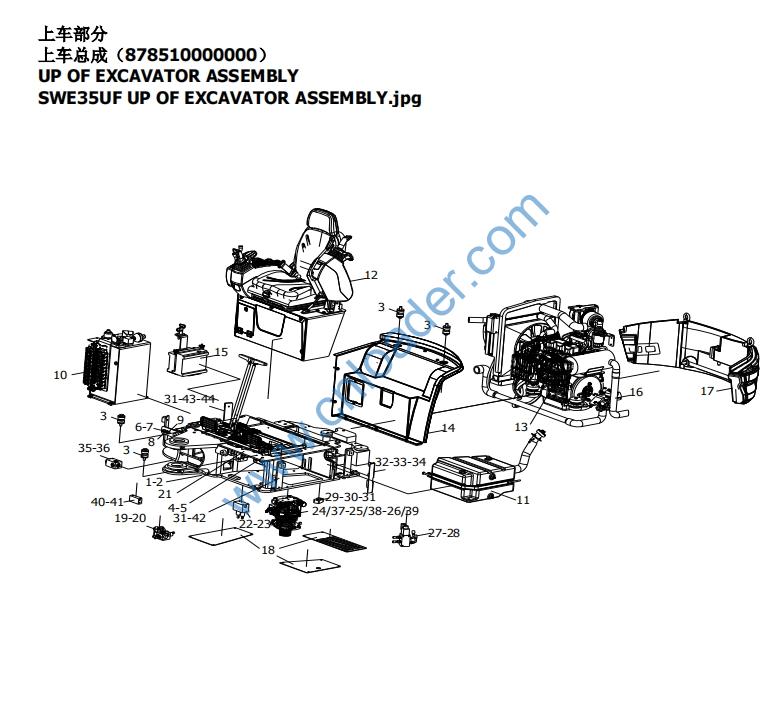

SWE35UF UP OF EXCAVATOR ASSEMBLY.jpg 878510100000 S5 PLATFORM STRUCTURE 平台结构件焊接 1 128-
2 878510100001 S4 PLATFORM STRUCTURE 平台结构件焊接（NACHI马达） 1 101-
878510100001 S5 PLATFORM STRUCTURE 平台结构件焊接（NACHI马达） 1 128-
3 750602000249 1 SHOCK ABSORBER OF DRIVER’CAB 25U司机室减震器 4 101-
4 302010005411 S1 INSTALLATION MAT IN DRIVER’S CAB 司机室安装垫 12 101-
5 701103016044 1 BOLT 螺栓M16X90-10.9-DKL GB/T 5782 4 101-
6 703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口 3 101-
7 878510300000 S1 OIL FILLER PIPE ASSEMBLY 偏转油缸黄油注油管总成 1 101-
8 878510400000 S1 ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY 回转支承黄油注油管总成 1 101-
9 878510500000 S1 ROTARY MOTOR SUPPORT OIL FOLLING PIPE ASSEMBLY 回转马达黄油注油管总成 1 101-
10 878515000000 S2 HYDRAULIC OIL TANK ASSEMBLY 液压油箱安装 1 101-
11 878510600000 S3 OIL TANK ASSEMBLY 燃油箱总成 1 101-
878510600000 S4 OIL TANK ASSEMBLY 燃油箱总成 1 128-
12 878510200000 S4 CONSOLE INSTALLATION 操作台安装 1 101-
878510200000 S5 CONSOLE INSTALLATION 操作台安装 1 128-
13 878510130000 S2 AIR-CONDITIONING INSTALLATION ASSEMBLY 空调安装总成 1 101-
14 878510700000 S1 INTERMEDIATE SEAL ASSEMBLY 中间密封件总成 1 101-
15 878510800000 S2 STORAGE BATTERT ASSEMBLY 电瓶安装 1 101-
16 878512000000 S1 POWERTRAIN 发动机动力总成 1 101-
17 878510120000 S2 BALANCE WEIGHT ASSEMBLY 配重安装 1 101-
18 878510900000 S1 INSTALLATION OF BOTTOM SEAL PLATE 底封板安装 1 101-
19 730306000099 1 SELECTOR VALVE 选择阀KL7102106ER13EG 1 101-
20 701302005025 1 SCREW 螺钉M5X55-8.8-DKL GB/T 70.1 2 101-
21 878510110000 S2 PLATFORM SPONGE 平台海绵 1 101-
22 730399000526 1 DOUBLE PROPORTIONAL PRESSURE REDUCING VALVE SET 二联比例减压阀组1250221 1 101-
23 701302008029 1 SCREW 螺钉M8X80-8.8-DKL GB/T 70.1 2 101-
24 730250000045 1 ROTARY MOTOR 回转马达MSG-27P-16E-22 B0250-27071 1 101-
730250000009 1 ROTARY MOTOR 回转马达B0250-27047 1 104-
25 701104014018 1 BOLT 螺栓M14X30-10.9-DKL GB5783 6 101-
26 701510014003 1 WASHER 垫圈14-DKL GB/T 93 6 101-
27 730305000257 1 SELECTOR VALVE 选择阀L7214116FIAD070 1 101-
28 701302067001 1 SCREW 螺钉M6X70-8.8-DKL GB/T 70.1 2 101-
29 302490042895 S1 FIXED PLATE 中回固定板 1 101-
30 701103010036 1 BOLT 螺栓M10X45-8.8-DKL GB/T 5782 2 101-
31 701504010004 1 WASHER 垫圈10-DKL GB/T 97.1 10 101-
302520004400 S2 LEFT SEAL OF MIDDLE BEAM 中间横梁左侧密封件 1 101-
SWE35UF UP OF EXCAVATOR ASSEMBLY.jpg 33 701104006017 1 BOLT 螺栓M6X16-8.8-DKL GB/T 5783 2 101-
34 701502006002 1 WASHER 垫圈6-DKL GB/T 96.2 2 101-
35 730399000738 1 COMPOUND RETURN OIL BLOCK 复合回油块 8D9125000017 1 101-
36 701302008035 1 SCREW 螺钉M8X55-8.8-DKL GB/T 70.1 2 101-
37 730250000645 1 ROTARY MOTOR 回转马达PCR-3B-12A-P-9921Z 1 101-
730250000568 1 ROTARY MOTOR 回转马达 PCR-3B-12A-P-9662A 1 104-
38 701104016025 1 BOLT 螺栓M16X50-10.9-DKL GB/T 5783 10 101-
39 701510016003 1 WASHER 垫圈16-DKL GB/T 93 10 101-
40 307090000900 S2 HEADER BLOCK 集流块 1 101-
41 701302006040 1 SCREW 螺钉M6X60-8.8-DKL GB/T 70.1 2 101-
42 878510011000 S2 INSTALL BRACKET ASSEMBLY ON LEFT SIDE 左围边安装支架组件1 1 101-
43 878510010800 S2 EDGE MOUNT BRACKET ASSEMBLY 围边安装支架组件3 3 101-
44 701104010039 1 BOLT 螺栓M10X30-8.8-DKL GB/T 5783 8 101-
45 878510140000 S2 DRIVER’S CAB SEAL SPONGE ASSEMBLY 司机室密封海绵总成 1 101-
46 878510030000 1 FRONT CONTROL CABINET INTERIOR TRIM ASSEMBLY 小型无尾挖掘机前控箱内饰总成SWE35UF 1 101-
308010102004 A1 FITTINGS BODY 接头体 1 101-

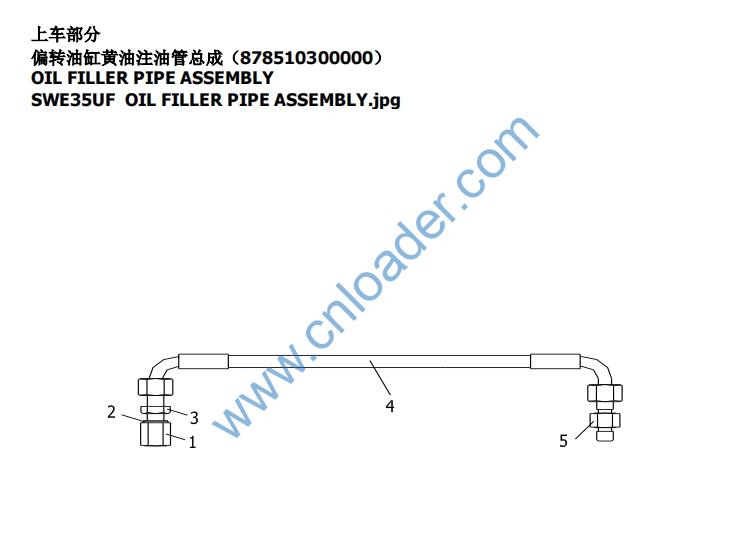

SWE35UF OIL FILLER PIPE ASSEMBLY.jpg 2 701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1 1 101-
3 701410010001 1 NUT 螺母M10X1-04 GB6173 1 101-
4 730599010005 1 BUTTER HOSE ASSEMBLY 黄油胶管总成C3/C3-4I-800 1 101-
5 308010102003 A1 FITTINGS BODY 接头体 1 101-
1 308010102004 A1 FITTINGS BODY 接头体 1 101-

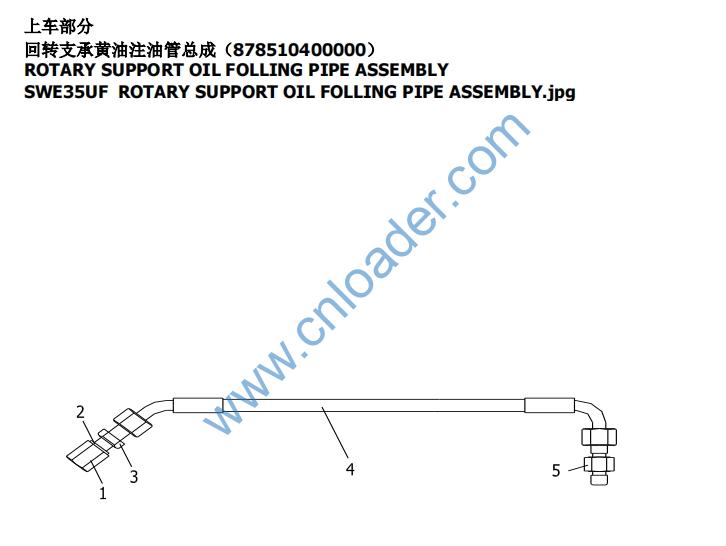

SWE35UF ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY.jpg 2 701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1 1 101-
3 701410010001 1 NUT 螺母M10X1-04 GB6173 1 101-
4 730599010006 1 BUTTER HOSE ASSEMBLY 黄油胶管总成C2/C3-4I-670 1 101-
5 308010102003 A1 FITTINGS BODY 接头体 1 101-
308010102004 A1 FITTINGS BODY 接头体 1 101-
SWE35UF ROTARY MOTOR SUPPORT OIL FOLLING PIPE ASSEMBLY.jpg 2 701504010001 1 WASHER 垫圈10-ZnD GB/T 97.1 1 101-
3 701410010001 1 NUT 螺母M10X1-04 GB6173 1 101-
4 730599010007 1 BUTTER HOSE ASSEMBLY 黄油胶管总成C2/C3-4I-1050 1 101-
5 308010102003 A1 FITTINGS BODY 接头体 1 101-
739801000013 1 LIQUID LEVEL METER 液位计YW20-3 1 101-

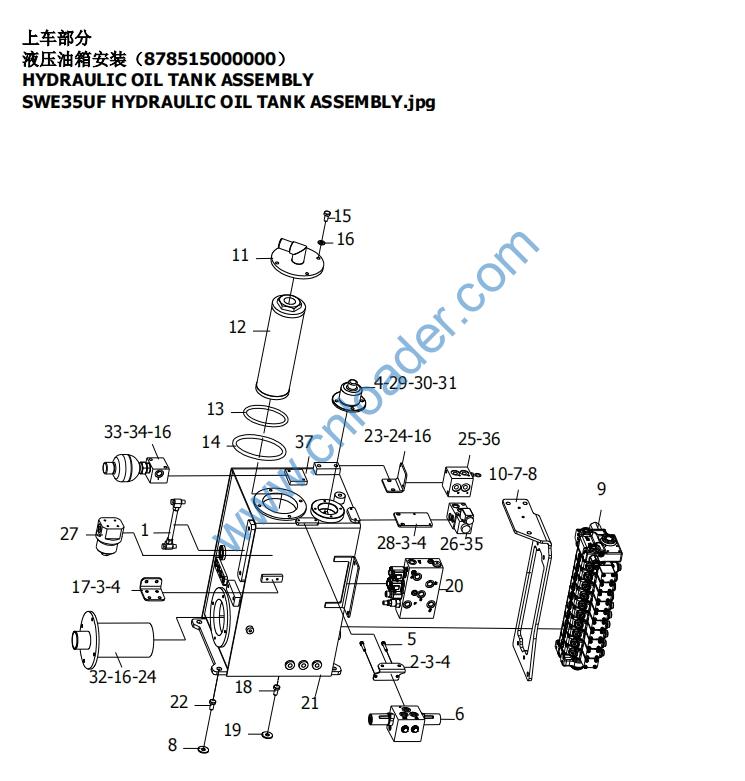

SWE35UF HYDRAULIC OIL TANK ASSEMBLY.jpg 2 302540019057 S1 QUICK CHANGE VALVE MOUNTING PLATE 快换阀安装板 1 101-
3 701103006002 1 BOLT 螺栓M6X12-10.9-DKL GB5783 10 101-
4 701501006002 1 WASHER 垫圈6-DKL GB/T 95 14 101-
5 701302008027 1 SCREW 螺钉M8X16-8.8-DKL GB/T 70.1 2 101-
6 730306000130 1 QUICK CHANGE LOCK CONTROL VALVE 快换锁控制阀 8D9115000001 1 101-
7 701104010033 1 BOLT 螺栓M10X25-10.9-DKL GB/T 5783 4 101-
8 701504010004 1 WASHER 垫圈10-DKL GB/T 97.1 8 101-
9 730302000419 1 MULTI-WAY VALVE 多路阀HVSE-09-10-P270-BE008 1 101-
10 302540019062 S2 MULTI-WAY VALVE MOUNTING TRANSITION PLATE 多路阀安装过渡板 1 101-
11 878515200000 S1 OIL RETURN FLANGE 回油口法兰 1 101-
12 730403000401 1 BACK TO THE OIL FILTER 回油滤芯KSP-0200010L 1 101-
13 703201050002 1 O-SEALING RING O形密封圈50X3.55 GB3452.1 1 101-
14 703201109001 1 O-RING O形圈109X3.55 GB/T 3452.1 2 101-
15 701104008027 1 BOLT 螺栓M8X20-10.9-DKL GB/T 5783 4 101-
16 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 16 101-
17 302540018993 S1 LEAD FILTER HOLDER 先导滤芯支架 1 101-
18 703269016002 1 HEXAGON SOCKET PLUG 内六角螺塞M16X1.5-ZnD JB/ZQ4444 1 101-
19 703202016001 1 BONDED WASHER 组合垫圈16 JB982 1 101-
20 730399000740 1 PILOT OIL SOURCE BLOCK 先导油源块811300163 1 101-
21 878515100000 S3 HYDRAULIC TANK WELDING 液压油箱焊接 1 101-
22 701104010036 1 BOLT 螺栓M10X20-10.9-DKL GB/T 5783 4 101-
23 302540019058 S1 SWITCH VALVE MOUNTING PLATE 切换阀安装板 1 101-
24 701103008028 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5782 6 101-
25 730309000328 1 SWITCH VALVE 2位8通切换阀 KQHF28-20/100-000 1 101-
26 730306000099 1 SELECTOR VALVE 选择阀KL7102106ER13EG 1 101-
27 730401000358 1 GUIDE FILTER 先导过滤器KGLB0010010L 1 101-
28 302030040736 S1 SELECT VALVE MOUNTING PLATE 选择阀安装板 1 101-
29 701302006038 1 SCREW 螺钉M6X16-8.8-DKL GB/T 70.1 4 101-
30 701510006003 1 WASHER 垫圈6-DKL GB/T 93 4 101-
31 730402000229 1 AIR FILTER 空气滤清器AB0210BA010A 1 101-
32 730402000241 1 OIL SUCTION FILTER 吸油滤芯KUT-0200100F 1 101-
33 739803000052 1 ACCUMULATOR 蓄能器811300168 1 101-
34 701104008030 1 SCREW 螺栓M8X55-8.8-DKL GB/T 5783 2 101-
35 701302005017 1 SCREW 螺钉M5X50-8.8-DKL GB/T 70.1 2 101-
36 701103008030 1 BOLT 螺栓M8X75-8.8-DKL GB/T 5782 2 101-
302030040746 S1 HYDRAULIC TANK SPONGE 液压油箱海绵

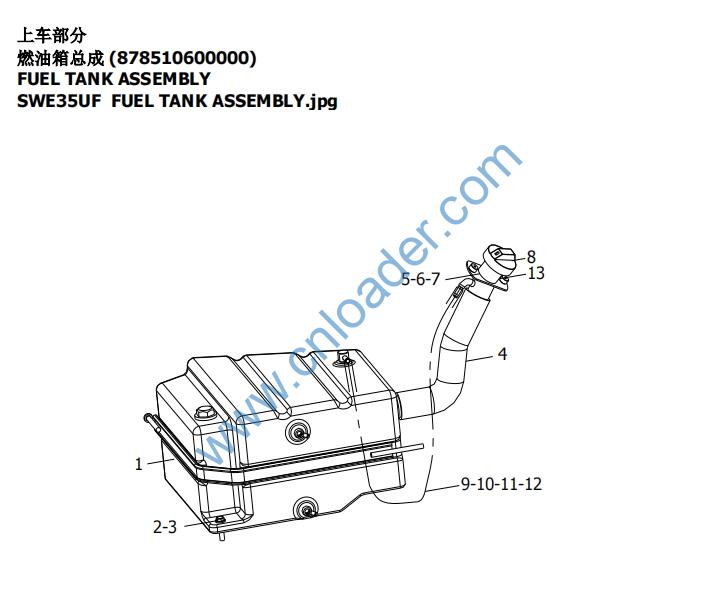

878510602000 S2 FUEL TANK 燃油箱整体 1 101-
SWE35UF FUEL TANK ASSEMBLY.jpg 2 701103010031 1 BOLT 螺栓M10X50-8.8-DKL GB/T 5782 1 101-
3 701506010003 1 WASHER 垫圈10-DKL GB/T 96.1 1 101-
4 320040000543 S2 OIL JOINT PIPE 加油连接管 1 101-
5 878510600400 S2 OIL FILLER WELDING 加油口焊接 1 101-
6 701104008026 1 BOLT 螺栓M8X16-8.8-DKL GB/T 5783 2 101-
7 701504008005 1 WASHER 垫圈8-DKL GB/T 97.1 2 101-
8 750911000003 1 FUEL TANK LOCK COVER 燃油箱锁盖M44 1 101-
9 878510603000 S1 BREATHING SEAT 呼吸管座 1 101-
10 320010006055 S1 BREATHING TUBING 呼吸油管D10 1 101-
11 751008000257 1 HOSE CLAMP 软管卡箍8-16 W2 2 101-
12 703202014002 1 BONDED WASHER 组合垫圈14 JB982 1 101-
13 878510600500 S1 OIL FILLER WELDING 加油口焊接 1 101-
14 703269016002 1 HEXAGON SOCKET PLUG 内六角螺塞M16X1.5-ZnD JB/ZQ4444 1 128-
15 703202016001 1 BONDED WASHER 组合垫圈16 JB982 1 128-

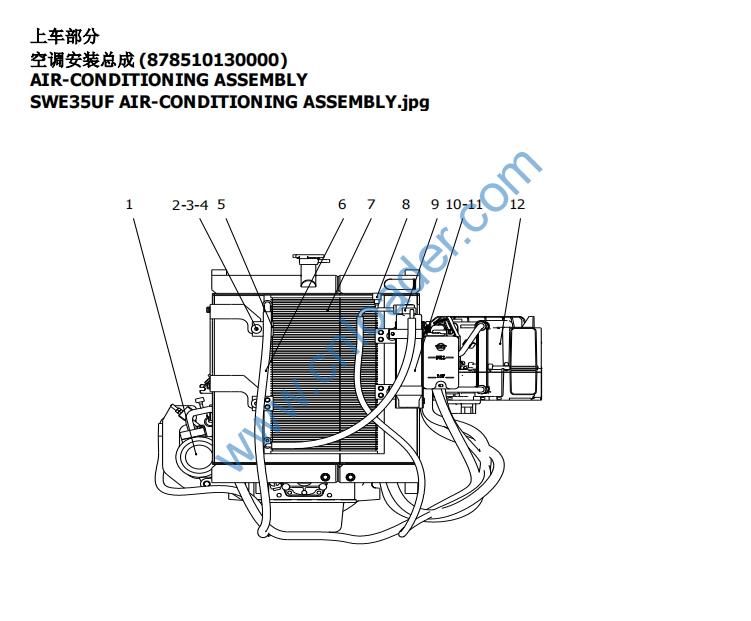

720408010544 1 COMPRESSOR ASSEMBLY 压缩机总成447160-1340 1 101-

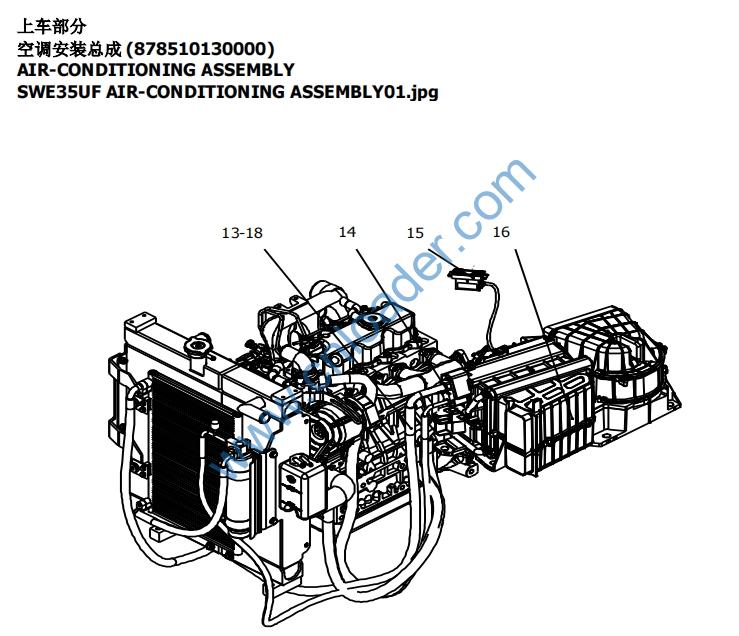

SWE35UF AIR-CONDITIONING ASSEMBLY.jpg 2 720408010545 1 SCREW 螺钉91570-06121 8 101-
3 720408010546 1 BUSH 衬套949320-4560 4 101-
4 720408010547 1 STEEL GASKET 钢垫146625-3510 4 101-
5 720408010548 1 CONDENSER HOLDER 冷凝器支架SG146535-2760 4 101-
6 720408010550 1 VENT HOSE 排气软管SWE35UF空调 1 101-
7 720408010549 1 CONDENSER ASSEMBLY 冷凝器总成447760-4920 1 101-
8 720408010552 1 LIQUID HOSE 液体软管(带压力开关) 1 101-
9 720408010551 1 LIQUID HOSE 液体软管SWE35UF空调 1 101-
10 720408010167 1 ACCUMULATOR 储液器 SG447810-0130 1 101-
11 720408010168 1 ACCUMULATOR HOLDER ASSEMBLY 储液器支架总成 SG047890-8350 1 101-
12 720408010553 1 EVAPORATOR ASSEMBLY 蒸发器总成SG443190-A030 1 101-
720408010554 1 SUCTION HOSE 吸气软管SWE35UF空调 1 101-
SWE35UF AIR-CONDITIONING ASSEMBLY01.jpg 14 720408010466 1 PIPE JOINT 管接头 SG446861-4520 1 101-
15 720408010532 1 CONTROL PANEL ASSEMBLY 控制面板总成SG146570-A020 1 101-
16 720408010555 1 DRAIN-PIPE 排水管SG246310-1780 1 101-
17 750004000194 1 BELT 皮带V-13X910 1 101-
18 751008000258 1 HOSE CLAMP 软管卡箍16-27 W2 4 101-
1 332040000203 S1 INTERMEDIATE SEAL 中间密封件 1 101-

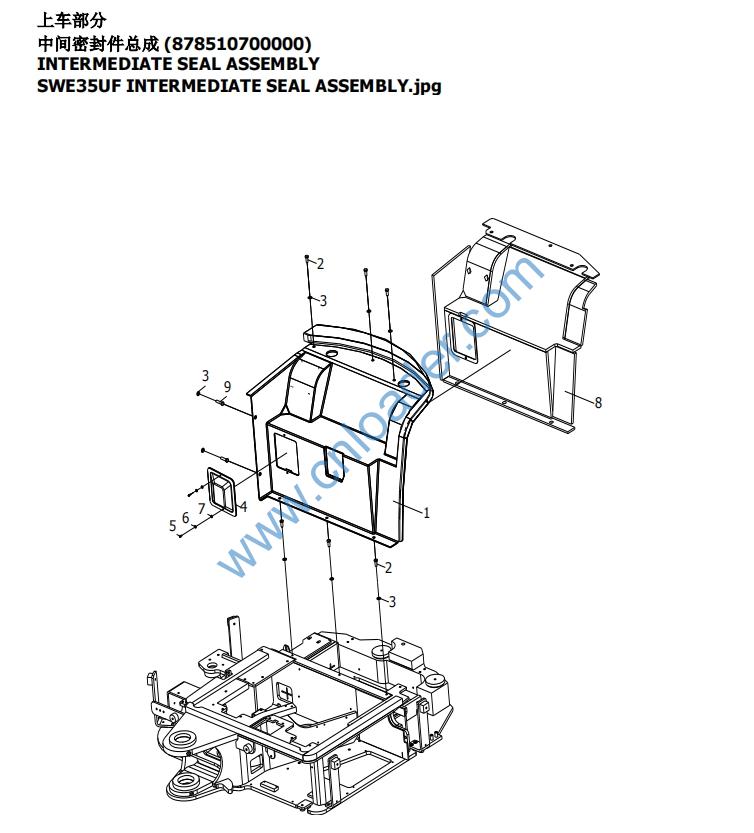

SWE35UF INTERMEDIATE SEAL ASSEMBLY.jpg 2 701104010032 1 BOLT 螺栓M10X25-8.8-DKL GB/T 5783 6 101-
3 701504010004 1 WASHER 垫圈10-DKL GB/T 97.1 8 101-
4 332040000204 S2 GENERATOR ACCESS DOOR 发电机检修门 1 101-
5 701302006039 1 SCREW 螺钉M6X12-8.8-DKL GB/T 70.1 2 101-
6 701504006002 1 WASHER 垫圈6-DKL GB/T 97.1 2 101-
7 701510006003 1 WASHER 垫圈6-DKL GB/T 93 2 101-
8 878510701000 S2 INTERMEDIATE SEAL PLATE SPONGE ASSEMBLY 中间密封板海绵总成 1 101-
9 701104010035 1 BOLT 螺栓M10X40-8.8-DKL GB/T 5783 2 101-
