1 813655100004 A1 BUCKET 铲斗体(600mm 0.125m3) 1 101-

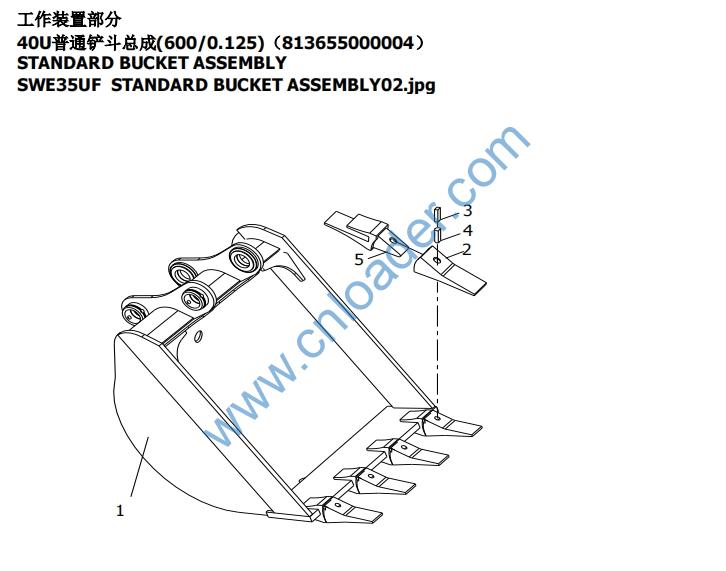

SWE35UF STANDARD BUCKET ASSEMBLY02.jpg 2 750601000027 1 BUCKET TOOTH 斗齿PC35 4 101-
3 750601000032 1 PIN 销子18pin 4 101-
4 750601000033 1 RUBBER OF BUCKET TOOTCH 斗齿橡胶18LK 4 101-
5 750601000026 1 BUCKET TOOTH HOLDER 斗齿座PC35 4 101-
813652010001 A2 QUICK EXCHANGE HEAD 快换头 1 101-

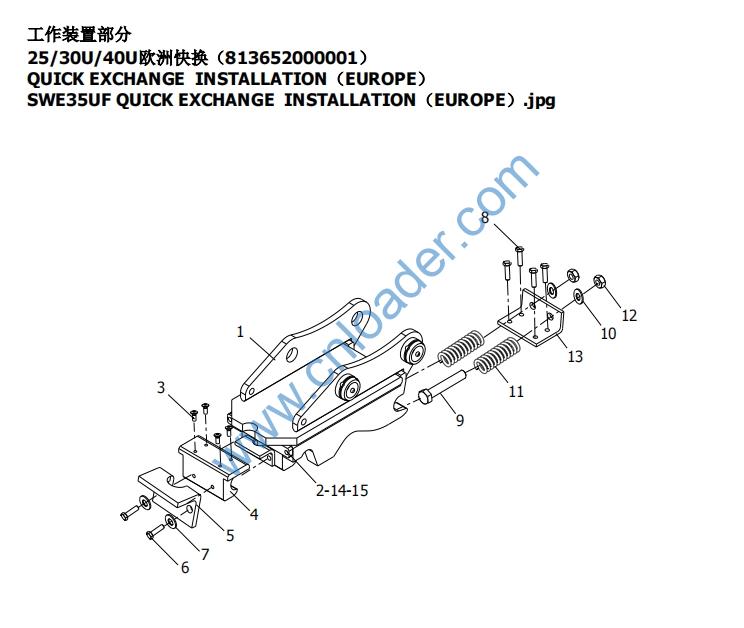

SWE35UF QUICK EXCHANGE INSTALLATION（EUROPE）.jpg 2 813652020001 A1 Z-PLATE ASSEMBLY Z形板总成 1 101-
3 701320008001 1 SCREW 螺钉M8X20-10.9 GB2673 4 101-
4 307990000108 A1 SLIDE HOOK 滑钩 1 101-
5 302520000604 A1 PRY PLATE 撬板 1 101-
6 701104010040 1 BOLT 螺栓M10X35-8.8-DKL GB/T 5783 2 101-
7 701504010004 1 WASHER 垫圈10-DKL GB/T 97.1 4 101-
8 701104010036 1 BOLT 螺栓M10X20-10.9-DKL GB/T 5783 4 101-
9 701103016061 1 BOLT 螺栓M16X140-8.8-DKL GB5782 2 101-
10 701504016003 1 WASHER 垫圈16-DKL GB/T 97.1 4 101-
11 301030000019 A1 COMPRESSION SPRING 压缩弹簧 2 101-
12 701406016001 1 NUT 螺母M16-8H-10-DKL GB/T 6170 2 101-
13 302520000603 A1 UPPER PLATE 顶板 1 101-
14 302030003600 A1 STOP PLATE 限位板 1 101-
15 701104010032 1 BOLT 螺栓M10X25-8.8-DKL GB/T 5783 2 101-
813655100005 A2 BUCKET 铲斗(350mm 0.06m3) 1 101-

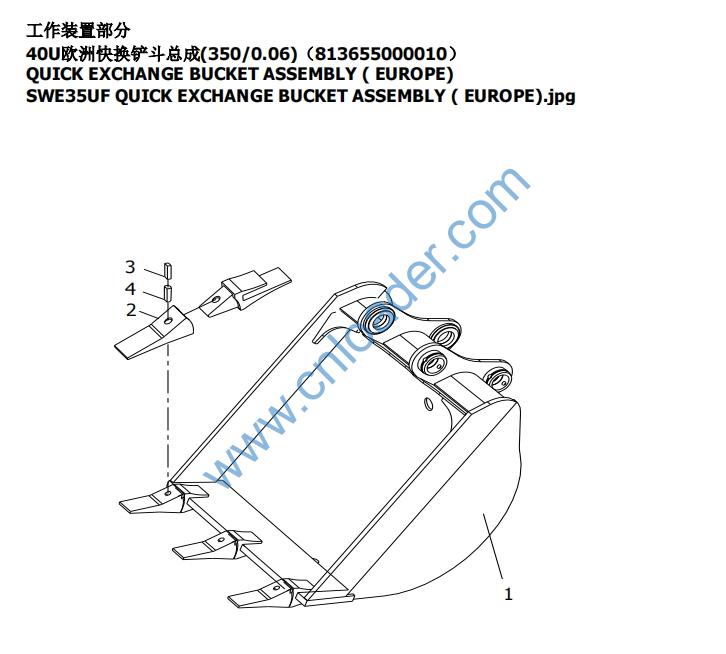

SWE35UF QUICK EXCHANGE BUCKET ASSEMBLY ( EUROPE).jpg 2 750601000027 1 BUCKET TOOTH 斗齿PC35 3 101-
3 750601000032 1 PIN 销子18pin 3 101-
4 750601000033 1 RUBBER OF BUCKET TOOTCH 斗齿橡胶18LK 3 101-
813655100006 A2 BUCKET 铲斗体(526mm 0.11m3) 1 101-

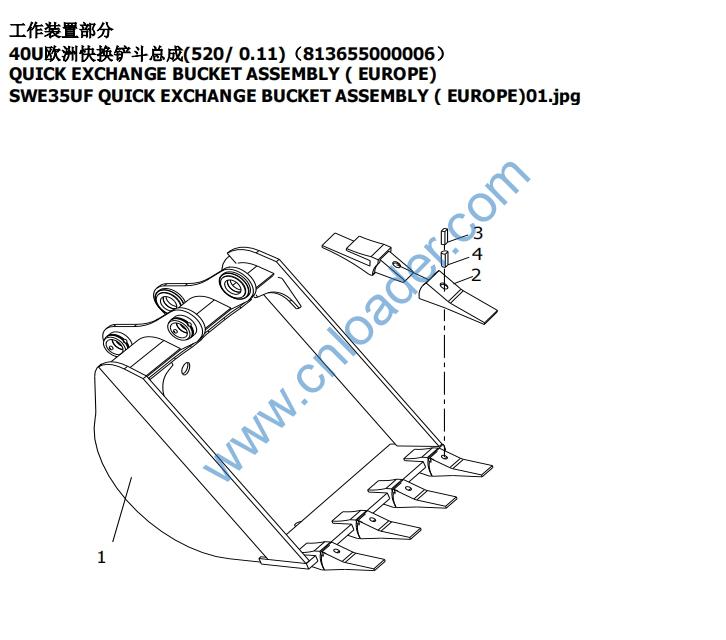

SWE35UF QUICK EXCHANGE BUCKET ASSEMBLY ( EUROPE)01.jpg 2 750601000027 1 BUCKET TOOTH 斗齿PC35 4 101-
3 750601000032 1 PIN 销子18pin 4 101-
4 750601000033 1 RUBBER OF BUCKET TOOTCH 斗齿橡胶18LK 4 101-
1 813650201000 A1 BUCKET 铲斗体(600mm 0.125m3) 1 101-

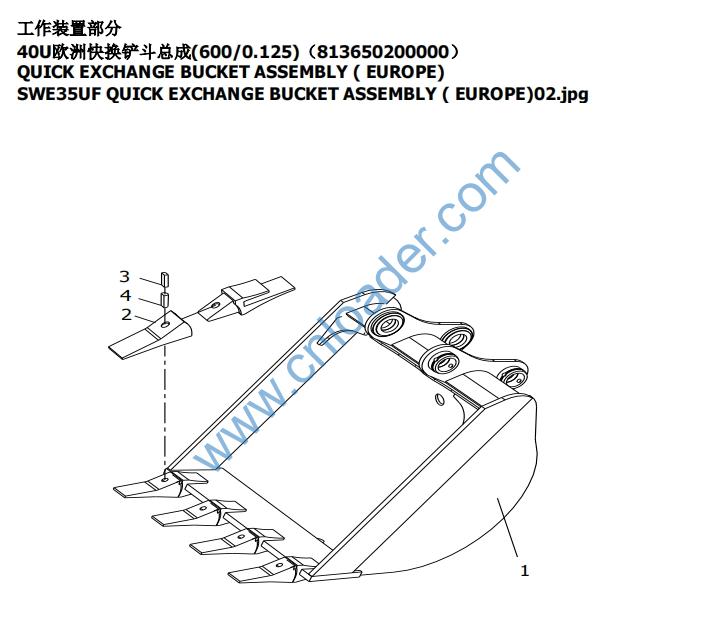

SWE35UF QUICK EXCHANGE BUCKET ASSEMBLY ( EUROPE)02.jpg 2 750601000027 1 BUCKET TOOTH 斗齿PC35 4 101-
3 750601000032 1 PIN 销子18pin 4 101-
4 750601000033 1 RUBBER OF BUCKET TOOTCH 斗齿橡胶18LK 4 101-
878520100000 S3 SWING ARM WELDING 动臂焊接 1 101-

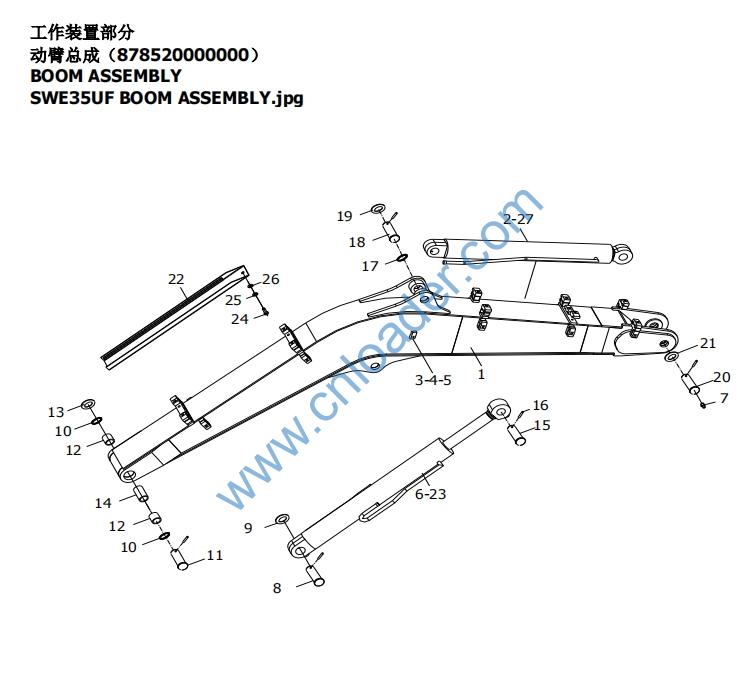

SWE35UF BOOM ASSEMBLY.jpg 2 878596820000 S3 DIPPER CYLINDER 斗杆油缸 1 101-
3 302040001289 A1 LAMPHOLDER 灯座 1 101-
4 701508008001 1 WASHER 垫圈8-DKL GB/T 1230 2 101-
5 701107800001 1 BOLT 螺栓M8X12-DKL-8.8 GB29.1 2 101-
6 878596810002 S2 BOOM CYLINDER 动臂油缸 1 101-
7 703101010001 1 OIL CUP 油杯M10X1(钢制) JB/T 7940.1进口 2 101-
8 878520300000 S2 SHAFT ASSEMBLY 轴组件2 1 101-
878520300000 S3 SHAFT ASSEMBLY 轴组件2 1 128-
9 813651040000 A2 GASKET UNIT 垫片组 IV(75X46) 2 101-
10 730652000025 1 DUSTBAND 防尘圈DLW04502 55X45X5 2 101-
11 878520400000 S2 SHAFT ASSEMBLY 轴组件1 1 101-
878520400000 S3 SHAFT ASSEMBLY 轴组件1 1 128-
12 305040001398 A1 SHAFT SLEEVE 轴套 2 101-
13 813651030000 A2 GASKET UNIT 垫片组III(90X46) 1 101-
14 305040000057 A1 BUSH 衬套 1 101-
15 701702105501 1 CYLINDRICAL PIN 圆柱销10X55 GB/T 119.2 4 101-
16 304020004322 S1 AXIS PIN 销轴 1 101-
17 305070500012 A1 STEEL CABLE BAFFLE RING 钢丝挡圈 4 101-
18 304020002307 A1 SHAFT 轴3 2 101-
19 813651050000 A2 GASKET UNIT 垫片组 Ⅹ(68X41) 1 101-
20 304020002389 A1 SHAFT 轴4 1 101-
21 813651010000 A2 GASKET UNIT 垫片组 I(80X41) 1 101-
22 813651200000 A4 GUARD PLATE OF BOOM CYLINDER 动臂油缸护板 1 101-
23 878596810003 S1 BOOM CYLINDER 动臂油缸（带防爆阀） 1 101-
24 701104012032 1 BOLT 螺栓M12X20-8.8-DKL GB/T 5783 1 101-
25 701508012002 1 WASHER 垫圈12-DKL GB/T 1230 1 101-
26 701523012001 1 WASHER 垫圈12-DKL GB7244 1 101-
27 878596820001 S2 DIPPER CYLINDER 斗杆油缸（带防爆阀） 1 101-
1 878550100000 S2 DEFLECTION HEAD WELDING 偏转头焊接 1 101-

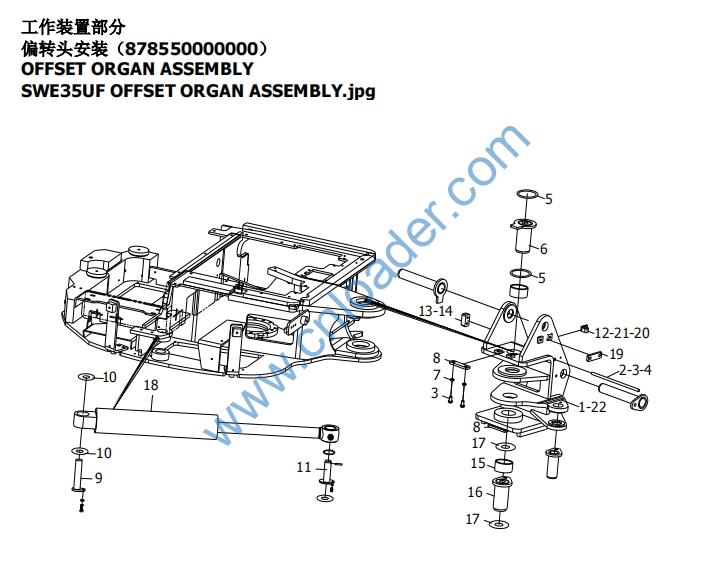

SWE35UF OFFSET ORGAN ASSEMBLY.jpg 878550100000 S3 DEFLECTION HEAD WELDING 偏转头焊接 1 128-
2 304060000181 S1 COMPRESSIVE BAR 压杆 2 101-
3 701508012002 1 WASHER 垫圈12-DKL GB/T 1230 12 101-
4 701406012011 1 NUT 螺母M12-8-ZnD GB/T 6170 4 101-
5 730652000044 1 DUSTBAND 防尘圈DLW07003 85X70X5 4 101-
6 878550200000 S3 DEFLECT UPPER MOUNTING SHAFT 偏转上安装轴 1 101-
878550200000 S4 DEFLECT UPPER MOUNTING SHAFT 偏转上安装轴 1 128-
7 701104012027 1 BOLT 螺栓M12X25-8.8-DKL GB/T 5783 8 101-
8 302030040942 S2 PRESSING PLATE 压板 2 101-
9 878550500000 S2 DEFLECTION CYLINDER PIN SHAFT 2 偏转油缸销轴2 1 101-
10 813656010000 A2 GASKET UNIT 垫片组 VII(86X51) 2 101-
11 878550400000 S2 DEFLECTION CYLINDER PIN SHAFT 1 偏转油缸销轴1 1 101-
878550400000 S3 DEFLECTION CYLINDER PIN SHAFT 1 偏转油缸销轴1 1 128-
12 729808000142 1 KEY CARD 线卡14010 卡孔ф40安装孔ф10 2 101-
13 302030040956 S1 STOP BLOCK 限位块 1 101-
14 701302008058 1 SCREW 内六角螺钉M8X40-A2-70 GB/T70.1 4 101-
15 305040002296 S1 SHAFT SLEEVE 轴套 2 101-
16 878550300000 S3 DEFLECT LOWER MOUNTING SHAFT 偏转下安装轴 1 101-
878550300000 S4 DEFLECT LOWER MOUNTING SHAFT 偏转下安装轴 1 128-
17 827554800000 A1 GASKET UNIT 垫片组(140X71) 2 101-
18 878596850000 S2 OIL CYLINDER 偏转油缸 1 101-
19 302030040955 S1 PRESSING PLATE 2 压板2 1 101-
20 701104008043 1 BOLT 螺栓M8X12-8.8 DKL GB/T 5783 2 101-
21 701508008001 1 WASHER 垫圈8-DKL GB/T 1230 2 101-
22 333020000168 S2 CASTING DEFLECTION HEAD 35UF铸造偏转头 1 101-
333020000168 S3 CASTING DEFLECTION HEAD 35UF铸造偏转头 1 128-
305040002345 S1 BUSH 衬套 1 101-

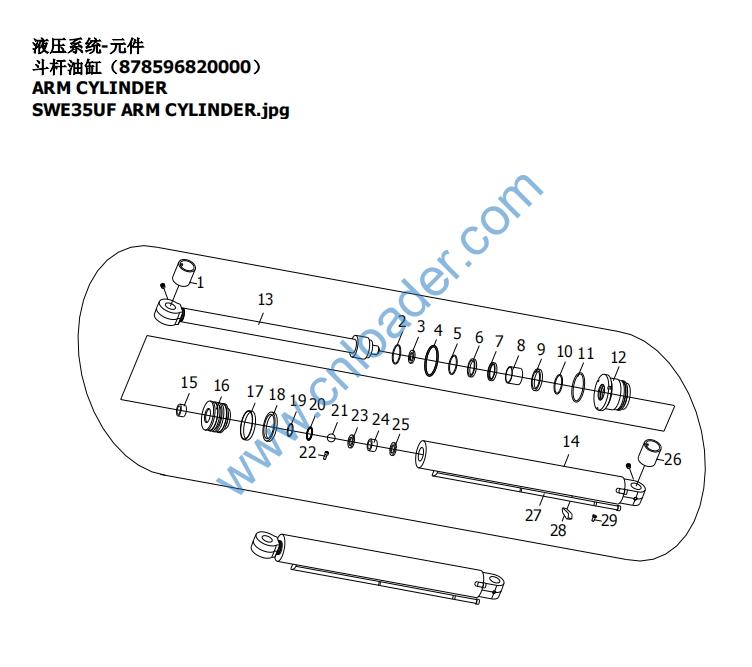

SWE35UF ARM CYLINDER.jpg 2 302010003669 A1 STOP COLLAR OF DUSTBAND 防尘圈挡圈D64 1 101-
3 730652000240 1 DUSTBAND 防尘圈DKBI FD2831E0 1 101-
4 730603000013 1 O-RING O形圈G80 (A70) 9-5512 N674-70 1 101-
5 730654000225 1 STOP COLLAR 挡圈50X60X3 1 101-
6 730601000457 1 PISTON ROD SEAL PART 活塞杆密封IUH 50X60X6 G928 1 101-
7 730699000100 1 BUFFER RING 缓冲环HBY-50X65.5X6 1 101-
8 750502000005 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB5025 1 101-
9 730654000386 1 THIMBLE 支撑环75X80X2 3 101-
10 301020003011 A1 SPRING COLLAR 弹簧挡圈φ55X3 3 101-
11 730603000676 1 O-RING O形圈72.62X3.53 C00360 B 1 101-
12 305090002708 S1 CYLINDER HEAD 缸头 1 101-
13 878596820100 S1 PISTON ROD ASSEMBLY 活塞杆组件 1 101-
14 878596820200 S1 CYLINDER BARREL UNIT 缸筒组件 1 101-
15 305060002081 A3 CUSHION COLLAR 缓冲套Ⅰ 1 101-
16 305090002709 S1 PISTON 活塞 1 101-
17 730651000015 1 GUIDE RING 导向环KFR 7506 Q5029 2 101-
18 730602000250 1 PISTON SEAL 活塞密封SPGW GS0608V5 1 101-
19 730603000668 1 O-RING O形圈CO 0202 B 1 101-
20 730654000419 1 STOP COLLAR 挡圈34X39X1.25 2 101-
21 750551000003 1 STEEL BALL 钢球GCr15 D6 1 101-
22 701307008001 1 SCREW 螺钉M8X10 GB77 1 101-
23 305070001578 S1 WASHER 垫圈 1 101-
24 305090000943 A4 BUFFER SET 缓冲套Ⅱ 1 101-
25 305070400001 A2 CARD KEY 卡键 1 101-
26 305040000064 A5 BUSH 衬套Ⅰ 1 101-
27 813696820223 S2 Pipeline module 油管组件 1 101-
28 302030037937 S4 SINGLE PIPE CLAMP 单孔管夹（Φ14） 1 101-
29 701104012025 1 BOLT 螺栓M12X30-10.9-DKL GB/T 5783 1 101-
305040000064 A4 BUSH 衬套Ⅱ 2 101-

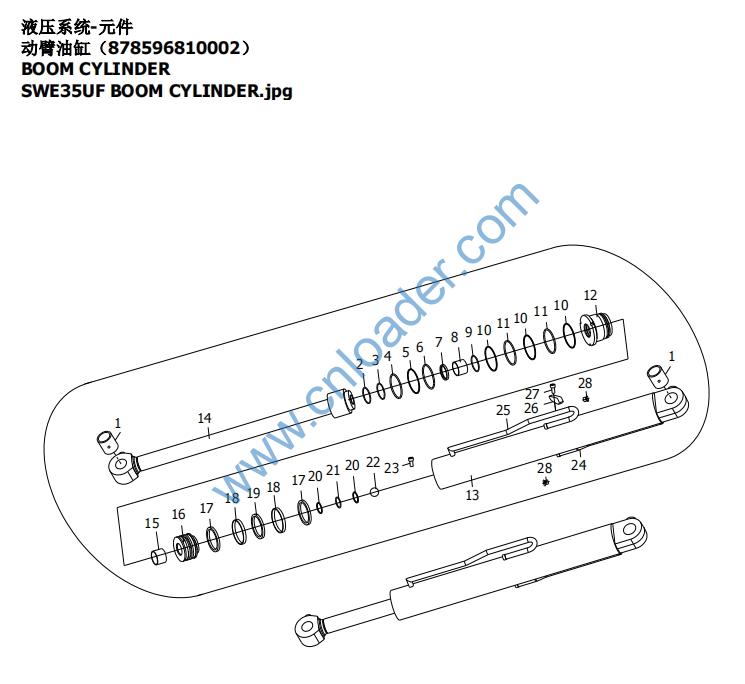

SWE35UF BOOM CYLINDER.jpg 2 302010006152 S1 STOP COLLAR OF DUSTBAND 防尘圈挡圈D59 1 101-
3 730652000241 1 DUSTBAND 防尘圈DKBI FD2633GO 1 101-
4 730603000007 1 O-RING O形圈G85 (A70) 9-5513 N674-70 1 101-
5 730654000095 1 STOP COLLAR 挡圈45X55X3 1 101-
6 730604000011 1 U-RING U形圈IUH-45X55X6 1 101-
7 730601000315 1 BUFFER RING 缓冲环HBY 45X60.5X6 1 101-
8 750502000002 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB4525 1 101-
9 301020003010 S10 SPRING COLLAR 弹簧挡圈φ50X3 1 101-
10 730654000387 1 THIMBLE 支撑环80X85X2 3 101-
11 730603000034 1 O-RING O形圈78.97X3.53 (A90) 2-235 N552-90 2 101-
12 305090002908 S1 CYLINDER HEAD 缸头 1 101-
13 878596810200 S2 CYLINDER BARREL UNIT 缸筒组件 1 101-
14 878596810102 S1 PISTON ROD ASSEMBLY 活塞杆组件 1 101-
15 305090001455 A2 CUSHION COLLAR 缓冲套 1 101-
16 305090002909 S1 PISTON 活塞 1 101-
17 730602000221 1 ANTI-POLLUTION SEAL 防污染密封件KZT85X77X6 2 101-
18 730651000222 1 GUIDE RING 导向环KFR 8006 2 101-
19 730602000265 1 PISTON SEAL 活塞密封SPGW GS0813V5 1 101-
20 730654000506 1 STOP COLLAR 挡圈31X36X1.25 2 101-
21 730603000682 1 O-RING O形圈CO 0201 29.4X3.1 1 101-
22 750551000003 1 STEEL BALL 钢球GCr15 D6 1 101-
23 701307005006 1 SCREW 螺钉M8X14 GB/T 77 1 101-
24 813696810302 S2 Pipeline moduleⅠ 油管组件Ⅰ 1 101-
25 878596810400 S2 Pipeline module Ⅱ 油管组件Ⅱ 1 101-
26 302030037937 S4 SINGLE PIPE CLAMP 单孔管夹（Φ14） 2 101-
27 701104012025 1 BOLT 螺栓M12X30-10.9-DKL GB/T 5783 2 101-
28 739806000176 1 TAPERED PLUG 锥孔堵头VKAM12LA3C 2 101-
29 302030019172 A1 SKATEBOARD 滑板 1 101-
30 701302005001 1 SCREW 螺钉M5X12-8.8 GB/T 70.1 2 101-
305040000064 A4 BUSH 衬套Ⅱ 2 101-

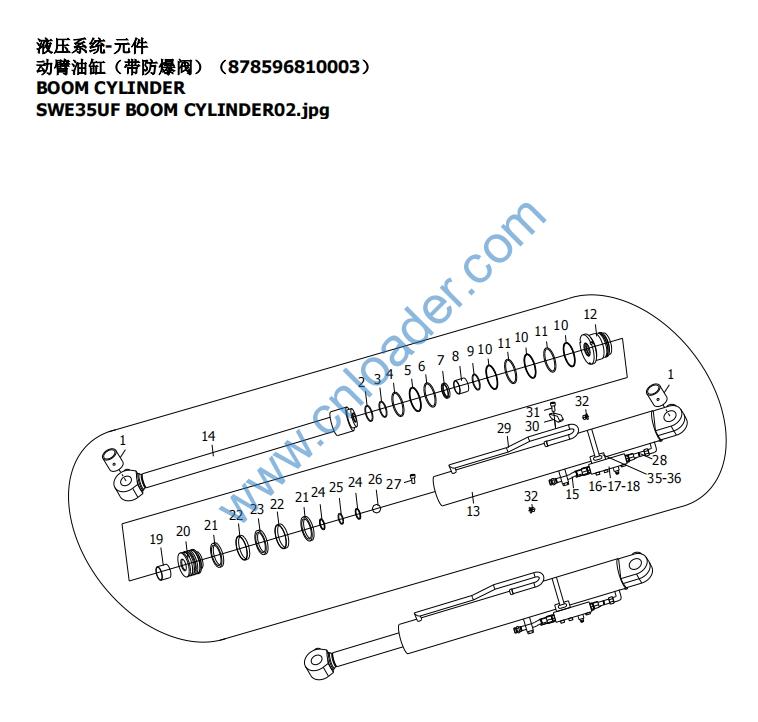

SWE35UF BOOM CYLINDER02.jpg 2 302010003669 A1 STOP COLLAR OF DUSTBAND 防尘圈挡圈D64 1 101-
3 730652000240 1 DUSTBAND 防尘圈DKBI FD2831E0 1 101-
4 730603000007 1 O-RING O形圈G85 (A70) 9-5513 N674-70 1 101-
5 730654000225 1 STOP COLLAR 挡圈50X60X3 1 101-
6 730601000457 1 PISTON ROD SEAL PART 活塞杆密封IUH 50X60X6 G928 1 101-
7 730699000100 1 BUFFER RING 缓冲环HBY-50X65.5X6 1 101-
8 750502000005 1 SELF LUBRICATING SHAFT BEARING 自润轴承MB5025 1 101-
9 301020003011 A1 SPRING COLLAR 弹簧挡圈φ55X3 1 101-
10 730654000387 1 THIMBLE 支撑环80X85X2 3 101-
11 730603000034 1 O-RING O形圈78.97X3.53 (A90) 2-235 N552-90 2 101-
12 305090002908 S1 CYLINDER HEAD 缸头 1 101-
13 878596810200 S2 CYLINDER BARREL UNIT 缸筒组件 1 101-
14 878596810102 S1 PISTON ROD ASSEMBLY 活塞杆组件 1 101-
15 878596810501 S1 Pipeline module Ⅲ 油管组件Ⅲ 1 101-
16 730101000083 1 CONNECTOR 端直通GE15LREDOMDA3C 2 101-
17 701302008001 1 SCREW 螺钉M8X40-10.9 GB/T 70.1 2 101-
18 730304000014 1 LOAD HOLDING VALVE 负载保持阀08479600950101C 1 101-
19 305060002081 A3 CUSHION COLLAR 缓冲套Ⅰ 1 101-
20 305090002909 S1 PISTON 活塞 1 101-
21 730602000221 1 ANTI-POLLUTION SEAL 防污染密封件KZT85X77X6 2 101-
22 730651000222 1 GUIDE RING 导向环KFR 8006 2 101-
23 730602000265 1 PISTON SEAL 活塞密封SPGW GS0813V5 1 101-
24 730654000419 1 STOP COLLAR 挡圈34X39X1.25 2 101-
25 730603000668 1 O-RING O形圈CO 0202 B 1 101-
26 750551000003 1 STEEL BALL 钢球GCr15 D6 1 101-
27 701307008001 1 SCREW 螺钉M8X10 GB77 1 101-
28 878596810301 S1 Pipeline moduleⅠ 油管组件Ⅰ 1 101-
29 878596810400 S2 Pipeline module Ⅱ 油管组件Ⅱ 1 101-
30 302030037937 S4 SINGLE PIPE CLAMP 单孔管夹（Φ14） 2 101-
31 701104012025 1 BOLT 螺栓M12X30-10.9-DKL GB/T 5783 2 101-
32 739806000176 1 TAPERED PLUG 锥孔堵头VKAM12LA3C 2 101-
33 302030019172 A1 SKATEBOARD 滑板 1 101-
34 701302005001 1 SCREW 螺钉M5X12-8.8 GB/T 70.1 2 101-
35 751011000277 1 ANTISEISMIC CLAMP 抗震卡箍KZ-B95117（95mm-117mm) 1 101-
36 307090000987 S1 EXPLOSION-PROOF VALVE MOUNTING PLATE 防爆阀安装板 1 101-
