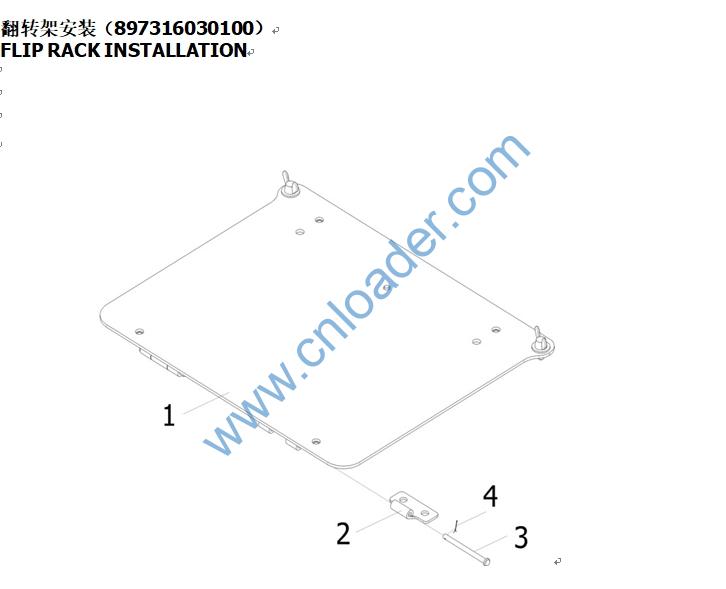

897316030110 S1 FLIP FRAME WELDING 翻转架焊接
302540028260 S1 HINGE 铰链下页
304020201007 A2 PIN 销
701703002001 A1 COTTER 销

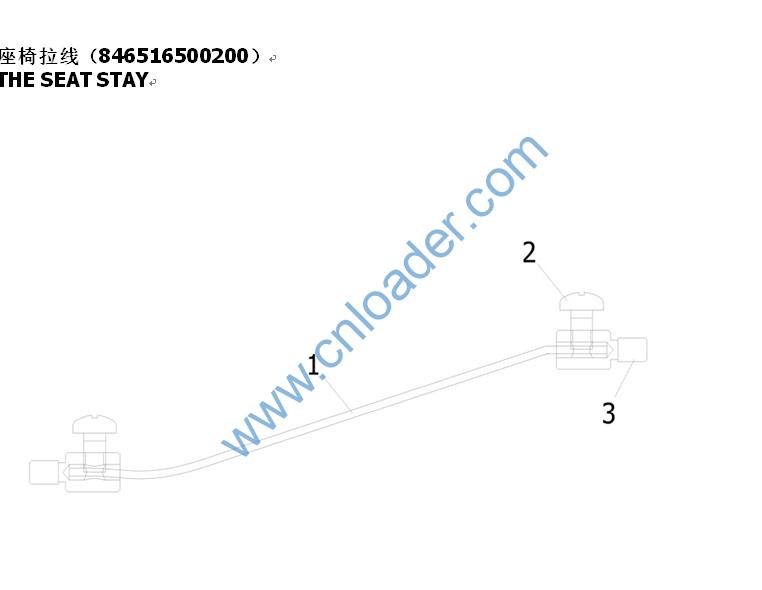

301020000039 S1 THE SEAT STAY 座椅拉线
701309006012 S1 SCREW 螺钉
304050000710 S1 CONNECTOR 连接头

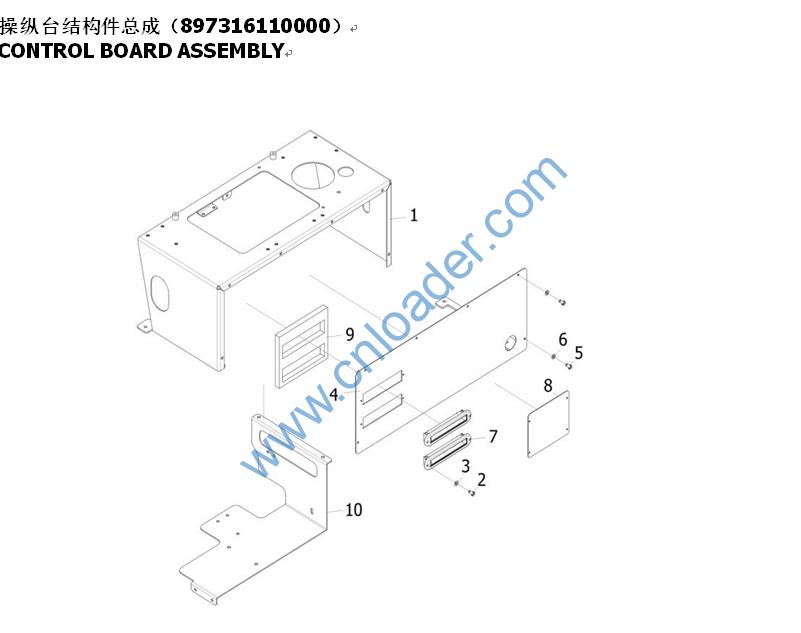

897316010001 S2 CONSOLE WELDING 操纵台焊接
701104008026 A1 BOLT 螺栓
701506008002 A1 WASHER 垫圈
302030054544 S2 FRONT COVER PLATE 前盖板
701104006017 A1 BOLT 螺栓
701501006002 A1 WASHER 垫圈

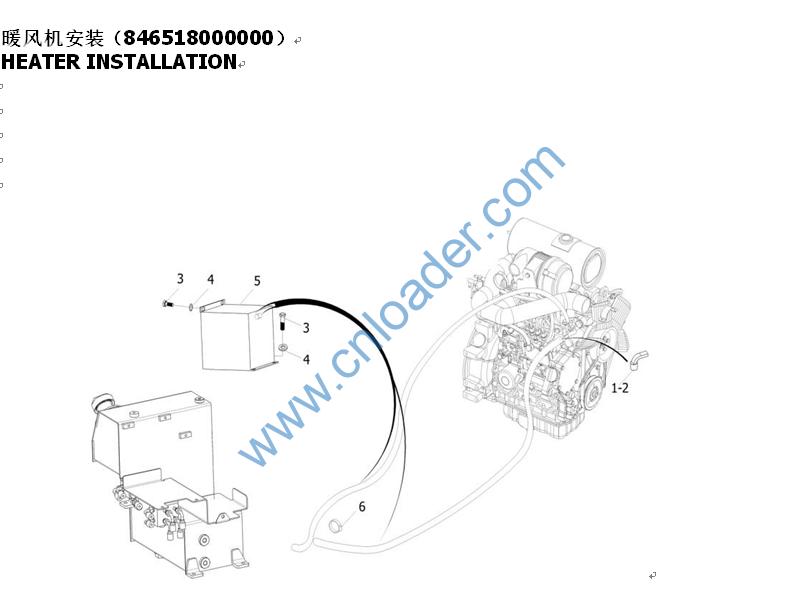

750099000044 A1 AIR OUTLET 暖风机出风口
302030041777 A1 SEAL PLATE 风口封板
302490000376 A4 SPONGE 暖风机海绵
897316020000 S1 HEATER MOUNTING PLATE WELDING 暖风机安装板焊接
302490061944 S2 MIDDLE SEAL SPONGE 9 中间密封件海绵9
302490058303 S1 MIDDLE SEAL SPONGE 5 中间密封件海绵5
302490058254 S2 MIDDLE SEAL SPONGE 4 中间密封件海绵4
302490058306 S1 MIDDLE SEAL SPONGE 6 中间密封件海绵6
302490061943 S2 MIDDLE SEAL SPONGE 8 中间密封件海绵8
302490061942 S1 MIDDLE SEAL SPONGE 9 中间密封件海绵7
302030055225 S1 MAINTENANCE PLATE 检修板
302490058345 S1 SEALING GASKET 密封垫
302030055285 S1 MAINTENANCE PLATE 2 检修门2
302490058399 S1 SEALING GASKET 2 密封垫2
701302006032 A1 SCREW 螺钉
701504006002 A1 WASHER 垫圈

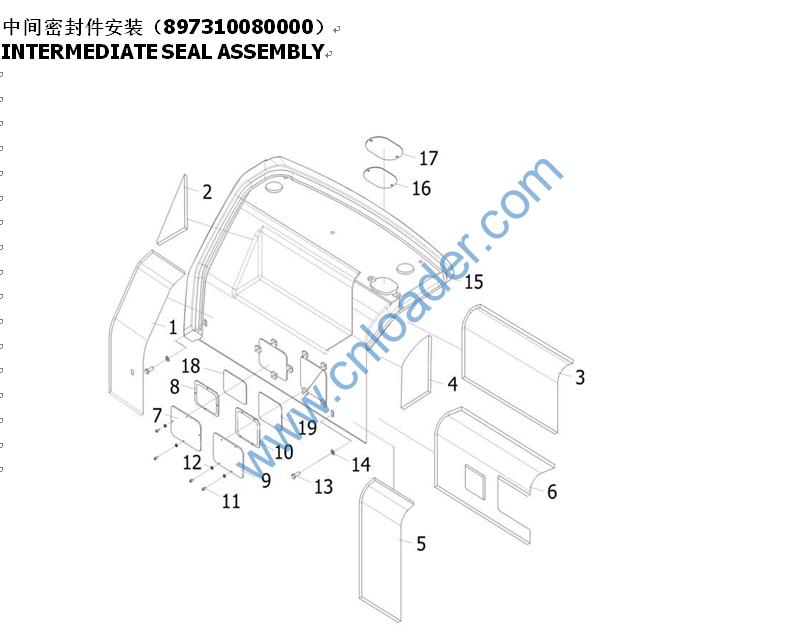

302560003434 S3 INTERMEDIATE SEAL 中间密封件
302490059025 S2 SEALING GASKET 水箱盖密封垫
302490059024 S2 TANK COVER PLATE 水箱盖板
302490061953 S1 MIDDLE SEAL SPONGE 11 中间密封件海绵11
302490061952 S1 MIDDLE SEAL SPONGE 10 中间密封件海绵10
308990000262 S1 WARM WATER JOINT 发动机暖水接头
308010000071 A1 WARM WATER JOINT 发动机暖水接头
701104008025 S1 BOLT 螺栓
701508008001 S1 WASHER 垫圈
750703000049 S1 WARM AIR BLOWER 20F暖风机总成N53
751008000258 S1 THE HOSE CLAMP 软管卡箍
701104006017 A1 BOLT 螺栓
701504006002 A1 WASHER 垫圈

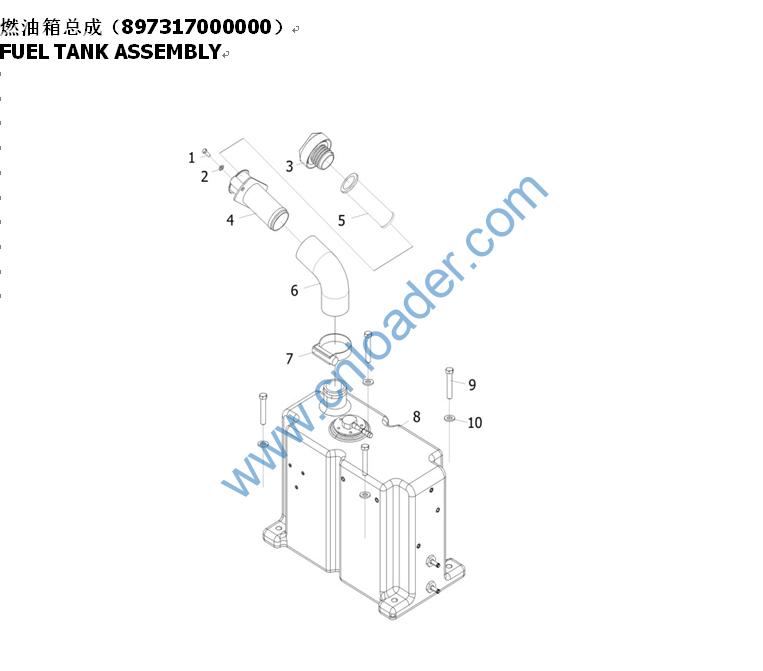

750911000003 A1 FUEL TANK LOCK 燃油箱锁盖
897314020000 S2 OIL FILLER WELDING 加油口焊接
730401010037 A1 STRAINER SWE35UF燃油加注滤网
320040000944 S1 CURVED PIPE 加油弯管
751011000089 A1 BAR CLASP 卡箍
897317100000 S2 FUEL TANK 燃油箱整体
730399000961 A1 SOLENOID VALVE BLOCK 两联电磁阀组
307090001228 S1 PILOT SHUNT BLOCK 先导分流块
302040005027 S1 MOUNTING RACK 继电器支架
701104006017 A1 BOLT 螺栓
701504006002 A1 WASHER 垫圈

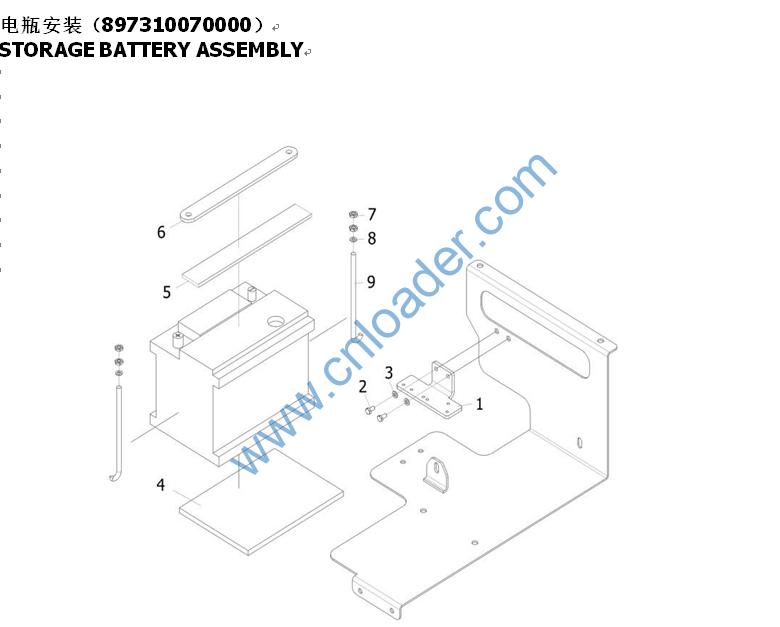

302030022082 A1 RUBBER PLATE 1 橡胶垫板1
302030022083 A1 RUBBER PLATE 2 橡胶垫板2
302490057413 S1 THE BATTERY HOLDER 电瓶压板
701414008001 A1 NUT 螺母
701506008002 A1 WASHER 垫圈
320990001957 S1 PULL ROD 电瓶压杆

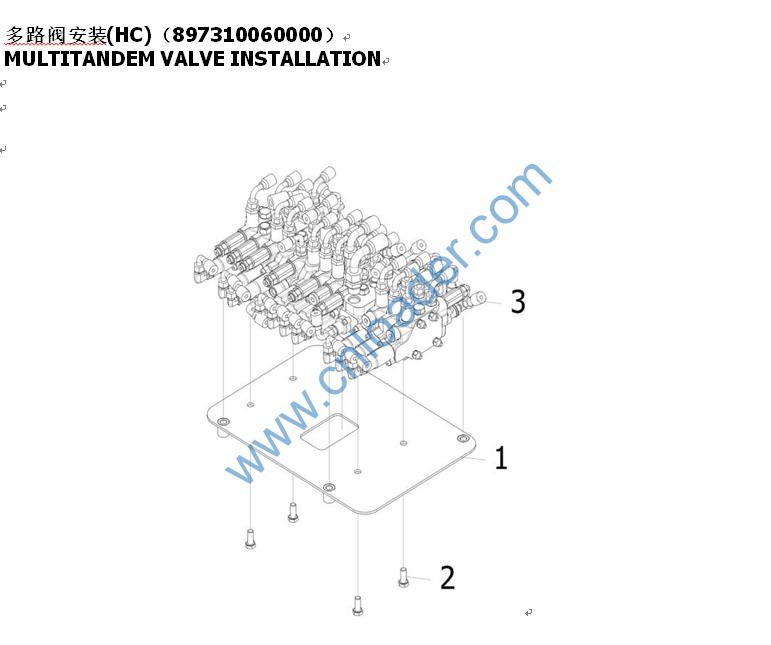

730302000533 A1 MULTI-WAY VALVE 多路阀
701104008027 A1 BOLT 螺栓
701104010036 A1 BOLT 螺栓
302030054647 S1 MOUNTING PLATE OF MULTITANDEM VALVE 多路阀安装板
897310180000 S1 MOUNTING PLATE OF MULTITANDEM VALVE 多路阀安装板焊接(HC)
701104010036 A1 BOLT 螺栓
730302000502 A1 MULTI-WAY VALVE 多路阀

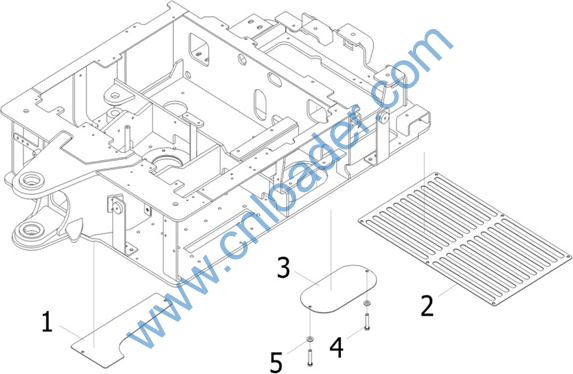

302490062935 S1 BOTTOM SHROUDING 3 底封板3
302490062933 S1 BOTTOM SHROUDING 1 底封板1
302010009977 S1 BOTTOM SHROUDING 2 底封板2
701104008025 A1 BOLT 螺栓
701508008001 A1 WASHER 垫圈

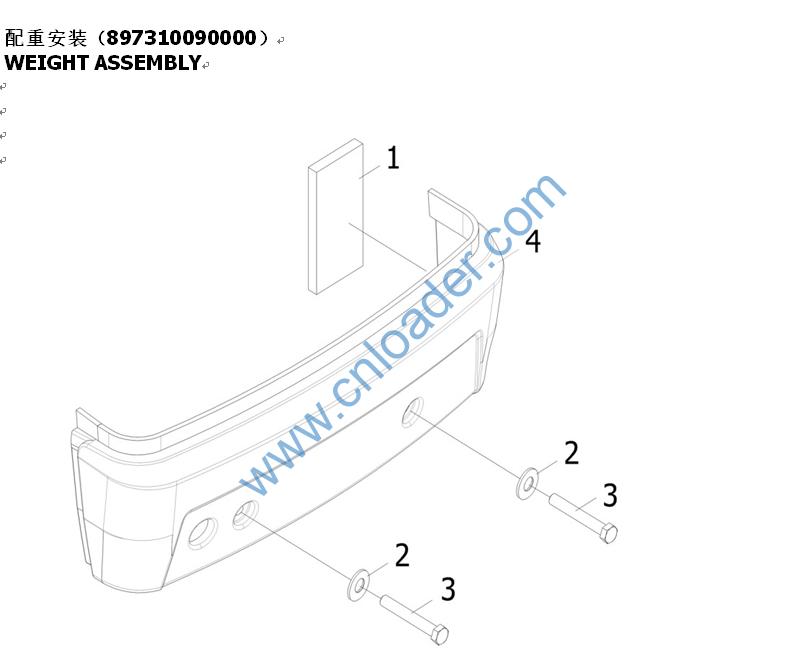

302490058347 S3 SPONGE OF WEIGHT 配重海绵
302010009169 S2 MOUNTING PLATE 配重安装垫板
701104016042 A1 BOLT 螺栓
333010000165 S1 WEIGHT OF SWE17F SWE17F配重

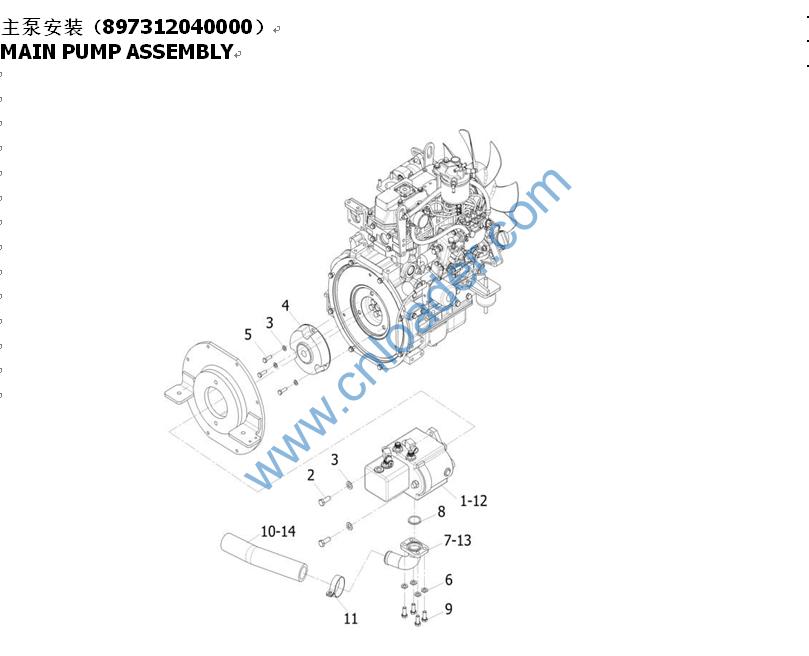

897312040000 S1 MAIN PUMP ASSEMBLY 主泵安装
897312010000 S2 ENGINE ASSEMBLY 发动机安装
897312020000 S3 FUEL PIPE LINE ASSEMBLY 燃油管路安装
897312030000 S3 COOLING SYSTEM ASSEMBLY 冷却系统安装
730201000335 A1 PUMP 液压泵
701104012025 A1 BOLT 螺栓
701508012002 A1 WASHER 垫圈
750310000130 A1 COUPLING 联轴器
701302012002 A1 SCREW 螺钉
701508010001 A1 WASHER 垫圈
846512030200 S1 LARGE PUMP SUCTION PIPE 大泵吸油管
703201037502 A1 O-RING O形圈
701302010045 A1 SCREW 螺钉
320040000562 S1 OIL SUCTION HOSE 吸油胶管
751008000214 A1 LATHDOG 重型软管卡箍
730201000531 A1 HYDRAULIC PUMP 主泵
897312040100 S1 LARGE PUMP SUCTION PIPE 吸油钢管
320040000942 S1 OIL SUCTION HOSE 吸油胶管

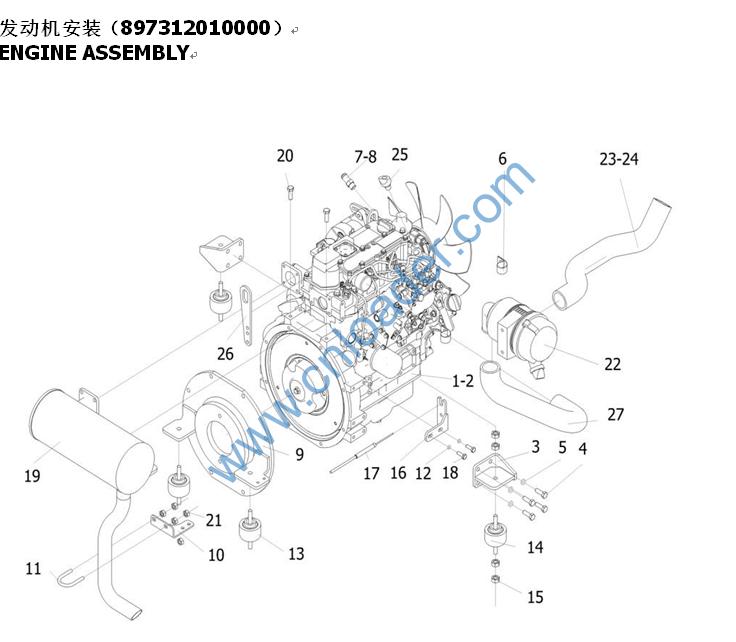

750201000248 S1 ENGINE 发动机
750201000447 S1 ENGINE 发动机
897312010300 S1 FAN BRACKET 风扇端支脚
701508010001 S1 WASHER 垫圈
729808000005 S1 WIRE CLAMP 线卡
308010000071 A2 WARM WATER JOINT 发动机暖水接头
751008000258 S1 THE HOSE CLAMP 软管卡箍
897312010400 S1 MOUNTING FOOT WELDING 连接盘焊接
302540030622 S1 FIXED SEAT 尾管固定支架
301020000999 S1 U-BOLT 圆钢抱箍
751501000258 S1 SHOCK ABSORBER 减震器
751501000262 S1 SHOCK ABSORBER 减震器
701416010003 S1 NUT 螺母
862112010510 S1 MOUNTING BRACKET 油门拉线安装支架
750202000107 S3 ACCELERATOR CABLE MOUNTING BRACKET 油门拉线安装支架
701104008031 S1 BOLT 螺栓
750205000242 S1 SILENCER 消音器
701104010036 S1 BOLT 螺栓
730402000231 S1 AIR FILTER 空滤器
320020001413 S1 AIR INTAKE PIPE 空滤进气管
751011000192 S1 T-HOOP T型抱箍KGA50-59
308990000262 S1 WARM WATER JOINT 发动机暖水接头
320020001415 S2 ENGINE INTAKE PIPE 发动机进气管
302490040114 S1 LIFTING PLATE 吊装板

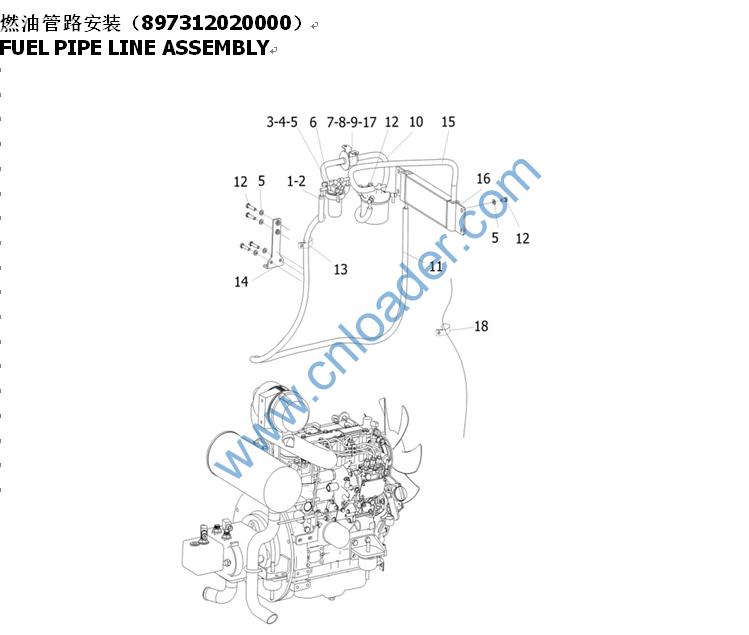

730599001083 A1 DIESEL OIL PIPE 柴油管
751008000257 A1 HOSE CLAMP 软管卡箍
730405000041 A1 OIL-WATER SEPARATOR 油水分离器
701103008037 A1 BOLT 螺栓
701508008001 A1 WASHER 垫圈
730599000128 A1 DIESEL OIL PIPE 柴油管
701504006002 A1 WASHER 垫圈
730201000028 A1 OIL SUCTION PUMP 燃油吸油泵
701104006017 A1 BOLT 螺栓
750206000035 A1 DIESEL OIL PIPE 柴油管
730599001082 A1 DIESEL OIL PIPE 柴油管
701104008026 A1 BOLT 螺栓
729808000020 A1 WIRE CLAMP 线卡
897312020100 S2 PIPE FIXING BRACKET 管路固定支架
730599001031 A1 OIL PIPE 柴油管
750203010055 A1 DIESEL COOLER 柴油冷却器
701510006003 A1 WASHER 垫圈
729808000005 A1 WIRE CLAMP 线卡
