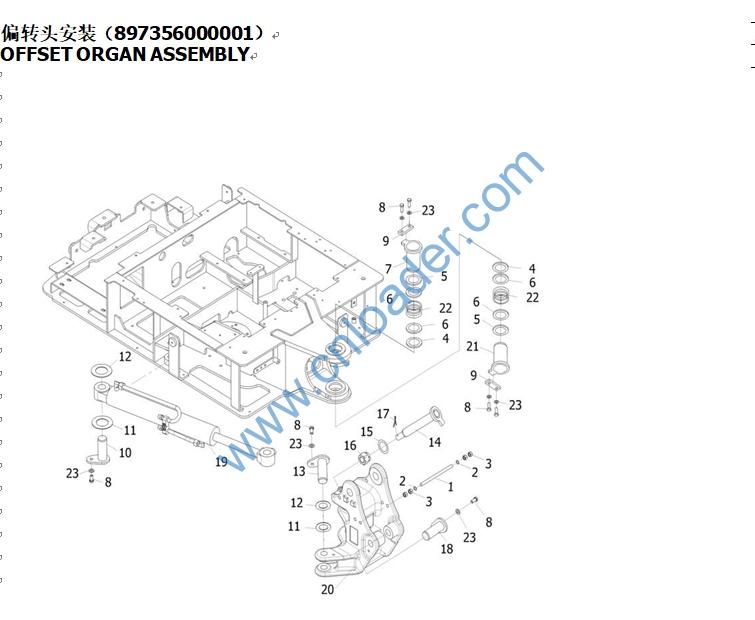

304050000955 S1 COMPRESSIVE BAR 胶管压杆
701508012002 A1 WASHER 垫圈
701406012002 A1 NUT 螺母
750911000047 A1 RESIN ADJUSTING PAD 树脂调整垫
750911000048 A1 RESIN ADJUSTING PAD 树脂调整垫
730652000031 A1 DUSTBAND 防尘圈
897356130000 S1 DEFLECT UPPER MOUNTING SHAFT 偏转上安装轴
701104010034 A1 BOLT 螺栓
302030059687 S1 PRESSING PLATE 压板
897356110000 S1 DEFLECTION CYLINDER PIN SHAFT 2 偏转油缸销轴2
750911000019 A1 RESIN ADJUSTING PAD 树脂调整垫
750911000020 A1 RESIN ADJUSTING PAD 树脂调整垫
897356120000 S1 DEFLECTION CYLINDER PIN SHAFT 1 偏转油缸销轴1
897356150000 S1 SHAFT ASSEMBLY 1 轴组件1
701508024003 A1 WASHER 垫圈
701425024001 A1 NUT 螺母
701703005004 A1 PIN 销
897356160000 S1 SHAFT ASSEMBLY 2 轴组件2

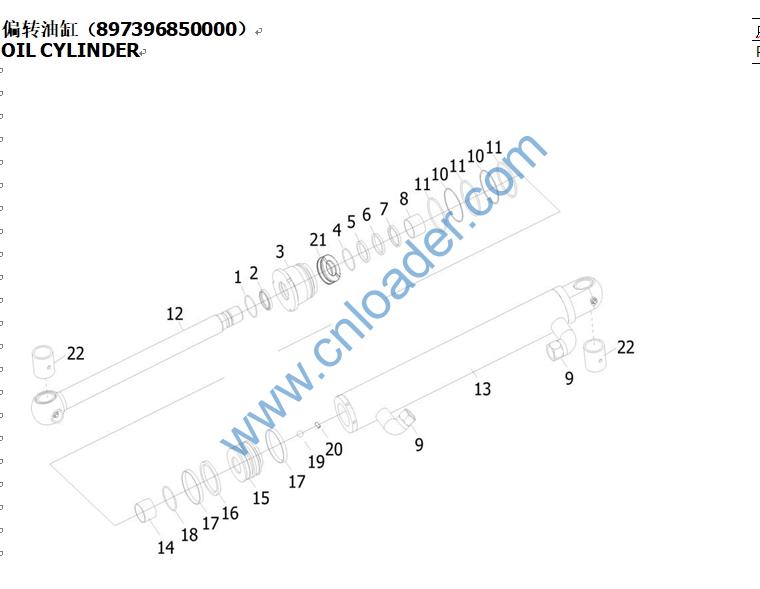

897396850000 S1 OIL CYLINDER 偏转油缸
333020000374 S1 CASTING DEFLECTION HEAD SWE17F铸造偏转头
897356140000 S1 DEFLECT LOWER MOUNTING SHAFT 偏转下安装轴
305040002855 S1 SHAFT SLEEVE 轴套1
701508010001 A1 WASHER 垫圈
302010007204 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
730652000231 A1 DUSTBAND 防尘圈
305090003553 S2 CYLINDER HEAD 缸头
730603000023 A1 O-RING O形圈
730654000094 A1 STOP COLLAR 挡圈
730602000218 A1 U-RING U形圈
730601000363 A1 PISTON ROD SEAL 活塞杆密封
750502000028 A1 SELF LUBRICATING SHAFT BEARING 自润轴承
739806000175 A1 PLUG 带压紧螺母的24°锥孔堵头
730603000632 A1 O-RING O形圈
730654000642 A1 STOP COLLAR 支撑环
897396850100 S1 PISTON ROD ASSEMBLY 活塞杆组件
897396850200 S1 CYLINDER BARREL UNIT 缸筒组件
305090003558 S1 CUSHION COLLAR 缓冲套
305090003559 S1 PISTON 活塞
730602000429 A1 PISTON SEAL 活塞密封
730651000028 A1 GUIDE RING 导向环
730603001475 A1 O-RING O形圈
750551000024 A1 STEEL BALL 钢球
701307006006 A1 NUT 螺钉
305090003557 S1 GUIDE SLEEVE 导向套
750502000694 A1 BUSH 含油衬套

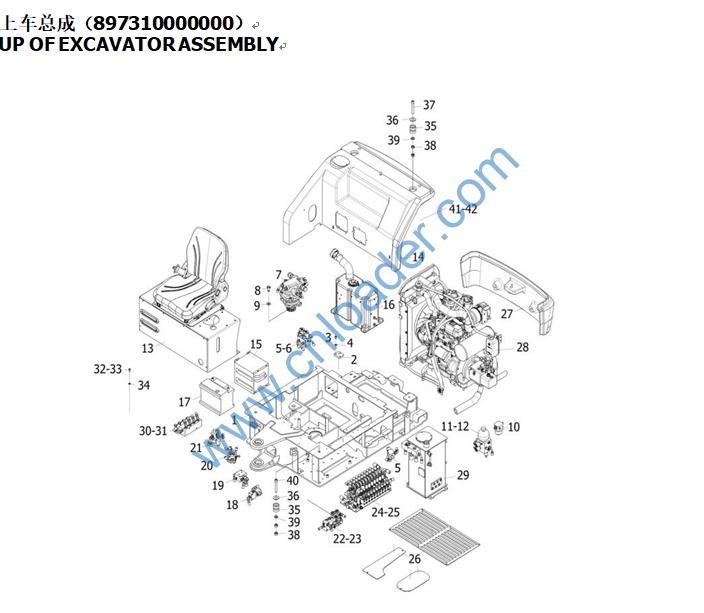

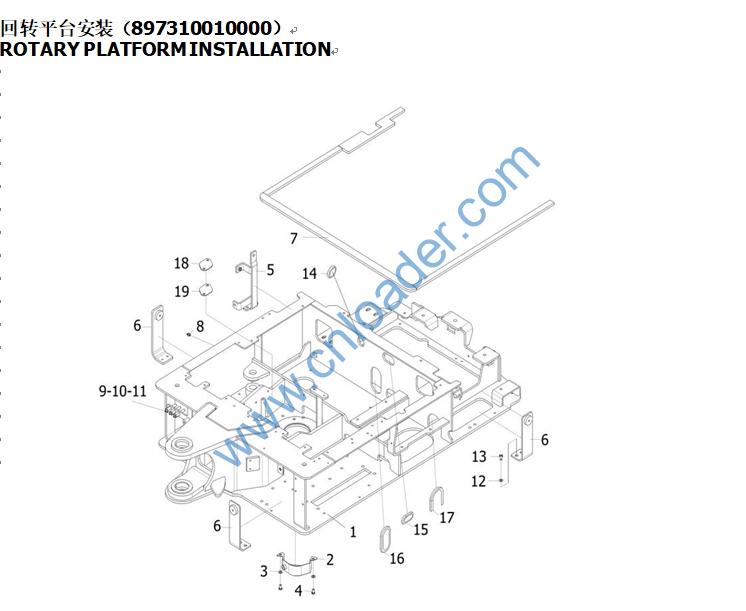

897310010000 S1 ROTARY PLATFORM INSTALLATION 回转平台安装
302030201084 A3 CHECK PLATE 止动板
701508010001 A1 WASHER 垫圈
730399000962 A1 SOLENOID VALVE BLOCK 两联电磁阀组
701302005035 A1 SCREW 螺钉
730250000283 A1 ROTARY MOTOR 回转马达
701104012022 A1 BOLT 螺栓
701508012002 A1 WASHER 垫圈
730401000358 A1 GUIDE FILTER 先导过滤器
730399000689 A1 PILOT ACCUMULATOR ASSEMBLY 先导蓄能器组件
701104006004 A1 BOLT 螺栓

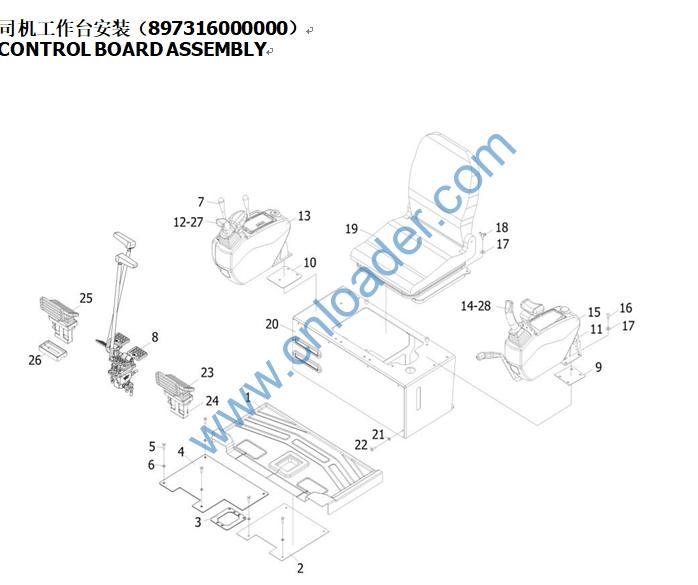

897316000000 S2 CONTROL BOARD ASSEMBLY 司机工作台安装
897310080000 S3 INTERMEDIATE SEAL ASSEMBLY 中间密封件安装
846518000000 A6 HEATER INSTALLATION 暖风机安装
897317000000 S1 FUEL TANK ASSEMBLY 燃油箱总成
897310070000 S1 STORAGE BATTERY ASSEMBLY 电瓶安装
730399000963 A1 SOLENOID VALVE BLOCK 常开电磁阀
730308000055 A1 VALVE 梭阀块组装
730309000328 A1 SWITCH VALVE 2位8通切换阀
730306000099 A1 SELECTOR VALVE 选择阀
730399001071 A1 PILOT BLOCK 先导油源块
730399001042 A1 PILOT OIL SOURCE BLOCK 先导油源块
897310050000 S1 MULTITANDEM VALVE INSTALLATION 多路阀安装（恒立）
897310060000 S2 MULTITANDEM VALVE INSTALLATION 多路阀安装(HC)
897310140001 S1 BOTTOM SHROUDING ASSEMBLY 底封板安装
897310090000 S2 WEIGHT ASSEMBLY 配重安装
897312000000 S2 POWER PLANT ASSEMBLY 动力总成
897315000000 S1 HYDRAULIC OIL TANK ASSEMBLY 液压油箱安装总成
730399000526 A1
DOUBLE PROPORTIONAL PRESSURE REDUCING VALVE SET 二联比例减压阀组
730399000931 A1 QUADRUPLE PROPORTIONAL VALVE SET 四联比例减压阀组
701103008014 A1 BOLT 螺栓
701103006020 A1 BOLT 螺栓M6X50-8.8-DKL GB/T 5783
701508008001 A1 WASHER 垫圈
750602000249 A1 SHOCK ABSORBER 25U司机室减震器
302010005411 S1 MOUNTING PAD 司机室安装垫
701103016067 A1 BOLT 螺栓
701406016001 A1 NUT 螺母
701502016002 A1 WASHER 垫圈
701104016042 A1 BOLT 螺栓
701307124001 A1 SCREW 螺钉
897310190000 S1 SPONGE ASSEMBLY OF CAB 驾驶室密封海绵总成
897310010100 S3 PLATFORM OF WELDING 回转平台焊接
846510010300 A2 BUTTER BOX 黄油盒
701508008001 A1 WASHER 垫圈
701104008026 A1 BOLT 螺栓
897310010700 S2 EDGE MOUNTING BRACKRT ASSEMBLY 2 围边安装支架组件2
897310010600 S1 EDGE MOUNTING BRACKRT ASSEMBLY 1 围边安装支架组件1
897310010900 S1 PLATFORM SPONGE ASSEMBLY 平台海绵总成
304060000256 S2 FITTINGS BODY 接头座

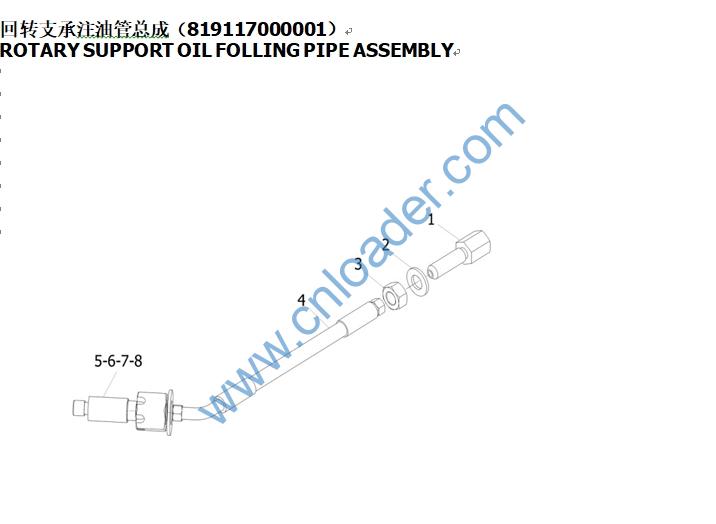

819117000001 A3 ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY 回转支承注油管总成

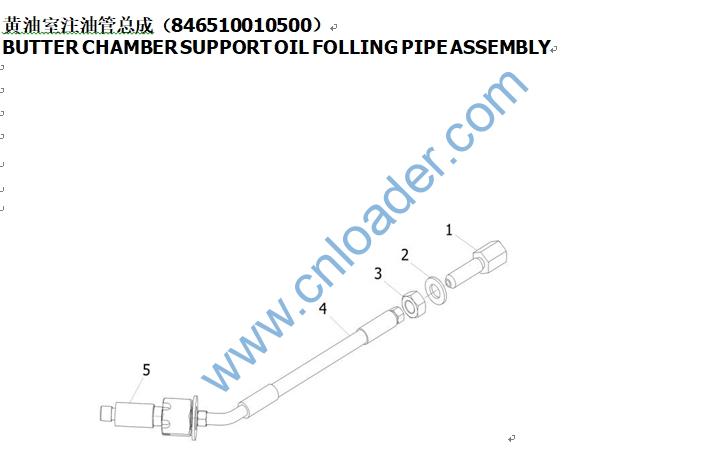

846510010500 A2
BUTTER CHAMBER SUPPORT OIL FOLLING PIPE ASSEMBLY 黄油室注油管总成

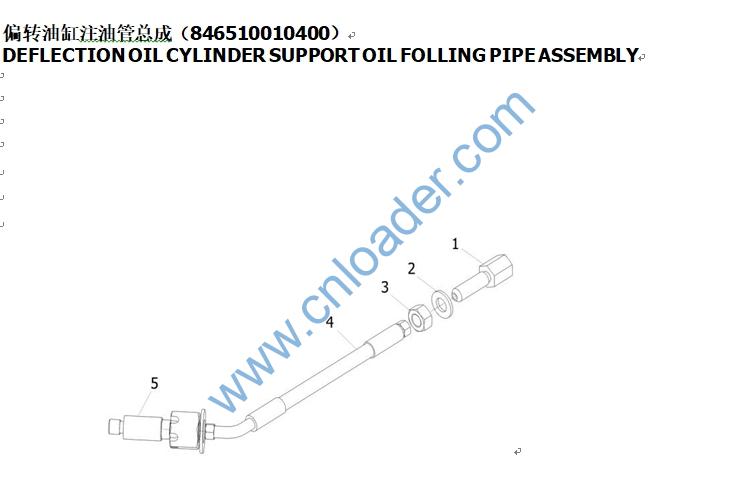

846510010400 A5
DEFLECTION OIL CYLINDER SUPPORT OIL FOLLING PIPE ASSEMBLY 偏转油缸注油管总成
701104008031 A1 BOLT 螺栓
333020000156 A1 APRONS 胶圈
333020000023 A1 APRON 胶圈
333020000167 A1 APRON 胶圈
301010301001 A1 SHEATH 护套
302490002247 A2 COVER PLATE 盖板
302490002248 A1 GASKET 密封垫
308010102004 A1 CONNECTOR BODY 接头体
701504010001 S1 WASHER 垫圈
701416010001 S1 NUT 螺母
730501002548 S1 GREASE HOSE 胶管
308010000774 A1 JIONT 接头
302010003332 A2 RUBBER MAT 橡胶垫
701410016002 S1 NUT 螺母
701504016003 S1 WASHER 垫圈
308010102004 A1 CONNECTOR BODY 接头体
701504010001 S1 WASHER 垫圈
701410010001 S1 NUT 螺母
730502005301 S1 GREASE HOSE 黄油室注油胶管
308010102003 A1 FITTINGS BODY 接头体
308010102004 A1 CONNECTOR BODY 接头体
701504010001 S1 WASHER 垫圈
701410010001 S1 NUT 螺母
730504003614 S1 GREASE HOSE 胶管
308010102003 A1 FITTINGS BODY 接头体
332040000367 S1 FOOT PAD 16F脚踏垫
302030054891 S1 SEAL PLATE 2 上封板2
897316100000 S1 MOUNTING PLATE WELDED 行走阀安装板焊接
302030054890 S1 SEAL PLATE 1 上封板1
701104008031 A1 BOLT 螺栓
701508008001 A1 WASHER 垫圈
730309000352 A1 PILOT CONTROL VALVE 推土先导操纵阀

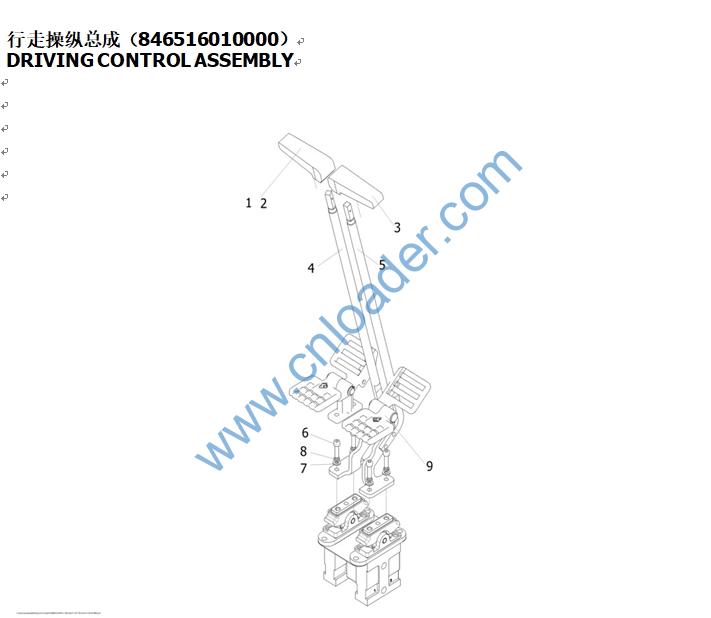

846516010000 S3 DRIVING CONTROL ASSEMBLY 行走操纵总成
302030027482 A1 SHOCK PAD 1 操纵箱减震垫1
302040002479 S1 SHOCK PAD OF LEFT CONTROL BOX 左操纵箱减震垫
720235000024 A1 MICROSWITCH 微动开关
730309000414 A1 RIGHT PILOT HANDLE 右先导手柄
862110129002 S1 RIGHT CONTROL BOX SWE25UF右操纵箱
730309000412 A1 LEFT PILOT HANDLE 左先导手柄
872010159001 S1 LEFT CONTROL BOX 左操纵箱
701104008026 A1 BOLT 螺栓
751106000172 A1 BUTTERFLY BOLT 蝶形螺栓
897316030000 S2 SEAT ASSEMBLY 座椅安装
897316110000 S3 CONTROL BOARD ASSEMBLY 操纵台结构件总成
701302006038 A1 SCREW 螺钉
701504006002 A1 WASHER 垫圈
750608010006 A1 LEFT PEDAL ASSEMBLY 左踏板总成
730309000445 A1 SINGLE-FOOT PEDAL VALVE 单联脚踏阀
750608010008 A1 PEDDAL ASSEMBLY 踏板总成
302560002099 S1 LEFT RUBBER MAT 左侧橡胶垫2
730309000313 A1 RIGHT PILOT HANDLE 右先导手柄
730309000314 A1 LEFT PILOT HANDLE 左先导手柄
750099000008 S1 HAND SHANK 手柄
701302005029 S1 SCREW 螺钉
750099000007 S1 HAND SHANK 手柄
878510204010 S1 LEFT TRAVEL LEVER 左行走杆焊接
878510204020 S1 RIGHT TRAVEL LEVER 右行走杆焊接
846516010200 S4 DOUBLE FOOT VALVE ASSEMBLY 双联脚踏阀总成
730309000413 S1 DOUBLE FOOT VALVE 双联脚踏阀
750625010063 S1 LEFT FOOT 左脚踏板
750625010065 S1 FRONT FOOT 前脚踏板
750314000096 S1 SHAFT 轴
750550000161 S1 OILLESS BEARING 无油轴承
701302010054 S1 SCREW 螺钉
750625010064 S1 RIGHT FOOT 右脚踏板
701104008027 S1 BOLT 螺栓
701104010034 S1 BOLT 螺栓
750625010091 S1 PLATE 过渡板
750606010057 S1 THE GUIDE PLATE 小挖先导盖板
750606010060 S1 THE UPPER COVER 小挖右上盖
750708010054 S1 RIGHT HANDRAIL 微挖右扶手
750708010052 S1 FRAMEWORK 扶手支架
750708010053 S1 ADJUST KNOB 扶手调整旋钮
750708010029 S1 RIGHT PEDESTAL 小挖右底座
750708010036 S1 RIGHT FRAMEWORK 右骨架
750606010061 S1 ON THE SIDE SHELL 侧上壳
750606010062 S1 UNDER THE SHELL SIDE 侧下壳
750606010063 S1 AT THE UPPER COVER PLATE 小挖右上盖板
750606010067 S1 STOP BLOCK 油门拉杆限位块
750702010052 A1 SEAT 座椅
701104008026 A1 BOLT 螺栓
701510008003 A1 WASHER 垫圈
897316030100 S1 FLIP RACK INSTALLATION 翻转架安装
302490058198 S1 HEAT INSULATION SPONGE 隔热海绵
846516500200 S2 THE SEAT STAY 座椅拉线
