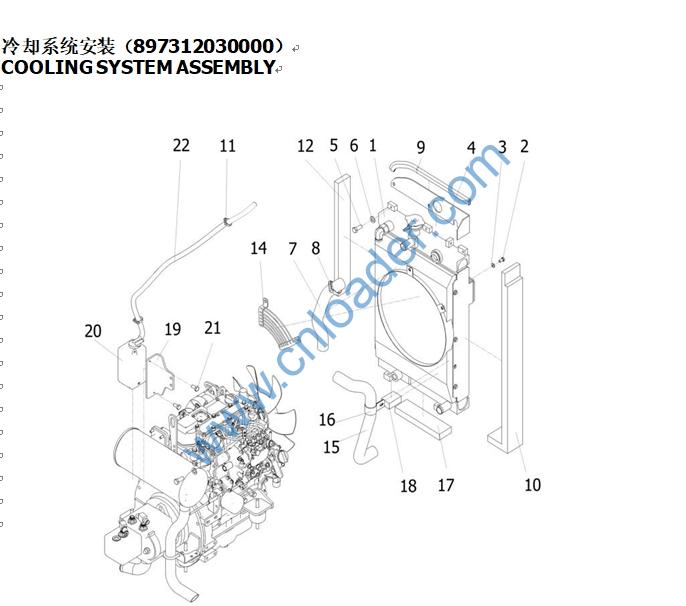

750203000325 A1 RADIATOR 散热器
701104010036 A1 BOLT 螺栓
701508010001 A1 WASHER 垫圈
897312030100 S2 BACKBOARD WELDING 隔板焊接
701104008026 A1 BOLT 螺栓
320990001960 S1 WATER OUTLET 发动机出水管
751011000185 A1 CLAMP 卡箍
750030000138 A1 STEEL CORE COMPOUND SEAL STRIP 钢芯复合密封条
302490057425 S1 WATER RADIATOR SIDE SPONGE 水散侧海绵
751008000257 A1 HOSE CLAMP 软管卡箍
302490068132 S1 OIL RADIATOR SIDE SPONGE 油散侧海绵
872012030101 S1 PROTECTION COVER 防护罩
320990001959 S1 WATER INLET 发动机进水管
305070001920 S2 WATER INLET PIPE CLAMP 进水管卡箍
302490057417 S1 LOWER SPONGE 下海绵
302490057428 S1 SMALL SPOMGE 小海绵
302540027903 S1 BRACKET 副水箱支架
750203010022 A1 EXPANSION TANK 副水箱
701302006039 A1 SCREW 螺钉
750005000347 A1 PIPE 溢流管

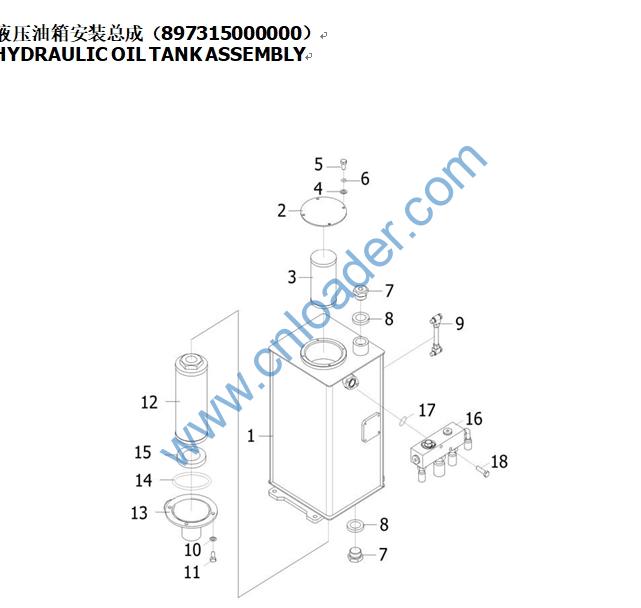

897315010000 S2 HYDRAULIC OIL TANK 液压油箱焊接
810215200001 A6 BACK TO THE OIL PRESSURE COVER 回油压盖
730403000079 A1 BACK TO THE OIL FILTER 回油滤芯
701504006002 A1 WASHER 垫圈
701104006017 A1 BOLT 螺栓
701510006003 A1 WASHER 垫圈
307040401002 A3 PLUG SCREW 螺塞
703202033001 A1 WASHER SET 组合垫圈
739801000020 A1 LIQUID LEVEL METER 液位计
701508008001 A1 WASHER 垫圈
701104008026 A1 BOLT 螺栓
730401000051 A1 OIL SUCTION FILTER 吸油滤芯
810215300000 A7 THE OIL OUT FLANGE 吸油法兰
703201106001 A1 O-RING O形圈
302010001014 A1 RUBBER BLANKET 橡胶垫
730399000655 A1 COMPOUND OIL RETURN BLOCK 复合回油块
703201025001 A1 O-RING O形圈2
701302008022 A1 SCREW 螺钉

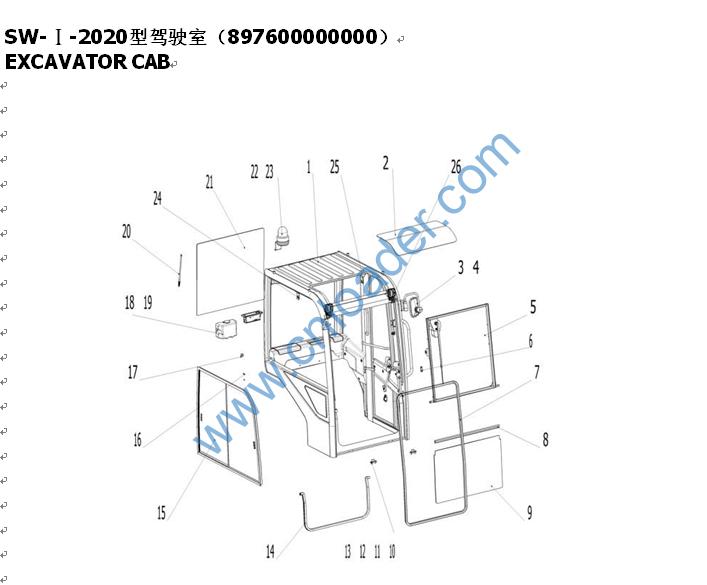

897601000000 S2 CAB WELDING ASSEMBLY 驾驶室焊合
302490057049 S2 TOP GLASS 天窗玻璃
750603000018 A1 MIRROR ASSEMBLY 反光镜总成
750603000019 A1 MIRROR HOLDER ASSEMBLY 反光镜支架总成

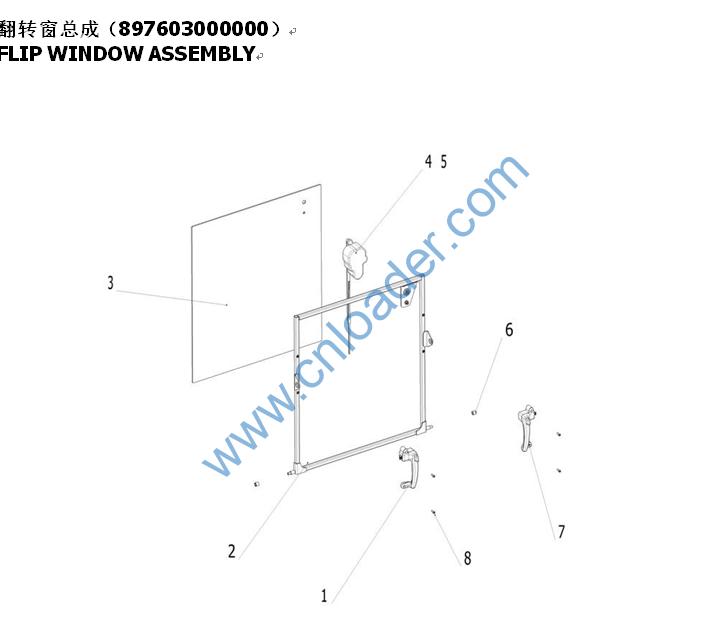

897603000000 S1 FLIP WINDOW ASSEMBLY 翻转窗总成
302030053950 S1 THREADED PLATE 锁扣调节螺纹板
301020001033 S1 FRONT WINDOW SEALING TAPE 前窗玻璃密封条
301020001031 S1 FRONT WINDOW SEALING TAPE 翻转窗胶条
302490057046 S1 FRONT UNDER GLASS 前下玻璃
750099000345 A1 FRONT WINDOW LOCATOR CARD 前下玻璃定位卡
701309006004 A1 SCREW 螺钉
701504006004 A1 WASHER 垫圈
701510006005 A1 WASHER 弹垫6-DKL GB/T93
301020001032 S1 RUBBER STRIP, FRONT LOWER GLASS 前下玻璃胶条
897605000000 S1 RIGHT MOVABLE WINDOW ASSEMBLY 右活动窗总成
750006010253 A1 PLUG 堵盖
750007000990 A1
LAMP POWER CORD THROUGH HOLE JACKET 过线保护套
720405000099 A1 SCRUBBER ASSEMBLY 洗涤器总成
750005000032 A1 WATER PIPE 水管
720226000006 A1 RUBBE ANTENNA 橡胶天线
302490057048 S2 BACK GLASS 后玻璃
720412000231 A1 WARNING LAMP 警示灯LED
302540021568 S1 ALARM LAMP BRACKET 无尾驾驶室警灯支架
302540028063 S2 LEFT LOCKING BRACKET 右锁止支架
302540028065 S2 RIGHT LOCKING BRACKET 左锁止支架
720214000189 A1 LED WORK LIGHTS LED工作灯
897602000000 S1 DOOR ASSEMBLY 门总成
305060002944 S4 DOOR HINGE NUT COVER 门铰链螺帽盖SW-Ⅱ
701104008031 A1 BOLT 螺栓
701504008001 A1 WASHER 垫圈
302490057639 S1 STOPPER 翻转窗下止动块-左
302490043038 S4
BOTTOM STOP BLOCK OF THE FLIP WINDOW 翻转窗下止动块
304050000899 S1 SPECIAL 专用螺栓
897604000000 S1 ROLL-OVER WINGDOW BRACKET 翻转窗连接架
304020005854 S1 ROLL-OVER WINGDOW AXLE 翻转窗下转轴
701510080003 A1 WASHER 弹垫
750908000117 A1 ROLL-OVER WINGDOW HAND LEVER 翻转窗左手柄
897603010000 S1 WINDOW FRAME WELDED 翻转窗焊合
302490057895 S2 FLIP WINDOW GLASS 翻转窗玻璃
813697200200 A1 WIPER ASSEMBLY 雨刮器总成
302030048093 S1 WIPER MOUNTING GASKET 雨刮器安装垫片
306990000596 S1 FLIP THE WINDOW ROLLER 无尾翻转窗滚轮
750908000118 A1 ROLL-OVER WINGDOW HAND LEVER 翻转窗右手柄
701323006013 A1 SCREW 螺钉

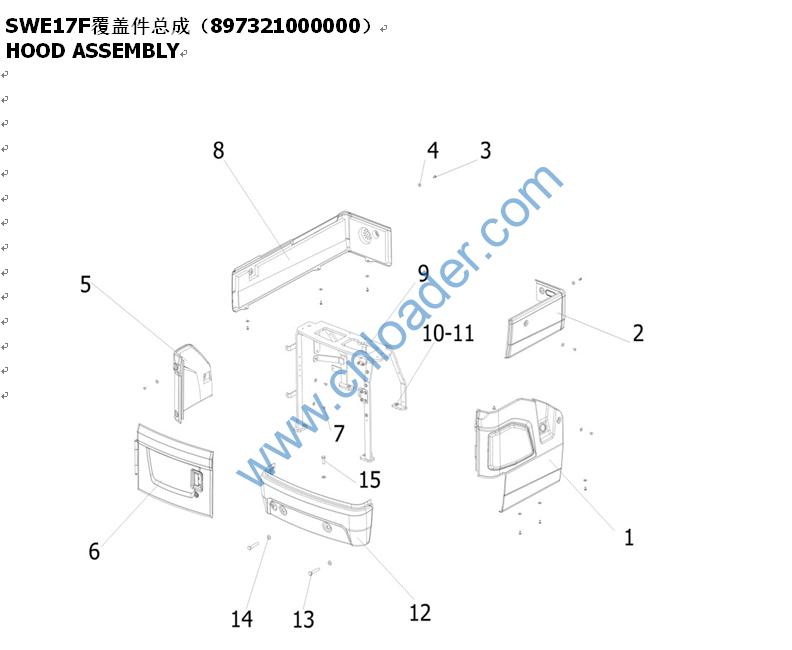

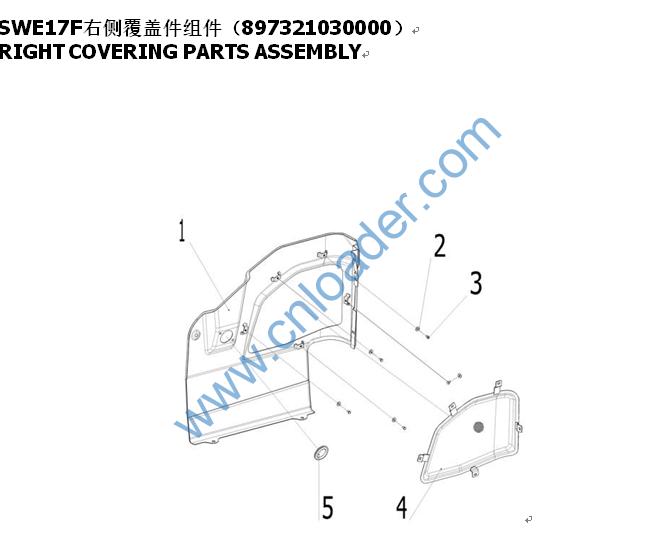

897321030000 S2 RIGHT COVERING PARTS ASSEMBLY SWE17F右侧覆盖件组件

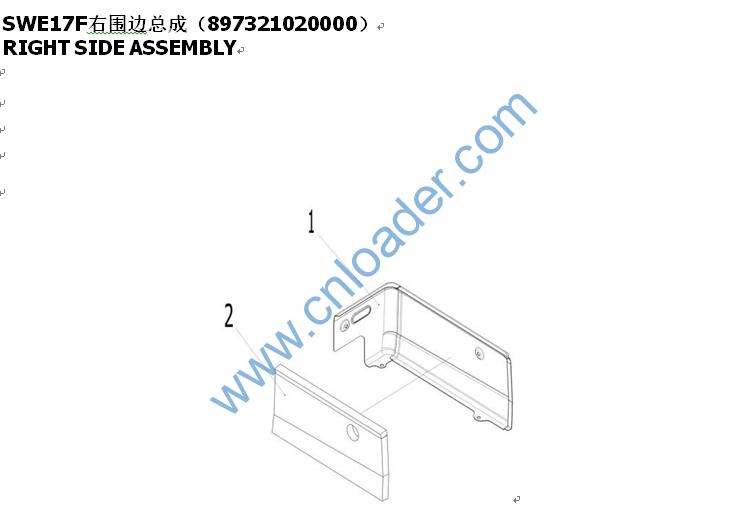

897321020000 S1 RIGHT SIDE ASSEMBLY SWE17F右围边总成
701104081601 A1 BOLT 螺栓M8X16-10.9-DKL GB/T 5783
701506008002 A1 WASHER 垫圈

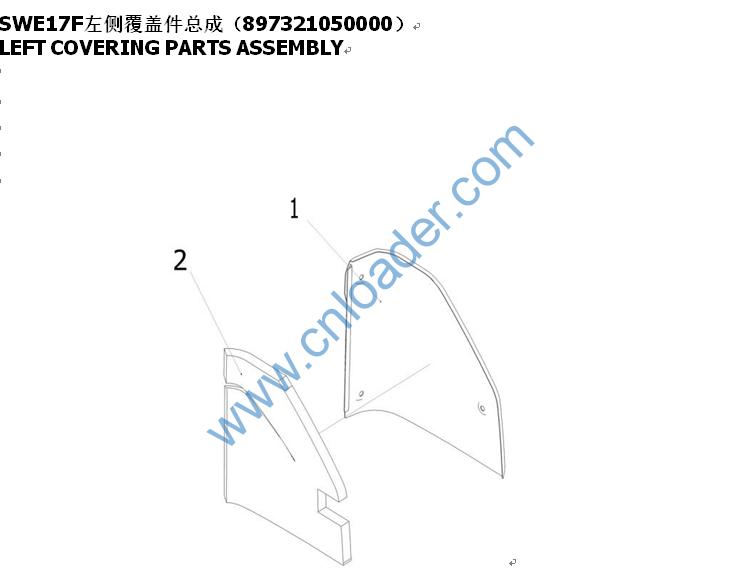

897321050000 S1 LEFT COVERING PARTS ASSEMBLY SWE17F左侧覆盖件总成

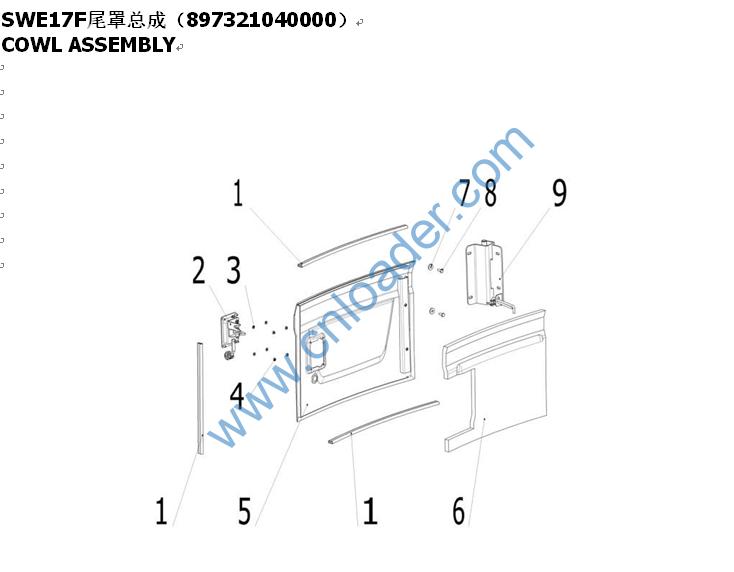

897321040000 S3 COWL ASSEMBLY SWE17F尾罩总成
701104008027 A1 BOLT 螺栓
897321010000 S1 LEFT SIDE ASSEMBLY SWE17F左围边总成
897321060000 S1 FRAMEWORK ASSEMBLY SWE17F覆盖件骨架总成
701104010034 A1 BOLT 螺栓
897321080100 S2 COUNTERWEIGHT ASSEMBLY SWE17F钣金配重总成
701104016042 A1 BOLT 螺栓
701504016003 A1 WASHER 垫圈
701104016024 A1 BOLT 螺栓
897321030100 S3 RIGHT SIDEL COVER WELDED ASSEMBLY SWE17F右侧覆盖件焊接组件
701502006002 A1 WASHER 垫圈
701104006023 A1 BOLT 螺栓
897321030200 S1 RIGHT PANEL PANEL WELDED ASSEMBLY SWE17F右侧覆盖件网板焊接组件
305040002364 S1 FILLER SEAL RING SWE35UF覆盖件左盖加油口密封圈
897321020100 S1 RIGHT SIDE SELDED ASSEMBLY SWE17F右围边焊接组件
302490057359 S1 SOUND ABSORBING SPONGE SWE17F右围边吸音海绵
897321050100 S1 LEFT SIDE COVER WELDED ASSEMBLY SWE17F左侧覆盖件焊接组件
302490057361 S1 SOUND ABSORBING SPONGE SWE17F左侧覆盖件吸音海绵
750030000138 A1 STEEL CORE COMPOUND SEAL STRIP 钢芯复合密封条

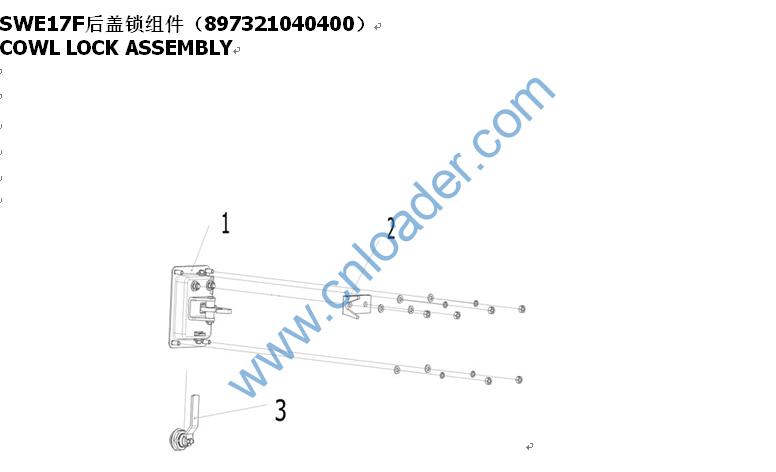

897321040400 S1 COWL LOCK ASSEMBLY SWE17F后盖锁组件
701504006002 A1 WASHER 垫圈
701406060003 A1 NUT 螺母
897321040100 S1 COWL WELDING ASSEMBLY SWE17F尾罩焊接组件
302490057366 S2 SOUND ABSORBING SPONGE SWE17F尾罩吸音海绵
701506008002 A1 WASHER 垫圈
701104008027 A1 BOLT 螺栓

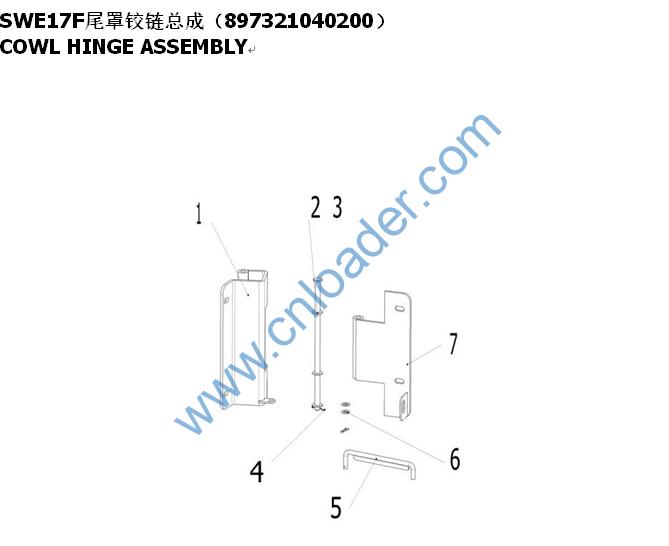

897321040200 S1 COWL HINGE ASSEMBLY SWE17F尾罩铰链总成
750906000299 A1 REAR COVER LOCK BODY 60U后盖锁体
302990007604 S1 TAIL LOCK GUIDE PLATE SWE17F后盖锁导向板
862121020210 A1 LOCK CYLINDER ASSEMBLY 新SWE25U覆盖件后盖锁芯总成
897321040201 S1 COWL HINGE PANEL ASSEMBLY SWE17F尾罩铰链活动页板组件
304990000906 S1 COWL HINGE SWE17F尾罩铰链轴
701703003204 A1 COTTER PIN 销
897321040203 S1 LIMIT TIE ROD ASSEMBLY SWE17F限位拉杆组件
897321040202 S1 COWL HINGE MOUNTING PANEL ASSEMBLY SWE17F尾罩铰链固定页板组件
