SWE17F 履带式液压挖掘机（897300000000）
SWE17F HYDRAULIC CRAWLER EXCAVATOR . 1
斗杆总成（897354000002）ARM ASSEMBLY . 2
铲斗油缸（810296830007）BUCKET CYLINDER . 3
动臂总成（897352000000） BOOM ASSEMBLY . 4
斗杆油缸（846596820007）ARM CYLINDER . 5
动臂油缸（897396810000）BOOM CYLINDER . 6
16/18/20 标准铲斗总成(370/0.035)（897355000011）BUCKET ASSEMBLE 7
偏转头安装（897356000001）OFFSET ORGAN ASSEMBLY 8
偏转油缸（897396850000）OIL CYLINDER 9
上车总成（897310000000）UP OF EXCAVATOR ASSEMBLY 10
转平台安装（897310010000）ROTARY PLATFORM INSTALLATION 12
转支承注油管总成（819117000001）
ROTARY SUPPORT OIL FOLLING PIPE ASSEMBLY 13
黄油室注油管总成（846510010500）
BUTTER CHAMBER SUPPORT OIL FOLLING PIPE ASSEMBLY 14
偏转油缸注油管总成（846510010400）
DEFLECTION OIL CYLINDER SUPPORT OIL FOLLING PIPE ASSEMBLY 15
司机工作台安装（897316000000）CONTROL BOARD ASSEMBLY 16
行走操纵总成（846516010000）DRIVING CONTROL ASSEMBLY 17
双联脚踏阀总成（846516010200）DOUBLE FOOT VALVE ASSEMBLY 18
SWE25UF 右操纵箱（862110129002）RIGHT CONTROL BOX 19
座椅安装（897316030000）SEAT ASSEMBLY 20
翻转架安装（897316030100）FLIP RACK INSTALLATION 21
座椅拉线（846516500200）THE SEAT STAY 22
操纵台结构件总成（897316110000）CONTROL BOARD ASSEMBLY 23
中间密封件安装（897310080000）INTERMEDIATE SEAL ASSEMBLY 24
暖风机安装（846518000000）HEATER INSTALLATION 25
燃油箱总成（897317000000）FUEL TANK ASSEMBLY 26
电瓶安装（897310070000）STORAGE BATTERY ASSEMBLY 27
多路阀安装（恒立）（897310050000）MULTITANDEM VALVE INSTALLATION 28
多路阀安装(HC)（897310060000）MULTITANDEM VALVE INSTALLATION 29
底封板安装（897310140001）BOTTOM SHROUDING ASSEMBLY . 30
配重安装（897310090000）WEIGHT ASSEMBLY . 31
动力总成（897312000000）POWER PLANT ASSEMBLY . 32
主泵安装（897312040000）MAIN PUMP ASSEMBLY . 33
发动机安装（897312010000）ENGINE ASSEMBLY . 34
燃油管路安装（897312020000）FUEL PIPE LINE ASSEMBLY . 35
冷却系统安装（897312030000）COOLING SYSTEM ASSEMBLY . 36
液压油箱安装总成（897315000000）HYDRAULIC OIL TANK ASSEMBLY 37
SW-Ⅰ-2020 型驾驶室（897600000000）EXCAVATOR CAB 38
翻转窗总成（897603000000）FLIP WINDOW ASSEMBLY 39
SWE17F 覆盖件总成（897321000000）HOOD ASSEMBLY 40
SWE17F 右侧覆盖件组件（897321030000）RIGHT COVERING PARTS ASSEMBLY 41
SWE17F 右围边总成（897321020000）RIGHT SIDE ASSEMBLY 42
SWE17F 左侧覆盖件总成（897321050000）LEFT COVERING PARTS ASSEMBLY 43
伸缩油缸（846596860000）TELESCOPIC CYLINDER 54
SWE17 工具清单（810299000002）TOOL LIST 55
SWE08 挖掘机工具包（815299010001）TOOL BOX 56
SWE17F 履带式液压挖掘机电气系统（897397000000）ELECTRICAL SYSTEM 57
SWE17F 履带式液压挖掘机平台电气系统（897397100000）
PLATFORM ELECTRICAL INSTALLATION 58
SWE17F 履带式液压挖掘机平台电气系统（897397100000）
PLATFORM ELECTRICAL INSTALLATION 59
SWE17F 履带式液压挖掘机平台电气系统（897397100000）
PLATFORM ELECTRICAL INSTALLATION 60
SWE17F 履带式液压挖掘机平台电气系统（897397100000）
PLATFORM ELECTRICAL INSTALLATION 61
封闭驾驶室翘板开关组（859797100500）
SWITCHES OF OPENED CABIN 62
SWE17F 履带式液压挖掘机驾驶室电气系统（897397200000）
CAB ELECTRICAL INSTALLATION 63
随机附件清单（878598000001）ACCESSORIES LIST 64
SWE17F 液压系统总成(恒立主阀）（897396000001）HYDRAULIC SYSTEM 65
上车液压管路安装（897396100001）UPPER CARRIAGE PIPELINE ASSEMBLY 66
主泵液压管路安装（897396101001）MAIN PUMP HYDRAULIC PIPELINE ASSEMBLY67
油液压管路安装（897396102001）
OIL RETURN HYDRAULIC PIPELINE ASSEMBLY 68
主阀主管路安装（897396101301）
MAIN VALVE HYDRAULIC PIPELINE ASSEMBLY 69
主阀至动臂背部钢管及动臂油缸液压管路安装（897396103101）
BOOM STEEL AND CYLINDER ASSEMBLY 70
转液压管路安装（897396103201）SWING PIPELINE ASSEMBLY 71
主阀至中央 转接头管路安装（897396103301）JOINT PIPELINE ASSEMBLY.72偏转油缸管路安装（897396103401）BOOM SWING ASSEMBLY 73
下车液压管路安装（872296200000）UNDER CARRIAGE PIPELINE ASSEMBLY .74
下车右侧行走马达液压管路安装（872296201100）
RIGHT TRAVEL PIPELINE ASSEMBLY 75
下车左侧行走马达液压管路安装（872296201200）
LEFT TRAVEL PIPELINE ASSEMBLY 76
下车推土液压管路安装（872296201300）
DOZER PIPELINE ASSEMBLY 77
下车伸缩油缸液压管路安装（872296201400）FLEX PIPELINE ASSEMBLY 78
工作装置液压管路安装（872296300000）
WORKING DEVICE PIPELINE ASSEMBLY 79
动力头液压管路总成（881096020223）
工作装置辅具液压管路安装（872296301100）AUX PIPELINE ASSEMBLY 80
工作装置破碎液压管路安装（872296301200）
HAMMER PIPELINE ASSEMBLY 81
工作装置液压快换锁液压管路安装（872296301300）
QUICK COUPLER PIPELINE ASSEMBLY 82
工作装置铲斗液压管路安装(加长斗杆配置）（872296301400）
BUCKET PIPELINE ASSEMBLY(LONG) 83
工作装置铲斗液压管路安装(短斗杆配置）（872296301500）
BUCKET PIPELINE ASSEMBLY(SHORT) 84
工作装置斗杆液压管路安装（872296301600）ARM PIPELINE ASSEMBLY 85
控制液压管路安装（897396400001）PILOT PIPELINE ASSEMBLY 86
右先导手柄液压管路安装（897396401101）RIGHT PILOT VALVE ASSEMBLY 87
左先导手柄液压管路安装（897396401201）LEFT PILOT VALVE ASSEMBLY 88
行走先导液压管路安装（897396401301）TRAVEL PILOT VALVE ASSEMBLY 89
破碎与偏转先导液压管路安装（897396401401）
BREAK AND BOOM SWING PILOT VALVE ASSEMBLY 90
推土与伸缩先导液压管路安装（897396401501）
BLADE AND TRACK PILOT VALVE ASSEMBLY 91

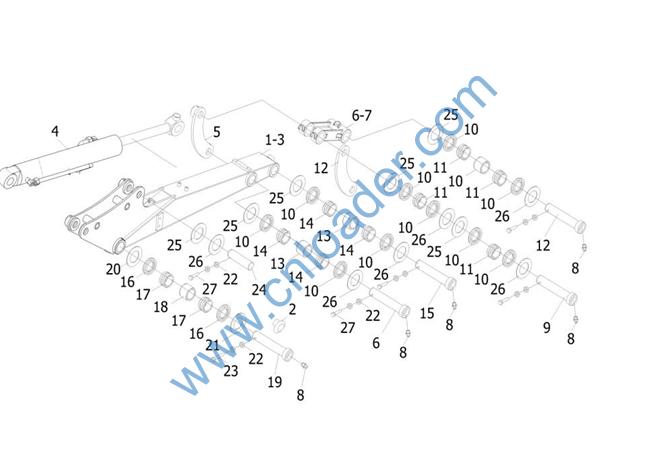

897354000002 S1 ARM ASSEMBLY 斗杆总成
897352000000 S2 BOOM ASSEMBLY 动臂总成
897355000011 S2 BUCKET ASSEMBLE 16/18/20标准铲斗总成(370/0.035)
897356000001 S1 OFFSET ORGAN ASSEMBLY 偏转头安装
897310000000 S3 UP OF EXCAVATOR ASSEMBLY 上车总成
897600000000 S2 EXCAVATOR CAB SW-Ⅰ-2020型驾驶室
897321000000 S3 HOOD ASSEMBLY SWE17F覆盖件总成
897340000001 S3 CHASSIS ASSEMBLY 下车总成
810299000002 A3 TOOL LIST SWE17工具清单
897396000000 S1 HYDRAULIC SYSTEM SWE17F液压系统总成(HC主阀）
897397000000 S1 ELECTRICAL SYSTEM SWE17F履带式液压挖掘机电气系统
878598000001 S6 ACCESSORIES LIST 随机附件清单
897395000000 S1 SIGNS ASSEMBLY 标识总成SWE17F
897396000001 S2 HYDRAULIC SYSTEM SWE17F液压系统总成(恒立主阀）
897354100000 S3 BUCKET ROD 斗杆焊接
750006010083 A1 RUBBER PLUG 橡塑堵头
810254100001 A13 BUCKET ROD 斗杆（1150MM）
810296830007 S6 BUCKET CYLINDER 铲斗油缸
897354200000 S2 RIGHT ROCKER ARM 右摇臂
810254400001 A4 CONNECTING ROD 连杆
333020000353 S1 CONNECTING ROD 铸造连杆
703101010001 A1 GREASE CUP 油杯
304020002410 A2 SHAFT E 销轴E
730652000004 A1 DUSTBAND 防尘圈
305040001437 A3 SHAFT SLEEVE B 轴套B
302490203098 A4 LEFT ROCKER ARM 左摇臂
305040400006 A5 BUSH 衬套
305040001438 A1 SHAFT SLEEVE C 轴套C
304020002411 A3 SHAFT F 销轴F
730652000027 A1 DUSTBAND 防尘圈
305040001439 A1 SHAFT SLEEVE D 轴套D
305040500009 A5 BUSH 衬套
304020002412 A2 SHAFT G 销轴G
750911000021 A1 RESIN ADJUSTING PAD 树脂调整垫
750911000022 A1 RESIN ADJUSTING PAD 树脂调整垫
701103010042 A1 BOLT 螺栓
304020002413 A2 SHAFT D 销轴D
750911000019 A1 RESIN ADJUSTING PAD 树脂调整垫
750911000020 A1 RESIN ADJUSTING PAD 树脂调整垫
701103010073 A1 BOLT 螺栓

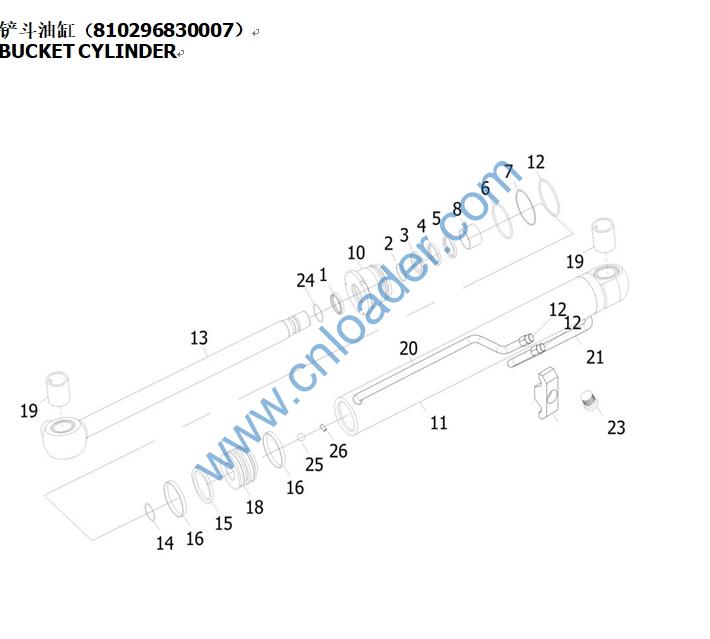

铲斗油缸（810296830007
730652000231 S1 DUSTBAND 防尘圈
730603000023 S1 O-RING O形圈
730654000094 S1 STOP COLLAR 挡圈
730602000218 S1 U-RING U形圈
730601000363 S1 PISTON ROD SEAL 活塞杆密封
730654000642 S1 STOP COLLAR 支撑环
730603000632 S1 O-RING O形圈
750502000028 S1 SELF LUBRICATING SHAFT BEARING 自润轴承
305090003553 S1 CYLINDER HEAD 缸头
810296830207 S5 CYLINDER BARREL UNIT 缸筒组件
739806000070 S1 PLUG 锥孔堵头
810296830107 S2 PISTON ROD SEAL PART 活塞杆组件
730603000009 S1 O-RING O形圈
730602000287 S1 PISTON SEAL 活塞密封
730651000283 S1 GUIDE RING 导向环
305090002359 S2 PISTON 活塞
305040400007 A5 BUSH 衬套
810296830247 S4 PIPELINE MODULE I 油管组件Ⅰ
810296830257 S3 PIPELINE MODULE II 油管组件Ⅱ
307080000745 S2 DOUBLE PIPE CLAMP 双孔管夹
701104008026 S1 BOLT 螺栓
302010007204 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
750551000024 S1 STEEL BALL 钢球
701307006006 S1 NUT 螺钉
730652000027 A1 DUSTBAND 防尘圈
305040001441 A1 AXLE SLEEVE 轴套A
305040500009 A5 BUSH 衬套
703101010001 A1 GREASE CUP 油杯
750911000023 A1 RESIN ADJUSTING PAD 树脂调整垫
750911000046 A1 RESIN ADJUSTING PAD 树脂调整垫

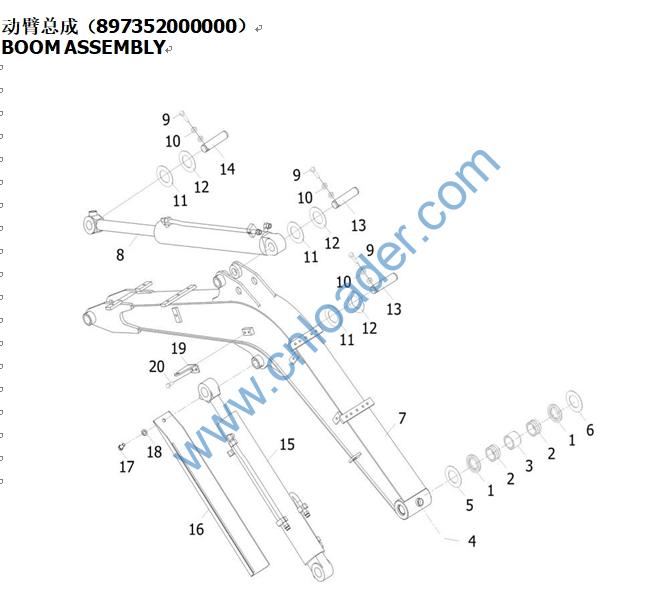

897352100000 S3 BOOM WELDING 动臂焊接

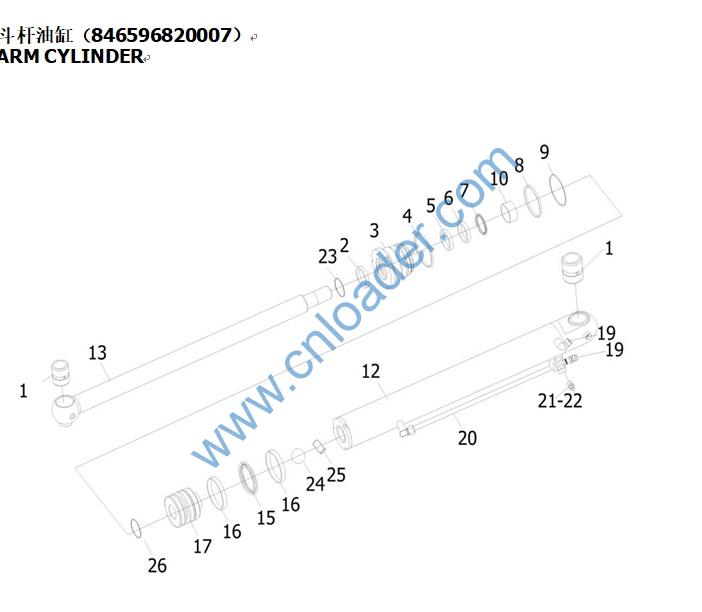

846596820007 S8 ARM CYLINDER 斗杆油缸
701103010073 A1 BOLT 螺栓
750911000019 A1 RESIN ADJUSTING PAD 树脂调整垫
750911000020 A1 RESIN ADJUSTING PAD 树脂调整垫
304020002420 A2 SHAFT C 销轴C
304020002413 A2 SHAFT D 销轴D

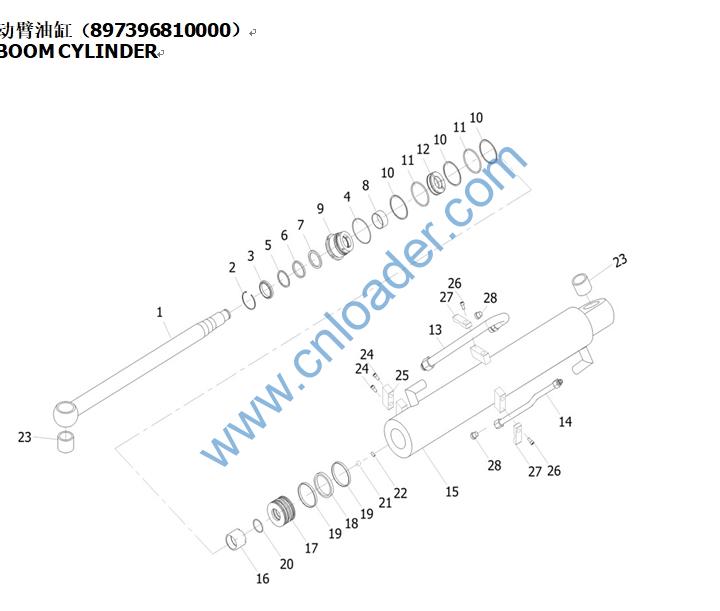

897396810000 S1 BOOM CYLINDER 动臂油缸
810251200000 A3 GUARD PLATE OF BOOM CYLINDER 动臂油缸护板
701104012046 A1 BOLT 螺栓
701502012002 A1 WASHER 垫圈
302040004230 S1 LAMP HOLDER 灯座
701104008043 A1 BOLT 螺栓
750502000694 S1 BUSH 含油衬套
730652000231 S1 DUSTBAND 防尘圈
305090003553 S1 CYLINDER HEAD 缸头
730603000023 S1 O-RING O形圈
730654000094 S1 STOP COLLAR 挡圈
730602000218 S1 U-RING U形圈
730601000363 S1 PISTON ROD SEAL 活塞杆密封
730654000642 S1 STOP COLLAR 支撑环
730603000632 S1 O-RING O形圈
750502000028 S1 SELF LUBRICATING SHAFT BEARING 自润轴承
846596820207 S8 CYLINDER BARREL UNIT 缸筒组件
846596820107 S1 PISTON ROD ASSEMBLY 活塞杆组件
730602000429 S1 PISTON SEAL 活塞密封
730651000028 S1 GUIDE RING 导向环
305090003559 S1 PISTON 活塞
739806000070 S1 PLUG 锥孔堵头
846596820227 S6 PIPELINE MODULE 油管组件
307080000737 S5 SINGLE PIPE CLAMP 单孔管夹
701104008027 S1 BOLT 螺栓
302010007204 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
750551000024 S1 STEEL BALL 钢球
701307006006 S1 NUT 螺钉
730603001475 S1 O-RING O形圈
897396810100 S1 PISTON ROD ASSEMBLY 活塞杆组件
302010007285 S2 DUSTBAND BAFFLE RING 防尘圈挡圈
730652000326 A1 DUSTBAND 防尘圈
730603000023 A1 O-RING O形圈
730654000075 A1 CHECK RING 挡圈
730601000395 A1 PISTON SEAL 活塞杆密封
730601000394 A1 PISTON SEAL 活塞杆密封
750502000027 A1 SELF LUBRICATING SHAFT BEARING 自润轴承
305090003304 S3 CYLINDER HEAD 缸头
730654000642 A1 STOP COLLAR 支撑环
730603000632 A1 O-RING O形圈
305090003305 S3 GUIDE SLEEVE 导向套
897396810300 S1 PIPELINE MODULEⅠ 油管组件Ⅰ
846596810407 S2 PIPELINE MODULE Ⅱ 油管组件Ⅱ
897396810200 S3 CYLINDER BARREL UNIT 缸筒组件
305090003303 S2 CUSHION SEAL SHEATH 缓冲套
305090003306 S1 PISTON 活塞
730602000429 A1 PISTON SEAL 活塞密封
730651000028 A1 GUIDE RING 导向环
730603000978 A1 O RING O形圈
750551000024 A1 STEEL BALL 钢球
701307006002 A1 SCREW 螺钉
750502000694 A1 BUSH 含油衬套
701302005029 A1 SCREW 螺钉
302030023882 S1 SLIDE PLATE 滑座板
701104008027 A1 BOLT 螺栓
307080000737 S5 SINGLE PIPE CLAMP 单孔管夹
739806000070 A1 PLUG 锥孔堵头

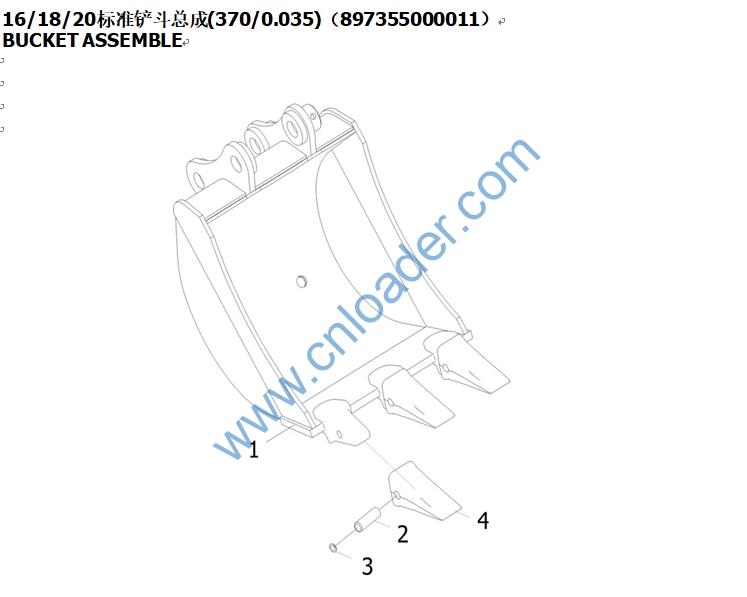

897355100011 S2 THE BUCKET 铲斗(370mm 0.035m3)
750601000265 S1 PIN 销子
750601000263 S1 BUCKET TOOTH 斗齿
750601000266 S1 CIRCLIP 卡簧
