Part Code
112100714 Part Name
销轴 Pin Shaft
112100715 挡板 Retaining Plate
805300010 垫圈8 Washer 8
805000018 螺栓M8×20 Bolt M8×20
112100716 拉索座 Rope Seat
112101143 销轴 Pin Shaft
112100723 定轴板 Shaft Bushing
112101151 销轴 Pin Shaft
112101152 挡板 Retaining Plate
805300014 垫圈10 Washer 10
805000727 螺栓M10×25 Bolt M10×25
112101144 销轴 Pin Shaft
112101145 拉索座 Rope Seat
112104792 粗拉索Ⅰ Thick Rope Ⅰ
111200872 定轴板 Shaft Bushing
112104794 粗拉索Ⅱ Thick Rope Ⅱ
112104796 导向架 Guide Rack
112100748 绳托 Rope Roller
112101158 导向轮 Guide Rack
112104982 细拉索Ⅰ Grossly Rope Ⅰ
112104984 细拉索 Ⅱ Grossly Rope Ⅱ
112100773 调整垫 Adjust Mat
112100774 调整垫 Adjust Mat
112101162 隔套 Sleeve
805300069 垫圈8 Washer 8
112100777 绳挡 Rope Hold
112101163 托绳架 Rope Roller Rack
805200062 螺栓M10×35 Bolt M10×35
805300017 垫圈10 Washer 10
112100782 调整垫 Adjust Mat
112100783 调整垫 Adjust Mat
112100775 销轴 Pin Shaft
Part Code
112101490 Part Name
卡子 Clip
112100794 绳挡 Rope Hold
111206294 销 Pin
111201950 卡子 Clip
111204291 轮子 Wheel
111201979 销销 Pin
112100785 绳挡 Rope Hold
805000232 螺栓M6×35 Bolt M6×35
805300030 垫圈6 Washer 6
805200053 螺母M6 Nut M6
805000137 螺栓M8×40 Bolt M8×40
805200045 螺母M8 Nut M8
112100786 销轴 Pin Shaft
805400046 挡圈35 Retaining Washer 35
805103599 螺栓M12×35 Bolt M12×35
805300008 垫圈12 Washer 12
112100787 滑轮 Pully
112101658 销 Pin
112100790 挡板 Retaining Plate
112100791 绳挡 Rope Hold
805000322 螺栓M6×16 Bolt M6×16
805200236 螺母M12 Nut M12
805300013 垫圈16 Washer 16
805300111 垫圈16 Washer 16
805200160 螺母M20 Nut M20
805200052 螺母M20 Nut M20
805300112 垫圈20 Washer 20
805000033 螺栓M8×16 Bolt M8×16
805200065 螺母M20 Nut M20
111207230 垫圈 Washer
112300246 支架 Bracket
112101487 支承座 Support Seat
112100734 调整垫 Adjust Mat
112100735 调整垫 Adjust Mat
805300010 垫圈 8 Washer 8
805200045 螺母 M8 Nut M8
805100207 螺钉 M8×35 Bolt M8×35
112101154 导向架结构 Guide Bracket
801300294 支承座 Support Seat
112100808 挡绳架 Hold Rope
805000017 螺栓 M8×25 Bolt M8×25
805300010 垫圈 8 Washer 8
805300069 垫圈 8 Washer 8
805100137 螺钉 M8×20 Bolt M8×20

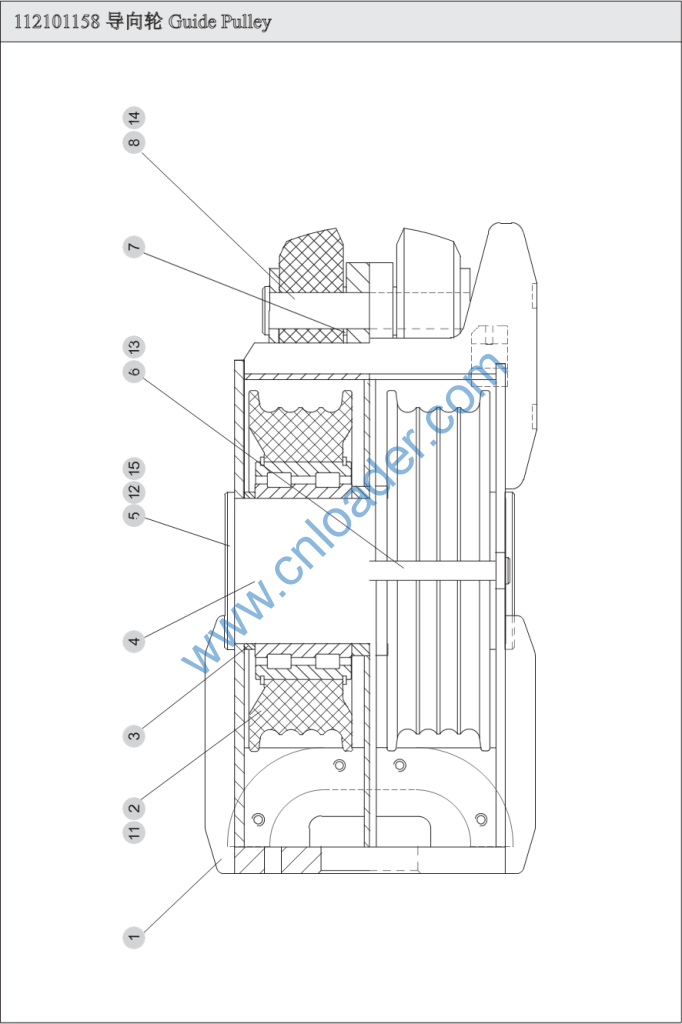

112101159 导向轮结构 Guide Pulley
112101489 滑 轮 Pulley
112101536 隔 套 Space
112100768 轴 Shaft
111700866 端 盖 End Cover
112100771 绳 挡 Rope Holder
112101537 隔 套 Space
111201978 销 Pin
111201946 滚 轮 Trolley
111200891 隔 套 Space
800501030 轴 承 Bearing
805000017 螺栓 M8×25 Bolt M8×25
805600027 销 4×35 Pin 4×35
805600011 销 6.3×50 Pin 6.3×50
805300010 垫圈 8 Washer 8
112100778 板 Plate
112101491 挡 块 Hold Block
805100236 螺钉 M6×40 Bolt M6×40
805300029 垫圈 6 Washer 6
805200053 螺母 M6 Nut M6
805300030 垫圈 6 Washer 6
112101164 支 架 Bracket
112101587 垫 板 Plate
805100063 螺钉 M6×12 Bolt M6×12
112101538 滑 轮 Pulley
800500163 复合轴承GS-2 Complex Bearing GS-2
Part Code
802138671

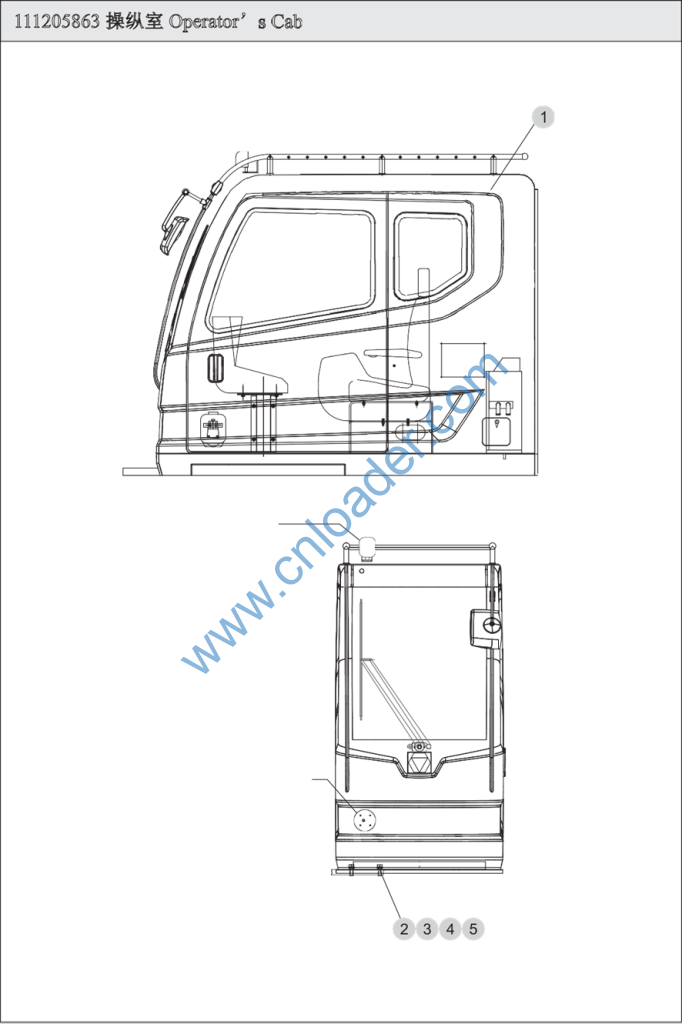

操纵室总成 Part Name
Manipulate Ventriculus
General Balling
805000026 螺栓M16×35 Bolt M16×35
805300011 垫圈16 Washer 16
805300111 垫圈16 Washer 16
802140699 底封板 Plate

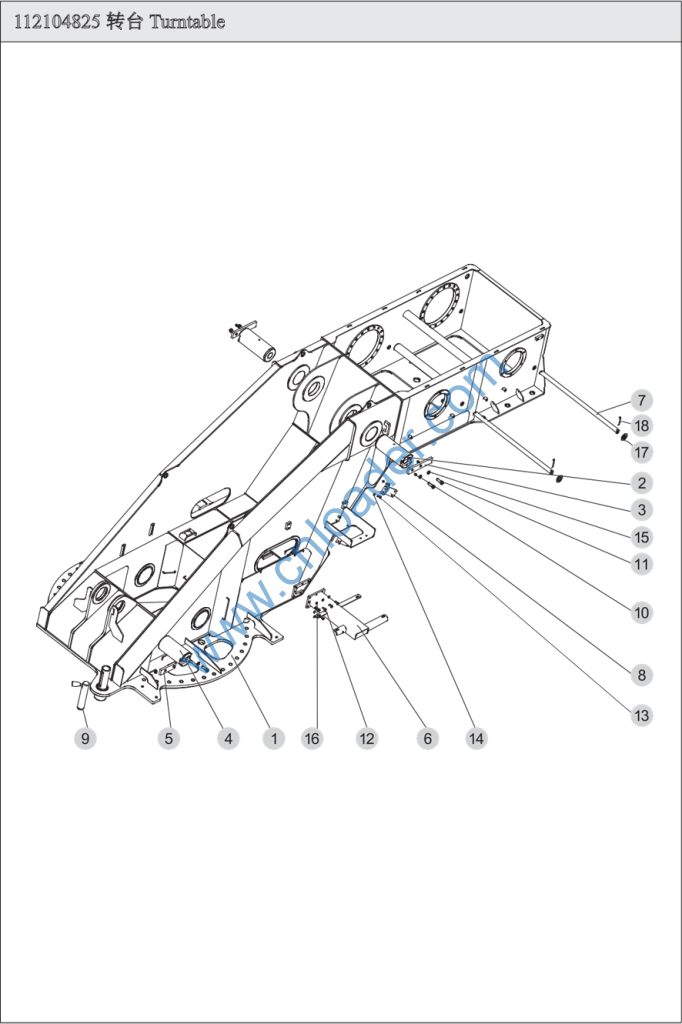

Part Code
112104824 Part Name
转台主体 Turntable Assy.
112104861 轴 Shaft
112104848 板 Plate
112104862 轴 Shaft
112104850 板 Plate
112104851 支架 Support Shelf
112104870 销轴 Pin Shaft
112104847 支架 Support Shelf

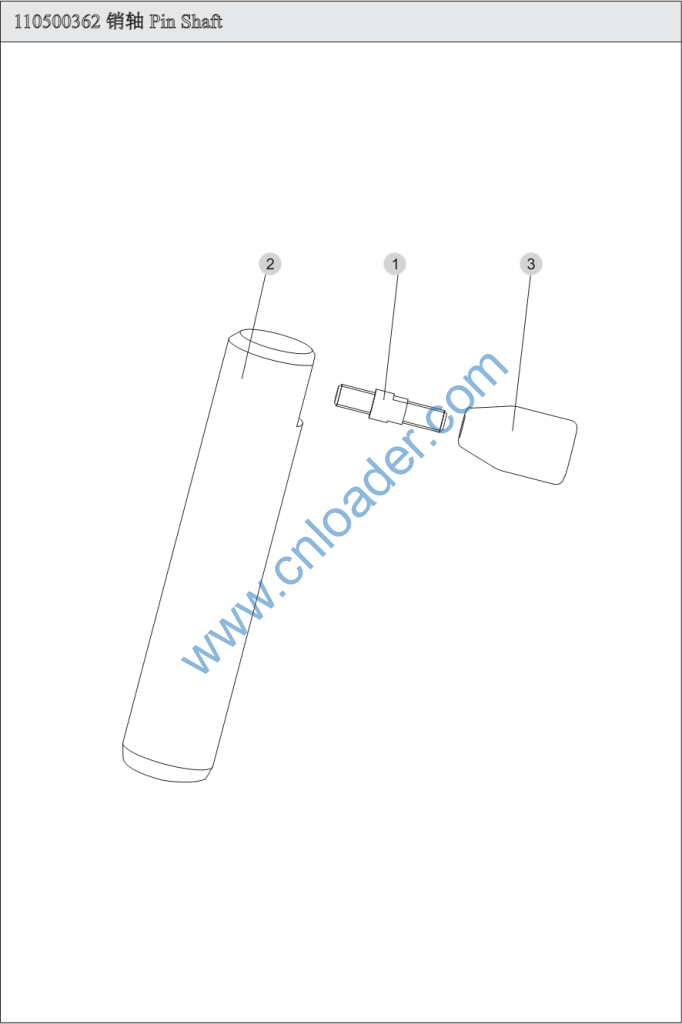

110500362 销轴 Pin Shaft
801100336 油杯 M10×1 Oil Cup M10×1
805000612 螺栓M16×45 Bolt M16×45
805002068 螺栓M10×22 Bolt M10×22
805004596 螺栓M8×35 Bolt M8×35
805300010 垫圈8 Washer 8
805338263 垫圈16 Washer 16
805300014 垫圈10 Washer 10
805300118 垫圈30 Washer 30
805639367 销 6.3×63 Pin 6.3×63
Part Code
110500905
螺柱 Part Name
Bolt
110500364 销 Pin
130201139 手柄 Handle
