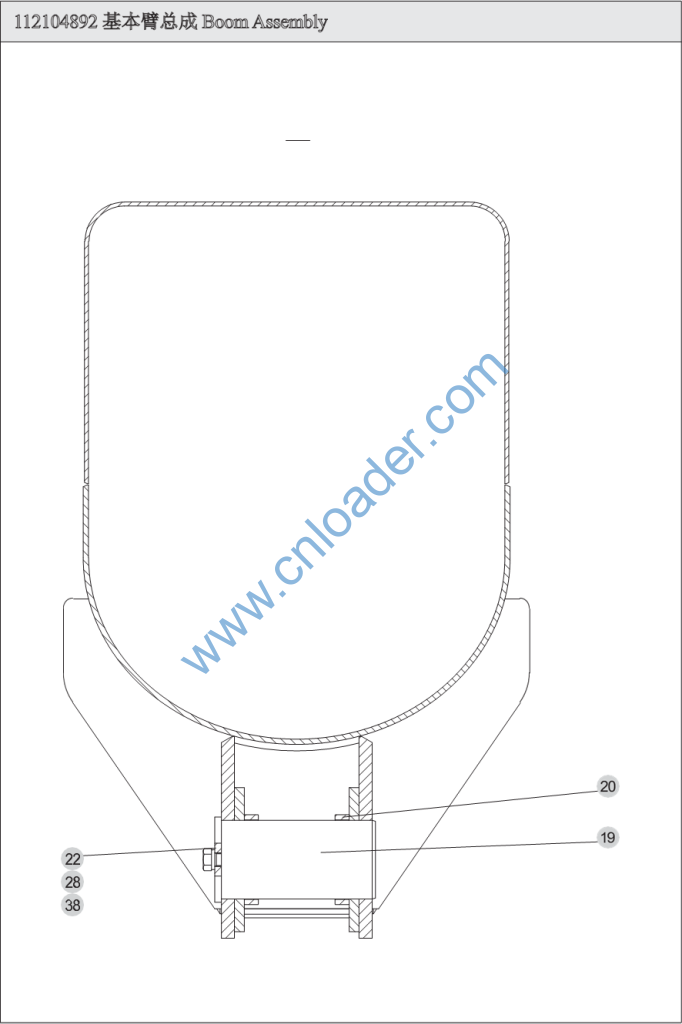

1 112100932 支架 Bracket 1
3 112100563
橡胶垫
Balata Mat 2
5 805300018
垫圈12
Washer 12 4
7 805100137
螺钉M8×20
Bolt M8×20 4
No.
1 Part Code
112104918
二节臂结构 Part Name
2nd Section structure
2 112100975 板 Plate
3 112101558 板 Plate
4 112101592 垫板 Mat
5 112100976 挡板 Baffle
6 112101559 滑板 Slider
7 112100977 垫板 Mat
8 112100978 垫板 Mat
9 112101560 滑板 Slider
10 112100979 垫板 Mat
11 112100980 垫板 Mat
12 112101561 滑块 Slider
13 112100981 垫片 Mat
14 112100982 垫片 Mat
15 112101562 滑块 Slider
16 112100929 支撑块 Support
17 112101551 滑块 Slider
18 112101552 滑块 Slider
19 112101553 滑块 Slider
20 112101554 滑块 Slider
21 112101555 滑块 Slider
22 111205853 销轴 Pin Shaft
23 111200715 垫片 Mat
24 111200716 垫片 Mat
25 111202002 螺栓 Bolt
26 801100336 油杯M10×1 Oil Cup M10×1
27 805000064 螺栓M12×55 Bolt M12×55
28 805100107 螺钉M8×25 Bolt M8×25
29 805200045 螺母M8 Nut M8
30 805200116 螺母M16 Nut M16
31 805300010 垫圈8 Washer 8
32 805300013 垫圈16 Washer 16
No.
33 Part Code
805300018
垫圈12 Part Name
Washer 12
34 805300069 垫圈8 Washer8
35 805600006 销4×30 Pin4×30
36 805600315 销16×140 Pin 16×140
No.
1 Part Code
112104938
三节臂结构 Part Name
3rd section structure
2 112100562 滑轮总成 Pulley Assembly
3 111200716 垫片 Mat
4 111200715 垫片 Mat
5 112101562 滑块 Slider
6 112101555 滑块 Slider
7 111200712 轴端挡板 Retaining Plate
8 112101554 滑块 Slider
9 112101553 滑块 Slider
10 112100980 垫板 Mat
11 112101552 滑块 Slider
12 112100979 垫板 Mat
13 112101560 滑板 Slider
14 111205853 销轴 Pin Shaft
15 112100978 垫板 Mat
16 112101551 滑块 Slider
17 112100977 垫板 Mat
18 111202002 螺栓 Bolt
19 111200708 隔套 Sleeve
20 112100565 销 Pin
21 112100929 支撑块 Support
22 112105592 垫板 Mat
23 112101564 滑块 Slider
24 112100564 垫片 Mat
25 112101019 挡板 Mat
26 112100563 垫片 Mat
27 112101591 垫板 Mat
28 112101563 滑板 Slider
29 112101018 板 Plate
30 801100336 油杯M10×1 Oil Cup M10×1
31 805000008 螺栓M6×12 Bolt M6×12
32 805000064 螺栓M12×55 Bolt M12×55
No.
33 Part Code
805100107
螺钉M8×25 Part Name
Bolt M8×25
34 805200068 螺母M8 Nut M8
35 805200116 螺母M16 Nut M16
36 805300010 垫圈8 Washer 8
37 805300013 垫圈16 Washer 16
38 805300018 垫圈12 Washer 12
39 805300069 垫圈8 Washer 8
40 805300190 垫圈6 Washer 6
41 805600006 销4×30 Pin 4×30
42 805600315 销16×140 Pin 16×140
1 112101520 滑 轮 Pulley 1
2 800500011 复合轴承 Bearig 1
φ40×2×25 φ40×2×25
No.
1 Part Code
112104951
四节臂结构 Part Name
4th section structure
2 112104577 隔套 Sleeve
3 112100606 滑轮总成 Pulley Assembly
4 112101069 滑轮总成 Pulley Assembly
5 112101073 隔套 Sleever
6 112101578 滑块 Slider
7 112101577 滑块 Slider
8 112101068 挡轴板 Retaining
9 111200716 垫片 Mat
10 112101584 轴 Pin
11 111200715 垫片 Mat
12 112101067 销轴 Pin Shaft
13 112101576 滑板 Slider
14 112101575 滑板 Slider
15 112101574 滑板 Slider
16 112101573 滑板 Slider
17 112101572 滑块 Slider
18 112100980 垫板 Mat
19 112101571 滑块 Slider
20 112100979 垫板 Mat
21 112101570 滑块 Slider
22 112101560 滑板 Slider
23 112101569 滑块 Slider
24 111205853 销轴 Pin Shaft
25 112101568 滑块 Slider
26 112101567 滑块 Slider
27 111202002 螺栓 Bolt
28 111200763 垫片 Mat
29 112100929 支撑块 Support
30 112101589 垫板 Mat
31 111200762 垫片 Mat
32 112101066 挡板 Plate
No.
33 Part Code
112101566 Part Name
滑块 Slider
34 112101565 滑板 Slider
35 112101065 板 Plate
36 801100336 油杯M10×1 Oil M10×1
37 805000064 螺栓M12×55 Bolt M12×55
38 805000716 螺栓M12×30 Bolt M12×30
39 805100107 螺钉M8×25 Bolt M8×25
40 805200068 螺母M8 Nut M8
41 805200116 螺母M16 Nut M16
42 805300010 垫圈8 Washer8
43 805300013 垫圈16 Washer 16
44 805300018 垫圈12 Washer 12
45 805300069 垫圈8 Washer8
46 805400016 挡圈40 Washer 40
47 805600006 销4×30 Pin 4×30
48 805600315 销16×140 Pin 16×140
49 112105593 滑块 Slider
1 112101070 滑轮 Pulley
2 112101071 盖板 Cover Plate
3 805100061 螺钉M6×16 Bolt M6×16
4 800501031 圆柱滚子轴承 Bearing
1 112101521 滑 轮 Pulley
2 111200761 挡 圈 Hold Washer
3 800500164 轴承6208-2LS Bearing 6208-2LS
4 805100342 螺钉M6×12 Bolt M6×12
No.
1 Part Code
112104967
五节臂结构 Part Name
Fifth Section Structure
２ 112101135 垫 片 Mat
3 112101136 盖 板 Cover Plate
4 112101137 绳 挡 Rope Hold
5 112103178 轴 Shaft
6 112101579 滑块 Slider
7 112101580 滑 块 Slider
8 112101139 垫 片 Mat
9 112101140 垫 片 Mat
10 112101581 导轨 Track
11 112101582 滑块 Slider
12 112101583 滑 块 Slider
13 112101657 隔套 Sleeve
14 112102448 板 Plate
15 112101482 卡 子 Clip
16 112100701 隔 套 Sleeve
17 112100702 隔 套 Sleeve
18 112100708 垫 片 Mat
19 111900158 滑轮总成 Pulley Assembly
20 111900375 销 轴 Pin Shaft
21 111900373 绳 挡 Rope Hold
22 111700114 滑轮总成 Pulley Assembly
23 111205853 销 轴 Pin Shaft
24 111200853 挡轴板 Retaining Plate
25 111200860 板 Plate
26 111200861 板 Plate
27 801100336 油杯M10×1 Oil Cup M10×1
28 805000048 螺栓 M12×35 Bolt M12×35
29 805100037 螺钉 M8×25 Bolt M8×25
30 805100047 螺钉 M12×40 Bolt M12×40
31 805100068 螺钉 M10×25 Bolt M10×25
32 805100107 螺钉 M8×25 Bolt M8×25
No.
33 Part Code
805100187
螺钉 M8×50 Part Name
Bolt M8×50
34 805300010 垫圈 8 Washer 8
35 805300018 垫圈 12 Washer 12
36 805300069 垫圈 8 Washer 8
1 111701483 滑轮 Pulley
2 800500111 轴承6217 Bearing 6217
3 805400058 挡圈150 Washer 150
1 112101588 滑轮 Pulley
2 800501057 轴承SL045017 ZZ Bearing SL045017 ZZ
