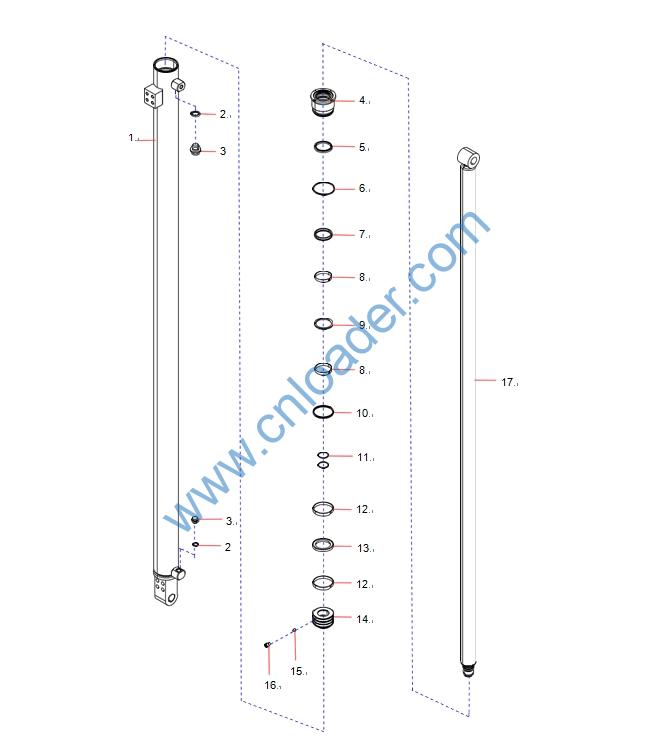

1 20S22- 5046262 Cylinder Bore GP 1
YG00
2 A210434000008 Washer 2
3 12355723 Screw Plug 2
4 13267547 Guide Bush 1
5 B230101000067 AY Dust Ring 1
6 A210609000077 O-ring 1
7 B230101002121 ZBR Seal Ring 1
8 13746800 JT Guide Ring 2
9 13268936 Seal Ring 1
10 60208647 Seal Ring 1
11 A210609000317 O-ring 2
12 13746817 JT Guide Ring 2
13 B230101000132 OK Seal Ring 1
14 20120218-20700- 9 Piston 1
9 1
15 A210661000015 Steel Ball nglf9 2022 09 19 nglf9 20122 09 19
16 A210208000013 Screw 1
17 SYG005046256 Piston Rod GP 1
1 SYG005046285 Cylinder Bore GP 1
2 SYG005046257 Piston Rod GP 1
3 12355723 Screw Plug 4
4 A210434000008 Washer 4
5 13267547 Guide Bush 1
6 B230101000067 AY Dust Ring 1
7 A210609000077 O-ring 1
8 B230101002121 ZBR Seal Ring 1
9 13746800 JT Guide Ring 2
10 13268936 Seal Ring 1
11 60208647 Seal Ring 1
12 10182700 Piston 1
13 13272323 Oil-out Ring 1
14 1374-6817- JT Guide Ring 2
15 B230101000132 OK Seal Ring 1
16 A210609000317 O-ring 2
17 A210661000015 Steel Ball 1
18 A210208000013 Screw 1

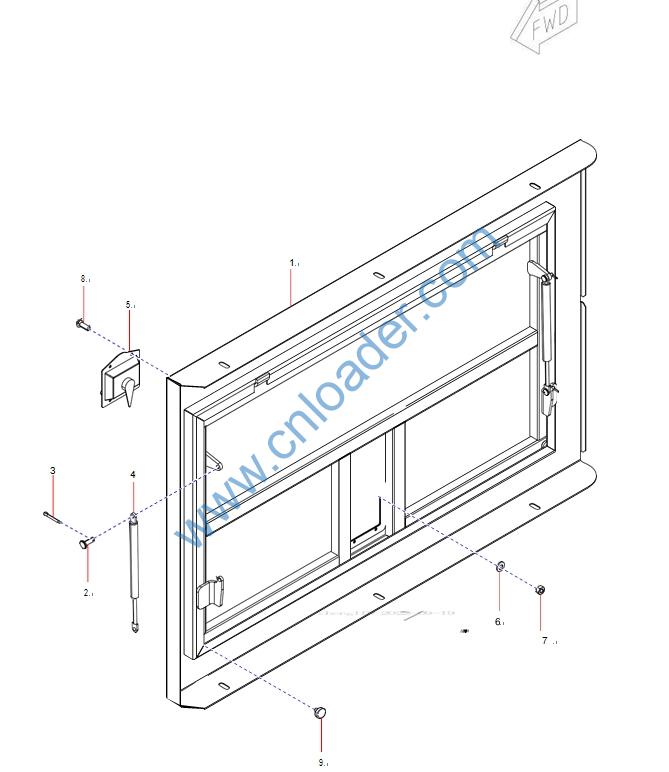

1 20B22- 5031582 Right Door AS 1
CB00
2 A820301010056 Pin 4
3 A210491000014 Pin 4
4 A229900000298 Air Spring 2
5 A222200000130 Cover Latch 1
6 A210405000006 Washer 4
7 A210307000016 Nut 4
8 A210210000008 Screw 4
9 11092222 Damping Rubber Pad 2

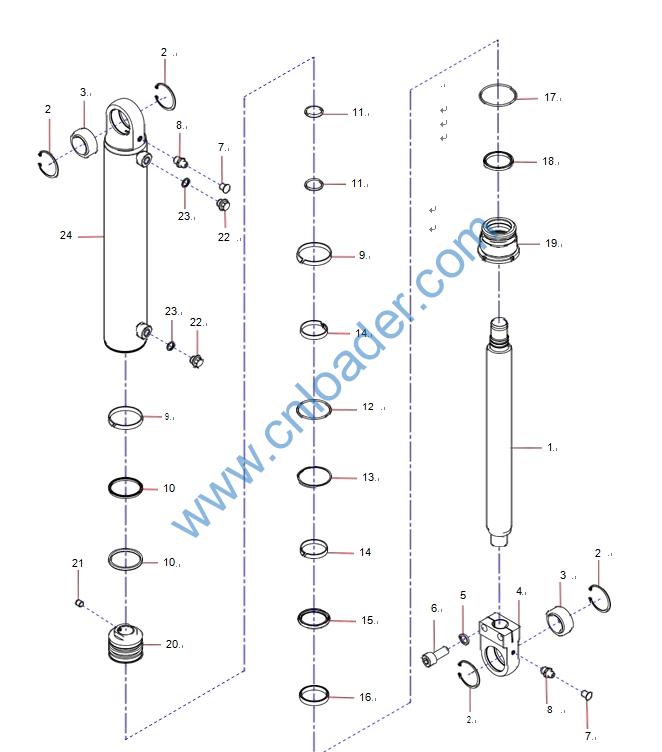

1 A820301010414 piston rod 1
2 A210416000037 Retainer Ring 4
3 A210612000023 Joint Bearing 2
4 A820103010177 Lug 1
5 A210401000001 Washer 2
6 A210204000161 Screw 2
7 A290000001564 Nozzle Protective Cap 2
8 A210804000001 Oil Cup 2
9 13746817 JT Guide Ring 2
10 B230101001842 UNP Seal Ring 2
11 A210609000272 O-ring 2
12 A210609000134 O-ring 1
13 A820601020352 Retainer Ring 1
14 1374-6800- JT Guide Ring 2
15 13599606 GSJ Seal Ring 1
16 B230101002121 ZBR Seal Ring 1
17 A210609000135 O-ring 1
18 B230101000067 AY Dust Ring 1
19 A820202000814 Guide Bush 1
20 SYG005408672 Piston 1
21 A210207000008 Screw 1
22 12355723 Screw Plug 2
23 A210434000008 Washer 2
24 14155825 Cylinder Bore GP 1

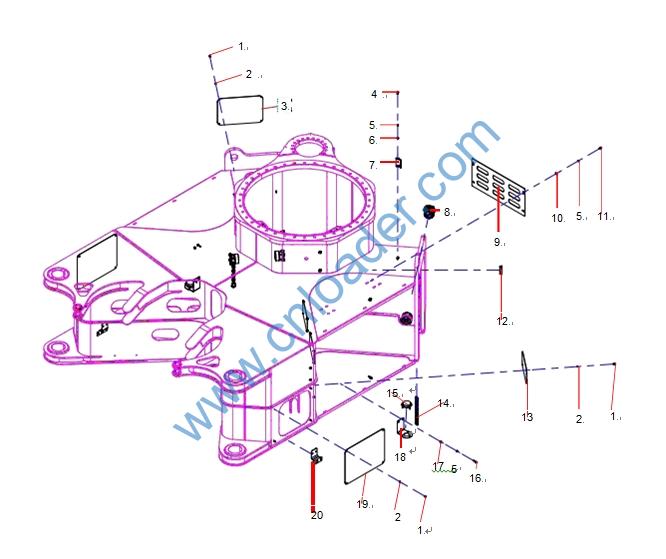

1 2A02250100000145 Level Gauge, Full Directional 2
2 A210401000016 Washer 24
3 A210405000007 Washer 4
4 A210401000017 Washer 12
5 A210404000005 Washer 4
6 BCB005046829 Seal Plate 3
7 BCB005046830 2- Connector Plate 2- 2
8 10990353 Outrigger Chain 2
9 12925471 Support Plate Sany yellow 2
12925471GC Support Plate Yellow green
12925471WD Support Plate Pure white
12925471HA Support Plate Iron grey
10 11300603 Contact Roller AS 4
11 20121521608992 19 Cover Plate Sany yellow 1
11516892HA Cover Plate Iron grey
11516892WD Cover Plate Pure white
11516892GC Cover Plate Yellow green
11516892GD Cover Plate Pure green
12 BCB005046832 Cover Plate 2
13 A820101362335 Marker Lamp Seat 2
14 BCB005305328 Hose Limit Plate 1
15 A210307000012 Nut 4
16 A210204000172 Screw 24
17 A210204000147 Screw 4
18 A210204000164 Screw 4
19 A210204000146 Screw 4
20 A820606030470 Sleeve Ring 1

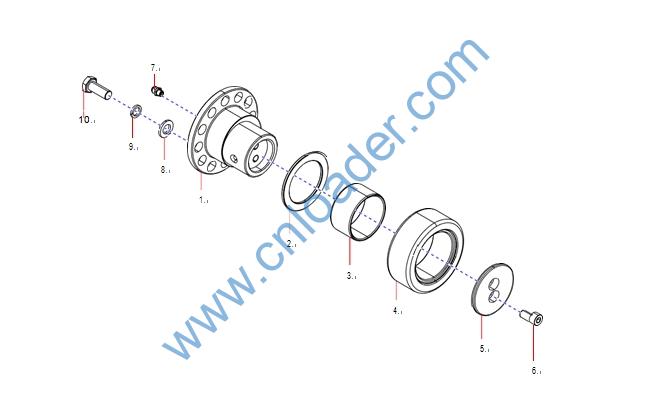

1 201122- 13 Roller Wheel Shaft 1
2966
2 10855582 Spacing Ring 1
3 A820202000951 Bearing 1
4 A820301018816 Roller Wheel 1
5 A820201010036 End Cover 1
6 A210204000146 Screw 2
7 A210804000003 Oil Cup 1
8 A210405000011 Washer 4
9 A210401000001 Washer 4
10 A210111000018 Bolt 4

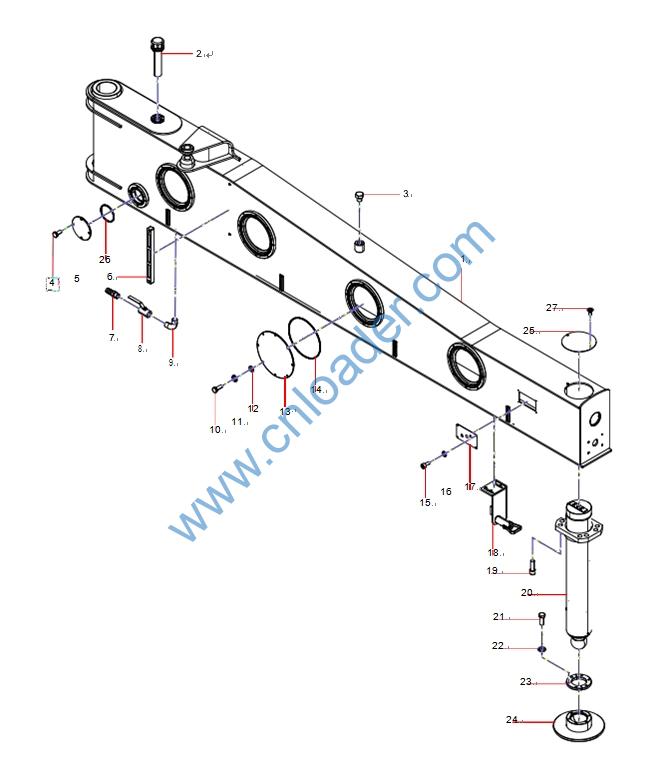

1 20BC2B005222170 Right Rear Outrigger Section 1
2 60151318 Air Filter 1 3-54
3 12576443 special- made bolt 1
4 A210111000011 Bolt 4
5 10765452 Flange Cover 1
6 60054115 Liquid level meter 1
7 12652890 2- Water Outlet Pipe 2- Sany yellow 1
12652890GC Water Outlet Pipe Yellow green
12652890WD Water Outlet Pipe Pure white
12652890HA Water Outlet Pipe Iron grey
8 A220400000004 Ball Valve 1
9 60107392 Fitting 1
10 A210111000018 Bolt 32
11 20A22210-4001-00109001
9 Washer 32
12 A210405000011 Washer 32
13 A820203000292 Flange Cover Sany yellow 4
A820203000292HA blind flange Iron grey
A820203000292WD blind flange Pure white
A820203000292GC blind flange Yellow green
14 A210609000294 O-ring 4
15 A210204000129 Screw 4
16 A210401000016 Washer 4
17 A820101356588 Cover plate Sany yellow 1
A820101356588GC Cover plate Yellow green
A820101356588GD Cover plate Pure green
A820101356588HA Cover plate Iron grey
A820101356588WD Cover plate Pure white
18 BCB006225780 Right Outrigger Lock Installation 1
19 2022-09- 9
A210204000095 Screw 8
20 13279465 Front Outrizgghear nCgyllinfd9er 2022 09- 9 zhanglf9 21022 093–569
21 A210111000038 Bolt 6
22 A210401000002 Washer 6
23 13544177 Pressure Plate 1
24 13544180 Outrigger Seat 1
25 13258431 Cover Plate Sany yellow 1
13258431GC Cover Plate Yellow green
13258431HA Cover Plate Iron grey
13258431GD Cover Plate Pure green
13258431WD Cover Plate Pure white
26 A210608000307 O-RING 1
27 2A02210211000003 Screw 2

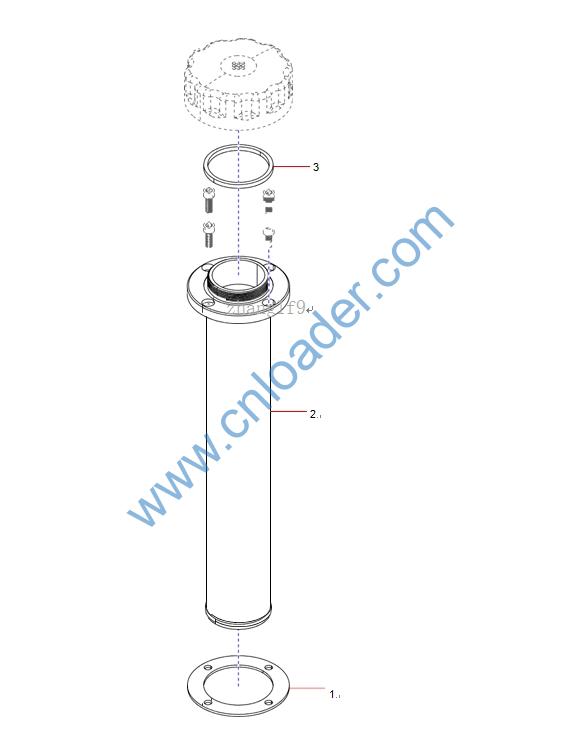

1 151800000053A001 Gasket 1
2 151800000053A002 Filter Core 1
3 151800000053A003 Seal Ring 1

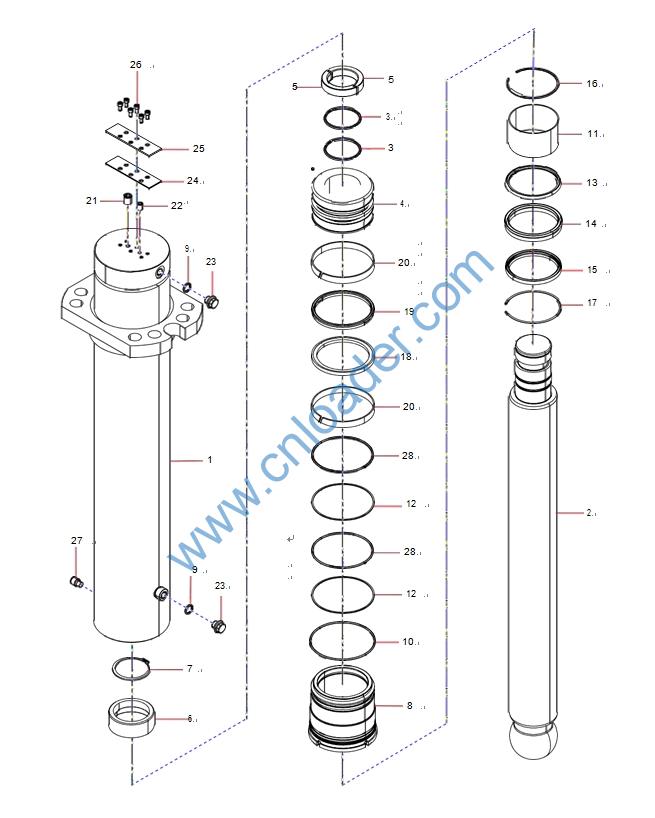

2 13099824 Piston Rod 1
3 A210609000165 O-ring 2
4 A820402000185 Piston 1
5 A820208000045 Shaft Clipping Key 2
6 A820202000930 Clipping Key Cap 1
7 A210414000102 Retainer Ring 1
8 13615875 Guide Bush 1
9 A210434000008 Washer 2
10 21011613 O- ring 1
11 60208488 Oil- Free Bearing 1
12 10250742 Retainer Ring 2
13 13599572 Gsj Seal Ring 1
14 20B22230-1001-00129131
9 ZBR Seal Ring 1
15 13266590 Hwm Dust Ring 1
16 A210417000001 Retainer Ring 1
17 A210417000004 Retainer Ring 1
18 B230101000138 OK Seal Ring 1
19 B230101002105 UNP Seal Ring 1
20 B230101001371 UP Guide Ring 2
21 14209011 Damping Plug 1
22 A820301017919 Damping Plug 1
23 12355723 Screw Plug 2
24 11252642 Plate 1
25 11252641 Pressure Plate 1
26 A210204000129 Screw 6
27 24004294 Screw 1
28 151403021145A O- ring 2

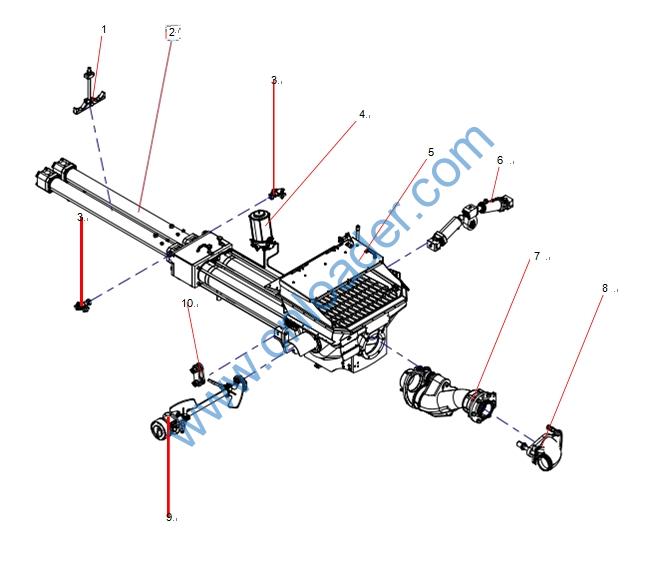

1 BCB005047688 Main Cylinder Support 1 4-4
2 BCB004749716 Pumping Mechanism 1 4-6
3 14550201 Support, Water Tank 2 4-18
4 BCB005984935 Lubrication System 1 4-20
5 BCB005739761 Hopper GP 1 4-28
6 13281077 Swing Mechanism 1 4-36
7 BCB004747135 2- S- valve GP 2- 1 4-42
8 13972525 Hinged Elbow GP 1 4-48
9 13246814 Mixing Device 1 4-50
10 11660952 Installation Parts of Hopper 2 4-56

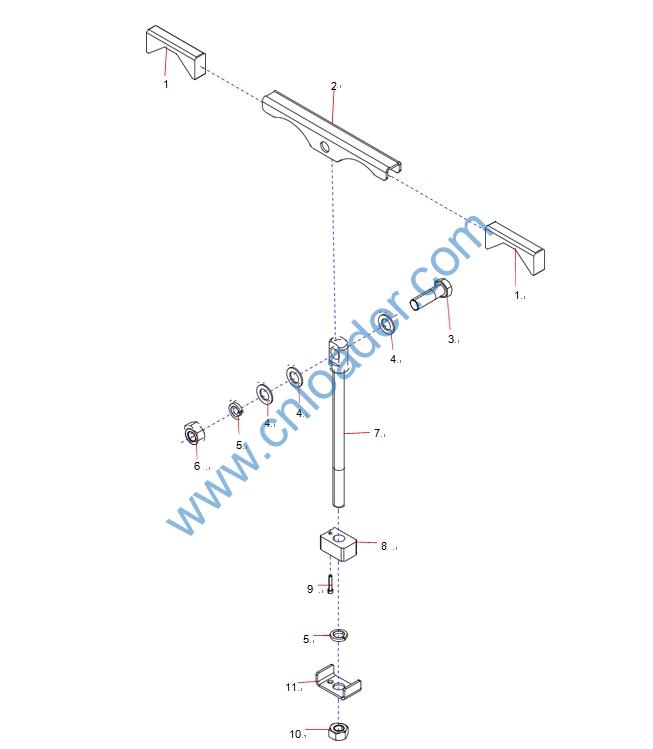

2 13201597 Bearing Seat 1
3 A210110000336 Bolt 1
4 A210405000014 Washer 3
5 A210401000011 Washer 2
6 A210307000009 Nut 1
7 13977202 Davit 1
8 13201599 Damping Block 1
9 A210204000153 Screw 1
10 A210319000028 Nut 1
11 13201598 Bent Pressure Plate 1

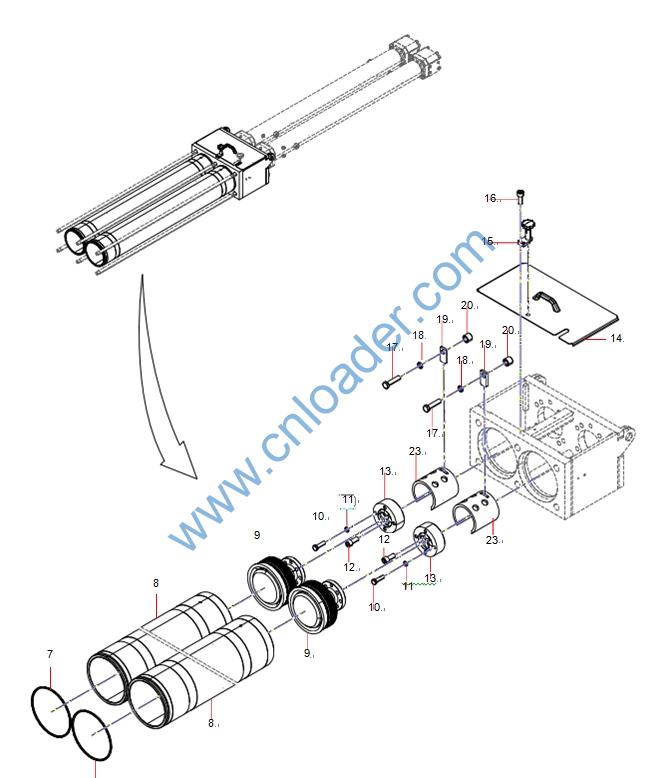

2 14146922 Tie Bar 2
3 BCB004745214 Water Tank 1
4 A210405000014 Washer 6
5 A210401000011 Washer 6
6 A210310000002 Nut 6
7 A210608000048 O- ring 2
8 14518997 Delivery Cylinder 2
9 13198753 Piston Head 2 4-12
10 A210111000283 Bolt 8
11 A210401000004 Washer 8
12 A210204000057 Screw 8
13 BCB004744959 Connection Disc 2
14 BCB004749620 Cover Plate Set, Water Tank 1 4-14
15 60170220 Door Lock 1
16 A210204000130 Screw 2
17 A210110000201 Bolt 2
18 A210401000006 Washer 18
19 14295778 Retainer Block 2
20 BC2B-000497-4149952 Ring Sleeve 2 09 19 2 2 09 19
23 BCB004744938 Stop Collar 2
