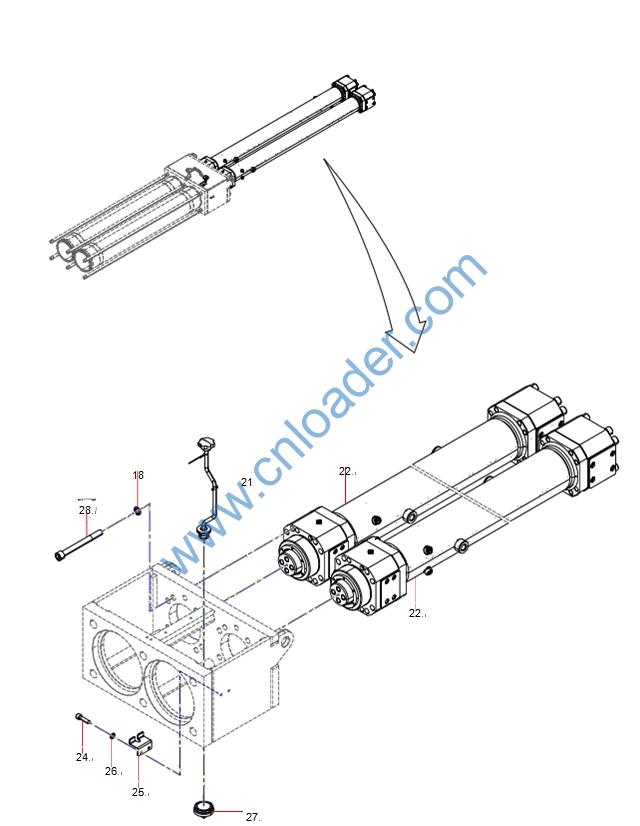

18 A210401000006 Washer 18
21 60198117 Door Lock 1
22 150902070062A Main Cylinder 2 4-16
24 A210204000164 Screw 2
25 12936050 Limit Plate 1
26 A210401000017 Washer 2
27 HBC005163796 Drain Screw 1
28 A210204000288 Screw 16

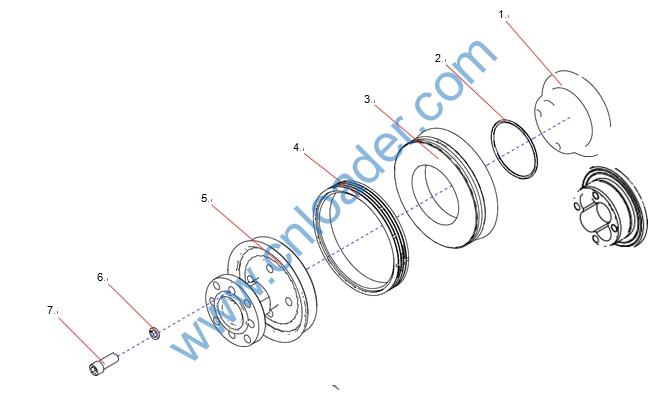

2 A31C211500530 O-ring 1
3 151499000185A rubber piston 1
4 11737447 Guide Ring 1
5 13198751 Connection Rod 1
6 A210401000004 Washer 4
7 A210204000304 Screw 4

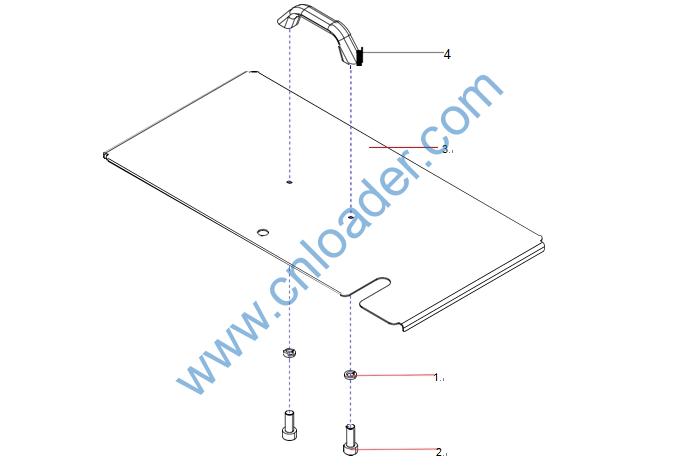

2 A210204000130 Screw 2
3 BCB004749600 Water Tank Cover Plate 1
4 60024465 Handle 1

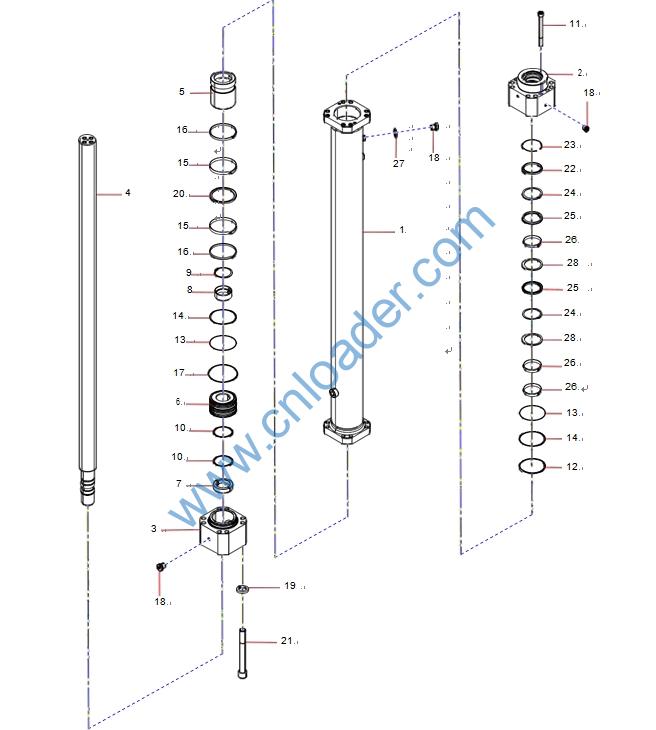

2 14136282 Gland 1
3 14136281 Cylinder Bottom 1
4 SYG004744074 Piston Rod 1
5 14426852 Sensing Sleeve 1
6 A820402000014 piston 1
7 A820208000161 Shaft Clipping Key 1
8 A820202003241 Clipping Key Cap 1
9 A210414000033 Retainer Ring 1
10 A210609000168 O-ring 2
11 A210204000296 Screw 2
12 60072121 K08-D Seal Ring 1
13 10250744 Retainer Ring 2
14 20A22120-6009-00109125
9 O- RING 2
15 B230101000019 FR Guide Ring 2
16 60057089 UP Dust Seal 2
17 A210609000013 O-ring 1
18 B210780000201 Screw Plug 6
19 A210401000006 Washer 8
20 B230101000139 OK Seal Ring 1
21 24000420 Screw 8
22 13573486 PADV Dust Ring 1
23 A210417000001 Retainer Ring 1
24 A880806030096 Bearing Ring 2
25 60115017 BS SEAL RING 2
26 B230101000690 UP Guide Ring 3
27 A2106090009102 O-ring 9 2
28 61019458 HBY Seal Ring 2

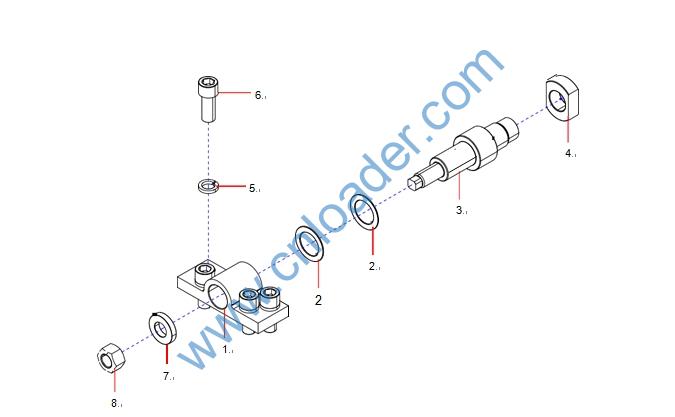

2 12784925 Washer 2
3 14550199 Water Tank Support Pin Shaft 1
4 13202970 Nut 1
5 A210401000006 Washer 4
6 A210204000216 Screw 4
7 14550200 Shaft End Retainer Ring 1
8 60233827 Nut 1

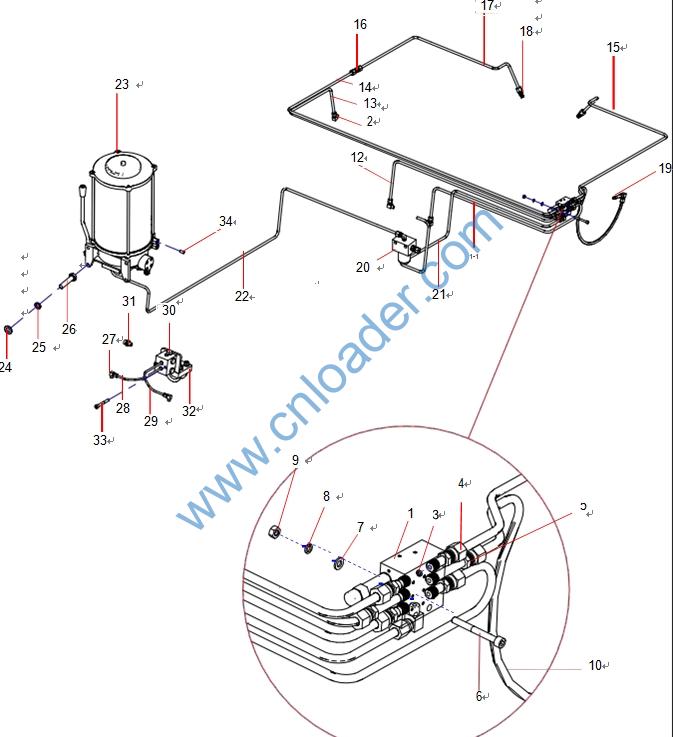

2 60191709 90 Degree Taper Sleeve Joint 5
3 60161093 Red Copper Washer 6
4 60186394 Adapter Fitting 4
5 60186395 Fitting 2
6 A210204000138 Screw 2
7 A210405000006 Washer 2
8 A210401000016 Washer 2
9 A210307000016 Nut 2
10 13022214 Oil Tube Sany yellow 1
13022214GC Oil Tube Yellow green
13022214WD Oil Tube Pure white
13022214HA Oil Tube Iron grey
11 20123202202097 19 Oil Tube Sany yellow 1
13022207GC Oil Tube Yellow green
13022207HA Oil Tube Iron grey
13022207WD Oil Tube Pure white
12 12673325 Oil Tube Sany yellow 1
12673325HA Oil Tube Iron grey
12673325GC Oil Tube Yellow green
12673325WD Oil Tube Pure white
13 12673335 Oil Tube Sany yellow 1
12673335GC Oil Tube Yellow green
12673335HA Oil Tube Iron grey
12673335WD Oil Tube Pure white
14 13022212 Oil Tube Sany yellow 1
13022212HA Oil Tube Iron grey
20123022202912-GC9 Oil Tube Yellow green
13022212WD Oil Tube Pure white
15 13022215 Oil Tube zhanglf9 2022 09- 9 Sany yzelhloawnglf9 21022 09- 9
13022215WD Oil Tube Pure white
13022215HA Oil Tube Iron grey
13022215GC -Oil Tube – Yellow green
16 60186397 Adapter Fitting 1
17 13022216 – Oil Tube – Sany yellow 1
13022216GC Oil Tube Yellow green
13022216WD Oil Tube Pure white
13022216HA Oil Tube Iron grey
18 60186396 Fitting 2
19 A820205000023 Pipe 1
20 60016857 Grease Filter 1 4-24
21 14420417 Oil Tube Sany yellow 1
14420417HA Oil Tube Iron grey
14420417GC Oil Tube Yellow green
14420417WD Oil Tube Pure white
22 BCB004748649 Oil Tube 1
23 152601000010A Grease Pump 1 4-26
24 A210405000007 Washer 6
25 A210401000017 Washer 6
26 A210111000092 Bolt 4
27 60016860 90 Degree Taper Sleeve Joint 2
28 BCB004824011 Oil Tube 1
29 BCB004823990 Oil Tube 1
30 6003-5568- Distributor 1
31 B210780000733 Adapter Fitting 2
32 BCB004764767 Mounting Component, Distributing Valve 1
33 A210204000151 Screw 2
34 12958191 Pin 2

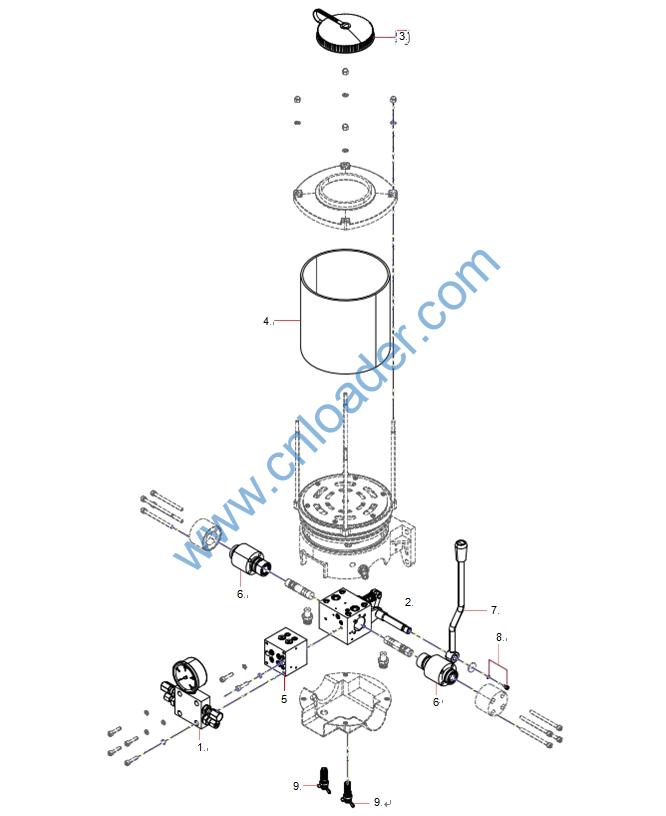

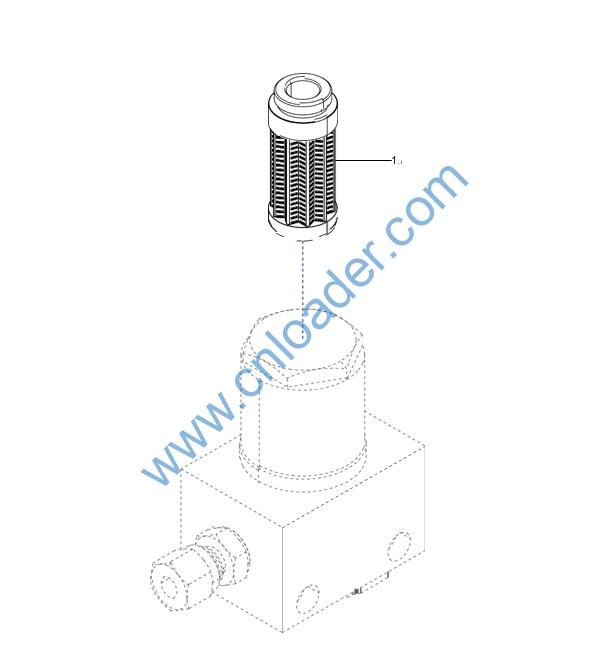

1 201522688000013A Filter Core 1
2 152601000010A002 Pump body assembly 1
3 152601000010A003 Screw cap 1
4 152601000010A004 Housing 1
5 152688000012A Lubrication center 1
6 152688000011A Cylinder 2
7 152601000066A001 Lever 1
8 152601000066A002 Bolt 1
9 152601000066A003 Butterfly Valve 2

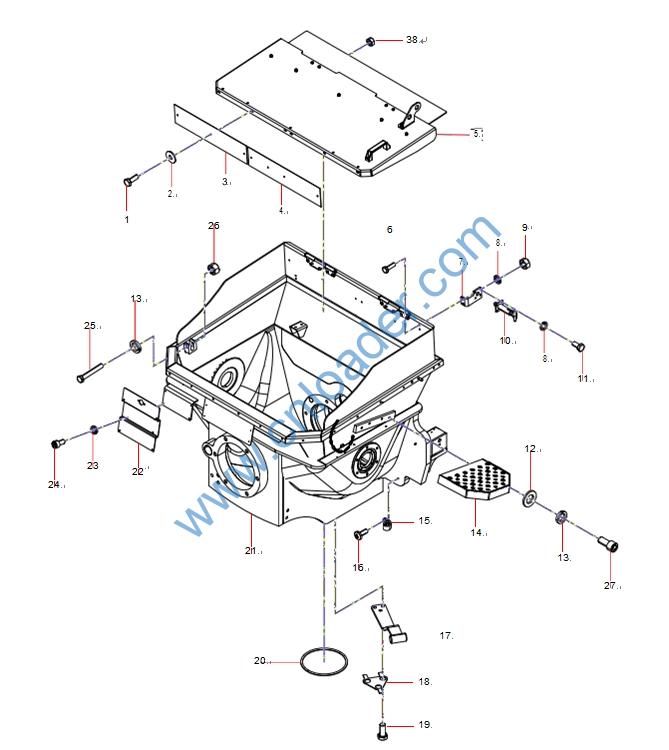

2 A210404000009 Washer 6
3 60213585 Marker Plate, Heavy Vehicles 1
4 60247473 Marker Plate, Heavy Vehicles 1
5 BCB004805856 Hopper Cover 1
6 A210111000090 Bolt 14
7 11695006 Bent Plate 1
8 A210401000017 Washer 16
9 A210307000012 Nut 14
10 60148827 Door Lock 1
11 A210111000088 Bolt 4
12 A210405000001 Washer 4
13 A210401000002 Washer 6
14 20123236-70127- 9
9 1 Hopper Pedal 1
15 A229900004092 Clamp 3
16 A210210000015 Screw 3
17 12448525 Handle Weldment Pure white 1
12448525YA SPANNER HANDLE WELDMENT Sany yellow
12448525HA SPANNER HANDLE WELDMENT Iron grey
12448525GC SPANNER HANDLE WELDMENT Yellow green
18 12092817 Lock Washer Pure white 1
12092817GC Stopping washer Yellow green
12092817HA Stopping washer Iron grey
12092817YA Stopping washer Sany yellow
19 A210111000212 Bolt 3
20 A820606020001 O-ring 1
21 BCB004806010 Hopper AS 1 4-32
22 20123220-503793- 9 License plate 1
23 A210401000016 Washer 12
24 A210204000129 Screw zhanglf9 2022 09- 9 zhanglf9 26022 09- 9
25 A210111000127 Bolt 2
26 A210307000001 Nut 2
27 A210204000167 Screw 4

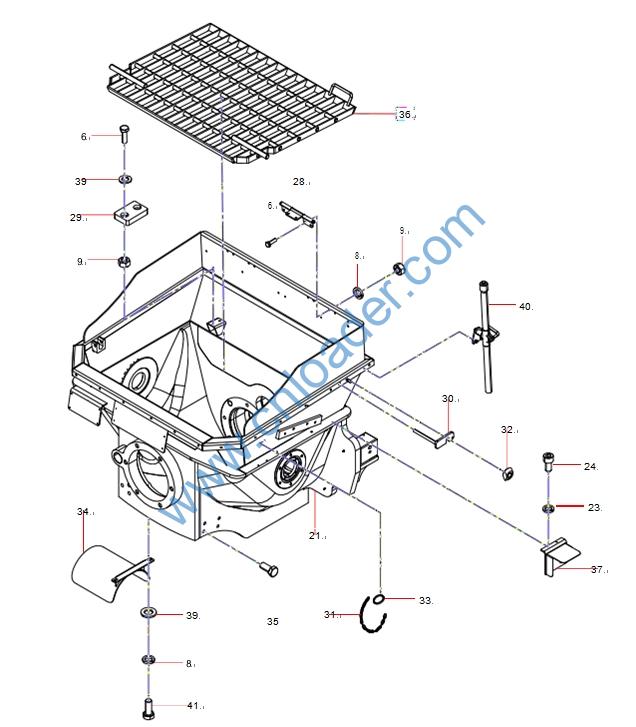

38 A210307000016 Nut 6
8 A210401000017 Washer 16
9 A210307000012 Nut 14
21 BCB004806010 Hopper AS 1 4-32
23 A210401000016 Washer 12
24 A210204000129 Screw 6
28 BCB004790564 Hinge 2
29 11440784 Buffer Block Grille 2
30 A810301029031 Grille Lock Plate 1
31 13258315 Chain 1
32 A210319000006 Nut 1
33 A229900000176 Key Ring 2
34 12332903 Protective Cover Sany yellow 1
20122233209903W1D9 Motor cover Pure white
12332903HA Motor cover Iron grey
12332903GC Motor cover Yellow green
35 A210111000100 Bolt 8
36 BCB005814994 Grille 1
37 BCB004583167 Mounting Seat, Horn 1
39 A210405000007 Washer 6
40 12807822 Work Light 1 4-34
41 A210111000089 Bolt 2
2 11912632 Outlet Flap Pure white 1
11912632HA Feeding Door Plate Iron grey
11912632YA Feeding Door Plate Sany yellow
11912632GC Feeding Door Plate Yellow green
3 A820301010061 small shaft 1
4 A210401000017 Washer 1
5 A210204000146 Screw 1

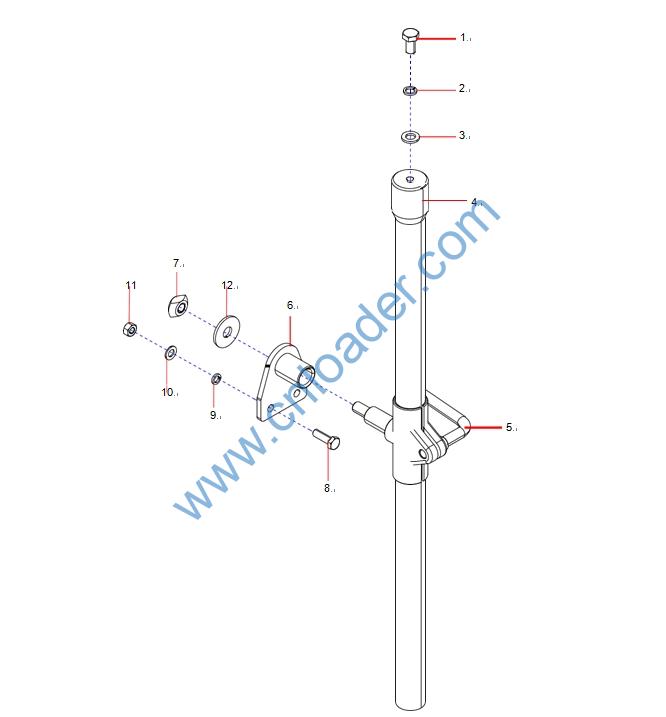

2 A210401000001 Washer 1
3 A210405000011 Washer 1
4 A810201052514 Lamp Post 1
5 60189421 lamp clamp 1
6 A810401100841 Hopper Lamp bracket 1
7 A210319000006 Nut 1
8 A210111000090 Bolt 2
9 A210401000017 Washer 2
10 A210405000007 Washer 2
11 A210307000012 Nut 2
12 A210404000004 Washer 1

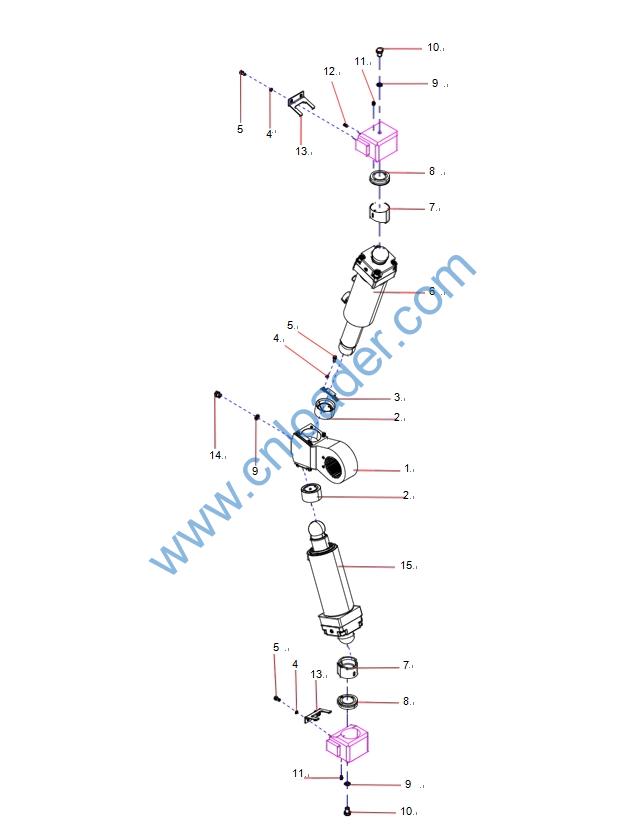

1 20122784367 Rocker Arm Sany yellow 1
12784367GC Rocker Arm Yellow green
12784367HA Rocker Arm Iron grey
12784367WD Rocker Arm Pure white
2 A820404000091 Upper Spherical Bearing 2
3 12631714 Ball Limit Plate 4
4 A210401000017 2- Washer 2- 12
5 A210204000146 Screw 12
6 A810301060032 Hydraulic Cylinder, Left Swing Valve Sany yellow 1 4-38
A810301060032GC Left swing valve cylinder Yellow green
A810301060032HA Left swing valve cylinder Iron grey
A810301060032WD Left swing valve cylinder Pure white
7 A820404000007 Lower Spherical Bearing 2
8 20A28220-1003-01109054
9 Bearing Plate 2
9 A210434000008 Washer 3
10 A210111000105 BOLT 2
11 A210804000001 Oil Cup 3
12 A210208000001 Screw 2
13 A820101010889 Limit Plate Sany yellow 2
A820101010889GC Limit baffle plate Yellow green
A820101010889HA Limit baffle plate Iron grey
A820101010889WD Limit baffle plate Pure white
14 12257441 Adapter 1
15 A810301060033 Hydraulic Cylinder, Swing Valve, Right Sany yellow 1 4-40
A810301060033GC Left swing valve cylinder Yellow green
A810301060033WD Left swing valve cylinder Pure white
A810301060033HA Left swing valve cylinder Iron grey

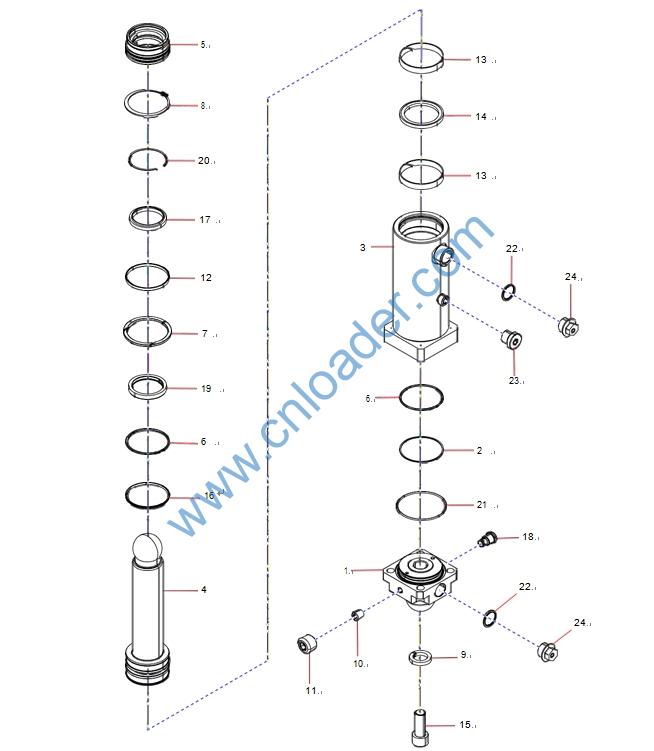

2 A820601990011 Retainer Ring 1
3 A810301060017 Cylinder Bore 1
4 10451273 Piston Rod 1
5 SYG005067625 Guide Bush 1
6 A210609000087 O-ring 2
7 SYG005913994 Internal Snap Ring 1
8 A210414000103 Retainer Ring 1
9 A210401000004 Washer 4
10 A820301012187 Damping Plug 1
11 A210342000003 Screw Plug 1
12 SYG005913995 Sleeve 1
13 B230101000115 FR Guide Ring 2
14 20B22230-1001-00109135
9 OK Seal Ring 1
15 A210204000203 Screw 4
16 60124154 K08-D Seal Ring 1
17 13573483 PADV Dust Ring 1
18 60344813 Check Valve 1
19 B230101000084 BS Seal Ring 1
20 A210417000103 Retainer Ring 1
21 60156549 O-ring 1
22 A210434000015 Washer 2
23 B210780000201 Screw Plug 1
24 60181059 Plug 2
