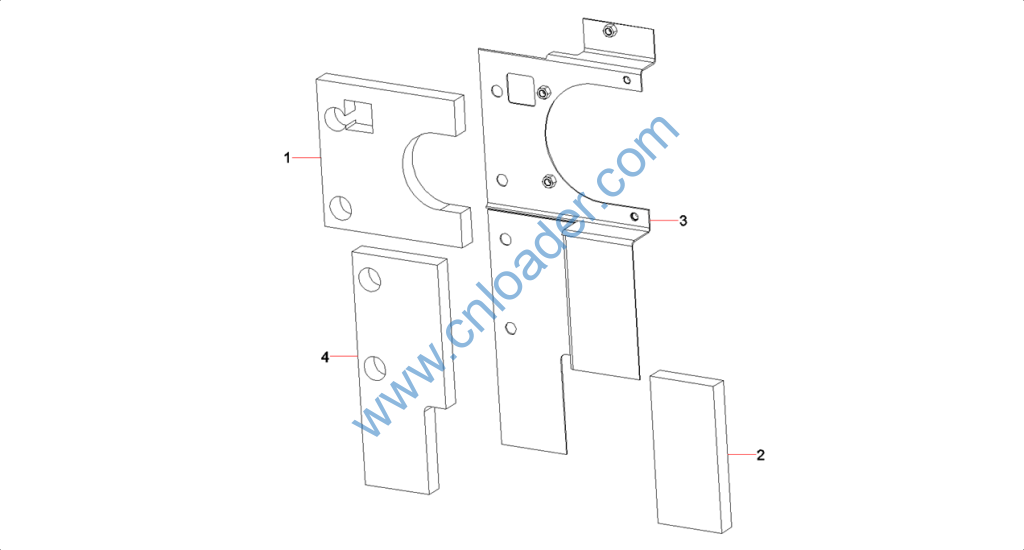

A820606010409 2 橡胶块 plaste
24000633 4 垫圈8GB97.1 达克锈 Washer
A820101213532 2 防摆座 Antiswing seat
A210203000008 4 螺钉 Screw M6×25GB68
A210111000323 4 螺栓 Bolt

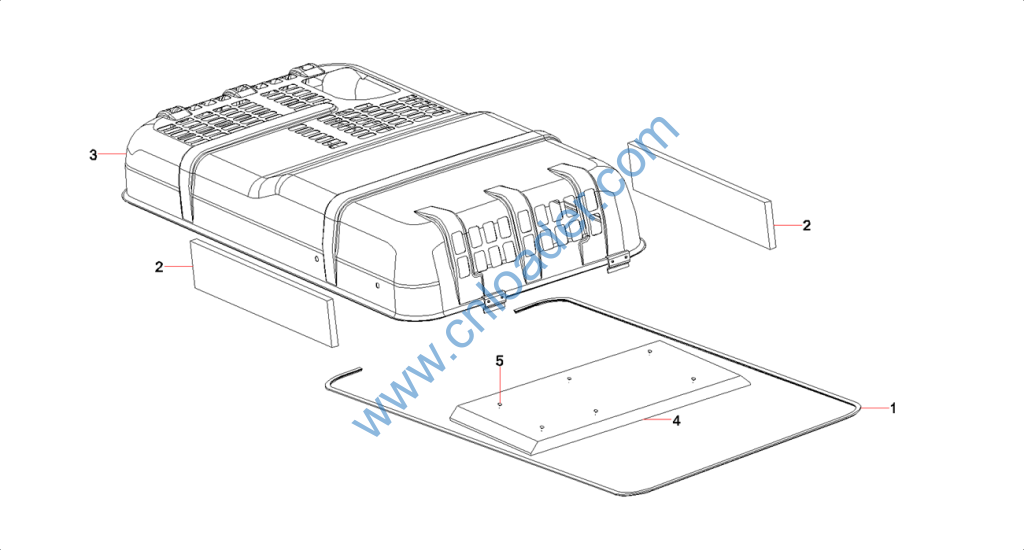

A810502012228 1 左上后盖板 CoverSY310C1.1.6.4.1
11348911 1 密封条 Sealing strip
A820699001228 2 侧面海绵 Side sponge

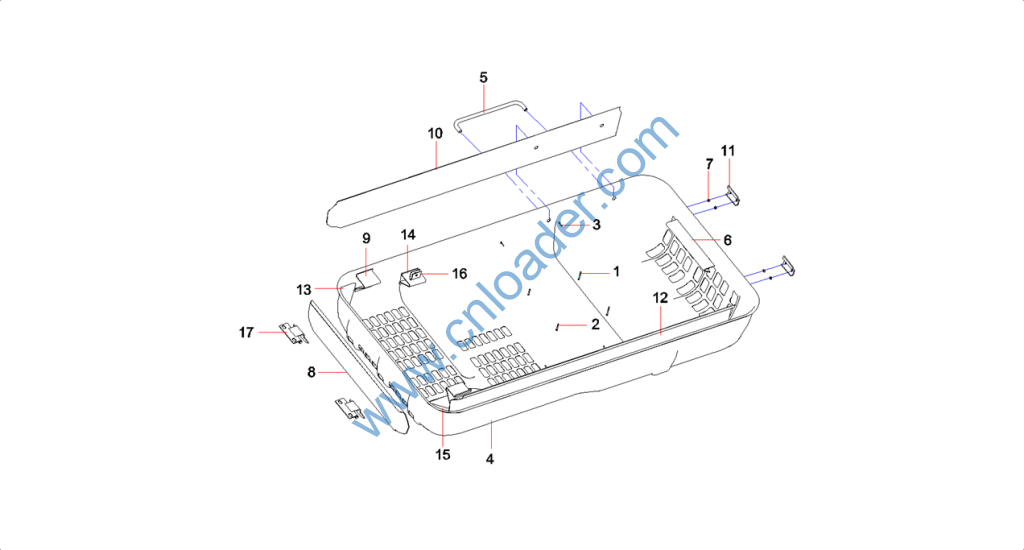

11255413 1 机顶罩总成 Bonnet Assy.
A820699000947 1 顶部海绵 Top sponge
11961759 10 扣钉 Cramp
60168508 3 螺柱 Threadedstud
60166959 3 螺柱 Stud
60166958 4 螺柱 Stud
11250346 1 机顶罩主壳体 Engine cover main frame
A820299000358 1 机罩拉手 Hood handle
A820101346644 1 防摆罩 Antiswing cover
A210307000012 4 螺母 Nut
11254803 1 后部加强筋 Rear reinforced
11254559 2 弹簧支承座 Support seat
11254541 1 右侧加强筋 Right-hand reinforced rib
A820101342394 2 机罩锁安装座 Mounting plate for hood lock
11254192 1 左侧加强筋 Left-hand reinforced rib
11254652 1 拐角加强筋 Cape Reinforced bar
A820101330217 1 支撑板 Supporting Plate
11255109 1 拐角加强筋 Cape Reinforced bar
A820101213425 1 支撑座 Support stay
A810599000264 2 铰链 Hinge
A820699000953 1 海绵 Sponge

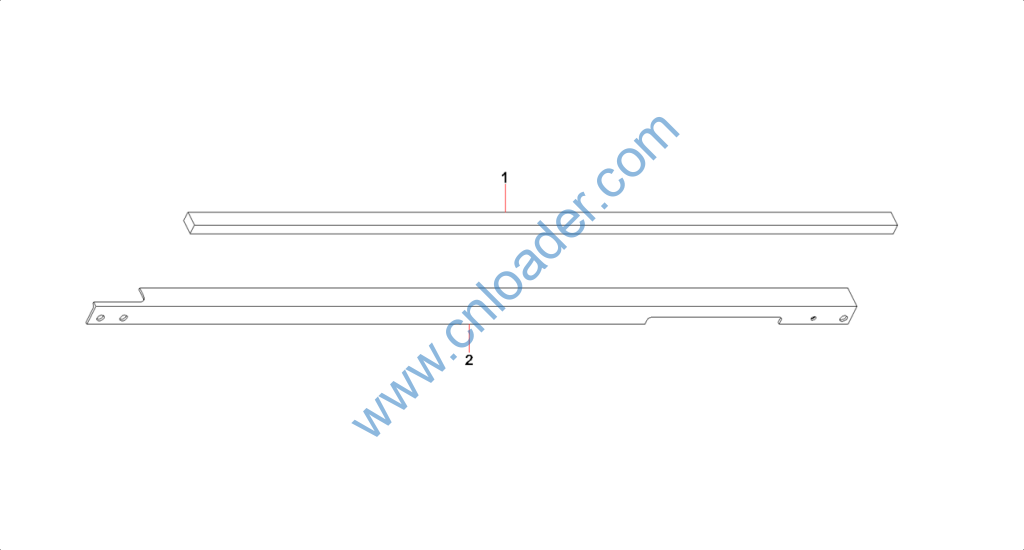

A810502015203 1 横梁杆 Rear beam
A820699001116 1 上部海绵 Upper sponge
A820699001117 1 右下海绵 Right lower sponge
A810502012223 1 下隔板组焊件 Welds of lower baffle plate
A820699001118 1 左下海绵 Left lower sponge
A810401990192 1 黄油池 seal module SY420.45.3
24000513 10 垫圈12GB93 达克锈 Washer
A210111000202 6 螺栓 Bolt

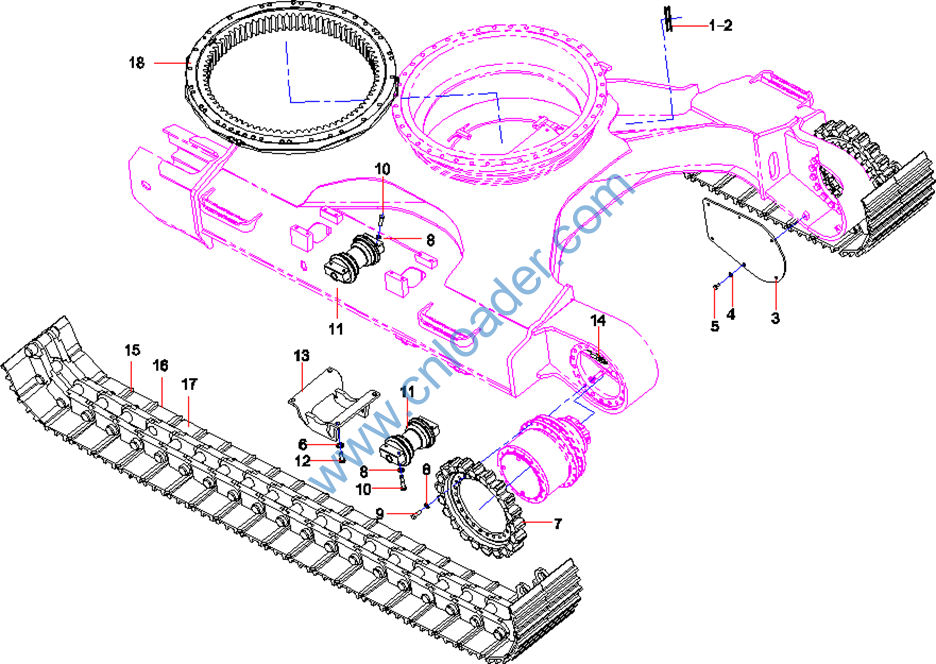

12408629 1 履带架 track frame SY335C9I2K.2.1B
10131971 2 盖板总成 Plate, bottom GP
A210111000204 4 螺栓 Bolt
12804286 1 止动座 Stopping seatSY420.13.4.1.2
A210491000121 6 垫圈 Washer
60060548 6 垫圈12GB96.1 达克锈 Washer
A210110000202 8 螺栓M20×80GB5782 10.9级 Bolt
12286069 2 引导轮总成 Leading Wheel
B229900000862 2 黄油阀 Valve, grease
A820101010372 2 支板 Shoe, triple grouser

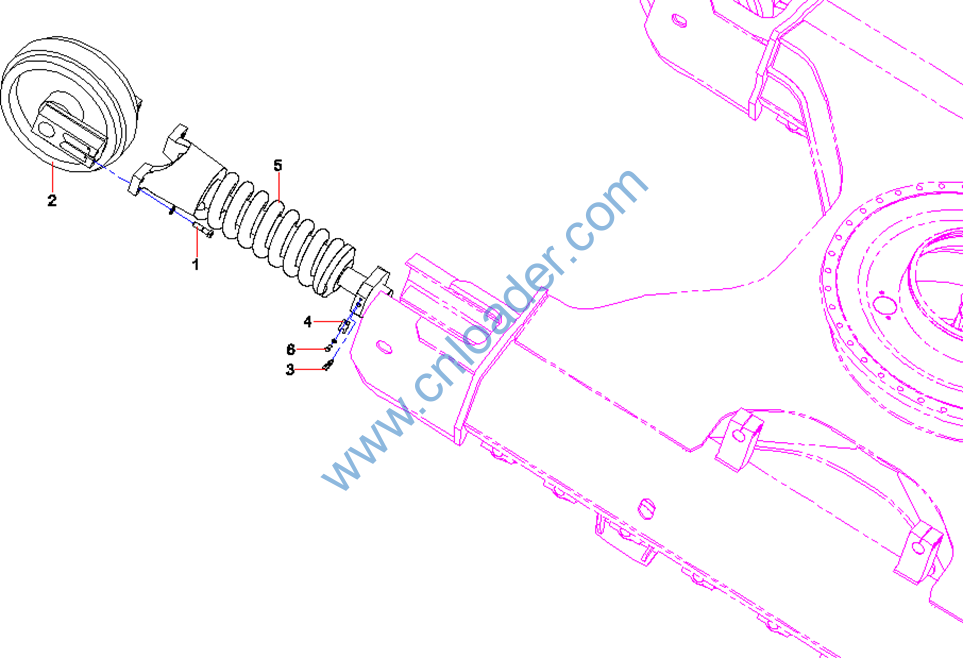

60310119 2 张紧装置 Tensioning Equipment
A210111000101 2 螺栓M12×25GB5783 10.9级 Bolt
A239900000066 4 尼龙扎带 Strap, nylon
A820606030424 2 护套 Protective sleeveSY300.2-2
10505384 2 马达盖板 motor coverSY360C.2-3
24000514 12 垫圈16GB93 达克锈 Washer
A210111000212 12 螺栓M16×35GB5783 10.9级 Bolt
A210491000122 32 垫圈 Washer
12801895 2 驱动轮 Drive Wheel SWQ216-1A
A210491000132 144 垫圈 Washer
60022786 48 螺栓 Bolt
A210110000233 88 螺栓 M20×110GB5782 10.9级 Bolt
11358479 22 支重轮总成 track roller
A210111000346 32 螺栓M24×55GB5783 10.9级 Bolt M24×55GB5783 10.9
12007195 8 护板 Protective Plate SY300.2.2A
11172918 1 行走装置液压管路 Travel device hydraulic pipeline
变更或见其他配置 2 履带总成800mm(13)组件 crawler assembly 800mm (13)
13914436 2 履带总成 crawler assembly
变更或见其他配置 2 履带总成 track assembly
13253628 1 回转支承总成 Rotary bearing assy

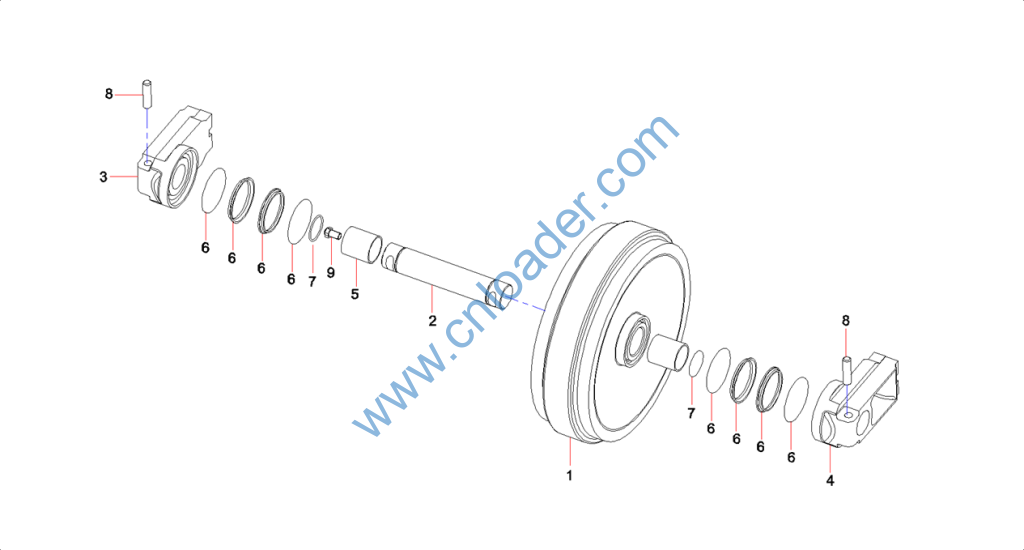

12286076 1 引导轮轮体总成 Leading Wheel Body
12286066 1 轴 ShaftSWY216A-1
12286068 1 右支座 Right-Support AbutmentSWY216A
12286067 1 左支座 Left-Support AbutmentSWY216A-
60164763 2 衬套92×85×75法兰 Bush
60164477 2 浮动油封120×142×38线径 Floatingoilseal
A210608000098 2 O形圈 O-ring 79.4×3.1JISB2401
60164863 2 销 Pin
60027515 1 闷头螺塞 Plug
A210111000037 2 螺栓 Bolt

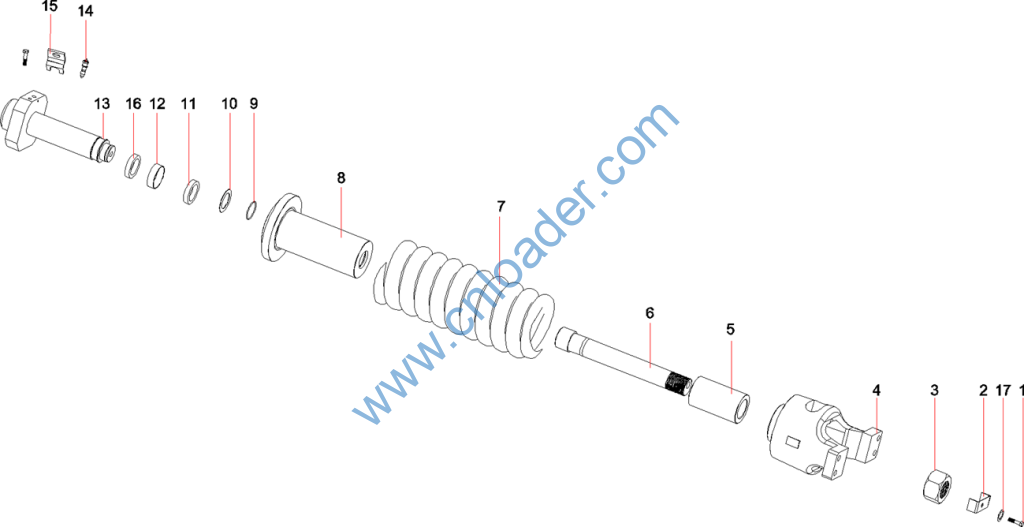

60310538 1 锁板 Lock Plate
60310536 1 螺母 Nut
60310535 1 支座 Support
60310537 1 限位套 Limitative sheath
60310534 1 拉杆 Pull rod
60310533 1 弹簧 Spring
60310532 1 缸体 Cylinder
60310543 1 O形圈 Ring
60310544 1 轴用弹性挡圈 Retaining ring
60310541 1 密封圈 Sealing ring
60310542 1 耐磨环 Wearable ring
60310531 1 顶杆 Shaft
B229900000862 1 黄油阀 Valve, grease
60310539 1 板 Plate
60310540 1 防尘圈 Dust ring

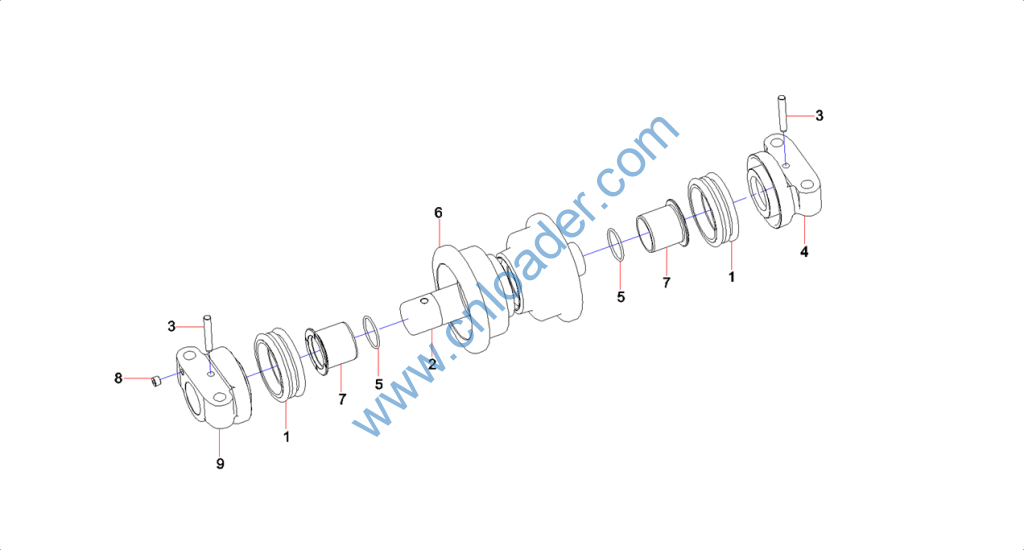

10132662 2 垫圈 Washer
60047793 2 支浮动油封 Seal, oil
11358476 1 轴 Shaft
60047787 2 支圆柱销 Pin, cylindrical
11358478 1 左轴端盖 left_coverSWZ216A-3
A210609000168 2 O形圈 O-ring
11358482 1 支重轮轮体 Thrust wheel body
60047784 2 支衬套 Sleeve
60027515 1 闷头螺塞 Plug
11358477 1 右轴端盖 Cover,shaft,right
A210204000354 16 螺钉 M10×30GB70.1 10.9级 Screw
A210491000121 4 垫圈 Washer
A210491000122 36 垫圈 Washer
B210780000244 8 对开法兰 Flange, split

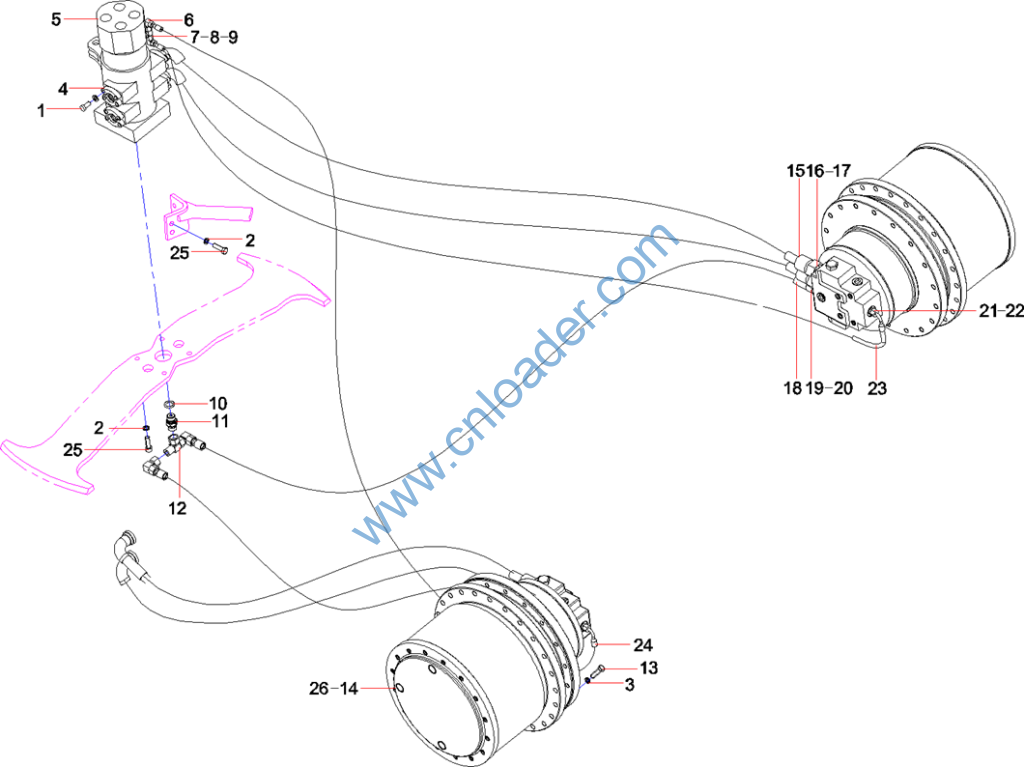

60243992 1 中央回转接头 Center Swivel Joint
B210780000418 2 管接头 Fitting
B210780000172 1 管接头 Fitting
A820205000839 1 接头 Fitting
A230101000247 1 O形圈 O-ring
A229900001581 1 O形圈 O-ring 21.7×3.5(JISB2401)
A820205000842 1 M24-M22接头 Connector
B210780000413 1 三通组合接头 Fitting, tee
A210111000200 36 螺栓M24×70GB5783 10.9级 Bolt M24x70
12940338 2 减速机总成 reducer
B230103002697 4 胶管 hose
A820205001334 4 G1-M42接头 Connector
B230101000050 4 O形圈 O-ring
B230103000293 2 胶管 Hydraulic Hose Assembly
A820205000843 2 接头 Fitting
B230101000090 2 O形圈 O-ring
A820205000844 2 接头 Fitting
B230101000047 2 O形圈 O-ring
B230103001563 1 胶管 Rubber hose
B230103002658 1 胶管 Hose AS
A210111000204 4 螺栓 Bolt
60223357 2 液压马达 Plunger motor

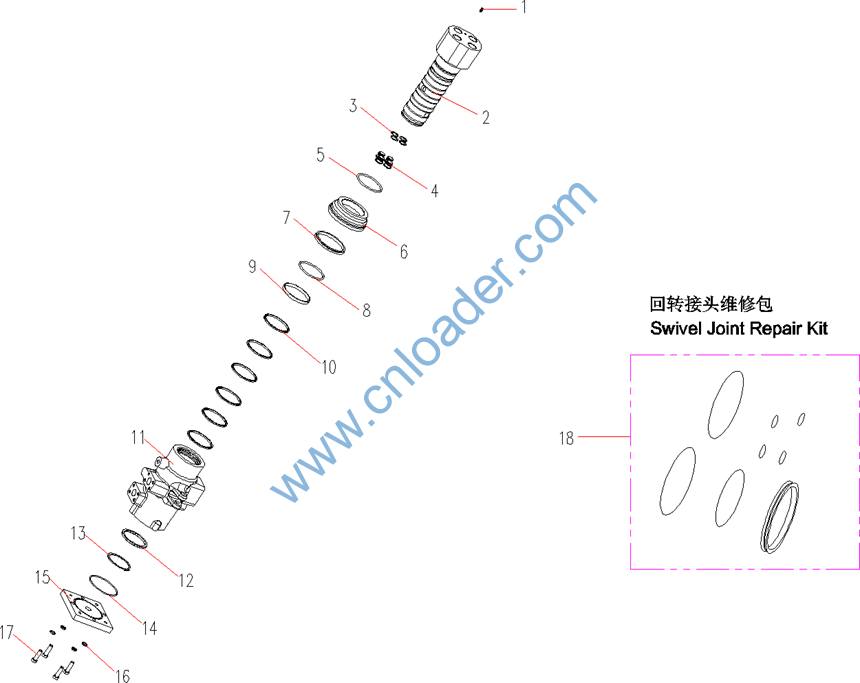

60306072 1 锥堵 Conical plug
60306073 1 回转轴 Rotary shaft
60306074 4 O形圈 o-ring
60306075 4 堵头 Plug
60306076 1 O形圈 o-ring
60306077 1 防尘套 Dust Cover
60306078 1 防尘圈 Dust Ring
60306079 1 O形圈 o-ring
60306080 1 抗磨环 Wear-proof rong
60306081 6 旋转密封圈 Rotary sealing ring
60306082 1 回转体 Revolving body
60306083 1 O形圈 o-ring
60306084 1 挡板 Baffle
60306085 1 轴用弹性挡圈 Flexible baffle ring for shaft
60306086 1 端盖 End cover
60306087 4 标准型弹簧垫圈 Spring washer
60306088 4 六角头螺栓 Hexagon bolt
60306104 1 回转接头维修包 Swivel Joint Repair Kit
