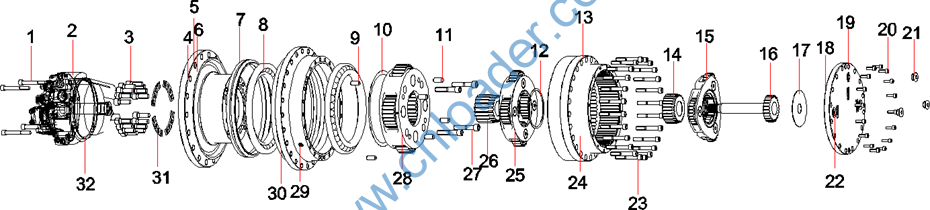

23000431 4 螺钉GB70.1 10.9级 Screw
60223357 1 液压马达 Plunger motor
60052088 16 螺钉 Screw
12940208 1 固定座 bearing seat GT60T65B-1
12498088 4 快速铆钉 Rivet GT40D43-28
12295416 1 铭牌 Nameplate
60123853 1 浮动油封 Seal,float
60194591 2 滚动轴承 Rolling bearing
A210503000024 3 销 Pin 16×40GB119.2
11273944 5 调整垫 Adjusting Spacer
24003542 4 销 Pin
11273937 1 挡圈 GT60T65-5
11273936 1 内齿圈 Annulus
11273941 1 太阳轮 Sun Gear Ⅱ GT60T65-9
11296731 1 行星架总成 set
12940221 1 太阳轮
11273939 3 挡板 Plate, retaining
60233672 1 O形圈 O ring
11273938 1 端盖 end coverGT60T65-6
12457643 3 螺塞 Plug
B230101000356 3 O形圈 O-ring
A210204000448 24 螺钉M14×100GB70.1 12.9级 Screw
A210608000322 1 O形圈 O-ring 375×5.3GB3452.1
11296732 1 行星架总成 Planetary
11273942 1 太阳轮 Sun Gear GT60T65-10
60022043 4 螺钉 Screw
11296733 1 行星架总成 set GT60T65.3
60060216 1 螺塞 Plug, screw
11273935 1 输出法兰 Housing

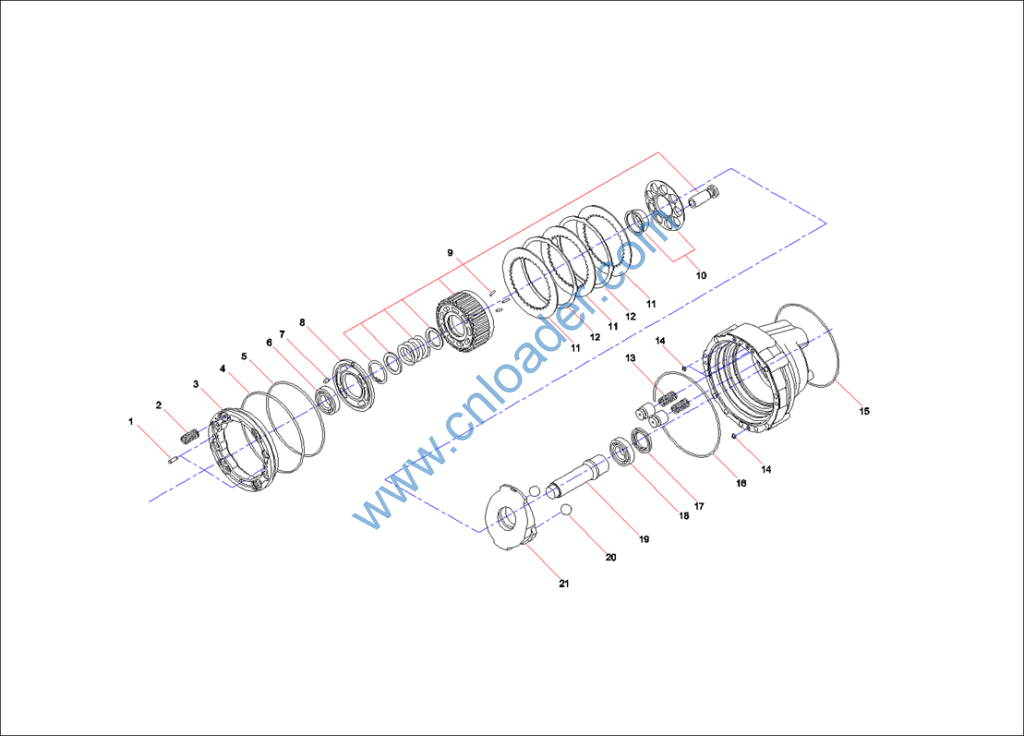

11273945 4 垫块 Block, cushion
60052139 1 O形圈 O-ring
60008464 4 销 Pin
60008465 8 弹簧 Spring
60311006 1 刹车活塞 Brake
60008475 1 密封环 Ring, sealing
60008476 1 密封环 Ring, sealing
60008642 1 球轴承 Bearing, ball
60311003 1 销 Pin
60311007 1 配油盘 Plate, port
60311011 1 柱塞缸组件 block kit cylinder
60311012 1 成套垫板 Plate retainer kit
B229900003189 3 20T行走制动从动片 Plate
B229900003190 2 20T行走制动主动片 Plate, seperator
60008467 2 弹簧 Spring
60202326 4 O形圈 O-ring
60311008 1 O型圈 O-ring
60311525 1 O型圈 O-ring
60311005 1 密封圈 Seal, oil
60008641 1 球轴承 Bearing, ball
60008647 1 轴 Shaft
60008474 2 钢球 Ball, steel
60311018 1 斜盘 plate swash
60008464 4 销 Pin
60311017 3 节流口 Orifice

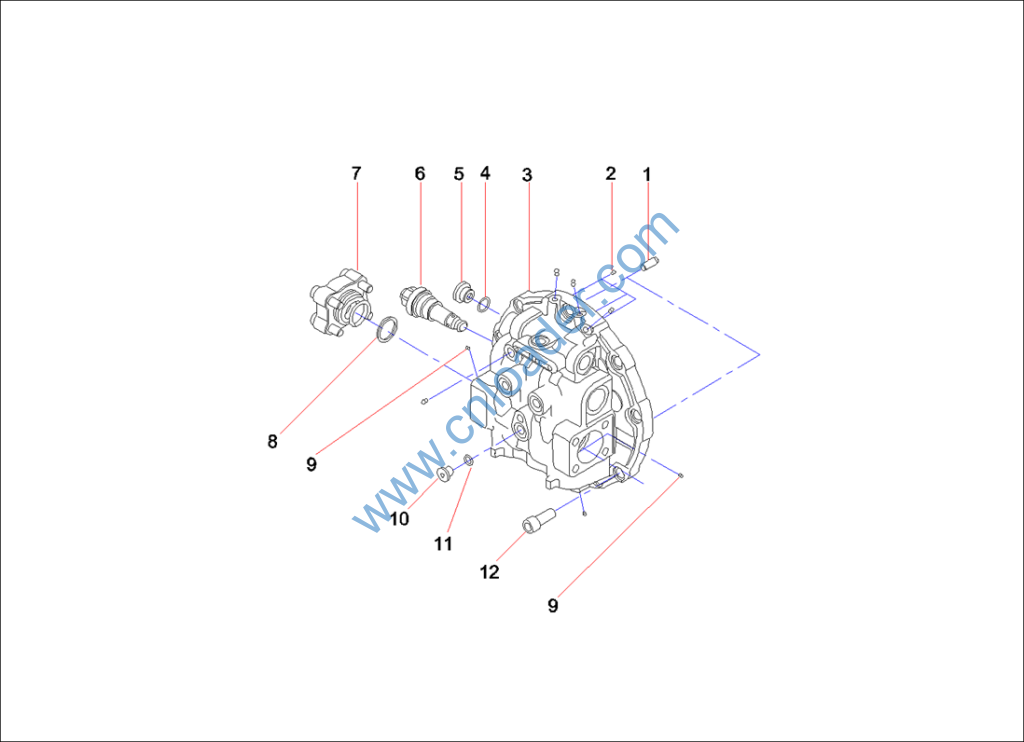

60311010 1 固定板套装 plate kit base

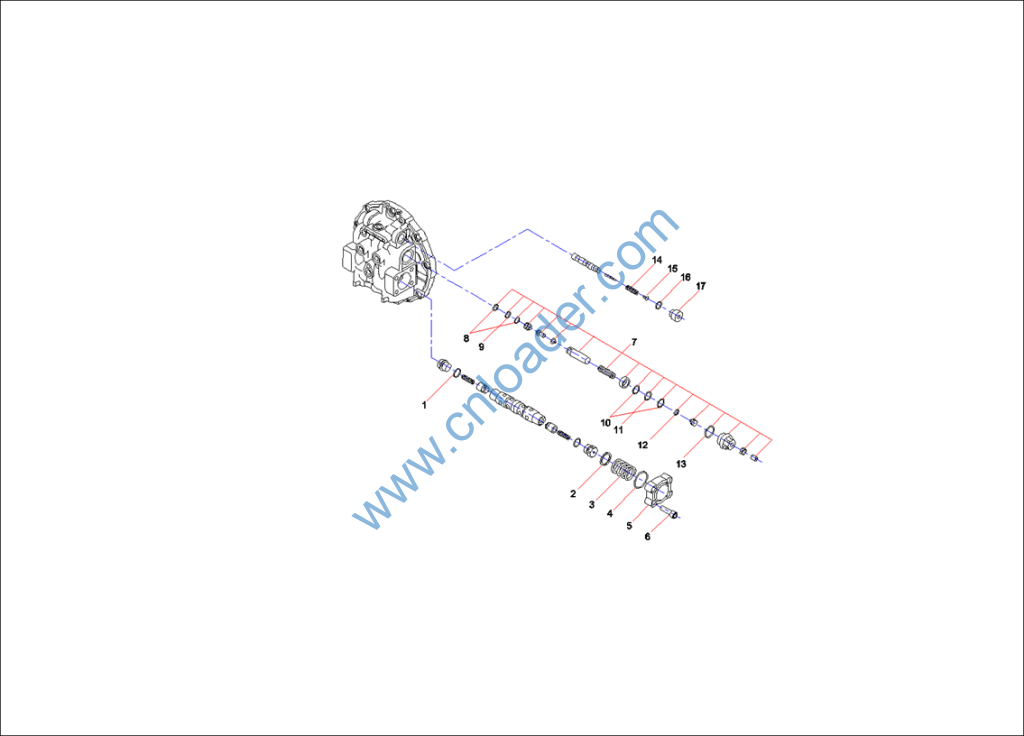

60081488 2 O形圈 O-ring
60008472 1 堵头 Plug
60311016 2 溢流阀组件 Valve relief assy
60311013 1 成套盖子 case kit
60008486 2 弹簧座 Seat, spring
60008488 2 节流口 Orifice
60008460 4 堵头 O-ring
60081486 4 O形圈 Plug
60311004 6 齿圈螺栓 Bolt
60081489 2 O形圈 O-ring
60008486 2 弹簧座 Seat, spring
60311014 2 弹簧 Spring
60081490 2 O形圈 O-ring
60311015 2 盖板 Cap
60081458 8 螺钉 Bolt
60311016 2 溢流阀组件 Valve relief assy
60065007 2 备用挡圈 Ring, retaining
60081487 1 O形圈 O-ring
60065008 2 备用挡圈 Ring, retaining
60081489 1 O形圈 O-ring
60310785 1 O型圈 O-ring
60081484 1 O形圈 O-ring
60008628 1 弹簧 Spring
60008648 1 弹簧倒向环 Guide, spring
60081488 2 O形圈 O-ring
60008461 1 堵头 Plug

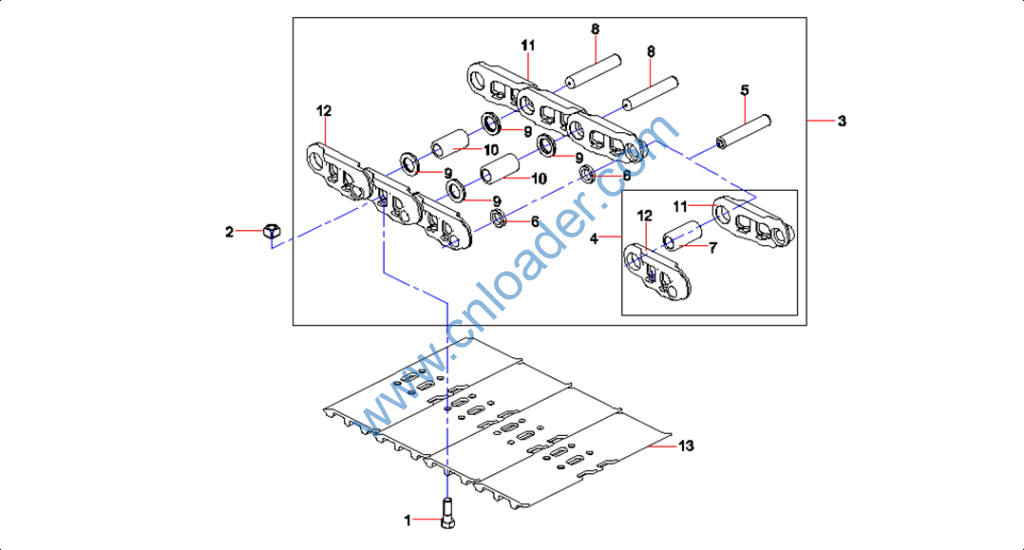

60088076 196 履带螺栓 Bolt,crawler
60110071 196 履带防松螺母 Check nut,crawler
13914437 1 链轨总成 chain track assy.
14080462 1 履带合件 Track Unit
13156417 1 履带主销套 Master Bush
60339105 2 履带主垫片 main spacer
11402653 1 主销轴 Master pinSTC216MA-6045.1-2
11402655 48 销轴 pinSTC216MA-6045.1-4
60173184 96 LD密封圈 Seal Ring
12917166 48 履带销套 Track Bush
13912646 49 右链轨节 link chain-track right
13912645 49 左链轨节 link chain-track left
12407733 49 履带板 Track Shoe

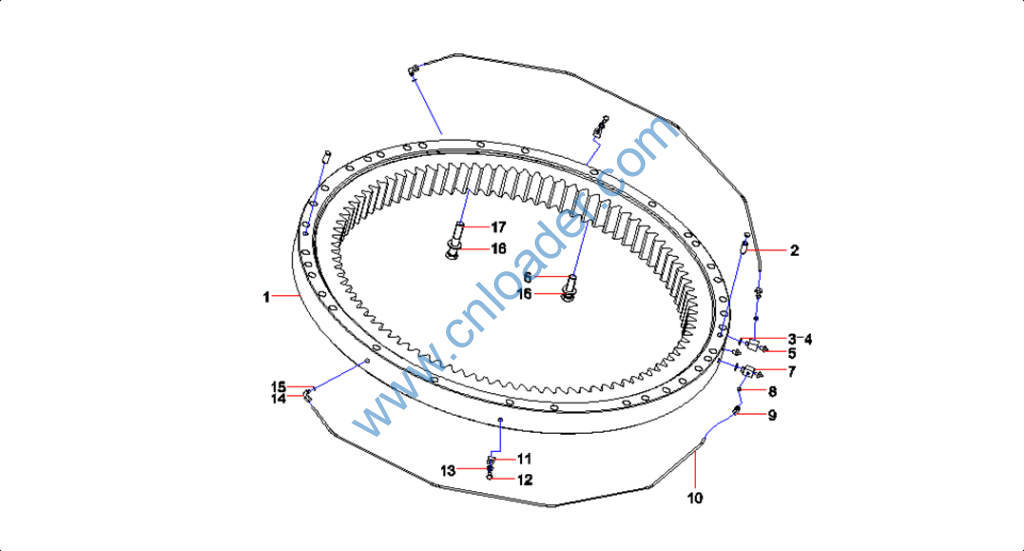

13484728 1 回转支承 Slewing ring SSf1405/50CWHⅡ
A820301012418 2 销 pin SY200B.1.7-2
A820102010428 2 密封垫 Seal Washer
10668938 2 密封垫 Combined seal pad
B229900000686 3 黄油嘴 Fitting, grease
变更或见其他配置 40 螺栓M24×85GB5782 10.9级达克 bolt
A820205000954 2 方接头 Square joint
A820102010474 4 垫圈 WasherSY200A.1.7-1
A210711000010 2 管接头 Fitting
A820207010441 2 硬管 Pipe
A820101118370 2 管夹 Clamp
A210204000334 2 螺钉M10×16GB70.1 10.9级 Screw
变更或见其他配置 2 垫圈10GB97.1 达克锈 Washer
A210770000195 2 管接头 Fitting
10668937 4 垫圈 Washer
A210491000122 75 垫圈 Washer
变更或见其他配置 35 螺栓M24×150GB5782 10.9级 Bolt

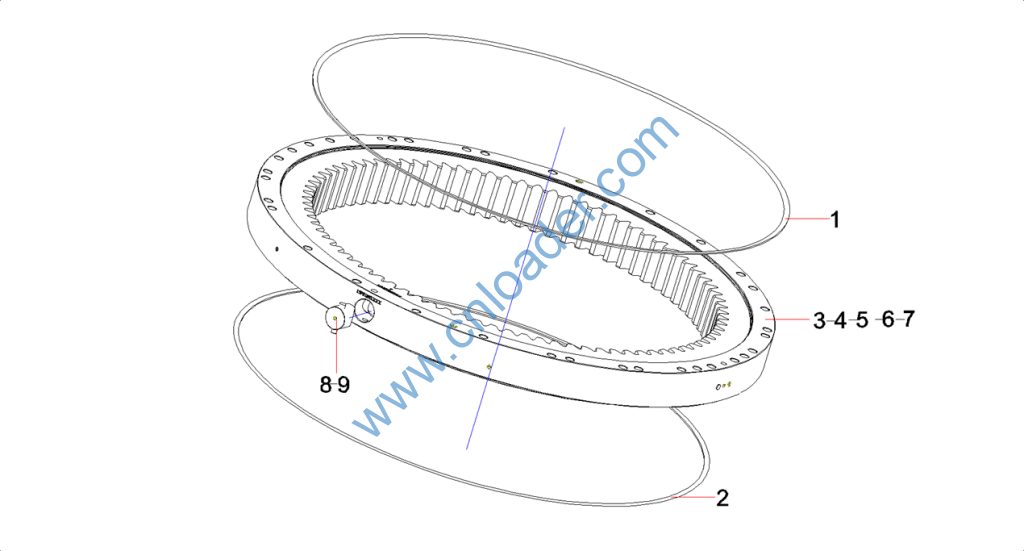

12791140 1 外圈密封条
12791139 1 内圈密封条
13484726 1 内圈 Inner Ring SSf1405/50CWHⅡ-1
13484727 1 外圈 Outer ring SSf1405/50CWHⅡ-2
A210661000041 75 钢球 Ball
A229900010025 75 隔离块 尼龙 Spacers
60012591 1 销 Pin
11217895 1 堵塞 Plug
A210551000025 1 销 Pin

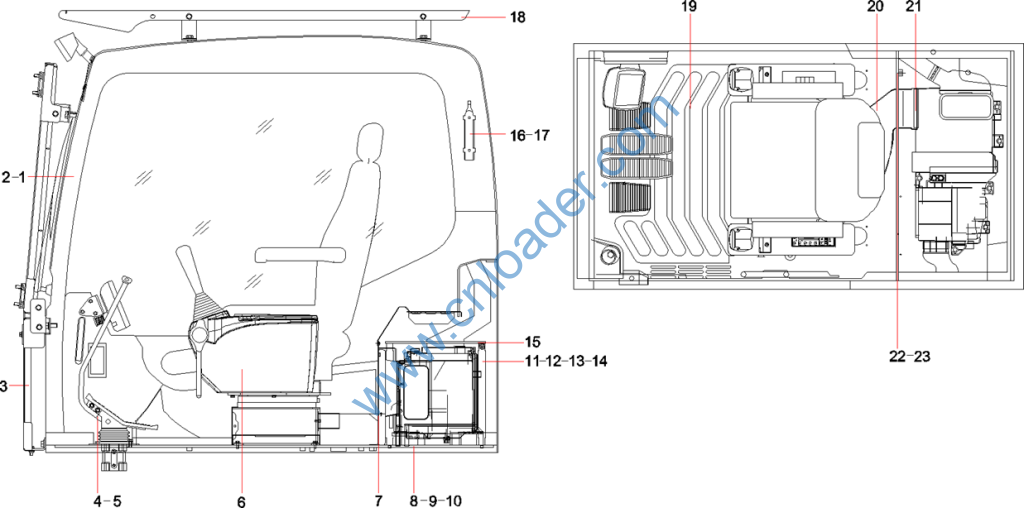

60211180 1 扬子驾驶室 Cab
变更或见其他配置 1 扬子驾驶室 Manufacturer, cab
变更或见其他配置 1 扬子驾驶室前下护网 Yangzi cab protective net
12076176 1 行走操纵机构 Valve, pilot
变更或见其他配置 1 行走操纵机构 Running control mechanism
12773451 1 座椅及操纵箱 Seat and controlbox
13687728 1 立板 Cover GP, rear
A210111000204 2 螺栓 Bolt
A210111000104 3 螺栓M12×70GB5783 10.9级 Bolt M12×70GB5783 10.9
60060548 5 垫圈12GB96.1 达克锈 Washer
A210111000343 17 螺栓M8×20GB5783 10.9级 Bolt
A210111000342 2 螺栓M8×16GB5783 10.9级 Bolt
60060565 19 垫圈8GB96.1 达克锈 Washer
12752753 3 支撑杆 New supporting Lever
13288272 1 电气安装板 Installation plate for electrical
60312104 1 简易式干粉灭火器 Fire Extinguisher
A210211000007 2 螺钉 Bolt
变更或见其他配置 1 扬子驾驶室防护网总成 Yangzi cab protective net
12777161 19 底板架 Floor SY335C9.1.5.6A
A229900010630 1 吹脚风道 Duct, lower air
10567493 1 吹脚风道密封海绵 Sealing sponge of Foot-Blowing
A210210000030 1 螺钉 Screw
60060562 1 垫圈4GB97.1 达克锈 Washer

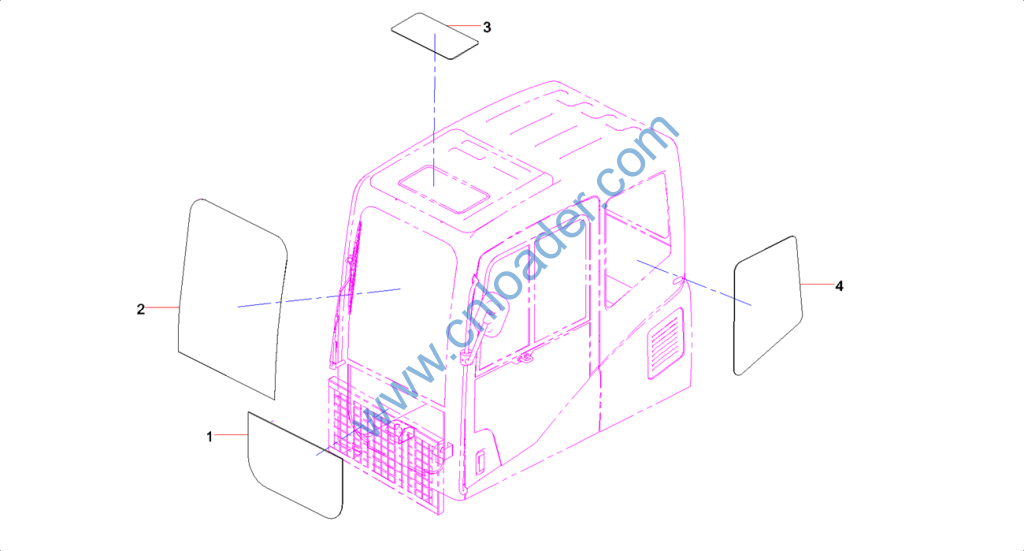

A230300000101 1 前围下固定窗玻璃 Glass, windshield, lower
A230300000100 1 前围上移玻璃 Glass, upper
A230300000108 1 顶天窗玻璃 Glass, roof
A230300000105 1 左侧后固定玻璃 Glass,rear left
A230300000106 1 后风窗玻璃 Glass, rear
A230300000107 1 右侧固定玻璃 Glass, right
A229900003762 1 门锁总成 Lock
60085462 1 驾驶室门窗 Glass

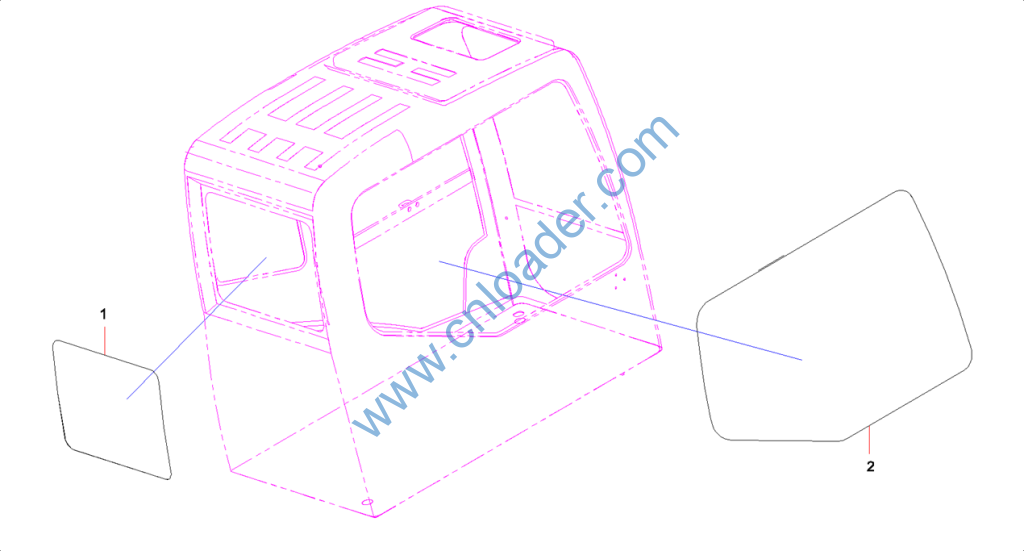

A230300000102 1 驾驶窗前玻璃 Glass, cab front
A230300000103 1 驾驶窗后玻璃 Glass, rear
A230300000104 1 左侧下固定玻璃 Glass, lower left
