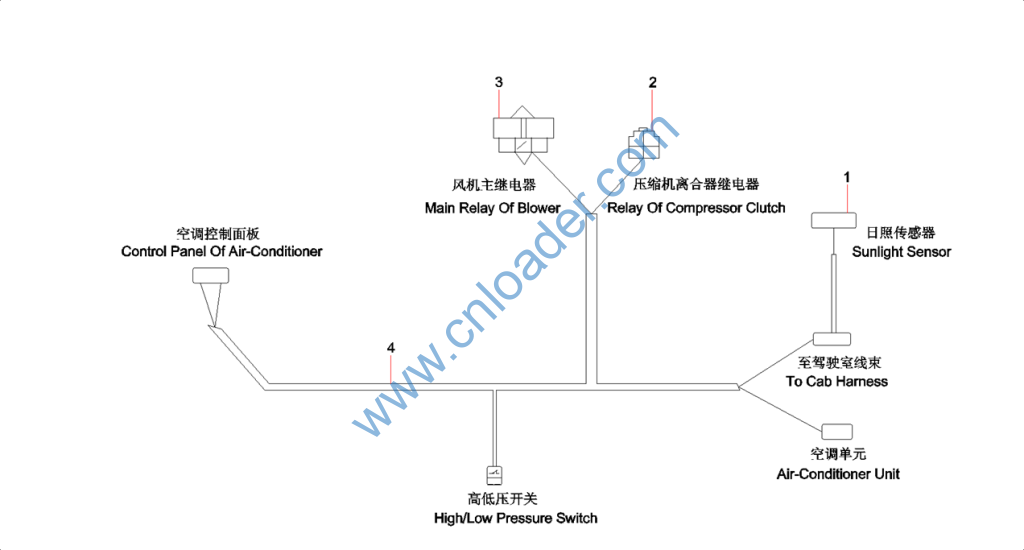

B240600000334 1 日照传感器 Sensor, sunlight
B240700000473 1 继电器 Relay
B240700000472 1 继电器 Relay
10448933 1 空调连接线 Harness, air conditioner

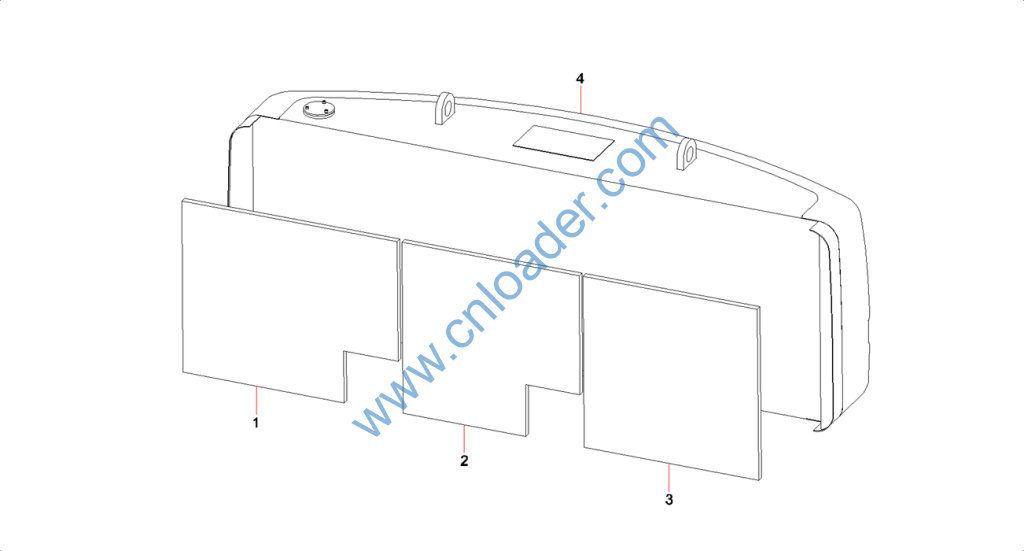

11287548 1 配重降噪海绵 Counterweight sound reducing
11287549 1 配重降噪海绵 Counterweight sound reducing
11287547 1 配重降噪海绵 Counterweight sound reducing

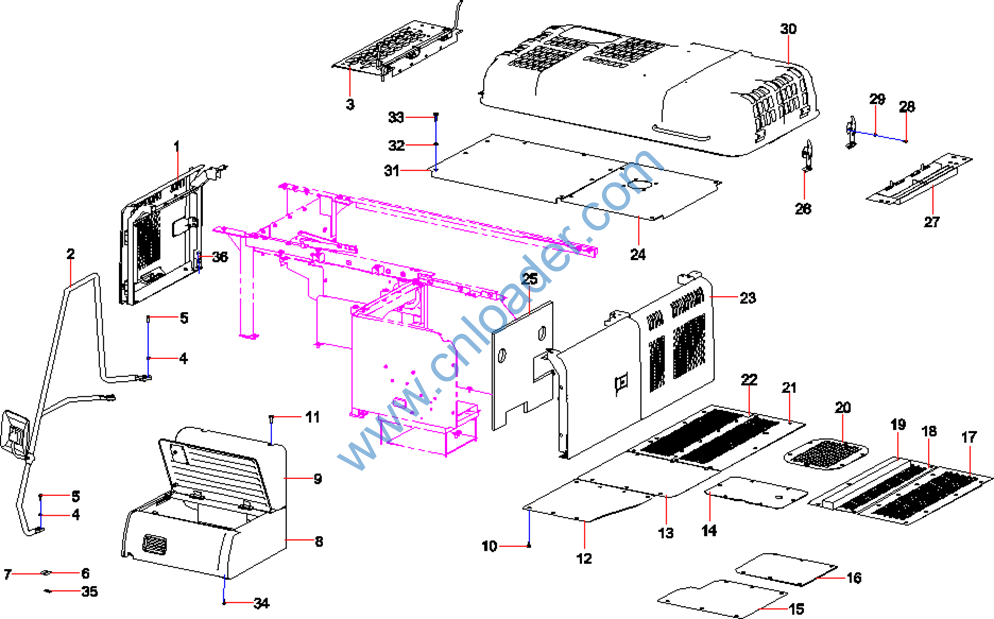

11598223 1 配重主体 counterweight SY335C.1.9A.1
12855224 1 右门总成 Right Door Assy. SY335C9H.1.6.3
14099806 1 扶手总成 hand rail
10123768 1 右上后盖 Right upper rear
60262513 6 垫圈12GB1230 锌镍合金 Washer
60262509 6 螺栓M12×40GB5783 10.9级 锌镍 Bolt
A820101210711 2 垫片 Washer
12006405 2 垫片 Washer
12909447 1 工具箱总成 Battery Box Assy SY300E.1.6.10
12909452 1 装饰盖 Trim cover SY300E.1.6.11
A210111000202 52 螺栓 Bolt
60262507 61 螺栓M12×25GB5783 10.9级 锌镍 Bolt
13586505 1 燃油箱底盖板 Bottom covered plate of fuel tank
13576737 1 液压油箱底盖板 Bottom cover plate of hydraulic oil
13576739 1 主阀下盖板 Main valve seat cover plate
13576734 1 驾驶室底前盖板 cab bottom cover
13576733 1 后中盖板 back cover plate(M)
13423728 1 左后底盖板 Back cover plate(L)
13423729 1 左中底盖板 Middle cover plate(L)
13705616 1 底海绵 Sponge
10179546 1 发动机底盖板 Bottom Cover Plate of
A810502012251 1 右后底盖板 Right rear bottom cover
A820101342509 1 右后底盖板 Right rear bottom cover
12697690 1 左门总成 left door assy SY305C9I2K.1.6.12
12697699 1 空滤盖板 Air filter plate SY305C9I2K.1.6.13
12855576 1 降噪海绵 sponge
A222200000065 2 机罩锁 Latch, hood
A810502012207 1 左上后盖 Left upper rear
60262506 8 螺栓M8×20GB5783 10.9级 锌镍合 Bolt
60262510 8 垫圈8GB96.1 锌镍合金 Washer
11256386 1 机顶罩总成 Bonnet Assy. SY335C8I2K.1.6.6A
11945259 1 中上盖板 Middle(B) plate
60262511 95 垫圈12GB96.1 锌镍合金 Washer
60262508 34 螺栓M12×30GB5783 10.9级 锌镍 Bolt
A210111000204 4 螺栓 Bolt
12006404 2 垫片 Washer
A210111000101 10 螺栓M12×25GB5783 10.9级 Bolt
12697701 1 左前隔板总成 Rear support of
60060546 2 垫圈10GB96.1 达克锈 Washer
A210307000036 12 螺母 Nut
A210491000120 8 垫圈 Washer
12602227 1 电瓶保护罩 Battery protective
11583629 1 蓄电池固定架 Battery fixed
A820606030643 4 蓄电池胶垫 Rubber pad, battery
12569036 1 蓄电池胶垫 Battery rubber pad
11592968 4 双头螺柱 Stud, battery hold down
A210111000199 5 螺栓M12×20GB5783 10.9级 Bolt M12×20GB5783 10.9
60060548 71 垫圈12GB96.1 达克锈 Washer
12739184 1 继电器防护罩 Relay Protective cover

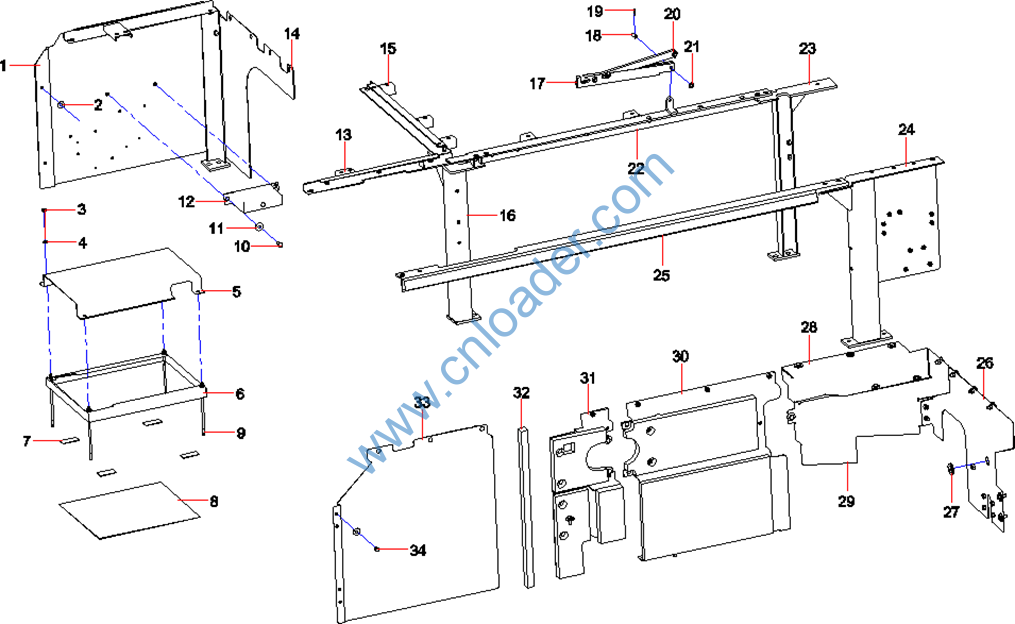

12456158 1 空滤横梁 air cleaner cross
11945338 1 空滤挡板 Air cleaner baffleSY310C1.1.6-
11945285 1 连接梁 Connection Beam
11945719 1 左前支架 Left(F) bracket
A820302010101 1 支杆 Support, hood
A210508000009 3 销轴 Pin
A210491000014 3 销 Pin, cotter
A810502015065 1 撑杆 Rod, hood support
A210491000121 3 垫圈 Washer
A810502015192 1 前横梁 Front cross rail
A810502015197 1 右前支架 Right(F) bracketSY310C1.1.6.18
A810502015195 1 右后支架 Right(B) bracketSY310C1.1.6.22
A810502015193 1 后横梁 Rear beam
12859666 1 主泵上隔板 Upper partition plate
11169936 1 橡胶护套 Rubber protective sleeve
10122468 1 侧隔板主体 Main body of side clapboard
12859668 1 主阀下隔板主体 Main body of main valve lower
12859671 1 柴油机上隔板 engine clapboard
A810502012215 1 柴油机下隔板 engine clapboard
A820699000954 1 海绵 Foam
12456160 1 挡板主体 baffle bodySY310C1.1.6.58C.1
A210111000012 6 螺栓 M10×20GB5783 10.9级 Bolt

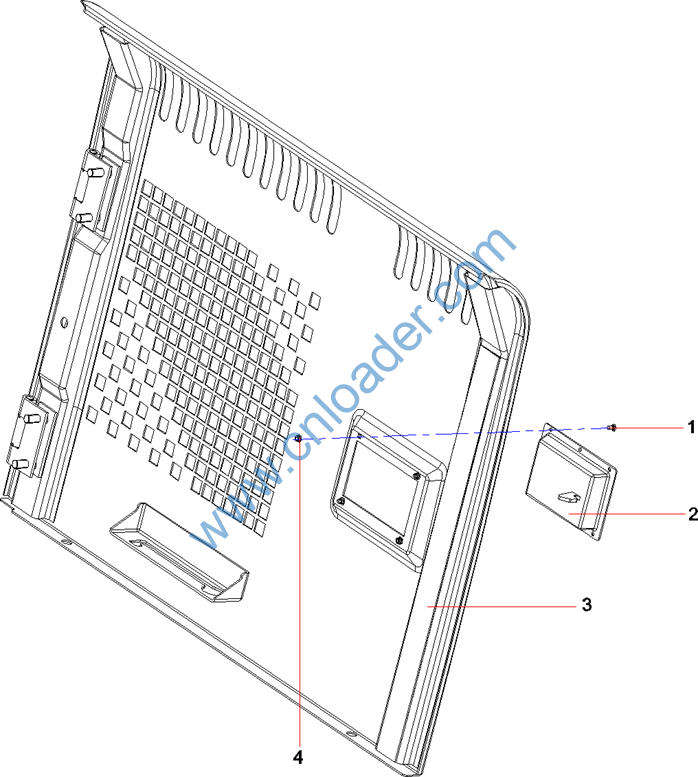

12855229 1 右门安装架 right door frame SY335C9H.1.6.3.1
12196084 1 风钩 Rod, door
12677408 1 右门 Door AS,left rear
A210405000001 8 垫圈 Washer
A210307000001 6 螺母 Nut M30GB6170
A210111000202 2 螺栓 Bolt
A810502019056 3 定位螺钉 Setscrew
12855223 1 橡胶垫板 Rubber Liner Plates
12669836 3 垫片 washer
12669838 1 锁卡板 door-shaft seal
11817247 4 固定卡座 Rivet, threaded
A222200000012 1 门锁 Latch AS
12735024 1 橡胶垫板 Gasket, rubber
11817218 4 防松螺母 check nut

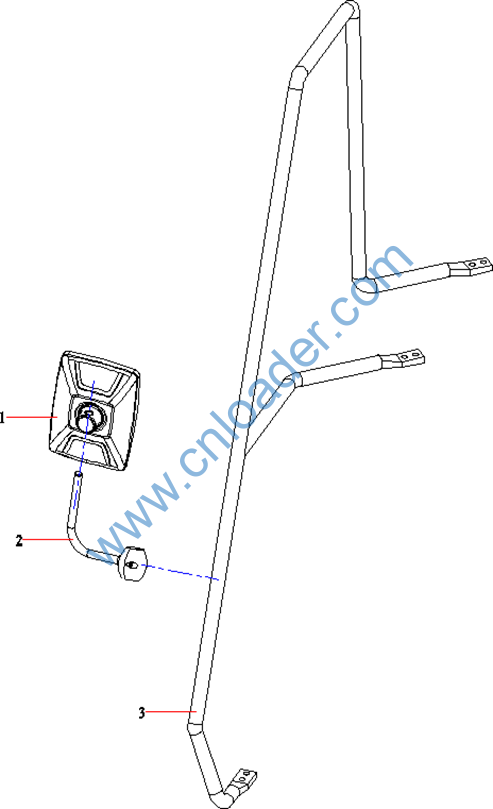

60228208 1 后视镜 rearview mirror
12046539 1 右下后视镜支架组件 Bracket, mirror
11475138 1 扶手主体 Handrail AS
10055956 1 右上后盖板 Right upper rear cover plate
A820101342714 2 支架 Bracket
A210111000202 6 螺栓 Bolt
A210491000121 6 垫圈 Washer
A820101342715 1 防摆套 Antiswing sleeve
A820301021326 1 前部弹簧 spring, torsionalSY310C1.1.6.1-7
A820301021327 1 后部弹簧 Spring, torsionalSY310C1.1.6.1-8
11817247 4 固定卡座 Rivet, threaded
60196657 1 箱柜锁 door lock
11817218 4 防松螺母 check nut
60238783 2 垫圈6GB96.1 达克锈 Washer
11938430 1 支杆 Lever
A210491000007 2 销 Pin, Cotter
11597462 1 密封条 Sealing strip
12909451 1 工具箱主体 Tool Box Main Body

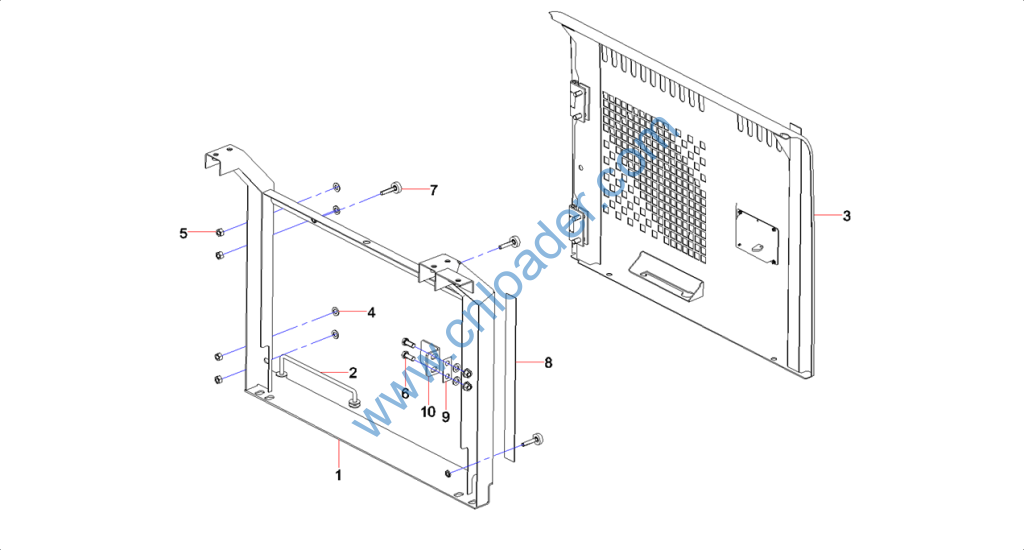

12697697 1 左门安装架 Left door mounting frame
12677108 1 门 doorⅠ SY365C8I2KS.1.6.25.2

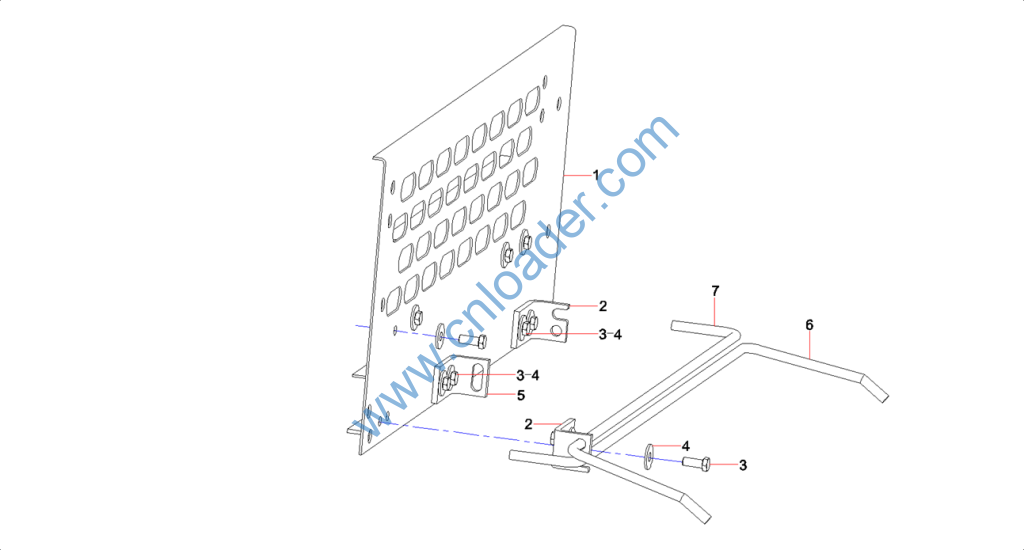

13852760 1 左前门 Left front door
12196084 2 风钩 Rod, door
12669838 1 锁卡板 door-shaft seal
A210405000001 8 垫圈 Washer
A210307000001 8 螺母 Nut M30GB6170
A810502019056 4 定位螺钉 Setscrew
12669836 1 垫片 washer
12669837 1 垫片 washer
A210111000038 2 螺栓 Bolt M12×30GB5783
11817247 4 固定卡座 Rivet, threaded
13852759 1 左前门板 door plate SY305C9I2K.1.6.12.3-1
A222200000012 1 门锁 Latch AS
11817218 4 防松螺母 check nut
12735024 1 橡胶垫板 Gasket, rubber
