XCMG XE215C Excavator spare parts
310703524 HYDRAULIC EXCAVATOR
XUGB215BAMKA03387 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
1 310703388 1 TURNTABLE ASSEMBLY 10
2 310703436 1 SLEWING MOVEMENT 16
3 310703369 1 COUNTERWEIGHT 28
4 310714197 1 CAB 30
5 310703537 1 TOOLBOX ASSY 54
6 310703555 1 HANDRAIL ASSY 60
7 310703590 1 HOOD AND GUARD ASSEMBLY 62
8 310703580 1 HYDRAULIC PILOT CONTROL SYSTEM 88
9 310704685 1 HYDRAULIC SYSTEM-UPPERSTRUCTURE 122
10 310703342 1 OIL TANK 176
11 310710226 1 ENGINE ASSEMBLY 184
12 310703529 1 FUEL TANK 250
13 310714185 1 ELECTRICAL CONTROL SYSTEM 252
14 310704339 1 AIR CONDITIONING SYSTEM 266
15 310714117 1 UNDERCARRIAGE ASSEMBLY 272
16 310703519 1 HYDRAULIC SYSTEM – UNDERCARRIAGE 294
17 310703465 1 EQUIPMENT 298
18 310705713 1 CENTRALIZED LUBRICATION 316
20 310710888 1 SIGN 320
21 801543347 1 TOOLS

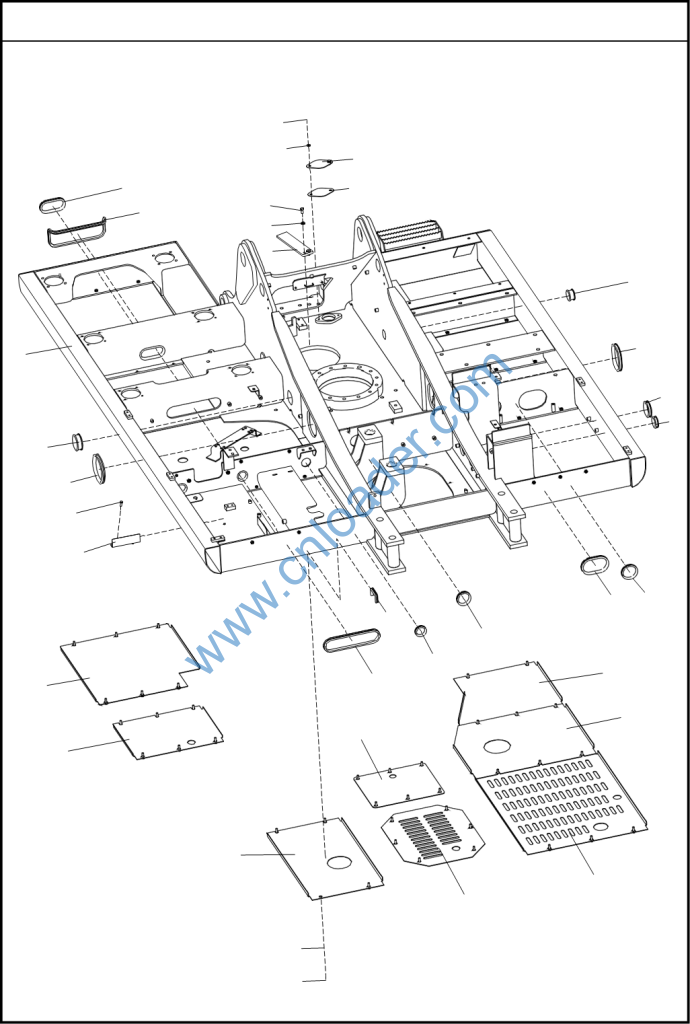

310703388 TURNTABLE ASSEMBLY
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
1 310703390 1 REVOLVING FRAME 14
2 805338281 2 WASHER 12 GB/T97.1-2002
3 805006412 2 BOLT M12×30 GB/T5783-2000
4 310600401 1 STIR OBJECT
5 310600416 1 HOSE COVER
6 801974726 1 LATEX L=470
7 801971111 1 LATEXL=190
8 801971112 2 LATEXL=280
9 310703383 1 SHROUNDING
10 805046416 39 BOLT M10×30 GB/T5783-2000
11 805338268 39 WASHER 10 GB/T96.1-2002
12 310704566 1 SHROUNDING
13 310706002 1 SHROUNDING
14 310703384 1 SHROUNDING
15 310800372 1 SHROUNDING
16 310703385 1 SHROUNDING
17 310703386 1 SHROUNDING
18 310703387 1 SHROUNDING
19 801972162 1 LATEXL=420
20 801971108 2 LATEXL=250
21 310405792 3 LATEXL=185
22 801971107 1 LATEX L=280
23 801974482 1 LATEX L=157
24 801971958 1 LATEX L=530
25 801971106 2 LATEXL=280
26 801971398 1 LATEX L=790
27 801971397 1 LATEX L=1000
28 801971399 2 LATEX L=380
29 310600415 1 WASHER
30 310600414 1 COVER PLATE
31 805046525 2 BOLT M10×20 GB/T5783-2000
32 805338279 2 WASHER 10 GB/T97.1-2002
33 310605472 1 PLATE
310703388 TURNTABLE ASSEMBLY
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
34 805011330 2 BOLT M10×25 GB/T5783-2000
310703390 REVOLVING FRAME
310703388 TURNTABLE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 310712372 1 SEAT
310703436 SLEWING MOVEMENT
310703524 HYDRAULIC EXCAVATOR
No. PART NUMBER QTY NAME NOTE PAGE
1 800554773 1 SLEWING BEARING 18
2 801102863 3 OIL CUP R1/8
3 310803717 2 PIPE
4 801139375 2 T-JOINT GROUP
5 801139362 2 STRAIGHT COUPLING GROUP
6 800104454 2 SLEEVE CLAMP FOR RUBBER HOSE
7 805338277 2 WASHER 8 GB/T97.1-2002
8 805046504 2 BOLT M8×16 GB/T5783-2000
9 329901022 36 BOLT
10 805338298 72 WASHER 22 GB/T1230-2006
11 329901421 36 BOLT
12 310715413 1 ROTARY MOTOR PIPELINE ASSEMBLY 20
13 329901422 13 BOLT
14 805338289 13 WASHER 20 GB/T97.1-2002
15 312601773 1 PIN
16 805604377 2 PIN 20×45 GB/T120.1-2000
800554773 SLEWING BEARING
310703436 SLEWING MOVEMENT
No. PART NUMBER QTY NAME NOTE PAGE
1 801906432 1 SEAL
310715413 ROTARY MOTOR PIPELINE ASSEMBLY
310703436 SLEWING MOVEMENT
No. PART NUMBER QTY NAME NOTE PAGE
1 801102863 1 OIL CUP R1/8
2 803177315 1 JOINT
3 805238411 1 NUT M14×1.5 GB/T6176-2000
4 803436343 1 HOSE ASS’Y
5 803007145 1 SWING MOTOR ASSEMBLY 22
6 803438677 1 HOSE ASS’Y
7 312601232 1 BULKHEAD CONNECTION
8 312000424 1 NUT
9 803191142 1 PLUG
10 310709082 1 PLATE
11 805338279 1 WASHER 10 GB/T97.1-2002
12 805011330 1 BOLT M10×25 GB/T5783-2000
13 803172177 1 CONNECTOR
14 803172307 1 CONNECTOR
803007145 SWING MOTOR ASSEMBLY
310715413 ROTARY MOTOR PIPELINE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
1 860545555 1 MOTOR
2 860545556 1 REDUCER
803007145 SWING MOTOR ASSEMBLY
310715413 ROTARY MOTOR PIPELINE ASSEMBLY
No. PART NUMBER QTY NAME NOTE PAGE
3 860139669 1 DRIVE AXLE
4 860120540 1 PLANT
5 803009125 1 AUXILIARY PLUNGER
6 803009158 1 CLAMP
7 860120538 1 SPRING
8 803009149 1 CYLINDER BODY
9 860120559 4 SEPARATOR
10 860120558 3 FRICTION PLATE
11 860120560 1 VALVE
12 860120561 3 HEXAGON SOCKET SCREW
13 860120555 1 O-RING
14 860120556 1 O-RING
15 803009206 1 PLUNGER
16 860120541 1 VALVE PLATE
17 860120549 1 CYLINDRICAL ROLLER BEARING
18 860120557 24 SPRING
19 860120551 1 O-RING
20 803009139 2 PRESSURE RELIEF VALVE
21 860125581 2 O-RING
22 860120544 2 SPRING
23 803009171 2 SLEEVE
24 860120552 2 O-RING
25 860126757 2 VALVE
26 860120564 1 VALVE
27 860120553 1 OIL SEAL
28 860120548 1 CYLINDRICAL ROLLER BEARING
