STC800S Truck Crane TC2080BH2776 SANY DL

Item No.

Part No.

Description

Qty.

Remark

1

A210609000097

O-ring

2

2

A210609000138

O-ring

2

3

60148462

Relief Valve

1

4

60267000

O-ring

2

5

A31C200500100

O-ring

2

6

B210399000003

Plug, Screw

1

7

A229900010656

Plug

1

8

12616957

Orifice

1

9

13099837

Valve Body, Manifold

1

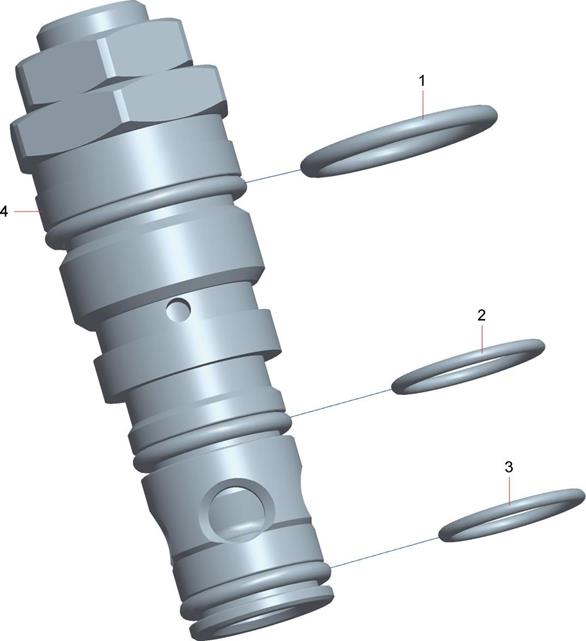

Item No.

Part No.

Description

Qty.

Remark

1

A210609000032

O-ring

1

2

A210609000163

O-ring

1

3

21032352

O-ring

1

4

60024952

Valve, Main Relief, Boom Lift & Telescope

1

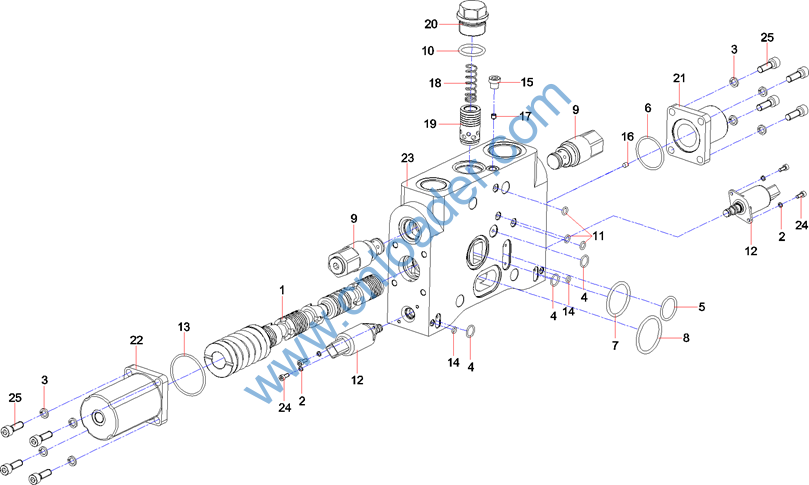

Item No.

Part No.

Description

Qty.

Remark

1

13869952

luffing spool combination M28C105.2.1

1

2

A210401000013

Washer

4

3

A210401000017

Washer

8

4

A210609000097

O-ring

1

5

A210609000042

O-ring

2

6

A31C203870265

O-ring 38.7×2.65GB3452.1

1

7

A210609000051

O-ring

1

8

A210609000138

O-ring

1

9

60209459

Relief Valve

1

10

60246790

O-ring

1

11

60246791

O-ring

1

12

60246792

O-ring

1

13

A210661000016

Ball, Steel

1

14

60267000

O-ring

3

15

60277823

Valve Assembly, Solenoid

2

16

A210609000065

O-ring

1

17

A31C200500100

O-ring

4

18

B210399000003

Plug, Screw

1

19

A229900010656

Plug

1

20

12616957

Orifice

1

21

11259982

Plug

1

22

11987646

Spring

1

Item No.

Part No.

Description

Qty.

Remark

23

13066945

Cartridge, Check Valve

1

24

13066915

Cartridge, Valve

1

25

13066918

Plug

1

26

13099827

Valve Body, Section, Main Control Valve

1

27

12983263

Cover, Front End

1

28

13087231

Housing

1

29

A210204000318

Screw

4

30

A210204000162

Screw

8

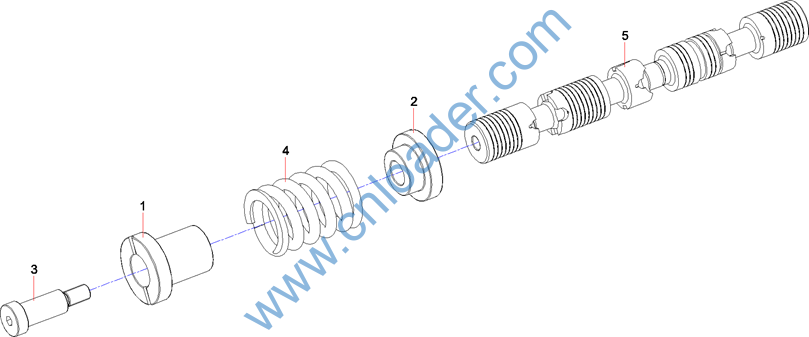

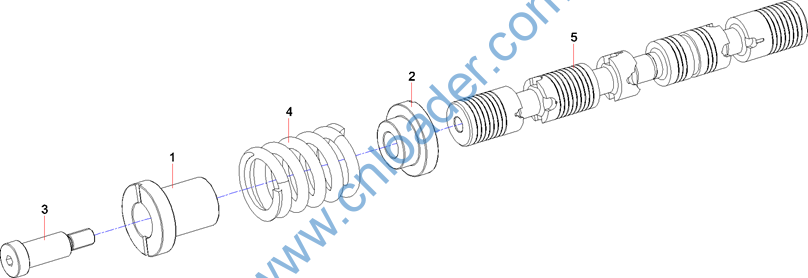

Item No.

Part No.

Description

Qty.

Remark

1

12986560

Retainer, Spring

1

2

12986569

Retainer, Spring

1

3

12986577

Cap

1

4

12981268

Spring, Return

1

5

13446726

Slewing Valve Rod M28C105.2-1

1

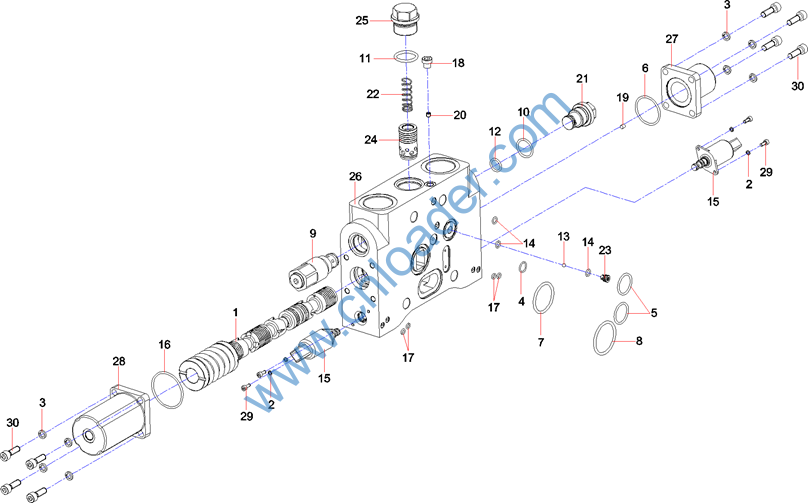

Item No.

Part No.

Description

Qty.

Remark

1

13873690

Telescopic spool combination M28C105.3.

1

2

A210401000013

Washer

4

3

A210401000017

Washer

8

4

A210609000097

O-ring

3

5

A210609000042

O-ring

1

6

A31C203870265

O-ring 38.7×2.65GB3452.1

1

7

A210609000051

O-ring

1

8

A210609000138

O-ring

1

9

60209459

Relief Valve

2

10

60246791

O-ring

1

11

60267000

O-ring

3

12

60277823

Valve Assembly, Solenoid

2

13

A210609000065

O-ring

1

14

A31C200500100

O-ring

2

15

B210399000003

Plug, Screw

1

16

A229900010656

Plug

1

17

12616957

Orifice

1

18

11987646

Spring

1

19

13066915

Cartridge, Valve

1

20

13066918

Plug

1

21

12983263

Cover, Front End

1

22

12983219

Housing

1

Item No.

Part No.

Description

Qty.

Remark

23

13225275

Working valve M28C104.3-1

1

24

A210204000318

Screw

4

25

A210204000162

Screw

8

Item No.

Part No.

Description

Qty.

Remark

1

12986560

Retainer, Spring

1

2

12986569

Retainer, Spring

1

3

12986577

Cap

1

4

12981268

Spring, Return

1

5

13446744

Expansion Valve Rod M28C105.3-2

1

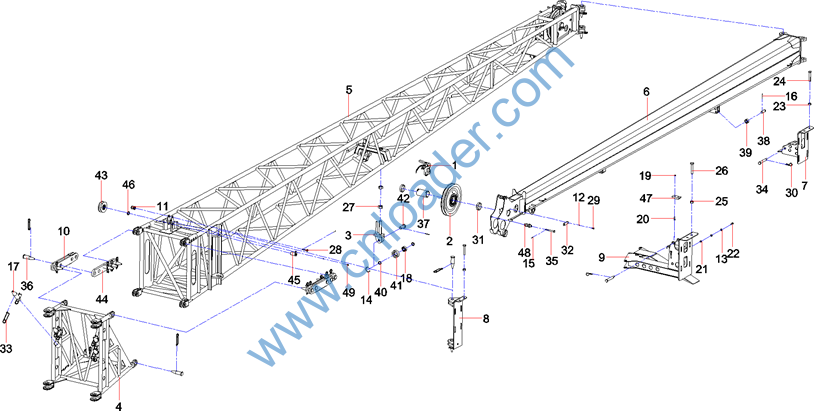

Item No.

Part No.

Description

Qty.

Remark

1

10907940

Connecting seat

1

2

A819700000631

Sheave Assembly

2

3

12114930

Holder, Roller

2

4

12194899

Boom seat assembly

1

5

12196191

Boom frame assembly

1

6

12196202

Folding boom

1

7

12196211

Supporting bracket of folding boom

1

8

12196214

Bearing plate

1

9

12484296

Bracket assembly

1

10

12484301

Connecting plate

2

11

12828989

Pulley

1

12

A210401000017

Washer

8

13

A210405000001

Washer

8

14

A210416000037

Ring, Snap

2

15

A210501000021

Pin, Cotter

4

16

A210491000018

Pin, Cotter

5

17

12430142

Cross pin A1103.1.8-1

4

18

B221500000389

Bearing

2

19

A210307000017

Nut

2

20

A210204000181

Screw

2

21

A210307000001

Nut

4

22

A210111000038

Bolt

4

Item No.

Part No.

Description

Qty.

Remark

23

A210307000005

Nut

4

24

A210111000443

Bolt

4

25

A210307000030

Nut M24GB6170

2

26

24004516

Bolt

2

27

A210301000011

Nut

4

28

13339581

Pin XZ15X65.A01

1

29

A210111000089

Bolt

8

30

10137517

Clip

2

31

10131942

Bushing, Spacer

4

32

10137549

Lock Plate

4

33

10034875

Clip

21

34

13351841

Pin

3

35

13339570

Pin, Tie

4

36

13351867

Pin

18

37

13404932

Pin, F6

2

38

A820301016852

Pin, Roller

1

39

A820601040348

Sheave

1

40

12114793

Bushing

4

41

12114794

Roller

2

42

10267582

Pin

2

43

12828992

Pulley assembly

1

44

12196125

Connecting plate

2

Item No.

Part No.

Description

Qty.

Remark

45

12828998

Pulley shaft

1

46

12830663

Separating sleeve

2

47

12196128

Sliding block

1

48

12240687

Pulley

4

49

A210111000088

Bolt

1

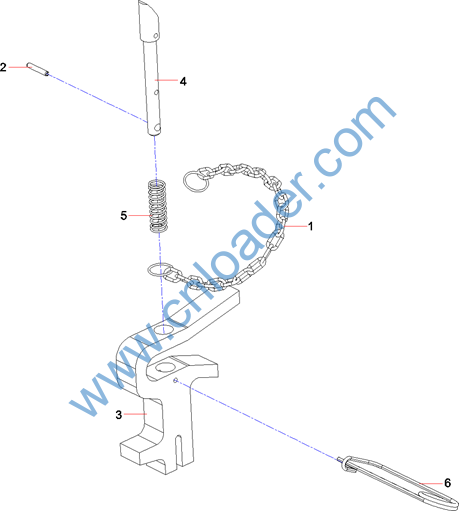

Item No.

Part No.

Description

Qty.

Remark

1

A210861000001

Chain

1

2

A210501000010

Pin, Cotter

1

3

10907937

Seat

1

4

10907938

Shaft

1

5

10907939

Spring

1

6

10200539

Clip

1

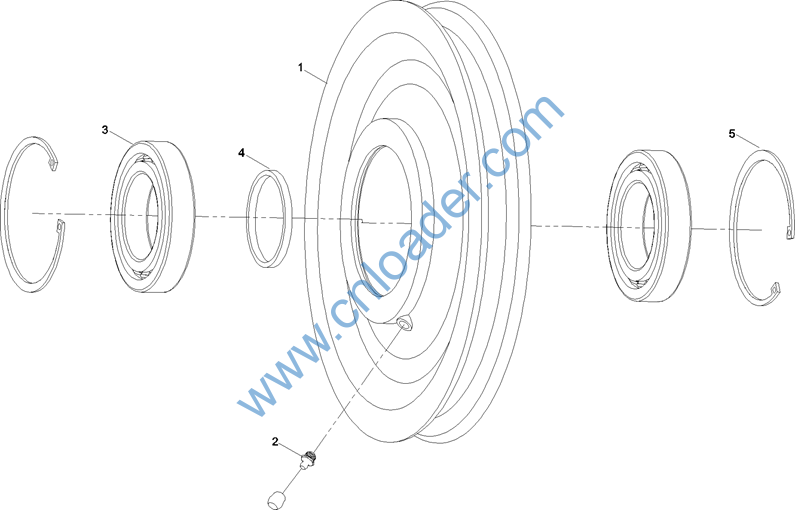

Item No.

Part No.

Description

Qty.

Remark

1

A820601040257

Sheave

1

2

A210804000002

Fitting, Grease

1

3

A210601006246

Bearing

2

4

A820202003991

Spacer Ring

1

5

A210416000006

Ring, Snap

2

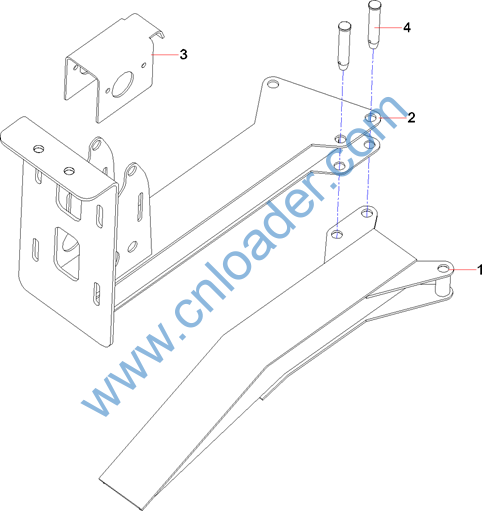

Item No.

Part No.

Description

Qty.

Remark

1

12166753

Ramp, Folding

1

2

12484298

Bracket STC750S.1.8.7.1

1

3

12201122

Support, Adjustable

1

4

13351839

Pin

2

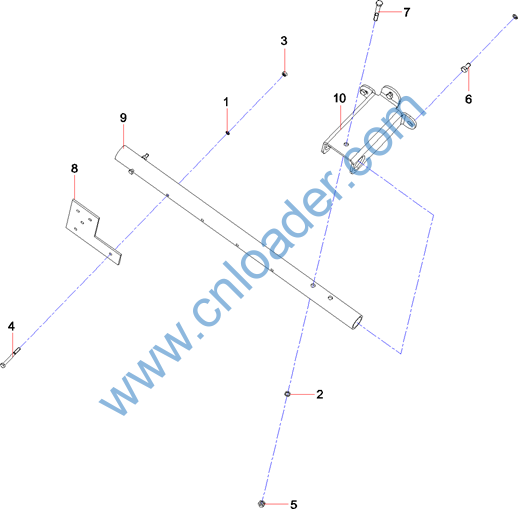

Item No.

Part No.

Description

Qty.

Remark

1

A210401000016

Washer

2

2

A210401000017

Washer

4

3

A210307000016

Nut

2

4

A210110000319

Bolt

2

5

A210307000012

Nut

1

6

A210111000088

Bolt

3

7

A210111000096

Bolt M8×70GB5783

1

8

10464302

Plate, installation, anemoscope

1

9

10464303

Pipe, support, anemoscope

1

10

12255103

anemoscope base SAC2200.1.6-10

1

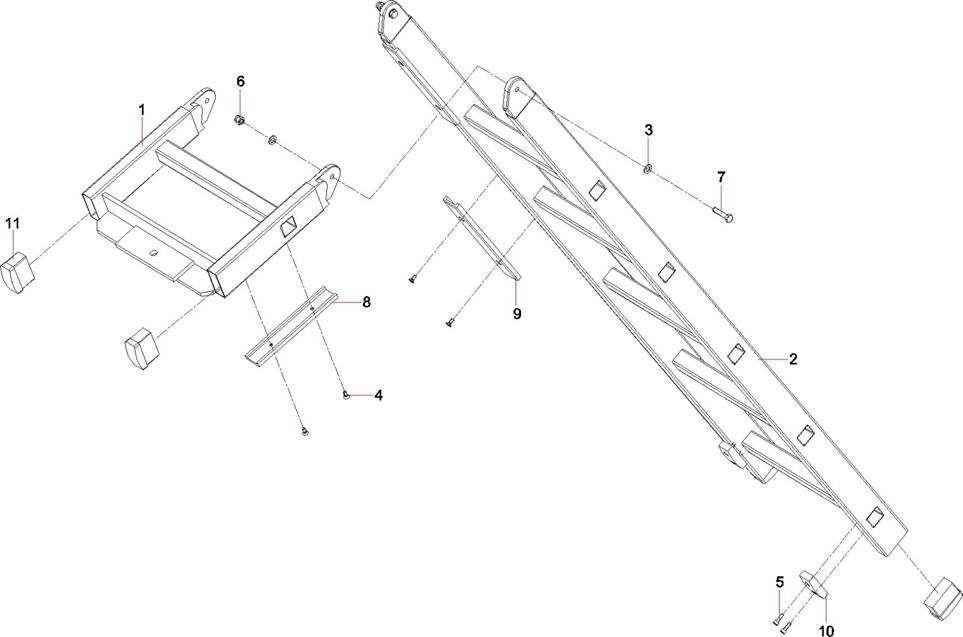

Item No.

Part No.

Description

Qty.

Remark

1

12932771

Upper part of stairsSYM5720J.3.2.11.1

1

2

12932772

lower part of stairsSYM5720J.3.2.11.2

1

3

A210405000007

Washer

4

4

A210211000025

Screw M5×12GB819.1

8

5

A210204000116

Screw M5×16GB70.1

4

6

A210336000004

Nut M8GB923

2

7

A210111000092

Bolt

2

8

12932756

nylon block 1SYM5720J.3.2.11-1

2

9

12932757

nylon block 2SYM5720J.3.2.11-2

2

10

12932758

nylon block 3SYM5720J.3.2.11-3

2

11

12934306

nylon block 4SYM5720J.3.2.11-4

4

Item No.

Part No.

Description

Qty.

Remark

1

13636793

Fixed Bracket T07-F-140055.6.11-3

1

2

13636794

Fixed Bracket T07-F-140055.6.11-4

1

3

A820606010864

Clip, Gripper

5

4

14007806

flitch plate SYM5463JD5.3.2-2A

1

5

13908574

ladder support SYM5552J6.3.2.40

1

6

A829900002661

Clip

1
