Item No.

Part No.

Description

Qty.

Remark

1

11209690

Cover Assembly, Door, Operator’s Cab

1

2

11220008

Plate, Threshold, Operator’s Cab

1

3

11590953

Guard Plate, Upper, Right, Operator’s Cab

1

4

11590954

Guard Plate, Lower, Right, Operator’s Cab

1

5

11606068

Guard Plate, Left, Operator’s Cab

1

6

11606069

Cover, Left, A Pole, Operator’s Cab

1

7

11606078

Guard Plate, Skylight, Operator’s Cab

1

8

11606073

Cover

1

9

11606077

Guard Plate, Rear, Operator’s Cab

1

10

11638894

Buckle

8

11

11362394

Handle, Door, Inner

1

12

11217589

Clip 2

22

13

A210210000027

Screw

2

14

A210401000016

Washer

2

15

A210405000006

Washer

2

16

11326706

Screw

4

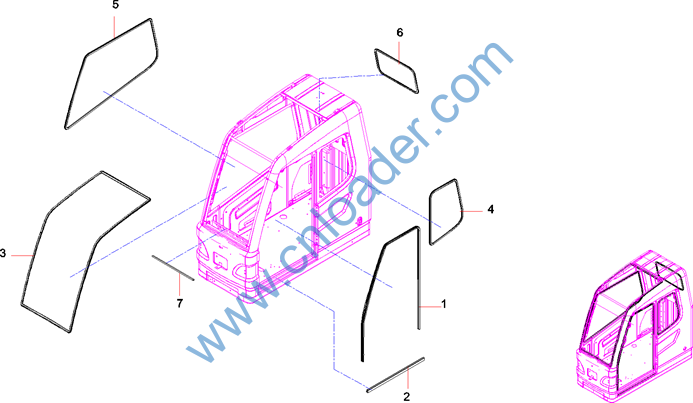

Item No.

Part No.

Description

Qty.

Remark

1

11258377

Seal, Door, Operator’s Cab

1

2

11299588

Seal

1

3

11509916

Decorative Strip

1

4

11232530

Decorative Strip

1

5

11232531

Decorative Strip

1

6

11232532

Decorative Strip

1

7

10473839

Seal, Sliding Door TJ06.2221.1-33

1

Item No.

Part No.

Description

Qty.

Remark

1

11998970

Seat Assembly, Operator’s Cab

1

2

11643651

Cover, Seat, Operator’s Cab

1

3

A210204000184

Screw

4

Item No.

Part No.

Description

Qty.

Remark

1

12784140

Sunshade

1

2

A313180502003

Screw

2

Item No.

Part No.

Description

Qty.

Remark

1

11696042

Glass Installation, Operator’s Cab

1

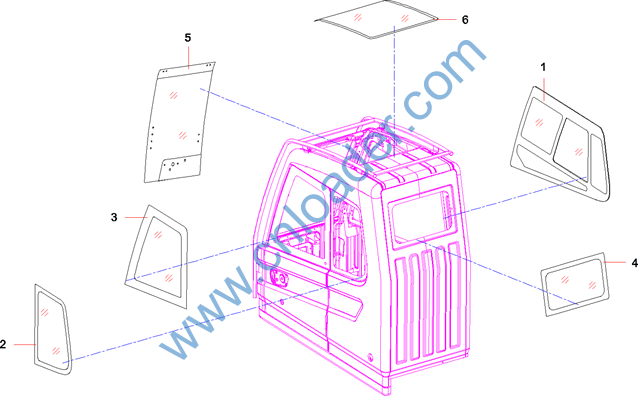

Item No.

Part No.

Description

Qty.

Remark

1

11156134

Glass, Right, Operator’s Cab

1

2

11156131

Glass, Window, Left, Operator’s Cab

1

3

11156128

Glass, Door, Operator’s Cab

1

4

11156140

Glass, Window, Rear, Operator’s Cab

1

5

11694526

Glass, Windshield, Operator’s Cab

1

6

11156145

Glass, Skylight, Operator’s Cab

1

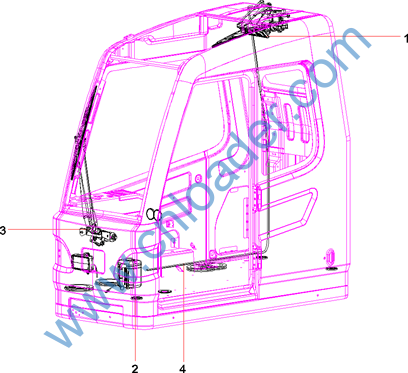

Item No.

Part No.

Description

Qty.

Remark

1

12947552

Lamp, Operator’s Cab

1

2

12955113

Washer Reservior Installation, Operator’s Cab

1

3

12953997

Wipers Group, Operator’s Cab

1

4

12955173

Harness assembly, control room SJC62 75

1

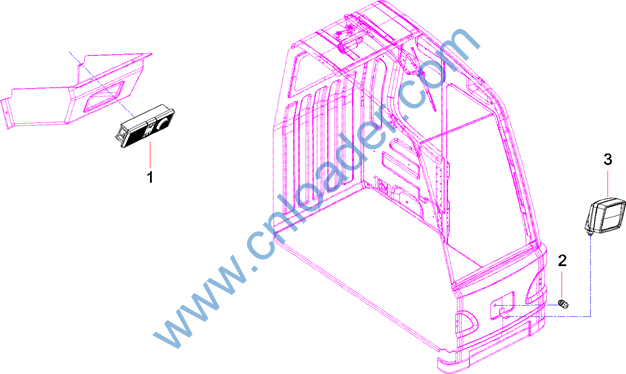

Item No.

Part No.

Description

Qty.

Remark

1

60028573

Reading Light, Cab, LED

1

2

A241200000089

Head, fixing

1

3

B241100000422

Light, Work

1

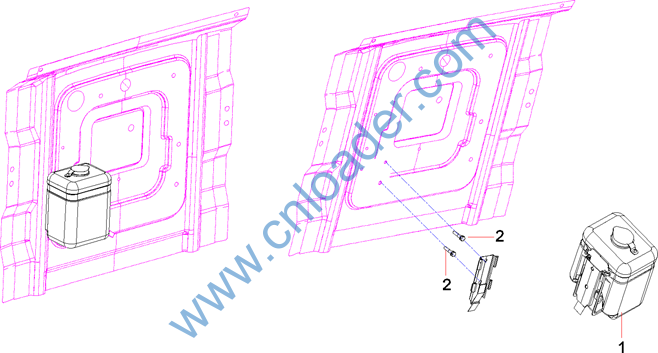

Item No.

Part No.

Description

Qty.

Remark

1

60069655

Washer Reservior

1

2

60144906

Bolt

2

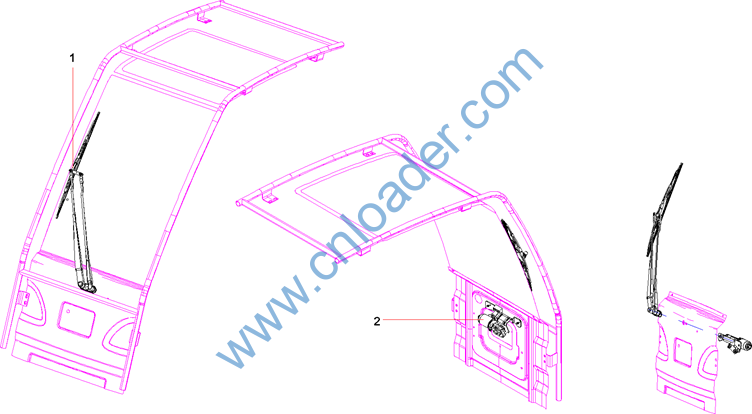

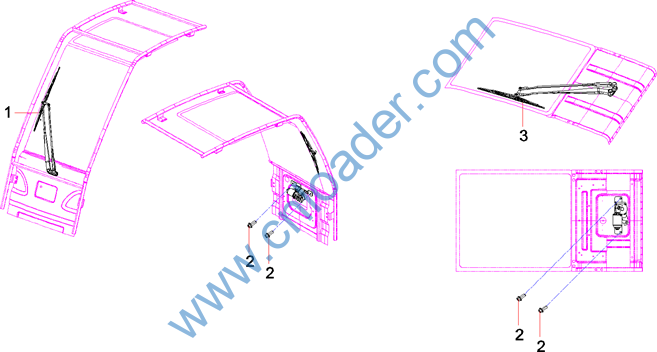

Item No.

Part No.

Description

Qty.

Remark

1

60163461

Wiper Installation, Windshield

1

2

60144917

Bolt

4

3

60163460

Wiper Installation, Skylight

1

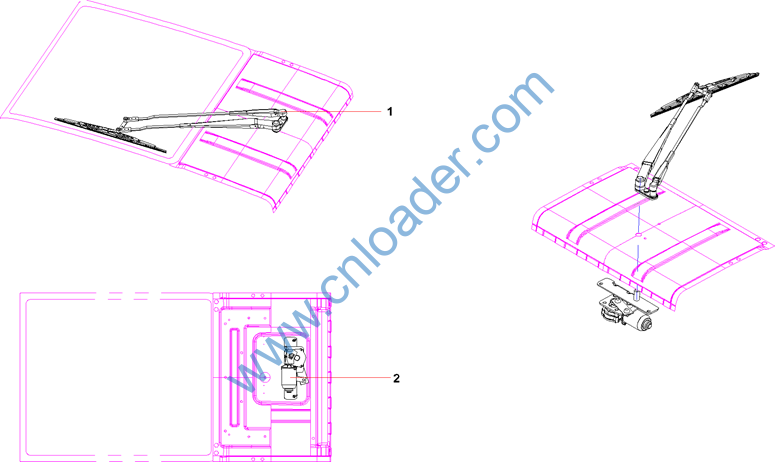

Item No.

Part No.

Description

Qty.

Remark

1

60163457

Wiper & Arm Assembly

1

2

60163451

Motor Assembly, Wiper

1

Item No.

Part No.

Description

Qty.

Remark

1

60163452

Wiper & Arm Assembly

1

2

60163450

Motor Assembly, Wiper

1

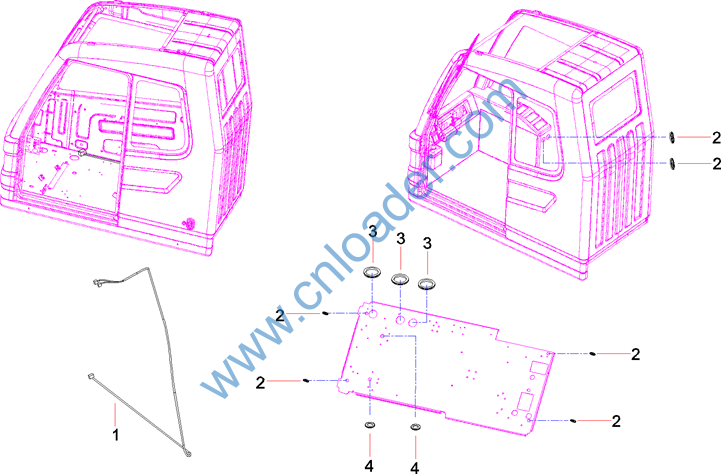

Item No.

Part No.

Description

Qty.

Remark

1

11945960

Harness, control room

1

2

60042057

Plug

6

3

A820606010864

Clip, Gripper

3

4

60107530

Clip, Gripper, Rubber

2

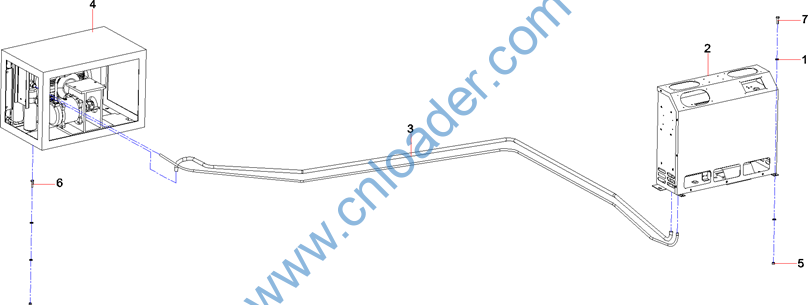

Item No.

Part No.

Description

Qty.

Remark

1

A210405000007

Washer

16

2

60319710

Evaporator

1

3

60332219

Accessories, Air Conditioner

1

4

60319711

Condenser

1

5

A210319000004

Nut

8

6

A210111000091

Bolt

4

7

A210111000090

Bolt

4

Item No.

Part No.

Description

Qty.

Remark

1

60348999

Hose, Elbow

1

2

60348998

Lines Group

1

3

60348997

Hose, Elbow

1

4

60348996

Expansion Valve

1

5

60348995

Evaporator Core

1

6

60348994

Warm-air Core

1

7

60348993

Return Air Filter Screen

4

8

60348992

Cover Plate

1

9

60137529

Evaporator Fan

1

10

60137555

Control Panel

1

11

60348991

Outlet, Air

3

12

60137533

Temperature Sensor

1

13

60137532

Sensor, Defroster

1

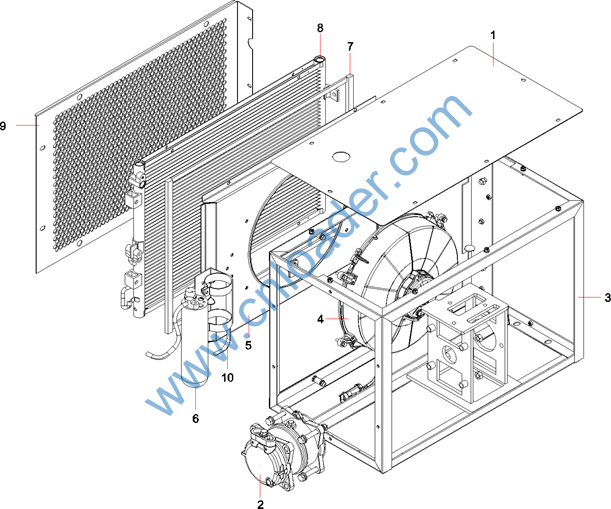

Item No.

Part No.

Description

Qty.

Remark

1

60348726

Top Cover Plate

1

2

60348720

Compressor Assembly

1

3

60348725

Frame Assembly

1

4

60348730

Fan Assembly, Condenser

1

5

60348729

Mounting Plate

1

6

60348719

Liquid Storage Tank

1

7

60348732

Sponge Band

4

8

60348728

Condenser Core Body

1

9

60348727

Filter Screen Plate

1

10

60348721

Fixed Support

1

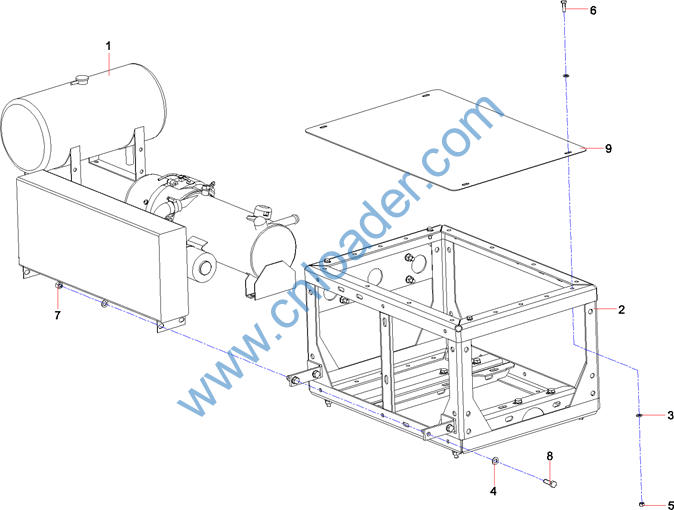

Item No.

Part No.

Description

Qty.

Remark

1

60209682

fuel liquid heater assembly

1

2

10136475

Bracket, heater

1

3

A210405000006

Washer

8

4

A210405000007

Washer

32

5

A210307000016

Nut

4

6

A210111000080

Bolt

4

7

A210307000012

Nut

16

8

A210111000090

Bolt

16

9

11189962

Cover, upper

1

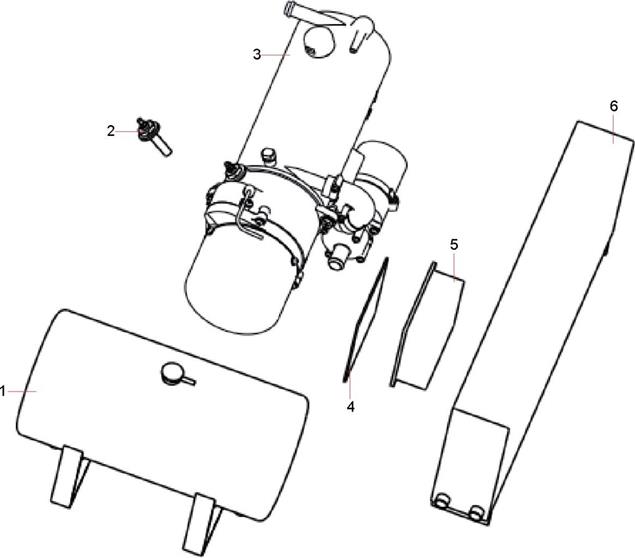

Item No.

Part No.

Description

Qty.

Remark

1

60207178

oil tank

1

2

60208338

spark plug

1

3

60207179

heater

1

4

60209746

connecting board of control box

1

5

60207067

control box

1

6

60207177

water tank

1

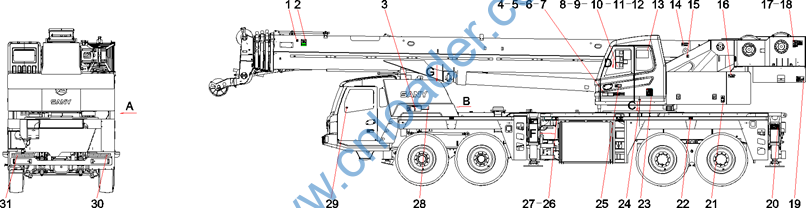

Item No.

Part No.

Description

Qty.

Remark

1

10712094

Decal, Danger, Falling Object Hazard

1

2

11910717

Caution label, boom telescoping

1

3

11910955

Caution label, electric

2

4

11911007

Nameplate, safety instruction

1

5

11910981

Nameplate, safety instruction

1

6

11911033

Nameplate, maintenance and operation instruction

1

7

11910999

Caution label, swing lock

1

8

13350375

STC800S lifting operation name plate 1 S

1

9

13350432

STC800S lifting operation name plate 2 S

1

10

13350538

STC800S lifting operation name plate 3 S

1

11

13350545

STC800S lifting operation name plate 4 S

1

12

13350588

STC800S lifting operation name plate 5 S

1

13

11909773

Nameplate, lubricating point, superstructure, truck crane

1

14

11910772

Caution label, no walking

1

15

11760440

Decal, Lift Point

2

16

11911043

Caution label, falling

3

17

11910743

Caution label, winch reducer

2

18

11910833

Caution label, hoist rope

2

19

11910811

Caution label, operation

2

20

11910829

Caution label, outrigger

4

21

10712078

Decal, Warning, No Unautherized Access

2

22

11910112

Label, air pressure, tire

4

Item No.

Part No.

Description

Qty.

Remark

23

11909679

Nameplate, outrigger

1

24

10441630

Decal, Lock Pin Alignment

1

25

11911024

Caution label, no entering

3

26

11910812

Caution label, locked outrigger tray

2

27

11910825

Nameplate, instruction, outrigger operation

2

28

11910185

Nameplate, lifting position

2

29

11910827

Nameplate, service hotline

1

30

13167772

Mark, Rear, Right

1

31

13167851

Mark, Rear, Left

1

Item No.

Part No.

Description

Qty.

Remark

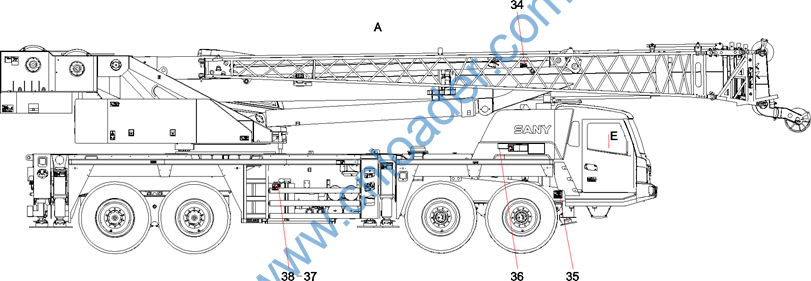

34

11910803

Caution label, jib mounting

1

35

11909610

Chassis nameplate

1

36

12851709

Lubrication diagram of complete machineS

1

37

A820101050797

Label, “No Smoke or Fire”

1

38

10712088

Decal, Refuel

1

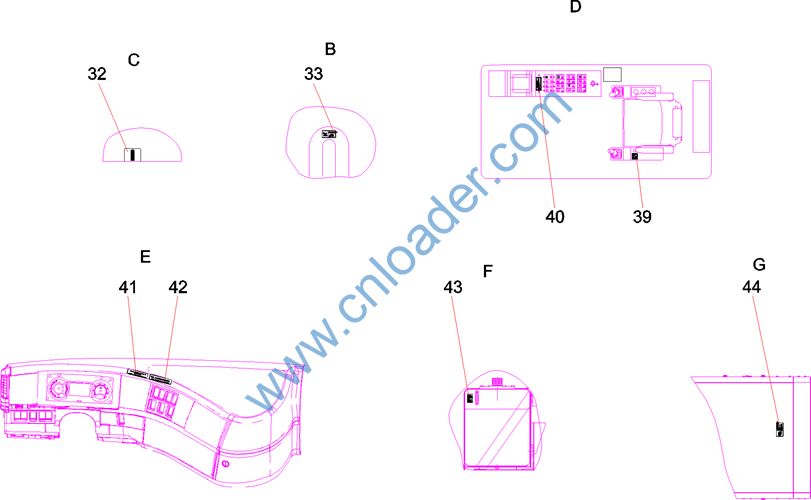

Item No.

Part No.

Description

Qty.

Remark

32

11495771

Decal, Lock Pin Alignment

1

33

11911047

Caution label, burning

1

39

11909630

Warning plate, overload release

1

40

11909978

Caution label, working condition selection

1

41

11910098

Start caution board

1

42

13361284

Power take-off operation instruction nam

1

43

11909794

Caution label I, liquid level

1

44

11910989

Caution label, engine hood

1

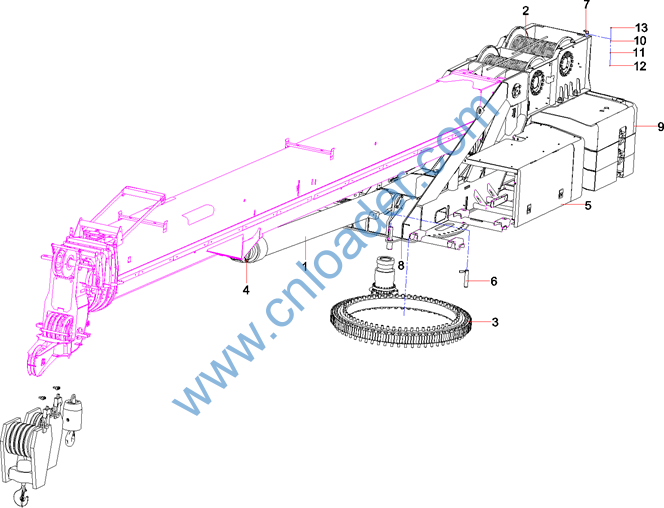

Item No.

Part No.

Description

Qty.

Remark

1

13329905

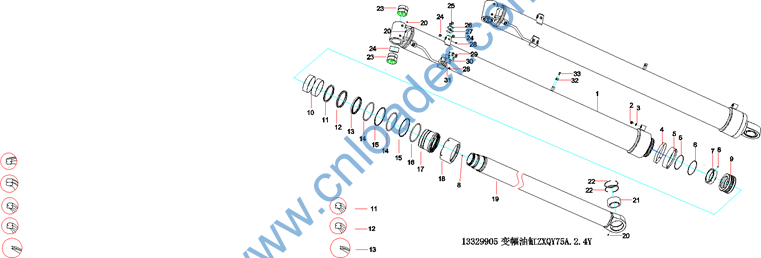

Cylinder Assembly, Boom Lift

1

2

12278623

Hoisting mechanism A1105.2.2

1

3

13487489

Slewing gear STC800S-D1C.2.3

1

4

12273209

3-hinge shaft installation A1105.2.5

1

5

12274902

Shed assembly A1105.2.7

1

6

13000779

turntable locking bolt

1

7

12621039

ccdcamerasupport

1

8

13498427

Revolving table welding part STC800S-D2C

1

9

13502547

counterweight assembly STC800S-D2C.2.4

1

10

A210401000015

Washer

2

11

A210405000005

Washer

2

12

A210307000015

Nut

2

13

A210111000071

Bolt M5×20GB5783

2
