序 号 |
代码 |
名称 |
数 量 |
备注 |
|

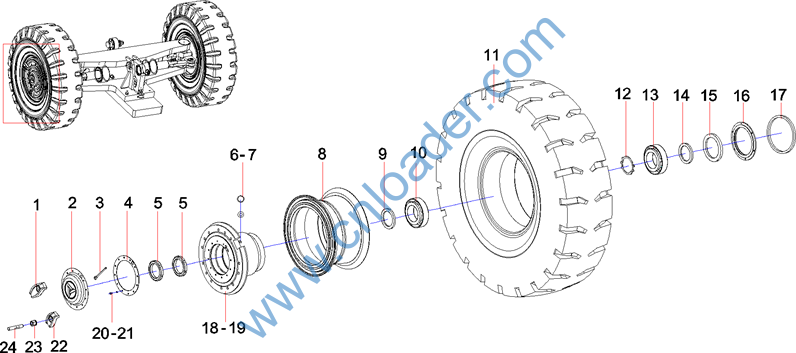

1 |
10478964 |
压板 |
10 |
|
|
2 |
10038314 |
罩盖 |
2 |
|
|
3 |
21012612 |
销 |
2 |
|
|
4 |
A820606020254 |
密封垫 |
2 |
|
|
5 |
A820102010523 |
圆螺母 |
4 |
|
|
6 |
A210332000004 |
螺塞M10×1JB1000 |
2 |
|
|
7 |
A210405000011 |
垫圈10GB97.1 |
2 |
|
|
8 |
A229900002057 |
轮辋25-13.00/2.5 |
2 |
|
|
9 |
A820102010513 |
轴承垫片 |
2 |
|
|
10 |
A210604002226 |
滚动轴承32226GB297 |
2 |
|
|
11 |
A210881000093 |
轮胎18.00-25 40PR E-4J |
2 |
|
|
12 |
A210412000137 |
垫圈120GB858 |
2 |
|
|
13 |
A210604002227 |
滚动轴承32228GB297 |
2 |
|
|
14 |
A230101000029 |
WD油封 |
2 |
|
|
15 |
A820102010514 |
挡环 |
2 |
|
|
16 |
A820101314668 |
油封压盖 |
2 |
|
|
17 |
A820199003228 |
毡圈 |
2 |
|
|
18 |
10195270 |
轮毂 |
2 |
|
|
19 |
A229900010158 |
油杯JB7940.1 不锈钢 |
10 |
|
|
20 |
A210111000088 |
螺栓M8×16GB5783 |
42 |
|
|
21 |
A210401000017 |
垫圈8GB93 |
92 |
|
|
22 |
10023808 |
压板 |
20 |
|
序 号 |
代码 |
名称 |
数 量 |
备注 |
|
23 |
10075008 |
轮毂螺母 |
30 |
|
|
24 |
10075009 |
双头螺栓 |
30 |
|
序 号 |
代码 |
名称 |
数 量 |
备注 |
|

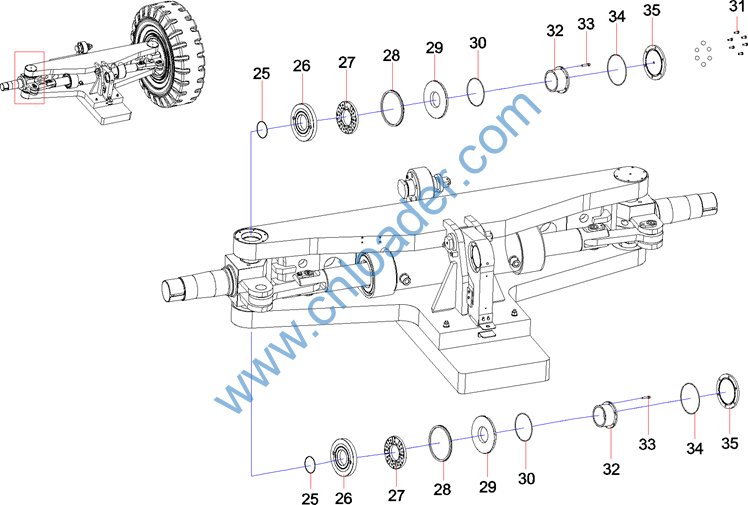

25 |
A210609000007 |
O形圈110×3.55GB3452.1 |
4 |
|
|
26 |
10423038 |
垫板二 |
4 |
|
|
27 |
10351520 |
滑动轴承垫片 |
4 |
|
|
28 |
A230101000674 |
VDA油封170×194×12JB6994 |
4 |
|
|
29 |
10863275 |
下垫板 |
4 |
|
|
30 |
A210609000174 |
O形圈140×3.55GB3452.1 |
4 |
|
|
31 |
A210111000089 |
螺栓M8×20GB5783 |
24 |
|
|
32 |
10764188 |
轴套 |
4 |
|
|
33 |
24000431 |
螺钉 |
24 |
|
|
34 |
A210609000014 |
O形圈155×3.55GB3452.1 |
4 |
|
|
35 |
10825203 |
轴销盖 |
4 |
|
序 号 |
代码 |
名称 |
数 量 |
备注 |
|

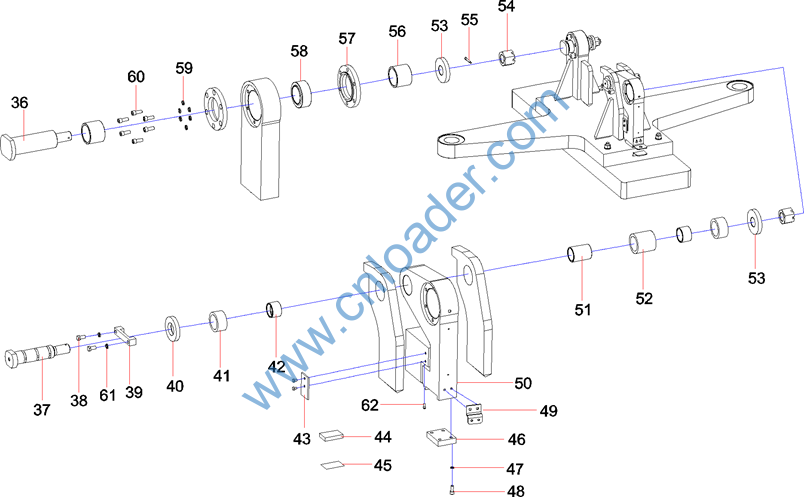

36 |
A820301020689 |
转轴 |
2 |
|
|
37 |
A820301020690 |
销轴 |
1 |
|
|
38 |
A210111000119 |
螺栓 |
2 |
|
|
39 |
10575078 |
挡块 |
1 |
|
|
40 |
A820102010538 |
垫圈 |
1 |
|
|
41 |
A221500000196 |
橡胶轴承 |
2 |
|
|
42 |
A820202003381 |
轴套 |
2 |
|
|
43 |
A820101314705 |
滑块挡板 |
2 |
|
|
44 |
A820699000475 |
上滑块 |
1 |
|
|
45 |
A820101314675 |
调整垫片 |
3 |
|
|
46 |
A820699000474 |
下滑块 |
1 |
|
|
47 |
A210401000001 |
垫圈10GB93 |
4 |
|
|
48 |
A210204000161 |
螺钉M10×25GB70.1 |
4 |
|
|
49 |
12870538 |
开关安装弯板 |
1 |
|
|
50 |
10423742 |
连锁 |
1 |
|
|
51 |
A820202003382 |
轴套 |
1 |
|
|
52 |
A221500000197 |
橡胶轴承 |
1 |
|
|
53 |
A820102010533 |
垫圈 |
3 |
|
|
54 |
A210356000006 |
螺母M36×3GB9458 |
3 |
|
|
55 |
A210491000023 |
销6.3×63GB91 |
3 |
|
|
56 |
A820202003384 |
轴套 |
4 |
|
|
57 |
A820201000724 |
轴承端盖 |
4 |
|
序 号 |
代码 |
名称 |
数 量 |
备注 |
|
58 |
A221500000195 |
关节轴承 |
2 |
|
|
59 |
A210401000002 |
垫圈12GB93 |
27 |
|
|
60 |
A210204000021 |
螺钉M12×30GB70.1 |
24 |
|
|
61 |
A210405000001 |
垫圈12GB97.1 |
3 |
|
|
62 |
A210204000147 |
螺钉 |
2 |
|
序 号 |
代码 |
名称 |
数 量 |
备注 |
|

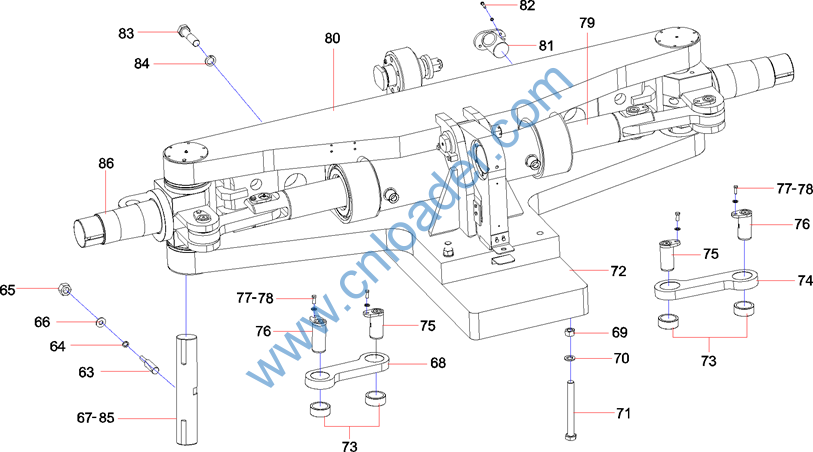

63 |
10506526 |
斜销 |
2 |
|
|
64 |
A820102010535 |
斜销垫圈 |
2 |
|
|
65 |
A210307000028 |
螺母M16GB6170 10级 |
2 |
|
|
66 |
A210401000004 |
垫圈16GB93 |
6 |
|
|
67 |
10892015 |
转向销轴 |
2 |
|
|
68 |
10612860 |
左连杆 |
1 |
|
|
69 |
A210307000030 |
螺母M24GB6170 |
8 |
|
|
70 |
A210405000009 |
垫圈24GB97.1 |
4 |
|
|
71 |
A210110000109 |
螺栓M24×250(GB5782) |
4 |
|
|
72 |
10268154 |
后桥配重块 |
1 |
|
|
73 |
A210612000011 |
关节轴承GE60ES-2RSGB9163 |
4 |
|
|
74 |
10611642 |
右连杆 |
1 |
|
|
75 |
10423036 |
连杆销轴总成 |
2 |
|
|
76 |
10507656 |
连杆销轴总成 |
2 |
|
|
77 |
A210405000003 |
垫圈16GB97.1 |
4 |
|
|
78 |
A210111000212 |
螺栓M16×35GB5783 10.9级 |
4 |
|
|
79 |
10421960 |
转向油缸 |
1 |
|
|
80 |
10421350 |
转向桥梁 |
1 |
|
|
81 |
10431415 |
油缸定位销总成 |
1 |
|
|
82 |
A210111000203 |
螺栓M12×35GB5783 |
1 |
|
|
83 |
A210113000274 |
螺栓GB5785 10.9级 |
8 |
|
|
84 |
A210401000011 |
垫圈30GB93 |
8 |
