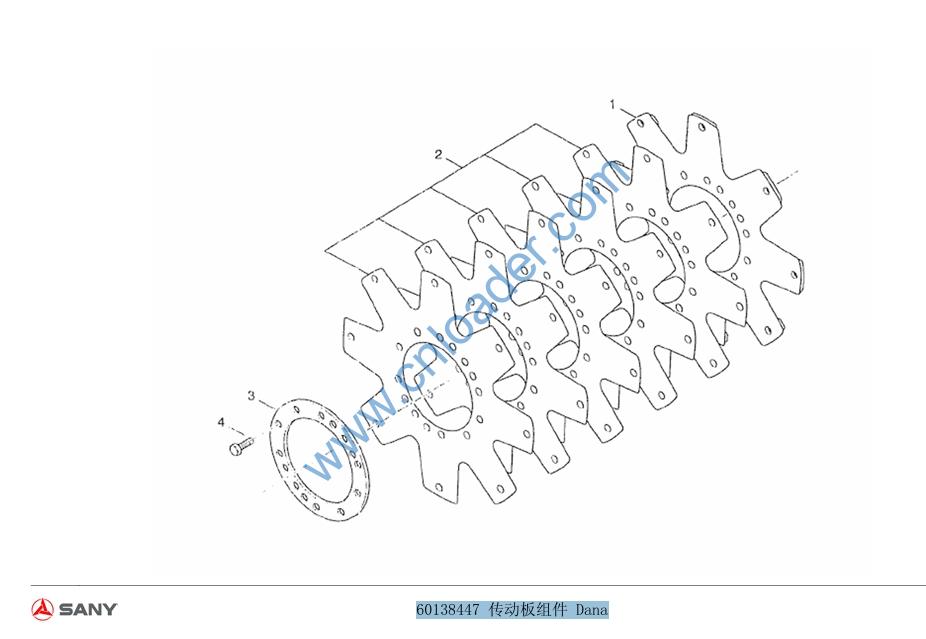

60138447 传动板组件 Dana

1 B229900005481 柔性盘总成1
2 60099679 柔性盘 DANA 5
3 B229900005480 柔性盘压盘1
4 B229900005479 柔性盘平头螺钉14

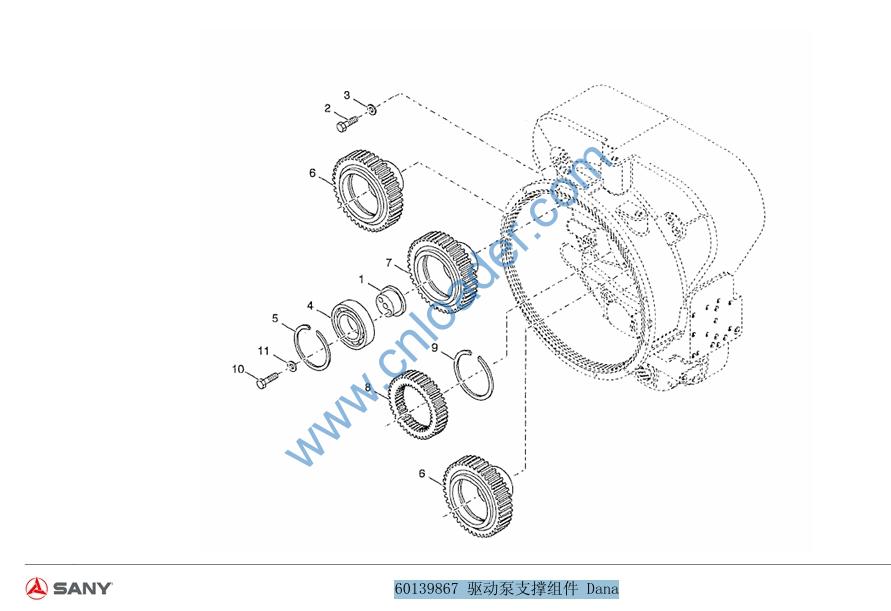

60139867 驱动泵支撑组件 Dana

1 60099725 Oil pump driving gear bearing seat DANA 3
2 60099673 Flat head screw DANA 4
3 60099668 Gasket DANA 4
4 60099552 Oil pump driving gear bearing DANA 3
5 60099724 Oil pump driving gear snap ring DANA 3
6 60099560 Oil pump driven gear DANA 2
7 60099562 Oil pump driving gear DANA 1
8 60099555 Pump wheel hub gear DANA 1
9 60099577 Pump wheel hub gear snap ring DANA 1
10 60099740 Bearing seat fixing screw DANA 2
11 60099701 Locking washer DANA 2

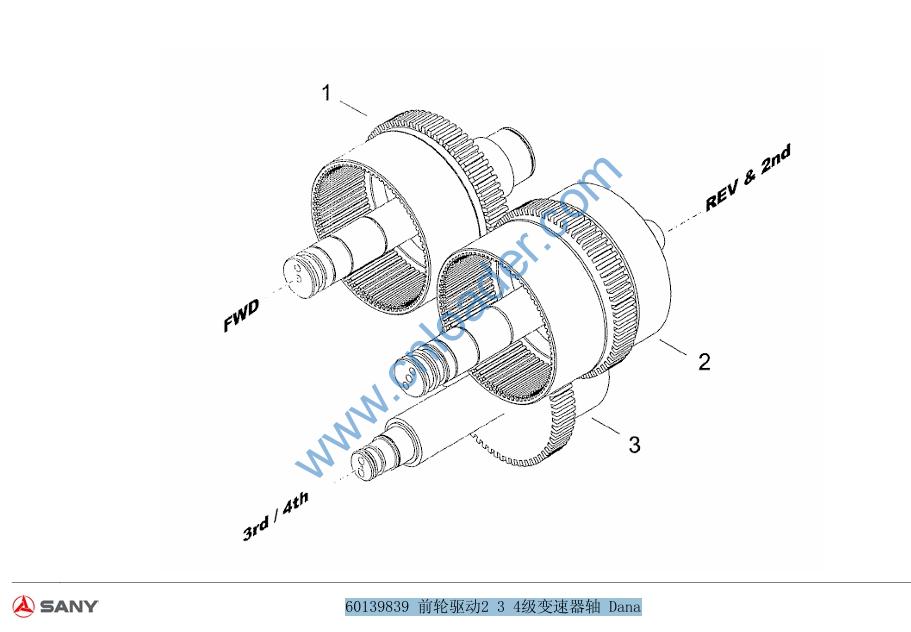

60139839 前轮驱动2 3 4级变速器轴 Dana

1 60099566 前进档轴离合器毂总成 DANA 1
2 60099564 倒档和二档轴离合器毂总成 DANA 1
3 60099631 高速档和三档轴总成 DANA 1

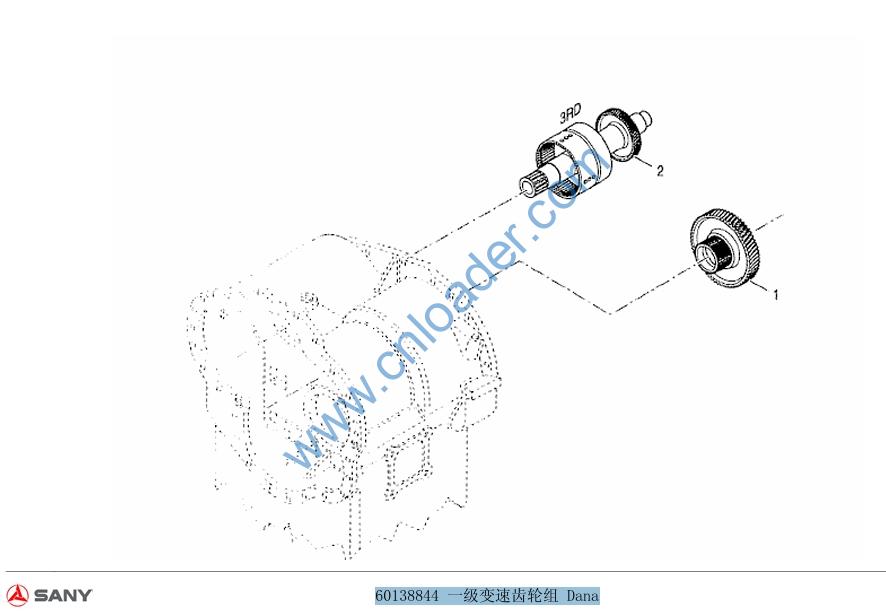

60138844 一级变速齿轮组 Dana

1 60099559 First gear DANA 1
2 60099681 Third-speed clutch hub assembly DANA 1

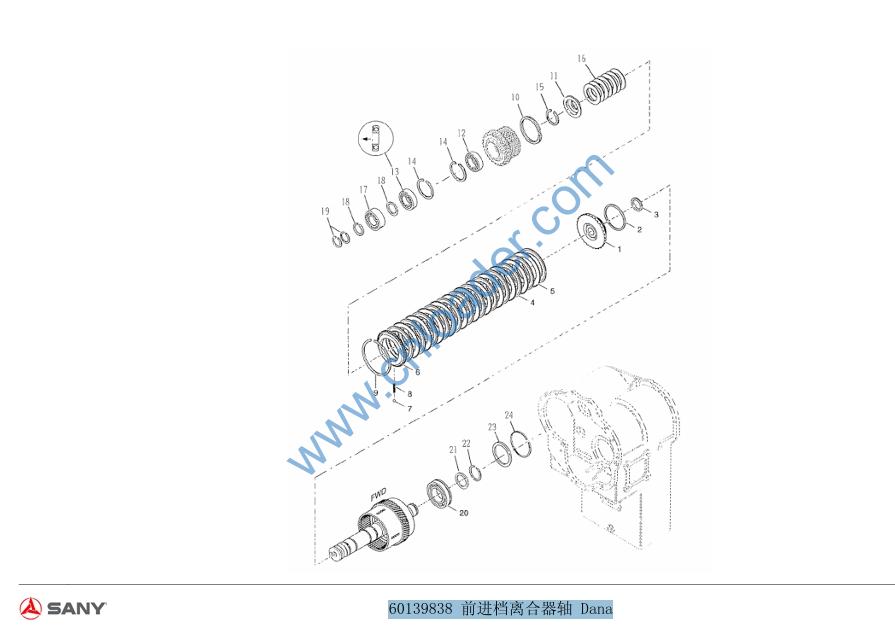

60139838 前进档离合器轴 Dana
