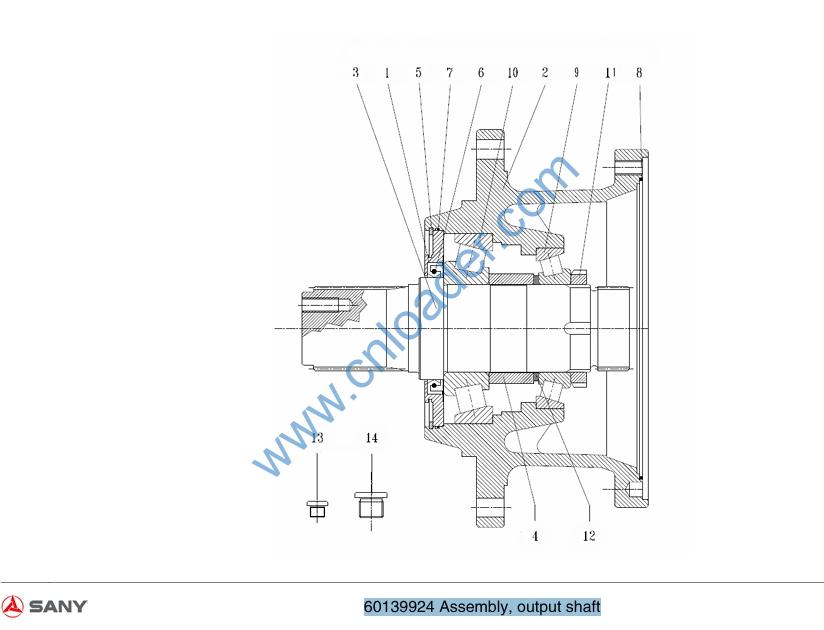

60139924 Assembly, output shaft

60139924 Assembly, output shaft

1 60120662 Cover, end 1
2 60120674 Flange 1
3 60120807 Shaft, output 1
4 60120609 Bushing 1
5 60120781 Ring, snap, inner 1
6 60120884 Seal, oil 1
7 60120872 O-ring 1
8 60120876 O-ring 1
9 60120587 Bearing 1
10 60120588 Bearing 1
11 60120715 Nut, circular 1
12 60120649 Pad, adjusting 1
13 60120658 Plug 2
14 60120661 Plug 2

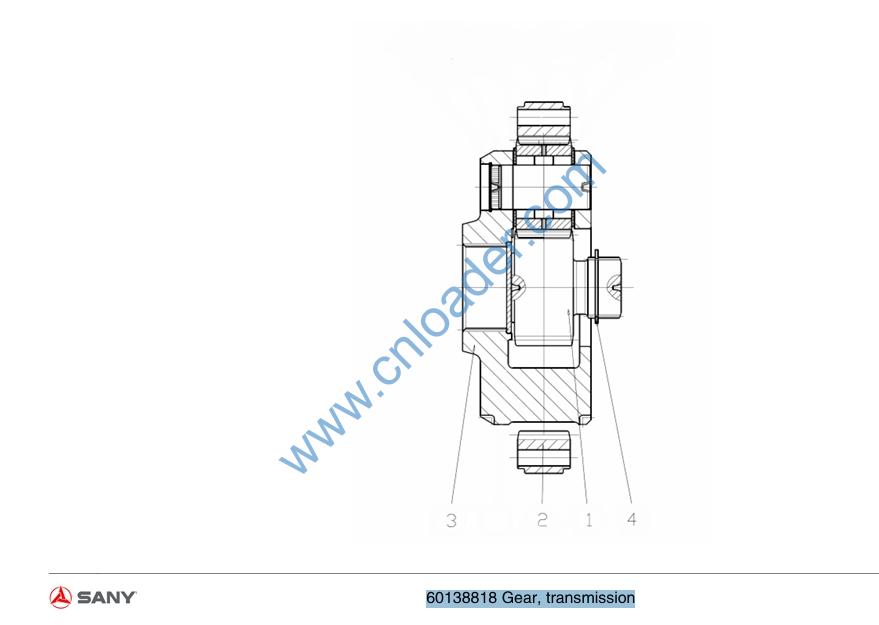

60138818 Gear, transmission

1 60120594 Gear, sun 1
2 60120592 Gear, circular 1
3 60120613 Bracket, planetary, set 1
4 60120832 Ring, snap, outer 1

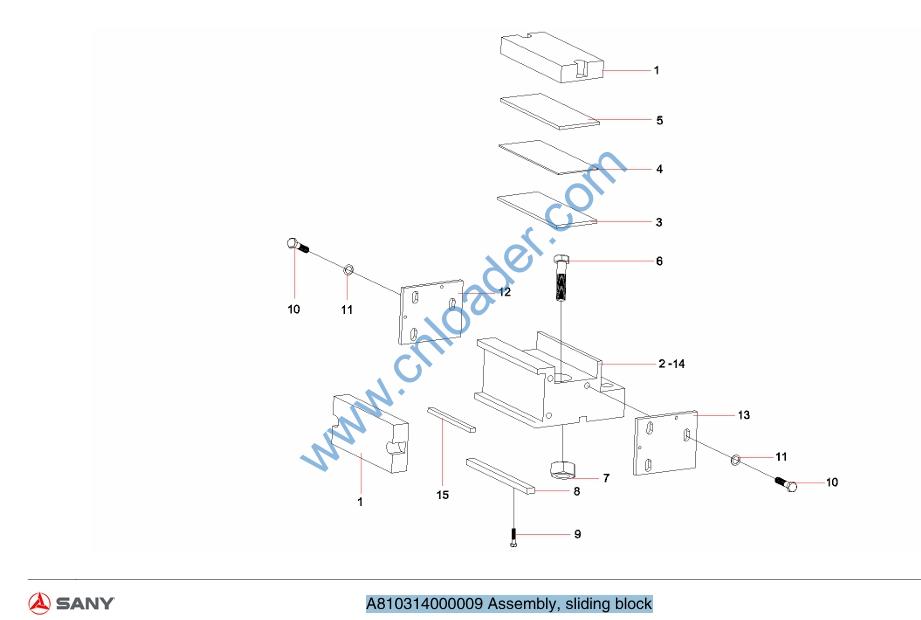

A810314000009 Assembly, sliding block

1 A820699000681 Block, sliding 2
2 A820101328184 Support, main body 1
3 A820101328185 Plate, backup 3
4 A820101331192 Plate, backup 1
5 A820101339720 Gasket 1
6 A210110000205 Bolt 6
7 A229900007631 Nut 6
8 A820101328187 Key, square 1
9 A210204000220 Screw 2
10 A210204000337 Screw 6
11 A210405000001 Washer 6
12 10180747 Component, end baffle 1
13 10182627 Component, end baffle 1
14 10971562 Key, 1 1
15 10971566 Key, 2 1

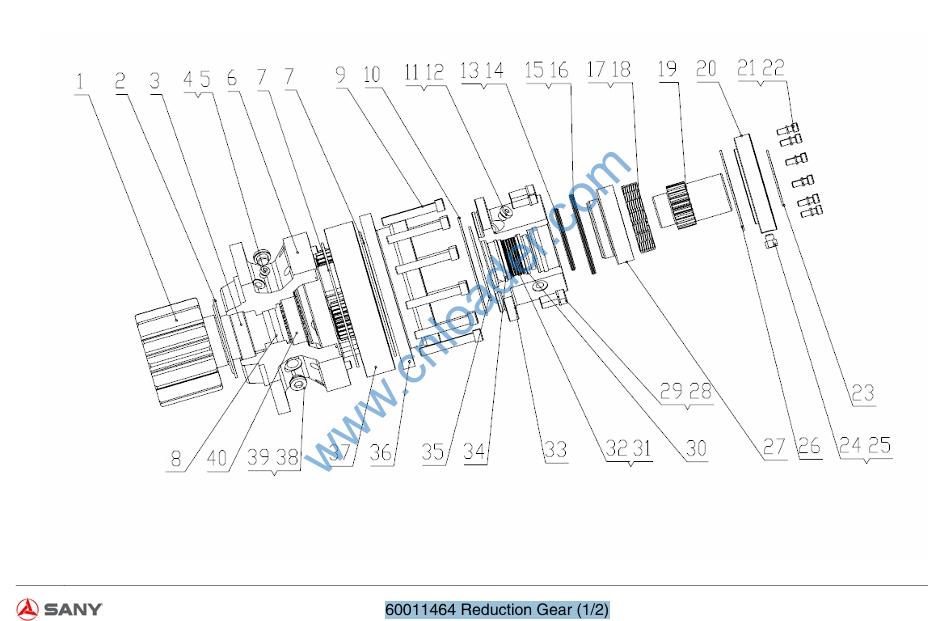

60011464 Reduction Gear (1/2)

1 60120518 Gear,output 1
2 60120520 Cover,dustproof 1
3 60099930 Deep-channel ball bearing 1
4 60100030 Plug, screw, hex, inner 1
5 60099926 Cushion, combination 1
6 60120531 Seat,bearing 1
7 60120535 O-ring 2
8 60120536 Seal,oil 2
9 60120527 InnerHexagon Screw 12
10 60120533 O-ring 1
11 60100031 Plug, screw, hex, inner 2
12 60099927 Pad, combination 2
13 60120514 X-ring 1
14 60120528 Ring,retainer,nylon 2
15 60099885 Seal ring, X-type 1
16 60100035 Retainer ring, nylon 2
17 60099971 Spring, big 14
18 60100049 Spring, small 14
19 60120524 Spindle,coupling 1
20 60120529 Input Flange 1
21 60120525 InnerHexagon Screw 12
22 60120516 Pad, elastic 12

23 60120534 O-ring 1
24 60100041 Plug, air 1
25 60100078 Cushion, seal, combination 1
26 60120532 O-ring 1
27 60120521 Piston 1
28 60120526 InnerHexagon Screw 12
29 60120515 Pad, elastic 12
30 60099982 Washer, adjustment 12
31 60099901 Plate, moving 4
32 60099896 Fixed sheet 5
33 60120522 Shell,piston 1
34 60100046 Wahser, limit 1
35 60120523 Retaining ring,hole 1
36 60120519 Toothed Ring 1
37 60120530 Gear ring,first-level 1
38 60100034 Plug, screw, hex, inner 2
39 60099928 Pad, combination 2
40 60120517 Deep-channel ball bearing 1

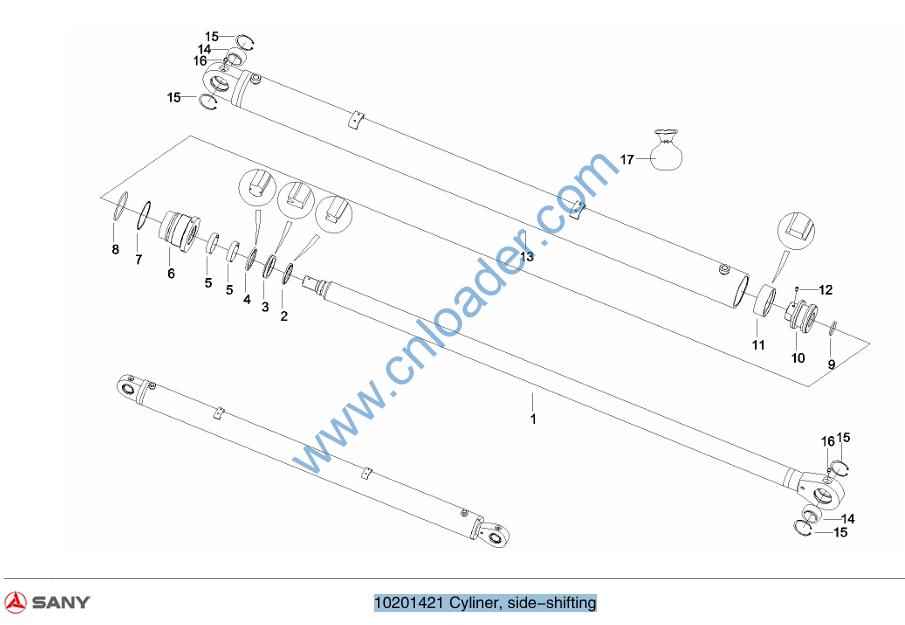

10201421 Cyliner, side-shifting

1 10201429 Assembly, piston rod 1
2 B230101000474 Ring, dustproof, AY 1
3 B230101001952 Ring, seal 1
4 B230101001950 Seal, GS-ring 1
5 A880803040008 Ring, guide, FR 2
6 10201418 Sleeve, guide 1
7 10201417 Ring, retaining 1
8 A210609000087 O-ring 1
9 A210609000311 O-ring 1
10 10201419 Piston 1
11 B230101001155 Seal, MD-ring 1
12 A210208000001 Screw 1
13 10201426 Assembly, cylinder barrel 1
14 A210612000023 Bearing, joint 2
15 A210416000037 Ring, retainer 4
16 A210805000003 Cup, oil 2
17 10347413 Package, sealing parts, industrial art 1
