SY215C9 hydraulic excavator SANY AC



10167595

Shock Insulator

A210110000352

Bolt-M20×180

A810312110014

Pin

变更或见其他配置

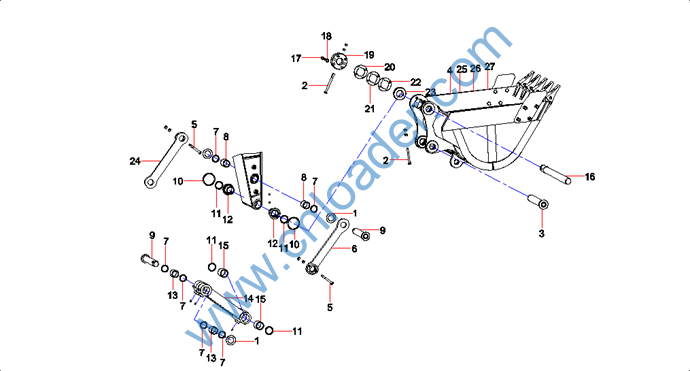

Bucket

A210110000300

Bolt

11266812

Link, left

B230101000622

O-ring

A820202002974

Bushing

11696987

Pin

A210609000324

O-ring

B230101000623

O-ring

11751558

Bushing

A820202002973

Bushing

12036517

H-link

A820202002972

Bushing

11795851

Lock pin

A210111000221

Bolt

24000515

Washer

11795852

Plate

11297643

Shim








11297642

Shim

11297641

Shim

A820202002008

Bushing

11266813

Link, right

变更或见其他配置

Bucket

12852536

Improved common bucket

变更或见其他配置

Bucket

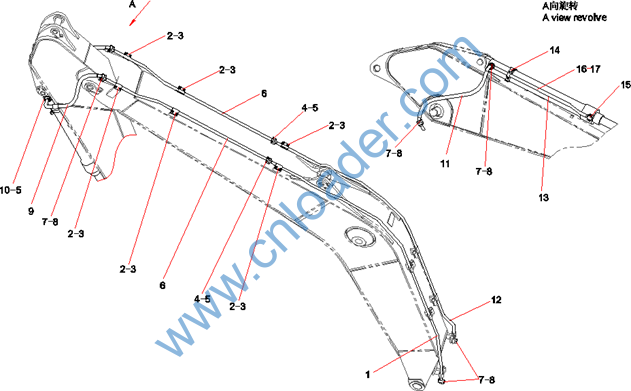

11088308

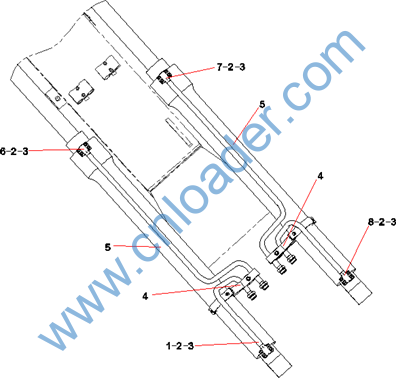

Tube AS, hydraulic

A210204000356

Bolt

A210609000136

O-ring

11088311

Clip

11347703

boom cylinder

11608938

Tube AS, hydraulic

11609402

Tube AS, hydraulic

11088310

Tube AS, hydraulic








13884679

Pipe clip

A210204000337

Bolt

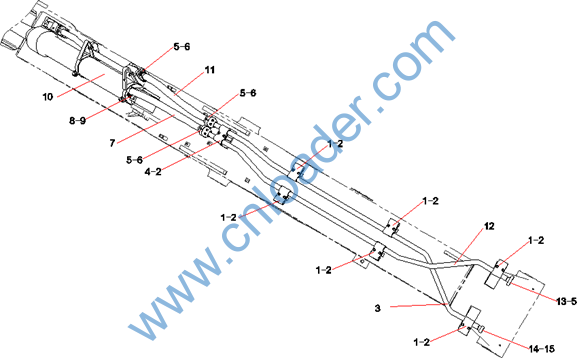

13885374

Steel Pipe Assy. SY215C.3.1B.2

13881621

Pipe clip

B210780000693

Flange, Split

A210204000366

Screw

60068308

Hose AS

B210780000004

Flange, Split

A210204000462

Screw

60270929

Cylinder, arm

60037640

Hose AS

13885420

Steel Pipe Assy SY215C.3.1B.3

A210204000366

Screw

B210780000244

Flange, Split

A210204000355

Screw








13885543

steel pipe assy. SY215C.3.1B.4

13505880

Pipe clip

A210204000337

Bolt

A210609000136

O-ring

A210204000215

Screw

13885603

Steel Pipe Assy SY215C.3.1A.5

B210780000244

Flange, Split

A210204000355

Screw

60142333

Rubber Hose

B210780000007

Flange, Split

60142332

Hose AS

13885198

steel pipe assy. SY215C.3.1B.1

60270928

Cylinder, bucket

变更或见其他配置

Pipe Clip

A210609000136

O-ring

变更或见其他配置

Bolt

变更或见其他配置

steel tube








A210206000017

Screw

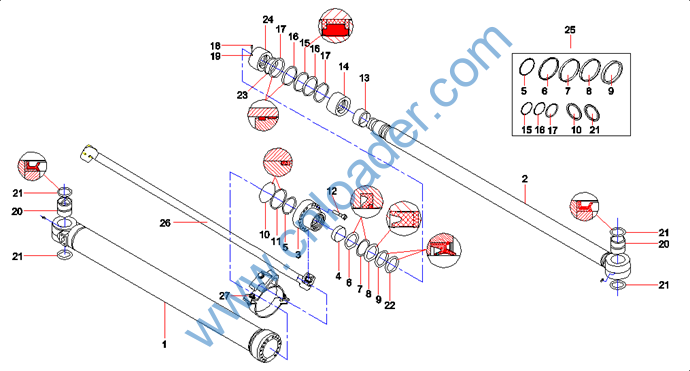

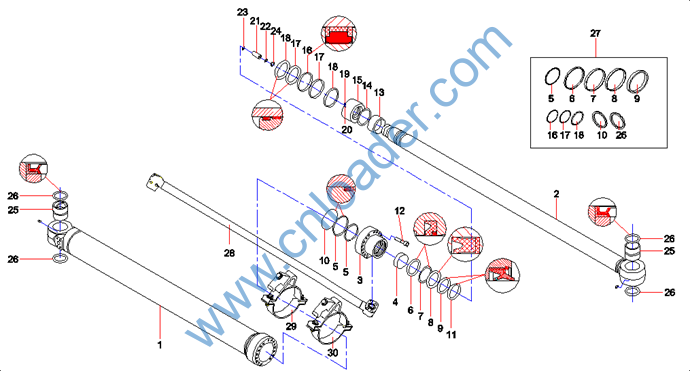

A880899030000

Ball, Steel

11347656

Piston

60143563

Anti-pollution loop

60143566

60087456

Seal ring

11347655

SpringZX200.3.1B-4

60061678

K08-D seal ring

A880804040028

Retainer Ring

A210608000012

O-ring

A210609000275

O-ring

11347701

Pressure cover ZX200.3.1B-1

60022384

A210417000105

Ring, Snap

A880808020003

Oil-bearing bush 85×90×30 DID

60084616

HBY seal ring

60066559

Ring,seal

60084438

60136784

Dust ring

A210417000104

Ring, Snap






11347702

Bumper Sleeve

60001446

Retainer Ring

B230101000959

O-ring

11347654

piston rod

11261296

Guide sleeve

60215142

Dust ring

A880000000271

Bush II

11347700

Barrel AS, cylinder

A880899010003

Oil cup, forced filling, straight-flow

60215141

Dust ring

A880000000226

Bush II

60060287

Cylinder, boom, seal kit








60065271

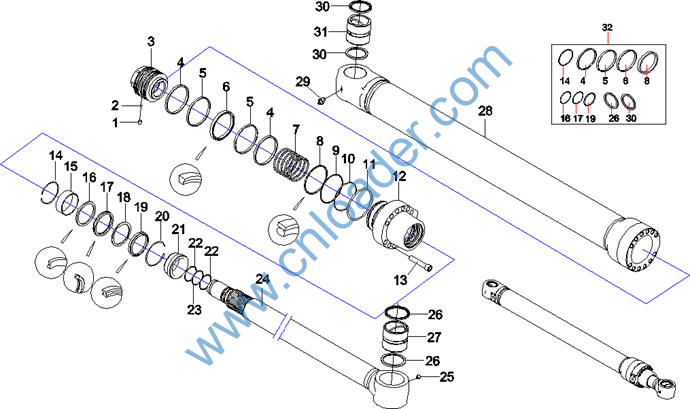

Front wheel inclined oil cylinder

60065298

Piston Rod

60065263

End cover

60065282

Sliding shaft sleeve

60065253

Ring, retaining

60065203

Ring, buffer

60065356

Ring, seal

60065306

Ring, retainer, switch

60065341

Ring, dust

60065332

Seal, O-ring

60065247

Retainer Ring

60022043

60065209

Bumper Sleeve

60065211

Buffer ring

60065287

Piston

60065351

Ring, seal

60065337

Ring, guide

60065217

Ring, contaminant

24000487

Screw

21010039

Ball, Steel








60065195

Behind-Bumper Sleeve

60065212

Buffer ring

60065194

Baffle Ring

60065213

Clamp ring

60065231

Type B Shaft Sleeve

60065345

Dust Ring

60107383

20T Bucket Arm Cylinder Repair Kit

12527246

Steel Pipe AssySY215C.3.1A.8A

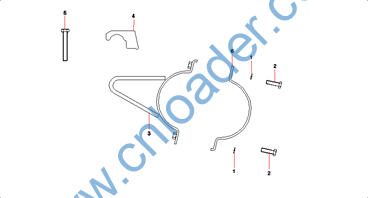

11288840

clampSY225C8I2K.3.1.13

12208107

ClampSY215C9M2K.3.1.9








A210401000001

Washer

A210111000026

Bolt

12207694

clampSY215C9M2K.3.1.9.1

12203288

Fixture block

A210111000127

Bolt

11149073

clamp
