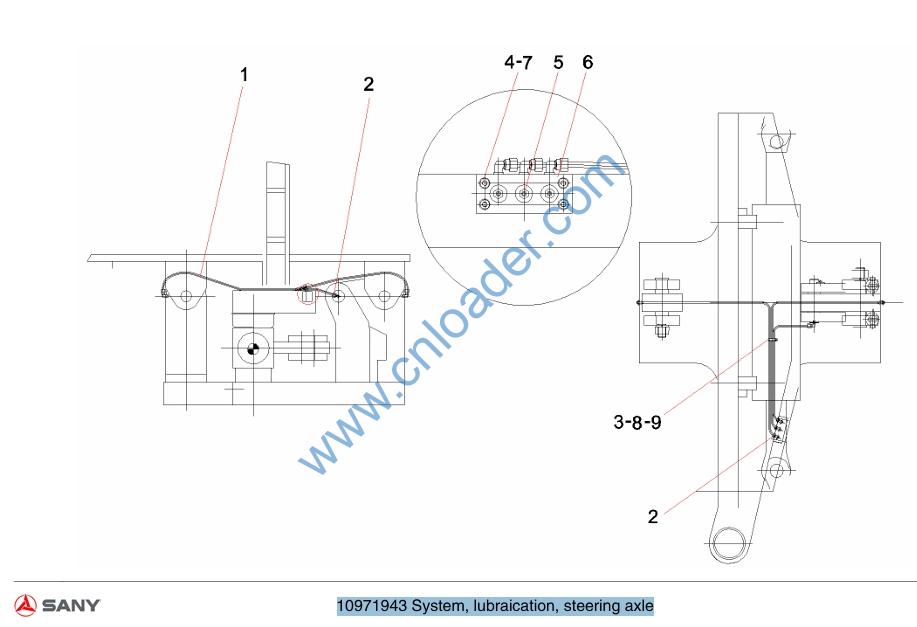

10971943 System, lubraication, steering axle

10971943 System, lubraication, steering axle

1 10632560 Pipe, oil 3
2 A210734400001 Connector, pipe 6
3 A229900010157 Clamp, pipe 1
4 A210204000153 Screw 4
5 A229900010158 Cup, oil 3
6 10697673 Block, multi-channel, 2 1
7 A210401000017 Washer 4
8 A210210000006 Screw 1
9 A210405000005 Washer 1

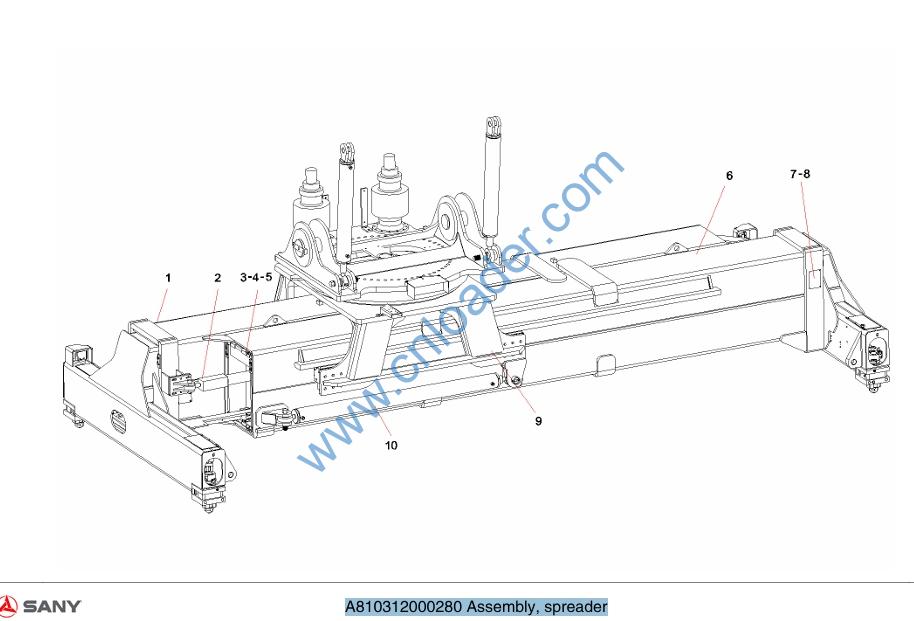

A810312000280 Assembly, spreader

1 A810201050344 System, electrical, spreader 1
2 A810201060288 System, hydraulic 1
3 A210111000011 Bolt 4
4 A210405000011 Washer 4
5 A820101331392 Support, hydraulic pipe 1
6 A810421000786 Assembly, cross beam 1
7 A810508000146 Nameplate 1
8 A210506000016 Rivet 4
9 A810421000785 Assembly, turntable 1
10 10201421 Cyliner, side-shifting 2

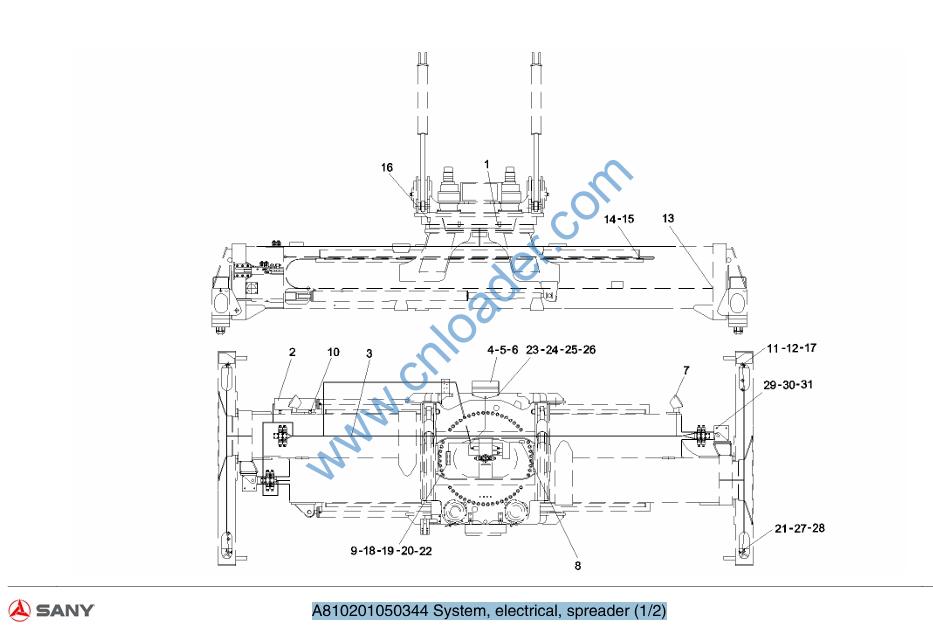

A810201050344 System, electrical, spreader (1/2)

1 B210840000016 Clamp, single pipe 6
2 A810201052736 Assembly, control box, spreader 1
3 A810201058505 Harness, mounting, spreader 1
4 60024057 Lamp, indicator, LED, green 1
5 60024055 Lamp, indicator, LED, red 1
6 60024056 Lamp, indicator, LED, yellow 1
7 B241100000445 Lamp, working, LED 2
8 A240600000055 Switch, proximity 12
9 A241200001060 Plate, cover, 24-core plug 1
10 A810421000802 Stud, damper 4
11 A210405000007 Washer 4
12 A210307000012 Nut 4
13 A249900000970 Joint, cable, nylon 14
14 A230200000176 Clip, wire 11
15 A230200000178 Clamp, cord 2
16 60150757 Switch, proximity 1
17 A210401000017 Washer 4
18 A210307000016 Nut 10
19 A210405000006 Washer 26
20 A210401000016 Washer 30
21 A210210000015 Screw 4
22 A210204000137 Screw 8

23 A210241000001 Screw 9
24 A210405000004 Washer 9
25 A210401000013 Washer 9
26 A210307000014 Nut 9
27 A210204000139 Screw 8
28 A210204000129 Screw 16
29 A210210000006 Screw 4
30 A210405000005 Washer 4
31 A210401000015 Washer 4
