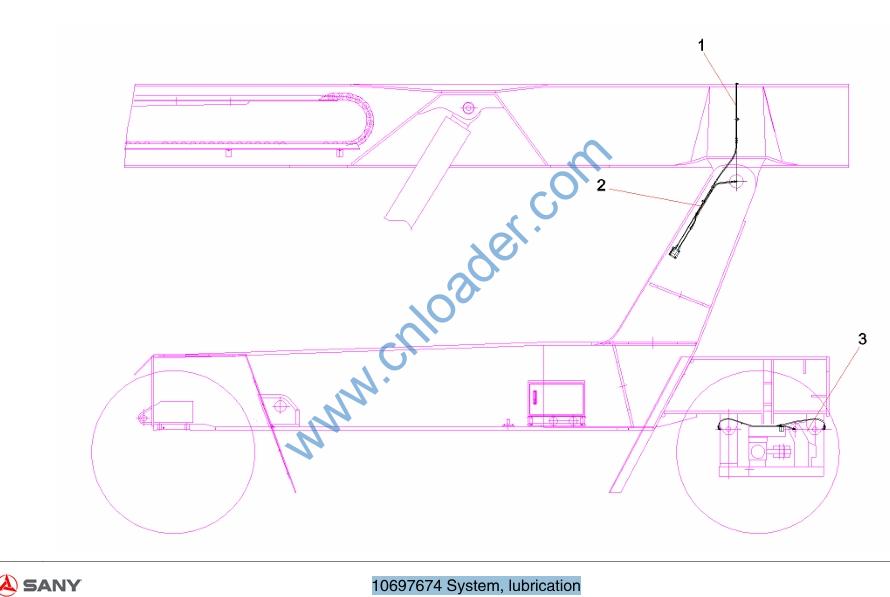

10697674 System, lubrication

10697674 System, lubrication

1 10971941 System, lubrication, frame 1
2 10971942 System, lubrication, boom 1
3 10971943 System, lubraication, steering axle 1

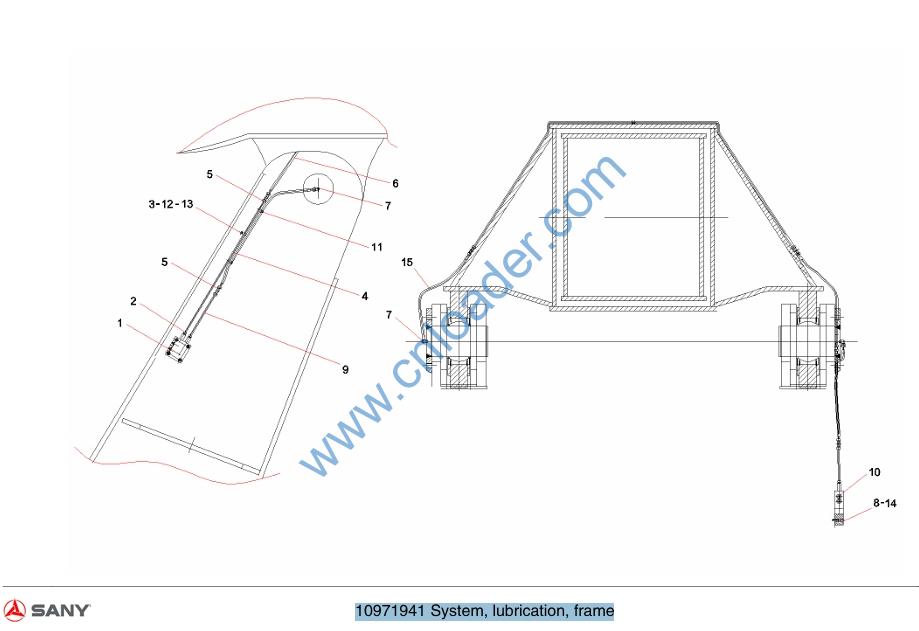

10971941 System, lubrication, frame

1 11015707 Block, multi-channel, 3 1
2 A210711000011 Connector, pipe 2
3 A229900010155 Clamp, pipe 1
4 10632471 Pipe, oil 1
5 A210714000005 Connector, pipe 2
6 A229900010159 Pipe, oil 2
7 A210734400001 Connector, pipe 2
8 A210204000153 Screw 4
9 10632474 Pipe, oil 1
10 A229900010158 Cup, oil 2
11 A239900000065 Strap, cable 2
12 A210210000006 Screw 1
13 A210405000005 Washer 1
14 A210401000017 Washer 4
15 12025358 Hose, straight 1

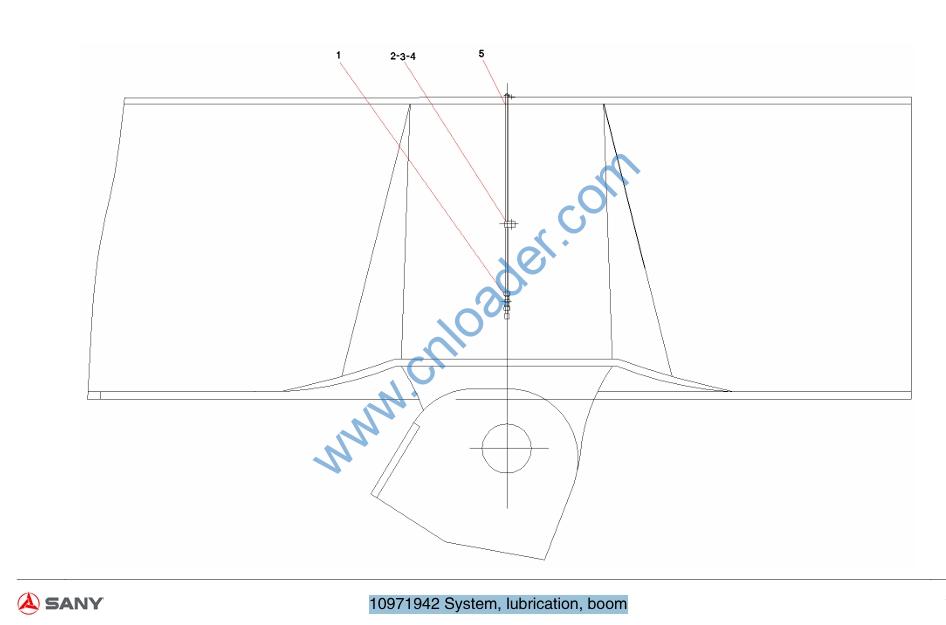

10971942 System, lubrication, boom

1 A229900010155 Clamp, pipe 4
2 10632560 Pipe, oil 1
3 A210210000006 Screw 4
4 A210405000005 Washer 4
5 A210714000005 Connector, pipe 2
