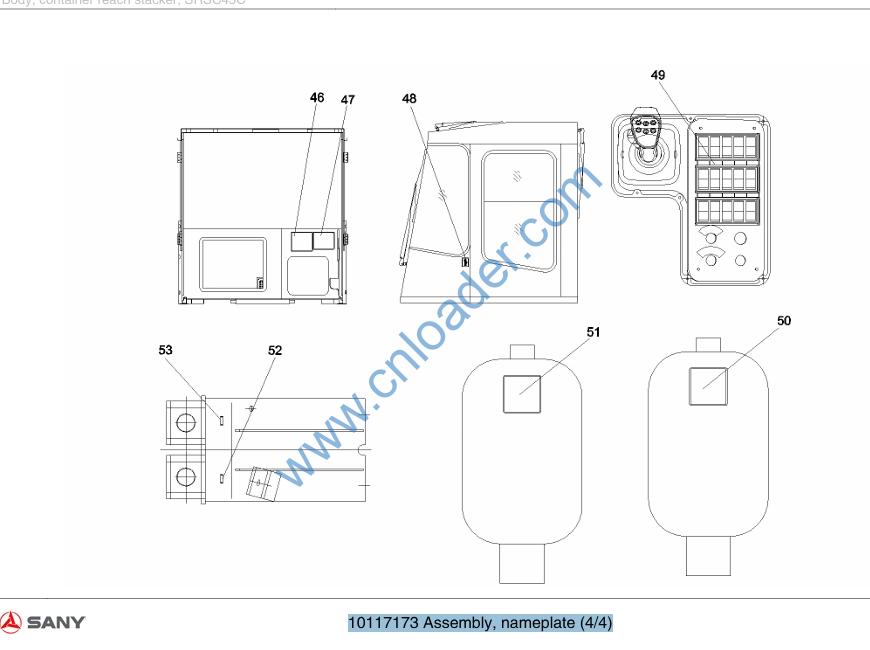

10117173 Assembly, nameplate (4/4)

10117173 Assembly, nameplate (4/4)

46 12120471 Label, warning, operation 1
47 12120476 Label, load 1
48 12033806 Label, preventing fire disaster 1
49 12121934 Label, control function 1
50 10063305 Label, brake accumulator 1
51 10063465 Label, control accumulator 1
52 12072843 Filler, oil, gearbox 1
53 12073419 Filler, oil, engine 1

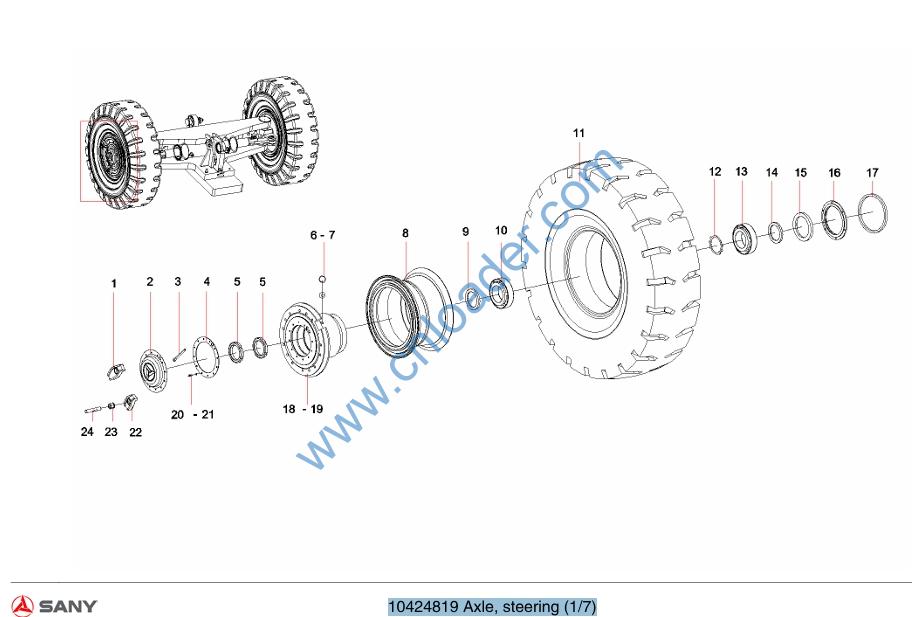

10424819 Axle, steering (1/7)

1 10478964 Plate, pressure 10
2 10038314 Cover 2
3 21012612 Pin 2
4 A820606020254 Pad, sealing 2
5 A820102010523 Nut, round 4
6 A210332000004 Plug, screw 2
7 A210405000011 Washer 2
8 A229900002057 Rim 2
9 A820102010513 Gasket, bearing 2
10 A210604002226 Bearing, rolling 2
11 A210881000093 Tyre 2
12 A210412000137 Washer 2
13 A210604002227 Bearing, rolling 2
14 A230101000029 Seal, oil, WD 2
15 A820102010514 Ring, retaining 2
16 A820101314668 Cover, pressure, oil seal 2
17 A820199003228 Ring, felt 2
18 10195270 Hub 2
19 A229900010158 Cup, oil 10
20 A210111000088 Bolt 44
21 A210401000017 Washer 92
22 10023808 Plate, pressure 20

23 10075008 Nut, hub 30
24 10075009 Stud 30

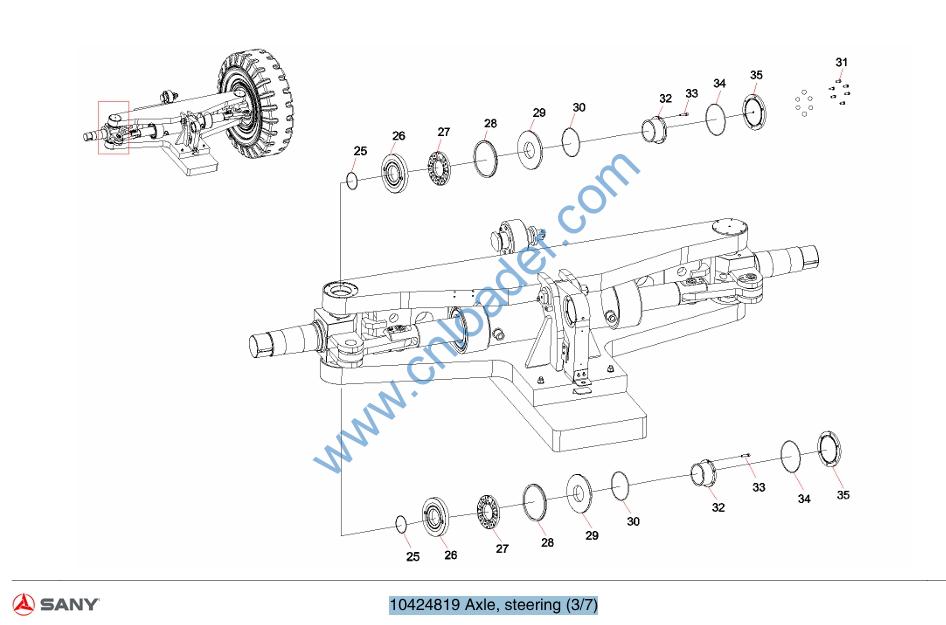

10424819 Axle, steering (3/7)

25 A210609000007 O-ring 4
26 10423038 Plate, backup 4
27 10351520 Plate, backup, sliding bearing 4
28 A230101000674 Seal, oil, VDA 4
29 10863275 Plate, back-up, lower 4
30 A210609000174 O-ring 4
31 A210111000089 Bolt 24
32 10764188 Sleeve, shaft 4
33 24000431 Screw 24
34 A210609000014 O-ring 4
35 10825203 Cover, shaft pin 4

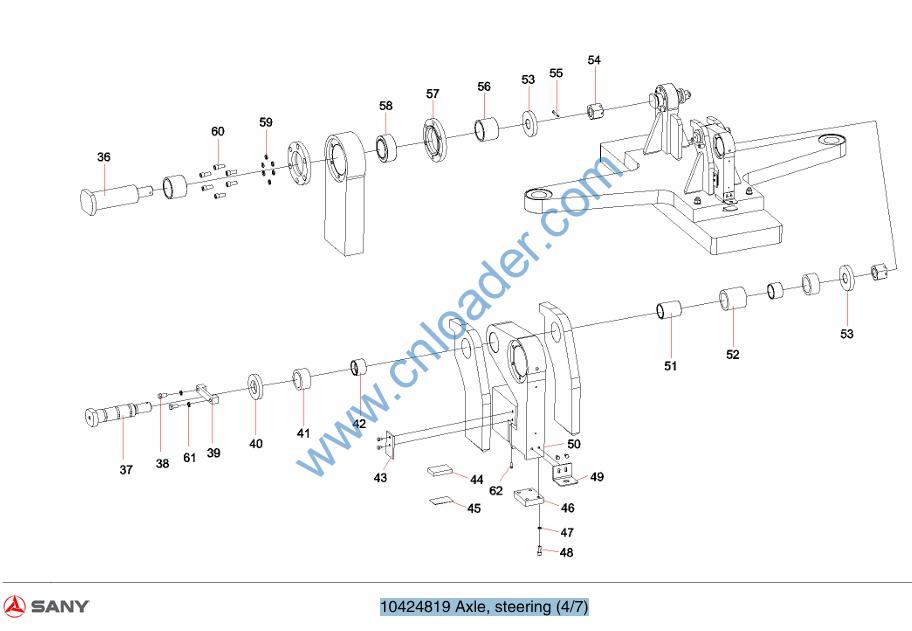

10424819 Axle, steering (4/7)

36 A820301020689 Shaft, rotating 2
37 A820301020690 Shaft, pin 1
38 A210111000119 Bolt 2
39 10575078 Block, retaining 1
40 A820102010538 Washer 1
41 A221500000196 Bearing, rubber 2
42 A820202003381 Sleeve, shaft 2
43 A820101314705 Baffle, sliding block 2
44 A820699000475 Block, sliding, upper 1
45 A820101314675 Gasket, adjusting 3
46 A820699000474 Block, sliding, lower 1
47 A210401000001 Washer 4
48 A210204000161 Screw 4
49 A820101313648 Plate, bent, mounting, switch 1
50 10423742 Lock, chain 1
51 A820202003382 Sleeve, shaft 1
52 A221500000197 Bearing, rubber 1
53 A820102010533 Washer 3
54 A210356000006 Nut 3
55 A210491000023 Pin 3
56 A820202003384 Sleeve, shaft 4
57 A820201000724 Cover, end, bearing 4
