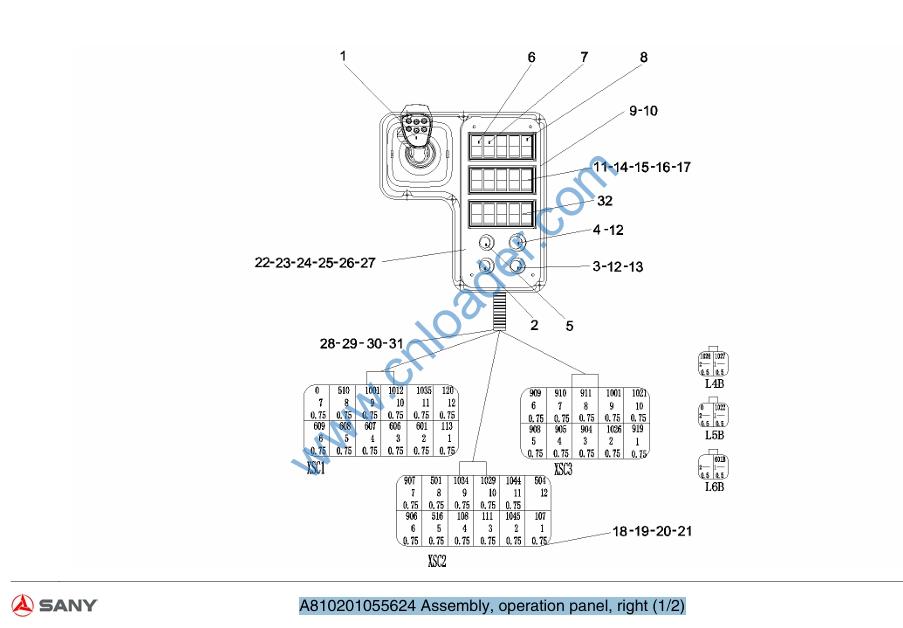

A810201055624 Assembly, operation panel, right (1/2)

1 B249900001173 Handle,operation 1
2 B240500000009 Buzzer, flash 1
3 B240200000059 Button, emergency stop 1
4 B241200000484 Switch, key 1
5 B241200000030 Switch, ignition 1
6 B241200000612 Switch, rocker 1
7 B241200000083 Switch, rocker 5
8 B241200000028 Switch, rocker 2
9 B249900000091 Frame 6
10 B249900000092 Frame 9
11 B241200000185 Assembly, protective sleeve, eight-wire socket 9
12 B240200000081 Block, contact, normally-opened 3
13 B240200000082 Block, contact, normally-closed 2
14 B241800000043 Card, symbol 1
15 B241800000009 Card, symbol 6
16 B241800000023 Card, symbol 1
17 A241000000040 socket,Sectional 20
18 B241200000594 Sleeve, protection, 12-pin socket 3
19 B241200000588 Lock, secondary pole, 12-wire, socket 3
20 A242000000007 Terminal 30
21 A241000000105 Socket 2
22 B241200000591 Sleeve, protection, 3-wire socket 1

23 B241200000585 Lock, secondary pole, 3-wire, socket 1
24 B241200000590 Sleeve, protective, socket, two-wire 3
25 B241200000584 Lock, secondary pole, 2-line (socket) 3
26 B229900001093 Socket 45
27 A241900000055 Wire, black 40
28 A239900000563 Hose, nylon 2
29 A241400000018 Tube, heat-shrinking 1
30 A241400000180 Tube, heat-shrinkage 1
31 B290000000355 Cover 6
32 B241800000001 Card, symbol 1

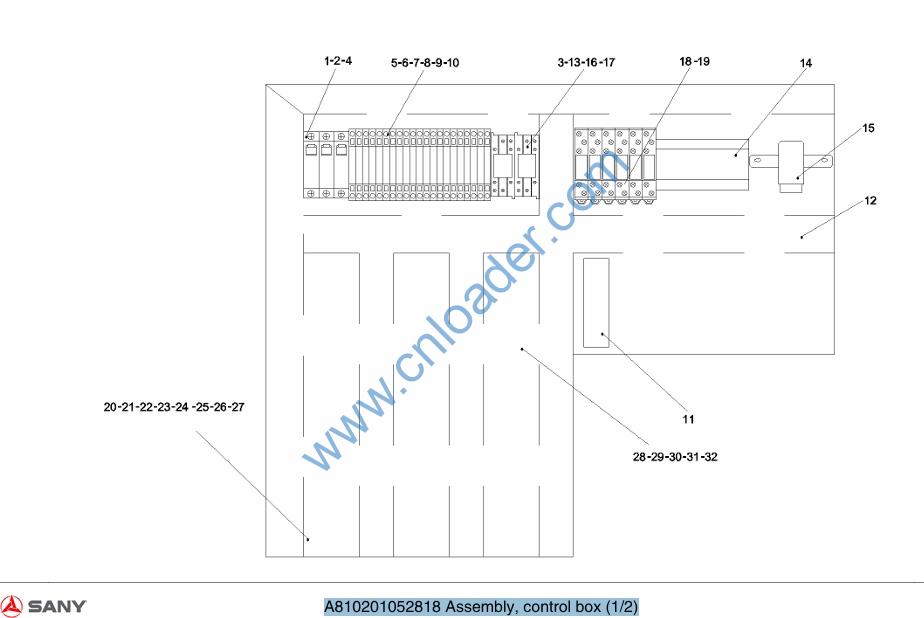

A810201052818 Assembly, control box (1/2)

1 A241200000220 Breaker, plastic housing 1
2 A241200000221 Breaker, monopole 1
3 B241600000002 Clip, self-holding 4
4 A241200000225 Breaker, monopole 1
5 A242000000381 Terminal, wiring 21
6 23003013 Jumper, adjacent 18
7 B241300000020 Fuse 9
8 B241300000021 Fuse 11
9 B241300000022 Fuse 1
10 B241300000024 Fuse 1
11 B241900000020 Busbar, copper 1
12 60035696 Duct, cabling 3
13 A241600000022 Ring, clamping 1
14 A810299000548 Assembly, change-over plate, reach stacker, Sany Port 1
15 B240700000265 Relay, interval, wiper 1
16 B240700000114 Relay, intermediate 2
17 B240700000125 Seat, relay 2
18 B240700000399 Relay, intermediate 5
19 B240700000395 Seat, relay 5
20 A241000000040 socket,Sectional 100
21 B242000000017 Terminal, wiring 159
22 A242000000055 Terminal, wiring 9

23 A242000000306 Plate, end and spacer 3
24 A242000000023 Terminal 30
25 A242000000390 Terminal 200
26 A242000000013 Terminal 100
27 A242000000004 Terminal 10
28 A241600000002 Ring, clamping 1
29 A241900000152 Wire, black 2
30 A241900000038 Wire, black 100
31 A241400000018 Tube, heat-shrinking 2
32 A239900000052 Strap, nylon 80
