SY335C9I2KH hydraulic excavator SANY SBV

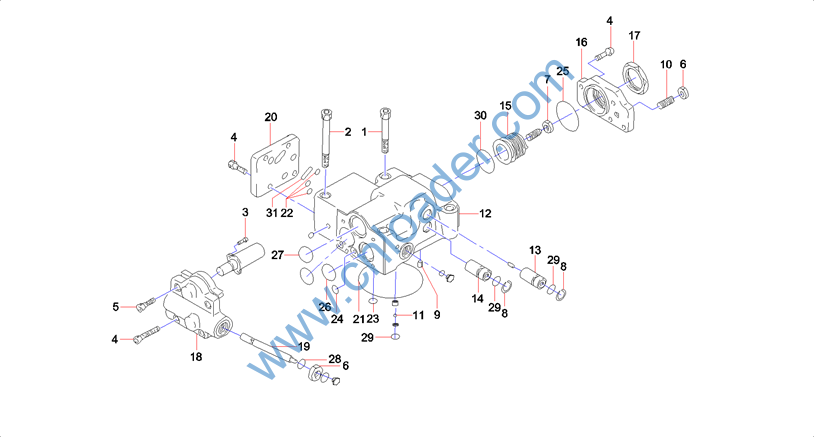

零件代码 PART NUMBER

名称 PART NAME

60008694

O形圈

O-ring

60008707

O形圈

O-ring

60008708

O形圈

O-ring

60008696

O形圈

O-ring

60008693

O形圈

O-ring

60008704

O形圈

O-ring

60008692

O形圈

O-ring

60008709

O形圈

O-ring

60008697

O形圈

O-ring

60008706

O形圈

O-ring

60008698

O形圈

O-ring

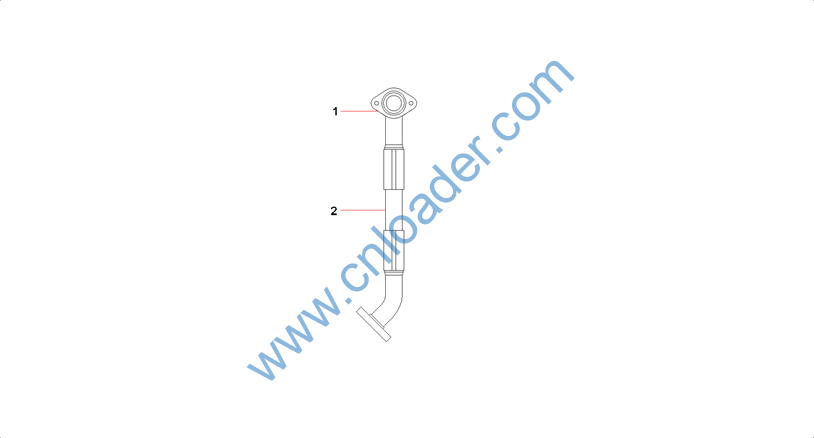

零件代码 PART NUMBER

名称 PART NAME

A820203001389

法兰    Flange

B230103005131

胶管    Rubber Hose








零件代码 PART NUMBER

名称 PART NAME

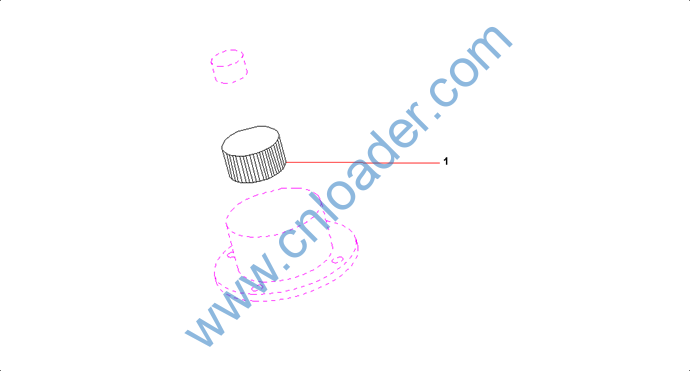

60186788

呼吸阀滤芯    Filter, hydaulic tank breather

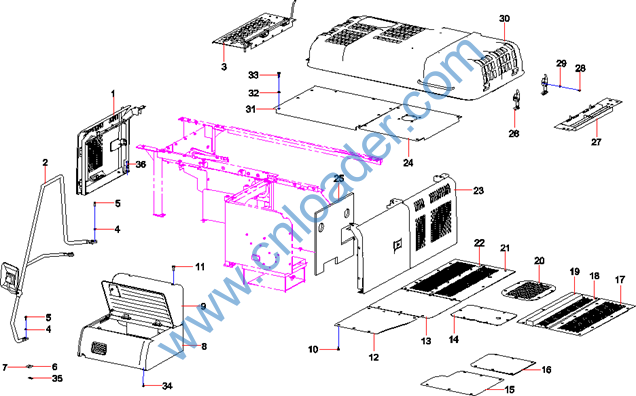

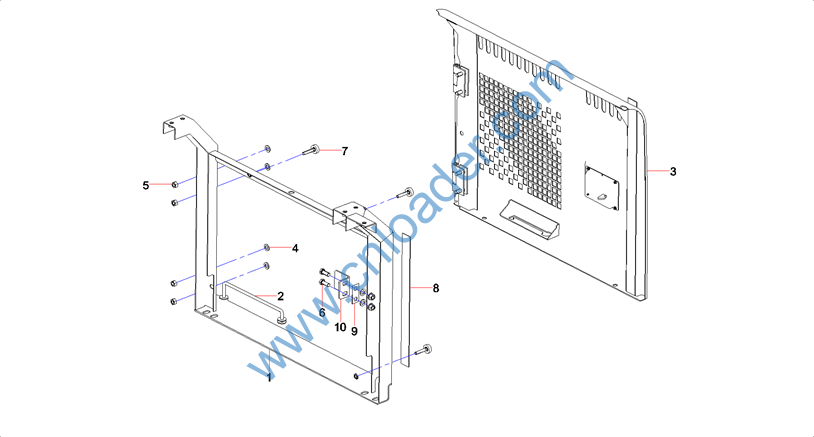

零件代码 PART NUMBER

名称 PART NAME

12855224

右门总成    Right Door Assy. SY335C9H.1.6.3

14099806

扶手总成    hand rail

10123768

右上后盖    Right upper rear

60262513

垫圈12GB1230 锌镍合金    Washer

60262509

螺栓M12×40GB5783 10.9级 锌镍    Bolt

A820101210711

垫片    Washer

12006405

垫片    Washer

12909447

工具箱总成    Battery Box Assy SY300E.1.6.10

12909452

装饰盖    Trim cover SY300E.1.6.11

A210111000202

螺栓    Bolt

60262507

螺栓M12×25GB5783 10.9级 锌镍    Bolt

13586505

燃油箱底盖板    Bottom covered plate of fuel tank

13576737

液压油箱底盖板    Bottom cover plate of hydraulic oil

13576739

主阀下盖板    Main valve seat cover plate

13576734

驾驶室底前盖板    cab bottom cover

13576733

后中盖板    back cover plate(M)

13423728

左后底盖板    Back cover plate(L)

13423729

左中底盖板    Middle cover plate(L)

13705616

底海绵    Sponge

10179546

发动机底盖板    Bottom Cover Plate of










零件代码 PART NUMBER

名称 PART NAME

A810502012251

右后底盖板    Right rear bottom cover

A820101342509

右后底盖板    Right rear bottom cover

12697690

左门总成    left door assy SY305C9I2K.1.6.12

12697699

空滤盖板    Air filter plate SY305C9I2K.1.6.13

12855576

降噪海绵    sponge

A222200000065

机罩锁    Machine shed lock assembly

A810502012207

左上后盖    Left upper rear

60262506

螺栓M8×20GB5783 10.9级 锌镍合    Bolt

60262510

垫圈8GB96.1 锌镍合金    Washer

11256386

机顶罩总成    Bonnet Assy. SY335C8I2K.1.6.6A

11945259

中上盖板    Middle(B) plate

60262511

垫圈12GB96.1 锌镍合金    Washer

60262508

螺栓M12×30GB5783 10.9级 锌镍    Bolt

A210111000204

螺栓    Bolt

12006404

垫片    Washer

A210111000101

螺栓M12×25GB5783 10.9级    Bolt

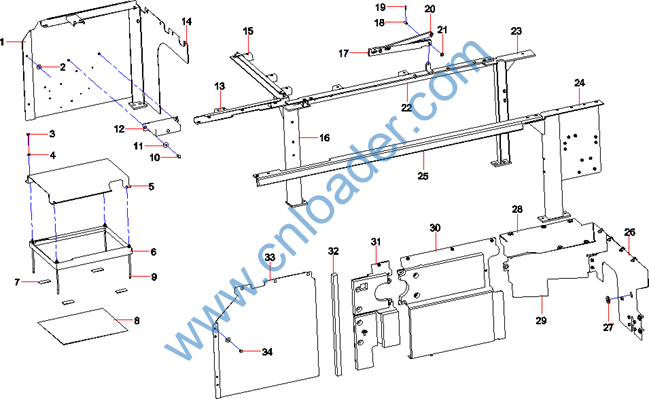

零件代码 PART NUMBER

名称 PART NAME

12697701

左前隔板总成

Rear support of

60060546

垫圈10GB96.1 达克锈

Washer

A210307000036

螺母

Nut

A210491000120

垫圈

washer

12602227

电瓶保护罩

Battery protective

11583629

蓄电池固定架

Battery fixed

A820606030643

蓄电池胶垫

Rubber pad, battery

12569036

蓄电池胶垫

Battery rubber pad

11592968

双头螺柱

Stud, battery hold down

A210111000199

螺栓M12×20GB5783 10.9级

Bolt

60060548

垫圈12GB96.1 达克锈

Washer

12739184

继电器防护罩

Relay Protective cover

12456158

空滤横梁

air cleaner cross

11945338

空滤挡板

Air cleaner baffleSY310C1.1.6-

11945285

连接梁

Connection Beam

11945719

左前支架

Left(F) bracket

A820302010101

支杆

Support, hood

A210508000009

销轴

Pin

A210491000014

Pin, cotter

A810502015065

撑杆

Rod, hood support








零件代码 PART NUMBER

名称 PART NAME

A210491000121

垫圈

Washer

A810502015192

前横梁

Front cross rail

A810502015197

右前支架

Right(F) bracketSY310C1.1.6.18

A810502015195

右后支架

Right(B) bracketSY310C1.1.6.22

A810502015193

后横梁

Rear beam

12859666

主泵上隔板

Upper partition plate

11169936

橡胶护套

Rubber protective sleeve

10122468

侧隔板主体

Main body of side clapboard

12859668

主阀下隔板主体

Main body of main valve lower

12859671

柴油机上隔板

engine clapboard

A810502012215

柴油机下隔板

engine clapboard

A820699000954

海绵

Foam

12456160

挡板主体

baffle bodySY310C1.1.6.58C.1

A210111000012

螺栓 M10×20GB5783 10.9级

Bolt
