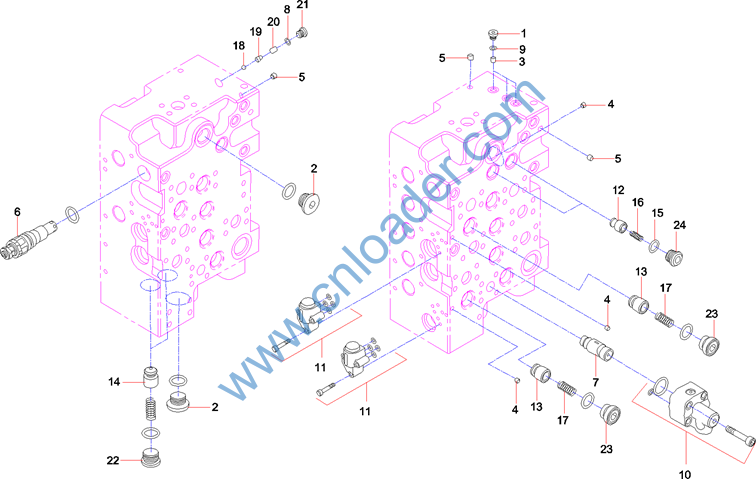

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60100467 |
堵 |
Plug |
|
60008712 |
堵 |
Plug |
|
60100492 |
节流阀 |
Valve, relief |
|
60008728 |
紧定螺钉 |
Screw, set |
|
60008820 |
堵 |
Plug |
|
60150690 |
主溢流阀 |
Ass’Y Main Relief Valve |
|
60105087 |
BP阀芯 |
Spool,BP valve |
|
60008696 |
O形圈 |
O-ring |
|
60008708 |
O形圈 |
O-ring |
|
60105086 |
BP阀体 |
Body,BP valve |
|
60100493 |
控制阀组件 |
Valve GP, control |
|
60038108 |
提升阀 |
Valve, lift |
|
60008784 |
单向阀 |
Valve, check |
|
60100475 |
单向阀 |
Valve, check |
|
60008703 |
O形圈 |
O-ring |
|
60100504 |
弹簧 |
Spring |
|
60008765 |
弹簧 |
Spring, large |
|
60075545 |
球 |
Ball |
|
60075575 |
节流阀 |
Seat, ball |
|
60075592 |
弹簧 |
Spring |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
60008714 |
堵 Plug |
|
60008715 |
堵 Plug |
|
60008779 |
堵 Plug |
|
60038656 |
油塞 Plug, oil |
|

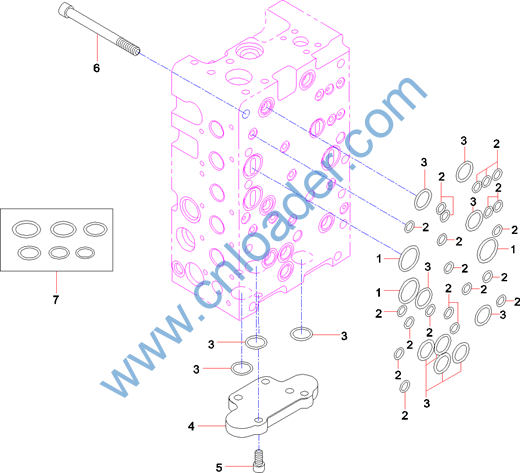

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60100517 |
O形圈 |
O-ring |
|
60100515 |
O形圈 |
O-ring |
|
60100513 |
O形圈 |
O-ring |
|
60100470 |
盖 |
Cover |
|
60100512 |
内六角螺钉 |
Screw, socket head |
|
60100510 |
螺栓 |
Bolt, socket head |
|
60204226 |
多路阀维修包 |
Multi-way valve repairing bag |
|

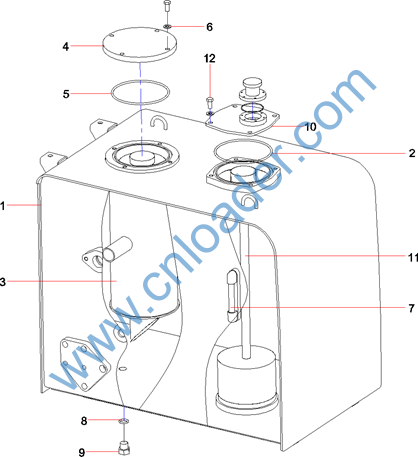

零件代码 PART NUMBER |
名称 PART NAME |
|
|
13311411 |
油箱组焊件 |
Hydraulic oil tank body |
|
B230101000588 |
O形圈 |
O-ring |
|
60200365 |
回油过滤器 |
Filter, return oil |
|
12731156 |
回油盖 |
Oil return cover |
|
60112246 |
O形圈 |
O-ring |
|
60262512 |
垫圈12GB97.1 锌镍合金 |
Washer |
|
A250100000174 |
液位计 |
Gauge, sight glass |
|
B230101000356 |
O形圈 |
O-Ring-23.7 |
|
10514225 |
堵头 |
Screw Plug |
|
12731158 |
吸油盖 |
Suction cover |
|
60101257 |
吸油滤芯总成 |
Oil suction filter |
|
60262507 |
螺栓M12×25GB5783 10.9级 锌镍 |
Bolt |
|

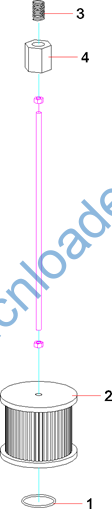

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60222778 |
O形圈 |
O-ring |
|
60222779 |
滤芯 |
Element, filter |
|
60222780 |
弹簧 |
Spring |
|
60222781 |
螺母 |
Nut |
|

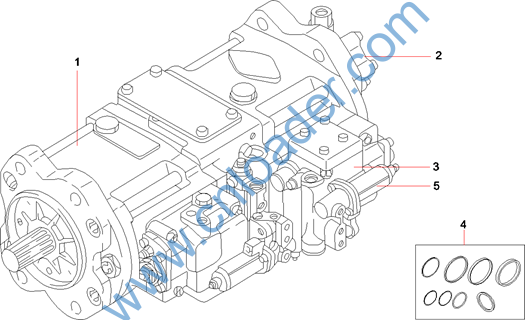

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60155077 |
主泵 |
Main Pump |
|
60153895 |
先导泵 |
Leading Pump |
|
60153897 |
调节器 |
Regulator |
|
60197254 |
主泵维修包 |
Main Pump Repair Kit |
|
60081917 |
比例减压阀 |
Valve, proportional reducing |
|

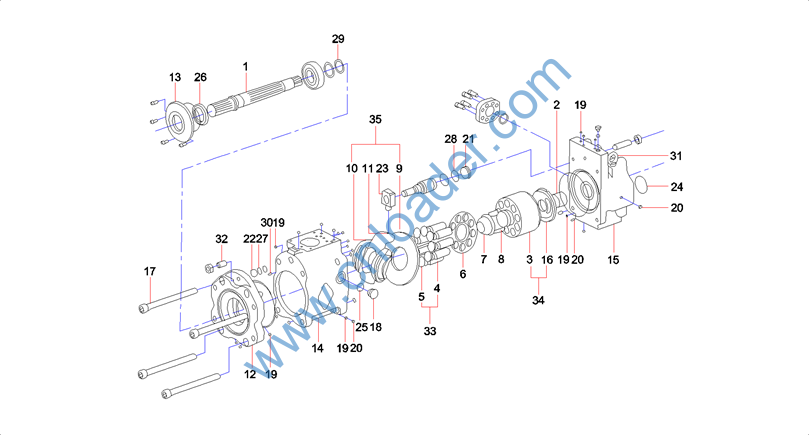

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60075452 |
驱动轴 |
Shaft(G) drive |
|
60006939 |
轴承 |
bearing |
|
60125196 |
缸体 |
Cylinder body |
|
60125205 |
柱塞 |
Plunger |
|
60125190 |
滑靴 |
Boots,sliding |
|
60075467 |
压板 |
Plate set |
|
60015817 |
球面衬套 |
Spherical bushing |
|
60054345 |
弹簧 |
Spring |
|
60015757 |
滑板 |
Plate, sliding |
|
60015821 |
斜盘 |
Plate, swash |
|
60075449 |
倾斜衬套 |
Sleeve, incline |
|
60064450 |
斜盘支撑台 |
Support, swash plate |
|
60075480 |
油封盖 |
Oil seal cover |
|
60125192 |
泵体 |
Pump body |
|
60075385 |
配油盖 |
Cover, oil distribution |
|
60125201 |
配油盘 |
Plate,oil,distribution |
|
60075438 |
螺钉 |
Screw |
|
60039400 |
油塞 |
Plug, oil |
|
60008728 |
紧定螺钉 |
Screw, set |
|
60008820 |
堵 |
Plug |
