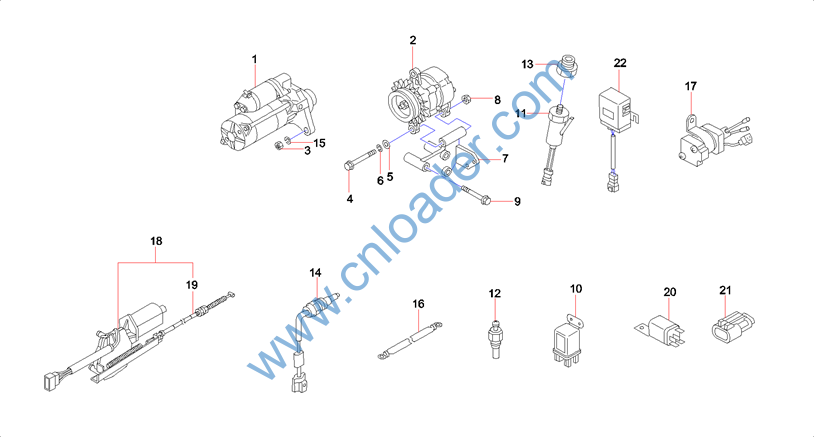

零件代码 PART NUMBER |
名称 PART NAME |
|
B249900001339 |
连接器 Connector |
|
B229900002661 |
急速预热装置控制器 Controller, Preheater (Rapid) |
|

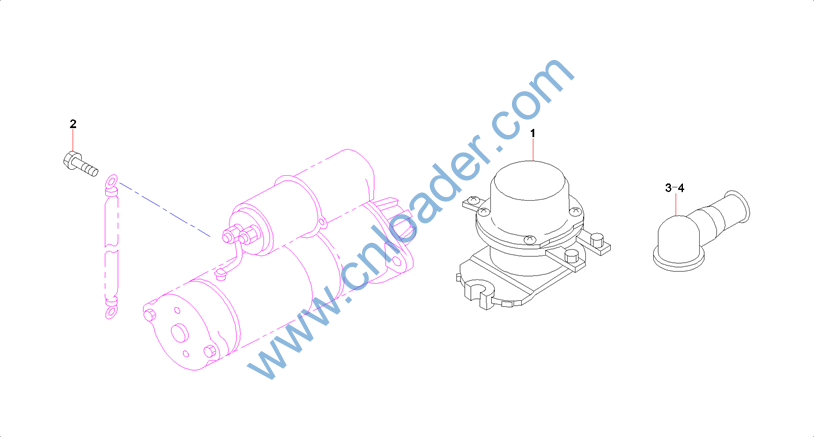

零件代码 PART NUMBER |
名称 PART NAME |
|
B240700000383 |
直流接触器 Battery relay |
|
B229900004860 |
螺栓 M10×20凸缘 Bolt 028051-0200 M10×20 flange |
|
B229900004320 |
护套 Sleeve, Wire |
|
B229900004324 |
护套 Sleeve, Wire |
|

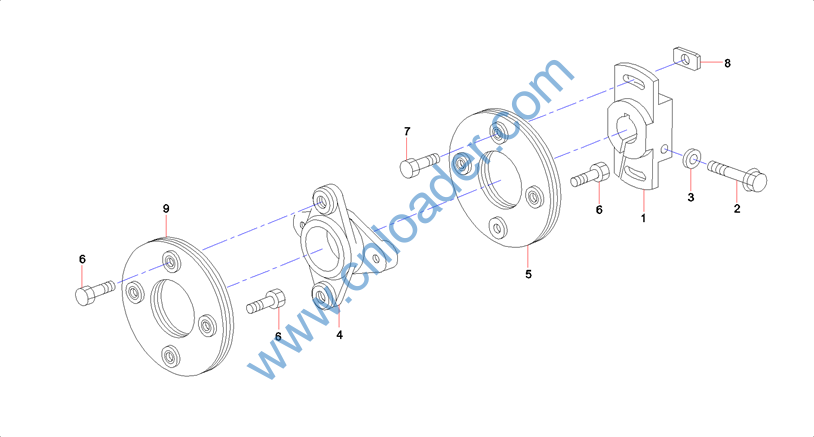

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900004376 |
联结法兰 |
Coupler AS |
|
B229900004940 |
螺栓 |
Bolt |
|
B229900004596 |
垫圈 |
Washer |
|
B229900004377 |
联结法兰 |
Connecting flange |
|
B229900004236 |
法兰盘 |
Plate, Connecting |
|
B229900004939 |
螺栓 |
Bolt |
|
B229900004941 |
螺栓 |
Bolt |
|
B229900004210 |
垫 |
Plate |
|
B229900004235 |
法兰盘 |
Flange Shaft |
|

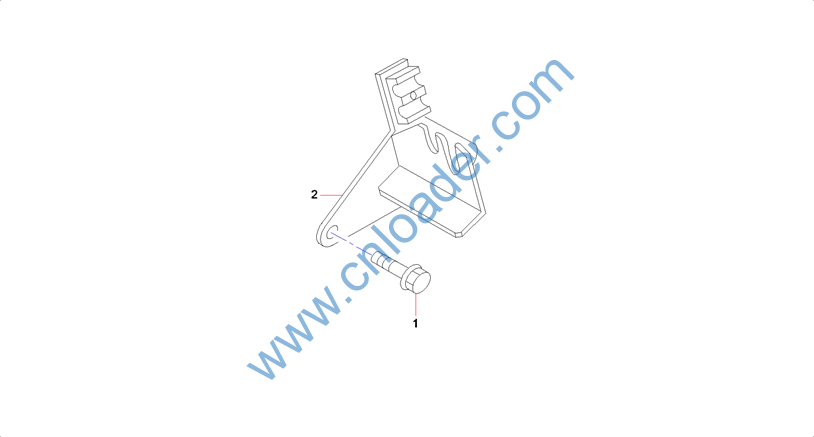

零件代码 PART NUMBER |
名称 PART NAME |
|
B229900004897 |
螺栓 M8×25凸缘 Bolt 028650-8250 M8×25 flange |
|
B229900005096 |
支架 Bracket |
|

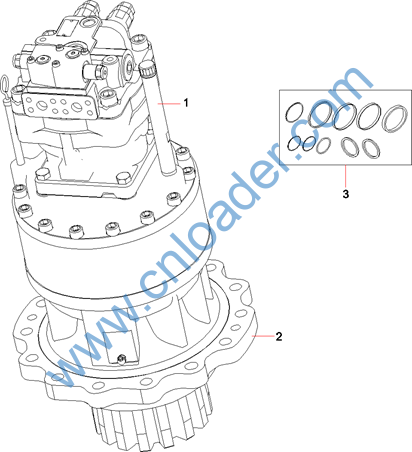

零件代码 PART NUMBER |
名称 PART NAME |
|
60180837 |
回转马达 Rotary motor |
|
60042755 |
减速机 Gearbox |
|
60204228 |
回转机构维修包 Maintenance bag of slewing gear |
|

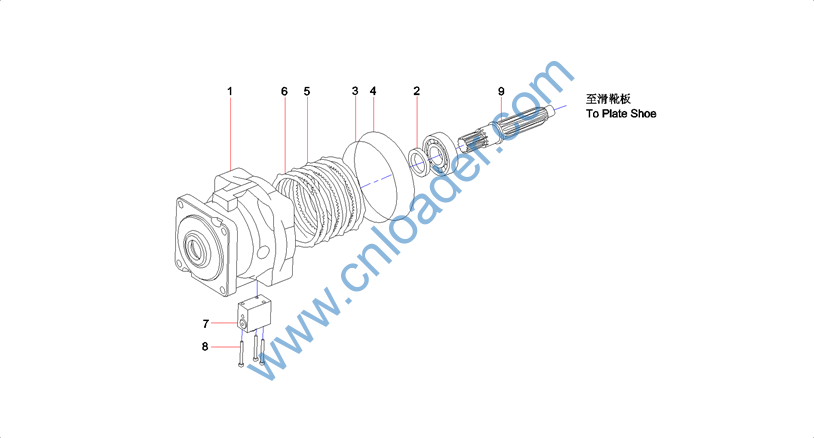

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60081480 |
座 |
Seat |
|
60039294 |
油密封 |
Seal, oil |
|
60039425 |
O形圈 |
O-RING |
|
60039426 |
O形圈 |
O-ring |
|
B229900003195 |
30T回转制动主动片 |
Driven piece, swing brake |
|
B229900003194 |
30T回转制动从动片 |
Driven piece, swing brake |
|
B220401000688 |
回转马达延时阀 |
Valve,brake,delay |
|
60038566 |
内六角螺栓 |
Screw, socket head |
|
60081466 |
驱动轴 |
Shaft drive |
|

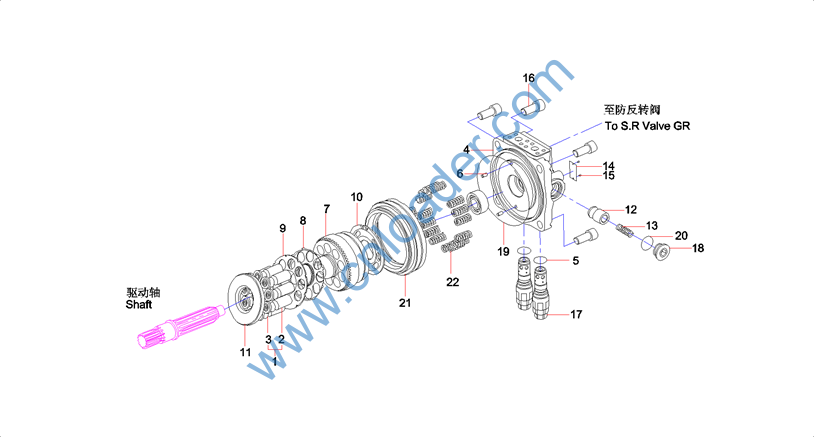

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60081457 |
活塞组件 |
Piston GP |
|
60039347 |
活塞 |
Piston |
|
60081408 |
滑靴 |
Shoe |
|
60039358 |
壳体总成 |
Assembly, housing |
|
60038721 |
O形圈 |
O-ring |
|
60039385 |
销 |
Pin |
|
60039338 |
缸体 |
Cylinder block |
|
60039322 |
弹簧座 |
Seat, spring |
|
60039382 |
托架 |
Bracket |
|
60039375 |
配油盘 |
Tray, oil distribution |
|
60039336 |
阀座 |
Seat, valve |
|
60039351 |
活塞 |
Piston |
|
60081437 |
弹簧 |
Spring |
|
60038547 |
铭牌 |
Nameplate |
|
60038620 |
销子 |
Pin |
|
60039367 |
内六角螺钉 |
Screw, socket head |
|
60110639 |
回转马达溢流阀芯 |
Spool, relief valve, swing motor |
|
60039401 |
油塞 |
Plug, oil |
|
60039429 |
O形圈 |
O-RING |
|
60039423 |
O形圈 |
O-RING |
